STEGO
The heat source in this heating fan is a resistor element with an integrated safety cut-out.
Â
Thanks to the fan, good air circulation is obtained, while at the same time high heating output can be achieved. The heating fan is therefore a good choice for installation in, for example, enclosures and outdoor cabinets (base stations, ticket vending machines, etc.) for avoiding condensation or maintaining the temperature above a specified level.
Â
To protect against overheating due to fan failure an automatic internal resetable cut out is included as standard.
Â
Â
General Data |
|
|---|---|
| Mounting | Clip on, DIN rail |
| Life span | 50 000 h @ +25 °C |
| Heat source | Resistor element, integrated over heat protection |
| Nominal voltage | 230 V AC |

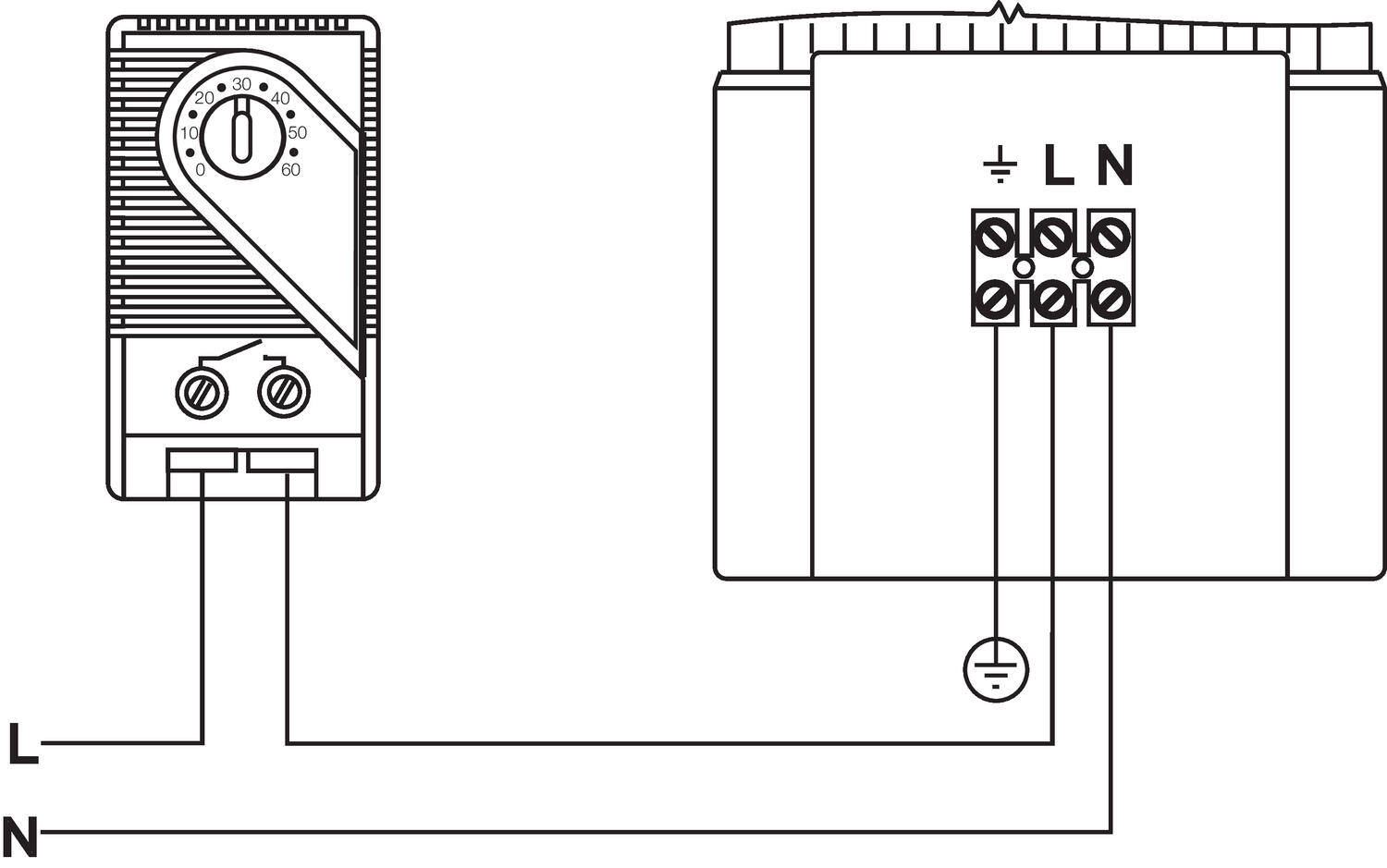

| Connection type | 3-pole screw terminal for 1.5 mm² RK cable |
| Recommended fuse (slow blow) | 2 A |
| Frequency | 50/60 Hz |
| Heat output | 250 W |
| Air capacity | 45 m³/h |
| Material of body | Eloxed aluminum |
| Heater body | Anodized aluminum, Plastic |

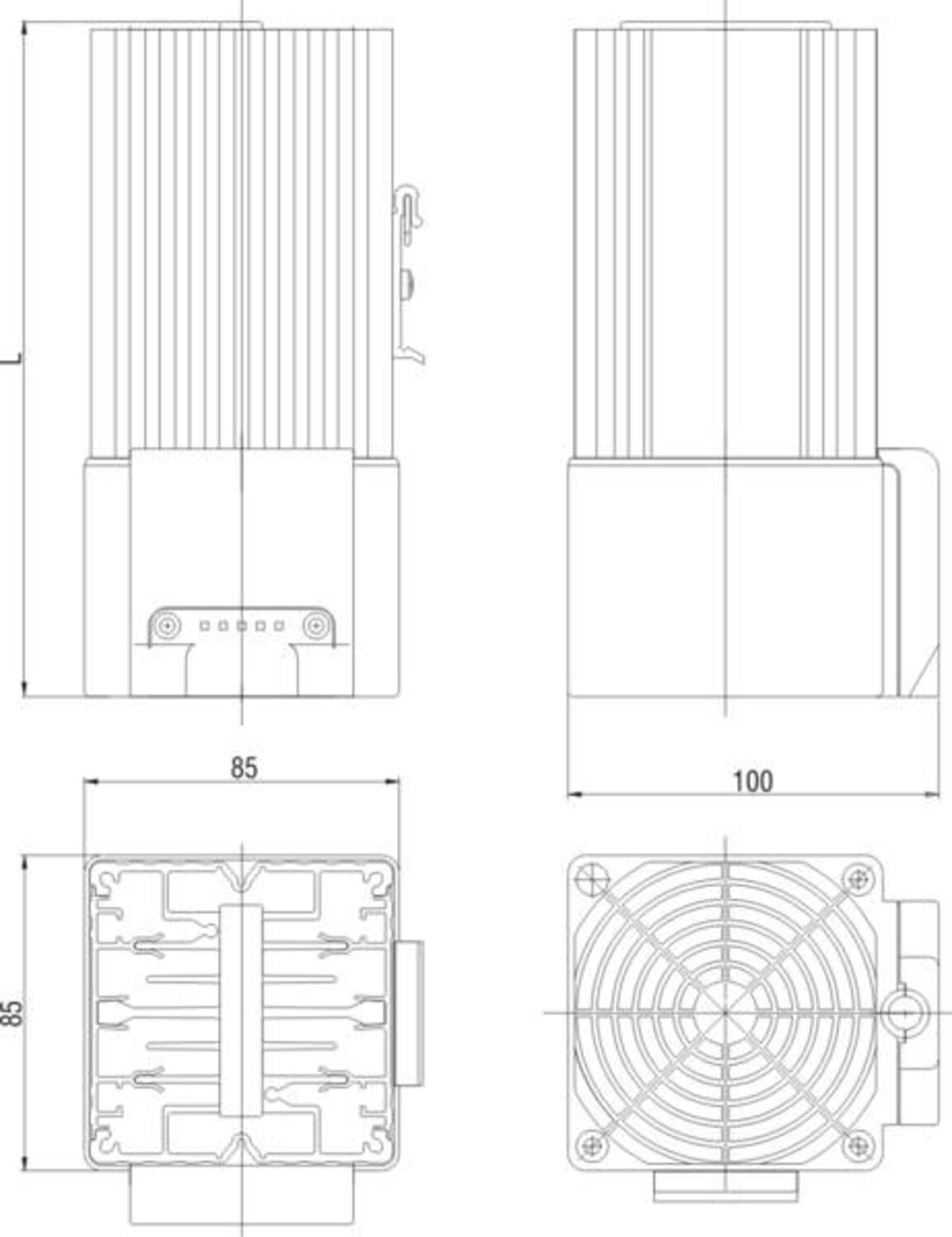

Dimensions |
|
| Weight | 1,1 kg |
| Tightening torque for cable | 0,8 Nm |
| Height | 182 mm |
Safety & Approvals |
|
| Flammability class | UL94-V0 |
*Invisible Heading* |
|
|---|---|
| IP class | IP20 |
| Overheating protection | Integrated overheating protection with auto-reset |
| Protection class | I (earthed) |
| Approvals | CE, cULus, EAC, RoHS, UL, UL E150057, UL 508, VDE |
Rated Operating Conditions |
|
| Operational temperature | -45°C ... +70°C |
| Storage temperature | -45°C ... +70°C |
| Humidity storage | <90% RH |
| Operating humidity | < 90% RH |
| Voltage min | 230 V ac |
| Plastic cover | Black, UL94 V-0 |
| Voltage max | 230 V ac |
| Fan | Axial fan, ball bearing |
| Housing | Anonized aluminium |
The heat source in this heating fan is a resistor element with an integrated safety cut-out.
Â
Thanks to the fan, good air circulation is obtained, while at the same time high heating output can be achieved. The heating fan is therefore a good choice for installation in, for example, enclosures and outdoor cabinets (base stations, ticket vending machines, etc.) for avoiding condensation or maintaining the temperature above a specified level.
Â
To protect against overheating due to fan failure an automatic internal resetable cut out is included as standard.
Â
Â
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.
Do you require signalling devices and beacons in your production process? Download our latest whitepaper!
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.
Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Heat source | Nominal voltage | Recommended fuse (slow blow) | Heat output | Air capacity | Weight | Height | Voltage min | Plastic cover | Voltage max | Fan | Housing | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
HGL 046 250W Fan heater, 230V ac,
Art:
04640.0-00
Copied
|
Resistor element, integrated over heat protection
|
230 V AC
|
2 A
|
250 W
|
45 m³/h
|
1,1 kg
|
182 mm
|
230 V ac
|
Black, UL94 V-0
|
230 V ac
|
Axial fan, ball bearing
|
Anonized aluminium
|
| ||
|
HGL 046 400W Fan heater, 230V ac,
Art:
04641.0-00
Copied
|
Resistor element, integrated over heat protection
|
230 V AC
|
4 A
|
400 W
|
45 m³/h
|
1,4 kg
|
222 mm
|
230 V ac
|
Black, UL94 V-0
|
230 V ac
|
Axial fan, ball bearing
|
Anonized aluminium
|
| ||
|
HGL 046 250W Fan heater, 120V ac,
Art:
04640.9-00
Copied
|
|
120 V AC
|
4 A
|
250 W
|
45 m³/h
|
1,1 kg
|
182 mm
|
120 V ac
|
|
120 V ac
|
|
|
| ||
|
HGL 046 400W Fan heater, 120V ac,
Art:
04641.9-00
Copied
|
|
120 V AC
|
6,3 A
|
400 W
|
45 m³/h
|
1,4 kg
|
222 mm
|
120 V ac
|
|
120 V ac
|
|
|
| ||
|
HGL 046 250W Fan heater, 24V dc
Art:
04640.1-00
Copied
|
Resistor element, integrated over heat protection
|
24 V DC
|
|
250 W
|
54 m³/h
|
1,1 kg
|
182 mm
|
24 V dc
|
Black, UL94 V-0
|
24 V dc
|
Axial fan, ball bearing
|
Anonized aluminium
|
| ||
|
HGL 046 250W Fan heater, 48V dc
Art:
04640.2-00
Copied
|
Resistor element, integrated over heat protection
|
48 V DC
|
|
250 W
|
54 m³/h
|
1,1 kg
|
182 mm
|
48 V dc
|
Black, UL94 V-0
|
48 V dc
|
Axial fan, ball bearing
|
Anonized aluminium
|
| ||
|
HGL 046 400W Fan heater, 48V dc
Art:
04641.2-00
Copied
|
Resistor element, integrated over heat protection
|
48 V DC
|
|
400 W
|
54 m³/h
|
1,4 kg
|
222 mm
|
48 V dc
|
Black, UL94 V-0
|
48 V dc
|
Axial fan, ball bearing
|
Anonized aluminium
|
|
Select a variant in the list
