STEGO

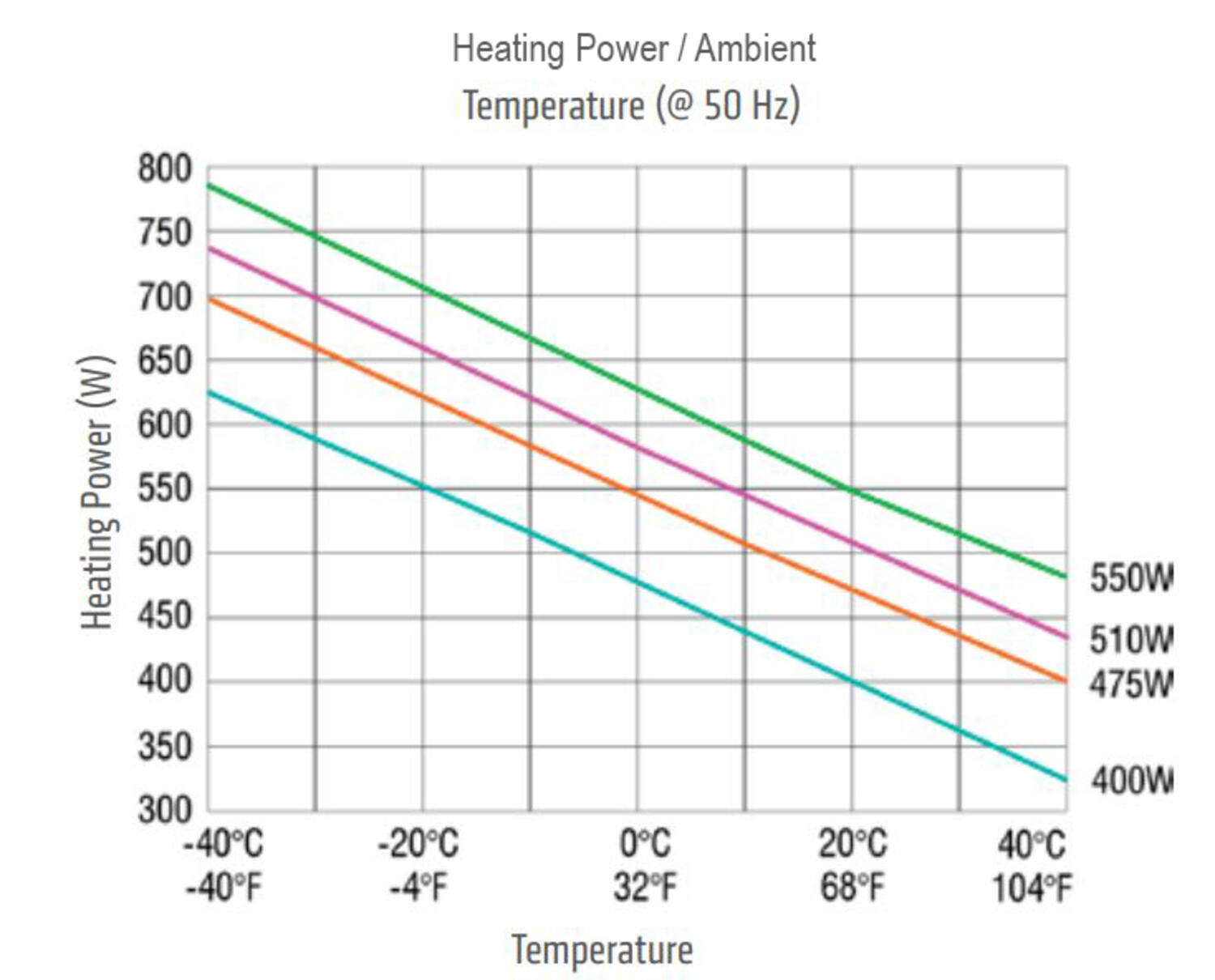

The heat source in this fan is a PTC element – a semiconductor that adapts its output to the ambient temperature. The colder it is, the more heat it produces. The PTC element has a high starting current and provides full output almost immediately.
The fan has an integrated adjustable thermostat, and can for example, be installed in enclosures indoors or outdoors to maintain an even temperature and thus avoid condensation, or it can be used to assure that the temperature is kept above a lowest permitted level.
The CR 027 is designed to be clip in to din rail
General Data |
|
|---|---|
| Mounting | Clip on, DIN rail |
| Life span | 50 000 h @ +25 °C |
| Inrush max | 11 A |
| Colour | Light grey |
| Heat source | Self-regulating PTC-element |
| Nominal voltage | 230 V AC |
| Connection type | 2-pole terminal for 2.5 mm² cable. Tightening torque for connection screws max. 0.8 Nm |
| Recommended fuse (slow blow) | 10 A |
| Number of fans | 1 |
| Frequency | 50/60 Hz |
| Heat output | 475 W |
| Air capacity | 35 m³/h |
| Material of body | Plastic |
| Heater body | Plastic |

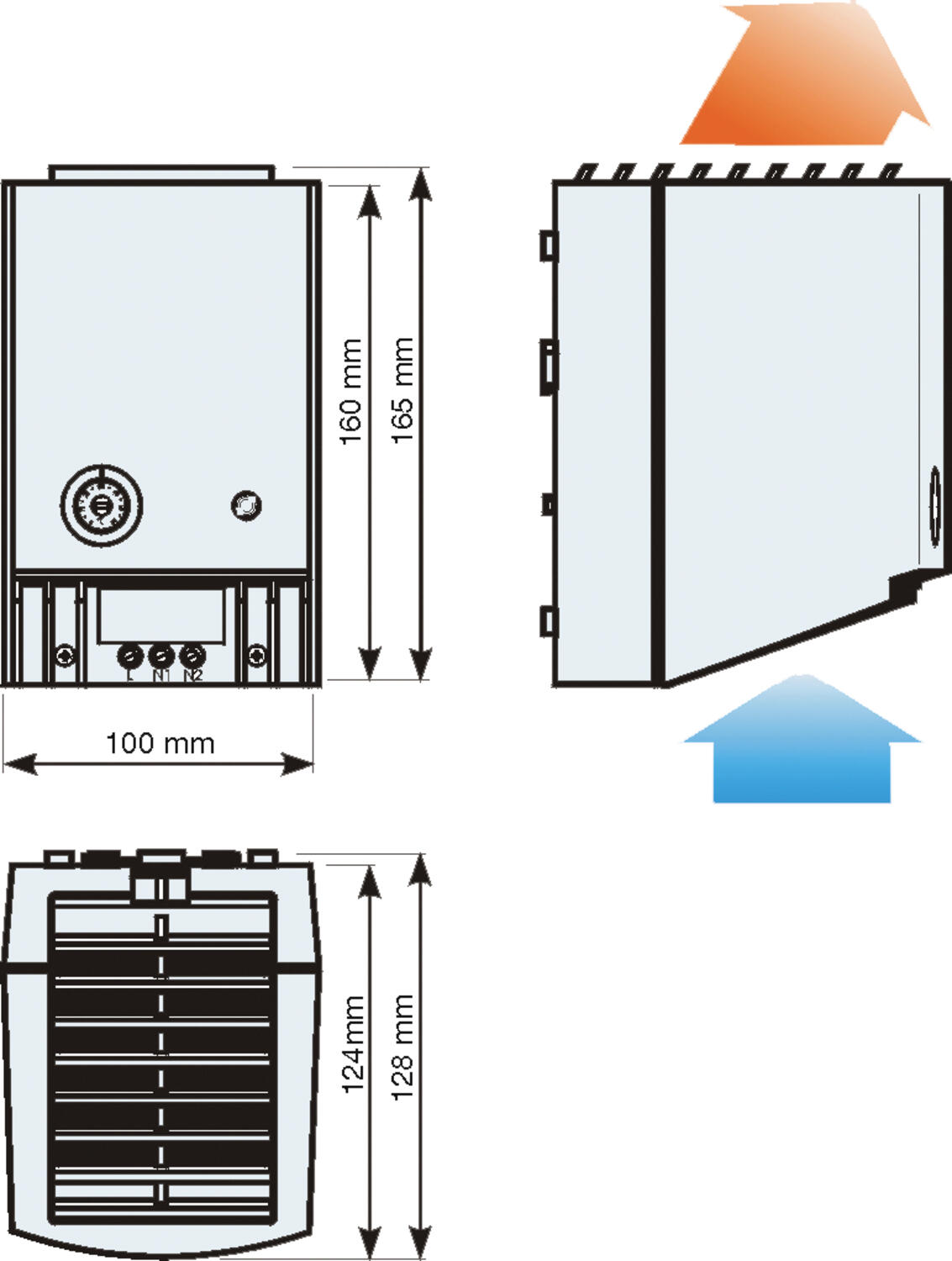

Dimensions |
|
| Weight | 0,9 kg |
| Depth | 128 mm |
| Behind panel depth | 128 mm |
| Width | 100 mm |
*Invisible Heading* |
|
|---|---|
| Height | 165 mm |
Safety & Approvals |
|
| Flammability class | UL94-V0 |
| IP class | IP20 |
| Overheating protection | Overheat protection, fan failure with auto-reset |
| Protection class | II (double insulated) |
| Approvals | CE, cULus, EAC, RoHS, UL, VDE |
Rated Operating Conditions |
|
| Operational temperature | -45°C ... +70°C |
| Control range temperature to | 60 °C |
| Storage temperature | -45°C ... +70°C |
| Hysteresis temperature | 7K |
| Humidity storage | <90% RH |
| Operating humidity | < 90% RH |
| Control range temperature from | 0 °C |
| Voltage min | 220 V ac |
| Voltage max | 240 V ac |
| Fan | Axial fan, ball bearing |
| Material plastic housing | Plastic |
The heat source in this fan is a PTC element – a semiconductor that adapts its output to the ambient temperature. The colder it is, the more heat it produces. The PTC element has a high starting current and provides full output almost immediately.
The fan has an integrated adjustable thermostat, and can for example, be installed in enclosures indoors or outdoors to maintain an even temperature and thus avoid condensation, or it can be used to assure that the temperature is kept above a lowest permitted level.
The CR 027 is designed to be clip in to din rail
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.
Do you require signalling devices and beacons in your production process? Download our latest whitepaper!
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.
Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Inrush max | Nominal voltage | Heat output | Air capacity | Weight | Control range temperature to | Control range temperature to | Control range temperature from | Control range temperature from | Voltage min | Voltage max | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CR 027 475/550W Fan heater, 50/60Hz, 220-240V ac, 0…60°C
Art:
02700.0-00
Copied
|
11 A
|
230 V AC
|
475 W
|
35 m³/h
|
0,9 kg
|
60 °C
|
|
|
0 °C
|
220 V ac
|
240 V ac
|
| ||
|
CR 027 550/650W Fan heater, 50/60Hz, 220-240V ac, 0…60°C
Art:
02701.0-00
Copied
|
13 A
|
230 V AC
|
550 W
|
45 m³/h
|
1,1 kg
|
60 °C
|
|
|
0 °C
|
220 V ac
|
240 V ac
|
| ||
|
CR 027 400/550W Fan heater, 50/60Hz, 100-120V ac, 32°F…140°F
Art:
02700.9-00
Copied
|
14 A
|
120 V AC
|
400 W
|
35 m³/h
|
0,9 kg
|
|
140 °F
|
32 °F
|
|
100 V ac
|
120 V ac
|
| ||
|
CR 027 510/650W, Fan heater, 50/60Hz, 100-120V ac, 32°F…140°F
Art:
02701.9-00
Copied
|
15 A
|
120 V AC
|
650 W
|
45 m³/h
|
1,1 kg
|
|
140 °F
|
32 °F
|
|
100 V ac
|
120 V ac
|
|
