STEGO

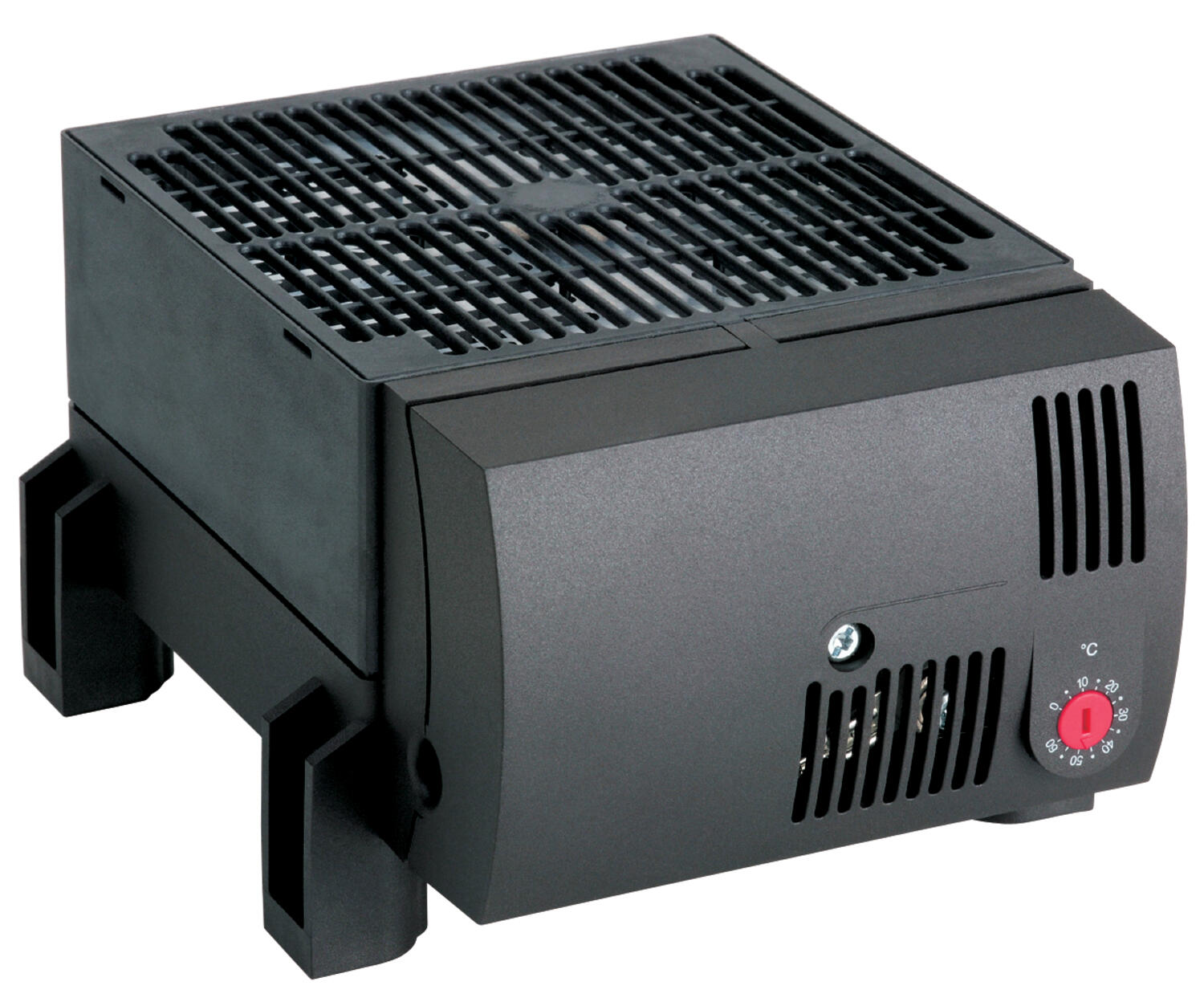

The compact high performance fan heater prevents formation of condensation and frost and provides an evenly distributed interior air temperature within the enclosure.
The plastic housing provides double insulation and acts as protection against contact the heating element. The fan heater is available with integrated thermostat or pre-set hygrostat for temperature or humidity control.
The CR 030 was designed as a stationary unit for the bottom of the enclosure.
For wall fixing the fan heater CR 130 is recommended
General Data |
|
|---|---|
| Mounting | Screw fixing |
| Life span | 50 000 h @ +25°C |
| Nominal voltage | 230 V AC |

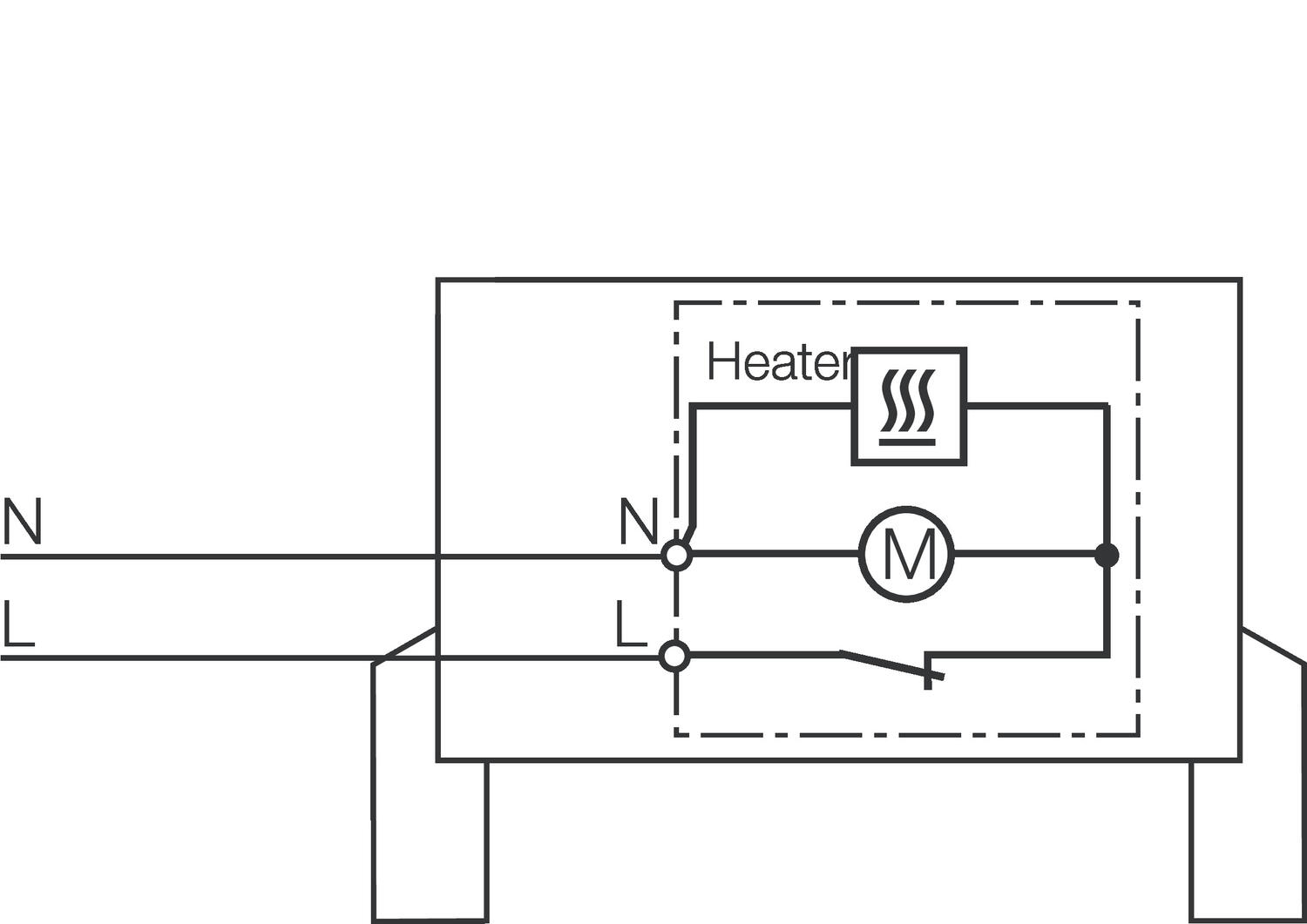

| Connection type | 2-pole screw terminal for 2.5 mm² cable |
| Recommended fuse (slow blow) | 5 A |
| Number of fans | 1 |
| Frequency | 50/60 Hz |
| Heat output | 950 W |
| Air capacity | 160 m³/h |
| Material of body | Aluminium |
| Heater body | Aluminium, Plastic |

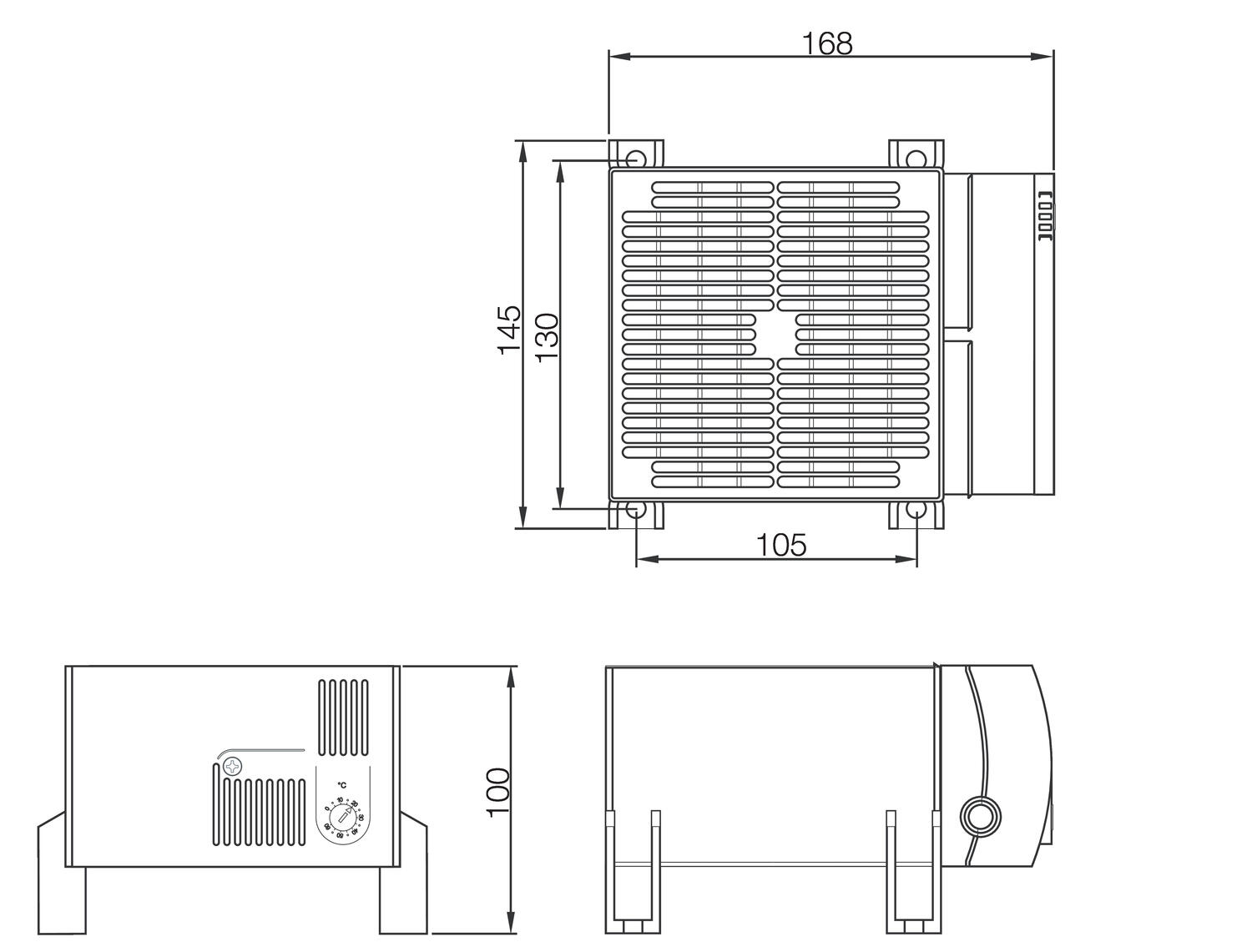

Dimensions |
|
| Weight | 1,4 kg |
| Depth | 168 mm |
| Tightening torque for cable | 0,8 Nm |
*Invisible Heading* |
|
|---|---|
| Width | 145 mm |
| Height | 100 mm |
Safety & Approvals |
|
| Flammability class | UL94-V0 |
| IP class | IP20 |
| Overheating protection | Overheat protection, fan failure with auto-reset |
| Protection class | II (double insulated) |
| Approvals | CE, cULus, Gost R, RoHS, UL, UL E234324, VDE |
Rated Operating Conditions |
|
| Operational temperature | -45°C ... +70°C |
| Storage temperature | -45°C ... +70°C |
| Humidity storage | <90% RH |
| Operating humidity | < 90% RH |
| Voltage min | 230 V ac |
| Voltage max | 230 V ac |
The compact high performance fan heater prevents formation of condensation and frost and provides an evenly distributed interior air temperature within the enclosure.
The plastic housing provides double insulation and acts as protection against contact the heating element. The fan heater is available with integrated thermostat or pre-set hygrostat for temperature or humidity control.
The CR 030 was designed as a stationary unit for the bottom of the enclosure.
For wall fixing the fan heater CR 130 is recommended
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.
Do you require signalling devices and beacons in your production process? Download our latest whitepaper!
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.
Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Heat source | Nominal voltage | Recommended fuse (slow blow) | Control range temperature to | Control range temperature to | Control range temperature from | Control range temperature from | Voltage min | Voltage max | Country of origin | Fan | Housing | Hysteresis | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CR 030 950W Fan heater, 230V ac,
Art:
03051.0-07
Copied
|
|
230 V AC
|
5 A
|
|
|
|
|
230 V ac
|
230 V ac
|
|
|
|
|
| ||
|
CR 030 950W Fan heater with thermostat, 230V ac, 0…60°C,
Art:
03051.0-00
Copied
|
Resistor element
|
230 V AC
|
6,3 A
|
60 °C
|
|
|
0 °C
|
230 V ac
|
230 V ac
|
Germany
|
Axial fan, ball bearing
|
Plastic enclosure, UL94 V-0
|
7K (±4K tolerance)
|
| ||
|
CR 030 950W Fan heater, 120V ac,
Art:
03059.9-02
Copied
|
Resistor element
|
120 V AC
|
10 A
|
|
|
|
|
120 V ac
|
120 V ac
|
Germany
|
Axial fan, ball bearing
|
Plastic enclosure, UL94 V-0
|
|
| ||
|
CR 030 950W Fan heater with thermostat, 120V ac, 32°F…140°F
Art:
03059.9-00
Copied
|
Resistor element
|
120 V AC
|
10 A
|
|
140 °F
|
32 °F
|
|
120 V ac
|
120 V ac
|
Germany
|
Axial fan, ball bearing
|
Plastic enclosure, UL94 V-0
|
|
|
