STEGO

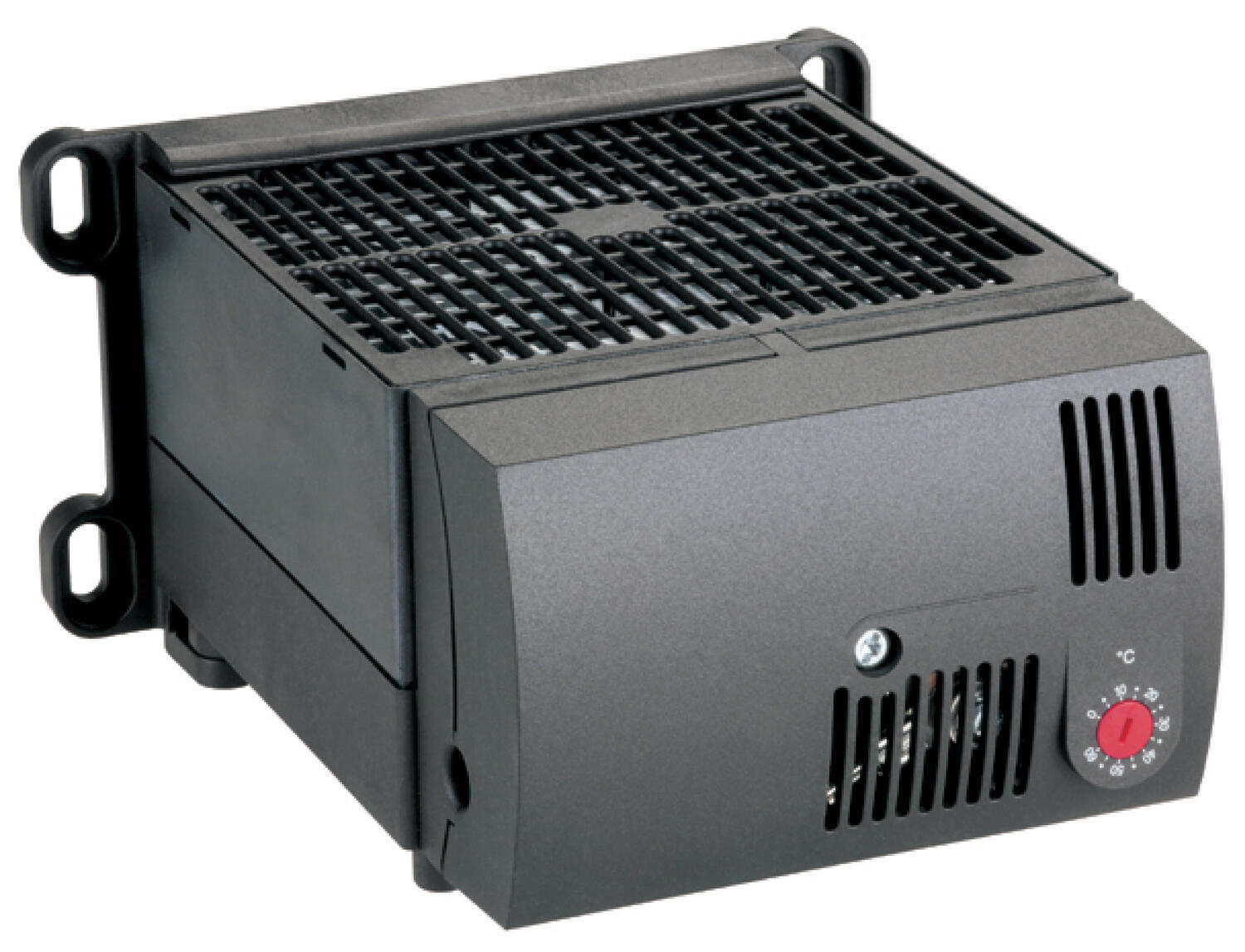

The CR130 is a compact and high performance heat fan.
The heat exchanger prevents condensation and frost, as well as providing evenly distributed internal air temperature in ex. cabinets with electrical / electronic components.
A very suitable application is different types of ticket machines or other service machines (coffee, food, etc.)
which may be placed in an environment where it is important to maintain a good climate.
Heat fan CR130 has a large fan with high air volume that quickly distributes airflow, thus drying the air efficiently.
It has two mounting options in the same device. Either it can be mounted on DIN rail or with screw mounting on the wall.
The design is modern and functional. It is double insulated with a plastic casing, which makes the side surfaces not so hot. Therefore, the heater can be mounted relatively close to other products in the same application and that you do not have to worry about burns. The double insulation also causes the ground heater to escape.
General Data |
|
|---|---|
| Life span | 50 000 h @ +25°C |
| Heat source | Resistor element |
| Nominal voltage | 230 V AC |
| Connection type | 2-pole screw terminal for 2.5 mm² cable |
| Recommended fuse (slow blow) | 6,3 A |
| Number of fans | 1 |
| Frequency | 50/60 Hz |
| Heat output | 950 W |
| Air capacity | 160 m³/h |
| Mounting | DIN-rail, quick mount |
| Material of body | Aluminium |
| Heater body | Aluminium, Plastic |

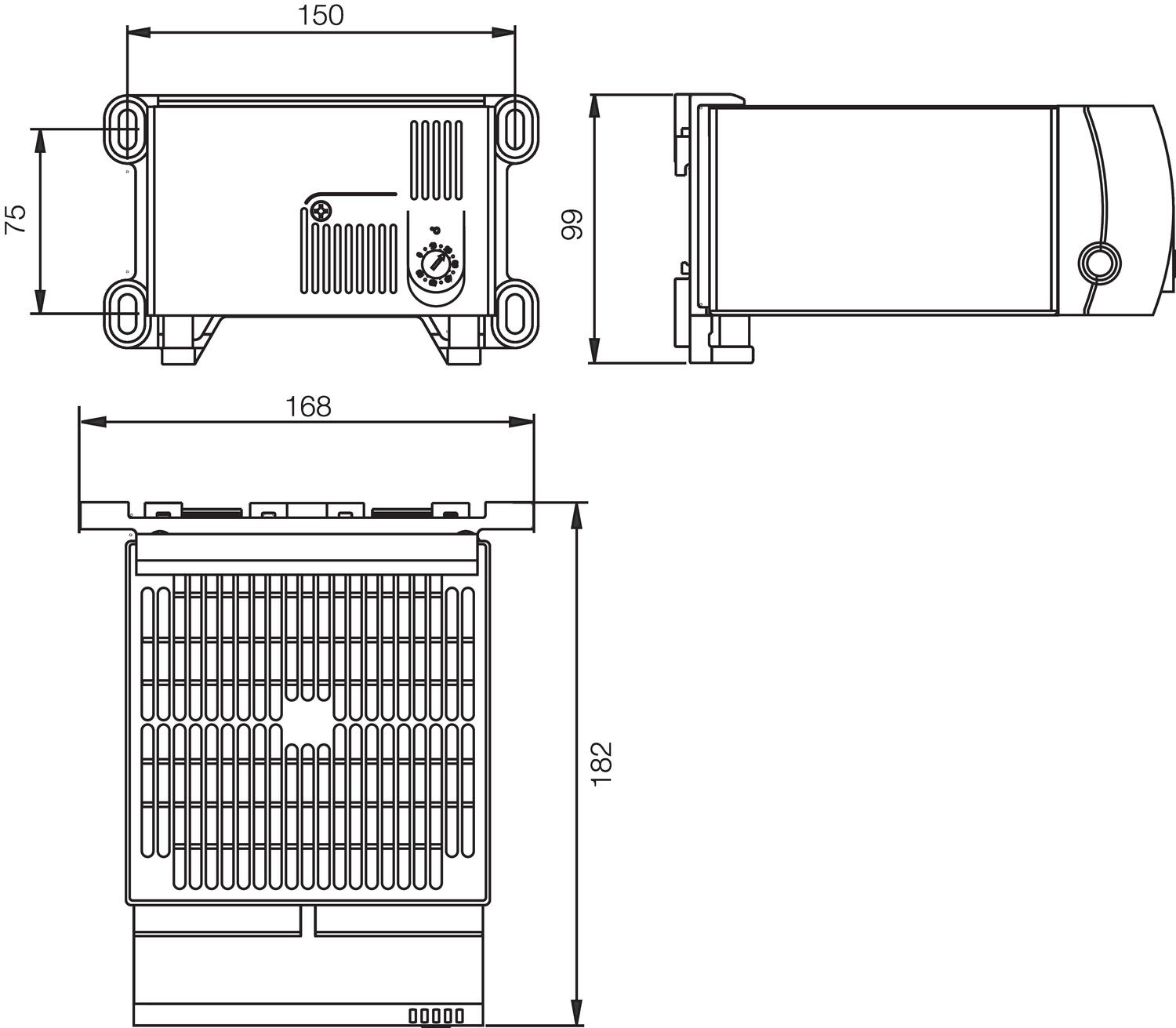

Dimensions |
|
| Weight | 1,5 kg |
| Depth | 182 mm |
| Tightening torque for cable | 0,8 Nm |
| Width | 160 mm |
| Height | 99 mm |
Safety & Approvals |
|
|---|---|
| Flammability class | UL94-V0 |
| IP class | IP20 |
| Overheating protection | Overheat protection, fan failure with auto-reset |
| Protection class | II (double insulated) |
| Approvals | CE, cULus, Gost R, RoHS, UL, UL E234324, VDE |
Rated Operating Conditions |
|
| Operational temperature | -45°C ... +70°C |
| Control range temperature to | 60 °C |
| Storage temperature | -45°C ... +70°C |
| Humidity storage | <90% RH |
| Operating humidity | < 90% RH |
| Control range temperature from | 0 °C |
| Voltage min | 230 V ac |
| Voltage max | 230 V ac |
| Country of origin | Germany |
| Fan | Axial fan, ball bearing |
| Housing | Plastic enclosure, UL94 V-0 |
The CR130 is a compact and high performance heat fan.
The heat exchanger prevents condensation and frost, as well as providing evenly distributed internal air temperature in ex. cabinets with electrical / electronic components.
A very suitable application is different types of ticket machines or other service machines (coffee, food, etc.)
which may be placed in an environment where it is important to maintain a good climate.
Heat fan CR130 has a large fan with high air volume that quickly distributes airflow, thus drying the air efficiently.
It has two mounting options in the same device. Either it can be mounted on DIN rail or with screw mounting on the wall.
The design is modern and functional. It is double insulated with a plastic casing, which makes the side surfaces not so hot. Therefore, the heater can be mounted relatively close to other products in the same application and that you do not have to worry about burns. The double insulation also causes the ground heater to escape.
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.
Do you require signalling devices and beacons in your production process? Download our latest whitepaper!
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.
Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Nominal voltage | Recommended fuse (slow blow) | Mounting | Control range humidity to | Control range temperature to | Control range temperature to | Control range humidity from | Control range temperature from | Control range temperature from | Voltage min | Voltage max | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CR 130 950W Fan heater with thermostat, 230V ac, 0…60°C
Art:
13051.0-00
Copied
|
230 V AC
|
6,3 A
|
DIN-rail, quick mount
|
|
60 °C
|
|
|
|
0 °C
|
230 V ac
|
230 V ac
|
| ||
|
CR 130 950W Fan heater with hygostat, 230V ac, 65% RH
Art:
13051.0-02
Copied
|
230 V AC
|
6,3 A
|
DIN-rail, quick mount
|
65 % RF
|
|
|
65 % RF
|
|
|
230 V ac
|
230 V ac
|
| ||
|
CR 130 950W Fan heater with thermostat, 120V ac, 32°F…140°F
Art:
13059.9-00
Copied
|
120 V AC
|
10 A
|
DIN-rail 35mm, quick mount
|
|
|
140 °F
|
|
32 °F
|
|
120 V ac
|
120 V ac
|
|
Select a variant in the list
