STEGO

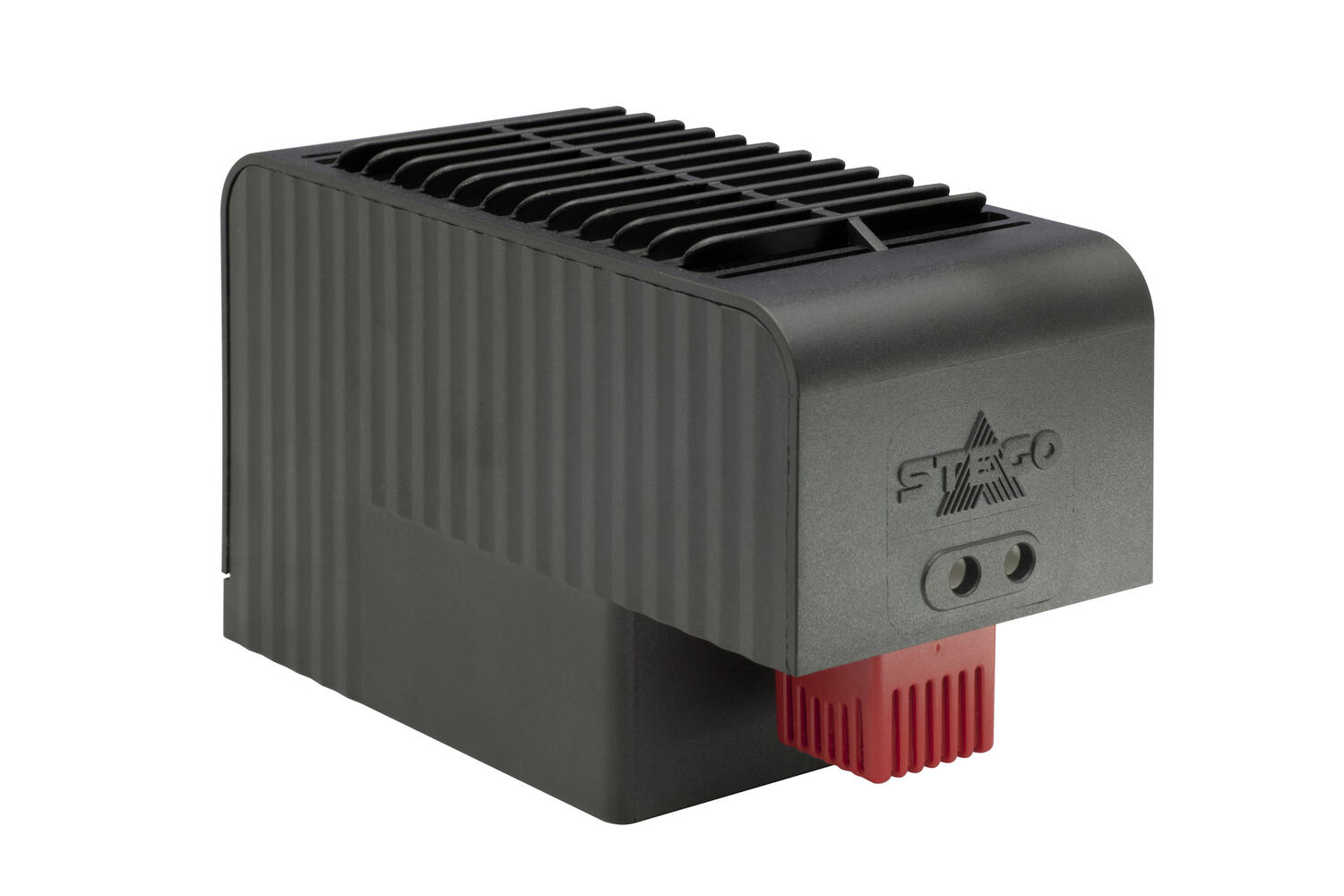

The compact high performance fan heater prevents formation of condensation and frost and provides an evenly distributed interior air temperature in enclosures with electric/electronic components.
Â
The plastic housing provides double insulation and acts as protection against direct contact to the heater.
Â
Two screw connectors at the front of CS 032 allow comfortable wiring of an external thermostat.
Â
The CSF 032 is equipped with a pre-set thermostat. Both models were designed for din rail or wall fixing.
Â
A fan heater for fixing on the bottom of the enclosure is available on request.
General Data |
|
|---|---|
| Mounting | Clip on, DIN rail |
| Life span | 70 000 h @ +25 °C (+77 °F) |
| Colour | Black |
| Nominal voltage | 230 V AC |
| Connection type | IEC 320C18 Male socket |
| Recommended fuse (slow blow) | 12 A |
| Starting current max | 12 A |
| Number of fans | 1 |
| Frequency | 50/60 Hz |
| Heat output | 1000 W |
| Air capacity | 63 m³/h |
| Material of body | Plastic |
| Heater body | Plastic |

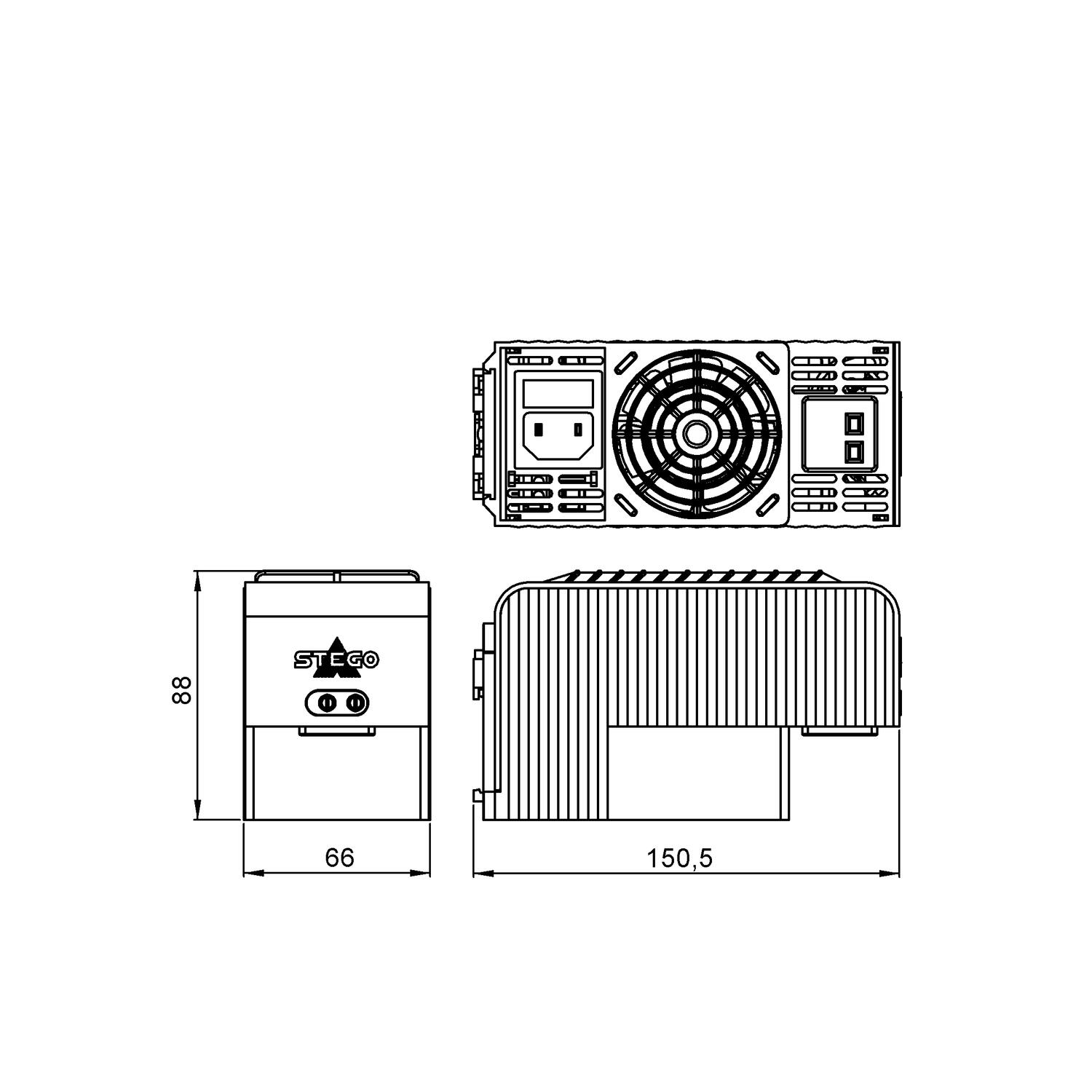

Dimensions |
|
| Weight | 0,5 kg |

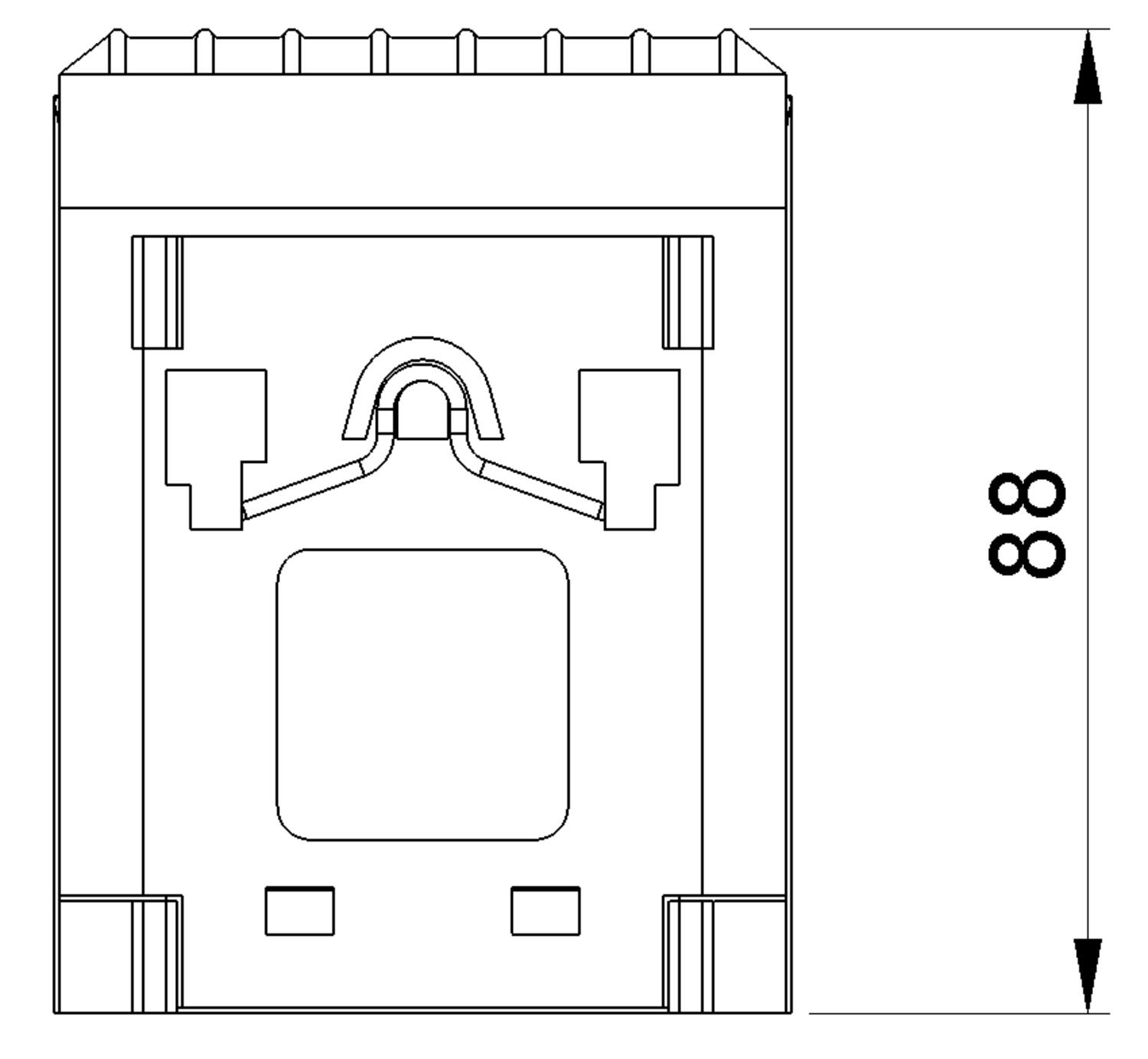

| Depth | 88 mm |
*Invisible Heading* |
|
|---|---|
| Width | 66 mm |
| Height | 152,5 mm |
Safety & Approvals |
|
| Flammability class | UL94-V0 |
| IP class | IP20 |
| Overheating protection | PTC temperature limiting |
| Protection class | II (double insulated) |
| Approvals | CE, cULus, EAC, RoHS, UL, UL E150057 |
Rated Operating Conditions |
|
| Operational temperature | -40°C ... +60°C |
| Storage temperature | -40°C ... +70°C |
| Humidity storage | <90% RH |
| Operating humidity | < 90% RH |
| Voltage min | 220 V ac |
| Voltage max | 240 V ac |
The compact high performance fan heater prevents formation of condensation and frost and provides an evenly distributed interior air temperature in enclosures with electric/electronic components.
Â
The plastic housing provides double insulation and acts as protection against direct contact to the heater.
Â
Two screw connectors at the front of CS 032 allow comfortable wiring of an external thermostat.
Â
The CSF 032 is equipped with a pre-set thermostat. Both models were designed for din rail or wall fixing.
Â
A fan heater for fixing on the bottom of the enclosure is available on request.
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.
Do you require signalling devices and beacons in your production process? Download our latest whitepaper!
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.
Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Mounting | Life span | Nominal voltage | Recommended fuse (slow blow) | Starting current max | Depth | Approvals | Switch off temperature | Switch on temperature | Voltage min | Voltage max | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CS 032 1000W, 220-240V ac, clip fixing
Art:
03209.0-00
Copied
|
Clip on, DIN rail
|
70 000 h @ +25 °C (+77 °F)
|
230 V AC
|
12 A
|
12 A
|
88 mm
|
CE, cULus, EAC, RoHS, UL, UL E150057
|
|
|
220 V ac
|
240 V ac
|
| ||

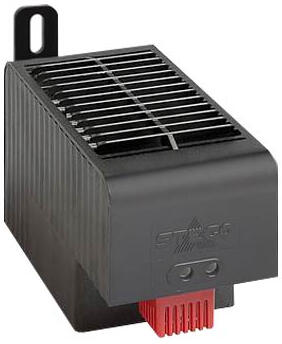

CS 032 1000W, 220-240V ac, screw fixing
Art:
03209.0-01
Copied
|
Screw fixing
|
70 000 h @ +25 °C (+77 °F)
|
230 V AC
|
12 A
|
12 A
|
115 mm
|
CE, cULus, EAC, RoHS, UL, UL E150057
|
|
|
220 V ac
|
240 V ac
|
| ||
CSF 032 1000W, 240 V ac, 25°C / 15°C (off/on), clip fixing
Art:
03201.0-00
Copied
|
Clip on, DIN rail
|
70 000 h @ +25 °C (77 °F)
|
230 V AC
|
12 A
|
12 A
|
88 mm
|
CE, cULus, EAC, RoHS, UL, UL E150057, VDE
|
25 °C
|
15 °C
|
220 V ac
|
240 V ac
|
| ||
CSF 032 1000W, 240 V ac, 25°C / 15°C (off/on), screw fixing
Art:
03201.0-01
Copied
|
Screw fixing
|
70 000 h @ +25 °C (77 °F)
|
230 V AC
|
12 A
|
12 A
|
115 mm
|
CE, cULus, EAC, RoHS, UL, UL E150057, VDE
|
25 °C
|
15 °C
|
220 V ac
|
240 V ac
|
| ||
|
CSF 032 1000W, 240 V ac, 15°C / 5°C (off/on), clip fixing
Art:
03202.0-00
Copied
|
Clip on, DIN rail
|
70 000 h @ +25 °C (77 °F)
|
230 V AC
|
12 A
|
12 A
|
88 mm
|
CE, cULus, EAC, RoHS, UL, UL E150057, VDE
|
15 °C
|
5 °C
|
220 V ac
|
240 V ac
|
| ||
|
CSF 032 1000W, 240 V ac, 15°C / 15°C (off/on), screw fixing
Art:
03202.0-01
Copied
|
Screw fixing
|
70 000 h @ +25 °C (77 °F)
|
230 V AC
|
12 A
|
12 A
|
115 mm
|
CE, cULus, EAC, RoHS, UL, UL E150057, VDE
|
15 °C
|
5 °C
|
220 V ac
|
240 V ac
|
| ||
|
CS 032 1000W, 100- 120V ac, screw fixing
Art:
03209.9-01
Copied
|
Screw fixing
|
70 000 h @ +25 °C (+77 °F)
|
120 V AC
|
18 A
|
18 A
|
115 mm
|
CE, cULus, EAC, RoHS, UL, UL E150057
|
|
|
100 V ac
|
120 V ac
|
| ||
|
CS 032 1000W, 100-120V ac, clip fixing
Art:
03209.9-00
Copied
|
Clip on, DIN rail
|
70 000 h @ +25 °C (+77 °F)
|
120 V AC
|
18 A
|
18 A
|
88 mm
|
CE, cULus, EAC, RoHS, UL, UL E150057
|
|
|
100 V ac
|
120 V ac
|
| ||
|
CSF 032 1000W, 120 V ac, 15°C / 15°C (off/on), screw fixing
Art:
03202.9-01
Copied
|
Screw fixing
|
70 000 h @ +25 °C (77 °F)
|
120 V AC
|
18 A
|
18 A
|
115 mm
|
CE, cULus, EAC, RoHS, UL, UL E150057, VDE
|
15 °C
|
5 °C
|
110 V ac
|
120 V ac
|
| ||
|
CSF 032 1000W, 120 V ac, 15°C / 5°C (off/on), clip fixing
Art:
03202.9-00
Copied
|
Clip on, DIN rail
|
70 000 h @ +25 °C (77 °F)
|
120 V AC
|
18 A
|
18 A
|
88 mm
|
CE, cULus, EAC, RoHS, UL, UL E150057, VDE
|
15 °C
|
5 °C
|
110 V ac
|
120 V ac
|
| ||
|
CSF 032 1000W, 120 V ac, 25°C / 15°C (off/on), screw fixing
Art:
03201.9-01
Copied
|
Screw fixing
|
70 000 h @ +25 °C (77 °F)
|
120 V AC
|
18 A
|
18 A
|
115 mm
|
CE, cULus, EAC, RoHS, UL, UL E150057, VDE
|
25 °C
|
15 °C
|
110 V ac
|
120 V ac
|
| ||
|
CSF 032 1000W, 120 V ac, 25°C / 15°C (off/on), clip fixing
Art:
03201.9-00
Copied
|
Clip on, DIN rail
|
70 000 h @ +25 °C (77 °F)
|
120 V AC
|
18 A
|
18 A
|
88 mm
|
CE, cULus, EAC, RoHS, UL, UL E150057, VDE
|
25 °C
|
15 °C
|
110 V ac
|
120 V ac
|
|
