STEGO
This electronic hygrostat (DCF010) with integrated relay is used to control high DC loads, such as enclosure heaters, coolers and large fans.
The high DC switching current is achieved with a high powered MOSFET and mechanical contacts
The external sensor can be placed anywhere in the control cabinet for precise measurement of humidity (RF).
In addition, this hygrostat is available in versions that not only measure relative humidity via the external sensor, but also the temperature.
General data |
|
|---|---|
| Mounting | Clip on, DIN rail |
| Contact type | 1 x N/O (MOSFET) and 1 x N/C (MOSFET) |
| Hysteresis humidity | 4% RH @ +25°C, 50% RH |
| Control range humidity to | 90 % RF |
| Colour | Grey |
| Control range humidity from | 40 % RF |
Rated operating conditions |
|
| Operational temperature | -30°C … +40°C |
| Voltage max | 56 V dc |
| Connection type | 6-pole terminal |
| Voltage min | 20 V dc |
| Storage temperature | -40°C ... +80°C |
| Life span | > 100,000 cycles |
*Invisible Heading* |
|
|---|---|
| Humidity storage | <90% RH |
| Operating humidity | < 90% RH |
| Breaking capacity | DC 15 A |

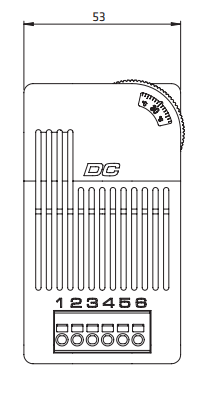

Dimensions |
|
| Weight | 1,2 kg |
| Depth | 44 mm |
| Width | 53 mm |
| Material of body | Plastic |
| Height | 93 mm |
Safety & approvals |
|
| IP class | IP20 |
| Approvals | CE, cULus, EAC, RoHS, UL, UL E164102, VDE |

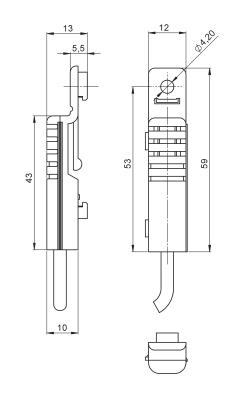

| Additional information | Includes external sensor with 2m cable with snap in connector |
This electronic hygrostat (DCF010) with integrated relay is used to control high DC loads, such as enclosure heaters, coolers and large fans.
The high DC switching current is achieved with a high powered MOSFET and mechanical contacts
The external sensor can be placed anywhere in the control cabinet for precise measurement of humidity (RF).
In addition, this hygrostat is available in versions that not only measure relative humidity via the external sensor, but also the temperature.
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.
Do you require signalling devices and beacons in your production process? Download our latest whitepaper!
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.
Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Operational temperature | Breaking capacity | Price | ||
|---|---|---|---|---|---|
DCF 010, N/O&N/C, 40...90 % RH, DC 15 A, with ext sensor
Art:
01012.0-20
Copied
|
-30°C … +40°C
|
DC 15 A
|
| ||
|
DCF 010, N/O&N/C, 40...90 % RH, DC 13 A, with ext sensor
Art:
01012.0-21
Copied
|
-30°C … +50°C
|
DC 13 A
|
| ||
|
DCF 010, N/O&N/C, 40...90 % RH, DC 11 A, with ext sensor
Art:
01012.0-22
Copied
|
-30°C … +60°C
|
DC 11 A
|
|
Select a variant in the list
