STEGO

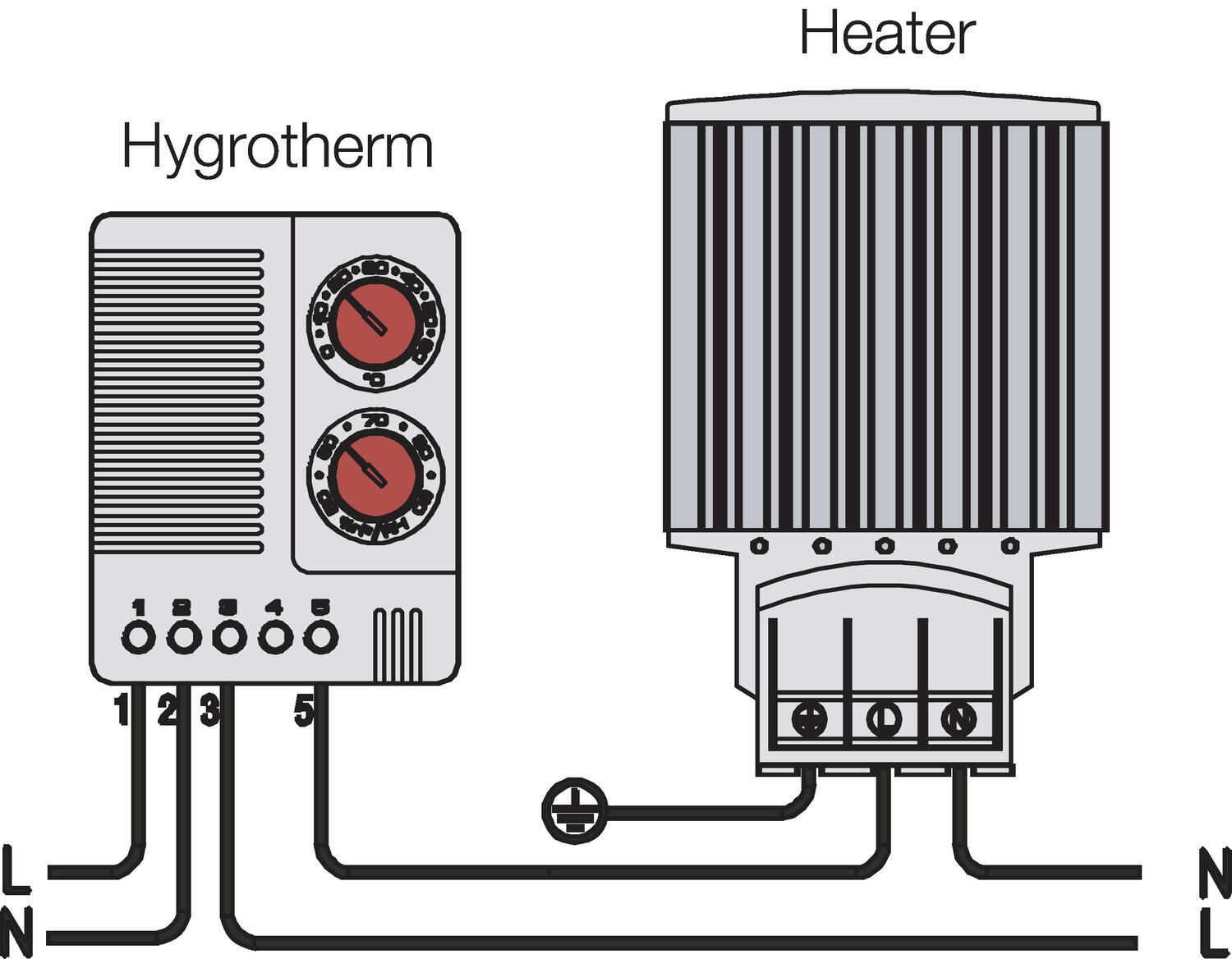

This electronic hygrotherm detects humidity and temperature and operates a relay contact to switch in a heater or fan when one of the set values is reached. LED indication is clearly visible behind each setting knob and illuminates when set value is reached.
General data |
|
|---|---|
| Mounting | Clip on, DIN rail |
| Contact type | Changeover (SPDT) |
| Hysteresis humidity | 4% RH @ +25°C, 50% RH |
| Control range humidity to | 90 % RF |
| Control range temperature to | 60 °C |
| Colour | Light grey |
| Hysteresis temperature | 2K @ +25°C, 50% RH |
| Control range humidity from | 50 % RF |
| Control range temperature from | 0 °C |
Rated operating conditions |
|
| Operational temperature | -40°C ... +60°C |
| Inrush max | 30 A |
| Voltage max | 60 V dc |

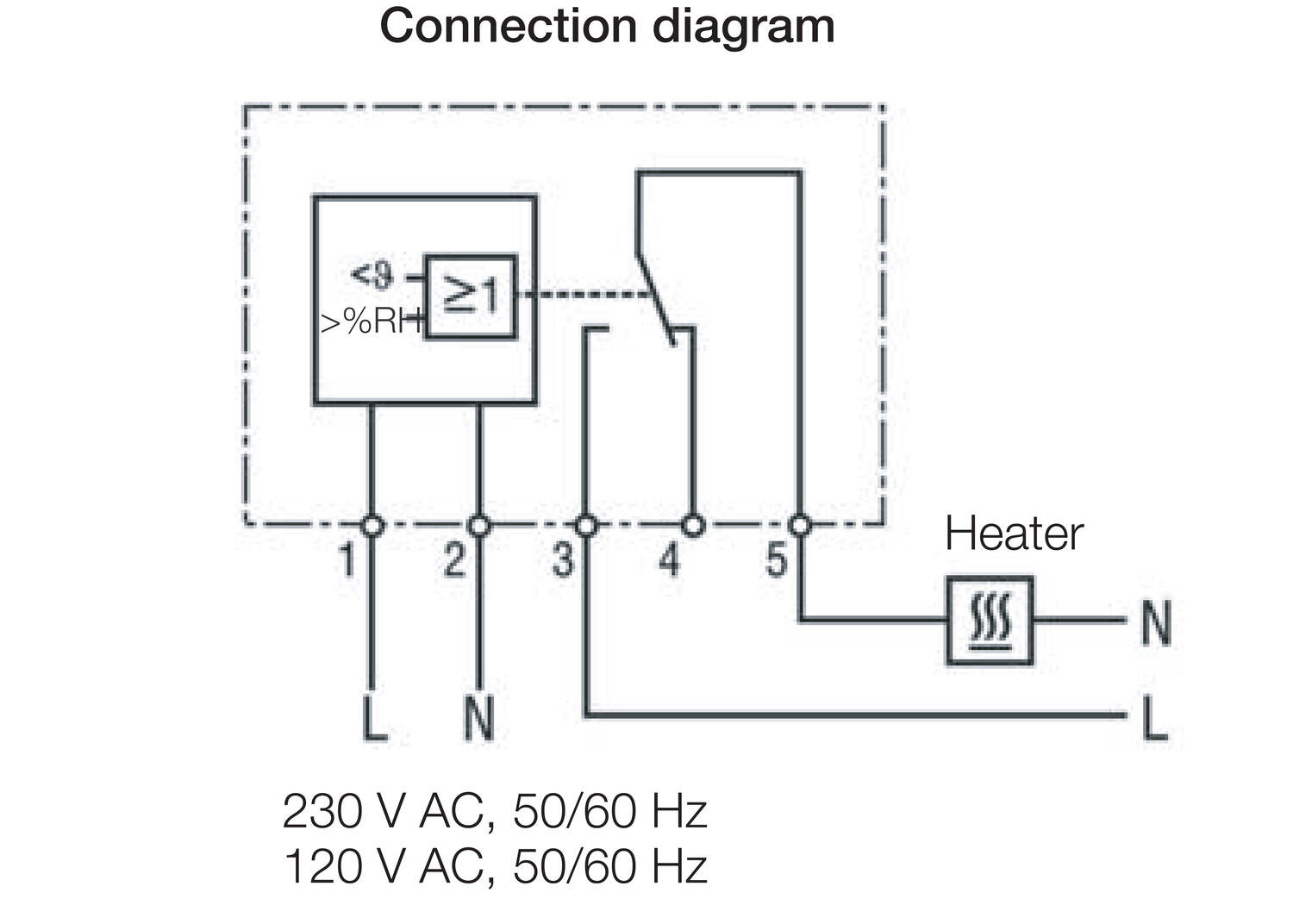

| Connection type | 5-pole terminal |
| Voltage min | 20 V dc |
| Storage temperature | -40°C ... +60°C |
| Life span | VDE: NO/NC > 15,000 cycles, UL: NO/NC > 30,000 cycles |
*Invisible Heading* |
|
|---|---|
| Humidity storage | <90% RH |
| Operating humidity | < 90% RH |
| Contact resistance | <10 mΩ |
| Breaking capacity | Resistive load: 240 V AC 10 (1,6) A, inductive load, cosφ=0,6: 240 V AC 3 A, 120 V AC 3 A. 24 V DC 4 A |
Dimensions |
|
| Weight | 0,2 kg |
| Depth | 43 mm |
| Width | 60 mm |
| Material of body | Plastic |
| Height | 77 mm |
Safety & approvals |
|
| Flammability class | UL94-V0 |
| IP class | IP20 |
| Plastic cover | Light grey plastic, UL94 V-0 |
| Approvals | CE, cULus, EAC, RoHS, UL, UL E164102, VDE |
| EMC | EN 55014-1-2, EN 61000-3-2, EN 61000-3-3 |
This electronic hygrotherm detects humidity and temperature and operates a relay contact to switch in a heater or fan when one of the set values is reached. LED indication is clearly visible behind each setting knob and illuminates when set value is reached.
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.
Do you require signalling devices and beacons in your production process? Download our latest whitepaper!
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.
Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Hysteresis | Control range temperature to | Control range temperature to | Control range temperature from | Control range temperature from | Voltage max | Voltage min | Plastic cover | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
ETF 012 Hygro, 0…60°C, 50…90% RH, change over, 24-48V dc
Art:
01230.1-00
Copied
|
|
60 °C
|
|
|
0 °C
|
60 V dc
|
20 V dc
|
Light grey plastic, UL94 V-0
|
| ||
|
ETF 012 Hygro, 0…60°C, 50…90% RH, change over, 100-240V ac
Art:
01230.0-00
Copied
|
2 °C (tolerance ±1 °C) @ 25 °C and 50% RH
|
60 °C
|
|
|
0 °C
|
265 V ac
|
90 V ac
|
Light grey plastic, UL94 V-0
|
| ||
|
ETF 012 Hygro, 32°F…140°F, 50…90% RH, change over, 100-240V ac
Art:
01230.9-00
Copied
|
|
|
140 °F
|
32 °F
|
|
265 V ac
|
90 V ac
|
|
|
Select a variant in the list
