STEGO

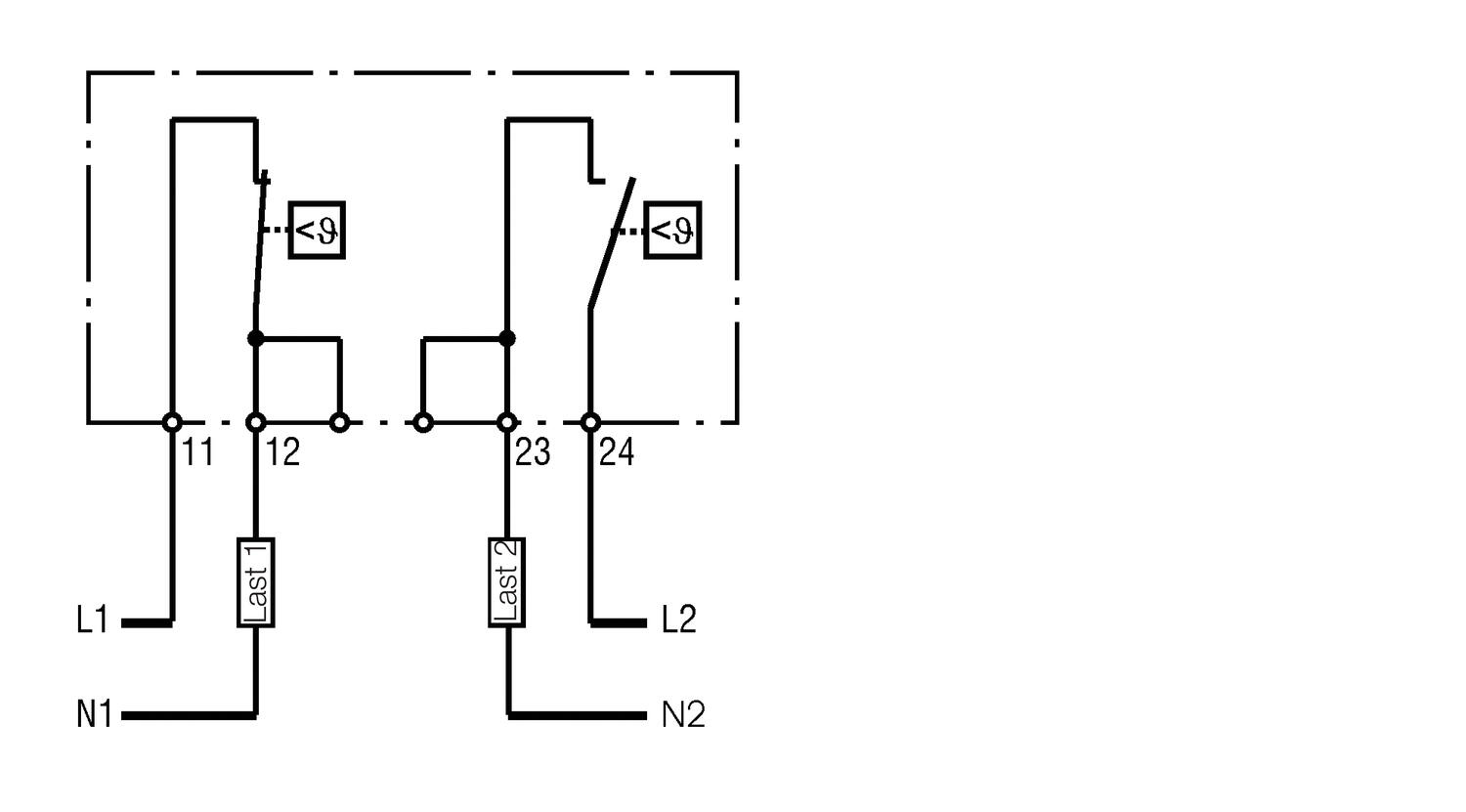

ZR011 is two thermostats in the same casing. One with a breaking contact for regulation of the heater and one with a closing contact for, for example, regulation of the filter fan or activation of overheating protection.
General data |
|
|---|---|
| Tolerance for switch on | ±4K |
| Tolerance switch off | ±4K |
| Control range temperature to | 60 °C |
| Hysteresis temperature | 7K |
| Mounting | DIN-rail 35mm, quick mount |
| Control range temperature from | 0 °C |
Rated operating conditions |
|
| Operational temperature | -45°C ... +80°C |
| Inrush max | 16 A |
| Voltage max | 250 V ac |
| Connection type | 4-pole terminal, rigid: 2,5 mm² (AWG 14). |
| Electrical lifetime | > 100 000 operations |
| Storage temperature | -45°C ... +80°C |
| Life span | > 100 000 operations |
| Humidity storage | <90% RH |
| Operating humidity | < 90% RH |
| Contact resistance | <10 mΩ |
*Invisible Heading* |
|
|---|---|
| Humidity | <90 % RH (non-condensing) |
| Breaking capacity | 250 VAC: 10 (2) A. 120 VAC: 15 (2) A. DC: 30W @ 24-72 VDC |

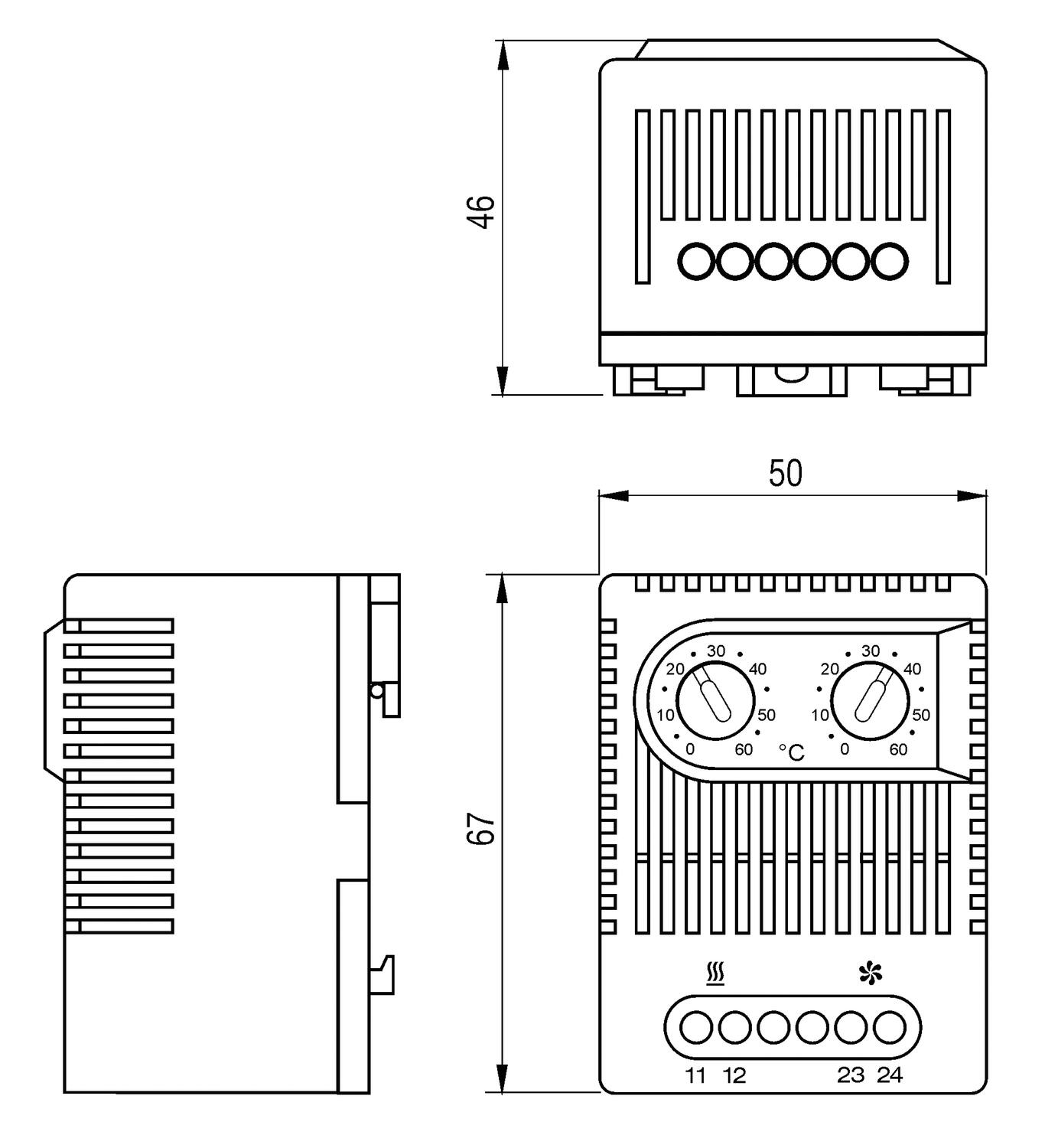

Dimensions |
|
| Weight | 0,09 kg |
| Material plastic housing | Plastic |
| Depth | 46 mm |
| Tightening torque max | 0,5 Nm |
| Width | 50 mm |
| Material of body | Plastic |
| Height | 67 mm |
Safety & approvals |
|
| Flammability class | UL94-V0 |
| IP class | IP20 |
| Plastic cover | Light grey, UL94 V-0 |
| Approvals | CE, CSA, cULus, EAC, EMC, RoHS, UL E164102, VDE |
| Country of origin | Germany |

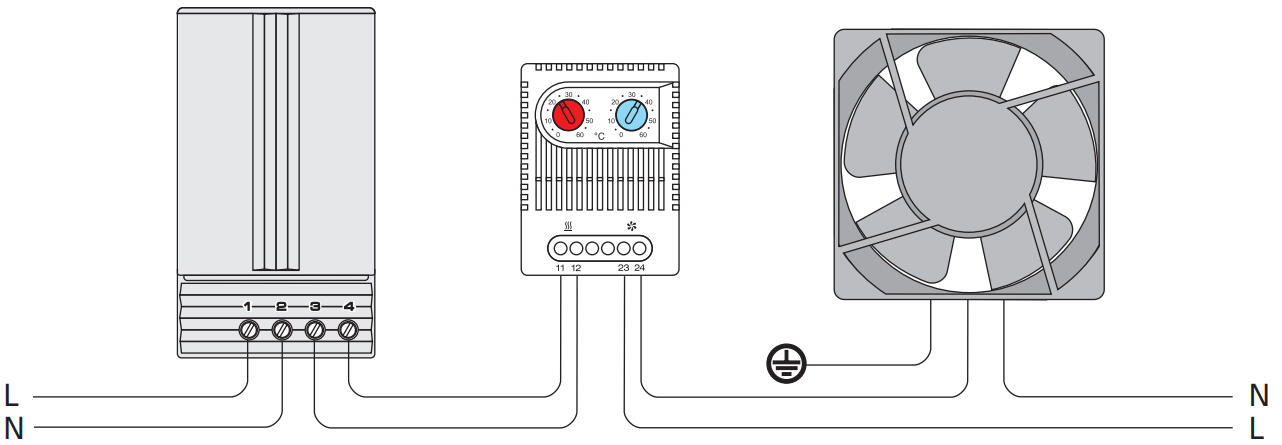

ZR011 is two thermostats in the same casing. One with a breaking contact for regulation of the heater and one with a closing contact for, for example, regulation of the filter fan or activation of overheating protection.
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.
Do you require signalling devices and beacons in your production process? Download our latest whitepaper!
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.
Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Control range temperature to | Colour | Mounting | Control range temperature from | Price | ||
|---|---|---|---|---|---|---|---|
ZR 011 Dual thermostat, 0…60°C, normally open and closed
Art:
01172.0-00
Copied
|
60 °C
|
|
DIN-rail 35mm, quick mount
|
0 °C
|
| ||
|
ZR 011 Dual thermostat, -10°C…+50°C, 20…80°C, normally closed/open
Art:
01175.0-00
Copied
|
80 °C
|
Light grey
|
DIN-rail mount, EN60715
|
-10 °C
|
|
Select a variant in the list
