STEGO

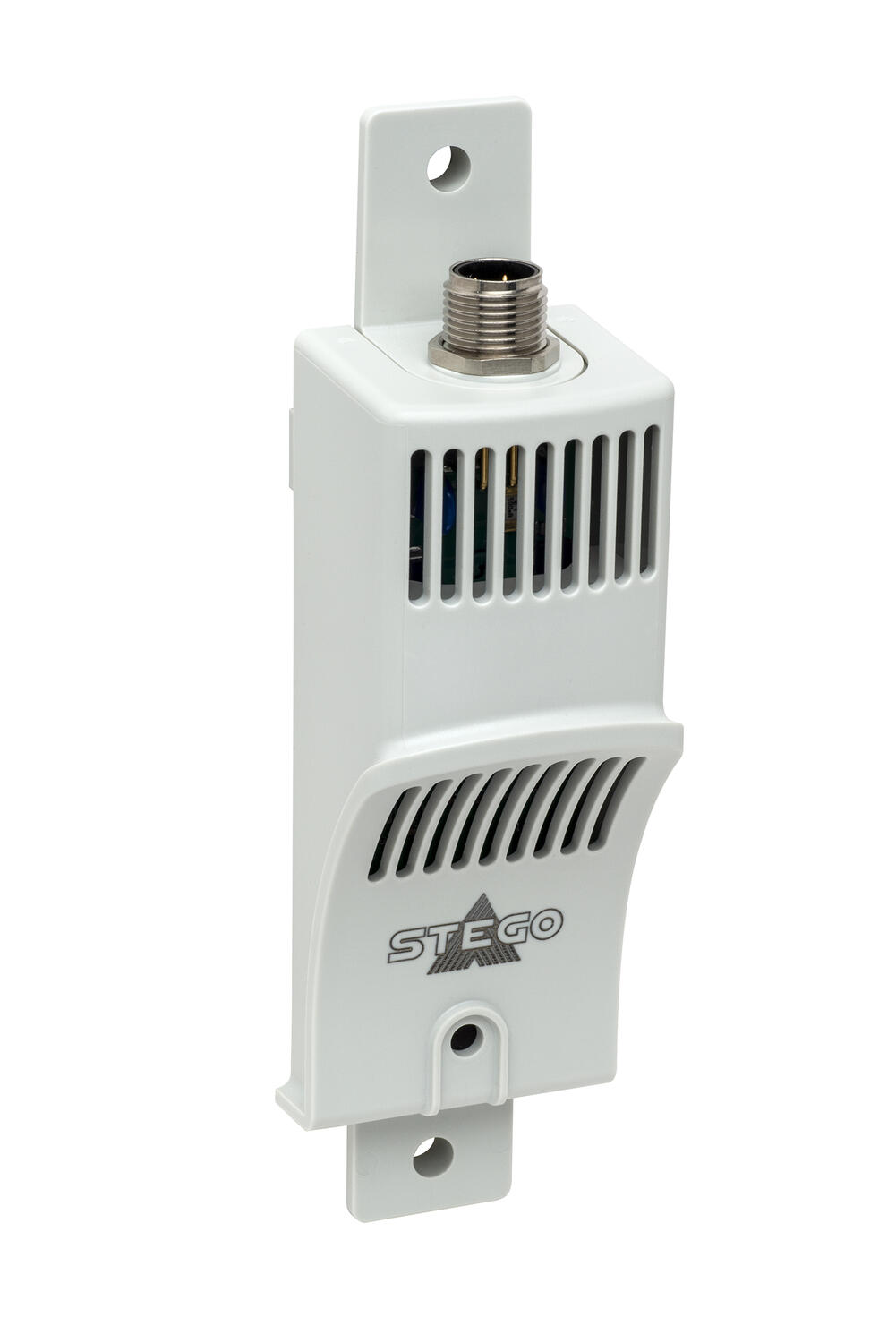

The compact Smart Sensor CSS 014 electronically records temperature and humidity and converts the measured data into a standardized analog 4-20 mA or a digital IO-Link signal.

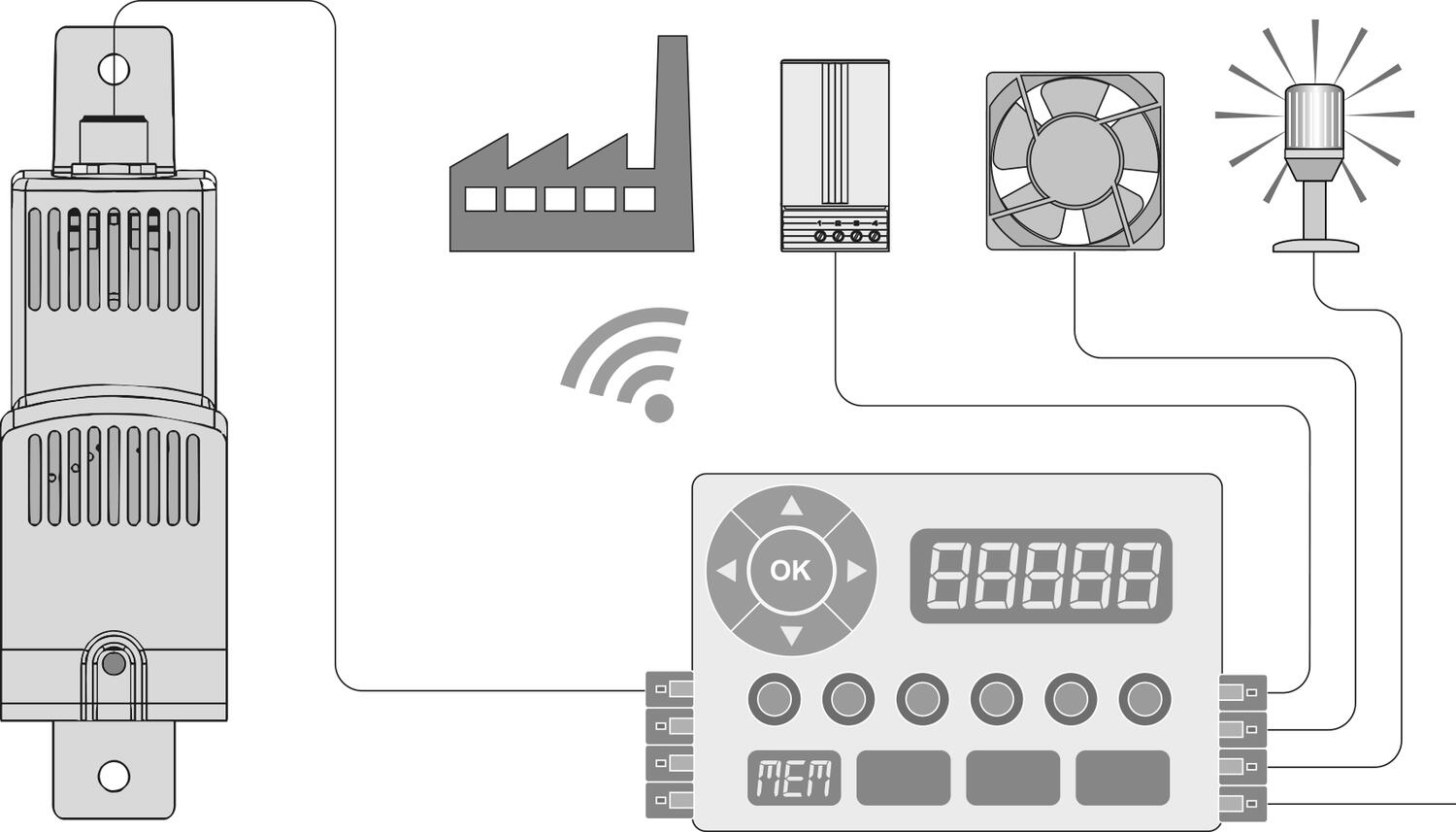

The converted value signals can be utilized or further processed by a control or monitoring unit, e.g. a PLC control.
The Smart Sensor is suitable for installation inside and outside the enclosure, even in harsh environmental conditions as can be found in the wind power industry: in shielded outdoor areas and exposed to vibrations.
General data |
|
|---|---|
| Mounting | TS 35, Screw fixing |
| Control range humidity to | 100 % RF |
| Control range temperature to | 60 °C |
| Control range humidity from | 0 % RF |
| Control range temperature from | -40 °C |
Rated operating conditions |
|
| Operational temperature | -40°C ... +70°C |

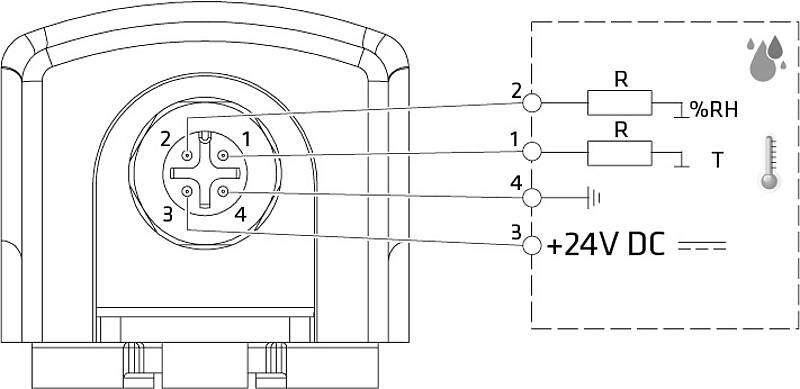

| Connection type | M12 round plug connector |
| Storage temperature | -40°C ... +85°C |
| Humidity storage | <90% RH |
| Operating humidity | < 90% RH |

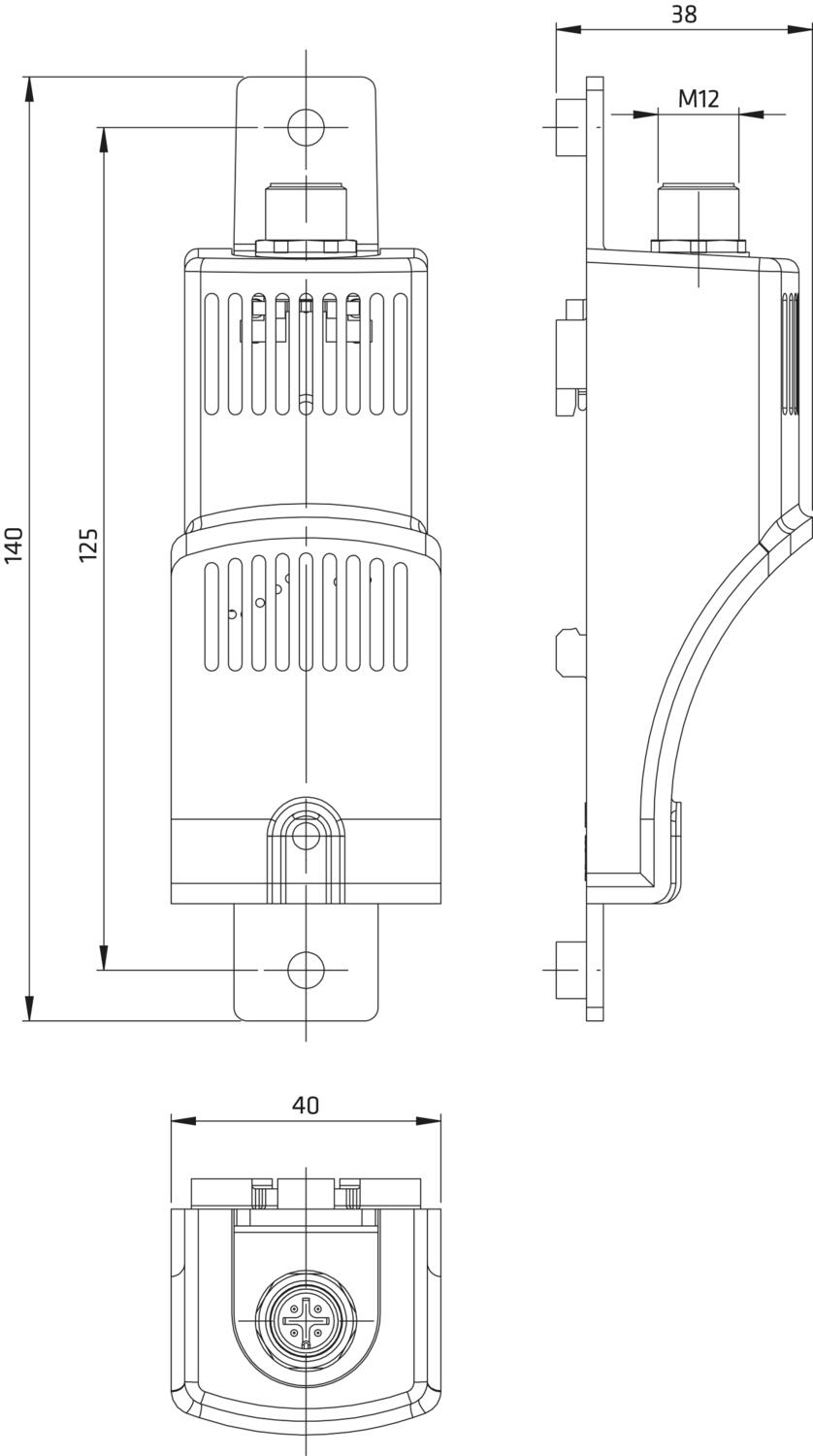

Dimensions |
|
|---|---|
| Weight | 0,05 kg |
| Depth | 38 mm |
| Width | 40 mm |
| Material of body | Plastic |
| Height | 140 mm |
Safety & approvals |
|
| IP class | IP20 |
| Protection class | III |
| Approvals | CE, cRUus, RoHS, UL, VDE |
| Power consumption | 1,8 W |
The compact Smart Sensor CSS 014 electronically records temperature and humidity and converts the measured data into a standardized analog 4-20 mA or a digital IO-Link signal.
The converted value signals can be utilized or further processed by a control or monitoring unit, e.g. a PLC control.
The Smart Sensor is suitable for installation inside and outside the enclosure, even in harsh environmental conditions as can be found in the wind power industry: in shielded outdoor areas and exposed to vibrations.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Control range temperature to | Operational temperature | Power consumption | Price | ||
|---|---|---|---|---|---|---|
CSS 014 Smart sensor, -40°C…+60°C, 0…100% RH, 4-20mA output, M12 connector
Art:
01420.2-00
Copied
|
60 °C
|
-40°C ... +70°C
|
1,8 W
|
| ||
|
CSS 014 Smart sensor, -40°C…+80°C, 0…100% RH, IO Link, M12 connector
Art:
01411.2-00
Copied
|
80 °C
|
-40°C ... +80°C
|
0,3 W
|
| ||
|
** Replaced by 01420.2-00 **
Art:
01400.2-00
Copied
|
60 °C
|
-40°C ... +70°C
|
1,8 W
|
|
Select a variant in the list
