STEGO

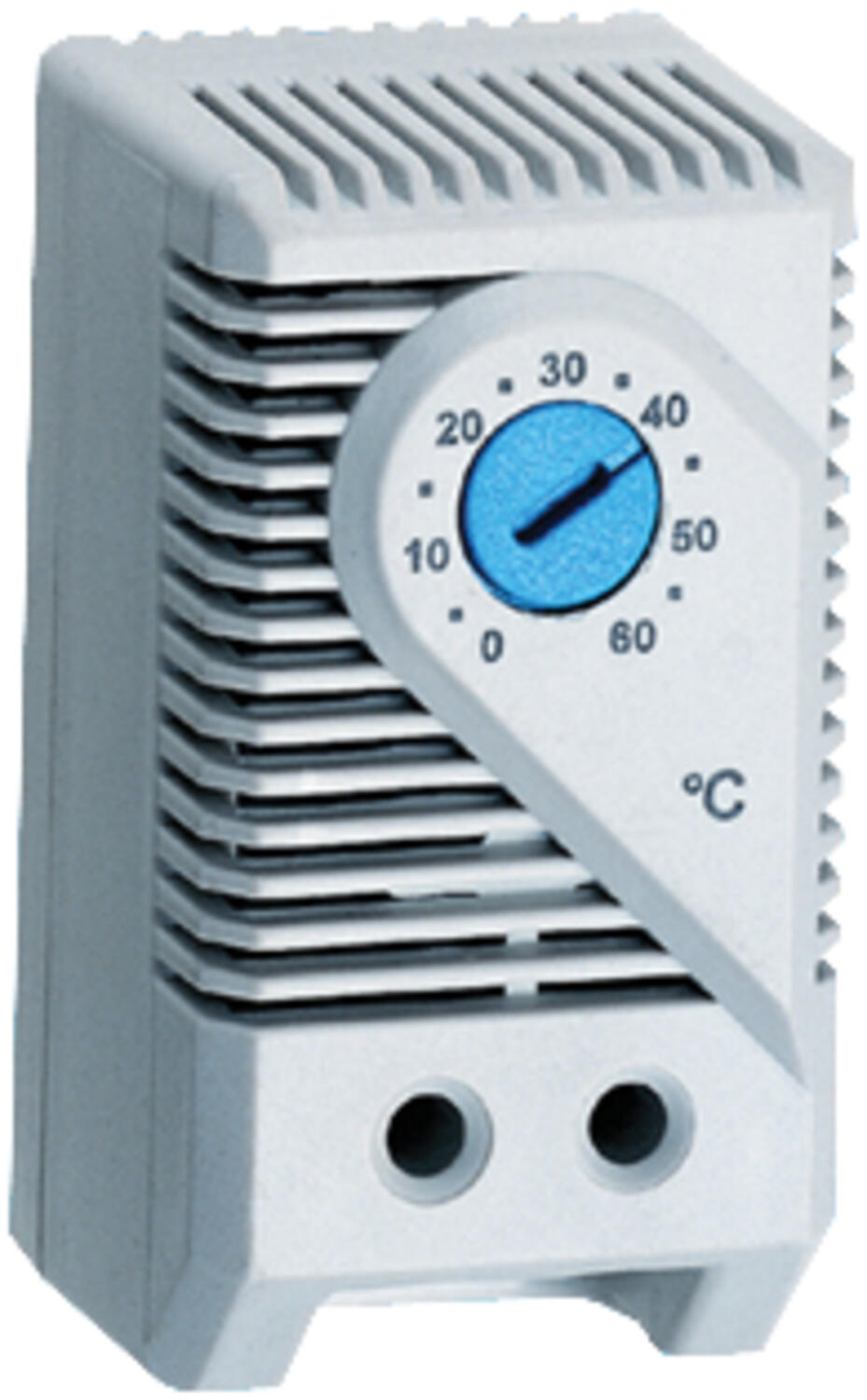

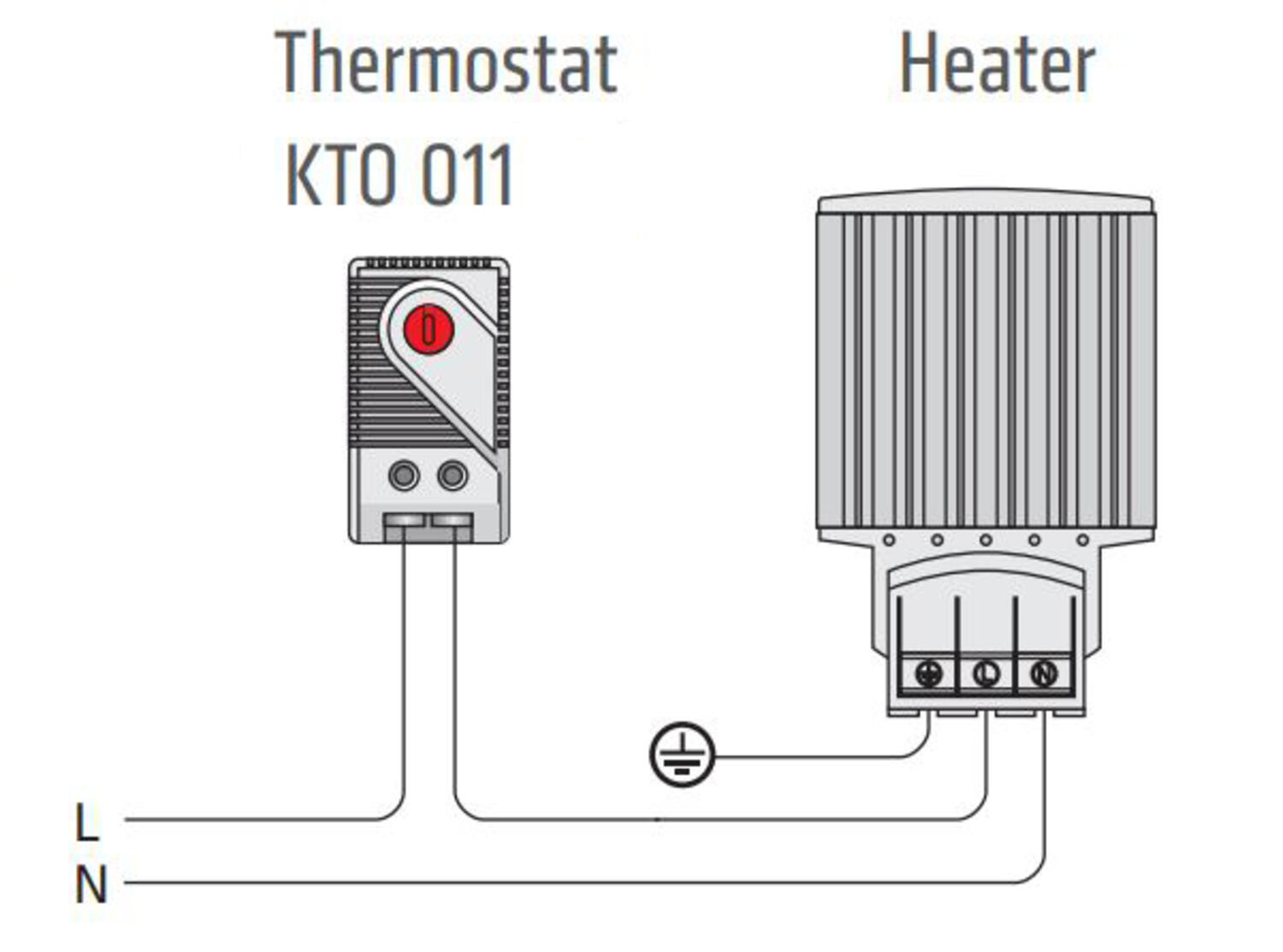

KTO 011 is an electro-magnetic thermostat with one NC contact for regulating, for example, heating elements. KTS 011 is an electro-magnetic thermostat with one NO contact for regulating, for example, filter fans or overheating alarms.
General data |
|
|---|---|
| Control range temperature from | 0 °C |
| Control range temperature to | 60 °C |
| Tolerance switch off | ±4K |
| Tolerance for switch on | ±4K |
| Hysteresis temperature | 7K |
| Mounting | DIN-rail 35mm, quick mount |
Rated operating conditions |
|
| Voltage max | 250 V ac |
| Inrush max | 16 A |
| Breaking capacity | 250 VAC, 10 (2) A / 120 VAC, 15 (2) A. DC: 30W @ 24 VDC, up to 72 VDC |
| Contact resistance | <20 mΩ |
| Electrical lifetime | > 100 000 operations |
| Connection type | 2-pole 1-strand: 2,5 mm² (AWG 14) or multistrand 1,5 mm² (AWG 16). Torque 0,8 Nm. |
| Humidity | <90 % RH (non-condensing) |
*Invisible Heading* |
|
|---|---|
| Operational temperature | -45°C ... +80°C |
| Storage temperature | -45°C ... +80°C |
| Life span | > 1000 000 operations |
Dimensions |
|
| Height | 60 mm |
| Width | 33 mm |
| Depth | 43 mm |
| Weight | 0,04 kg |
| Material plastic housing | Plastic |
Safety & approvals |
|
| Plastic cover | Light grey plastic, UL94 V-0 |
| IP class | IP20 |
| Approvals | CE, EAC, RoHS, VDE |
| Country of origin | Germany |
KTO 011 is an electro-magnetic thermostat with one NC contact for regulating, for example, heating elements. KTS 011 is an electro-magnetic thermostat with one NO contact for regulating, for example, filter fans or overheating alarms.
Optimise your production line with encoders, inclinometers, displays and slip rings
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.
Do you require signalling devices and beacons in your production process? Download our latest whitepaper!
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Control range temperature from | Control range temperature to | Control range temperature from | Control range temperature to | Mounting | Breaking capacity | Connection type | Humidity | Life span | Approvals | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
KTO 011 Thermostat, 0-60°C, normally closed
Art:
01140.0-00
Copied
|
0 °C
|
60 °C
|
|
|
DIN-rail 35mm, quick mount
|
250 VAC, 10 (2) A / 120 VAC, 15 (2) A. DC: 30W @ 24 VDC, up to 72 VDC
|
2-pole 1-strand: 2,5 mm² (AWG 14) or multistrand 1,5 mm² (AWG 16). Torque 0,8 Nm.
|
<90 % RH (non-condensing)
|
> 1000 000 operations
|
CE, EAC, RoHS, VDE
|
| ||
|
KTO 011 Thermostat, 0…60°C, normally closed , UL approved
Art:
01146.9-00
Copied
|
0 °C
|
60 °C
|
|
|
DIN-rail 35mm, quick mount
|
250 VAC, 10 (2) A / 120 VAC, 15 (2) A. DC: 30W @ 24 VDC, up to 72 VDC
|
2-pole 1-strand: 2,5 mm² (AWG 14) or multistrand 1,5 mm² (AWG 16). Torque 0,8 Nm.
|
<90 % RH (non-condensing)
|
> 1000 000 operations
|
CE, CSA, cULus, EAC, RoHS, UL E164102, VDE
|
| ||
|
KTO 011 Thermostat, -10°C…+50°C, normally closed
Art:
01142.0-00
Copied
|
-10 °C
|
50 °C
|
|
|
DIN-rail mount EN60715
|
250 VAC, 10 (2) A / 120 VAC, 15 (2) A. DC: 30W @ 24 VDC, up to 72 VDC
|
2-pole terminal for 2,5 mm² wires
|
Max. 90 % RH (non-condensing)
|
> 100 000 operations
|
CE, cULus, EAC, RoHS, UL E164102, VDE
|
| ||
|
KTO 011 Thermostat, 20°C…80°C, normally closed
Art:
01159.0-00
Copied
|
20 °C
|
80 °C
|
|
|
DIN-rail 35mm, quick mount
|
|
|
Max. 90 % RH (non-condensing)
|
> 1000 000 operations
|
CE, CSA, cULus, EAC, RoHS, UL E164102, VDE
|
| ||
KTS 011 Thermostat, 0-60°C, normally open
Art:
01141.0-00
Copied
|
0 °C
|
60 °C
|
|
|
DIN-rail 35mm, quick mount
|
250 VAC, 10 (2) A / 120 VAC, 15 (2) A. DC: 30W @ 24 VDC, up to 72 VDC
|
2-pole 1-strand: 2,5 mm² (AWG 14) or multistrand 1,5 mm² (AWG 16). Torque 0,8 Nm.
|
<90 % RH (non-condensing)
|
> 1000 000 operations
|
CE, EAC, RoHS, VDE
|
| ||
|
KTS 011 Thermostat, 0…60°C, normally open , UL approved
Art:
01147.9-00
Copied
|
0 °C
|
60 °C
|
|
|
DIN-rail 35mm, quick mount
|
250 VAC, 10 (2) A / 120 VAC, 15 (2) A. DC: 30W @ 24 VDC, up to 72 VDC
|
2-pole 1-strand: 2,5 mm² (AWG 14) or multistrand 1,5 mm² (AWG 16). Torque 0,8 Nm.
|
<90 % RH (non-condensing)
|
> 1000 000 operations
|
CE, CSA, cULus, EAC, RoHS, UL E164102, VDE
|
| ||
|
KTS 011 Thermostat, -10°C…+50°C, normally open
Art:
01143.0-00
Copied
|
-10 °C
|
50 °C
|
|
|
DIN-rail mount EN60715
|
250 VAC, 10 (2) A / 120 VAC, 15 (2) A. DC: 30W @ 24 VDC, up to 72 VDC
|
2-pole terminal for 2,5 mm² wires
|
Max. 90 % RH (non-condensing)
|
> 100 000 operations
|
CE, cULus, EAC, RoHS, UL E164102, VDE
|
| ||
|
KTS 011 Thermostat, 20°C…80°C, normally open
Art:
01158.0-00
Copied
|
20 °C
|
80 °C
|
|
|
DIN-rail 35mm, quick mount
|
250 VAC, 10 (2) A / 120 VAC, 15 (2) A. DC: 30W @ 24 VDC, up to 72 VDC
|
|
Max. 90 % RH (non-condensing)
|
> 1000 000 operations
|
CE, CSA, cULus, EAC, RoHS, UL E164102, VDE
|
| ||
|
KTO 011 Thermostat, 32°F…140°F, normally closed
Art:
01140.9-00
Copied
|
|
|
32 °F
|
140 °F
|
DIN-rail 35mm, quick mount
|
|
|
Max. 90 % RH (non-condensing)
|
> 1000 000 operations
|
CE, CSA, cULus, EAC, RoHS, UL E164102, VDE
|
| ||
|
KTS 011 Thermostat, 32°F…140°F, normally open
Art:
01141.9-00
Copied
|
|
|
32 °F
|
140 °F
|
DIN-rail 35mm, quick mount
|
|
|
Max. 90 % RH (non-condensing)
|
> 1000 000 operations
|
CE, CSA, cULus, EAC, RoHS, UL E164102, VDE
|
| ||
|
KTO 011 Thermostat, 14°F…122°F, normally closed
Art:
01142.9-00
Copied
|
|
|
14 °F
|
122 °F
|
DIN-rail 35mm, quick mount
|
|
|
Max. 90 % RH (non-condensing)
|
> 1000 000 operations
|
CE, CSA, cULus, EAC, RoHS, UL E164102, VDE
|
| ||
|
KTS 011 Thermostat, 14°F…122°F, normally open
Art:
01143.9-00
Copied
|
|
|
14 °F
|
122 °F
|
DIN-rail 35mm, quick mount
|
|
|
Max. 90 % RH (non-condensing)
|
> 1000 000 operations
|
CE, CSA, cULus, EAC, RoHS, UL E164102, VDE
|
|
