STEGO

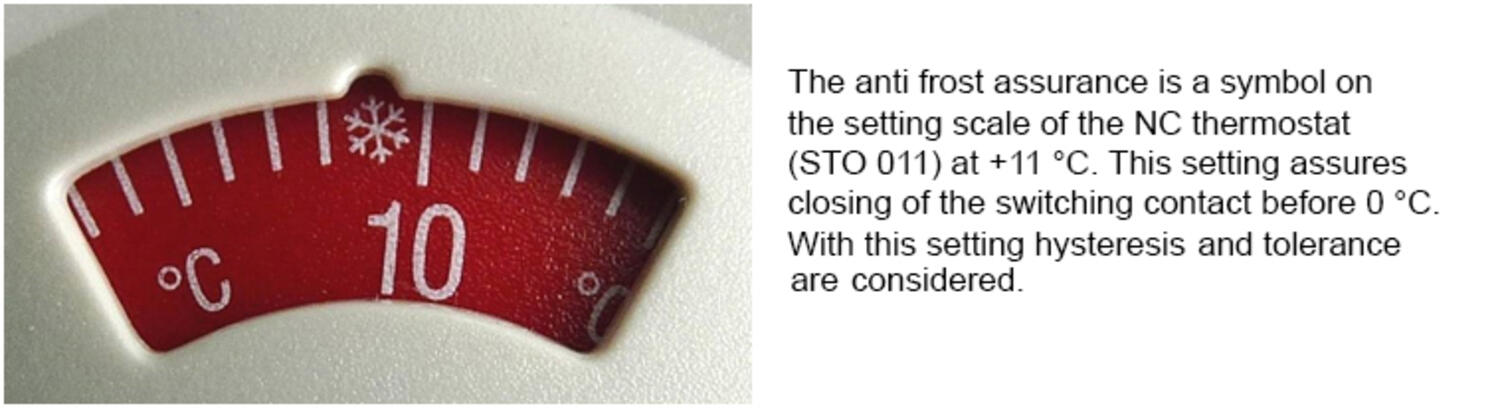

The mechanical thermostat is a two state regulator with small hysteresis. The setting wheel has an anti frost assurance. The housing ensures an optimized air circulation around the bimetal.

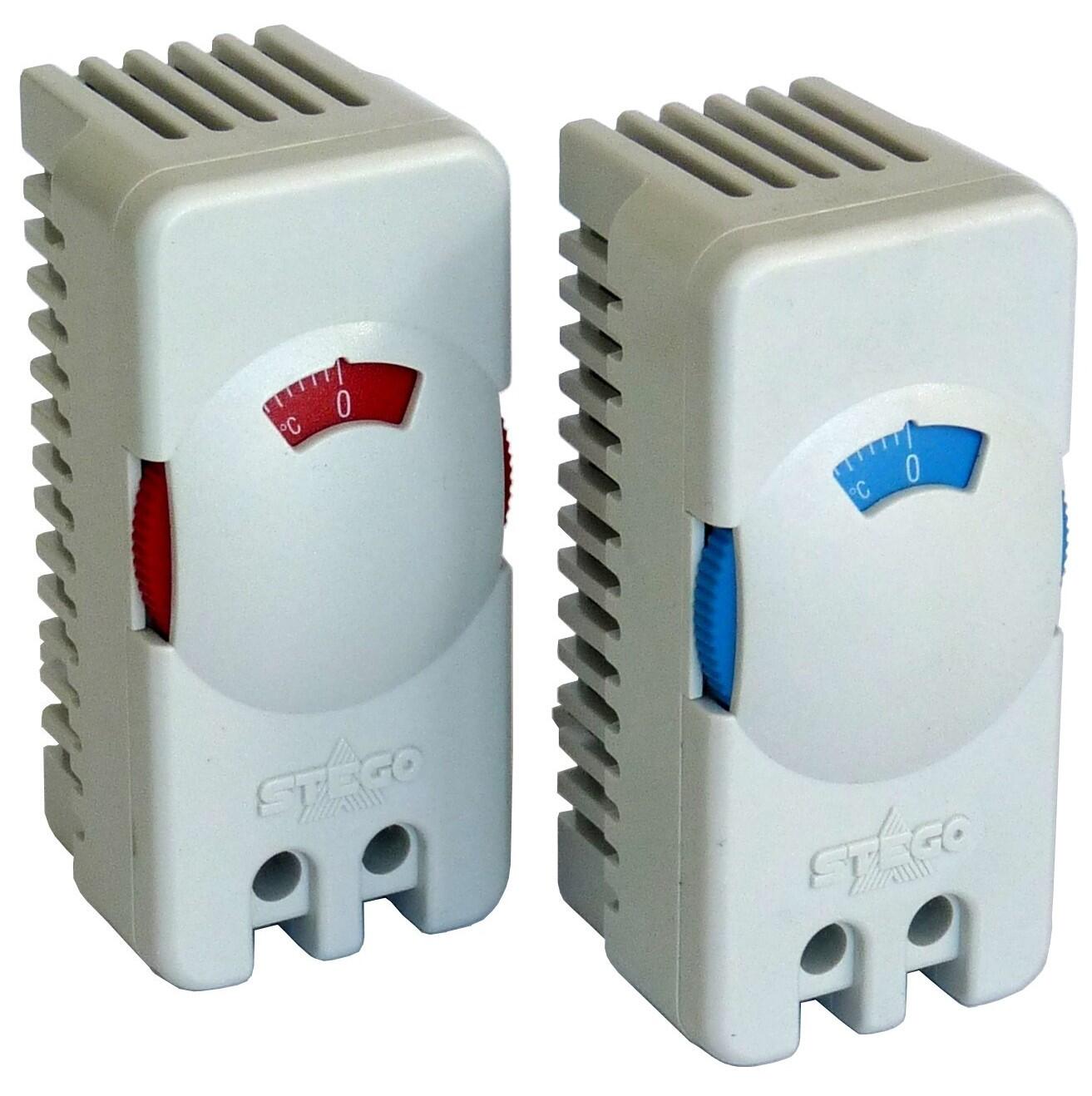

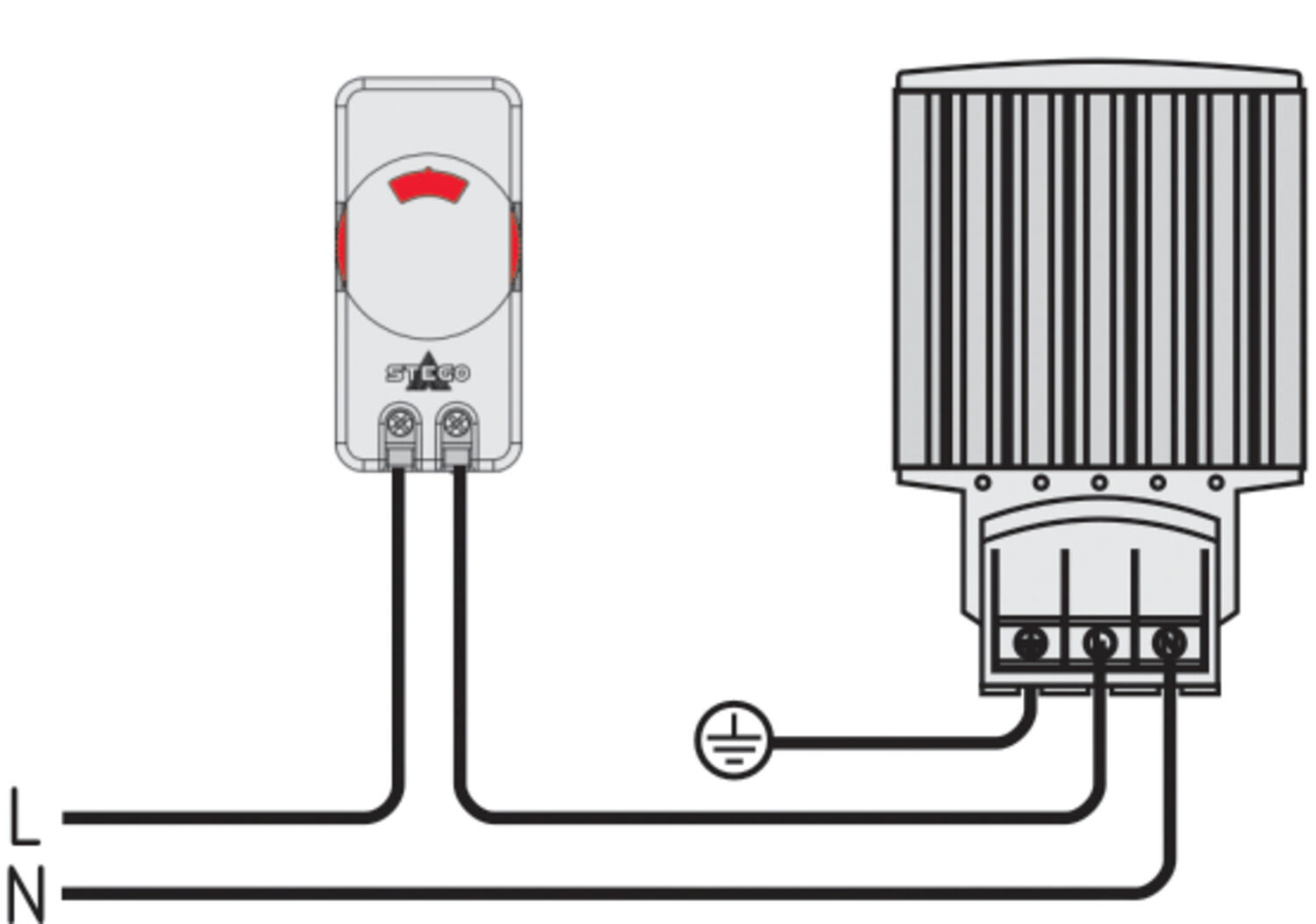

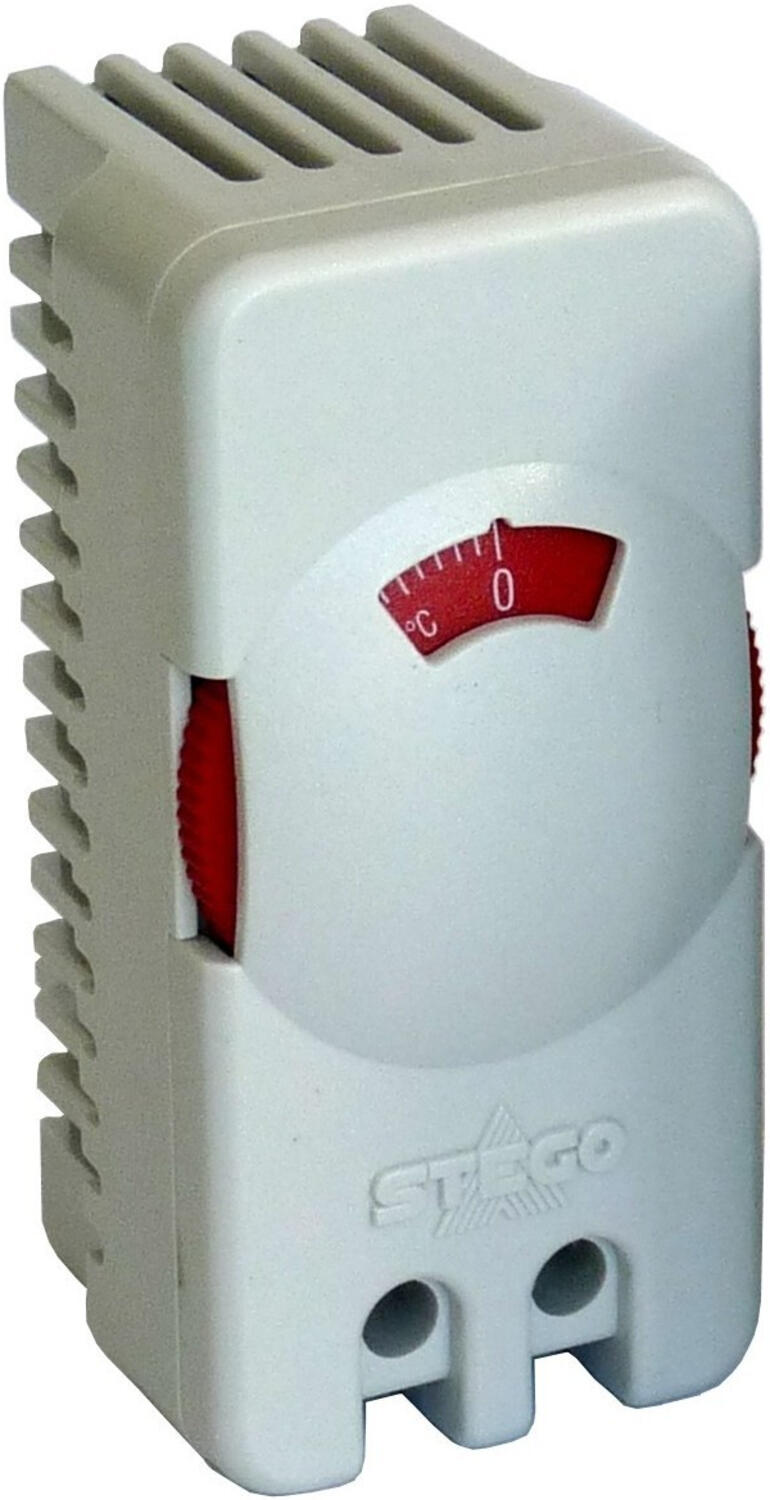

STO 011: Thermostat (NC); contact breaker for regulating heaters. The contact opens when temperature is rising.
STS 011: Thermostat (NO); contact maker for regulating of filter fans and heat exchangers or for switching signal devices when temperature limit has been exceeded. The contact closes when temperature is rising.
General data |
|
|---|---|
| Control range temperature from | 0 °C |
| Control range temperature to | 60 °C |
| Tolerance switch off | ±3K |
| Tolerance for switch on | ±3K |
| Hysteresis temperature | 4K |
| Mounting | DIN-rail 35mm, quick mount |
Rated operating conditions |
|
| Inrush max | 16 A |
| Breaking capacity | 250 VAC, 10 (2) A / 120 VAC, 15 (2) A. DC: 30W @ 24 VDC, up to 72 VDC |
| Contact resistance | <10 mΩ |
| Electrical lifetime | > 100 000 operations |
| Connection type | 2-pole rigid 2,5 mm² (AWG 14) or stranded 1,5 mm² (AWG 16). Torque 0,8 Nm. |
| Humidity | <90 % RH (non-condensing) |
| Operational temperature | -45°C ... +80°C |
*Invisible Heading* |
|
|---|---|
| Storage temperature | -45°C ... +80°C |
| Life span | >1 000 000 operations |

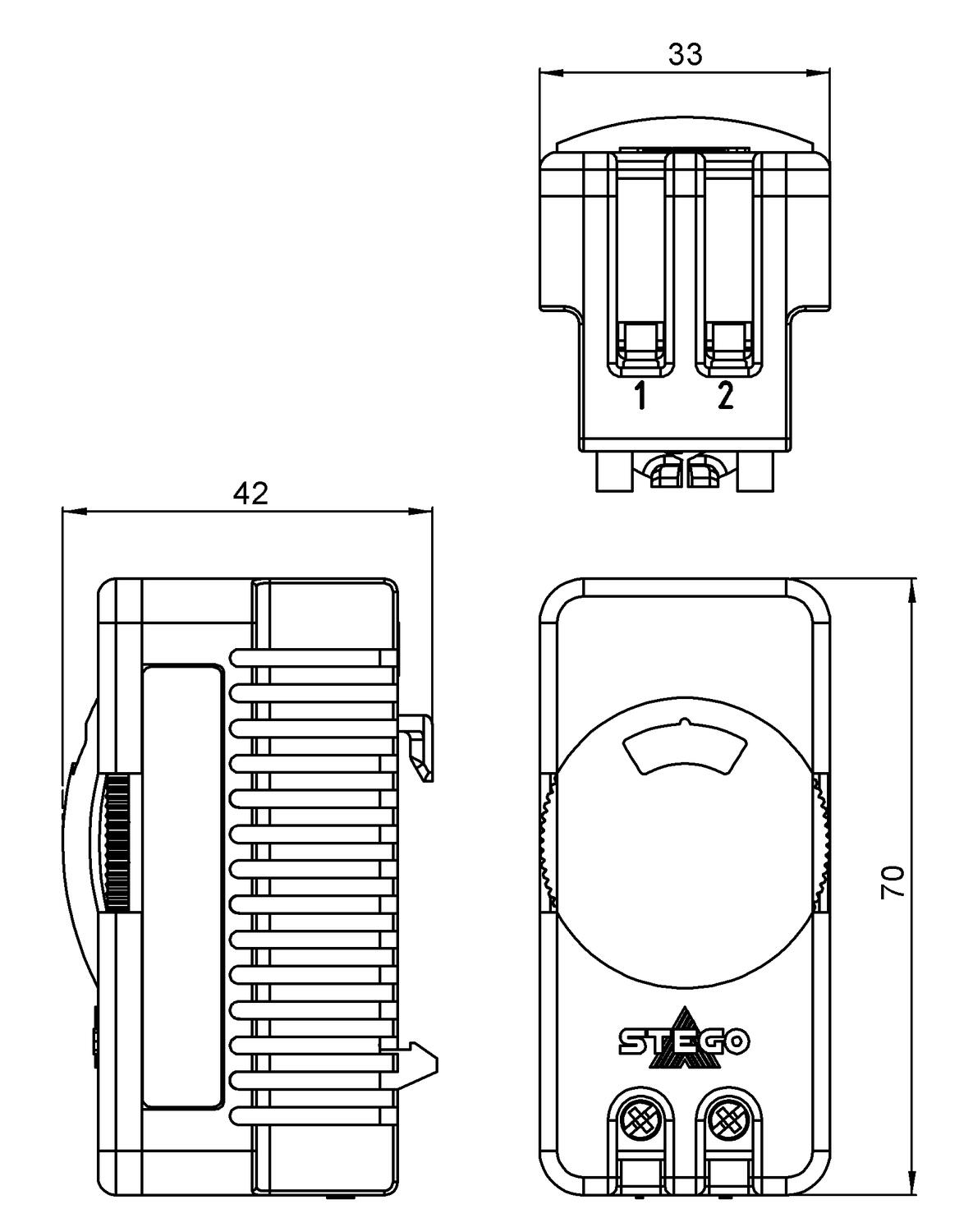

Dimensions |
|
| Height | 70 mm |
| Width | 33 mm |
| Depth | 42 mm |
| Weight | 0,05 kg |
| Material plastic housing | Plastic |
Safety & approvals |
|
| Plastic cover | Light grey plastic, UL94 V-0 |
| IP class | IP20 |
| Approvals | CE, cULus, EAC, RoHS, UL E164102, VDE |
| Country of origin | Germany |
The mechanical thermostat is a two state regulator with small hysteresis. The setting wheel has an anti frost assurance. The housing ensures an optimized air circulation around the bimetal.
STO 011: Thermostat (NC); contact breaker for regulating heaters. The contact opens when temperature is rising.
STS 011: Thermostat (NO); contact maker for regulating of filter fans and heat exchangers or for switching signal devices when temperature limit has been exceeded. The contact closes when temperature is rising.
Optimise your production line with encoders, inclinometers, displays and slip rings
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.
Do you require signalling devices and beacons in your production process? Download our latest whitepaper!
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Control range temperature from | Control range temperature to | Control range temperature from | Control range temperature to | Price | ||
|---|---|---|---|---|---|---|---|
STO 011 Thermostat, 0…60°C, normally closed
Art:
01115.0-00
Copied
|
0 °C
|
60 °C
|
|
|
| ||
STS 011 Thermostat, 0…60°C, normally open
Art:
01116.0-00
Copied
|
0 °C
|
60 °C
|
|
|
| ||
|
STO 011 Thermostat, 32°F…140°F, normally closed
Art:
01115.9-00
Copied
|
|
|
32 °F
|
140 °F
|
| ||
|
STS 011 Thermostat, 32°F…140°F, normally open
Art:
01116.9-00
Copied
|
|
|
32 °F
|
140 °F
|
|
Select a variant in the list
