STEGO

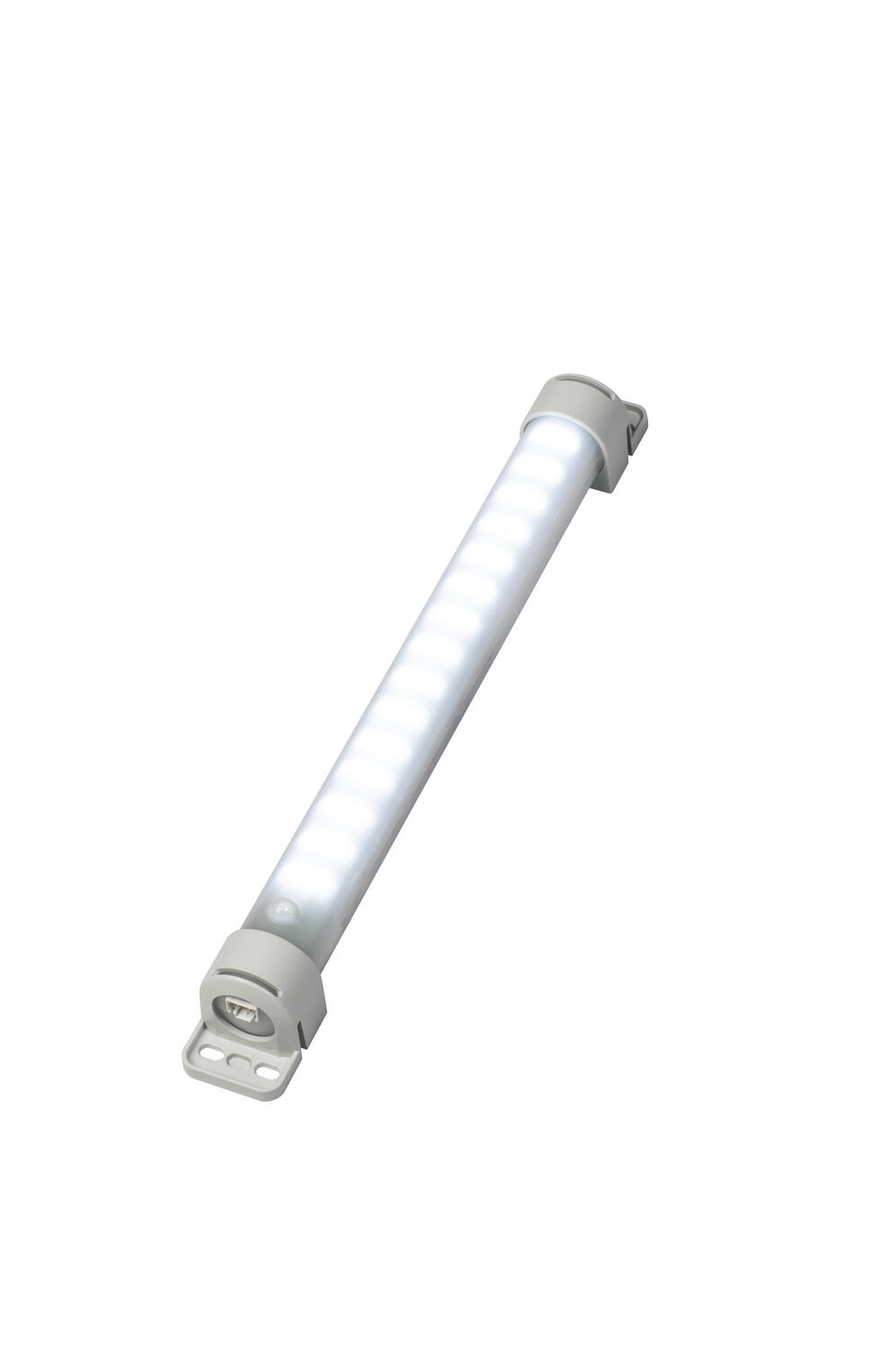

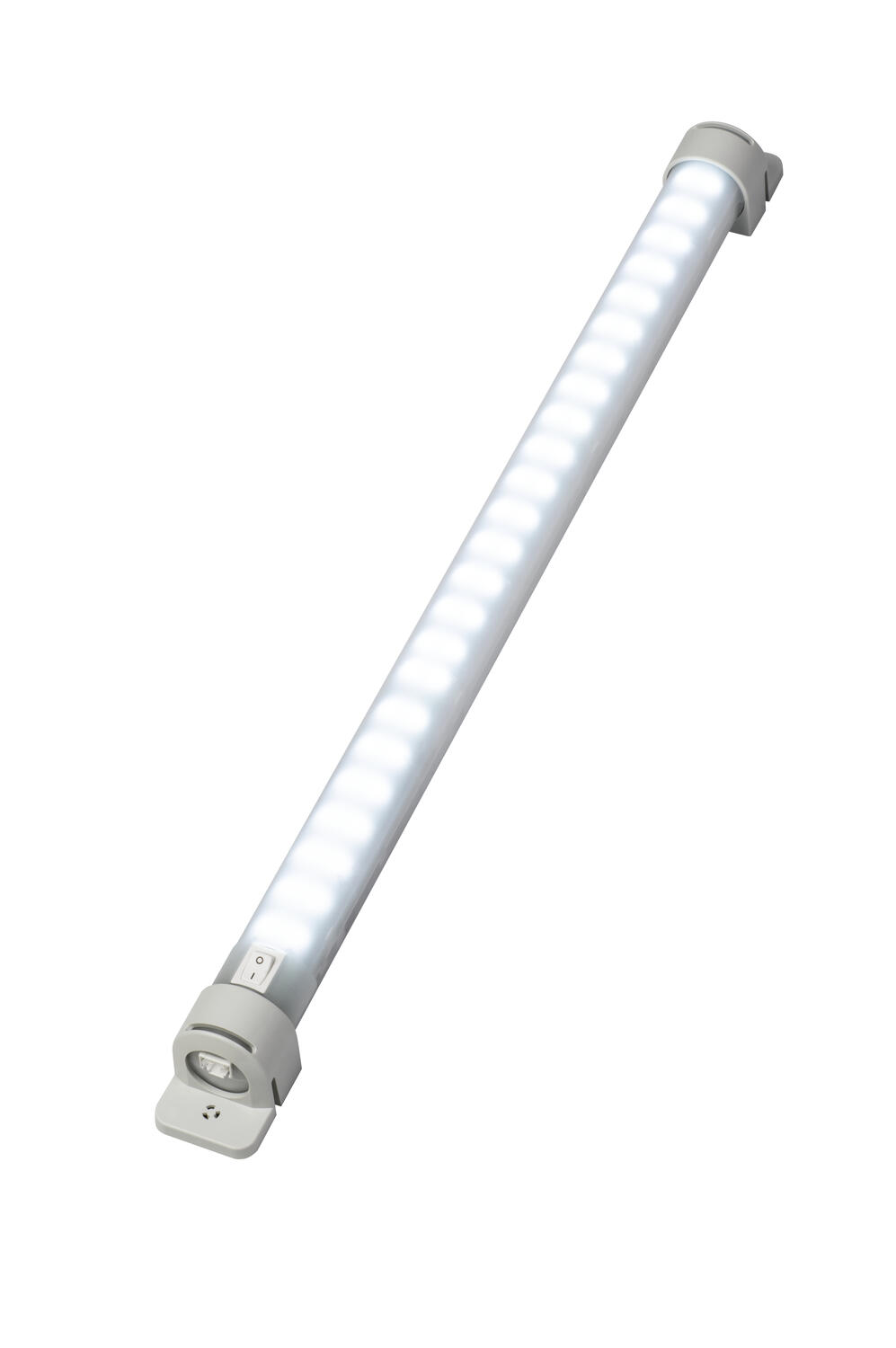

The LED 021/022 Varioline lamp is a compact and powerful LED lamp for enclosures, with a power consumption of only 11 W/16 W. The LED tube emits more than 1,000/1,700 Lm, illuminating even large enclosures to their full depth and height.
Â
The emitted daylight colour of 6,500 K provides natural and non-fading colour reproduction and in-turn safety for the user. The LED 021/022 is glare free, rotatable 360° and uses Mid-power LEDs giving a service life of 60,000 h.
Â
The range is easy to connect in series, supporting up to ten units. Connection plugs can either be purchased separately for own cable assembly or as a pre-wired 2 meter cable with VDE or UL approval as required.Â
Â
General Data |
|
|---|---|

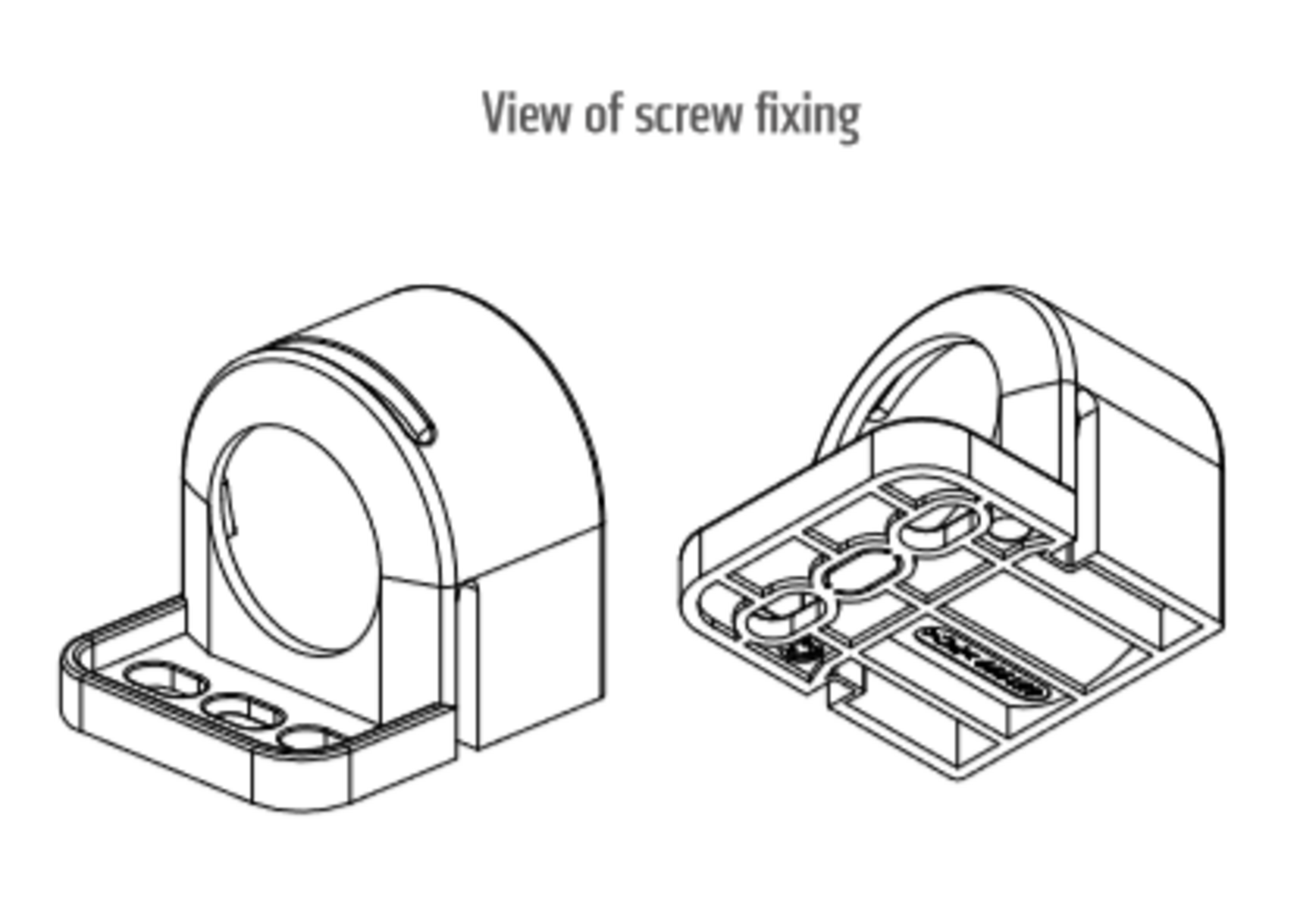

| Mounting | Screw fixing |
| Luminance | 1.080 Lm/1.730 Lm |
| Nominal voltage | 100-240 V AC |
| Connection type | 2 pole plug with snap lock |
| Life span | 60,000h at +20°C |
| Activation | Switch |
| Light source | LED |

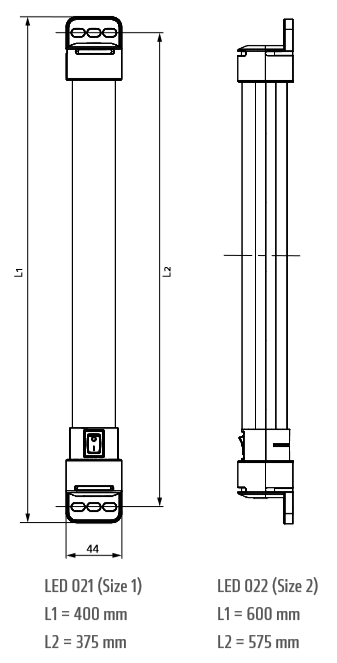

Dimensions |
|
| Length | 400 mm |
| Width | 44 mm |
| Height | 44 mm |
Electrical specification |
|
| Frequency | 50/60 Hz |
| Power consumption | 11 W |
Safety & approvals |
|
| IP class | IP20 |
*Invisible Heading* |
|
|---|---|
| Approvals pending | UL, VDE |
| Protection class | II (double insulated) |
| Approvals | CE, RoHS |
Materials - Conditions |
|
| Operational temperature | -30°C … +40°C |
| Colour | Translucent/White |
| Storage temperature | -40°C … +85°C |
| Humidity storage | <90% RH |
| Operating humidity | < 90% RH |
| Material of body | Plastic |
| Voltage min | 90 V ac |
| Voltage max | 265 V ac |
| Weight | 0,3 kg |
The LED 021/022 Varioline lamp is a compact and powerful LED lamp for enclosures, with a power consumption of only 11 W/16 W. The LED tube emits more than 1,000/1,700 Lm, illuminating even large enclosures to their full depth and height.
Â
The emitted daylight colour of 6,500 K provides natural and non-fading colour reproduction and in-turn safety for the user. The LED 021/022 is glare free, rotatable 360° and uses Mid-power LEDs giving a service life of 60,000 h.
Â
The range is easy to connect in series, supporting up to ten units. Connection plugs can either be purchased separately for own cable assembly or as a pre-wired 2 meter cable with VDE or UL approval as required.Â
Â
Optimise your production line with encoders, inclinometers, displays and slip rings
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.
Do you require signalling devices and beacons in your production process? Download our latest whitepaper!
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Mounting | Activation | Length | Power consumption | Voltage min | Price | ||
|---|---|---|---|---|---|---|---|---|
LED 021 100-240 V AC, with on/off switch, screw fixing
Art:
02100.0-00
Copied
|
Screw fixing
|
Switch
|
400 mm
|
11 W
|
90 V ac
|
| ||
|
LED 021 100-240 V AC, with on/off switch, magnet fixing
Art:
02100.0-30
Copied
|
Magnetic mount
|
Switch
|
400 mm
|
11 W
|
90 V ac
|
| ||
|
LED 021 100-240 V AC, with PIR sensor, screw fixing
Art:
02110.0-00
Copied
|
Screw fixing
|
IR sensor
|
400 mm
|
11 W
|
90 V ac
|
| ||
|
LED 021 100-240 V AC, with PIR sensor, magnet fixing
Art:
02110.0-30
Copied
|
Magnetic mount
|
IR sensor
|
400 mm
|
11 W
|
90 V ac
|
| ||
|
LED 021 100-240 V AC, without switch, screw fixing
Art:
02120.0-00
Copied
|
Screw fixing
|
No switch
|
400 mm
|
11 W
|
90 V ac
|
| ||
LED 022 100-240 V AC, with PIR sensor, magnet fixing
Art:
02210.0-30
Copied
|
Magnetic mount
|
IR sensor
|
600 mm
|
16 W
|
90 V ac
|
| ||
|
LED 022 100-240 V AC, with on/off switch, screw fixing
Art:
02200.0-00
Copied
|
Screw fixing
|
Switch
|
600 mm
|
16 W
|
90 V ac
|
| ||
|
LED 022 100-240 V AC, without switch, screw fixing
Art:
02220.0-00
Copied
|
Screw fixing
|
No switch
|
600 mm
|
16 W
|
90 V ac
|
| ||
|
OBSOLETE - LED 022 100-240 V AC, without switch, magnet fixing
Art:
02220.0-30
Copied
|
Magnetic mount
|
No switch
|
600 mm
|
16 W
|
90 V ac
|
| ||
|
OBSOLETE - LED 022 100-240 V AC, with PIR sensor, screw fixing
Art:
02210.0-00
Copied
|
Screw fixing
|
IR sensor
|
600 mm
|
16 W
|
90 v ac
|
| ||
|
OBSOLETE - LED 022 100-240 V AC, with on/off switch, magnet fixing
Art:
02200.0-30
Copied
|
Magnetic mount
|
Switch
|
600 mm
|
16 W
|
90 V ac
|
| ||
|
OBSOLETE - LED 021 100-240 V AC, without switch, magnet fixing
Art:
02120.0-30
Copied
|
Magnetic mount
|
No switch
|
400 mm
|
11 W
|
90 V ac
|
|
