LUMEL

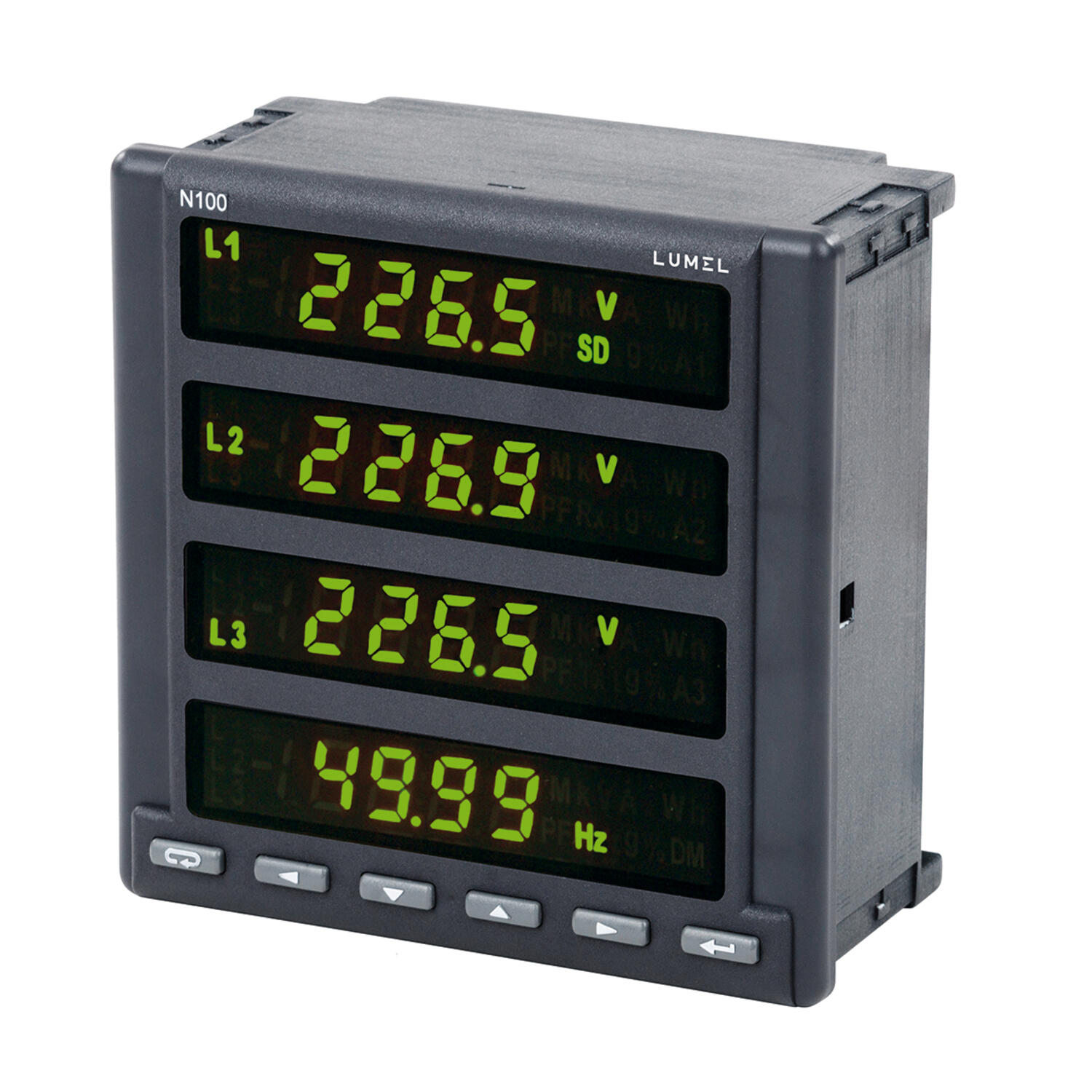

3-Phase Network Meter, N100

  • Measurement of power network parameters in 3 or 4-wire, balanced or unbalanced systems
  • Two-color LED display (red, green)
  • Four quadrant energy measurement
  • Indications taking into consideration programmed ratio values
  • Storage of minimal and maximal values
  • Backlit units of all measured quantities
  • Programmable number of pages and selection of displayed quantities on each of the 20 pages
  • Configurable analog and alarm outputs
  • Pulse output to control of the consumption of active energy (option)
  • Pulse input to count the consumption of active energy from external counter
  • Digital RS-485 interface with MODBUS protocol
  • Archiving data in the internal memory file system memory 8 GB (option)
  • Ethernet interface 10/100 BASE-T (option)
  • protocol: MODBUS TCP/IP, HTTP, FTP,
  • services: www server, ftp server, DHCP client
  • Battery support of RTC
Read more
  • Measures parameters of 3/4 wire baance/unbalanced systems
  • RS485 MODBUS, TCP/IP
  • Configurable analogue and alarm outputs

Selected variant

Lumel 3-Phase Network Meter, N100

3-PH NETWORK ANALYZER 230/400V 500Hz

Art:

LUMEL_logo.tif

Save page as PDF

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Technical data

Downloads

Product description

  • Measurement of power network parameters in 3 or 4-wire, balanced or unbalanced systems
  • Two-color LED display (red, green)
  • Four quadrant energy measurement
  • Indications taking into consideration programmed ratio values
  • Storage of minimal and maximal values
  • Backlit units of all measured quantities
  • Programmable number of pages and selection of displayed quantities on each of the 20 pages
  • Configurable analog and alarm outputs
  • Pulse output to control of the consumption of active energy (option)
  • Pulse input to count the consumption of active energy from external counter
  • Digital RS-485 interface with MODBUS protocol
  • Archiving data in the internal memory file system memory 8 GB (option)
  • Ethernet interface 10/100 BASE-T (option)
  • protocol: MODBUS TCP/IP, HTTP, FTP,
  • services: www server, ftp server, DHCP client
  • Battery support of RTC
