LUMEL

DIN Rail, 1-Phase Network Meter, N27D

  • Direct measurement up to 63A
  • Measurement of: RMS current (a.c.)
  • and voltage (a.c.), active power and frequency
  • Switched measured value
  • 4-digit display in yellow colour
  • Backlighted indicator of displayed value
  • Modern design allows for installation of the meter in modular switchgear in accordance with EN 62208
    (meter has a width of 3 modules) on 35 mm rail
Read more
  • Single phase network meter
  • 63A Direct (No need for CT'S)
  • 4 Digit display

Selected variant

Lumel DIN Rail, 1-Phase Network Meter, N27D

1PH DIN RAIL NETWORK METER 63A

Art:

LUMEL_logo.tif

Save page as PDF

Technical data / Documents

Product description

Ordering information

Accessories & Related products

Selected variant

Technical data

Downloads

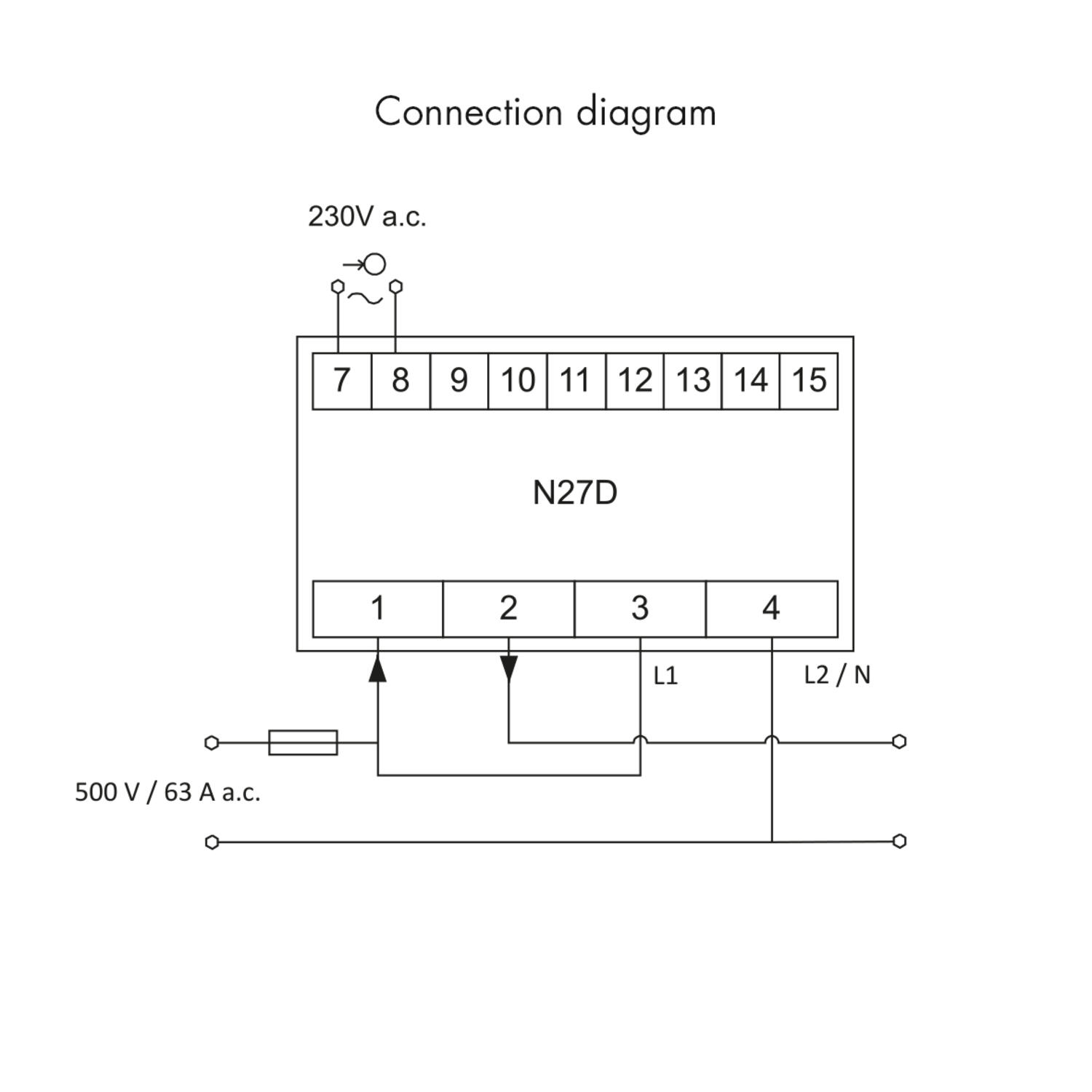

Measurements and connections

Product description

  • Direct measurement up to 63A
  • Measurement of: RMS current (a.c.)
  • and voltage (a.c.), active power and frequency
  • Switched measured value
  • 4-digit display in yellow colour
  • Backlighted indicator of displayed value
  • Modern design allows for installation of the meter in modular switchgear in accordance with EN 62208
    (meter has a width of 3 modules) on 35 mm rail

Ordering information

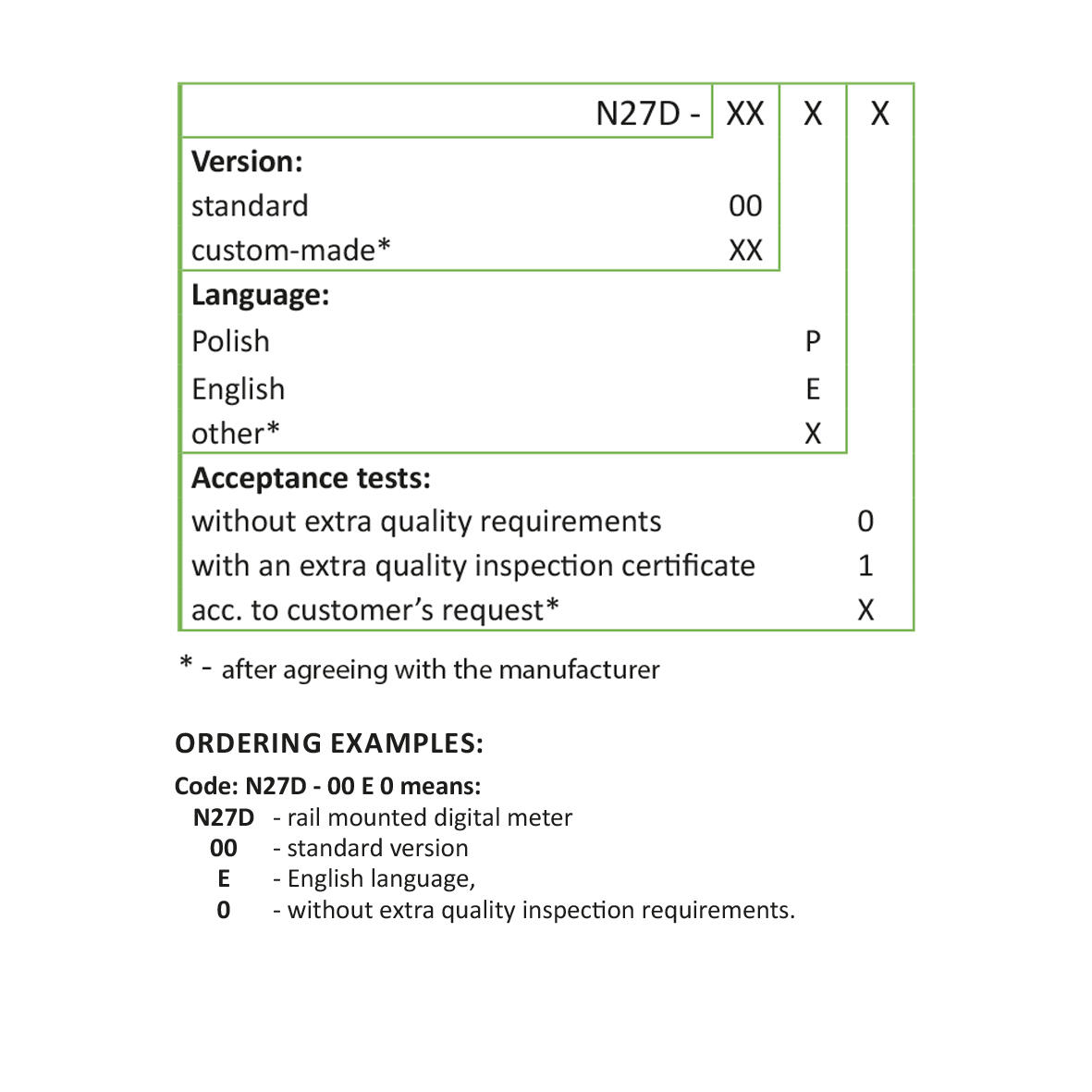

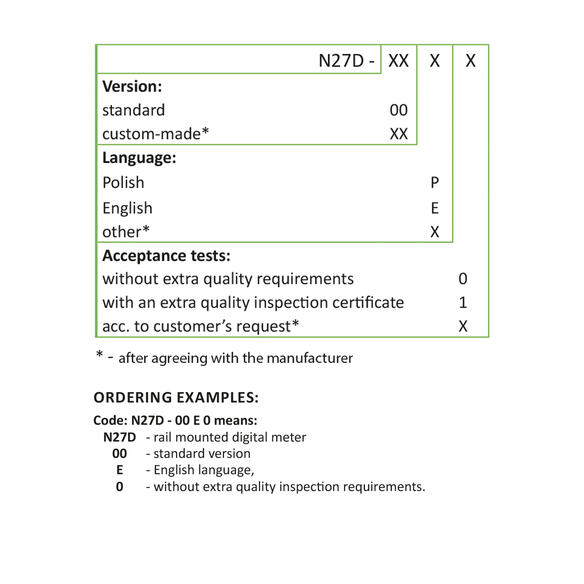

Please refer to the image below for ordering information.



N27D_ordering.tif
