CONTA-CLIP
 Â
This range of interface modules use the standardized RJ45 Ethernet and USB connectors from computer components, Ethernet ready devices or modems and have screw PCB terminals for easy connection.
Â
The RJS45-SH is even more compact and uses push in connectors and has the added spring shield clip for locally grounding the cable.
Â
New additions to the range include the Industrial SPE (Single Pair Ethernet) interface with spring shield clip and the IX Industrial Ethernet.
Â
General Data |
|
|---|---|
| Connector type | RJ45 |
| Category | CAT 3 |
| Connection type | Screw |
| Number of connections | 1 Â |
| Number of poles | 8 |
| Shielded | Yes |
Dimensions |
|
| Height TS 35/7.5 | 61 mm |
| Length | 47 mm |
| Width | 31 mm |
Connection Data |
|
| Cross section single wire from | 0,2 mm² |
| Cross section stranded with ferrule from | 0,2 mm² |
| Cross section stranded with ferrule to | 2,5 mm² |
| Stripping length | 7 mm |
| Contact material | Cu-Sn-P 1.27 µm Au 1.27 µm Ni |
| Cross section single wire to | 2,5 mm² |
*Invisible Heading* |
|
|---|---|
| Torque | 0,6 Nm |
Ratings |
|
| DIN-VDE Spec | DIN VDE 0110 / EN 50178 |
| Current carrying capacity per channel max | 1 A |
| Operating temperature from | -20 °C |
| Operating voltage ac/dc max | 125 V |
| Operating temperature to | 50 °C |
| Contamination degree | 2 |
| Durability (plugging cycles) | 750 |
| Overvoltage category | III |
| Test voltage eff | 0,75 kV |
Additional Data |
|
| Pack size | 1 Â |
| Country of origin | NL |
| Tariff code | 85369010 |
| Weight | 52 g |
 Â
This range of interface modules use the standardized RJ45 Ethernet and USB connectors from computer components, Ethernet ready devices or modems and have screw PCB terminals for easy connection.
Â
The RJS45-SH is even more compact and uses push in connectors and has the added spring shield clip for locally grounding the cable.
Â
New additions to the range include the Industrial SPE (Single Pair Ethernet) interface with spring shield clip and the IX Industrial Ethernet.
Â
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.
Do you require signalling devices and beacons in your production process? Download our latest whitepaper!
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.
Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Connector type | Category | Connection type | Number of connections | Number of poles | Shielded | Height TS 35/7.5 | Length | Width | Cross section single wire from | Cross section stranded with ferrule from | Cable diameter min | Cable diameter max | Cross section stranded with ferrule to | Stripping length | Contact material | Cross section single wire to | Torque | Current carrying capacity per channel max | Operating temperature from | Operating voltage ac/dc max | Operating temperature to | Durability (plugging cycles) | Weight | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
RJS-45-SH, RJ45 Shielded interface module, CAT5 (100 Mbps), Push in terminals
Art:
15904.2
Copied
|
RJ45
|
CAT 5
|
Push-in
|
1
|
8
|
Yes
|
63 mm
|
87 mm
|
26 mm
|
0,14 mm²
|
0,14 mm²
|
|
|
0,5 mm²
|
9 mm
|
Cu-Sn-P 1.27 µm Au 1.27 µm Ni
|
1 mm²
|
|
1 A
|
-20 °C
|
125 V
|
50 °C
|
750
|
61,05 g
|
| ||
RJU-45, RJ45 interface module without shield connection, CAT3 (10 Mbps), screw terminals
Art:
15255.2
Copied
|
RJ45
|
CAT 3
|
Screw
|
1
|
8
|
No
|
61 mm
|
47 mm
|
31 mm
|
0,2 mm²
|
0,2 mm²
|
|
|
2,5 mm²
|
7 mm
|
Cu-Sn-P 1.27 µm Au 1.27 µm Ni
|
2,5 mm²
|
0,6 Nm
|
1 A
|
-20 °C
|
125 V
|
50 °C
|
750
|
51,38 g
|
| ||

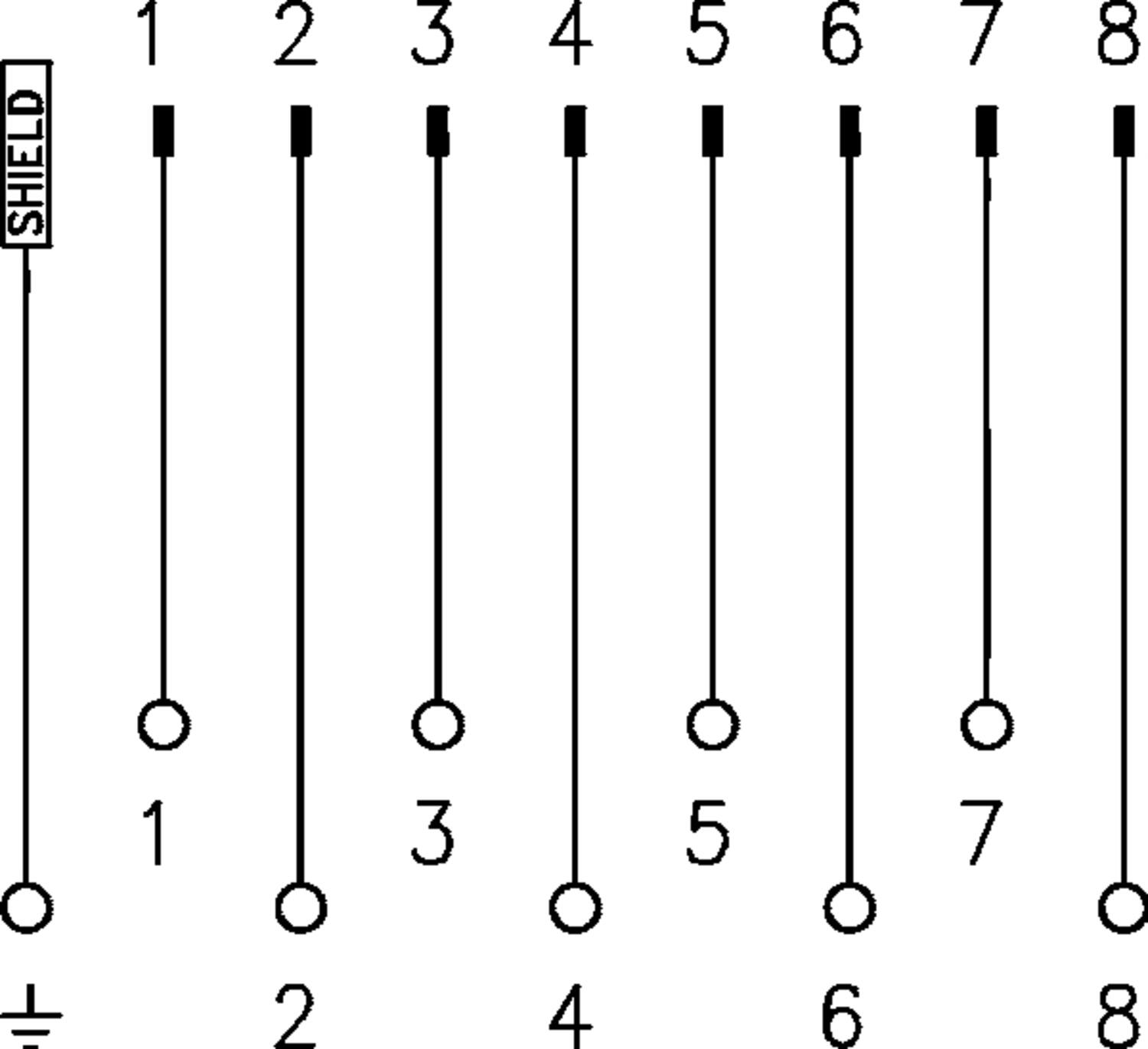

RJS-45, RJ45 Shielded interface module, CAT 3 (10 Mbps), screw terminals
Art:
15256.2
Copied
|
RJ45
|
CAT 3
|
Screw
|
1
|
8
|
Yes
|
61 mm
|
47 mm
|
31 mm
|
0,2 mm²
|
0,2 mm²
|
|
|
2,5 mm²
|
7 mm
|
Cu-Sn-P 1.27 µm Au 1.27 µm Ni
|
2,5 mm²
|
0,6 Nm
|
1 A
|
-20 °C
|
125 V
|
50 °C
|
750
|
52 g
|
| ||
RJS45-RJS45, 2 Port shielded RJ45 interface module, CAT5
Art:
15775.2
Copied
|
RJ45
|
CAT 5
|
|
2
|
8
|
Yes
|
44 mm
|
47 mm
|
27 mm
|
|
|
|
|
|
|
Cu-Sn-P 1.27 µm Au 1.27 µm Ni
|
|
|
1 A
|
-20 °C
|
125 V
|
50 °C
|
750
|
52 g
|
| ||
RJS-45-3, 3 Port shielded RJ45 interface module CAT3 (10 Mbps), screw terminals
Art:
16135.2
Copied
|
RJ45
|
CAT 3
|
Screw
|
3
|
8
|
Yes
|
53 mm
|
87 mm
|
39 mm
|
0,14 mm²
|
0,25 mm²
|
|
|
0,5 mm²
|
5 mm
|
Cu-Sn-P 1.27 µm Au 1.27 µm Ni
|
1 mm²
|
0,4 Nm
|
1 A
|
-20 °C
|
125 V
|
50 °C
|
750
|
58 g
|
| ||
USB-AB, USB TypeA and Type B Interface module, Female, screw terminals
Art:
15387.2
Copied
|
USB A/B
|
|
Screw
|
2
|
4
|
Yes
|
48 mm
|
47 mm
|
33 mm
|
0,2 mm²
|
0,2 mm²
|
|
|
2,5 mm²
|
7 mm
|
CuAI + Au
|
2,5 mm²
|
0,6 Nm
|
1 A
|
-20 °C
|
30 V
|
50 °C
|
1500
|
54 g
|
| ||
RJU11/RJU12, RJ11/12 Interface module without shield, Female, screw terminals
Art:
15672.2
Copied
|
RJ 11/12
|
|
Screw
|
1
|
6
|
No
|
61 mm
|
47 mm
|
26 mm
|
0,2 mm²
|
0,2 mm²
|
|
|
2,5 mm²
|
7 mm
|
Cu-Sn-P 1.27 µm Au 1.27 µm Ni
|
2,5 mm²
|
0,6 Nm
|
1 A
|
-20 °C
|
125 V
|
50 °C
|
750
|
56 g
|
| ||
IX-A-SH, IX Industrial Ethernet breakout module with sheild connection, CAT5 (100 Mbps), Push in terminals, Type A connector
Art:
16493.2
Copied
|
IX
|
CAT 5
|
Push-in
|
1
|
8
|
Yes
|
|
87 mm
|
26 mm
|
0,14 mm²
|
0,14 mm²
|
3 mm
|
8 mm
|
0,5 mm²
|
9 mm
|
Cu-Sn-P 1.27 µm Au 1.27 µm Ni
|
1 mm²
|
|
1 A
|
-40 °C
|
60 V
|
85 °C
|
|
48 g
|
| ||
|
IX-B-SH, IX Industrial Ethernet breakout module with sheild connection, CAT5 (100 Mbps), Push in terminals, Type B connector
Art:
16509.2
Copied
|
IX
|
CAT 5
|
Push-in
|
1
|
8
|
Yes
|
|
87 mm
|
26 mm
|
0,14 mm²
|
0,14 mm²
|
3 mm
|
8 mm
|
0,5 mm²
|
9 mm
|
Cu-Sn-P 1.27 µm Au 1.27 µm Ni
|
1 mm²
|
|
1,5 A
|
-40 °C
|
125 V
|
85 °C
|
|
48 g
|
| ||
SPE-SH, Interface module for SPE (single pair ethernet), shielded, push-in connections and SPE connector, 100 Mbps
Art:
16502.2
Copied
|
SPE
|
|
Push-in
|
1
|
3
|
Yes
|
63 mm
|
47 mm
|
22 mm
|
0,08 mm²
|
0,14 mm²
|
3 mm
|
6 mm
|
0,5 mm²
|
9 mm
|
CuAI with gold plating 0.76 µm
|
1,5 mm²
|
|
4 A
|
-40 °C
|
60 V
|
85 °C
|
|
23 g
|
|
Select a variant in the list
