PULS

FIEPOS eFuse 1-phase

100-240 V AC/24-28 V DC, 300 and 500 W

The FPS300 is an industrialgrade power supply for 1-phase networks incorporated in to a rugged wall- mount housing with IP65/67 protection.

It provides two to four stabilized outputs that is galvanically separated from the input.

The negative potential of the outputs is permanently connected to PE within the unit.

The most outstanding features of the FPS series are the compact size, the wide operational temperature range, the extremely low input inrush current and the very high efficiencies, which are achieved by various design technologies.

Large sized output capacitors can absorb and store regenerative energy from breaking motors.

Read more
  • Decentralized Power Supplies
  • Up to 4 switchable outputs
  • Output power 360/600 W
  • 600/1000 Wpeak 5s
  • IO-Link or DC-OK relay, IP65/67

Selected variant


IP65/IP67 Power supply 100-240VAC/24VDC, 300W

Art:

Selected variant

Technical data

Input data

Input voltage ac 100-240 V
Input voltage ac min 85 V AC
Input voltage ac max 264 V AC
Input voltage dc 110-300 V
Input voltage dc min 88 V DC
Input voltage dc max 360 V DC
Inrush current at 120 V ac typical 3 A
Inrush current at 230 V ac typical 6 A
Power factor at 120 V ac, full load. Typical 0,99
Power factor at 230 V ac, full load. Typical 0,97
Number of phases 1

Output data

Output voltage 24 V DC
Output voltage min 24 V DC
Output voltage max 28 V DC
Output current per channel 10 A
Power 300 W

Efficiency / Lifetime / MTBF

Efficiency at 120 V ac, full load, typical 94,3 %
Efficiency at 230 V ac, typical 94,6 %
Efficiency at 230 V ac, full load, typical 95,7 %

Dimensions

Width 182 mm
Height 183 mm
Depth 59 mm
Weight 1,2 kg

Other

Approvals CB, CE, UKCA, cULus
Hold time at 120 V ac, typical full load 37 ms
Hold time at 230 V ac, typical full load 37 ms
IP class IP65, IP67
Material protection Aluminium
Supply frequency 50-60 Hz ±6 %
Ripple max 50 mV pp
Series FIEPOS eFuse
Power consumption 120 V ac 3,2 A
Power consumption 230 V ac 1,68 A
Temperature min without derating -25 °C
Temperature max without derating 55 °C
Output connectors 1x 7/8"

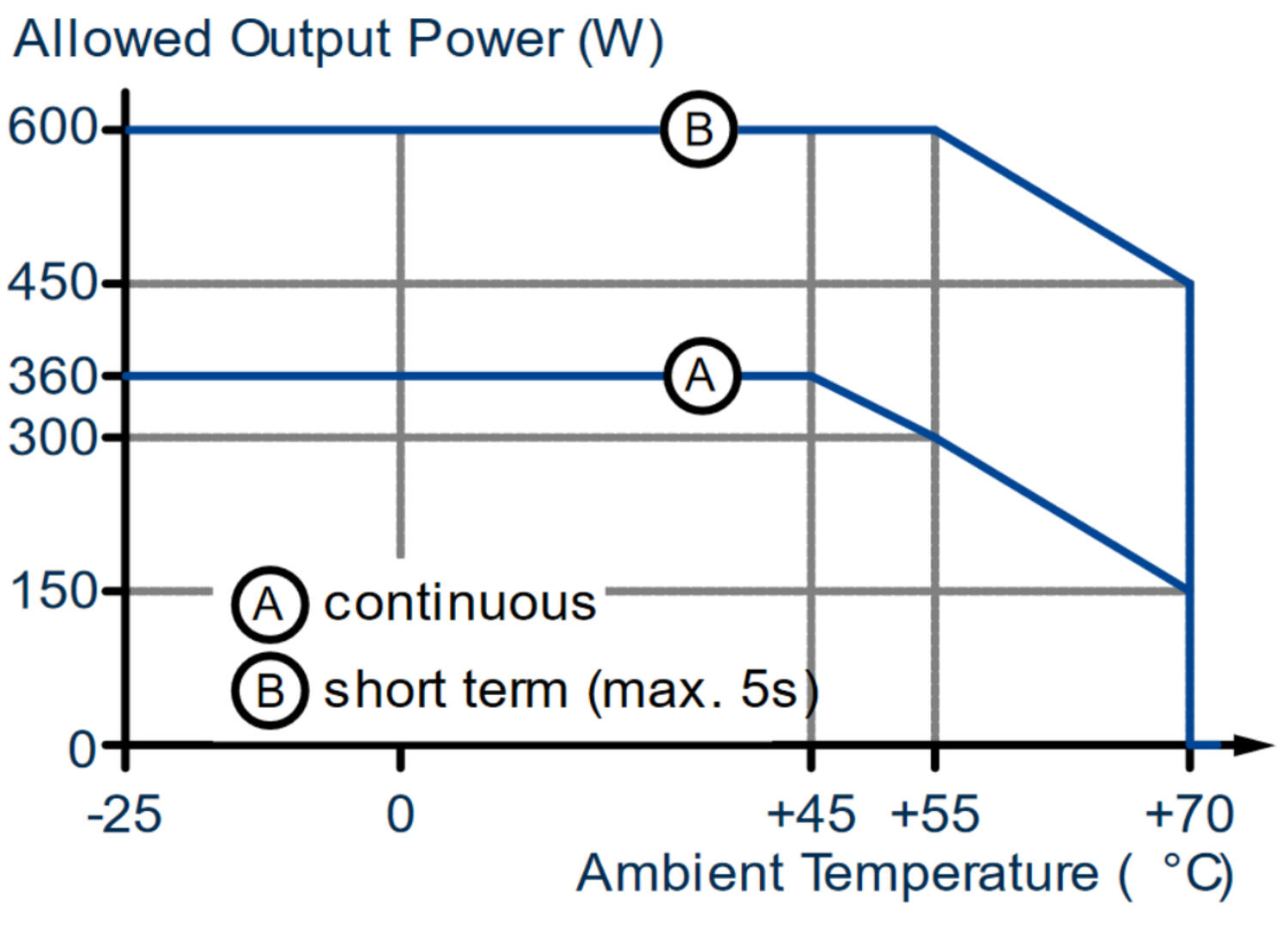

Total output power <+45°C 360 W
Total output power <+55°C 300 W
Total output power <+70°C 150 W
Total output power <5 s, <+55°C 600 W
Total output power <5 s, <+70°C 300 W
Power drop from +55 °C to + 70 °C 10 W/°C
Active Transient Yes
Back-feeding loads 35V / 4 J
DC relay output No
DC-OK/IO-link connector M12-A
Input connector 7/8"
IO-LINK Yes

Product description

The FPS300 is an industrialgrade power supply for 1-phase networks incorporated in to a rugged wall- mount housing with IP65/67 protection.

It provides two to four stabilized outputs that is galvanically separated from the input.

The negative potential of the outputs is permanently connected to PE within the unit.

The most outstanding features of the FPS series are the compact size, the wide operational temperature range, the extremely low input inrush current and the very high efficiencies, which are achieved by various design technologies.

Large sized output capacitors can absorb and store regenerative energy from breaking motors.
