CROUZET AUTOMATION
The Crouzet Touch range of HMI offers a high quality, high performance HMI but at a highly competative price.
We see more and more panels and system controlled and monitored by an HMI as opposed to traditional gauges, pilot light and meters. Modernising a panel with an HMI used to be an expensive and difficult task. Now, with the new range of Crouzet Touch HMI you can modernise and improve your application at a fraction of the historical costs.
Â
The Crouzet Touch range consists of two versions,
Â
Essential | Performance |
|
|
Â
Â
General data |
|
|---|---|
| I/O ports - ethernet port | 1 x RJ45, 10/100 Mbit/s, MDI/MDIX |
| Backlight | LED > 30.000 h |
| I/O ports - COM port RS-485 | COM1 2/4 wires male, COM3 2 wires male |
| I/O ports - COM port RS-232 | COM1 male |
| Display | 4,3" TFT LCD |
| Memory for data | 128 MB |
| Current consumption | 300 mA @24V |
| Supply voltage | 24 V DC |
| Processor | 32 bit RISC Cortex-A8, 600 MHz |
| Resolution | 480x272 |
| I/O ports - USB host | 2.0 |

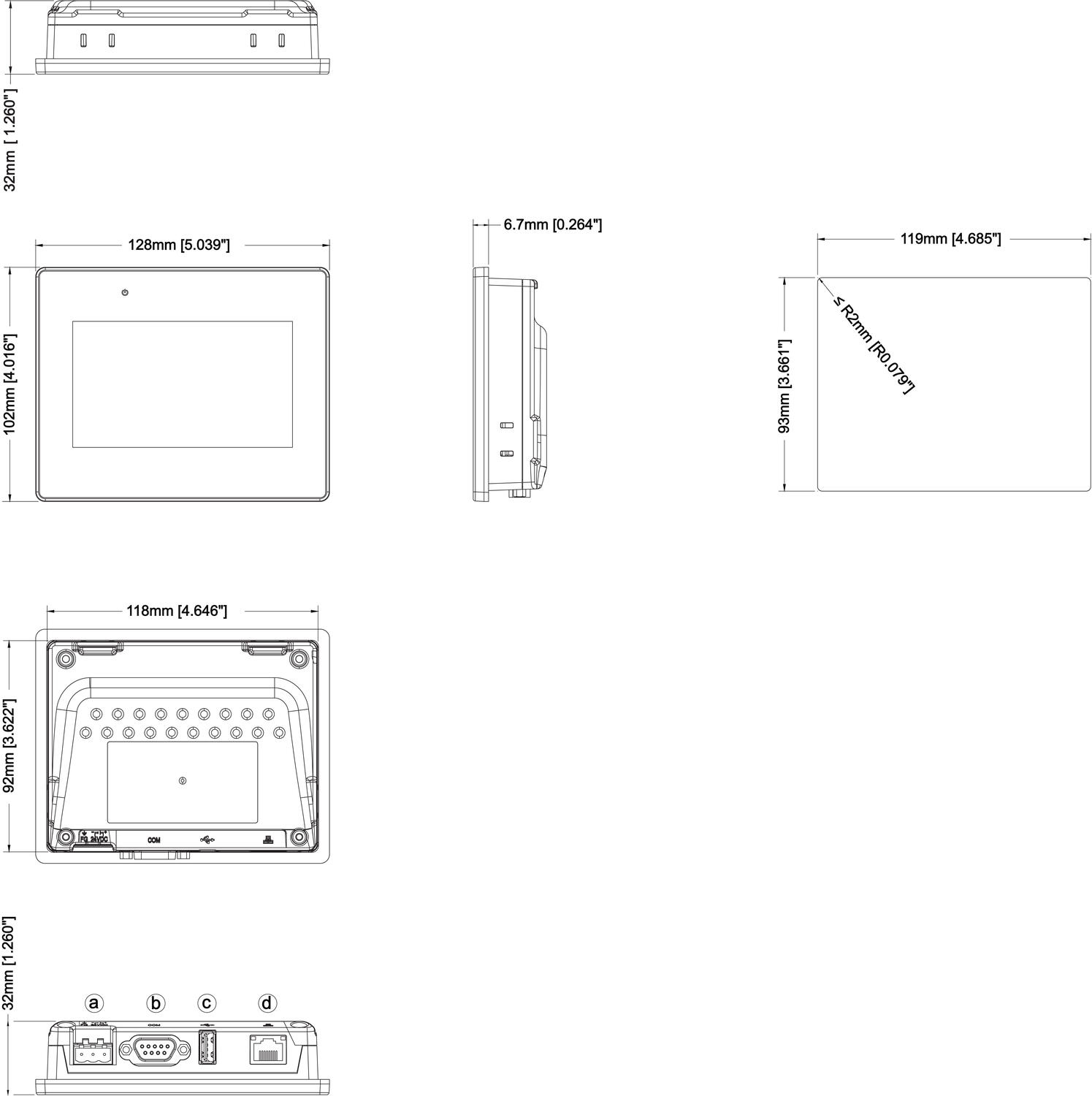

Other technical data |
|
|---|---|
| IP class front | IP65 |
| Depth | 32 mm |
| Temperature operational max | 50 °C |
| Width | 128 mm |
| Hole size | 119 x 93 mm |
| Temperature operational min | 0 °C |
| Vibration resistance | 10-25 Hz (X, Y, Z direction, 2G 30 minutes) |
| Approvals | UL, CE |
| Height | 102 mm |
The Crouzet Touch range of HMI offers a high quality, high performance HMI but at a highly competative price.
We see more and more panels and system controlled and monitored by an HMI as opposed to traditional gauges, pilot light and meters. Modernising a panel with an HMI used to be an expensive and difficult task. Now, with the new range of Crouzet Touch HMI you can modernise and improve your application at a fraction of the historical costs.
Â
The Crouzet Touch range consists of two versions,
Â
Essential | Performance |
|
|
Â
Â
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.
Do you require signalling devices and beacons in your production process? Download our latest whitepaper!
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.
Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | I/O ports - ethernet port | Backlight | I/O ports - COM port RS-485 | I/O ports - COM port RS-232 | Display | Memory for data | Current consumption | Processor | Resolution | I/O ports - USB host | IP class front | Depth | Temperature operational max | Width | Hole size | Vibration resistance | Approvals | Height | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
HMI CTP104-E Performance 4.3" + M3 Serial Cable
Art:
88970553
Copied
|
1 x RJ45, 10/100 Mbit/s, MDI/MDIX
|
LED > 30.000 h
|
COM1 2/4 wires male, COM3 2 wires male
|
COM1 male
|
4,3" TFT LCD
|
128 MB
|
300 mA @24V
|
32 bit RISC Cortex-A8, 600 MHz
|
480x272
|
2.0
|
IP65
|
32 mm
|
50 °C
|
128 mm
|
119 x 93 mm
|
10-25 Hz (X, Y, Z direction, 2G 30 minutes)
|
UL, CE
|
102 mm
|
| ||
|
HMI CTP104-E Performance 4.3"
Art:
88970554
Copied
|
1 x RJ45, 10/100 Mbit/s, MDI/MDIX
|
LED > 30.000 h
|
COM1 2/4 wires male, COM3 2 wires male
|
COM1 male
|
4,3" TFT LCD
|
128 MB
|
450 mA @24V
|
32 bit RISC Cortex-A8, 600 MHz
|
480x272
|
2.0
|
IP65
|
32 mm
|
45 °C
|
128 mm
|
119 x 93 mm
|
10-25 Hz (X, Y, Z direction, 2G 30 minutes)
|
UL, CE
|
102 mm
|
| ||
HMI CTP107-E Performance 7" + M3 Serial Cable
Art:
88970563
Copied
|
1 x RJ45, 10/100 Mbit/s, MDI/MDIX
|
LED > 30.000 h
|
COM1 2/4 wires male, COM3 2 wires male
|
COM1 male
|
7" TFT LCD
|
128 MB
|
450 mA @24V
|
32 bit RISC Cortex-A8, 600 MHz
|
800x480
|
2.0
|
IP65
|
34 mm
|
50 °C
|
200,4 mm
|
192 x 139 mm
|
10-25 Hz (X, Y, Z direction, 2G 30 minutes)
|
UL, CE
|
146,3 mm
|
| ||
|
HMI CTP107-E Performance 7"
Art:
88970564
Copied
|
1 x RJ45, 10/100 Mbit/s, MDI/MDIX
|
LED > 30.000 h
|
COM1 2/4 wires male, COM3 2 wires male
|
COM1 male
|
7" TFT LCD
|
128 MB
|
450 mA @24V
|
32 bit RISC Cortex-A8, 600 MHz
|
800x480
|
2.0
|
IP65
|
34 mm
|
50 °C
|
200,4 mm
|
192 x 139 mm
|
10-25 Hz (X, Y, Z direction, 2G 30 minutes)
|
UL, CE
|
146,3 mm
|
| ||
HMI CTP110-E Performance 10" + M3 Serial Cable
Art:
88970573
Copied
|
2 x RJ45, 10/100/1000 Mbit/s, MDI/MDIX
|
LED > 30.000 h
|
COM2 2/4 wires female, COM3 2 wires female
|
COM1 male, COM3 male
|
9,7" TFT LCD
|
512 MB
|
650 mA @24V
|
32 bit RISC Cortex-A8, 1 GHz
|
1024x768
|
2.0
|
IP65
|
36,5 mm
|
50 °C
|
260,6 mm
|
250 x 192 mm
|
10-25 Hz (X, Y, Z direction, 2G 30 minutes)
|
CE
|
203,1 mm
|
| ||
|
HMI CTP110-E Performance 10" (obsolete, please see 88970584)
Art:
88970574
Copied
|
2 x RJ45, 10/100/1000 Mbit/s, MDI/MDIX
|
LED > 30.000 h
|
COM2 2/4 wires female, COM3 2 wires female
|
COM1 male, COM3 male
|
9,7" TFT LCD
|
512 MB
|
650 mA @24V
|
32 bit RISC Cortex-A8, 1 GHz
|
1024x768
|
2.0
|
IP65
|
36,5 mm
|
50 °C
|
260,6 mm
|
250 x 192 mm
|
10-25 Hz (X, Y, Z direction, 2G 30 minutes)
|
CE
|
203,1 mm
|
| ||
HMI CT104 Essential 4.3" + M3 Serial Cable
Art:
88970523
Copied
|
1 x RJ45, 10/100 Mbit/s, MDI/MDIX
|
LED > 30.000 h
|
COM1 2/4 wires male, COM3 2 wires male
|
COM1 male
|
4,3" TFT LCD
|
128 MB
|
300 mA @24V
|
32 bit RISC Cortex-A8, 600 MHz
|
480x272
|
2.0
|
IP65
|
32 mm
|
50 °C
|
128 mm
|
119 x 93 mm
|
10-25 Hz (X, Y, Z direction, 2G 30 minutes)
|
CE
|
102 mm
|
| ||
|
HMI CT104 Essential 4.3"
Art:
88970524
Copied
|
1 x RJ45, 10/100 Mbit/s, MDI/MDIX
|
LED > 30.000 h
|
COM1 2/4 wires male, COM3 2 wires male
|
COM1 male
|
4,3" TFT LCD
|
128 MB
|
300 mA @24V
|
32 bit RISC Cortex-A8, 600 MHz
|
480x272
|
2.0
|
IP65
|
32 mm
|
50 °C
|
128 mm
|
119 x 93 mm
|
10-25 Hz (X, Y, Z direction, 2G 30 minutes)
|
CE
|
102 mm
|
| ||
|

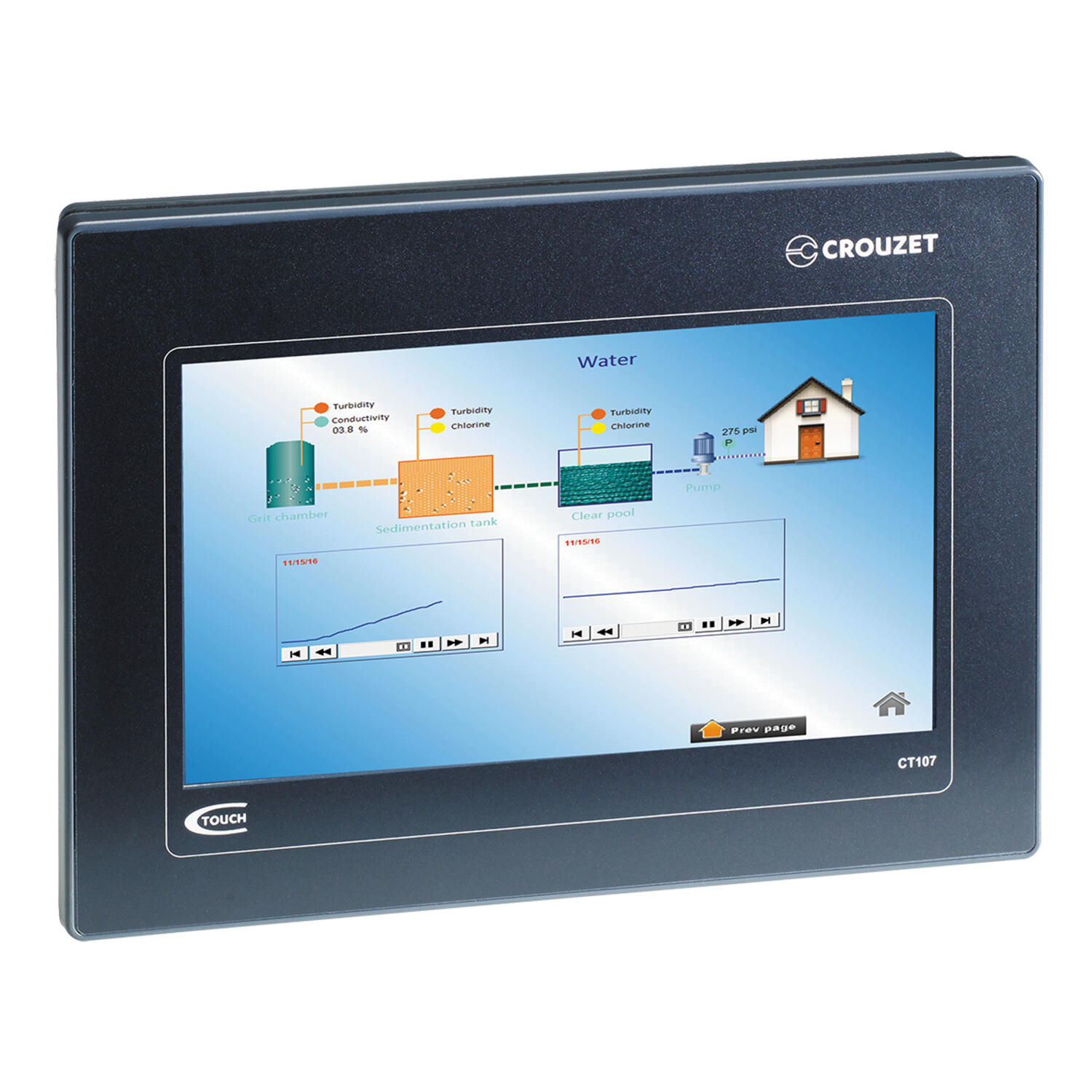

HMI CT107 Essential 7" + M3 Serial Cable
Art:
88970533
Copied
|
N/A
|
LED > 30.000 h
|
COM2 2/4 wires male
|
COM1 male
|
7" TFT LCD
|
128 MB
|
500 mA @24V
|
32 bit RISC Cortex-A8, 600 MHz
|
800x480
|
2.0
|
IP65
|
34 mm
|
50 °C
|
200,4 mm
|
192 x 138 mm
|
10-25 Hz (X, Y, Z direction, 2G 30 minutes)
|
CE
|
146,5 mm
|
| ||
|
HMI CT107 Essential 7"
Art:
88970534
Copied
|
N/A
|
LED > 30.000 h
|
COM2 2/4 wires male
|
COM1 male
|
7" TFT LCD
|
128 MB
|
500 mA @24V
|
32 bit RISC Cortex-A8, 600 MHz
|
800x480
|
2.0
|
IP65
|
34 mm
|
50 °C
|
200,4 mm
|
192 x 138 mm
|
10-25 Hz (X, Y, Z direction, 2G 30 minutes)
|
CE
|
146,5 mm
|
| ||

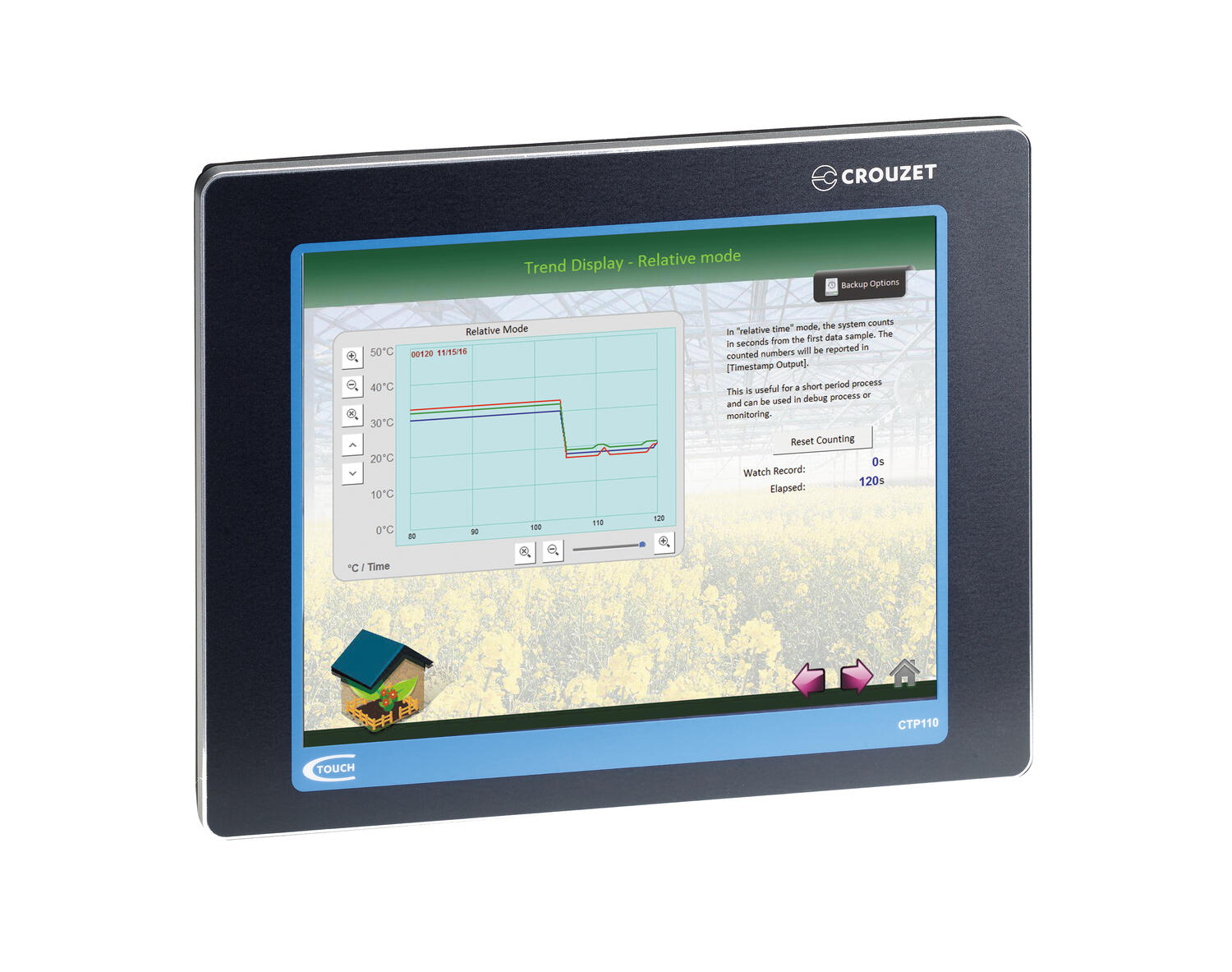

Crouzet Touch HMI CTP110N-Ethernet, Performance Version, Screen Only
Art:
88970584
Copied
|
|
LED > 30.000h
|
COM2 2/4 Wires female, COM3 2 Wires female
|
COM1 male, COM3 male. Only Tx & Rx (no RTS/CTS)
|
10" TFT LCD
|
|
|
32Bit RISC Cortex-A8, 1 GHz
|
1024x600
|
|
IP66
|
36,5 mm
|
50 °C
|
260,6 mm
|
|
|
|
203,1 mm
|
|
Select a variant in the list
