HMS NETWORKS

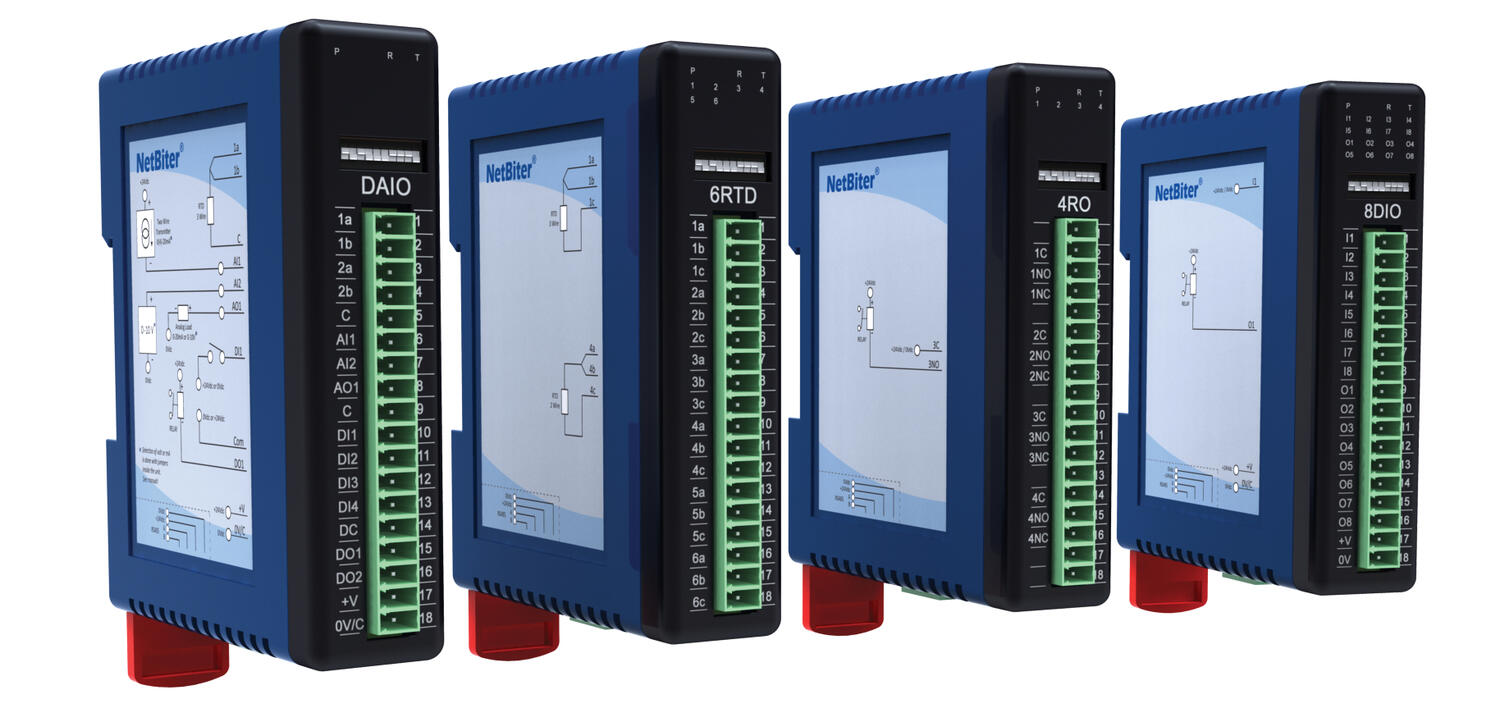

The Netbiter® I/O Extender series is a collection of analog and discrete I/O modules with Modbus-RTU protocol communication. These modules are ideal for a wide variety of distributed I/O applications including data acquisition and control, process monitoring as well as test and measurement.
Â
Designed for industrial applications, the DIN rail mountable Netbiter I/O extenders can be connected in parallel with other Modbus equipment in a multi-drop installation topology.
Â
When using the Netbiter I/O extenders together with the Netbiter EasyConnect and WS series gateways, it is possible to monitor/control the I/O signals over Ethernet LAN’s, Internet or GSM/GPRS networks. This makes a powerful solution for remote monitoring and control, alarm management and data logging of I/O’s.
Â
Â
Technical Data |
|
|---|---|
| Supply voltage | 12-24 V DC |

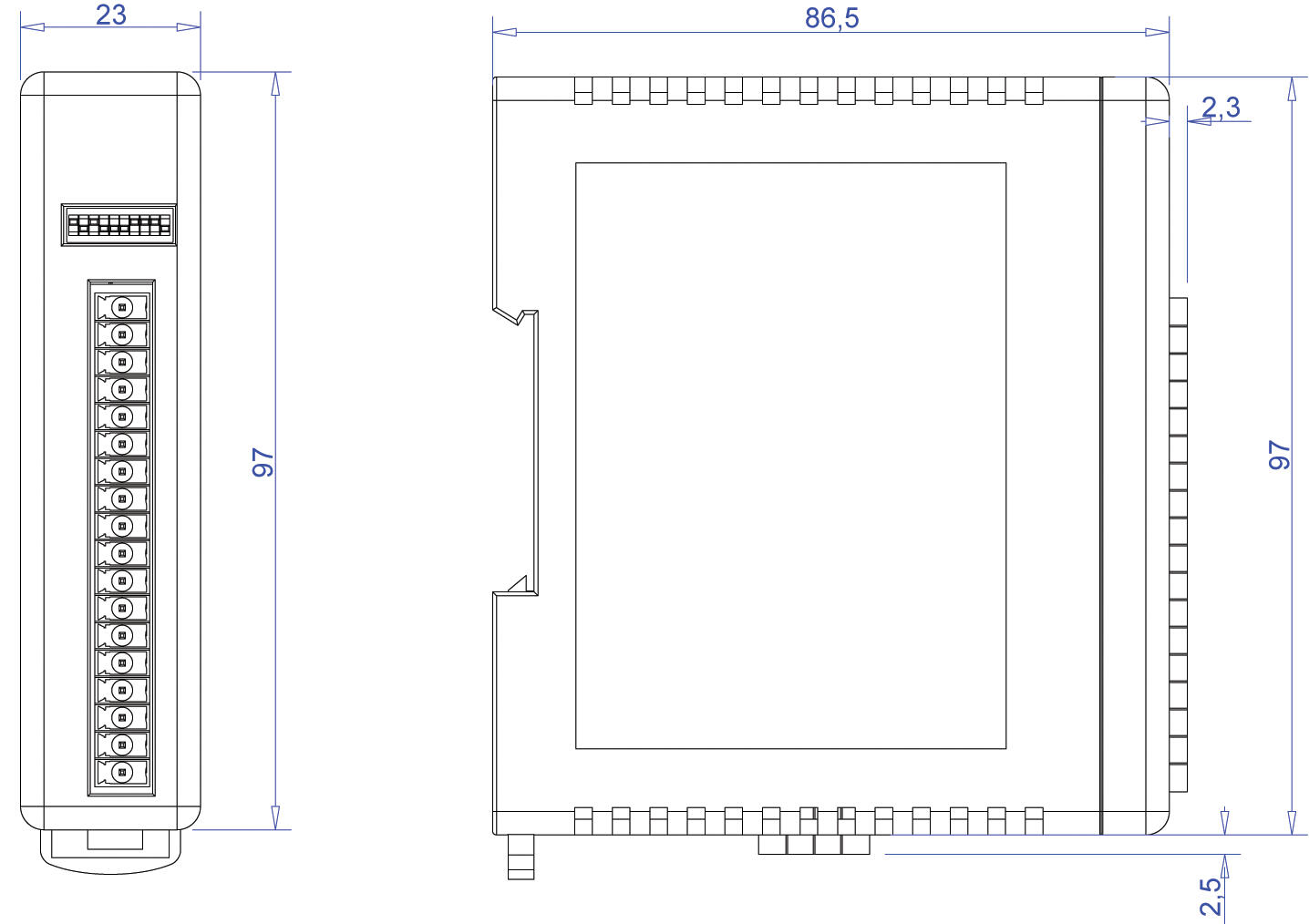

| Height | 109 mm |
| Width | 23 mm |
| Protocol | RS-485 Modbus RTU |
| Temperature operational min | -10 °C |
| Temperature operational max | 50 °C |
*Invisible Heading* |
|
|---|---|
| Approvals | CE |
| Depth | 98 mm |
| Digital inputs | 8 |
| Digital outputs | 8 |
The Netbiter® I/O Extender series is a collection of analog and discrete I/O modules with Modbus-RTU protocol communication. These modules are ideal for a wide variety of distributed I/O applications including data acquisition and control, process monitoring as well as test and measurement.
Â
Designed for industrial applications, the DIN rail mountable Netbiter I/O extenders can be connected in parallel with other Modbus equipment in a multi-drop installation topology.
Â
When using the Netbiter I/O extenders together with the Netbiter EasyConnect and WS series gateways, it is possible to monitor/control the I/O signals over Ethernet LAN’s, Internet or GSM/GPRS networks. This makes a powerful solution for remote monitoring and control, alarm management and data logging of I/O’s.
Â
Â
Optimise your production line with encoders, inclinometers, displays and slip rings
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.
Do you require signalling devices and beacons in your production process? Download our latest whitepaper!
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Supply voltage | Digital inputs | Digital outputs | Relay output | Analogue outputs | Analogue inputs | Price | ||
|---|---|---|---|---|---|---|---|---|---|

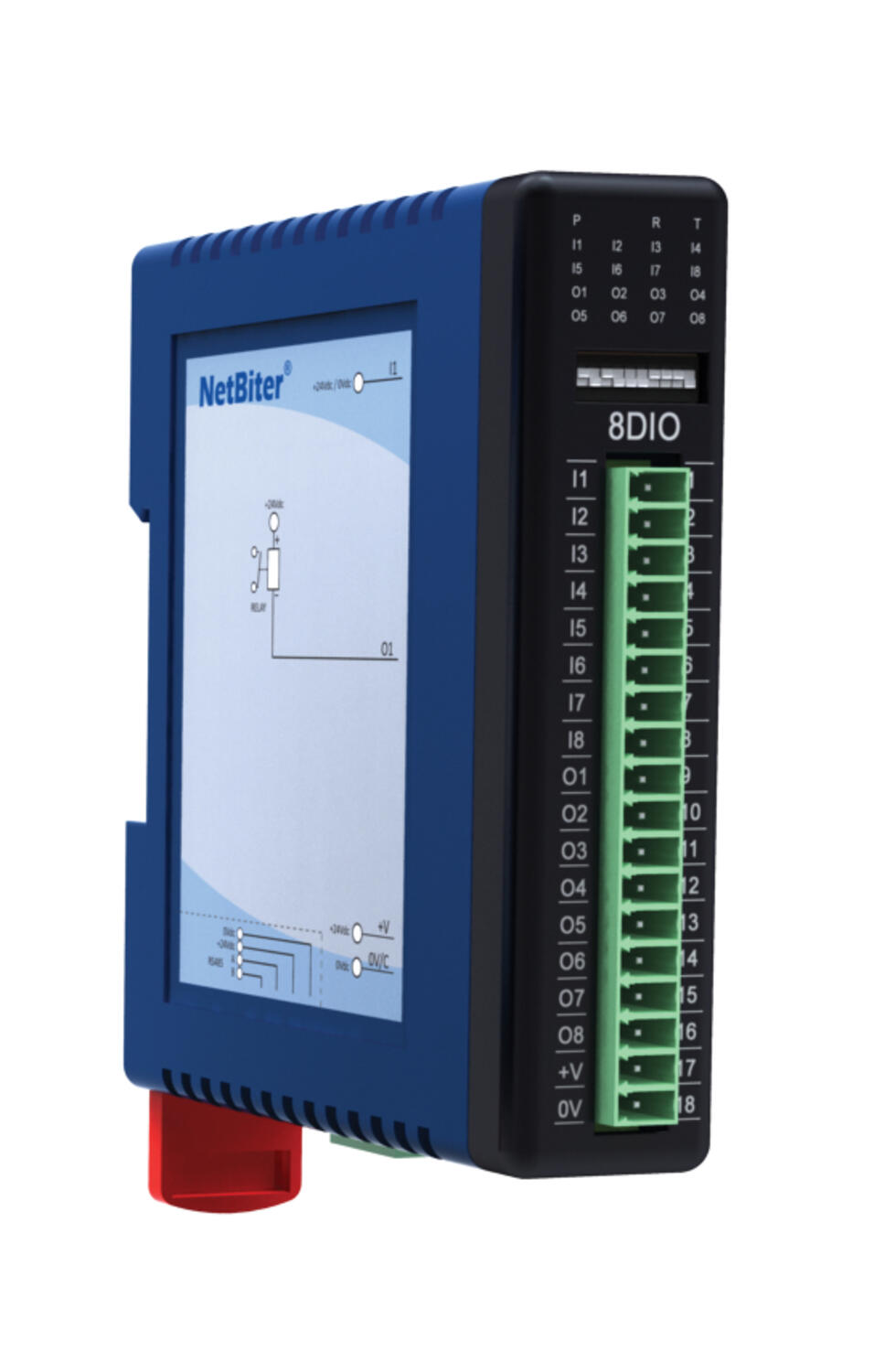

I/O Extender, 8 Dig. Inputs, 8 Dig. Outputs, 8 Counters
Art:
IOX-8DIO
Copied
|
12-24 V DC
|
8
|
8
|
|
|
|
| ||

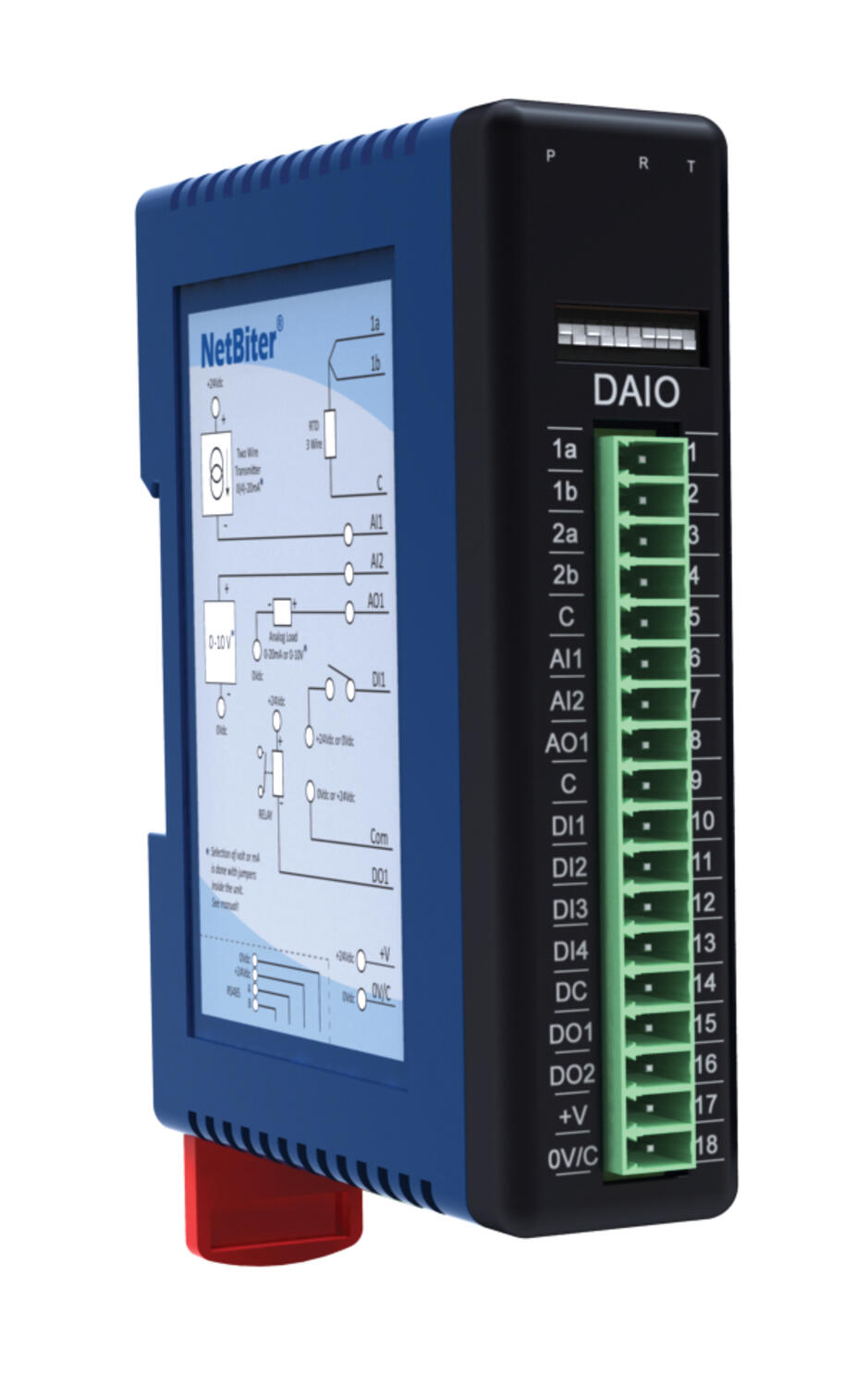

I/O Extender, 4 Dig, 2 Analog, 2 RTD I/P 2 Dig, 1 Analog O/P
Art:
IOX-DAIO
Copied
|
12-24 V DC
|
4
|
|
2
|
1 x 0-10V / 0(4)-20mA
|
2 x 0-10V / 0(4)-20mA
|
| ||

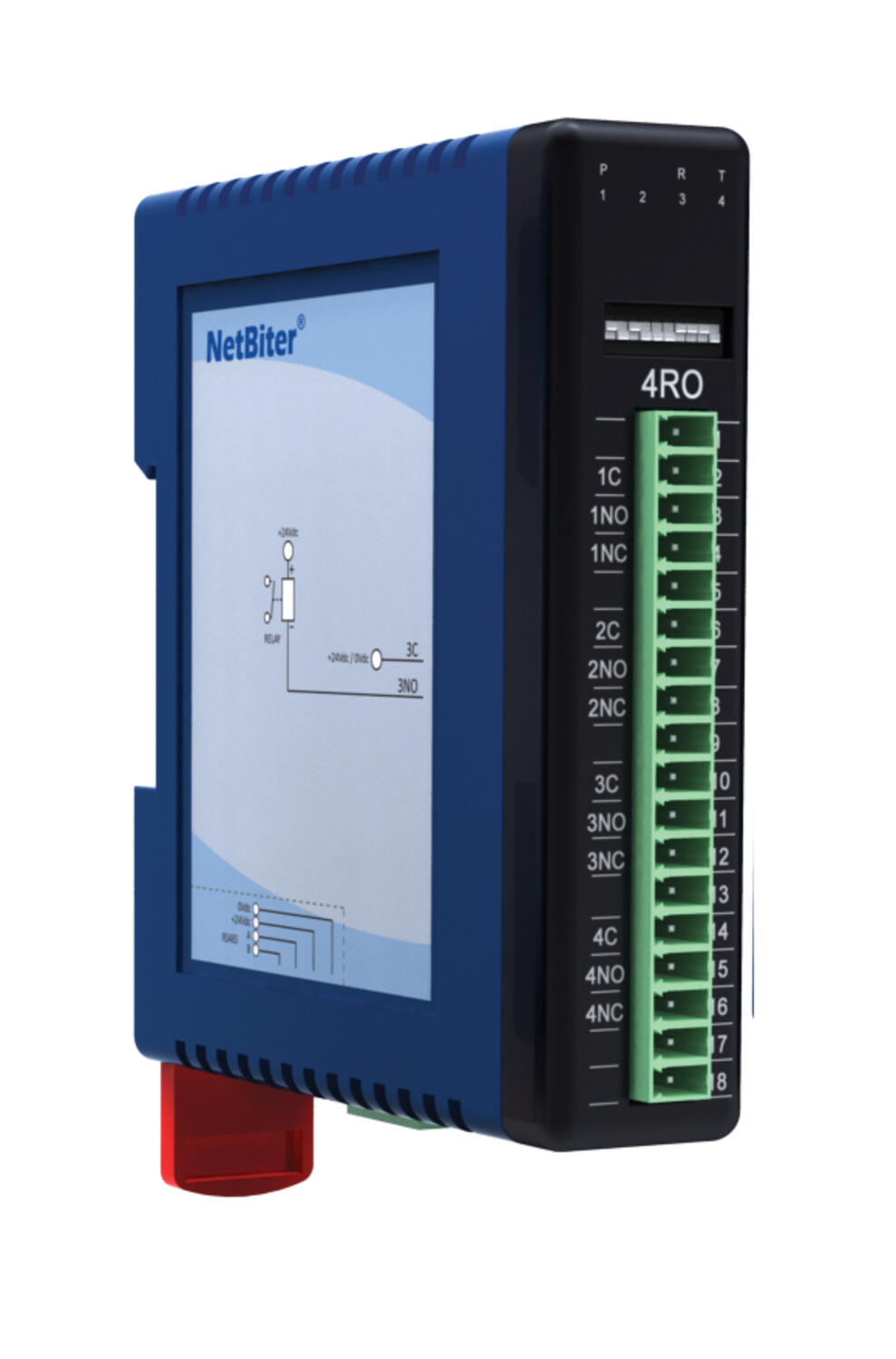

I/O Extender, 4 Relay Outputs
Art:
IOX-4RO
Copied
|
24 V DC
|
|
|
4
|
|
|
| ||

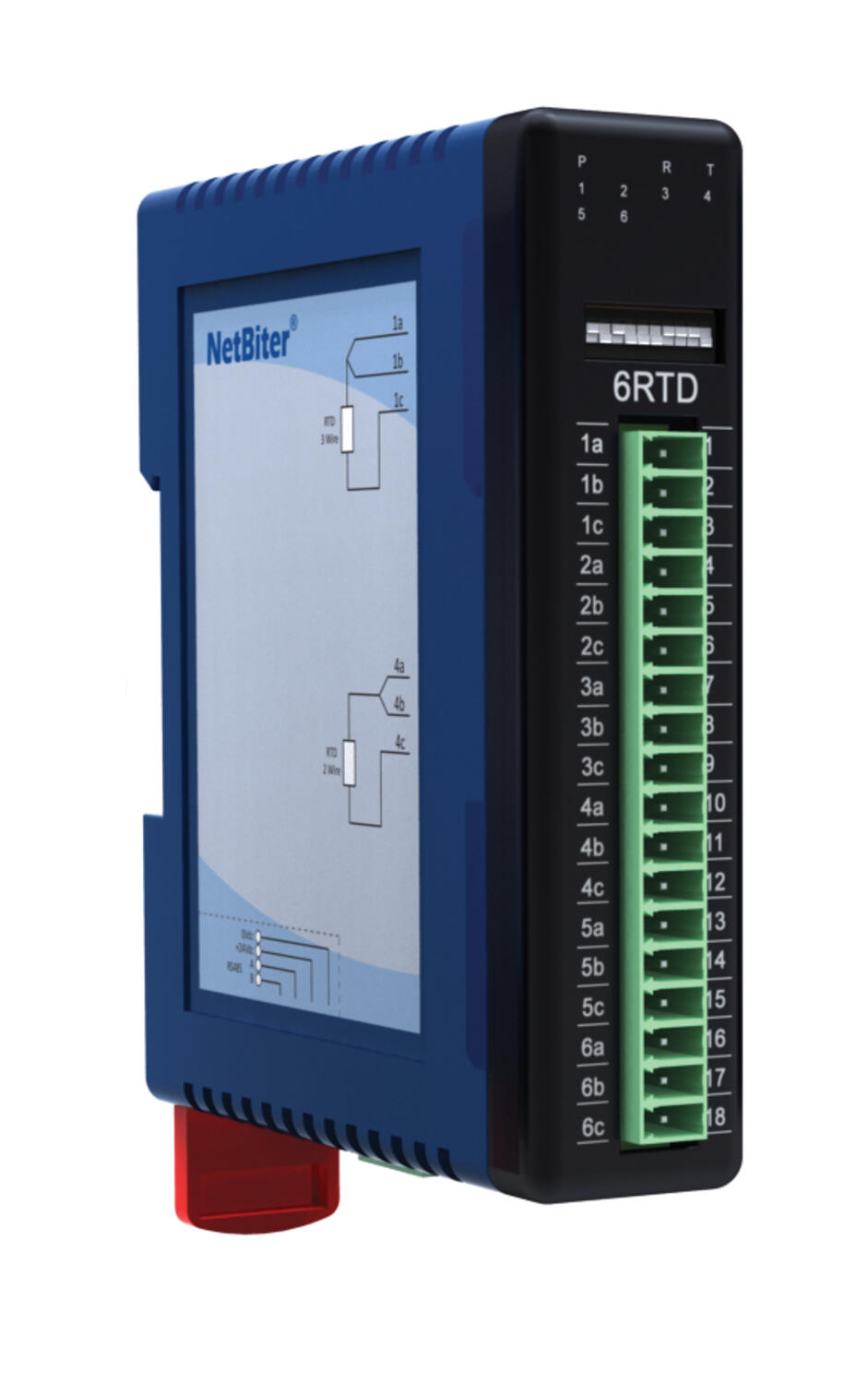

I/O Extender, 6 RTD Inputs, 6 Counters
Art:
IOX-6RTD
Copied
|
12-24 V DC
|
|
|
|
|
|
| ||
I/O Extender, 8 Analog Inputs, 8 Counters
Art:
IOX-8AIIV
Copied
|
12-24 V DC
|
|
|
|
|
8 x 0-10 V DC
|
| ||
|
I/O Extender, 8 Analog Inputs
Art:
IOX-8AIIS
Copied
|
12-24 V DC
|
|
|
|
|
8 x 0(4)-20 mA
|
|
Select a variant in the list
