LUMEL

N21

Universal input digital panel meter for measurement of temperature and d.c. standard signals.

  • Universal measuring input (for standard signals and cooperation with temperature sensors)
  • Relay alarm output
  • Universal supply voltage from 24 V up to 230 V a.c./d.c.
  • Supply of object transducers 24 V d.c.
  • OLED display
  • Meter configuration through miniUSB connector with free eCon software
  • Programmable parameters in eCon software:
    • selection of measured value
    • rescaling of indications (individual characteristic)
    • accuracy of measured value (decimal point)
    • alarm output mode
    • measurement averaging time
    • defining your own unit
    • language selection
Read more
  • Universal input (Programmable)
  • Wide voltage, AC/DC control
  • 5 Digit OLED display + bargraph

Selected variant

Available in several variants
LUMEL_logo.tif

Save page as PDF

Technical data / Documents

Product description

Ordering information

Accessories & Related products

Selected variant

Technical data

Downloads

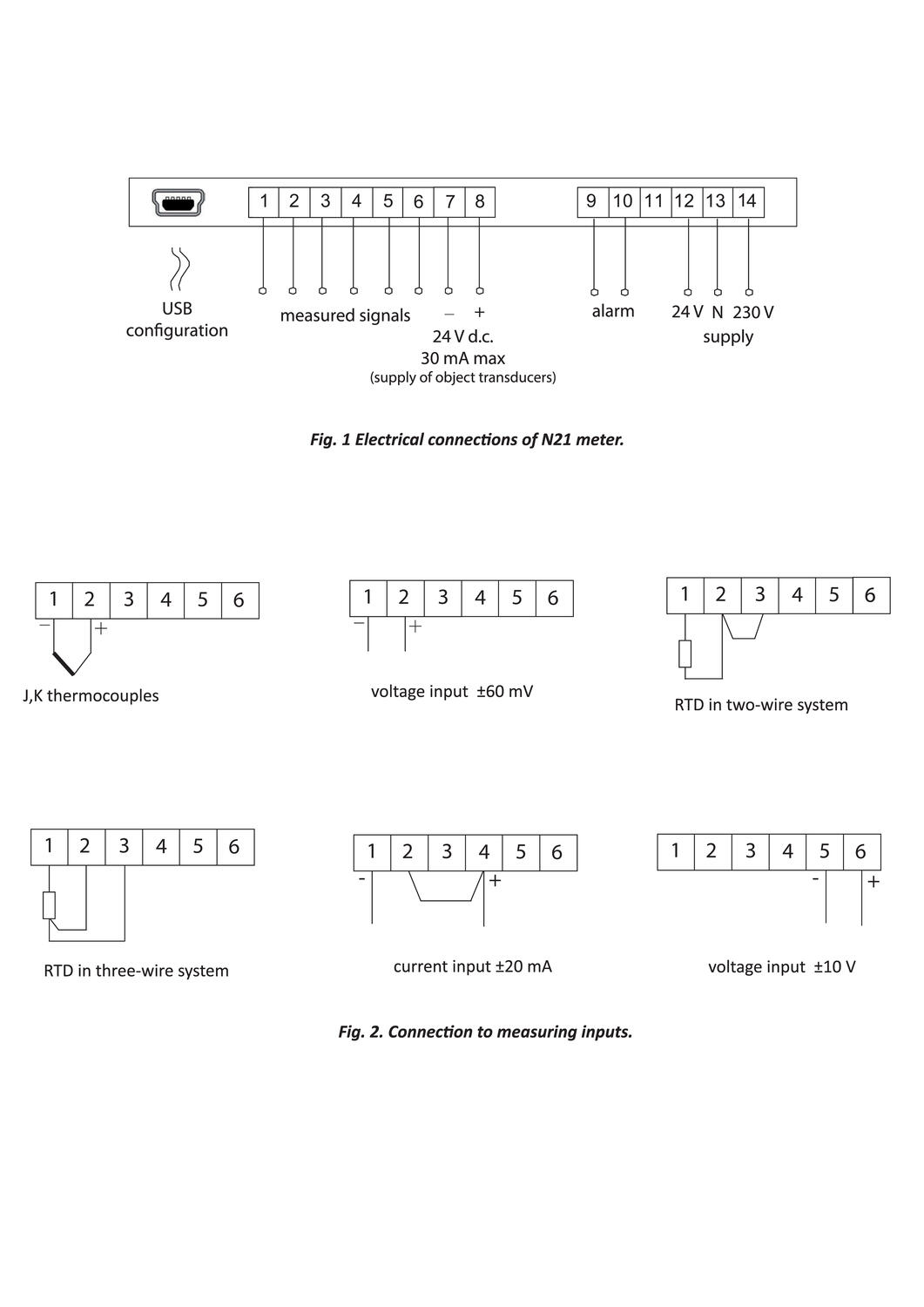

Measurements and connections

Product description

  • Universal measuring input (for standard signals and cooperation with temperature sensors)
  • Relay alarm output
  • Universal supply voltage from 24 V up to 230 V a.c./d.c.
  • Supply of object transducers 24 V d.c.
  • OLED display
  • Meter configuration through miniUSB connector with free eCon software
  • Programmable parameters in eCon software:
    • selection of measured value
    • rescaling of indications (individual characteristic)
    • accuracy of measured value (decimal point)
    • alarm output mode
    • measurement averaging time
    • defining your own unit
    • language selection

Ordering information

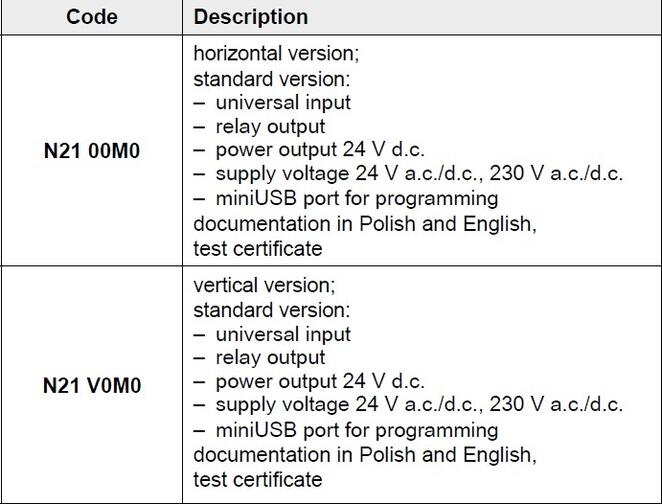

Please refer to the image below for ordering information.

**Part numbers have changed from ending with E0 to M0, please be advised any part numbers below that end in E0 will say M0 in the datasheet. The product is the same.**



N21 pns.jpg

Accessories

Related

contaclip kds sr90
Product news

Every angle covered with 90 degree cable entry system

Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.

crouzet millenium slim on limited time discount
Product news

The smallest logic controller ever on limited time discount

The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.

11 questions to get the right signalling device with Auer Signal & OEM Automatic
Blog

11 questions to get the right signalling device – a whitepaper

Do you require signalling devices and beacons in your production process? Download our latest whitepaper!

bespoke solutions electricity meter control boxes
Case studies

Control Box Assembly for Industrial Electricity Metering - A case study

Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.

DC circuit protection PISA M and circuit breakers
Blog

Safeguard systems with DC circuit protection

This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.

IATECH, the industrial automation technology exhibition OEM automatic
Company news

Recap of IATECH

Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.

Parts Price
N21.tif
UNIVERSAL INPUT PANEL METER W/BAR GRAPH
Art:
N2100E0 Copied
Art:
N21-V0E0 Copied

Selected variant

Select a variant in the list
