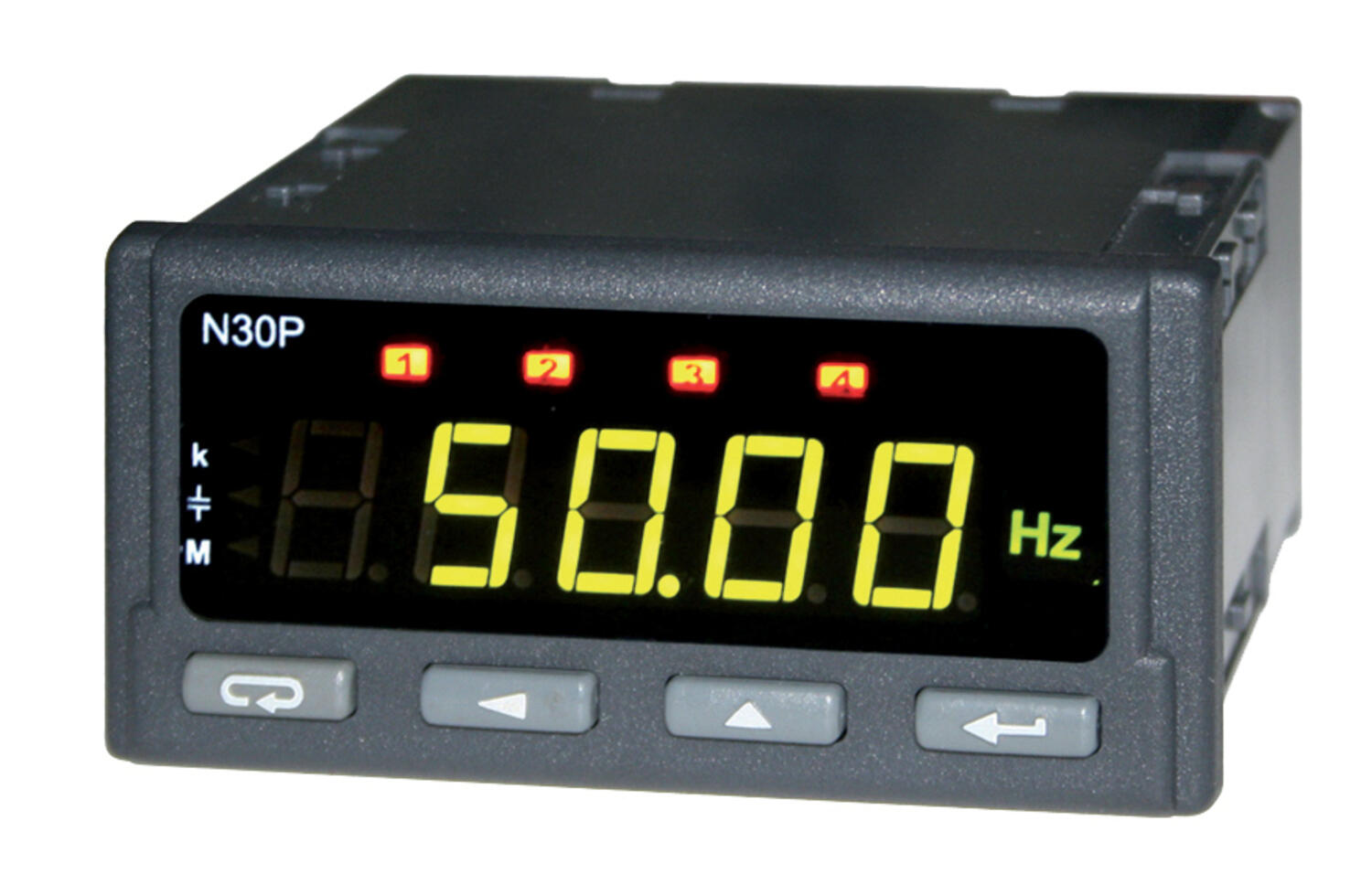

LUMEL
| Additional functions | Conversion of any measured value into current or voltage analog signal. Storage of minimal and maximal values for all measured quantites. 21-point rescaling for the measured value (does not apply to N30P and N27P). Password protection. Programmable current and voltage transformer ratio (applies to N27P and N30P). |
|---|---|
| Digital interface | RS-485 Modbus Slave - Option |
| Dimensions | 96 x 48 x 93 mm |
| Display | Yes |
| Input type | current: 0-1 or 0-5A, voltage: 0-100V or 0-400V |
| IP class | IP65 |
| Mounting | Panel mount |
| Number of digits | 5 |
|---|---|
| Number of rows | 1 |
| Outputs | 2 relays (NO) |
| Supply voltage | 85-253V ac/dc |
| Temperature operational max | 55 °C |
| Weight | 0,2 kg |

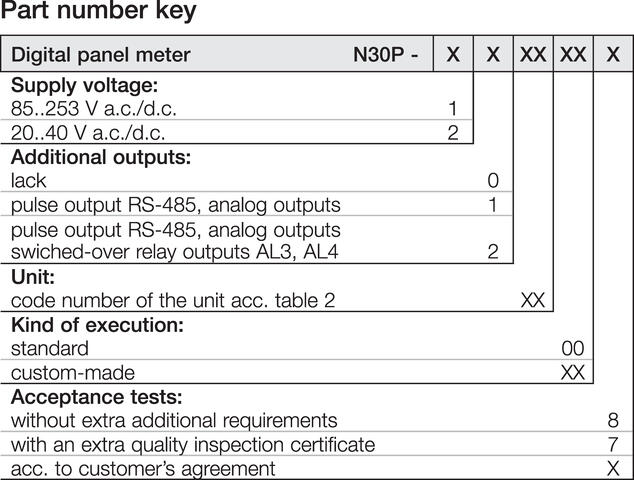

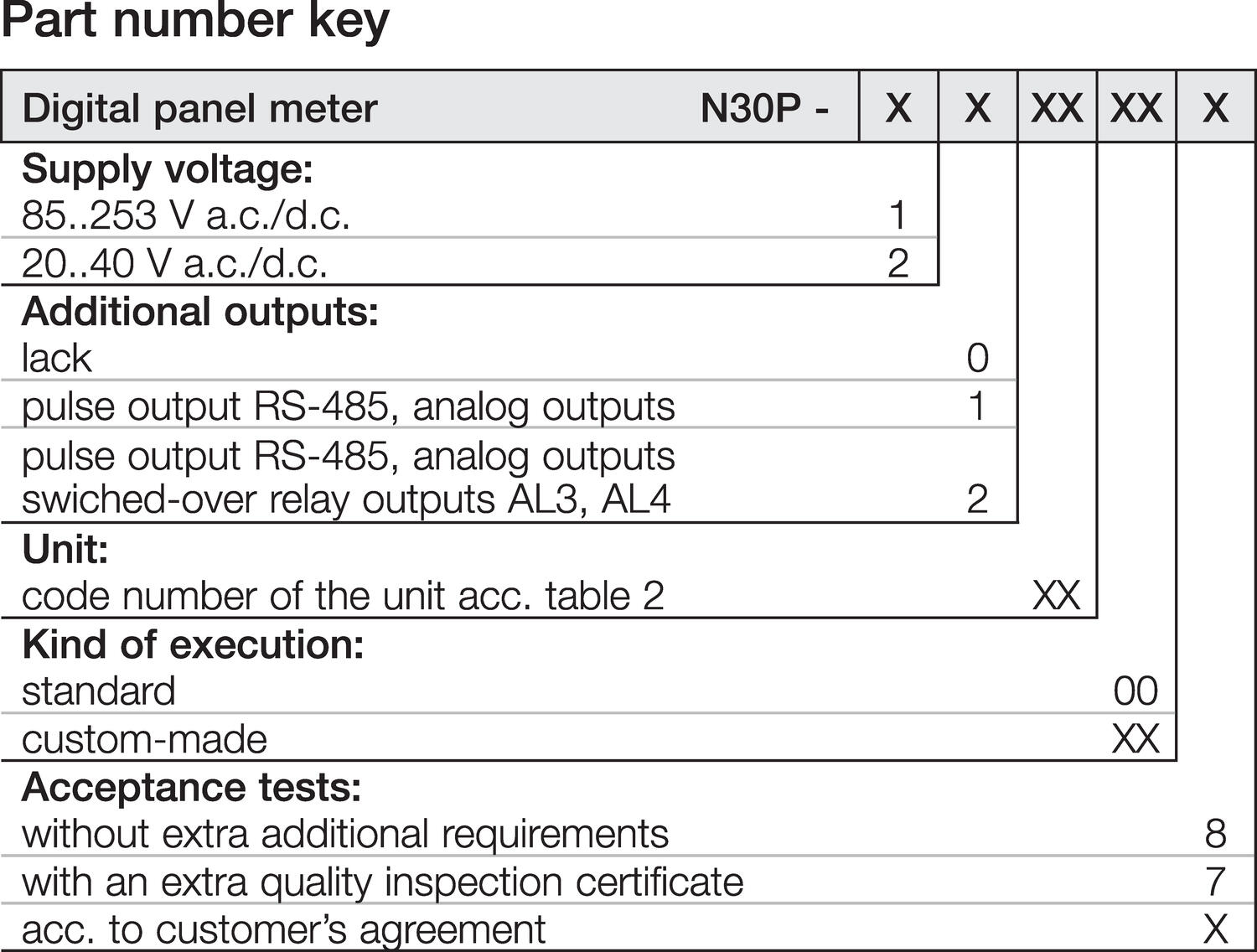

Please refer to the image below for ordering information.
Optimise your production line with encoders, inclinometers, displays and slip rings
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.
Do you require signalling devices and beacons in your production process? Download our latest whitepaper!
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Outputs | Supply voltage | Price | ||
|---|---|---|---|---|---|
Panel Meter, 2x OC Outputs, 85-253V ac
Art:
N30P10XX
Copied
|
2 relays (NO)
|
85-253V ac/dc
|
| ||
|
Panel Meter, 2 x OC Outputs, RS-485, 1A Ouput 85-253V ac
Art:
N30P11XX
Copied
|
analog, RS485, 2 relays
|
85-253V ac/dc
|
| ||
|
Panel Meter, 4 x OC Outputs, RS-485, 1A Ouput, 85-253V ac
Art:
N30P12XX
Copied
|
analog,RS485, 4 relays
|
85-253V ac/dc
|
| ||
|
Panel Meter, 2x OC Outputs, 20-60V dc
Art:
N30P20XX
Copied
|
2 relays (NO)
|
20-40V ac/dc
|
| ||
|
Panel Meter, 2 x OC Outputs, RS-485, 1A Ouput 20-60V dc
Art:
N30P21XX
Copied
|
analog, RS485, 2 relays
|
20-40V ac/dc
|
| ||
|
Panel Meter, 4 x OC Outputs, RS-485, 1A Ouput, 20-60V dc
Art:
N30P22XX
Copied
|
analog,RS485, 4 relays
|
20-40V ac/dc
|
|
Select a variant in the list
