TEKNOMEGA

2-4 POLE DISTRIBUTION BLOCKS

RPB & RPQ

The 2-4 pole Ω electrical distribution blocks from Teknomega are suitable for applications which range from 40 A to 160 A.



Technical Features include:

  • Brass conductors
  • Self-extinguishing insulating structure UL 94-V0
  • Insulation between phases
  • Easy fit on DIN rails
  • Galvanized steel screws included
  • Front removable protection screen (except RPQ1025)



Certifications

  • Compliant with Standards IEC 947-1 : Low voltage devices Part 1: general rules
  • Compliant with Standards IEC 947-7-1 : Low voltage devices Part 7: Auxiliary equipment Section One - Terminal boards for copper conductors



Read more
  • 40 A to 160 A.
  • Self-extinguishing insulating structure UL 94-V0
  • Insulation between phases
  • Brass conductors
Eplan Logo, data portal for 3D drawings

To view Teknomega Products via ePlan see the link under 'downloadable resources' further down the page

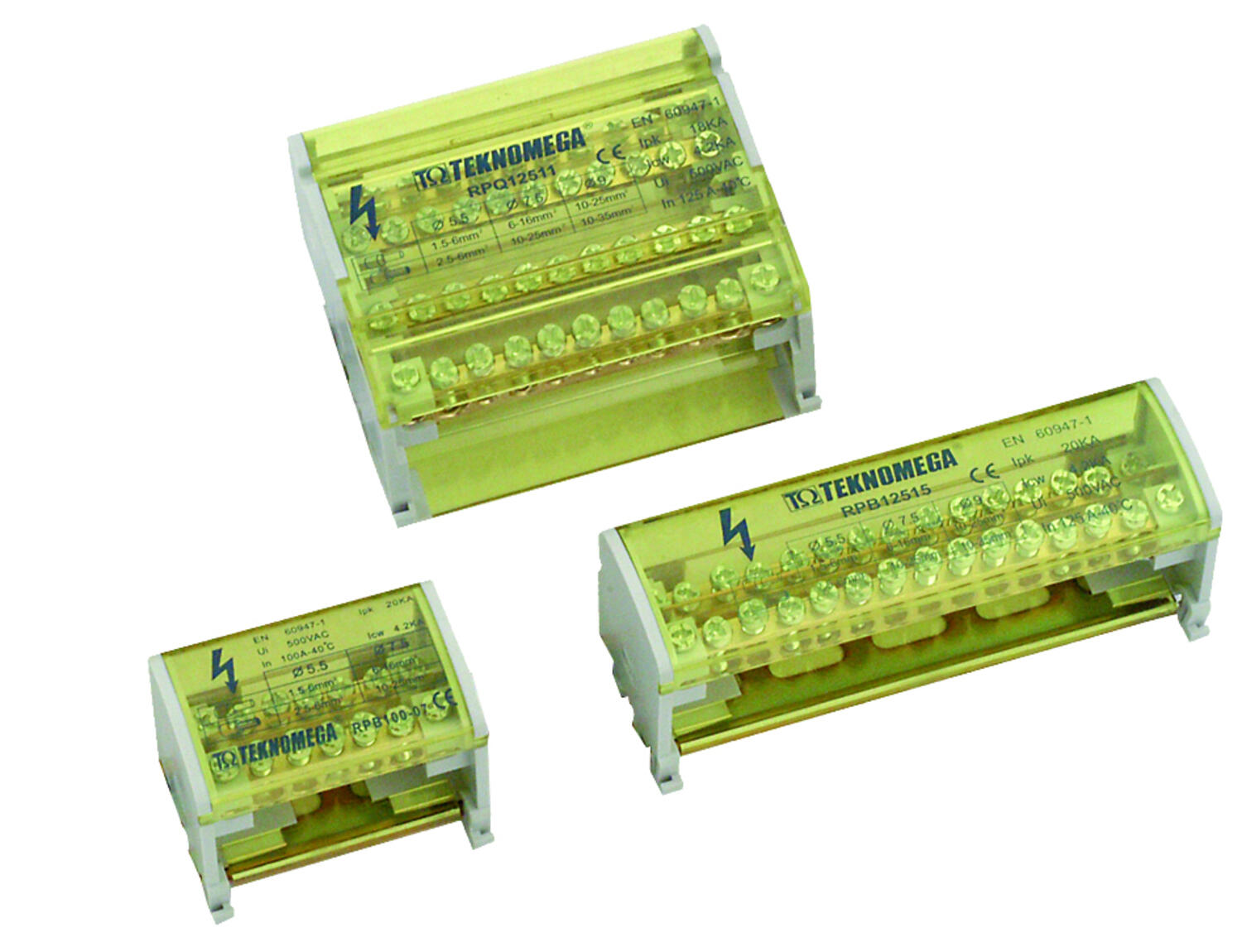

Teknomega 2-4 pole distribution blocks RPG & RPQ



Selected variant

Available in several variants
Logo completo.png

Save page as PDF

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Technical data

General Data
IP class IP20
Nominal insulation voltage 500 V
Short-circuit current resistance IPK (peak value) 20 kA
Short-circuit current resistance ICW over 1s 4,2 kA
Rated current 125 A

Connection Data
Output B: wire cross-section stranded, min. 2,5 mm²
Output C: torque, max. 3 Nm
Output A: diameter 9 mm
Input A: torque, min. 2 Nm
Input A: wire cross-section stranded, min. 10 mm²
Connections 15
Number of outputs A 1
Output B: diameter 5,5 mm
Input A: wire cross-section with wire-end ferrules, max. 25 mm²
Input A: wire cross-section stranded, max. 35 mm²
Output C: diameter 7,5 mm
Output C: wire cross-section stranded with wire-end ferrules, min. 6 mm²
Input A: diameter 9 mm
Output A: torque, min. 2 Nm
Output B: wire cross-section stranded with wire-end ferrules, max. 6 mm²
Output A: wire cross-section stranded with wire-end ferrules, max. 25 mm²
Output B: wire cross-section stranded, max. 6 mm²
Input A: torque, max. 3 Nm

*Invisible Heading*
Output B: wire cross-section stranded with wire-end ferrules, min. 1,5 mm²
Input A: wire cross-section with wire-end ferrules, min. 10 mm²
Output B: torque, max. 3 Nm
Output C: wire cross-section stranded, max. 25 mm²
Output C: wire cross-section stranded with wire-end ferrules, max. 16 mm²
Output A: torque, max. 3 Nm
Output B: torque, min. 2 Nm
Output C: wire cross-section stranded, min. 10 mm²
Number of outputs B 11
Output A: wire cross-section stranded, max. 35 mm²
Number of outputs C 2
Screw type Galvanized steel screws
Output A: wire cross-section stranded, min. 10 mm²
Number of inputs A 1
Output A: wire cross-section stranded with wire-end ferrules, min. 10 mm²
Output C: torque, min. 2 Nm

Dimensions
Width (P) 51 mm
Height (H) 46 mm
Fix. Hole space 112 mm
Length (L) 132 mm

Additional Data
Pack size 1

Downloads

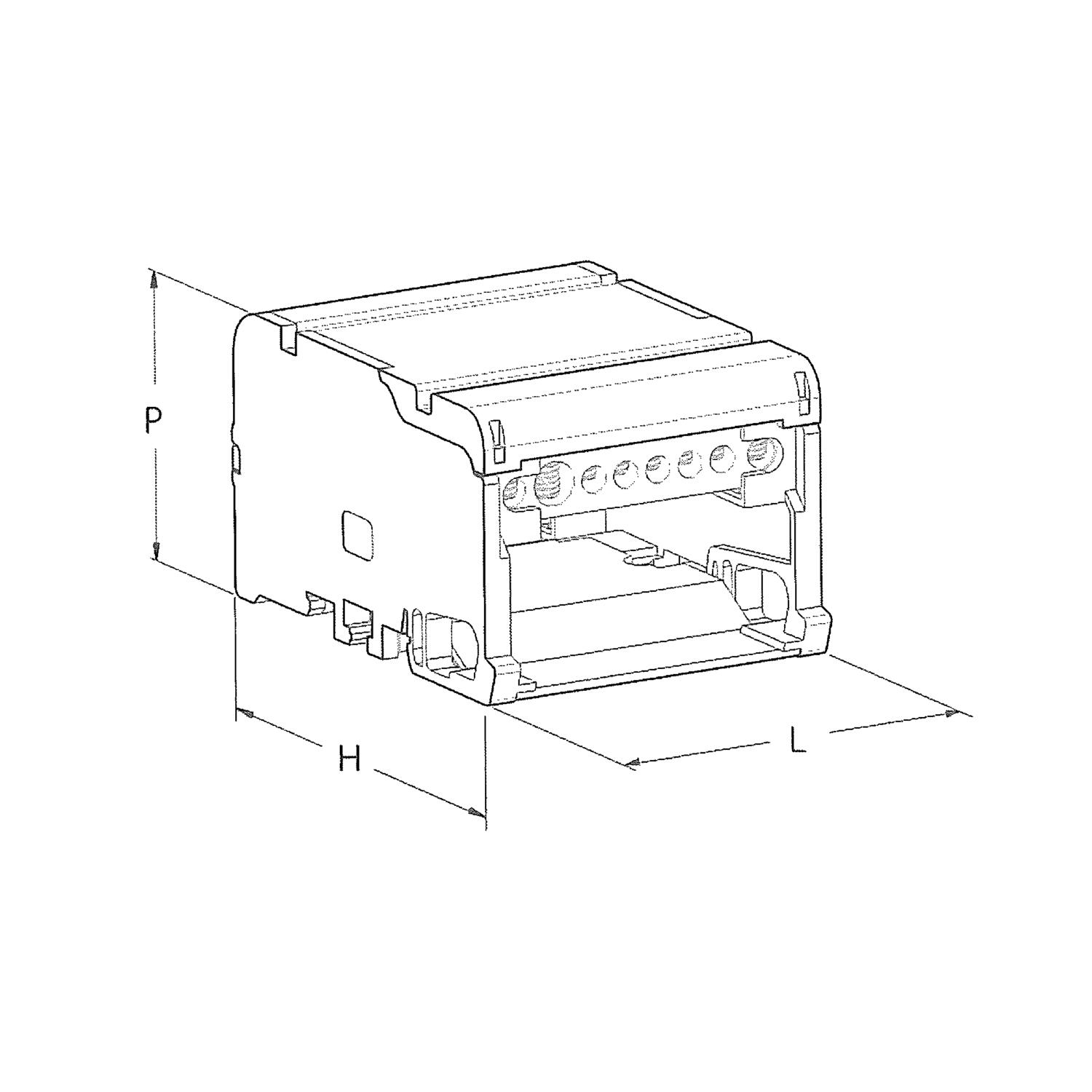

Measurements and connections

Product description

The 2-4 pole Ω electrical distribution blocks from Teknomega are suitable for applications which range from 40 A to 160 A.



Technical Features include:

  • Brass conductors
  • Self-extinguishing insulating structure UL 94-V0
  • Insulation between phases
  • Easy fit on DIN rails
  • Galvanized steel screws included
  • Front removable protection screen (except RPQ1025)



Certifications

  • Compliant with Standards IEC 947-1 : Low voltage devices Part 1: general rules
  • Compliant with Standards IEC 947-7-1 : Low voltage devices Part 7: Auxiliary equipment Section One - Terminal boards for copper conductors



Accessories

Related

Kubler slip rings encoders
Blog Product news

Optimise your production line with sensors

Optimise your production line with encoders, inclinometers, displays and slip rings

contaclip kds sr90
Product news

Every angle covered with 90 degree cable entry system

Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.

crouzet millenium slim on limited time discount
Product news

The smallest logic controller ever on limited time discount

The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.

11 questions to get the right signalling device with Auer Signal & OEM Automatic
Blog

11 questions to get the right signalling device – a whitepaper

Do you require signalling devices and beacons in your production process? Download our latest whitepaper!

bespoke solutions electricity meter control boxes
Case studies

Control Box Assembly for Industrial Electricity Metering - A case study

Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.

DC circuit protection PISA M and circuit breakers
Blog

Safeguard systems with DC circuit protection

This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.

Parts Nominal insulation voltage Short-circuit current resistance IPK (peak value) Short-circuit current resistance ICW over 1s Rated current Output B: wire cross-section stranded, min. Output C: torque, max. Output A: diameter Input A: torque, min. Output D: wire coss-section stranded, min Input A: wire cross-section stranded, min. Connections Number of outputs A Output B: diameter Input A: wire cross-section with wire-end ferrules, max. Input A: wire cross-section stranded, max. Output C: diameter Output C: wire cross-section stranded with wire-end ferrules, min. Input A: diameter Output A: torque, min. Output B: wire cross-section stranded with wire-end ferrules, max. Output A: wire cross-section stranded with wire-end ferrules, max. Output B: wire cross-section stranded, max. Output D: wire cross-section stranded, max Input A: torque, max. Output B: wire cross-section stranded with wire-end ferrules, min. Output D: wire cross-section stranded with wire-end ferrules, min Input A: wire cross-section with wire-end ferrules, min. Output B: torque, max. Output C: wire cross-section stranded, max. Output C: wire cross-section stranded with wire-end ferrules, max. Output A: torque, max. Number of outputs D Output B: torque, min. Output D: torque, min. Output C: wire cross-section stranded, min. Number of outputs B Output A: wire cross-section stranded, max. Number of outputs C Output D: wire cross-section stranded with wire-end ferrules, max Output D: torque, max Output A: wire cross-section stranded, min. Output A: wire cross-section stranded with wire-end ferrules, min. Output D: diameter Output C: torque, min. Width (P) Height (H) Fix. Hole space Length (L) Price

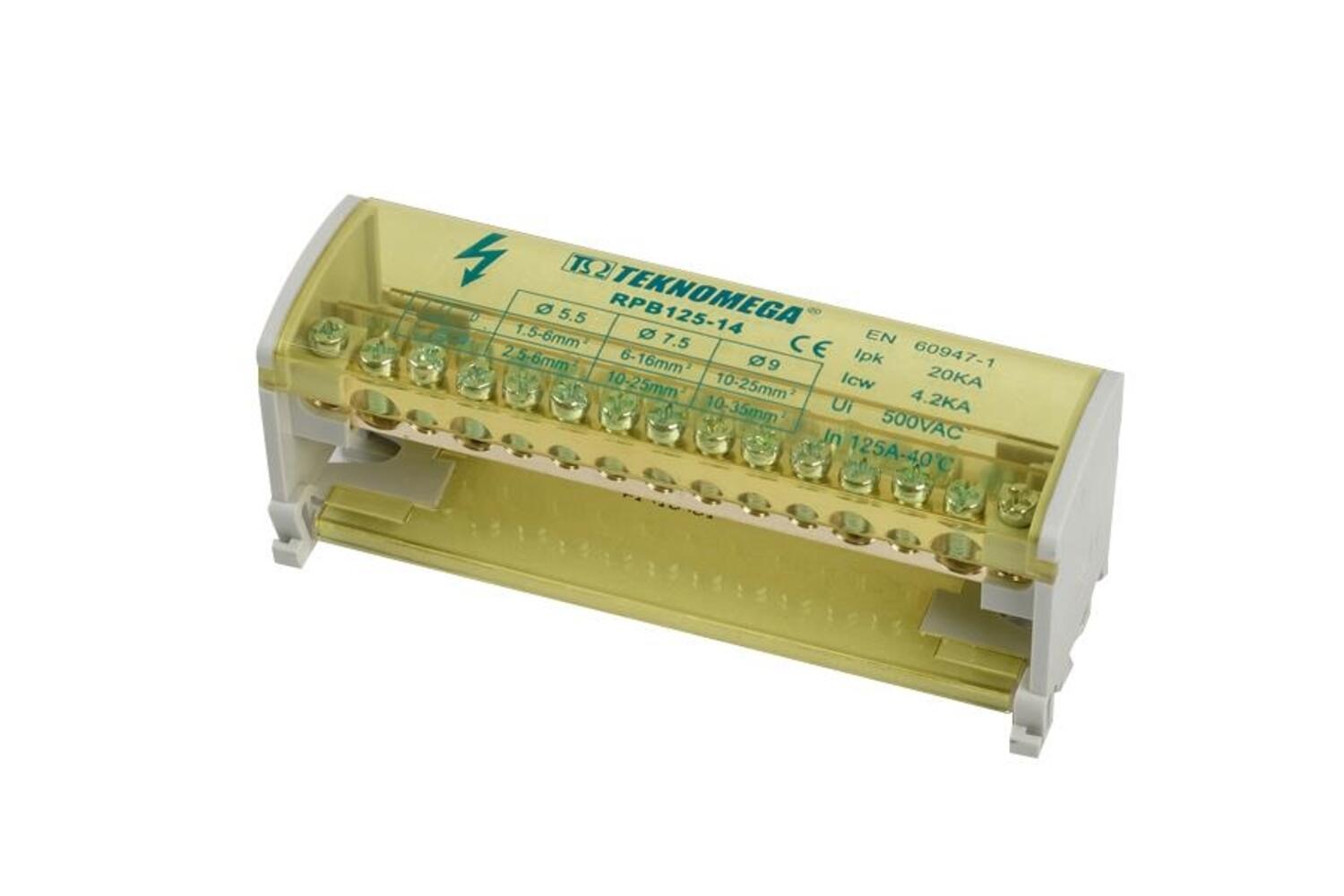

2 Pole Terminal Block - RPB 125-14
Art:
RPB1005 Copied
500 V
20 kA
4,2 kA
125 A
2,5 mm²
3 Nm
9 mm
2 Nm
10 mm²
15
1
5,5 mm
25 mm²
35 mm²
7,5 mm
6 mm²
9 mm
2 Nm
6 mm²
25 mm²
6 mm²
3 Nm
1,5 mm²
10 mm²
3 Nm
25 mm²
16 mm²
3 Nm
2 Nm
10 mm²
11
35 mm²
2
10 mm²
10 mm²
2 Nm
51 mm
46 mm
112 mm
132 mm
2 Pole Terminal Block - RPB 40-08
Art:
RPB0990 Copied
500 V
20 kA
4,2 kA
40 A
1,5 mm²
3 Nm
5,5 mm
2 Nm
2,5 mm²
9
1
4 mm
6 mm²
6 mm²
3 mm
1,5 mm²
5,5 mm
2 Nm
4 mm²
6 mm²
4 mm²
3 Nm
1,5 mm²
1,5 mm²
3 Nm
2,5 mm²
2,5 mm²
3 Nm
2 Nm
1,4 mm²
4
6 mm²
3
2,5 mm²
1,5 mm²
2 Nm
51 mm
46 mm
45 mm
66 mm
2 Pole Terminal Block -RPB 80-07
Art:
RPB0995 Copied
500 V
20 kA
4,5 kA
80 A
1,5 mm²
4,5 mm
2 Nm
10 mm²
8
5
5 mm
16 mm²
25 mm²
7,5 mm
2 Nm
4 mm²
4 mm²
4 mm²
3 Nm
1,5 mm²
6 mm²
3 Nm
3 Nm
2 Nm
2
4 mm²
1,5 mm²
1,5 mm²
51 mm
46 mm
45 mm
66 mm
2 Pole Terminal Block -RPB 125-06
Art:
RPB1000 Copied
500 V
20 kA
4,2 kA
125 A
10 mm²
5,5 mm
2 Nm
10 mm²
7
5
7,5 mm
25 mm²
35 mm²
9 mm
2 Nm
16 mm²
6 mm²
25 mm²
3 Nm
6 mm²
10 mm²
3 Nm
3 Nm
2 Nm
1
6 mm²
2,5 mm²
1,5 mm²
51 mm
46 mm
45 mm
66 mm
4 Pole Terminal Block - RPQ40-08
Art:
RPQ0980 Copied
500 V
20 kA
4,5 kA
40 A
1,5 mm²
3 Nm
5,5 mm
2 Nm
2,5 mm²
9
1
4 mm
6 mm²
6 mm²
3 mm
1,5 mm²
5,5 mm
2 Nm
4 mm²
6 mm²
4 mm²
3 Nm
1,5 mm²
1,5 mm²
3 Nm
2,5 mm²
2,5 mm²
3 Nm
2 Nm
1,5 mm²
4
6 mm²
3
2,5 mm²
1,5 mm²
2 Nm
50 mm
84 mm
45 mm
66 mm
4 Pole Terminal Block - RPQ40-14
Art:
RPQ0985 Copied
500 V
20 kA
4,5 kA
40 A
1,5 mm²
3 Nm
5,5 mm
2 Nm
2,5 mm²
15
1
4 mm
6 mm²
6 mm²
3 mm
1,5 mm²
5,5 mm
2 Nm
4 mm²
6 mm²
4 mm²
3 Nm
1,5 mm²
1,5 mm²
3 Nm
2,5 mm²
2,5 mm²
3 Nm
2 Nm
1,5 mm²
7
6 mm²
6
2,5 mm²
1,5 mm²
2 Nm
50 mm
84 mm
80 mm
100 mm
4 Pole Terminal Block - RPQ80-07
Art:
RPQ0990 Copied
500 V
20 kA
4,2 kA
80 A
1,5 mm²
4,5 mm
2 Nm
10 mm²
8
5
5 mm
16 mm²
25 mm²
7,5 mm
2 Nm
4 mm²
4 mm²
4 mm²
3 Nm
1,5 mm²
6 mm²
3 Nm
3 Nm
2 Nm
2
4 mm²
1,5 mm²
1,5 mm²
50 mm
84 mm
45 mm
66 mm
4 Pole Terminal Block - RPQ80-12
Art:
RPQ0995 Copied
500 V
20 kA
4,2 kA
80 A
1,5 mm²
3 Nm
7,5 mm
2 Nm
4 mm²
10 mm²
13
1
4,5 mm
16 mm²
25 mm²
5 mm
1,5 mm²
7,5 mm
2 Nm
4 mm²
16 mm²
4 mm²
10 mm²
3 Nm
1,5 mm²
2,5 mm²
6 mm²
3 Nm
4 mm²
4 mm²
3 Nm
1
2 Nm
2 Nm
1,5 mm²
8
25 mm²
2
6 mm²
3 Nm
10 mm²
6 mm²
6 mm
2 Nm
50 mm
84 mm
80 mm
100 mm
4 Pole Terminal Block - RPQ 125-06
Art:
RPQ1000 Copied
500 V
20 kA
4,2 kA
125 A
10 mm²
5,5 mm
2 Nm
10 mm²
7
5
7,5 mm
25 mm²
35 mm²
9 mm
2 Nm
16 mm²
6 mm²
25 mm²
3 Nm
6 mm²
10 mm²
3 Nm
3 Nm
2 Nm
1
6 mm²
2,5 mm²
1,5 mm²
50 mm
84 mm
45 mm
66 mm
4 Pole Terminal Block - RPQ 125-10
Art:
RPQ1005 Copied
500 V
20 kA
4,2 kA
125 A
10 mm²
3 Nm
9 mm
2 Nm
10 mm²
11
1
7,5 mm
25 mm²
35 mm²
5,5 mm
1,5 mm²
9 mm
2 Nm
16 mm²
25 mm²
25 mm²
3 Nm
6 mm²
10 mm²
3 Nm
6 mm²
6 mm²
3 Nm
2 Nm
2,5 mm²
2
35 mm²
7
10 mm²
10 mm²
2 Nm
50 mm
84 mm
80 mm
100 mm
4 Pole Terminal Block - RPQ 125-14
Art:
RPQ1010 Copied
500 V
20 kA
4,2 kA
125 A
10 mm²
3 Nm
9 mm
2 Nm
10 mm²
15
1
7,5 mm
25 mm²
35 mm²
5,5 mm
1,5 mm²
9 mm
2 Nm
16 mm²
25 mm²
25 mm²
3 Nm
6 mm²
10 mm²
3 Nm
6 mm²
6 mm²
3 Nm
2 Nm
2,5 mm²
2
35 mm²
11
10 mm²
10 mm²
2 Nm
50 mm
84 mm
112 mm
132 mm

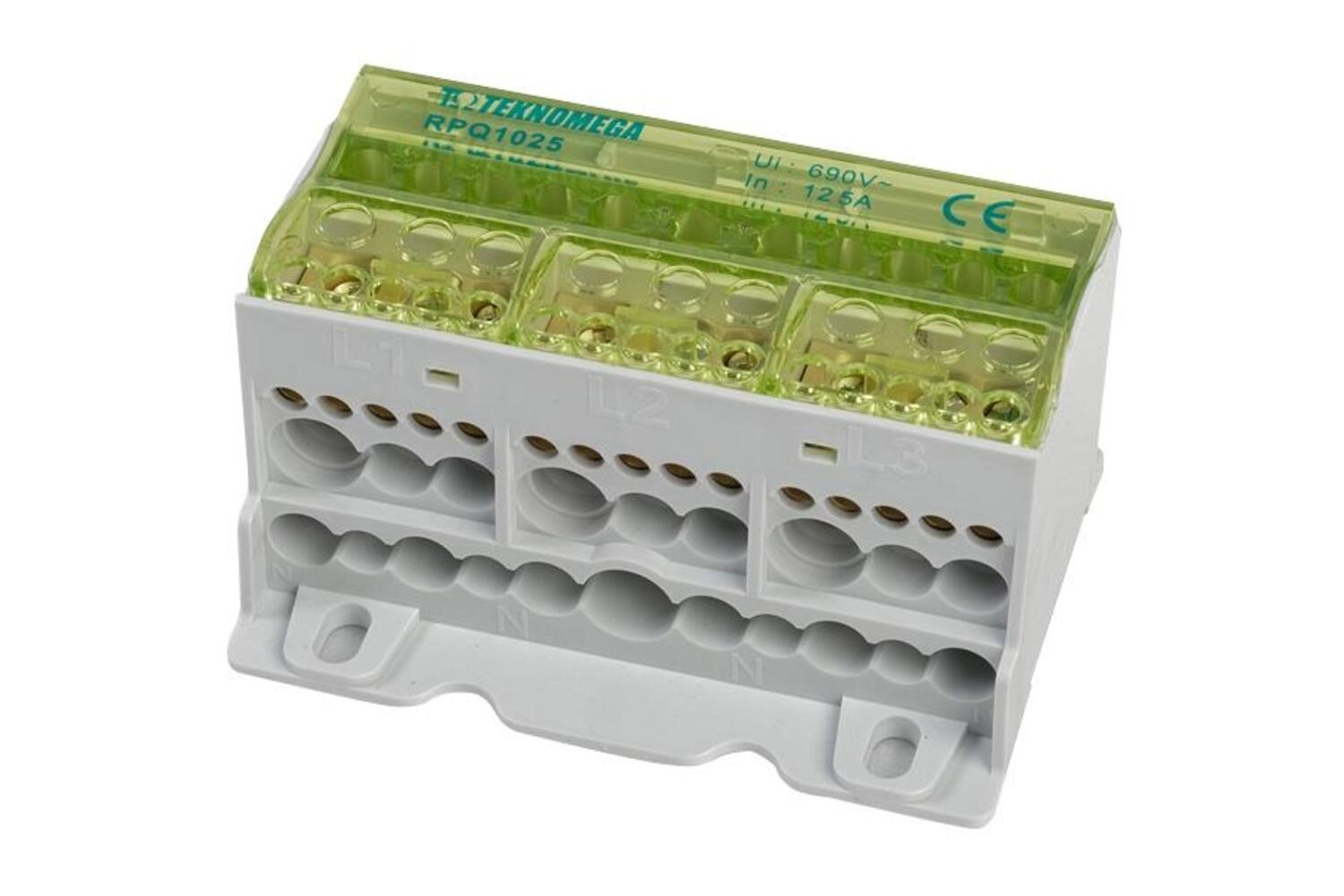

4 Pole Terminal Block - RPQ C-100
Art:
RPQ1025 Copied
690 V
24 kA
4,2 kA
100 A
1,5 mm²
5,5 mm
6 mm²
8
5
6 mm
25 mm²
35 mm²
8,5 mm
10 mm²
6 mm²
16 mm²
1,5 Nm
1,5 mm²
6 mm²
1,5 Nm
0,8 Nm
2
6 mm²
1,5 mm²
1,5 mm²
49 mm
75 mm
55 mm
98 mm
