TEKNOMEGA

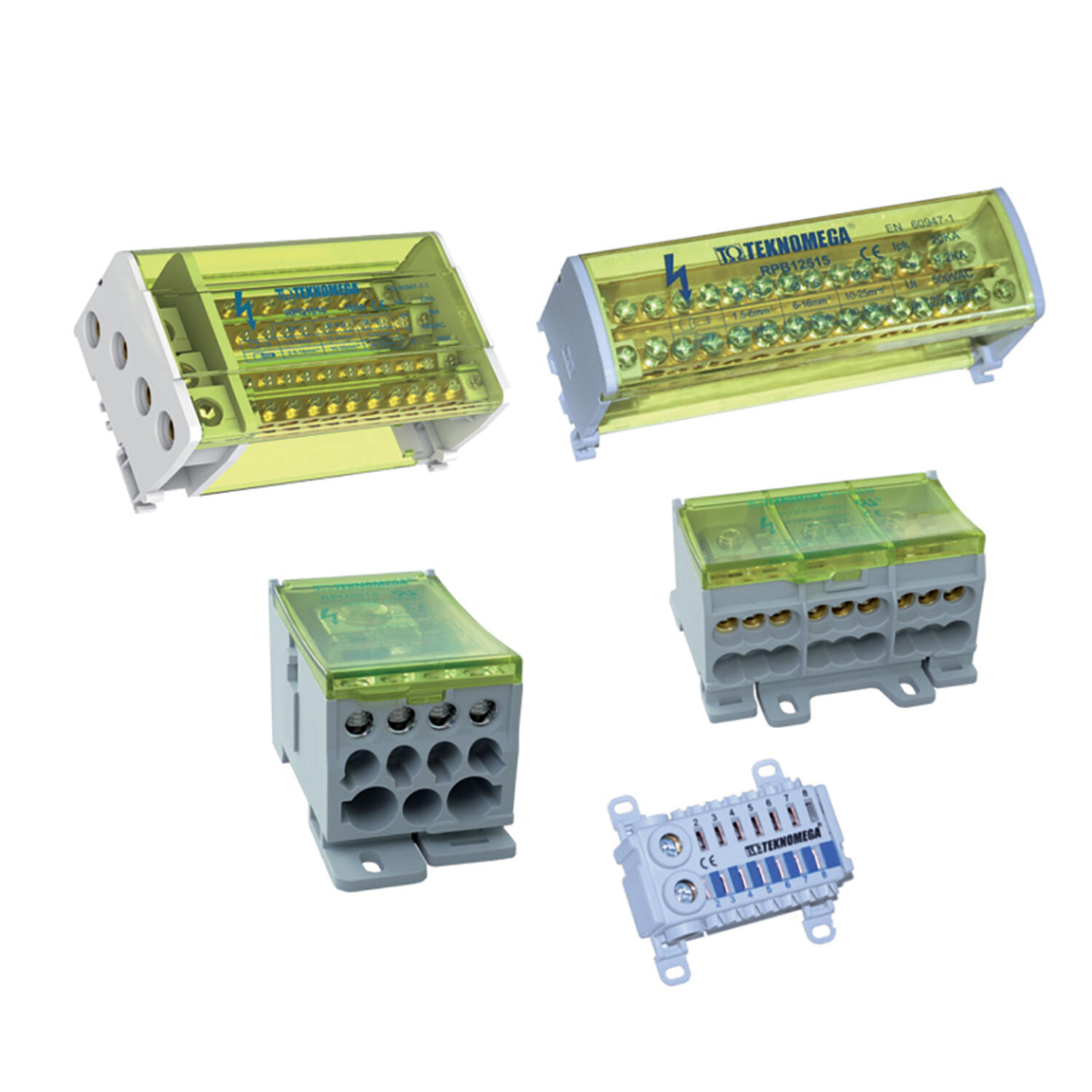

Teknomega offer a variety of distribution blocks which are used in terminal board distribution units. These include single blocks and compact blocks permitting the units to range from 40 A up to 400 A.
With various applications the blocks are used in switchboards, automation and command panel boards and distribution panel boards.
Â
Compact distribution blocks
Â
Ranging from 80 A to 400 A and 1 and 3 pole the blocks suit applications where the effective short-circuit current value (Icc eff) is higher than 10 kA.
Â
Each block reaches UL approval standards.
Â
Â
Â
Â
General Data |
|
|---|---|
| IP class | IP20 |
| Nominal insulation voltage | 600 V |
| Short-circuit current resistance IPK (peak value) | 30 kA |
| Short-circuit current resistance ICW over 1s | 4,4 kA |
Connection Data |
|
| Input A: wire cross-section stranded, min. | 10 mm² |
| Connections | 7 |
| Number of outputs A | 6 |
| Input A: wire cross-section with wire-end ferrules, max. | 35 mm² |
| Input A: wire cross-section stranded, max. | 35 mm² |
| Output A: wire cross-section stranded with wire-end ferrules, max. | 16 mm² |
| Input A: wire cross-section with wire-end ferrules, min. | 10 mm² |
*Invisible Heading* |
|
|---|---|
| Output A: wire cross-section stranded, max. | 16 mm² |
| Screw type | Galvanized steel screws |
| Output A: wire cross-section stranded, min. | 2,5 mm² |
| Number of inputs A | 1 |
| Output A: wire cross-section stranded with wire-end ferrules, min. | 2,5 mm² |

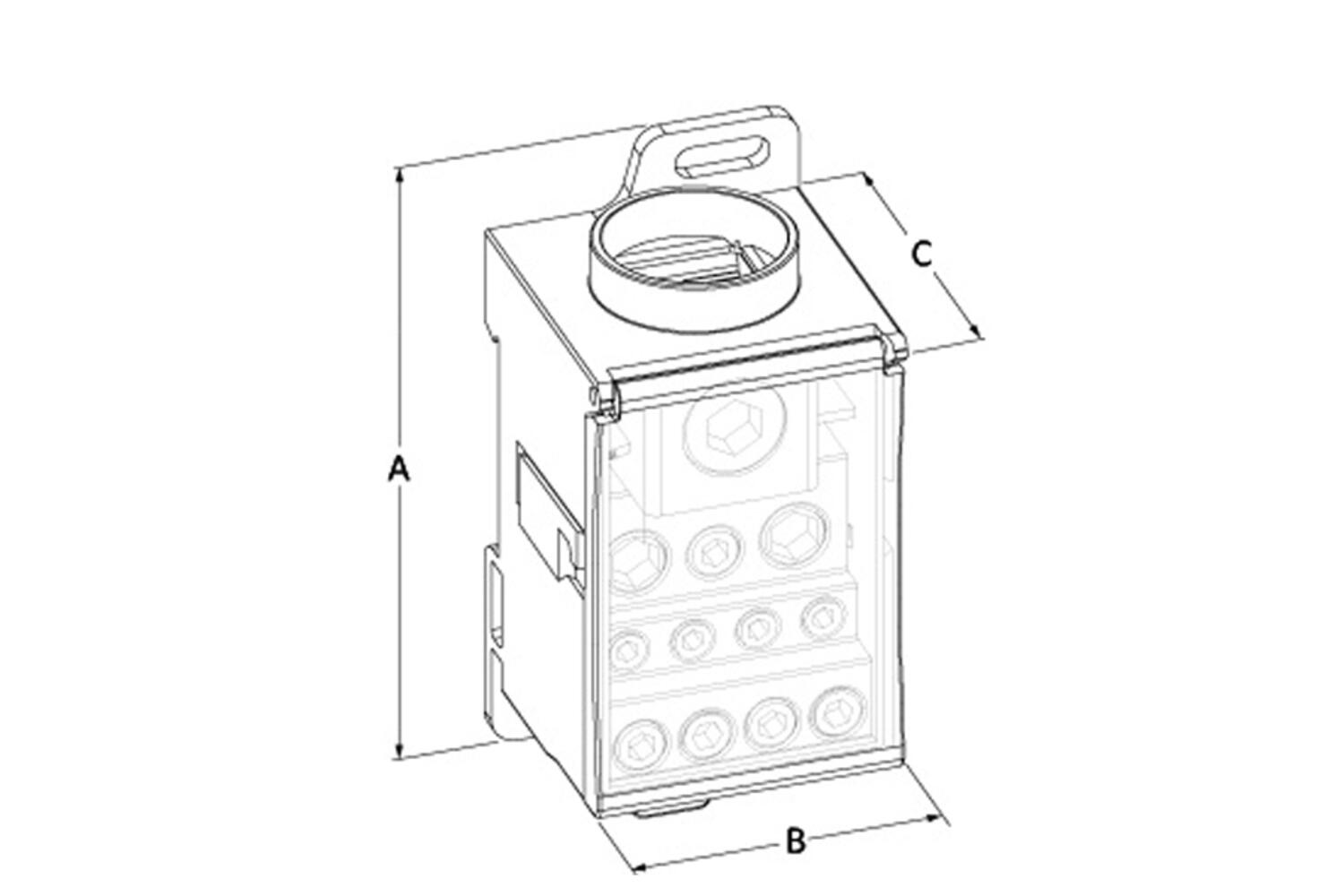

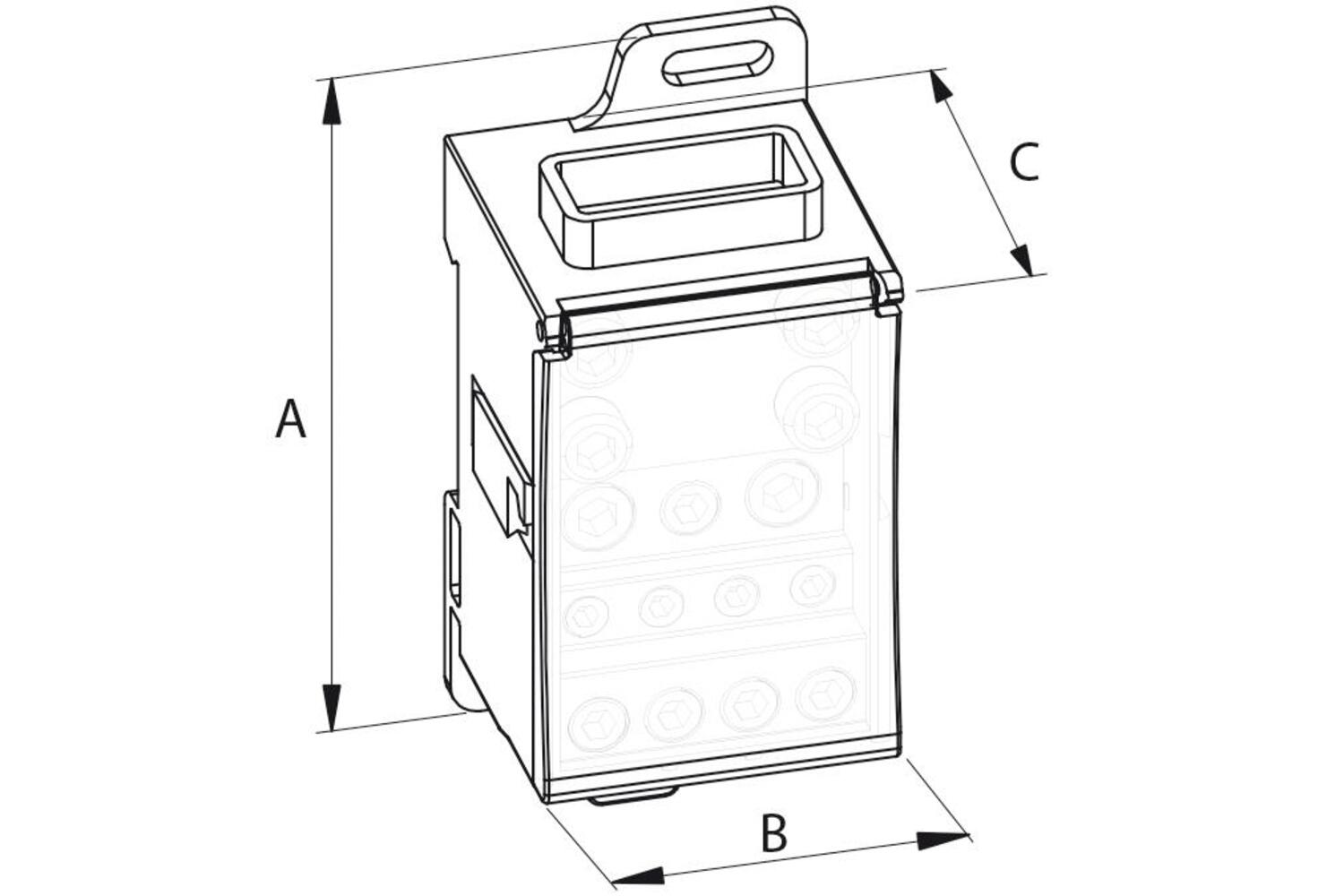

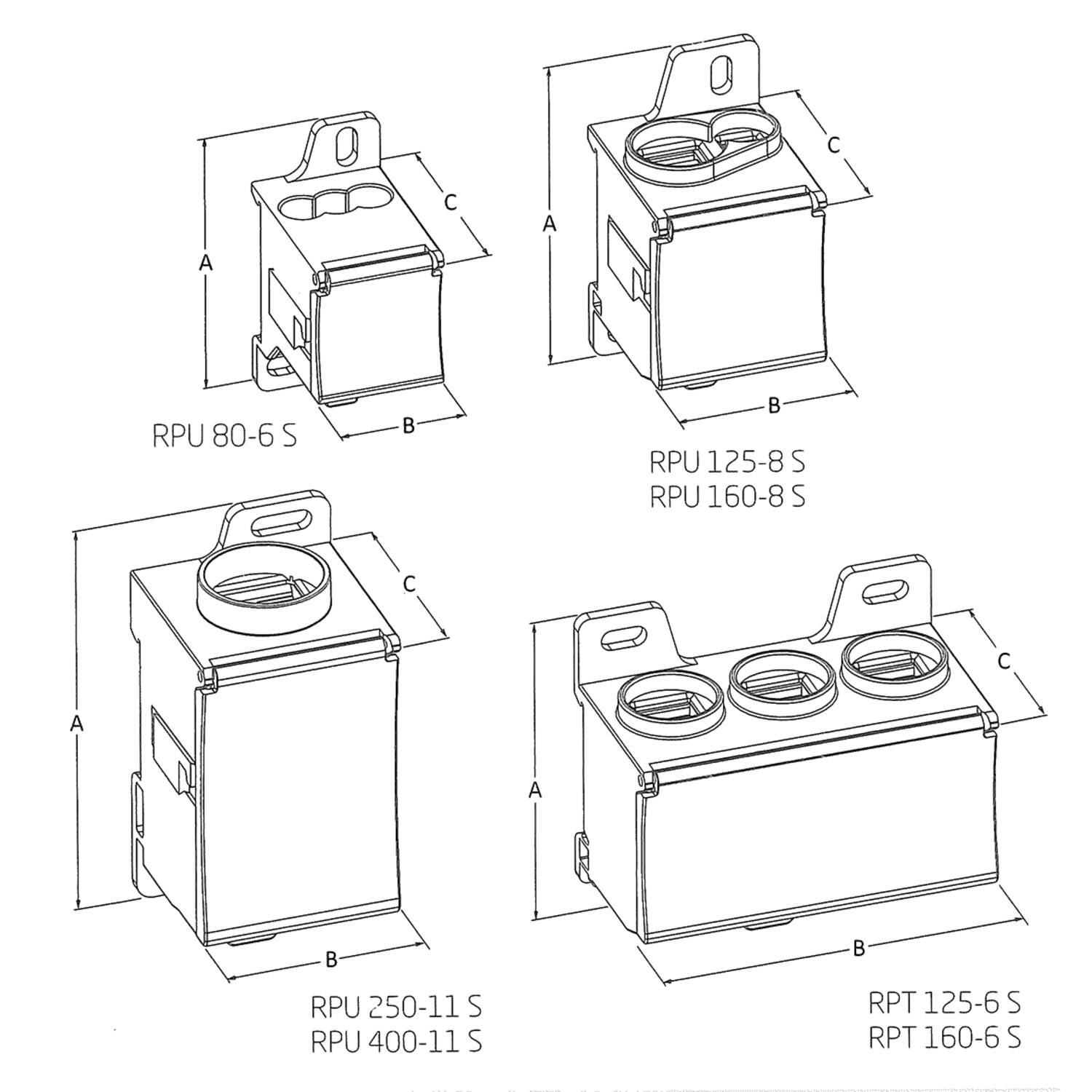

Dimensions |
|
| Width (C) | 48 mm |
| Length (B) | 85 mm |
| Height (A) | 75 mm |
Additional Data |
|
| Pack size | 1 |
Teknomega offer a variety of distribution blocks which are used in terminal board distribution units. These include single blocks and compact blocks permitting the units to range from 40 A up to 400 A.
With various applications the blocks are used in switchboards, automation and command panel boards and distribution panel boards.
Â
Compact distribution blocks
Â
Ranging from 80 A to 400 A and 1 and 3 pole the blocks suit applications where the effective short-circuit current value (Icc eff) is higher than 10 kA.
Â
Each block reaches UL approval standards.
Â
Â
Â
Â
Optimise your production line with encoders, inclinometers, displays and slip rings
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.
Do you require signalling devices and beacons in your production process? Download our latest whitepaper!
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Short-circuit current resistance IPK (peak value) | Short-circuit current resistance ICW over 1s | Output B: wire cross-section stranded, min. | Input A: wire cross-section stranded, min. | Connections | Number of outputs A | Input A: wire cross-section with wire-end ferrules, max. | Input A: wire cross-section stranded, max. | Input B: wire cross-section, stranded with wire-end ferrules, min. | Output C: wire cross-section stranded with wire-end ferrules, min. | Output B: wire cross-section stranded with wire-end ferrules, max. | Output A: wire cross-section stranded with wire-end ferrules, max. | Output B: wire cross-section stranded, max. | Output B: wire cross-section stranded with wire-end ferrules, min. | Input A: wire cross-section with wire-end ferrules, min. | Output C: wire cross-section stranded, max. | Output C: wire cross-section stranded with wire-end ferrules, max. | Input B: wire cross-section stranded with wire-end ferrules, max. | Output C: wire cross-section stranded, min. | Number of outputs B | Input B: wire cross-section stranded, max. | Output A: wire cross-section stranded, max. | Number of outputs C | Input B: wire cross-section stranded, min. | Output A: wire cross-section stranded, min. | Output A: wire cross-section stranded with wire-end ferrules, min. | Number of inputs B | Width (C) | Length (B) | Height (A) | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

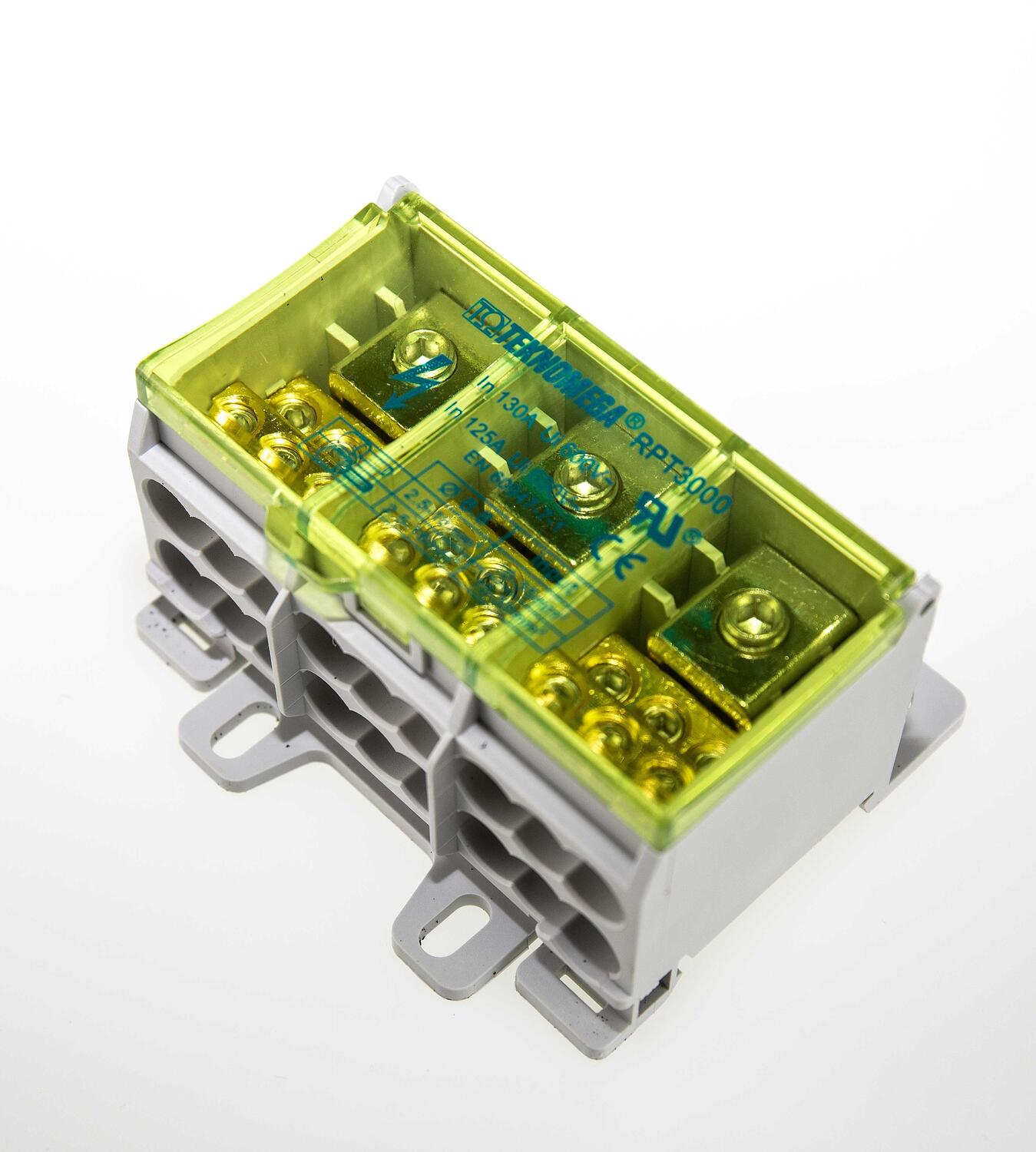

3 Pole Compact Distribution Block - RPT 125
Art:
RPT3000
Copied
|
30 kA
|
4,4 kA
|
|
10 mm²
|
7
|
6
|
35 mm²
|
35 mm²
|
|
|
|
16 mm²
|
|
|
10 mm²
|
|
|
|
|
|
|
16 mm²
|
|
|
2,5 mm²
|
2,5 mm²
|
|
48 mm
|
85 mm
|
75 mm
|
| ||
3 Pole Compact Distribution Block - RPT 160
Art:
RPT3005
Copied
|
30 kA
|
11 kA
|
|
10 mm²
|
7
|
6
|
50 mm²
|
70 mm²
|
|
|
|
16 mm²
|
|
|
10 mm²
|
|
|
|
|
|
|
16 mm²
|
|
|
2,5 mm²
|
2,5 mm²
|
|
48 mm
|
85 mm
|
75 mm
|
| ||

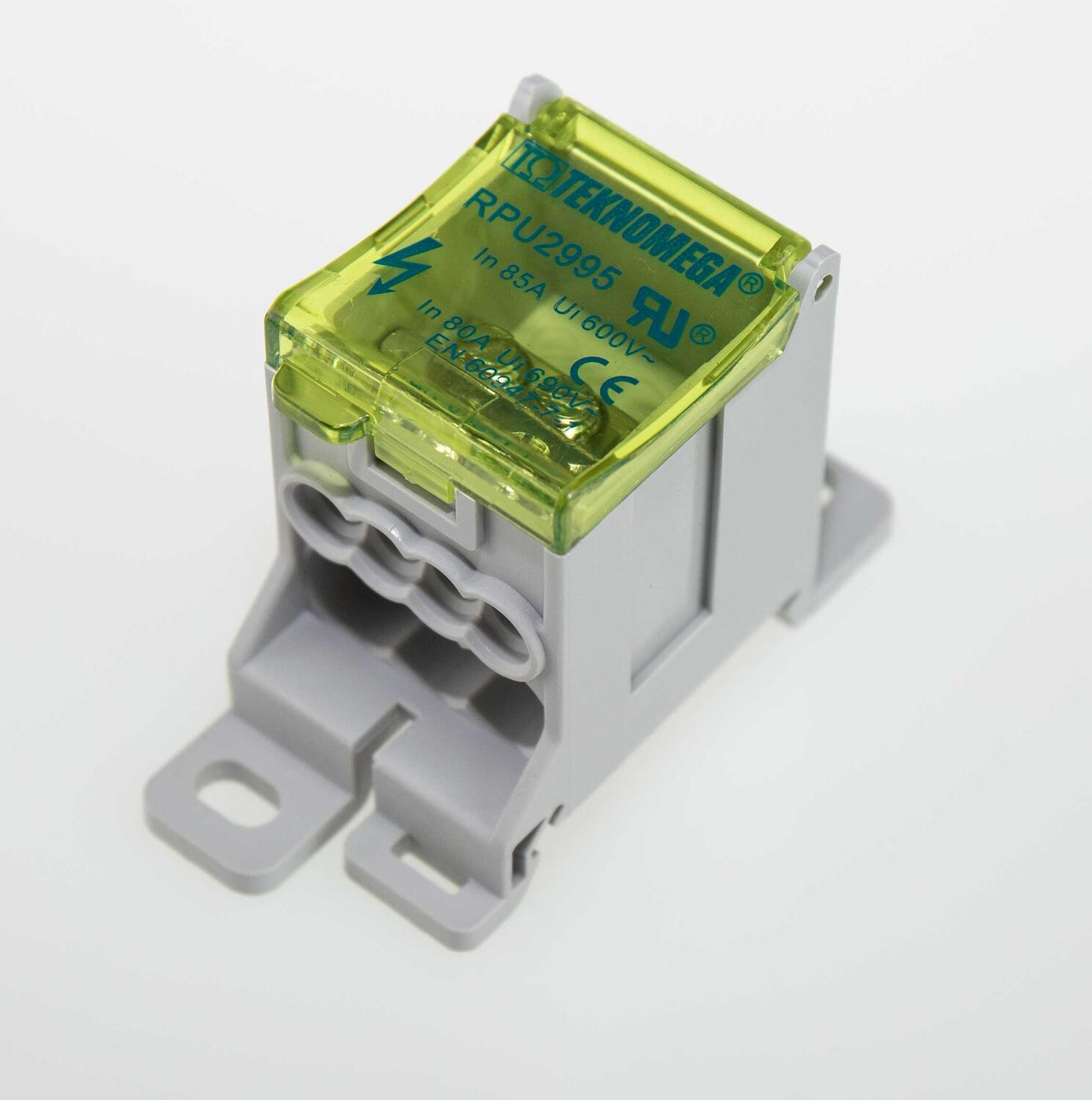

Unipolar Distribution Block - RPU 80-6 S
Art:
RPU2995
Copied
|
22 kA
|
3 kA
|
2,5 mm²
|
6 mm²
|
7
|
2
|
16 mm²
|
16 mm²
|
|
|
6 mm²
|
16 mm²
|
6 mm²
|
2,5 mm²
|
6 mm²
|
|
|
|
|
4
|
|
16 mm²
|
|
|
2,5 mm²
|
2,5 mm²
|
|
46 mm
|
30 mm
|
66 mm
|
| ||

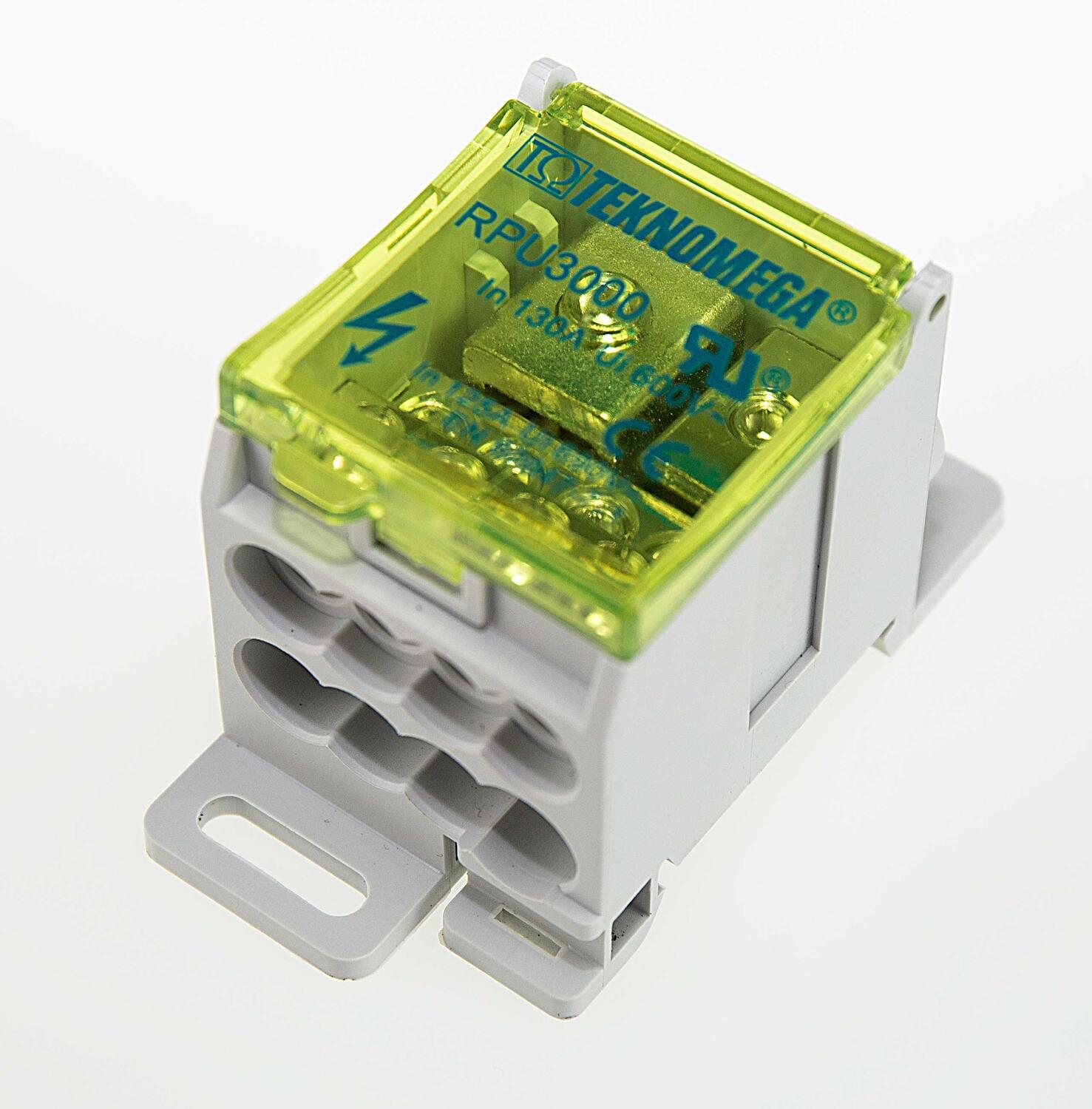

Unipolar Distribution Block - RPU 125-9
Art:
RPU3000
Copied
|
30 kA
|
4,4 kA
|
|
10 mm²
|
10
|
8
|
35 mm²
|
35 mm²
|
6 mm²
|
|
|
16 mm²
|
|
|
10 mm²
|
|
|
16 mm²
|
|
|
16 mm²
|
16 mm²
|
|
6 mm²
|
2,5 mm²
|
2,5 mm²
|
1
|
48 mm
|
40 mm
|
75 mm
|
| ||

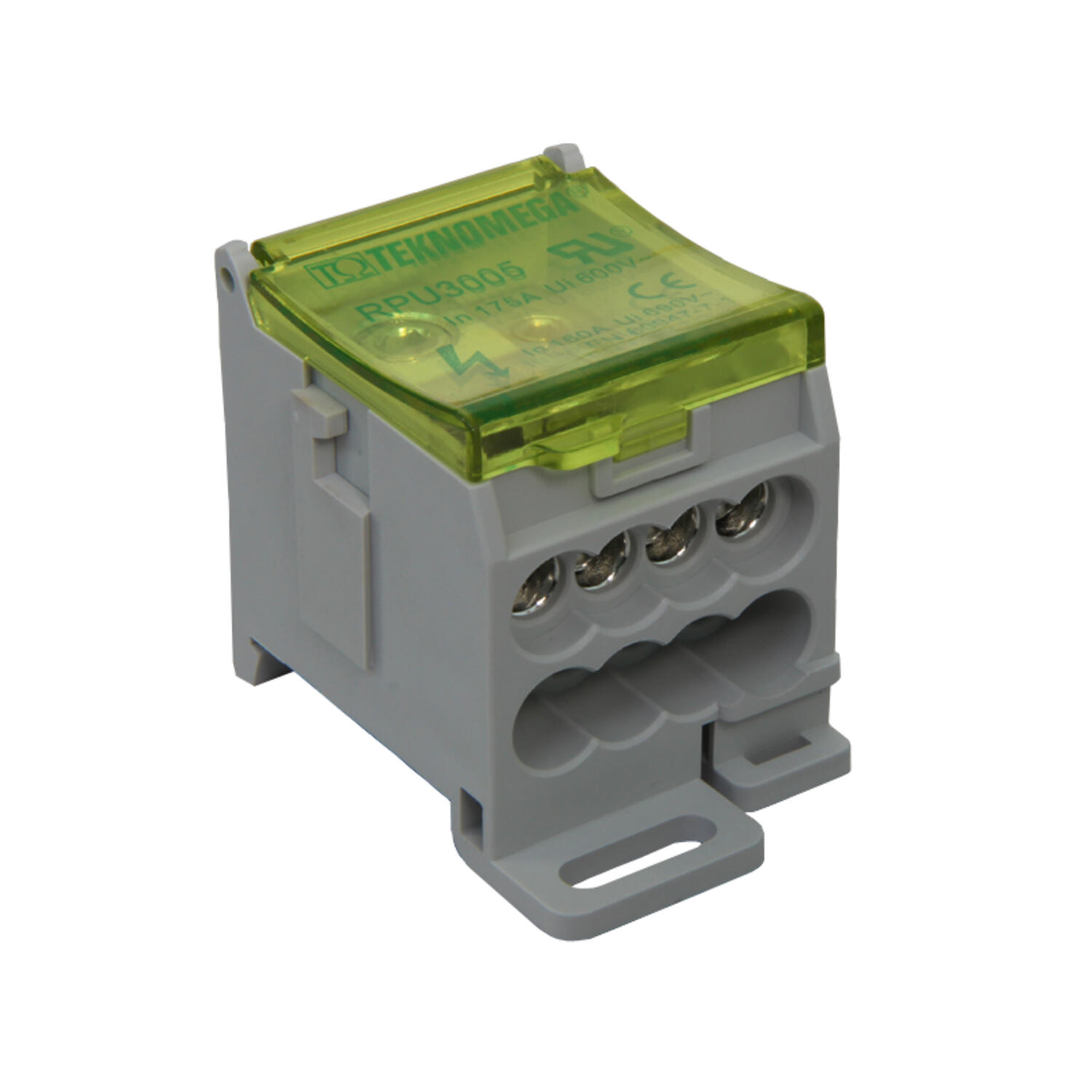

Unipolar Distribution Block - RPU 160-9
Art:
RPU3005
Copied
|
30 kA
|
11 kA
|
|
10 mm²
|
10
|
8
|
50 mm²
|
70 mm²
|
6 mm²
|
|
|
16 mm²
|
|
|
10 mm²
|
|
|
16 mm²
|
|
|
16 mm²
|
16 mm²
|
|
6 mm²
|
2,5 mm²
|
2,5 mm²
|
1
|
48 mm
|
40 mm
|
75 mm
|
| ||

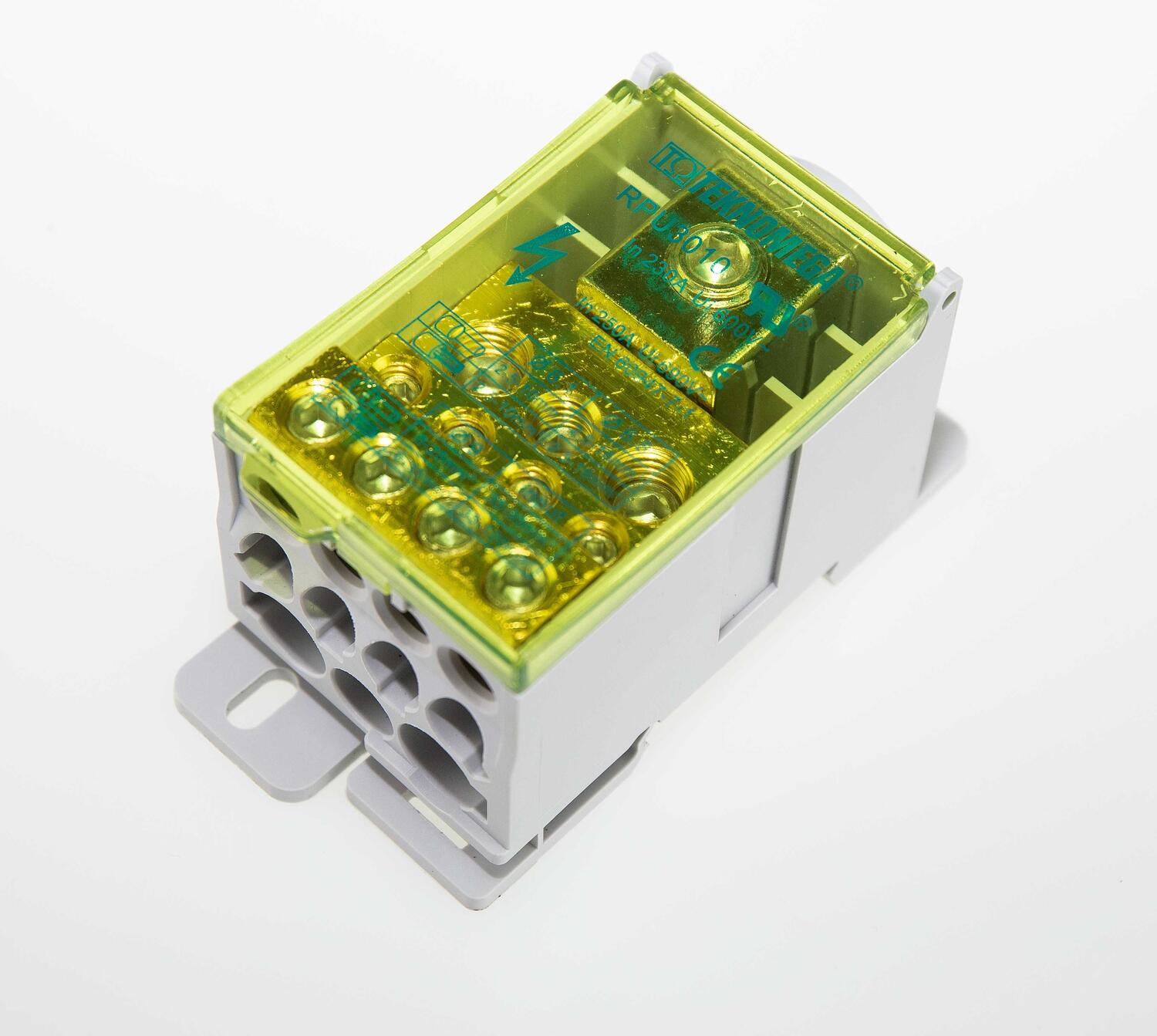

Unipolar Distribution Block - RPU 250-11
Art:
RPU3010
Copied
|
51 kA
|
21 kA
|
2,5 mm²
|
35 mm²
|
12
|
2
|
95 mm²
|
120 mm²
|
|
2,5 mm²
|
16 mm²
|
25 mm²
|
16 mm²
|
2,5 mm²
|
35 mm²
|
10 mm²
|
10 mm²
|
|
2,5 mm²
|
5
|
|
35 mm²
|
4
|
|
6 mm²
|
6 mm²
|
|
50 mm
|
47 mm
|
96 mm
|
| ||

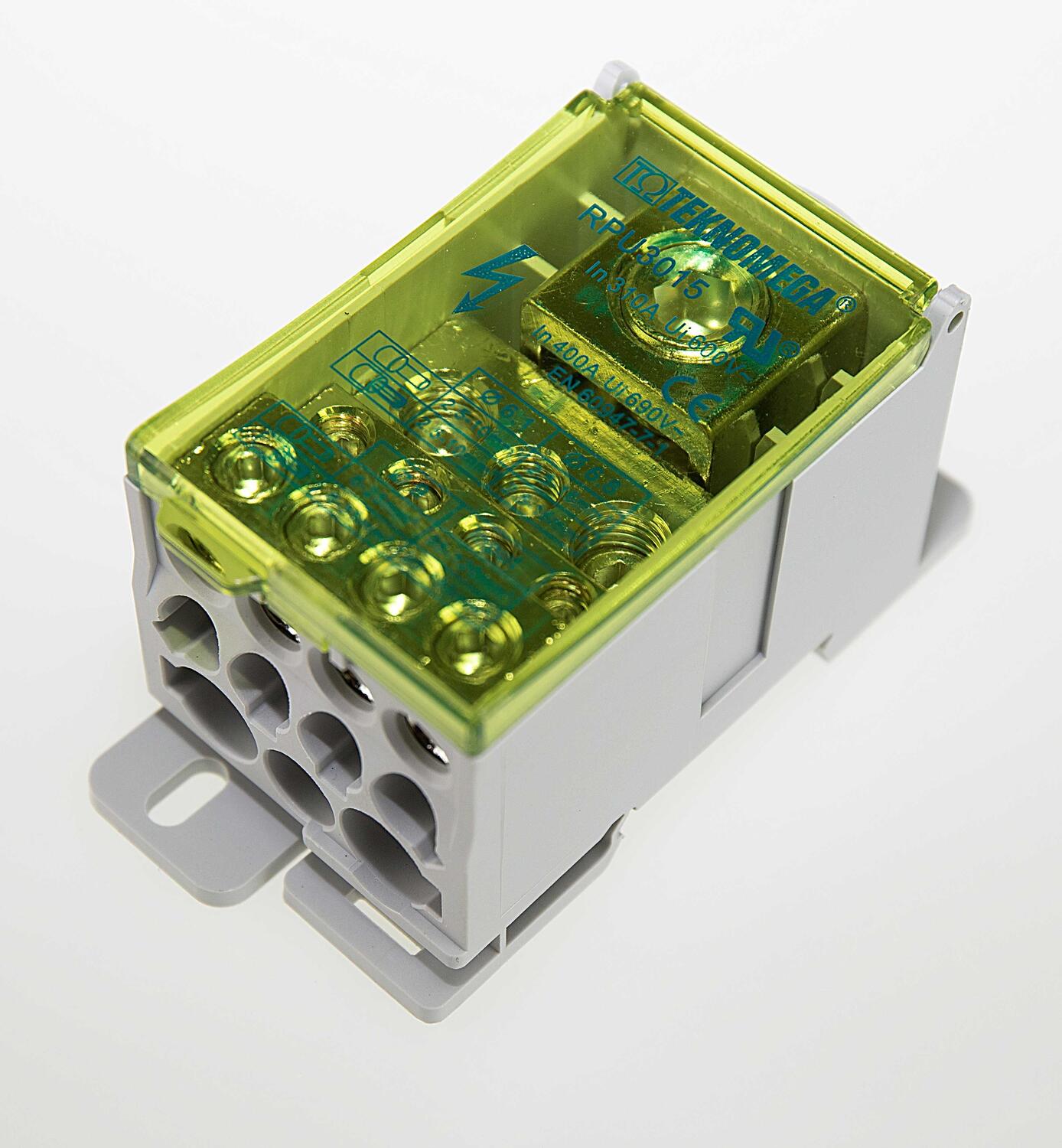

Unipolar Distribution block 400 A - RPU 400-11
Art:
RPU3015
Copied
|
51 kA
|
21 kA
|
2,5 mm²
|
95 mm²
|
12
|
2
|
120 mm²
|
185 mm²
|
|
2,5 mm²
|
16 mm²
|
25 mm²
|
16 mm²
|
2,5 mm²
|
95 mm²
|
10 mm²
|
10 mm²
|
|
2,5 mm²
|
5
|
|
35 mm²
|
4
|
|
6 mm²
|
6 mm²
|
|
50 mm
|
47 mm
|
96 mm
|
|
