TEKNOMEGA

QUICK DISTRIBUTION BLOCKS

RPU

The Electrical Distribution Blocks Quick Series Ω are Unipolar and Bipolar Terminal blocks equipped with effective and safe Outputs Spring Tightening.



Technical features:

Body made in PA 66



Self-extinguishing as per UL 94-V0



Brass bars



Tightening of cable:



  • Cable Inputs Screw tightening
  • Cable Output with spring steel system and copper contact



Level of protection IP20



In compliance with EN60998 -  EN 6099.

Read more
  • Extremely easy wiring
  • Output with spring tightening
  • Self-extinguishing as per UL 94-V0
Eplan Logo, data portal for 3D drawings

To view Teknomega Products via ePlan see the link under 'downloadable resources' further down the page

Teknomega quick distribution blocks RPU

Selected variant

Available in several variants
Logo completo.png

Save page as PDF

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Technical data

General Data
IP class IP20
Nominal insulation voltage 690 V
Rated current 76 A

Connection Data
Input A: wire cross-section stranded, min. 1,5 mm²
Connections 16
Number of outputs A 14
Input A: wire cross-section with wire-end ferrules, max. 16 mm²
Input A: wire cross-section stranded, max. 25 mm²
Output A: wire cross-section stranded with wire-end ferrules, max. 4 mm²
Input A: wire cross-section with wire-end ferrules, min. 1,5 mm²

*Invisible Heading*
Output A: wire cross-section stranded, max. 4 mm²
Output A: wire cross-section stranded, min. 0,5 mm²
Number of inputs A 2
Output A: wire cross-section stranded with wire-end ferrules, min. 0,5 mm²

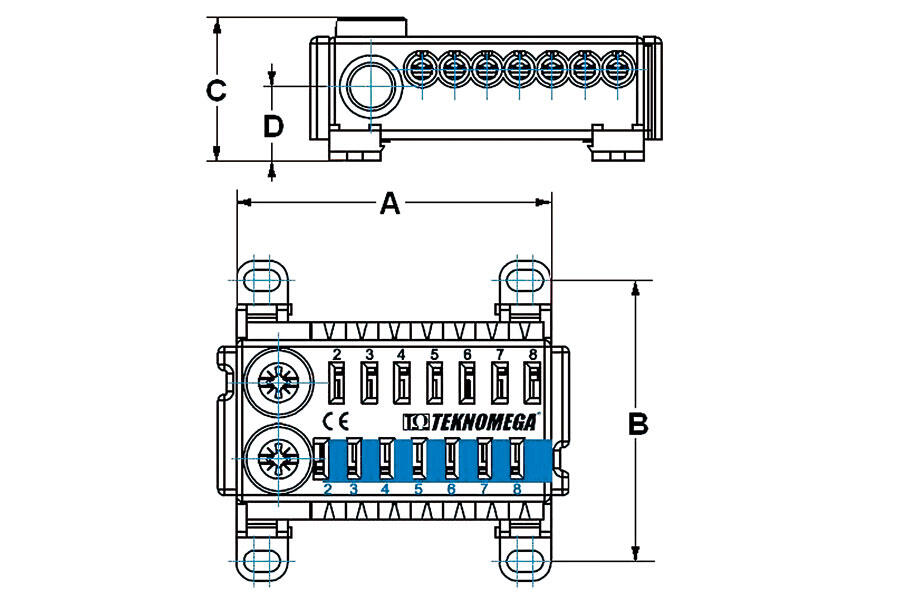

Dimensions
Width (C) 24 mm

Additional Data
Pack size 10
D (Diameter) 12 mm
Height (B) 47 mm
Length (A) 53 mm

Downloads

Measurements and connections

Product description

The Electrical Distribution Blocks Quick Series Ω are Unipolar and Bipolar Terminal blocks equipped with effective and safe Outputs Spring Tightening.



Technical features:

Body made in PA 66



Self-extinguishing as per UL 94-V0



Brass bars



Tightening of cable:



  • Cable Inputs Screw tightening
  • Cable Output with spring steel system and copper contact



Level of protection IP20



In compliance with EN60998 -  EN 6099.

Accessories

Parts Connections Number of outputs A Number of inputs A Price
Teknomega quick distribution blocks RPU
1 Pole Terminal Block - RPU 80-S-14B
Art:
RPU5000 Copied
16
14
2
Teknomega quick distribution blocks RPU
1 Pole Terminal Block - RPU 80-S-14G
Art:
RPU5005 Copied
16
14
2
Teknomega quick distribution blocks RPU
2 Pole Terminal Block - RPB 80-S-7BG
Art:
RPU5010 Copied
8
7
1
