TEKNOMEGA

Unipolar terminal blocks

ITB

Unipolar terminal blocks are for mounting on DIN rails.



With various lengths the blocks are all rate at 80A with a nominal insulation voltage of 500 V. In



All ITB blocks comply with EN 60947-7-1 regulation



Read more
  • Insulating body: PA 66 UL 94-V0
  • Grey RAL 7035 - Blue RAL 5012 - Green RAL 6024
  • Cover: PC UL 94-V0, transparent yellow
  • Conduction block: Brass
Teknomega Unipolar terminal blocks ITB

Eplan Logo, data portal for 3D drawings

To view Teknomega Products via ePlan see the link under 'downloadable resources' further down the page

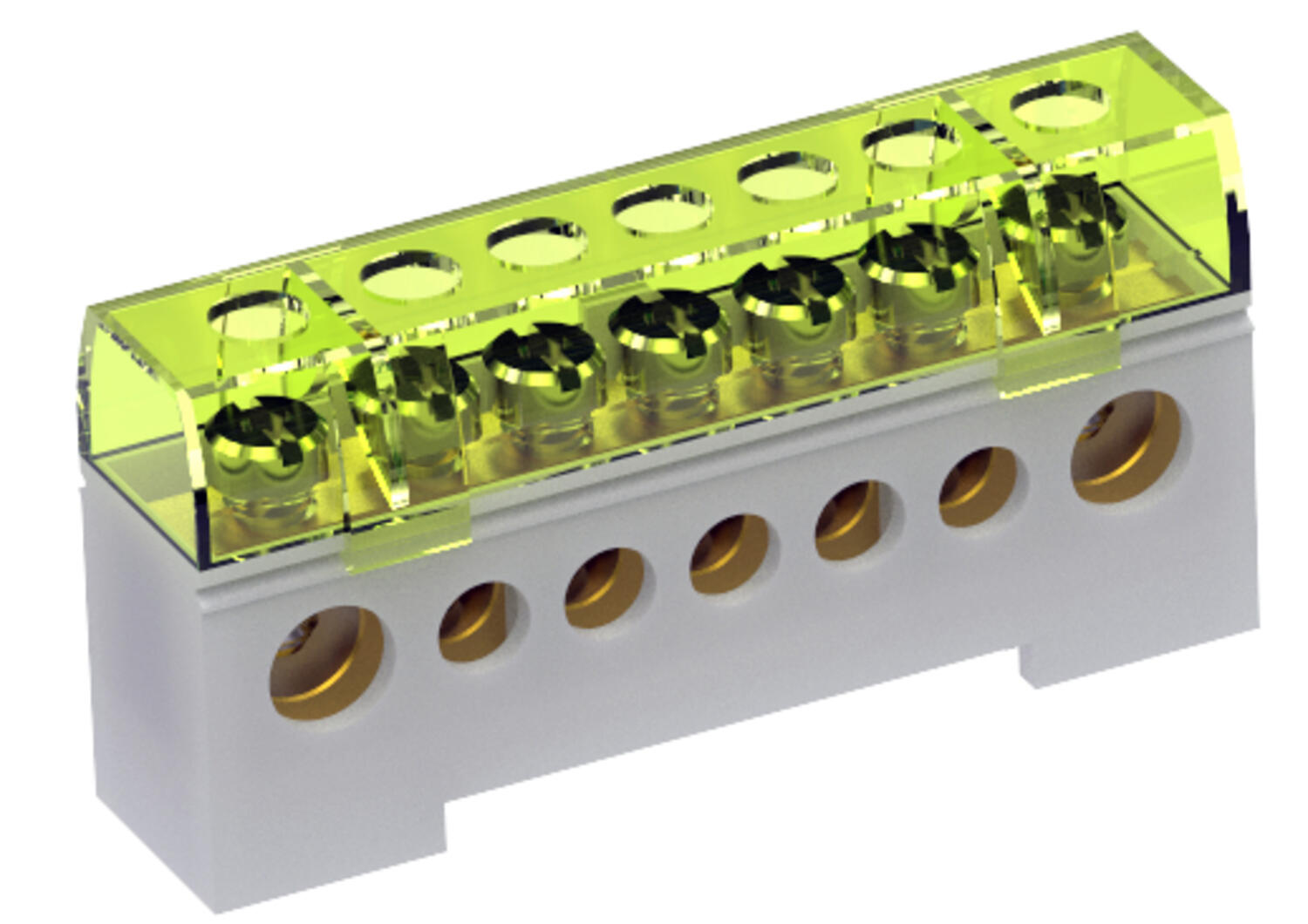

ITB 80-7 W.png

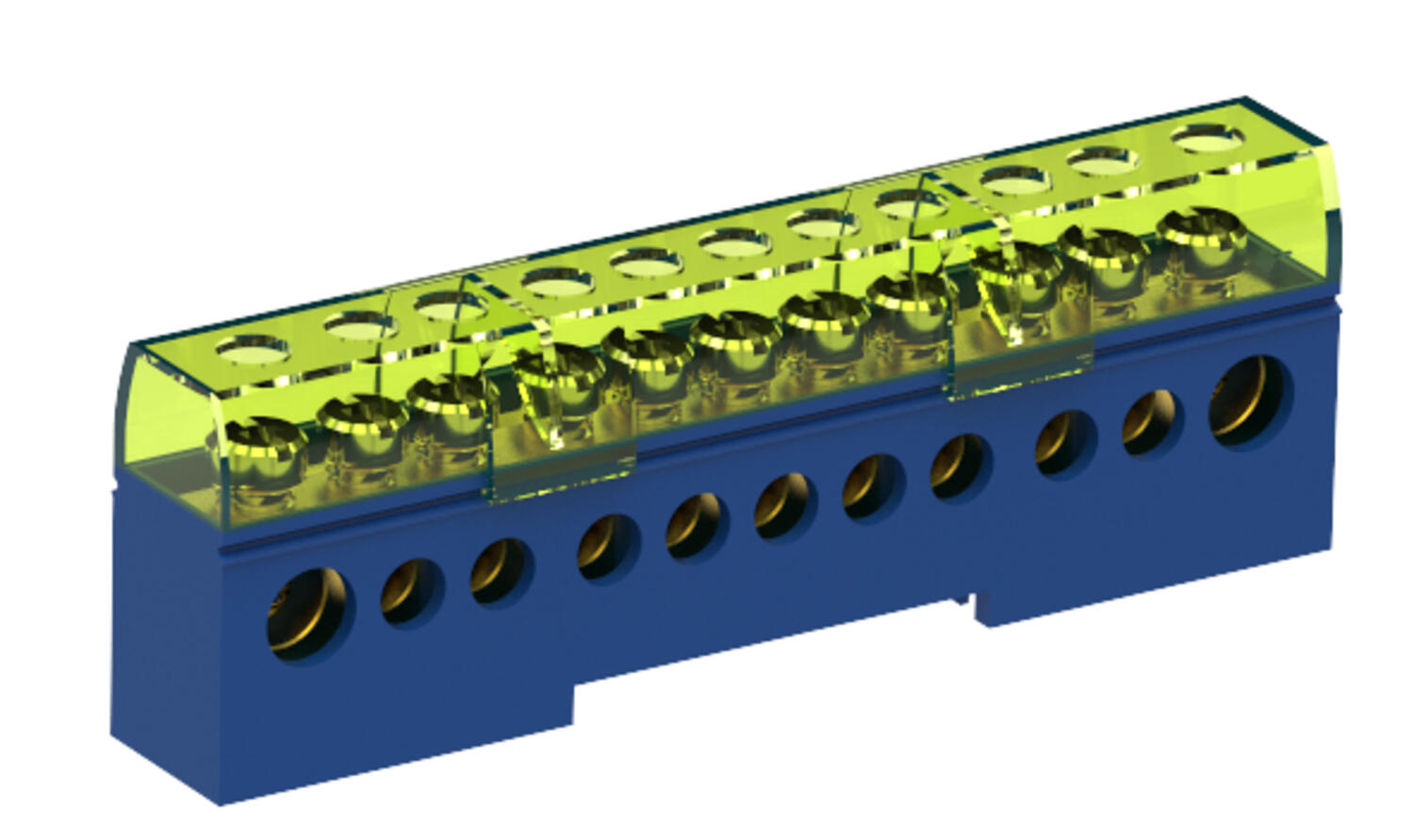

ITB 80-11B.png

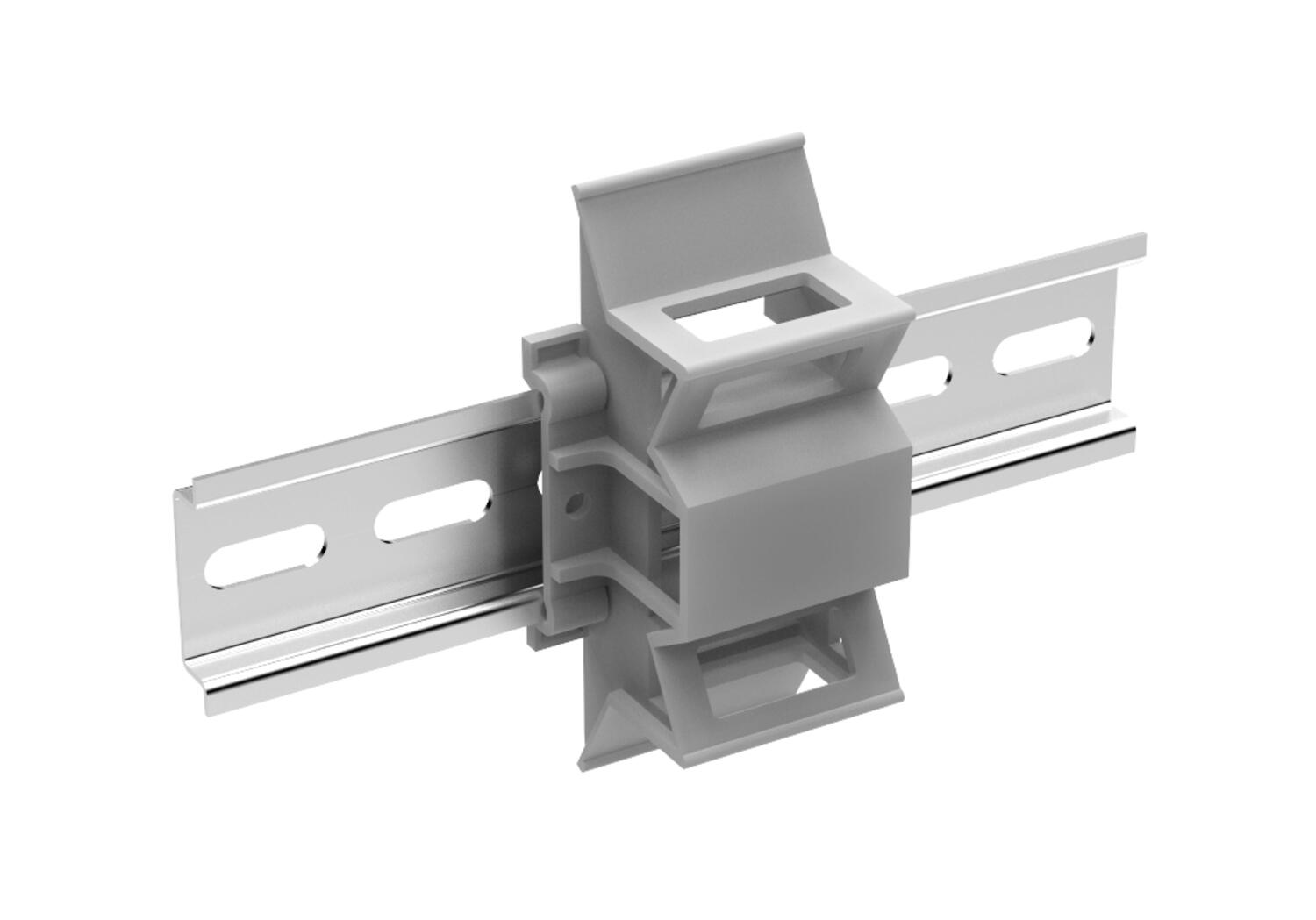

ITB-S DIN35.png

Selected variant

Available in several variants

Selected variant

Technical data

General Data

Rated current 80 A
Mounting DIN rail
Colour Grey
Nominal insulation voltage 500 V

Connection Data

Connections 7
Number of inputs A 2
Input A: diameter 7,5 mm
Input A: wire cross-section stranded, min. 4 mm²
Input A: wire cross-section stranded, max. 16 mm²
Input A: wire cross-section with wire-end ferrules, min. 2,5 mm²
Input A: wire cross-section with wire-end ferrules, max. 16 mm²
Input A: torque, max. 2
Number of inputs B 5

*Invisible Heading*

Input B: diameter 5,5 mm
Input B: wire cross-section stranded, min. 2,5 mm²
Input B: wire cross-section stranded, max. 6 mm²
Input B: wire cross-section, stranded with wire-end ferrules, min. 1,5 mm²
Input B: wire cross-section stranded with wire-end ferrules, max. 6 mm²
Input B: torque, max. 1,5
Screw type Galvanized steel screws

Dimensions

Width 15 mm
Length (L) 63 mm
Height (H) 31 mm

Additional Data

Weight 46 g
Pack size 10

Product description

Unipolar terminal blocks are for mounting on DIN rails.



With various lengths the blocks are all rate at 80A with a nominal insulation voltage of 500 V. In



All ITB blocks comply with EN 60947-7-1 regulation



Accessories

Related

Kubler slip rings encoders
Blog Product news

Optimise your production line with sensors

Optimise your production line with encoders, inclinometers, displays and slip rings

contaclip kds sr90
Product news

Every angle covered with 90 degree cable entry system

Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.

crouzet millenium slim on limited time discount
Product news

The smallest logic controller ever on limited time discount

The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.

11 questions to get the right signalling device with Auer Signal & OEM Automatic
Blog

11 questions to get the right signalling device – a whitepaper

Do you require signalling devices and beacons in your production process? Download our latest whitepaper!

bespoke solutions electricity meter control boxes
Case studies

Control Box Assembly for Industrial Electricity Metering - A case study

Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.

DC circuit protection PISA M and circuit breakers
Blog

Safeguard systems with DC circuit protection

This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.

Parts Mounting Colour Nominal insulation voltage Connections Number of inputs A Input A: diameter Input A: wire cross-section stranded, min. Input A: wire cross-section stranded, max. Input A: wire cross-section with wire-end ferrules, min. Input A: wire cross-section with wire-end ferrules, max. Input A: torque, max. Number of inputs B Input B: diameter Input B: wire cross-section stranded, min. Input B: wire cross-section stranded, max. Input B: wire cross-section, stranded with wire-end ferrules, min. Input B: wire cross-section stranded with wire-end ferrules, max. Input B: torque, max. Screw type Length Width Length (L) Weight Price
DIN rail
Grey
500 V
7
2
7,5 mm
4 mm²
16 mm²
2,5 mm²
16 mm²
2
5
5,5 mm
2,5 mm²
6 mm²
1,5 mm²
6 mm²
1,5
Galvanized steel screws
15 mm
63 mm
46 g
DIN rail
Blue
500 V
7
2
7,5 mm
4 mm²
16 mm²
2,5 mm²
16 mm²
2
5
5,5 mm
2,5 mm²
6 mm²
1,5 mm²
6 mm²
1,5
Galvanized steel screws
15 mm
63 mm
46 g
DIN rail
Green
500 V
7
2
7,5 mm
4 mm²
16 mm²
2,5 mm²
16 mm²
2
5
5,5 mm
2,5 mm²
6 mm²
1,5 mm²
6 mm²
1,5
Galvanized steel screws
15 mm
63 mm
46 g
DIN rail
Grey
500 V
11
2
7,5 mm
4 mm²
16 mm²
2,5 mm²
16 mm²
2
9
5,5 mm
2,5 mm²
6 mm²
1,5 mm²
6 mm²
1,5
Galvanized steel screws
15 mm
95 mm
70 g
DIN rail
Blue
500 V
11
2
7,5 mm
4 mm²
16 mm²
2,5 mm²
16 mm²
2
9
5,5 mm
2,5 mm²
6 mm²
1,5 mm²
6 mm²
1,5
Galvanized steel screws
15 mm
95 mm
70 g
DIN rail
Green
500 V
11
2
7,5 mm
4 mm²
16 mm²
2,5 mm²
16 mm²
2
9
5,5 mm
2,5 mm²
6 mm²
1,5 mm²
6 mm²
1,5
Galvanized steel screws
15 mm
95 mm
70 g
DIN rail
Grey
500 V
15
2
7,5 mm
4 mm²
16 mm²
2,5 mm²
16 mm²
2
13
5,5 mm
2,5 mm²
6 mm²
1,5 mm²
6 mm²
1,5
Galvanized steel screws
15 mm
125 mm
94 g
DIN rail
Blue
500 V
15
2
7,5 mm
4 mm²
16 mm²
2,5 mm²
16 mm²
2
13
5,5 mm
2,5 mm²
6 mm²
1,5 mm²
6 mm²
1,5
Galvanized steel screws
15 mm
125 mm
94 g
DIN rail
Green
500 V
15
2
7,5 mm
4 mm²
16 mm²
2,5 mm²
16 mm²
2
13
5,5 mm
2,5 mm²
6 mm²
1,5 mm²
6 mm²
1,5
Galvanized steel screws
15 mm
125 mm
94 g
90 mm
35 mm

Selected variant

Select a variant in the list
