PULS

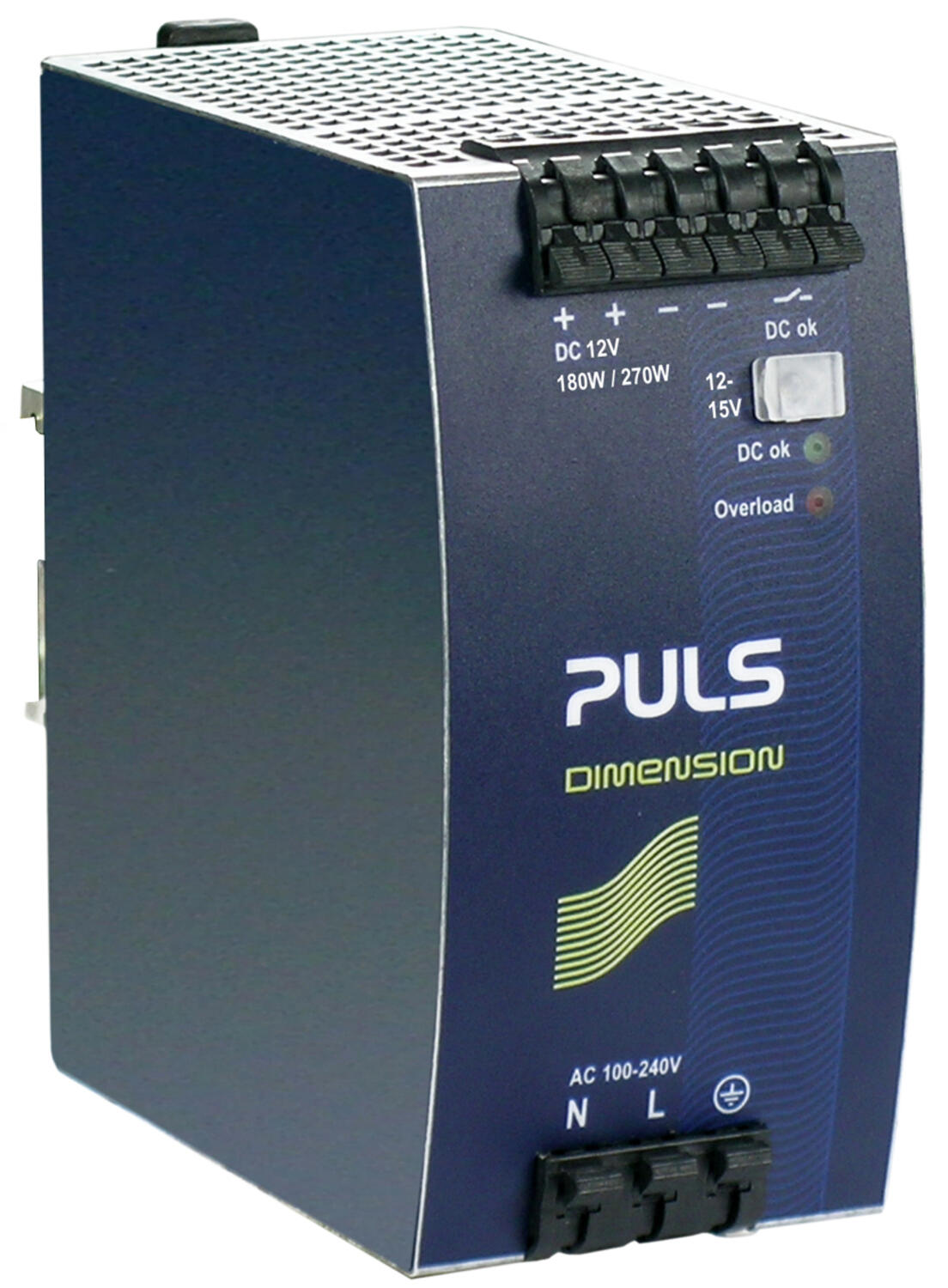

Power supply 1-phase, 12 V dc Dimension Q Series

The most outstanding features of this Dimension Q Series DIN-rail power supply are the high efficiency and the small size, which are achieved by a synchronous rectification and further novel design details. The Q Series is part of the Dimension family, existing alongside the lower featured C-Series.

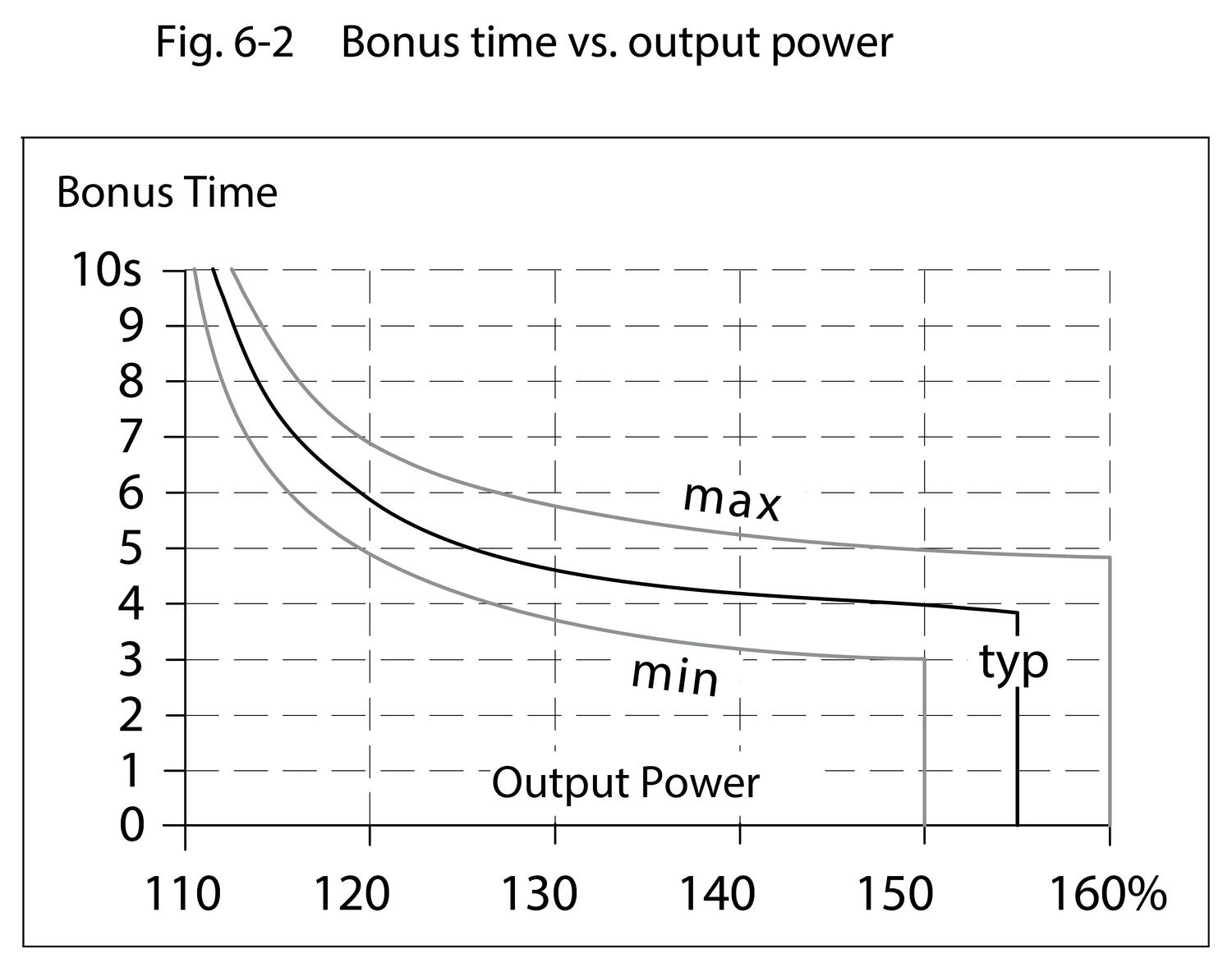

With short-term peak power capability of 150% and built-in large sized output capacitors, these features help start motors, charge capacitors and absorb reverse energy and often allow a unit of a lower wattage class to be used.

High immunity to transients and power surges as well as low electromagnetic emission makes usage in nearly every environment possible.

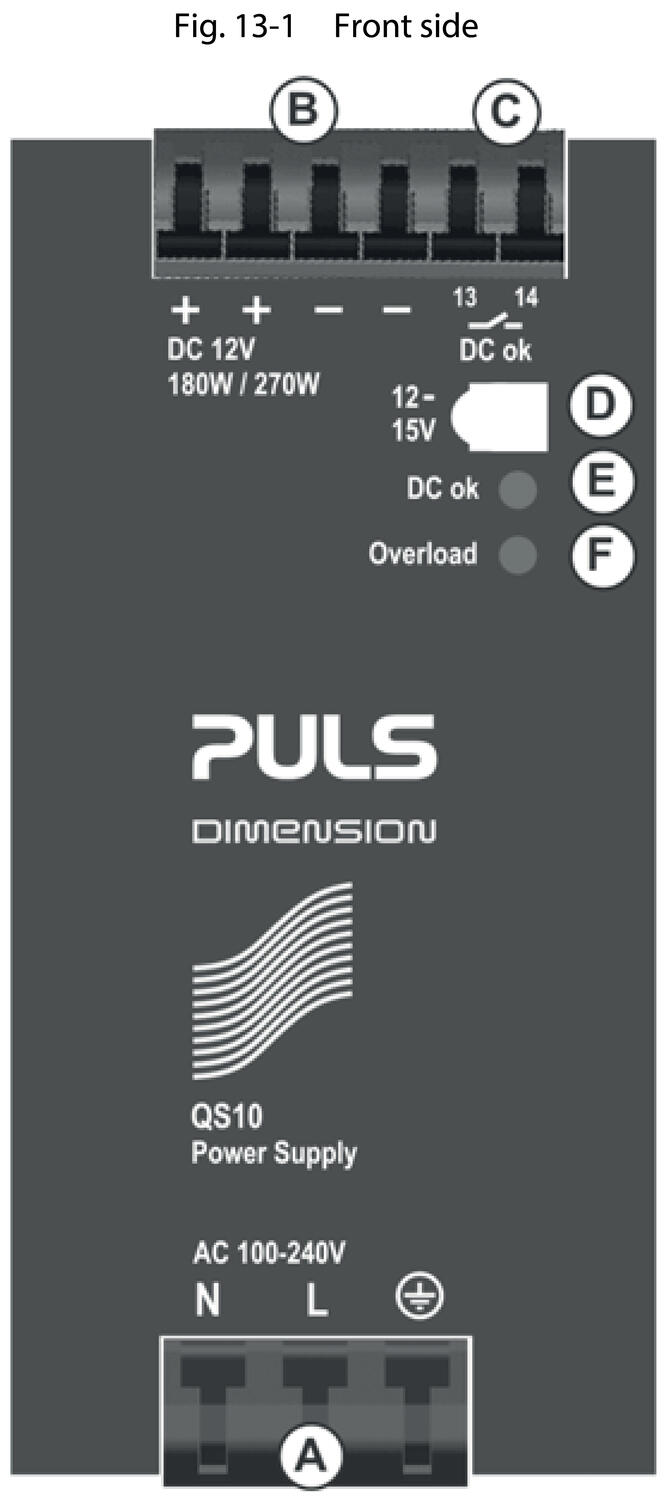

The integrated output power manager, a wide range input voltage design and virtually no input inrush current make installation and usage simple. Diagnostics are easy due to the dry DC-ok contact, a green DC-ok LED and red overload LED.

Unique quick-connect spring-clamp terminals allow a safe and fast installation and a large international approval package for a variety of applications makes this unit suitable for nearly every situation.



For a good cooling, we recommend a clearance of 40 mm over 20 mm below. We recommend 5 mm air gap to the sides (15 mm on the sides of adjacent product is a heat source).

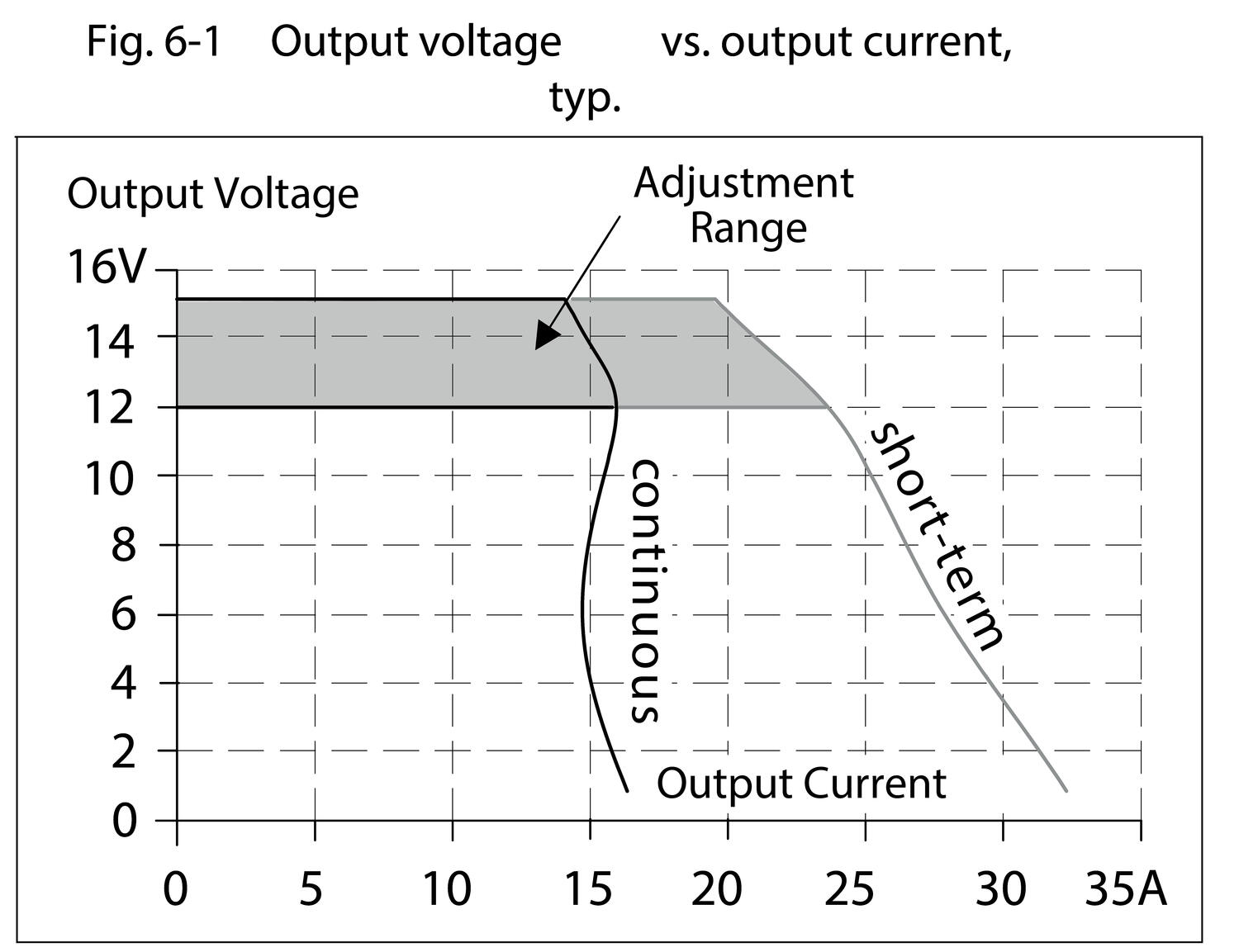

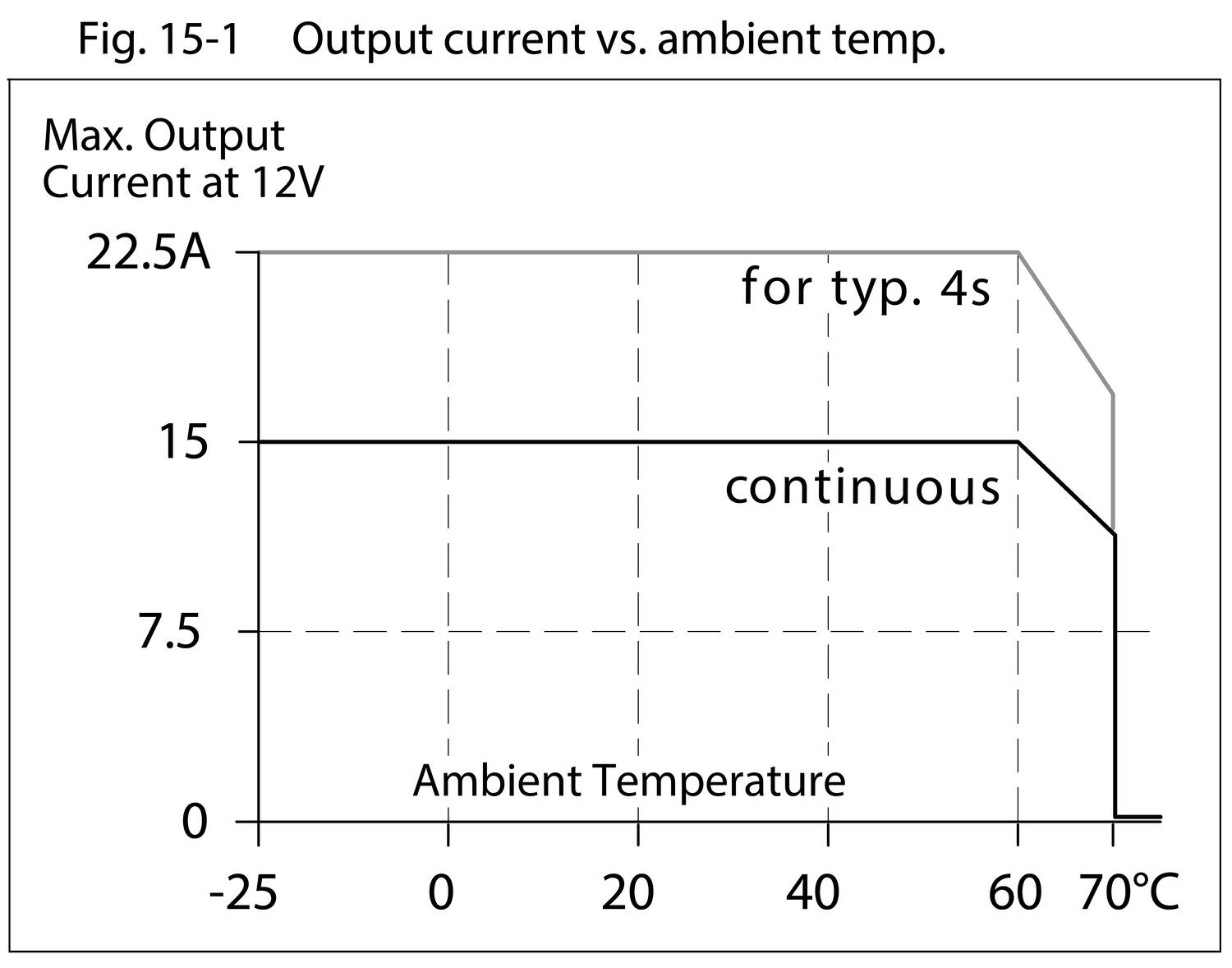

Output characteristics

Power supply diagram



Read more
  • Output current of 15 A
  • Up to 92% efficiency
  • Only 60 mm wide
  • 100-240 VAC / 88-370 VDC

Selected variant


PSU 100-240V ac I/P 12V dc 15A 180W O/P

Art:

Selected variant

Technical data

Input data

Input voltage range Wide-range
Input voltage ac 100-240 V
Input voltage ac min 85 V AC
Input voltage dc max 187 V DC
Input voltage dc 110-150 V
Input voltage ac max 276 V AC
Number of phases 1
Inrush current at 230 V ac typical 7 A
Inrush current at 120 V ac typical 4 A
Power factor at 120 V ac, full load. Typical 0,98
Power factor at 230 V ac, full load. Typical 0,92
Input voltage dc min 88 V DC

Output data

Output voltage min 12 V DC
Output voltage 12 V DC
Output voltage max 15 V DC
Power 180 W
Output current 15 A

Efficiency / Lifetime / MTBF

Lifetime at 120 V ac, full load and +40 ° C 65000 h
MTBF (IEC 61709) 230 V ac, max load, 40 ° C 631000 h

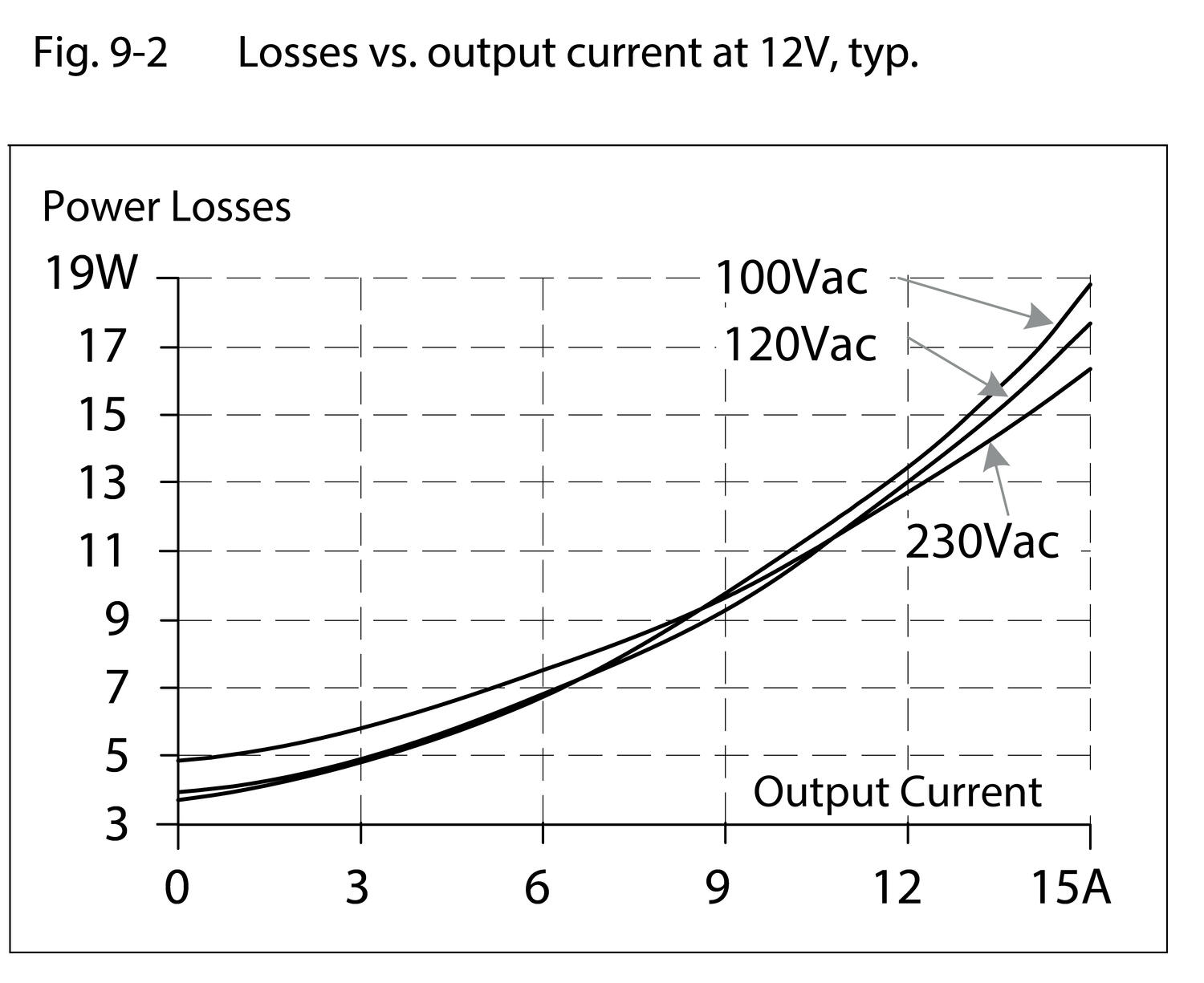

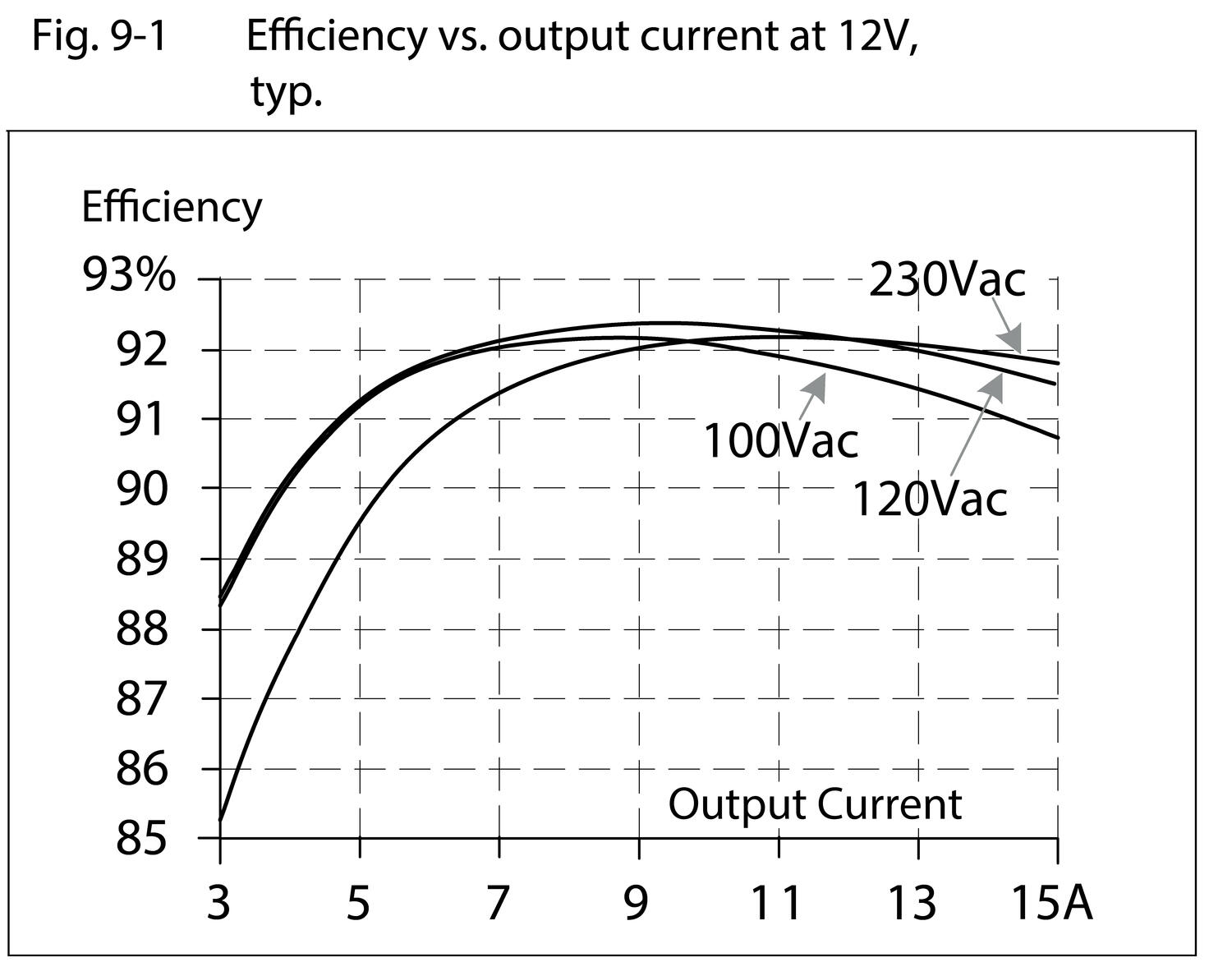

Efficiency at 230 V ac, full load, typical 91,8 %
Efficiency at 230 V ac, typical 90,6 %
Lifetime at 230 V ac, full load and +40 ° C 76000 h
Efficiency at 120 V ac, full load, typical 91,5 %

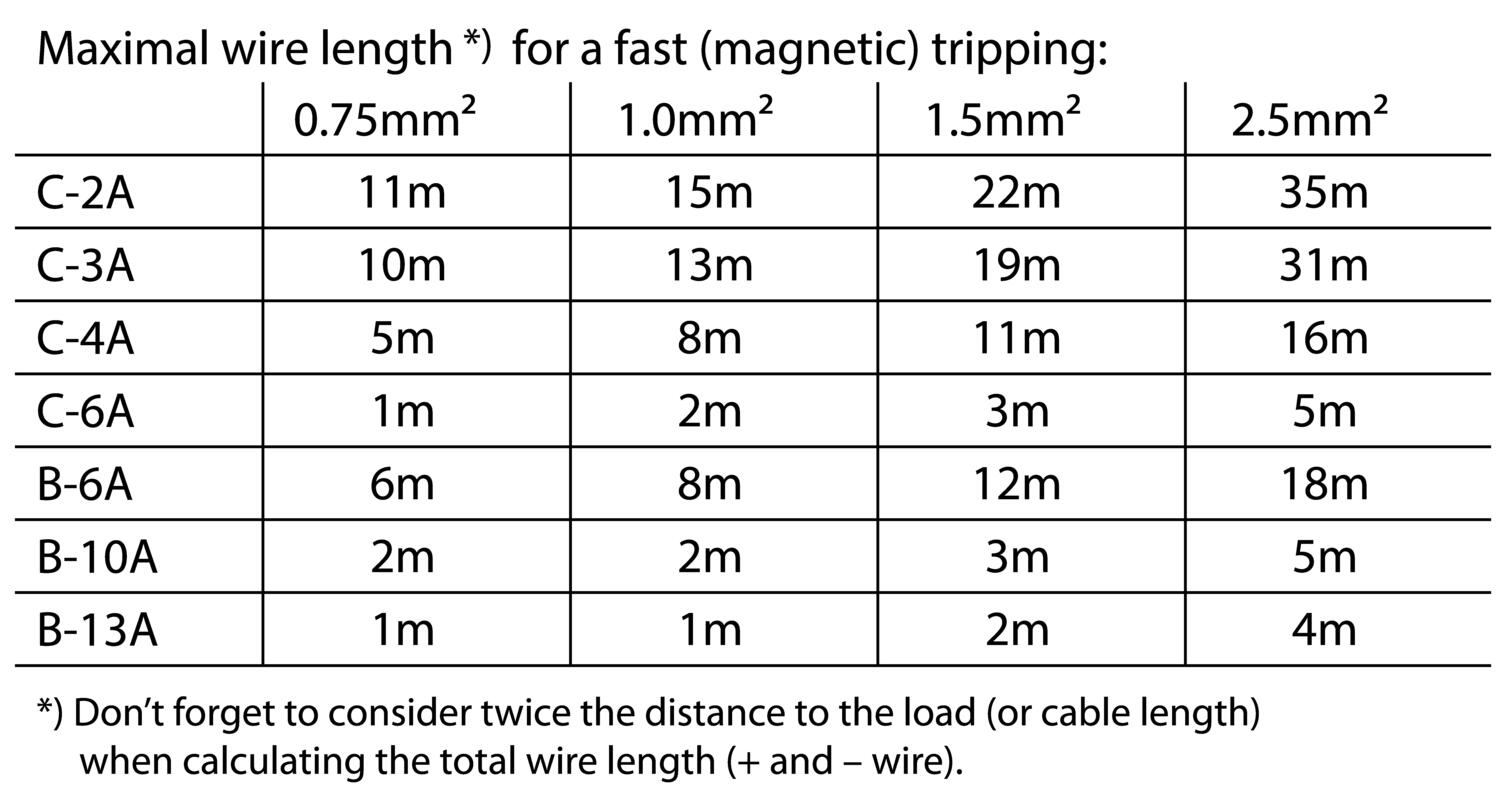

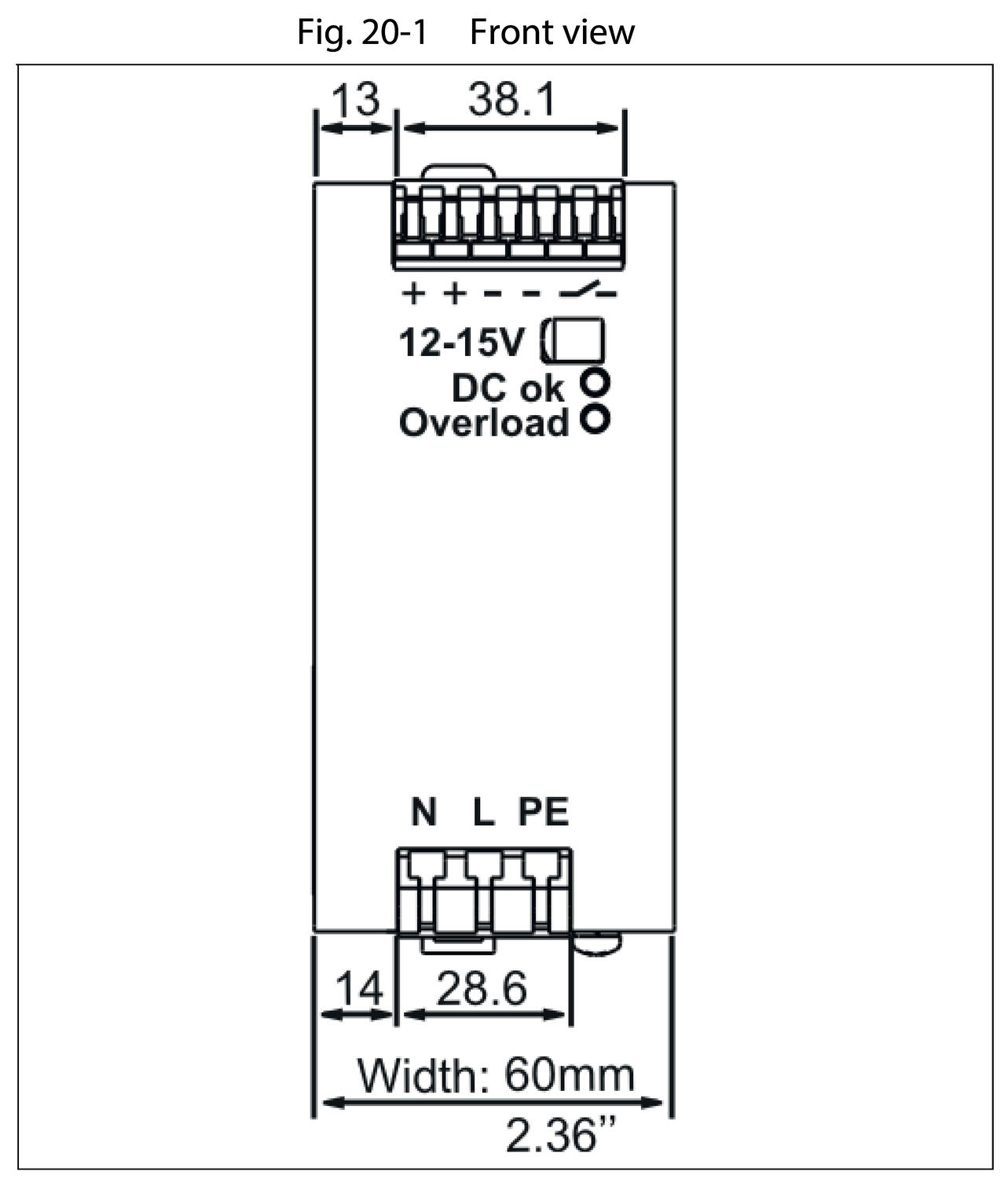

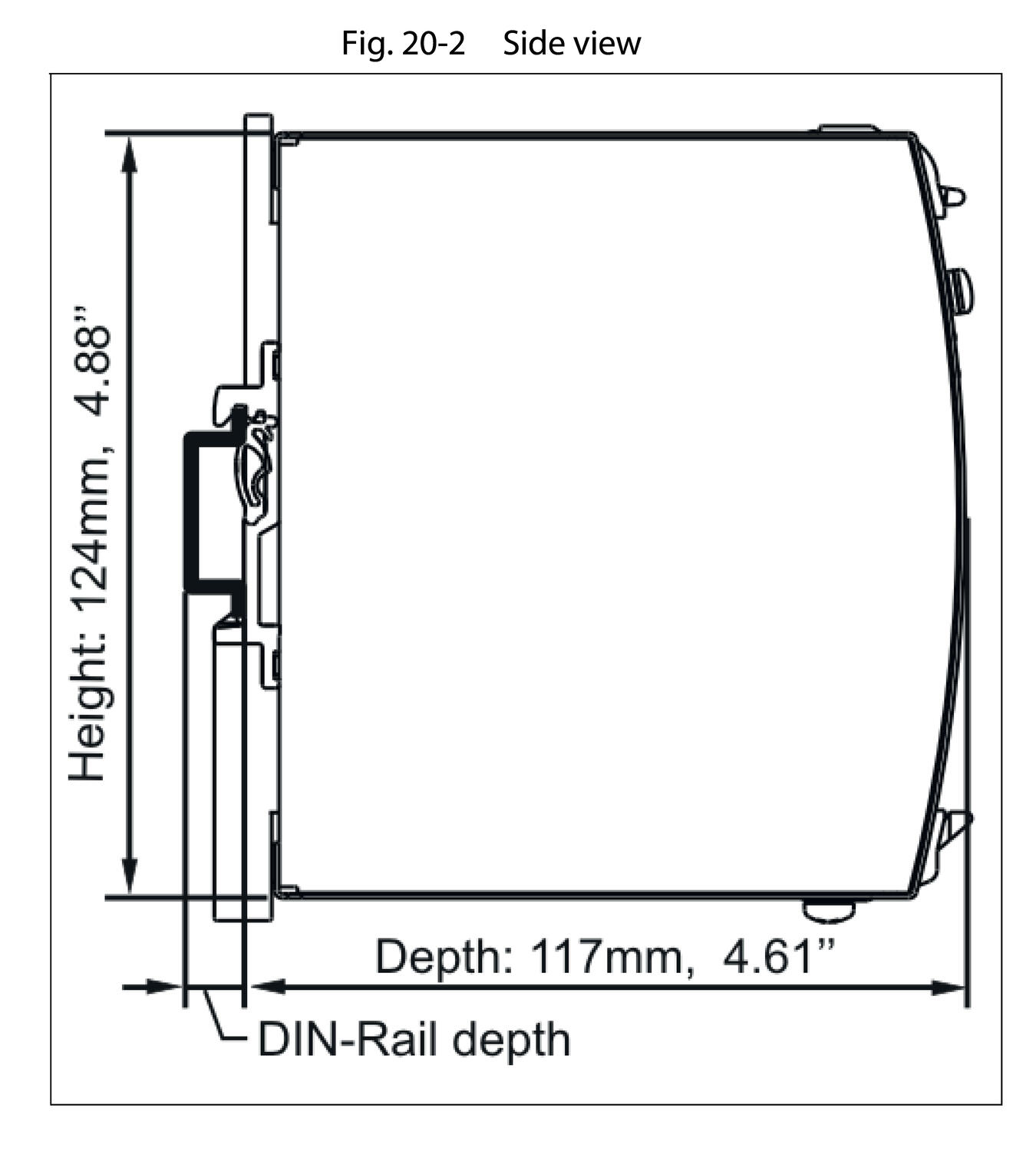

Dimensions

Weight 0,9 kg
Depth 117 mm
Width 60 mm
Height 124 mm

Other

IP class IP20
Power consumption 120 V ac 1,65 A
Ripple max 50 mV pp
Power drop from +60 °C to + 70 °C 5 W/°C
Clamp type Spring-clamp
Temperature min without derating -25 °C
Hold time at 120 V ac, typical full load 32 ms
Series Dimension Q
Hold time at 230 V ac, typical full load 32 ms
Power consumption 230 V ac 0,93 A
Supply frequency 50-60 ±6 %
Approvals ABS, CB, CE, CSA, GL, UL
Temperature max without derating 60 °C
Material protection Aluminium
Type Power Supply AC-DC
Active Transient Yes
DC relay output Yes

Product description

The most outstanding features of this Dimension Q Series DIN-rail power supply are the high efficiency and the small size, which are achieved by a synchronous rectification and further novel design details. The Q Series is part of the Dimension family, existing alongside the lower featured C-Series.

With short-term peak power capability of 150% and built-in large sized output capacitors, these features help start motors, charge capacitors and absorb reverse energy and often allow a unit of a lower wattage class to be used.

High immunity to transients and power surges as well as low electromagnetic emission makes usage in nearly every environment possible.

The integrated output power manager, a wide range input voltage design and virtually no input inrush current make installation and usage simple. Diagnostics are easy due to the dry DC-ok contact, a green DC-ok LED and red overload LED.

Unique quick-connect spring-clamp terminals allow a safe and fast installation and a large international approval package for a variety of applications makes this unit suitable for nearly every situation.



For a good cooling, we recommend a clearance of 40 mm over 20 mm below. We recommend 5 mm air gap to the sides (15 mm on the sides of adjacent product is a heat source).



Output characteristics

Power supply diagram
