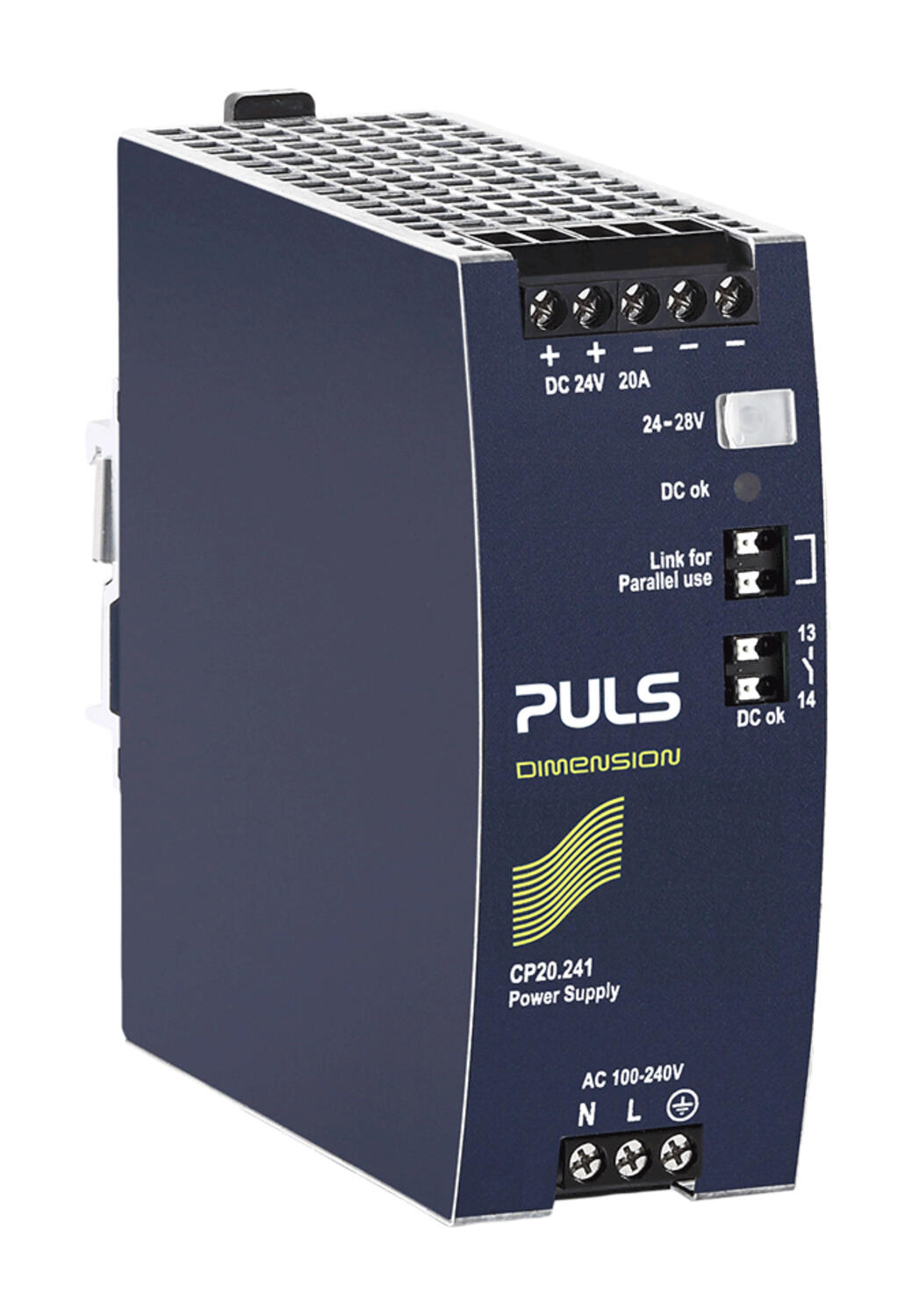

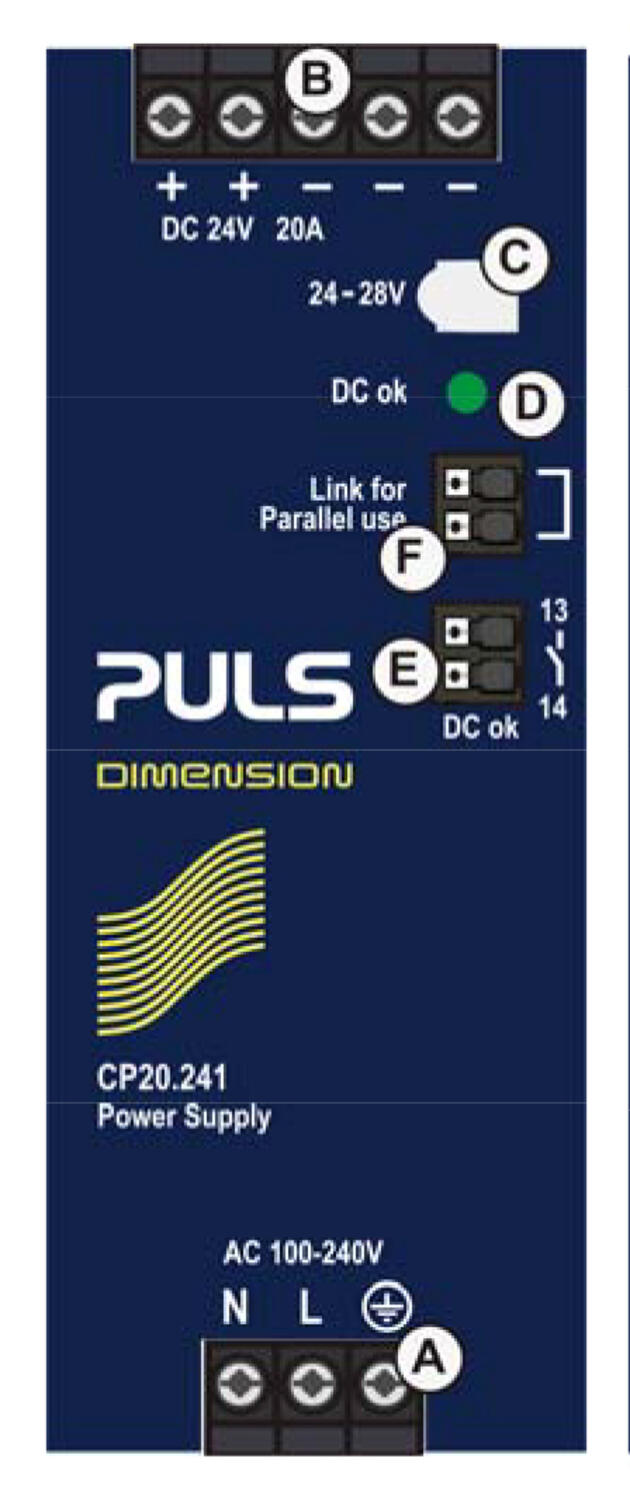

The Dimension CP-Series are cost optimized power supplies without compromising quality, reliability and performance. The most outstanding features of the CP20 series are the high efficiency, electronic inrush current limitation, active PFC, wide operational temperature range and the extraordinary small size.
The CP20.241-C1 is equipped with conformal coated pc-boards preferred for applications in harsh areas.

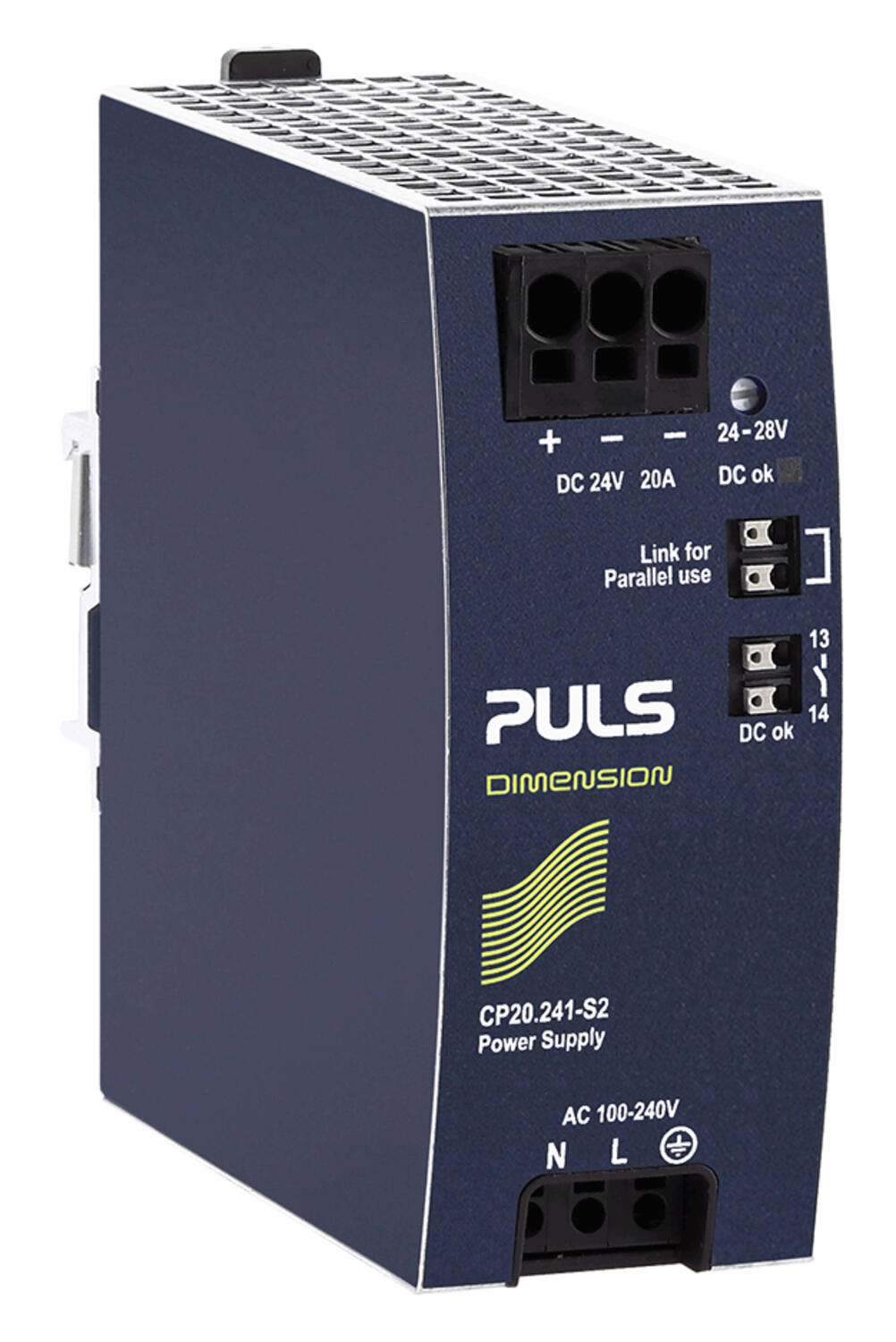

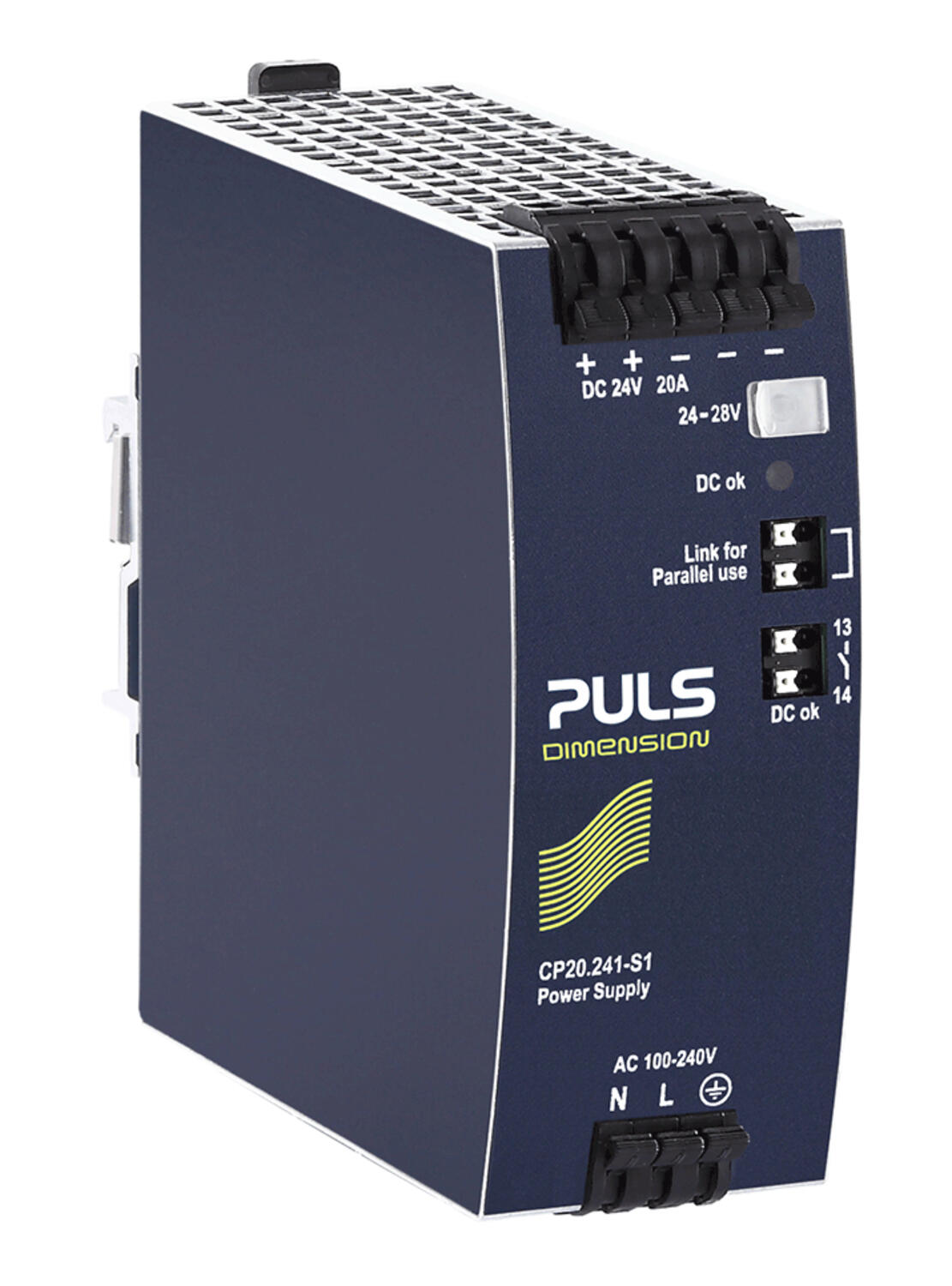

The CP20.241-S1 is equipped with quick-connect spring-clamp terminals preferred for applications which are exposed to mechanical vibration. The CP20.241-S2 has push-in terminals optimized for easy cabinet wiring.

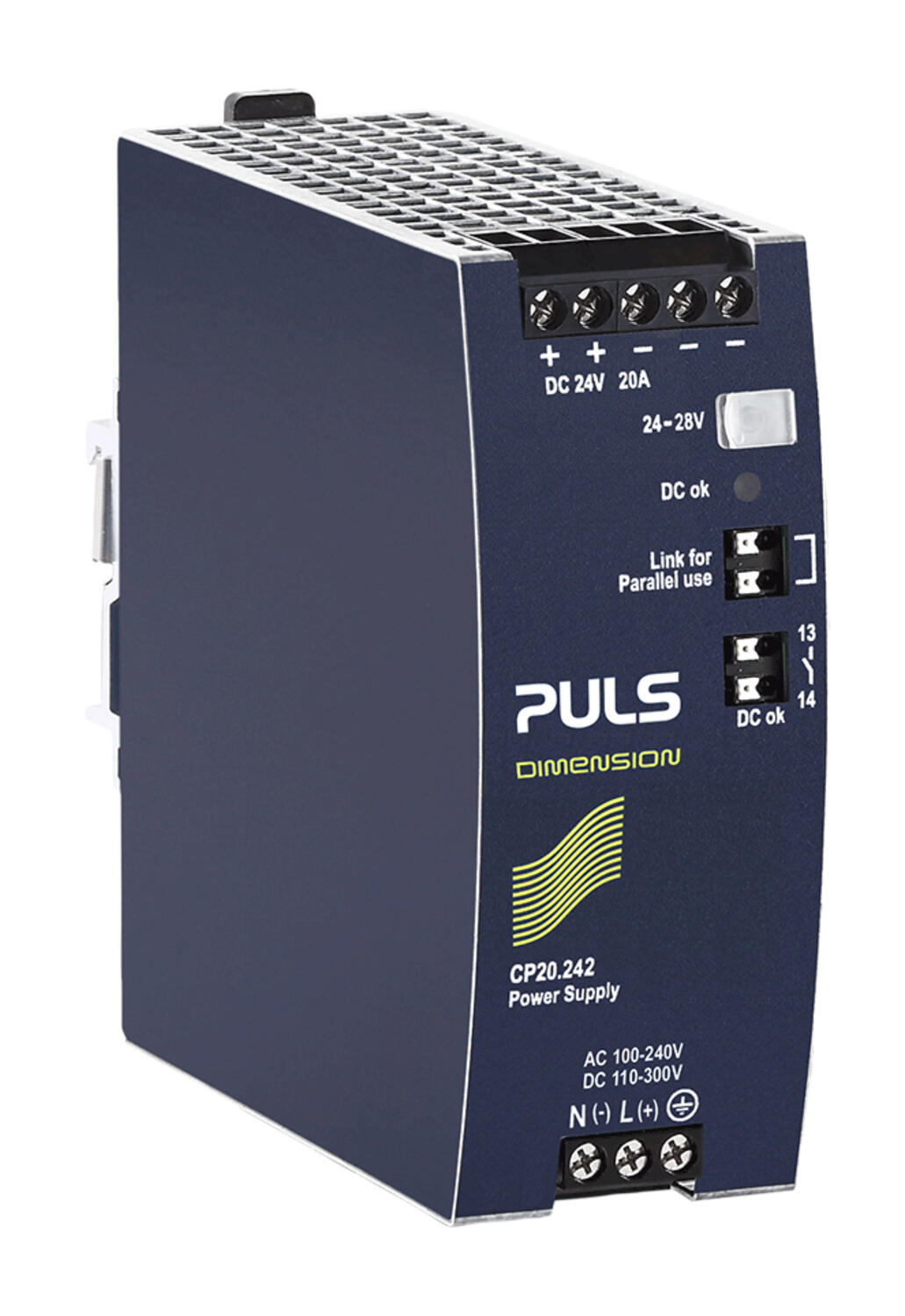

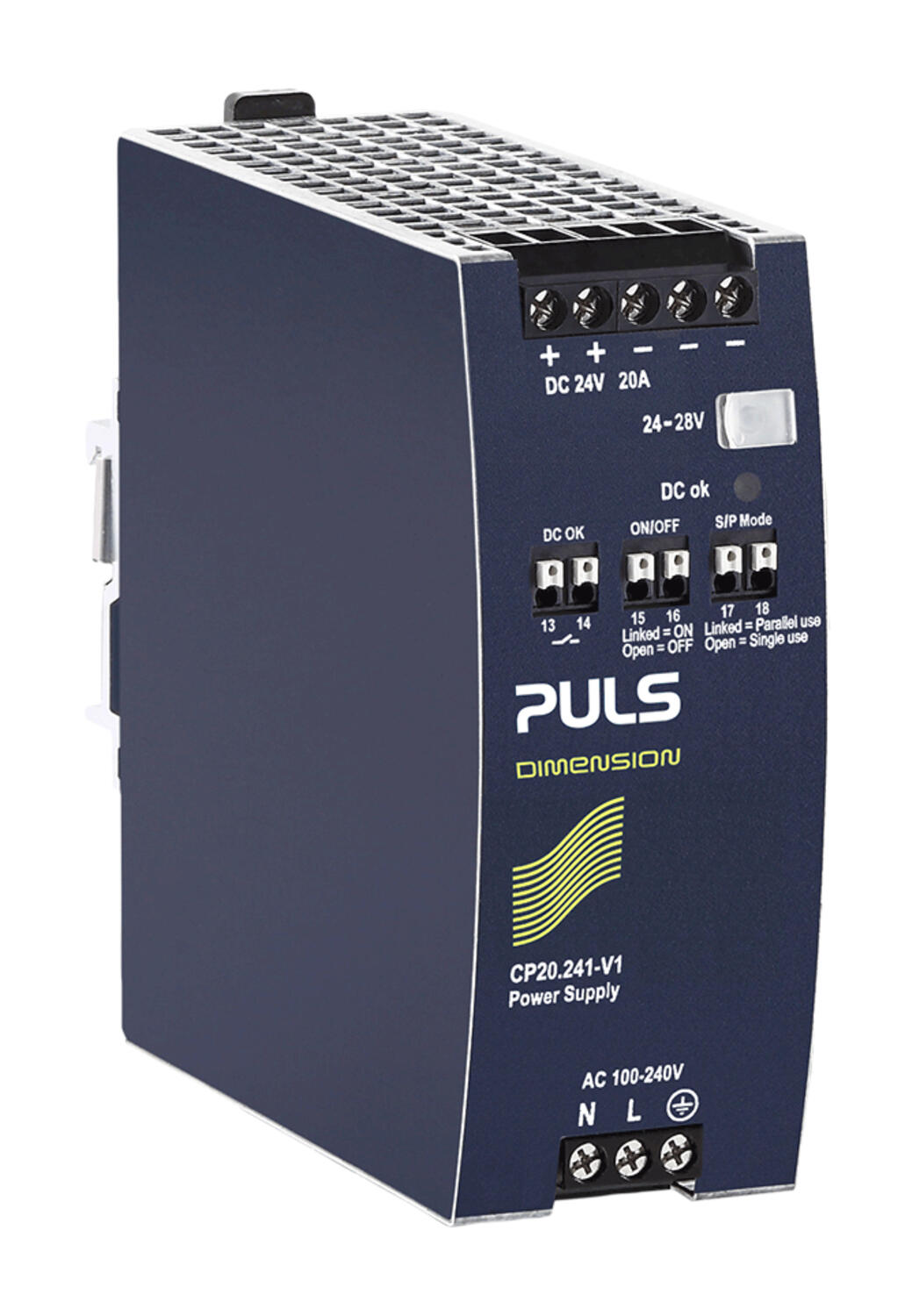

The CP20.241-V1 is equipped with a remote ON/OFF feature and the CP20.242 features an enhanced  DC input voltage range.
The devices have a power reserve of 20% included, which may even be used continuously up to +45°C.
High immunity to transients and power surges as well as low electromagnetic emission, a DC-OK relay contact and a large international approval package makes this unit suitable for nearly every situation.
Â
Input data |
|
|---|---|
| Input voltage range | Wide-range |
| Input voltage ac | 100-240 V |
| Input voltage ac min | 85 V AC |
| Input voltage dc max | 180 V DC |
| Input voltage dc | 110-150 V |
| Input voltage ac max | 264 V AC |
| Inrush current at 230 V ac typical | 4,5 A |
| Number of phases | 1 |
| Inrush current at 120 V ac typical | 10 A |
| Power factor at 120 V ac, full load. Typical | 0,99 |
| Power factor at 230 V ac, full load. Typical | 0,98 |
| Input voltage dc min | 88 V DC |

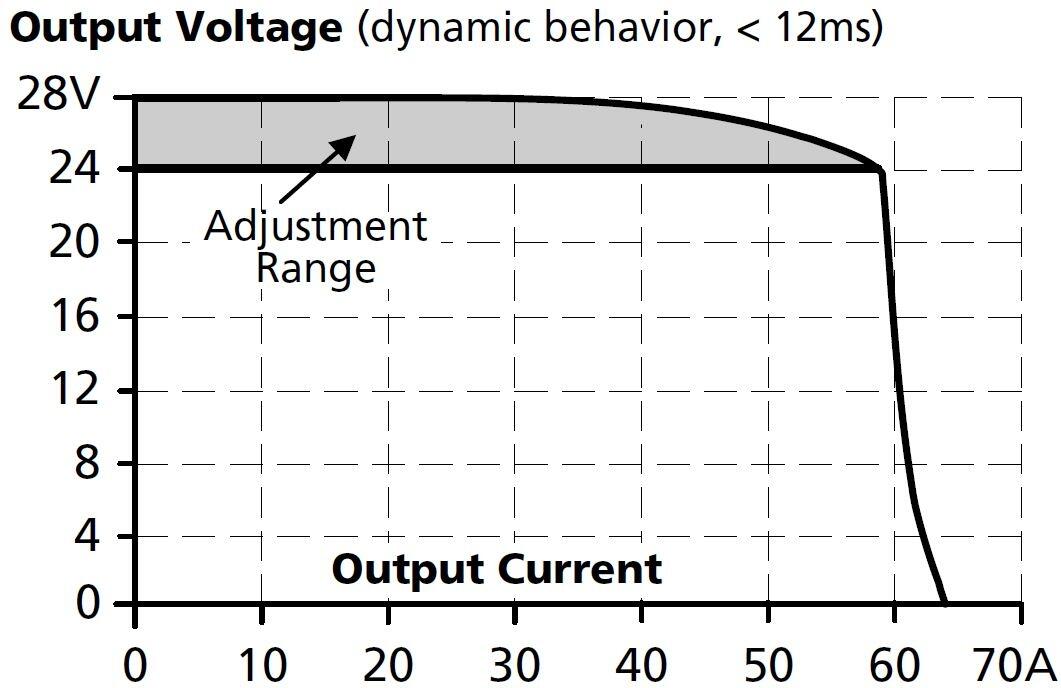

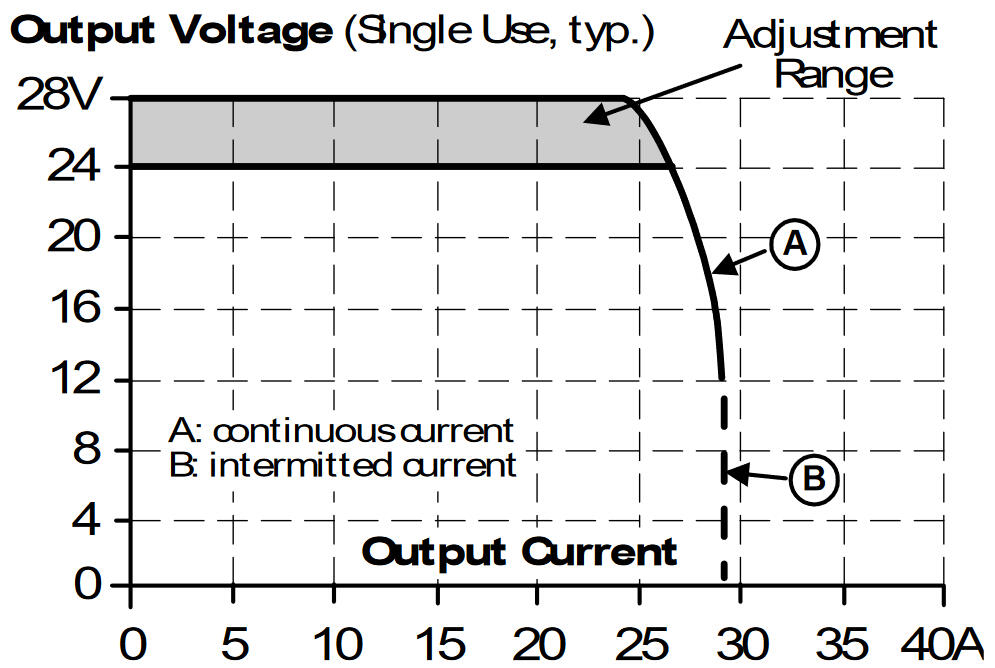

Output data |
|
| Output voltage min | 24 V DC |
| Output voltage | 24 V DC |
| Output voltage max | 28 V DC |
| Power | 480 W |
| Output current | 20 A |

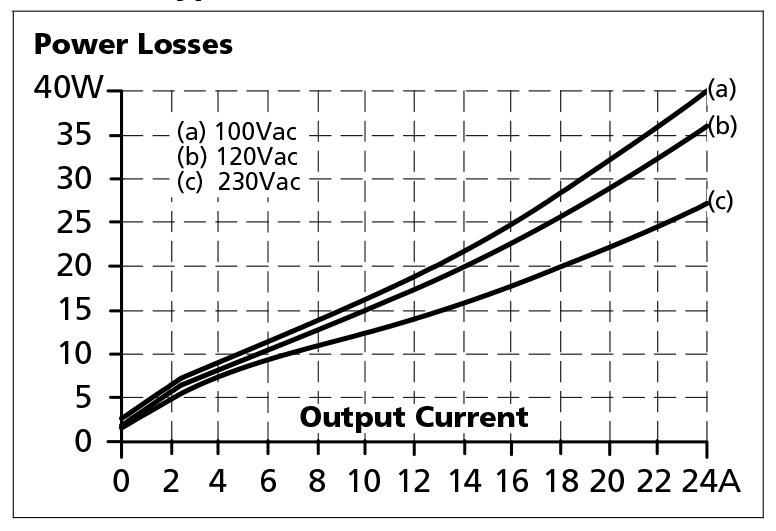

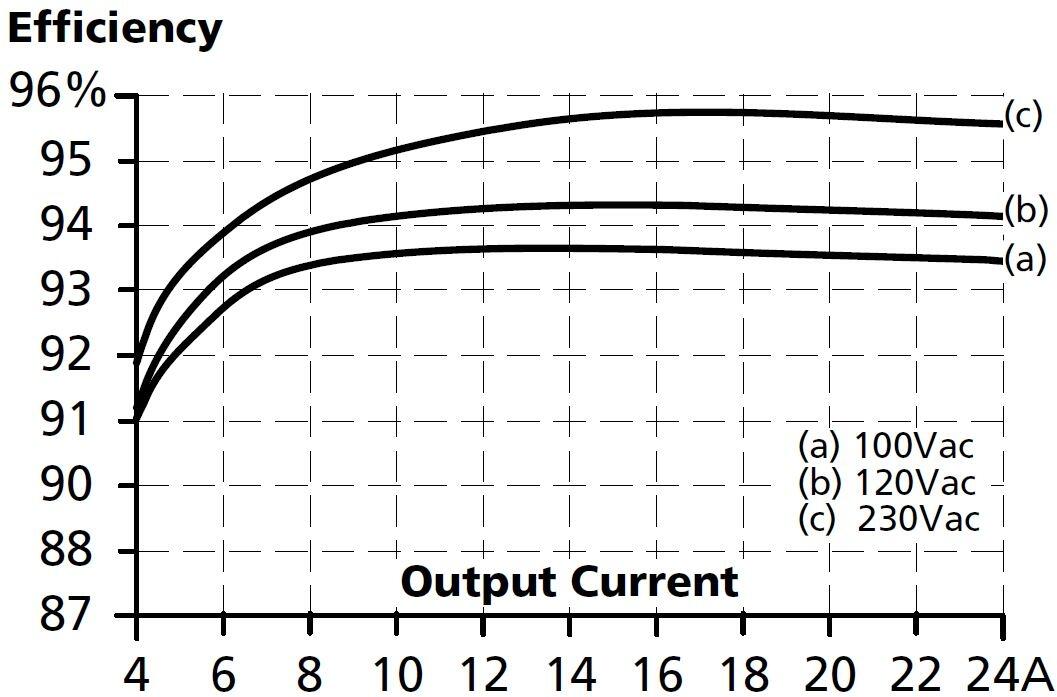

Efficiency / Lifetime / MTBF |
|
| Lifetime at 120 V ac, full load and +40 ° C | 60000 h |
| MTBF (IEC 61709) 230 V ac, max load, 40 ° C | 590000 h |
| Efficiency at 230 V ac, full load, typical | 95,6 % |
| Efficiency at 230 V ac, typical | 95 % |
| Lifetime at 230 V ac, full load and +40 ° C | 94000 h |
| Efficiency at 120 V ac, full load, typical | 94,2 % |
Dimensions |
|
|---|---|
| Weight | 0,83 kg |
| Depth | 127 mm |
| Width | 48 mm |
| Height | 124 mm |
Other |
|
| IP class | IP20 |
| Power consumption 120 V ac | 4,26 A |
| Ripple max | 50 mV pp |
| Power drop from +60 °C to + 70 °C | 12 W/°C |
| Clamp type | Screw |
| Temperature min without derating | -25 °C |
| Hold time at 120 V ac, typical full load | 32 ms |
| Series | Dimension C |
| Hold time at 230 V ac, typical full load | 32 ms |
| Power consumption 230 V ac | 2,23 A |
| Supply frequency | 50-60 ±6 % |
| Approvals | ATEX, CB, CE, CSA US, cULus, IECEx |
| Temperature max without derating | 60 °C |
| Material protection | Aluminium |
| Type Power Supply | AC-DC |
| Active Transient | Yes |
| DC relay output | Yes |
The Dimension CP-Series are cost optimized power supplies without compromising quality, reliability and performance. The most outstanding features of the CP20 series are the high efficiency, electronic inrush current limitation, active PFC, wide operational temperature range and the extraordinary small size.
The CP20.241-C1 is equipped with conformal coated pc-boards preferred for applications in harsh areas.
The CP20.241-S1 is equipped with quick-connect spring-clamp terminals preferred for applications which are exposed to mechanical vibration. The CP20.241-S2 has push-in terminals optimized for easy cabinet wiring.
The CP20.241-V1 is equipped with a remote ON/OFF feature and the CP20.242 features an enhanced  DC input voltage range.
The devices have a power reserve of 20% included, which may even be used continuously up to +45°C.
High immunity to transients and power surges as well as low electromagnetic emission, a DC-OK relay contact and a large international approval package makes this unit suitable for nearly every situation.
