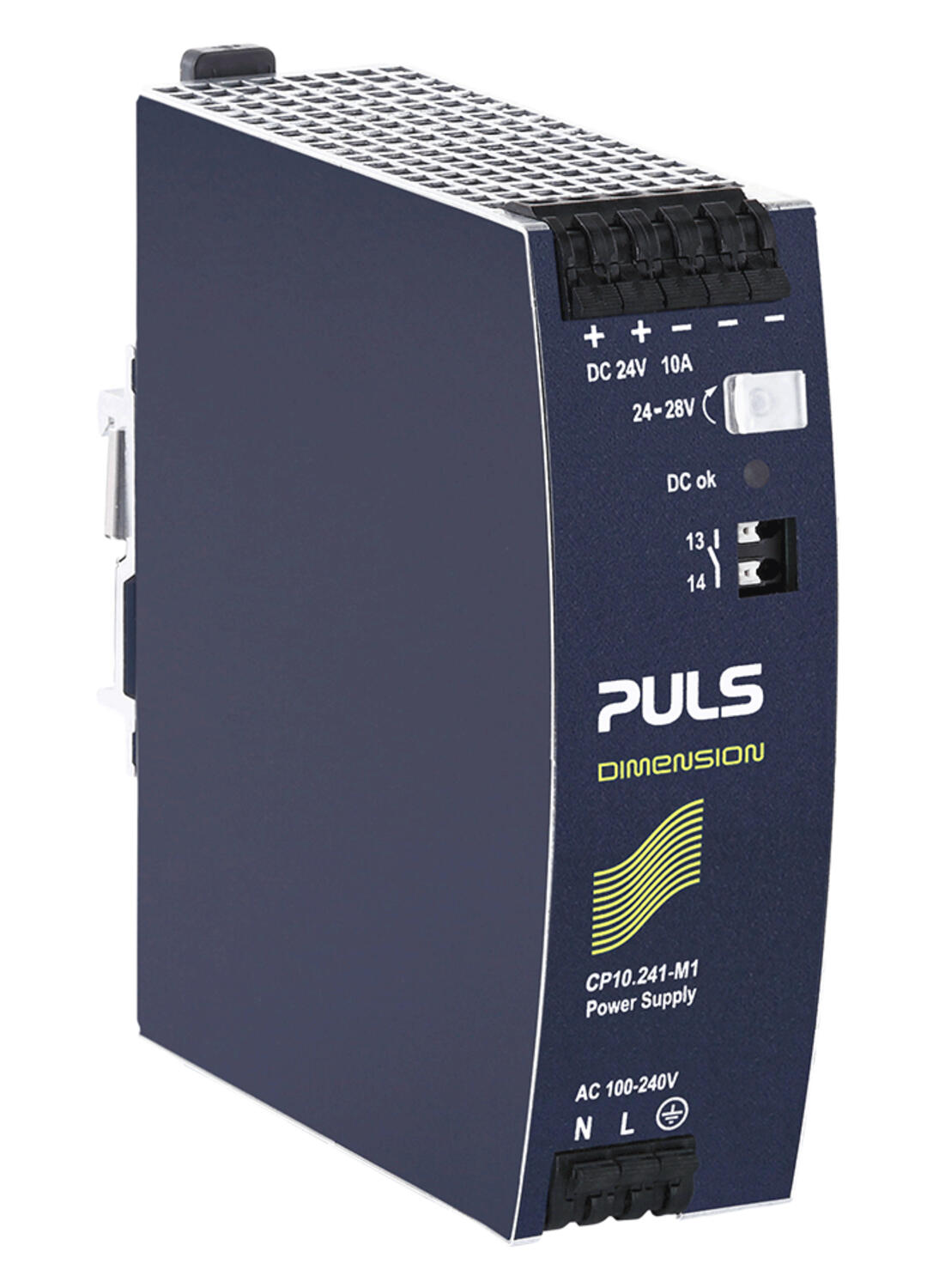

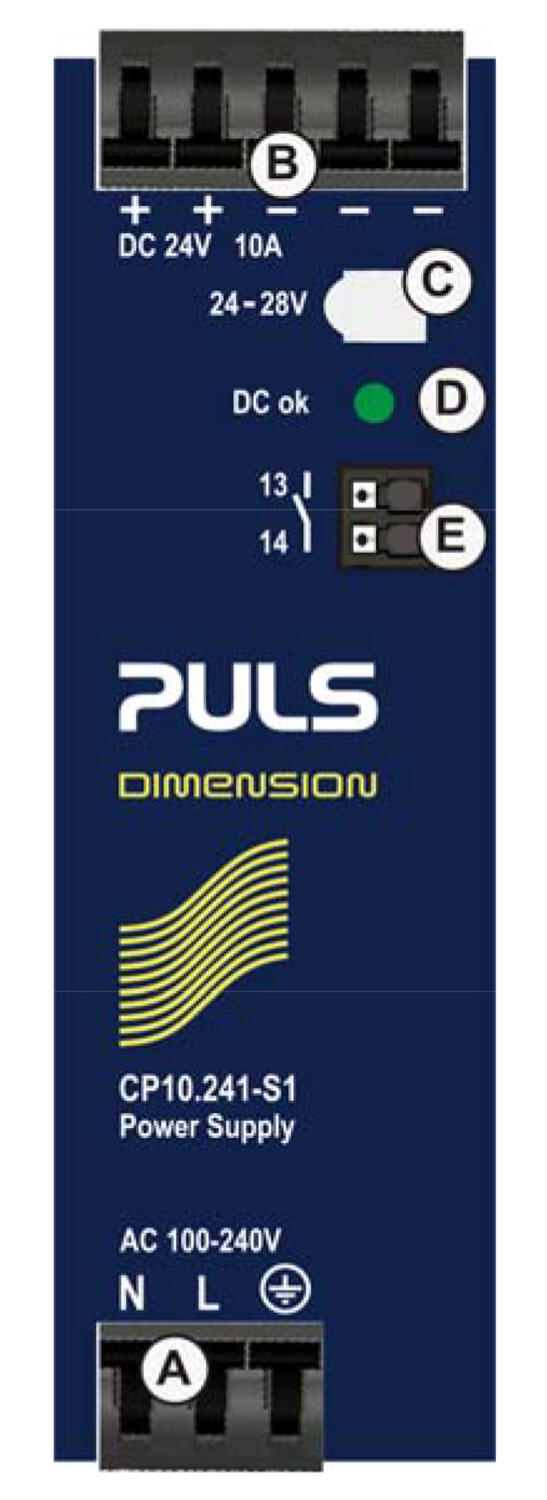

Power Supply 1-phase, 24 V DC Dimension C series, Medical Application

The CP10.241-M1 is a DIN-rail mountable single-phaseinput power supply for industrial use and for use in medical equipment. It provides a stabilized and galvanically separated SELV/PELV output voltage.

The specialty of this power supply is the 2MOPP (two means of patient protection) safety approval for medical use and the fulfillment of the required EMC tests for professional healthcare facility and home healthcare environments.

The CP-Series is part of the DIMENSION power supply family. The most outstanding features of CP10.241-M1 are the high efficiency, advanced inrush current limitation, active PFC and the wide operational temperature range.

High immunity to transients and power surges as well as low electromagnetic emission, a DC-OK relay contact and a large international approval package for a variety of applications makes this unit suitable for nearly every situation.

Read more
  • 2MOPP Safety approved IEC 60601-1, 3rd edition
  • EMC tested, IEC 60601-1-2, 4th edition
  • Output current of 10 A
  • Efficiency up to 95.2%

Selected variant


PSU 100-240V ac I/P 24V dc 10A 240W O/P Medical Use

Art:

Selected variant

Technical data

Input data

Input voltage range Wide-range
Input voltage ac 100-240 V
Input voltage ac min 85 V AC
Input voltage dc max 180 V DC
Input voltage dc 110-150 V
Input voltage ac max 264 V AC
Inrush current at 230 V ac typical 9 A
Number of phases 1
Inrush current at 120 V ac typical 6 A
Power factor at 120 V ac, full load. Typical 0,99
Power factor at 230 V ac, full load. Typical 0,97
Input voltage dc min 88 V DC

Output data

Output voltage min 24 V DC
Output voltage 24 V DC
Output voltage max 28 V DC
Power 240 W
Output current 10 A

Efficiency / Lifetime / MTBF

Lifetime at 120 V ac, full load and +40 ° C 75000 h
MTBF (IEC 61709) 230 V ac, max load, 40 ° C 661000 h
Efficiency at 230 V ac, full load, typical 95,2 %
Efficiency at 230 V ac, typical 94,3 %
Lifetime at 230 V ac, full load and +40 ° C 120000 h
Efficiency at 120 V ac, full load, typical 93,6 %

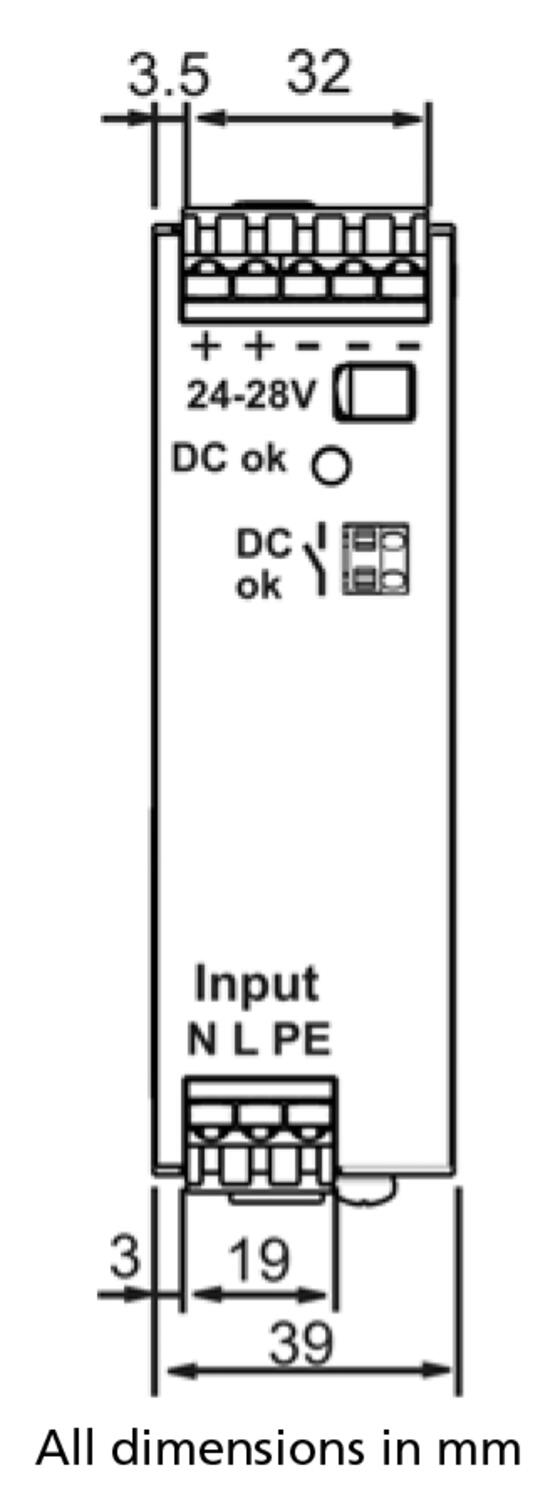

Dimensions

Weight 0,62 kg
Depth 117 mm
Width 39 mm
Height 124 mm

Other

IP class IP20
Power consumption 120 V ac 2,15 A
Ripple max 50 mV pp
Power drop from +60 °C to + 70 °C 6 W/°C
Clamp type Spring-clamp
Temperature min without derating -25 °C
Hold time at 120 V ac, typical full load 37 ms
Series Dimension C
Hold time at 230 V ac, typical full load 37 ms
Power consumption 230 V ac 1,13 A
Supply frequency 50-60 ±6 %
Approvals CE, cULus
Temperature max without derating 60 °C
Material protection Aluminium
Type Power Supply AC-DC
Active Transient Yes
DC relay output Yes

Product description

The CP10.241-M1 is a DIN-rail mountable single-phaseinput power supply for industrial use and for use in medical equipment. It provides a stabilized and galvanically separated SELV/PELV output voltage.

The specialty of this power supply is the 2MOPP (two means of patient protection) safety approval for medical use and the fulfillment of the required EMC tests for professional healthcare facility and home healthcare environments.

The CP-Series is part of the DIMENSION power supply family. The most outstanding features of CP10.241-M1 are the high efficiency, advanced inrush current limitation, active PFC and the wide operational temperature range.

High immunity to transients and power surges as well as low electromagnetic emission, a DC-OK relay contact and a large international approval package for a variety of applications makes this unit suitable for nearly every situation.
