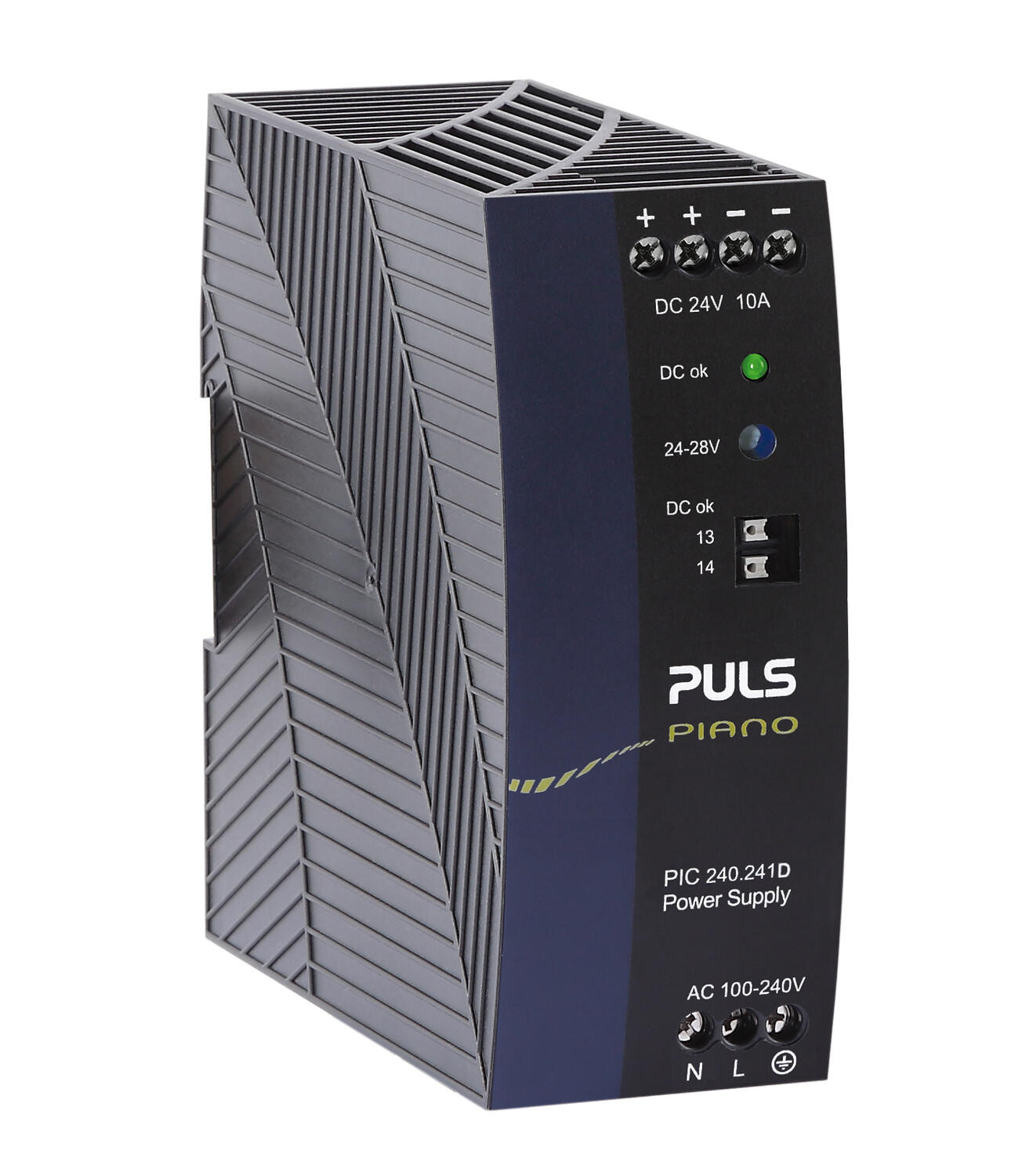

PULS
These PIANO series units are extraordinarily compact, industrial grade power supplies that focus on the essential features required in today’s industrial applications. The excellent cost/performance ratio presents many new and exciting opportunities without compromising quality or reliability.
The mechanically robust housing is made of a high-grade, reinforced molded material, which permits the units to be used in surrounding temperatures up to +70°C.
Since typical industrial applications do not require multiple mains inputs, the reduction to a regional input voltage range (AC 200 240V) simplifies the circuitry and has significant advantages for reliability, efficiency and cost.
The integrated DC-OK signal makes the unit suitable for many industry applications, such as process, automation and many other critical applications where preventive function monitoring can help to avoid long downtimes.
Â

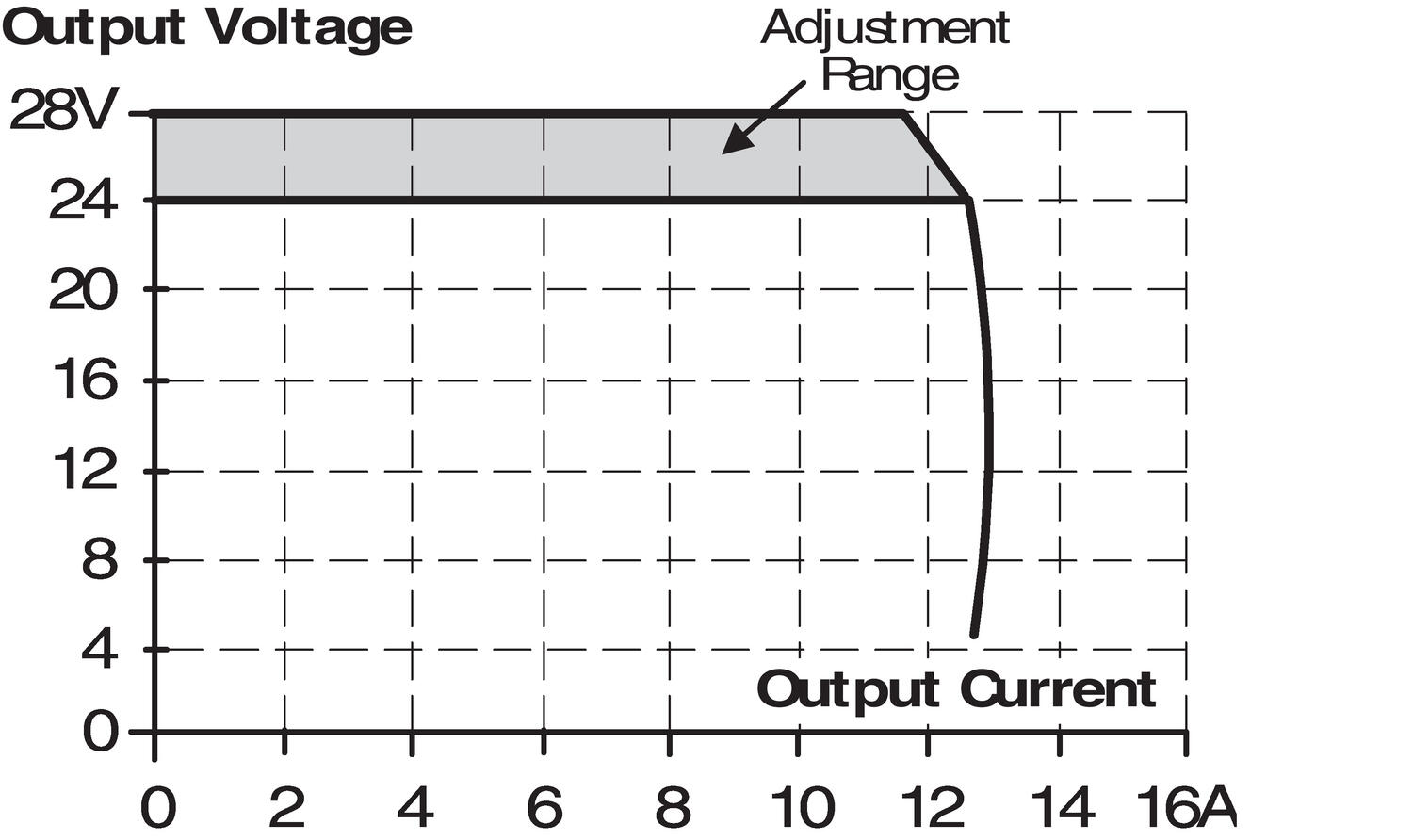

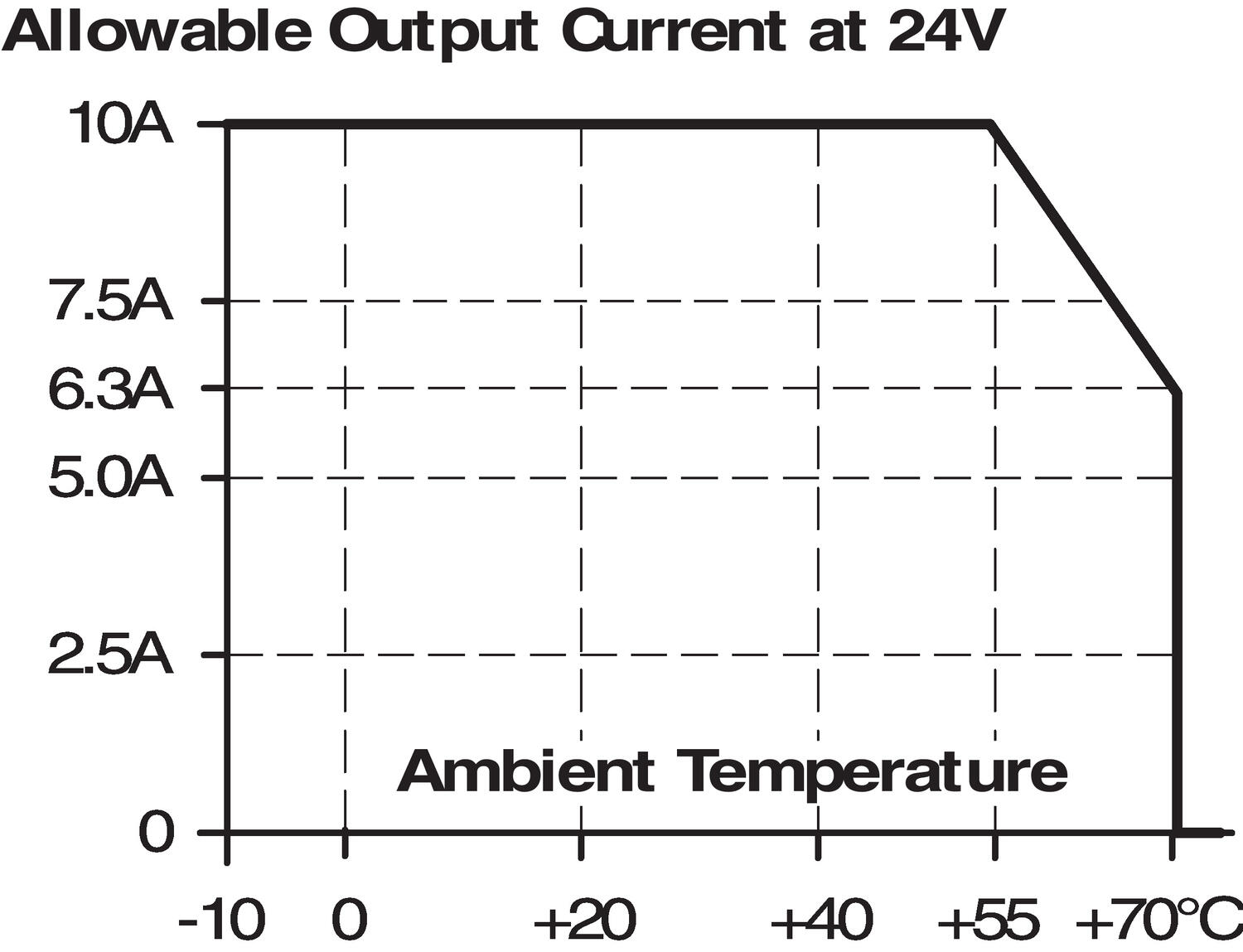

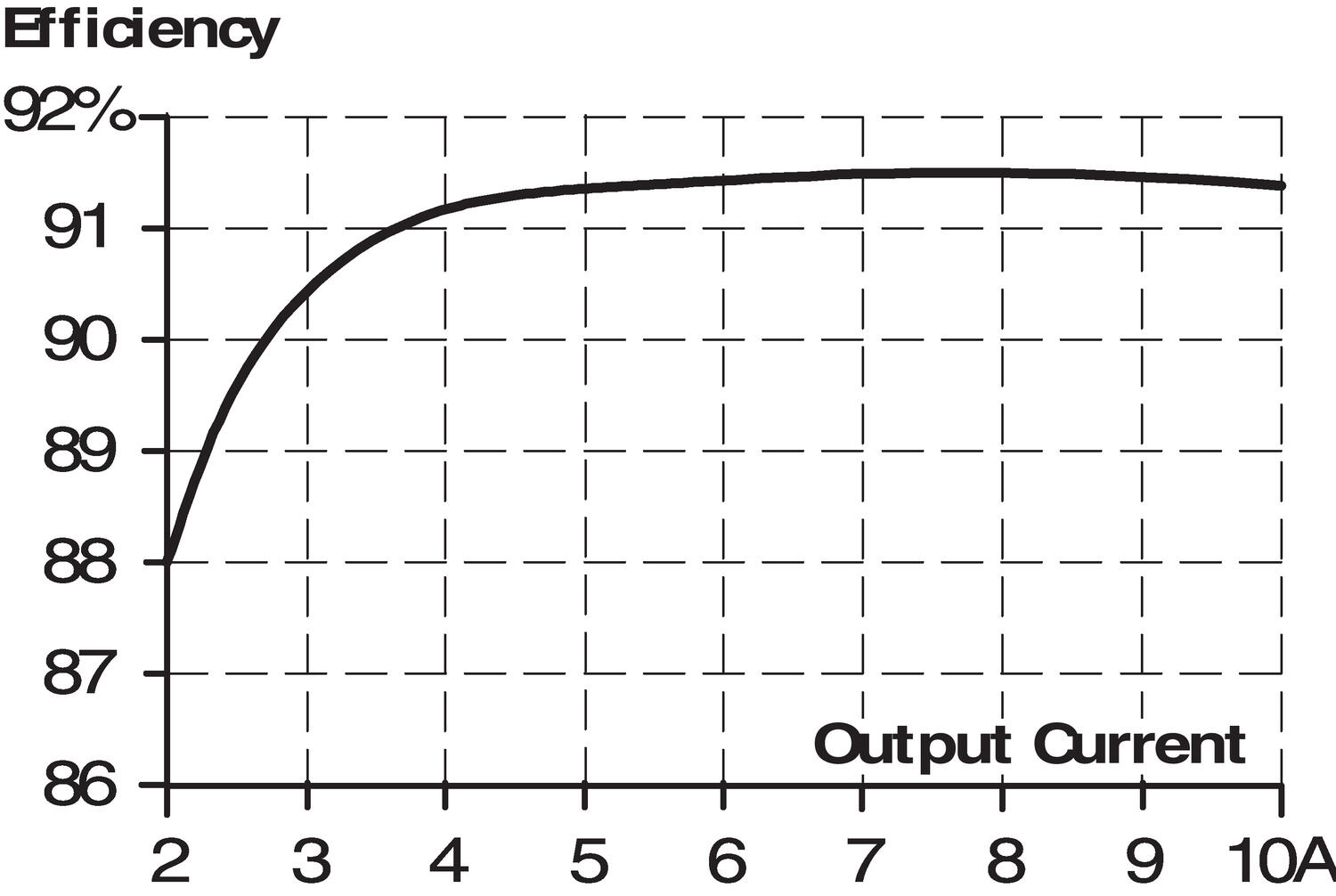

Output characteristics | ||
|
|
|
Â

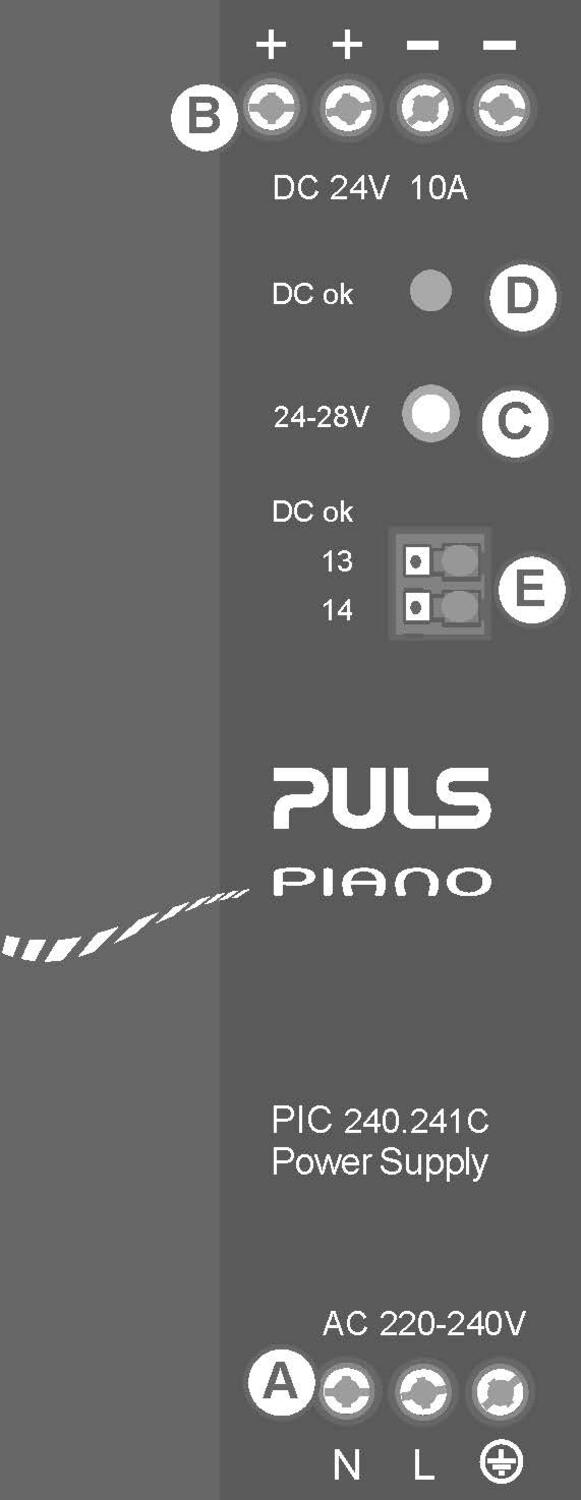

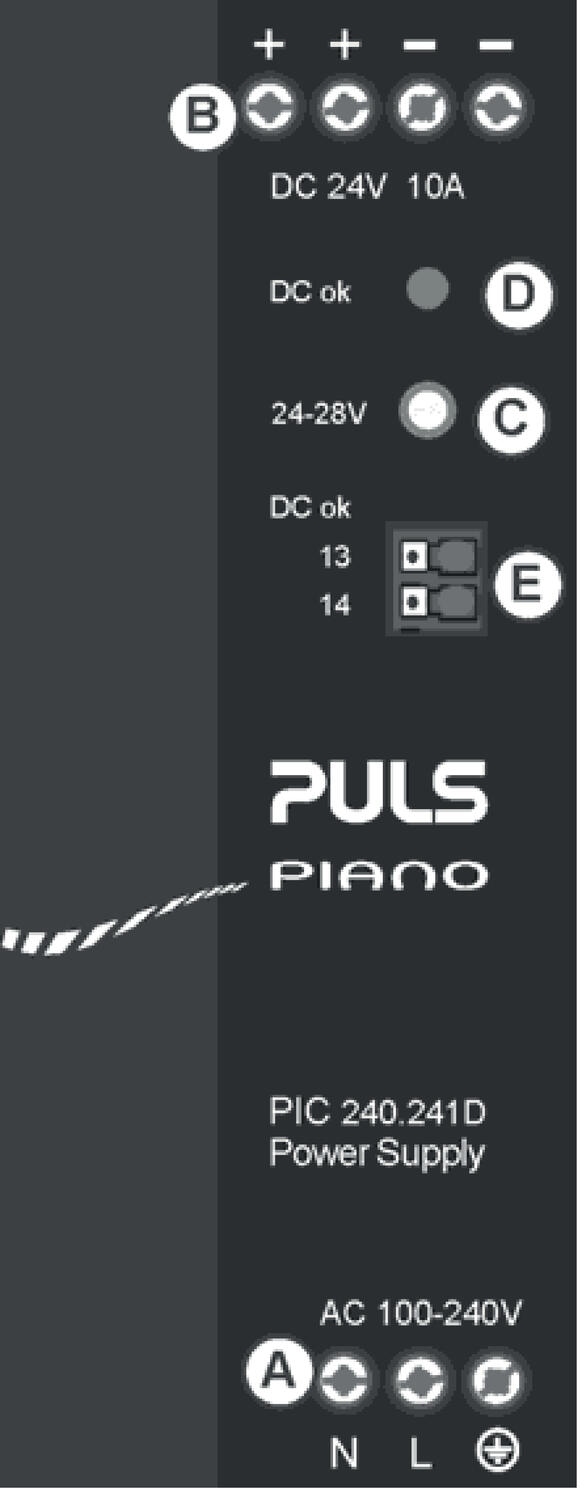

Wiring | |
|
Â
Â
Â
Â
|
Â
Input data |
|
|---|---|
| Input voltage ac | 200-240 V |
| Input voltage ac min | 180 V AC |
| Input voltage ac max | 264 V AC |
| Number of phases | 1 |
| Inrush current at 230 V ac typical | 48 A |
| Power factor at 230 V ac, full load. Typical | 0,52 |
Output data |
|
| Output voltage min | 24 V DC |
| Output voltage | 24 V DC |
| Output voltage max | 28 V DC |
| Power | 240 W |
| Output current | 10 A |
Efficiency / Lifetime / MTBF |
|
| MTBF (IEC 61709) 230 V ac, max load, 40 ° C | 791000 h |
| Efficiency at 230 V ac, full load, typical | 91,4 % |
| Efficiency at 230 V ac, typical | 90,9 % |
| Lifetime at 230 V ac, full load and +40 ° C | 38000 h |

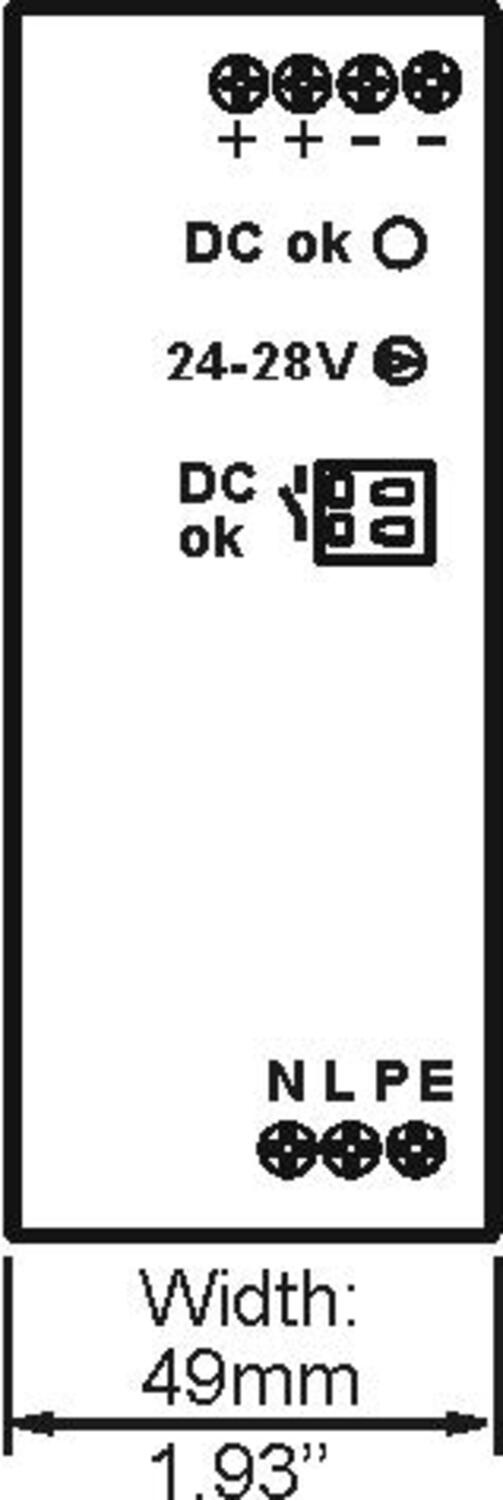

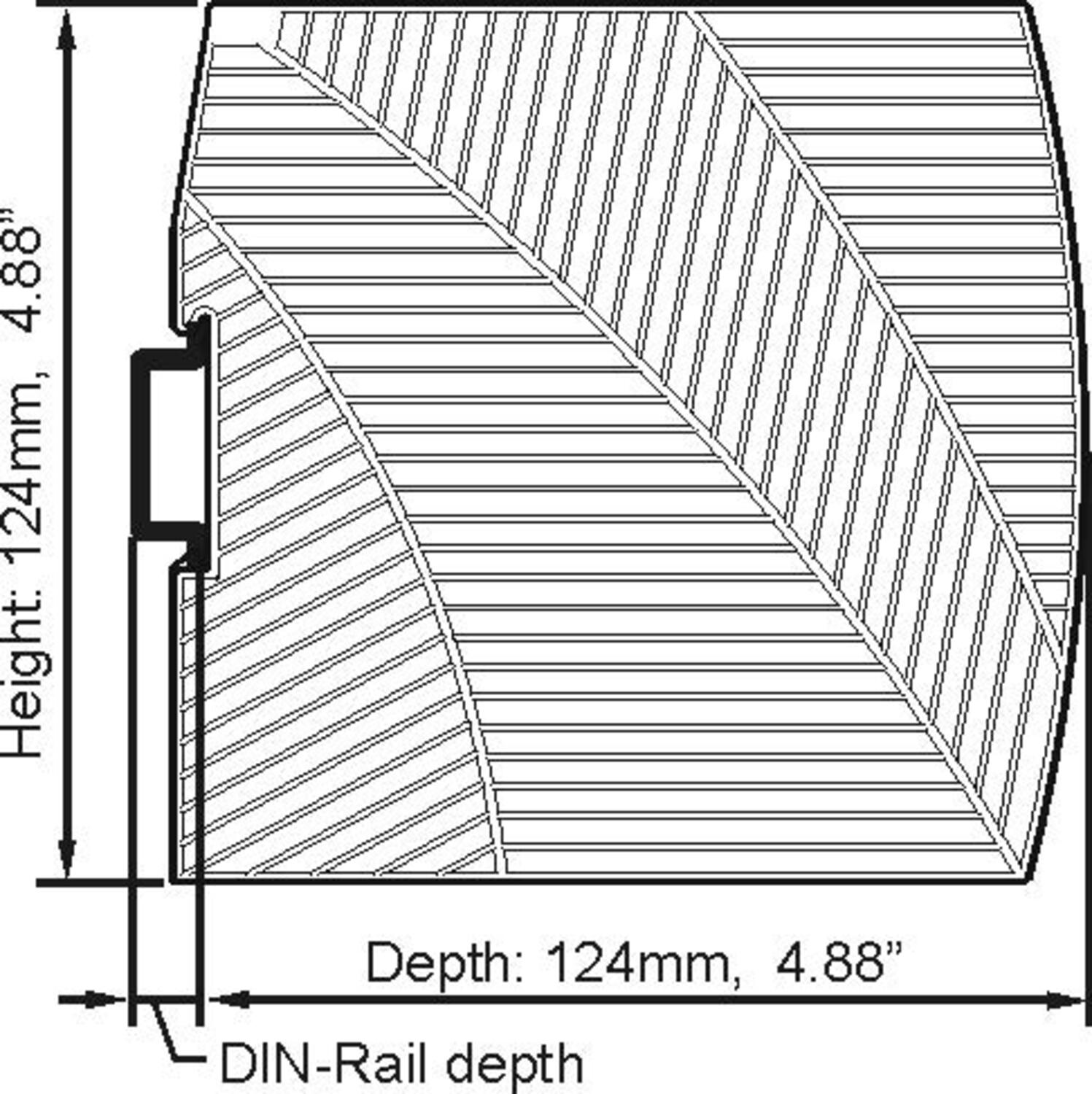

Dimensions |
|
| Weight | 0,55 kg |
| Depth | 124 mm |
| Width | 49 mm |
| Height | 124 mm |
Other |
|
|---|---|
| Series connection for increased voltage | Yes |
| IP class | IP20 |
| Cable connection | Screw max 6 mm² solid, 4 mm² stranded |
| Ripple max | 100 mV pp |
| Power drop from +60 °C to + 70 °C | 6 W/°C |
| PFA (EN61000-3-2) | Not met |
| Transient | VDE 0160 (750 V, 1,3 ms) |
| Parallel connection for increased current | Not allowed |
| Clamp type | Screw |
| Temperature min without derating | -10 °C |
| Load regulation | <150 mV (0-10 A) |
| Series | Piano |
| Hold time at 230 V ac, typical full load | 33 ms |
| Power consumption 230 V ac | 2,2 A |
| Supply frequency | 50-60 ±6 % |
| Primary fuse | Min 16A B type or 10A C type |
| Approvals | CB, CE, cRUus, cULus, GL |
| Temperature max without derating | 55 °C |
| Material protection | Polycarbonate |
| Type Power Supply | AC-DC |
| DC relay output | Yes |
These PIANO series units are extraordinarily compact, industrial grade power supplies that focus on the essential features required in today’s industrial applications. The excellent cost/performance ratio presents many new and exciting opportunities without compromising quality or reliability.
The mechanically robust housing is made of a high-grade, reinforced molded material, which permits the units to be used in surrounding temperatures up to +70°C.
Since typical industrial applications do not require multiple mains inputs, the reduction to a regional input voltage range (AC 200 240V) simplifies the circuitry and has significant advantages for reliability, efficiency and cost.
The integrated DC-OK signal makes the unit suitable for many industry applications, such as process, automation and many other critical applications where preventive function monitoring can help to avoid long downtimes.
Â
Output characteristics | ||
|
|
|
Â
Wiring | |
|
Â
Â
Â
Â
|
Â
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.
Do you require signalling devices and beacons in your production process? Download our latest whitepaper!
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.
Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Input voltage range | Input voltage ac | Input voltage ac min | Inrush current at 230 V ac typical | Inrush current at 120 V ac typical | Power factor at 120 V ac, full load. Typical | Power factor at 230 V ac, full load. Typical | Lifetime at 120 V ac, full load and +40 ° C | MTBF (IEC 61709) 230 V ac, max load, 40 ° C | Efficiency at 230 V ac, full load, typical | Efficiency at 230 V ac, typical | Lifetime at 230 V ac, full load and +40 ° C | Efficiency at 120 V ac, full load, typical | Weight | Power consumption 120 V ac | PFA (EN61000-3-2) | Transient | Hold time at 120 V ac, typical full load | Load regulation | Hold time at 230 V ac, typical full load | Power consumption 230 V ac | Primary fuse | Approvals | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

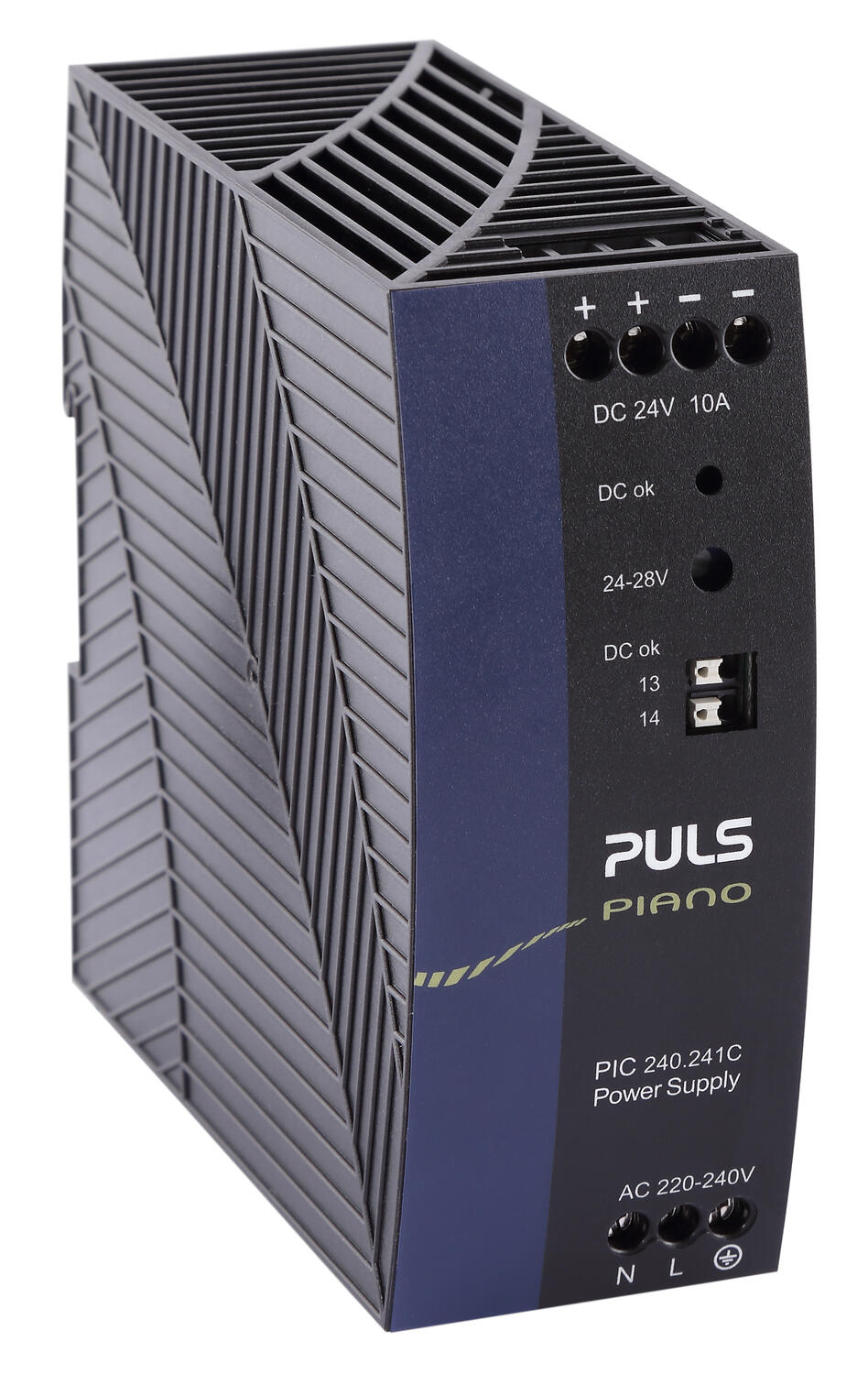

Powersupply 230VAC 24VDC/10A DC OK
