PULS

Power supply 1-phase, 24 V dc Piano, 5A

Pulse Piano Series is very compact unit that meets the essential industrial demands of today's applications. With the excellent relationship between price and performance gives Piano Series new opportunities without compromising on quality or reliability.

Life expectancy is remarkably high compared to similar products on the market. The long lifetime is achieved through the efficient and sophisticated thermal design, but also through the sole use of detailed quality components. The unit has a MTBF values ​​over 1.7 million hours and a service life of 47,000 hours at 40 ° C.

The powerful house of molded polycarbonate with a clever circuit design and low weight gives great advantages in shock- and vibration-rich environments. In addition, the units very little space in the cabinet and gives a stylish impression.

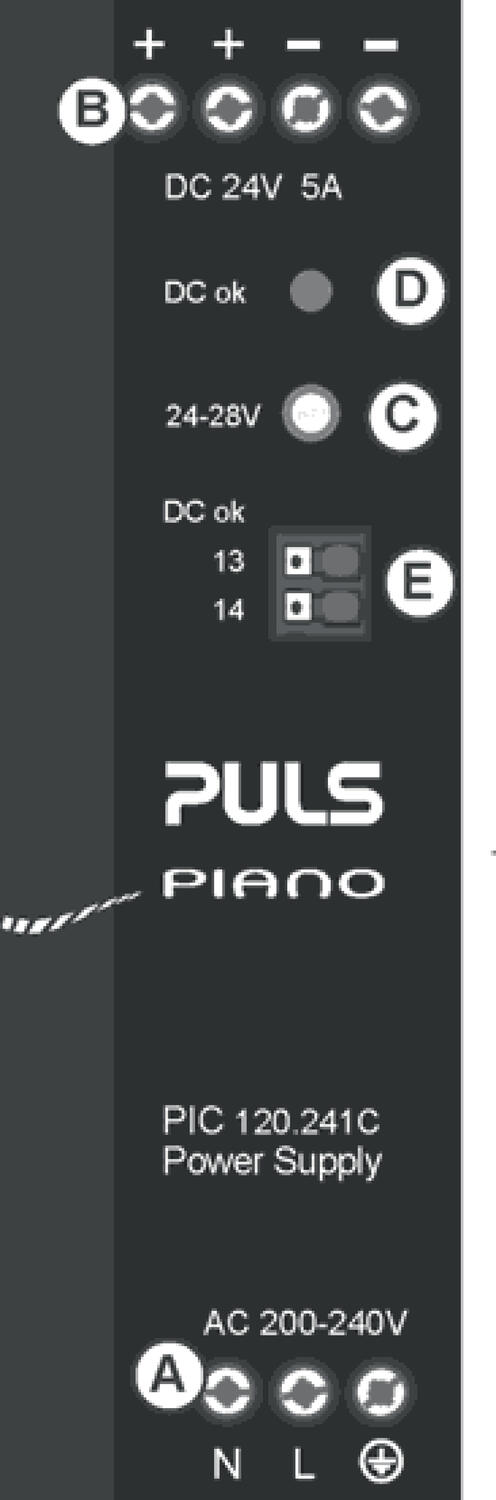

PIC120.241C the DC-OK relay outputs for status indication of 24 V DC.

Many industrial applications require no more clamping alternative, the reduction of the input voltage is only 230 V AC circuits simplifies and gives significant cost advantages.

A global version of the 115/230 V AC is available, PIC120.241D, for applications where multi voltage required.

Read more
  • Output current of 5 A
  • Up to 90.5% efficiency
  • Only 39 mm wide
  • Very affordable
  • DC OK relay output

Selected variant

Available in several variants

Selected variant

Technical data

Input data

Input voltage ac 200-240 V
Input voltage ac min 180 V AC
Input voltage ac max 264 V AC
Number of phases 1
Inrush current at 230 V ac typical 28 A
Power factor at 230 V ac, full load. Typical 0,54

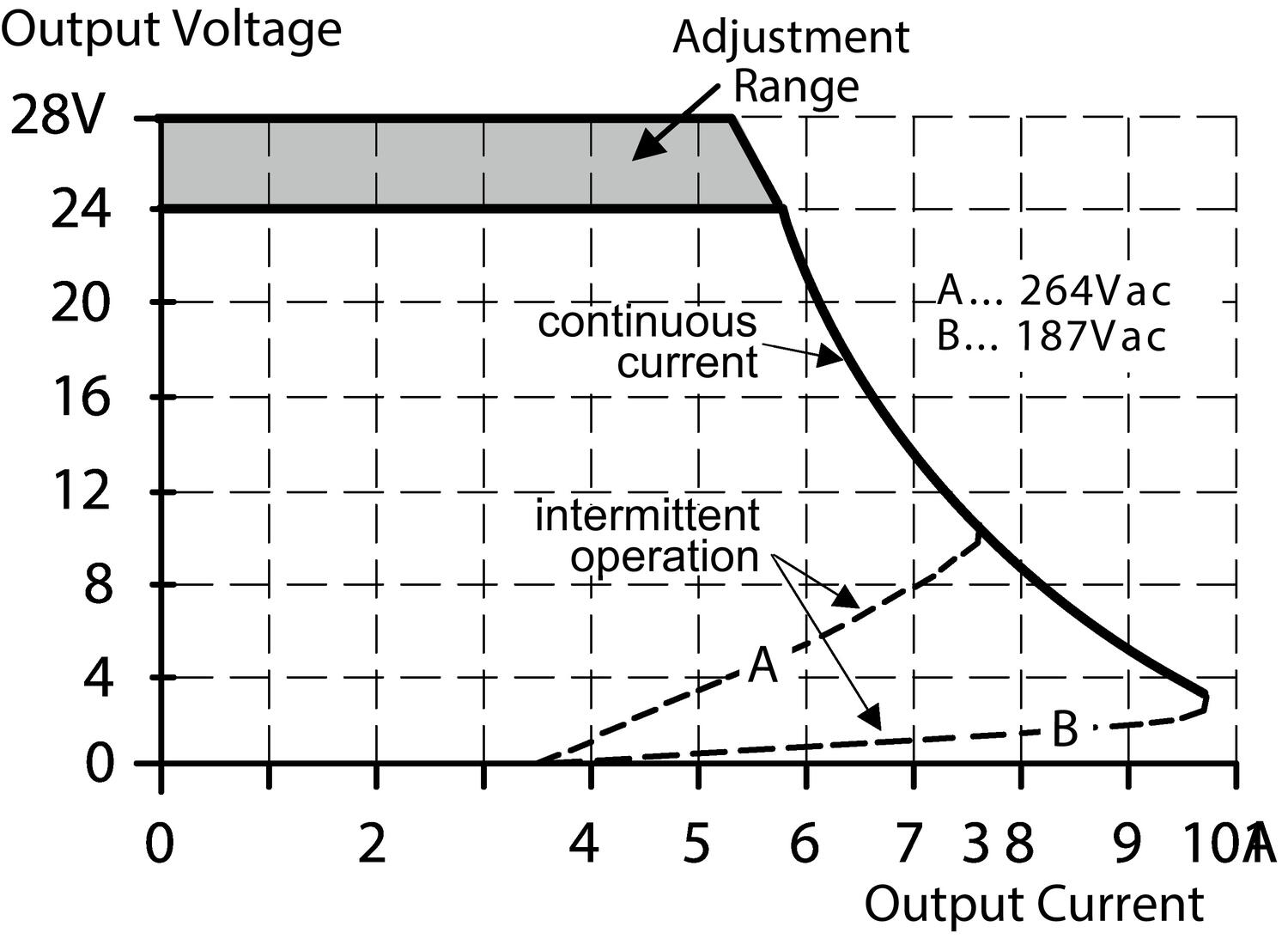

Output data

Output voltage min 24 V DC
Output voltage 24 V DC
Output voltage max 28 V DC
Power 120 W
Output current 5 A

Efficiency / Lifetime / MTBF

MTBF (IEC 61709) 230 V ac, max load, 40 ° C 1720000 h

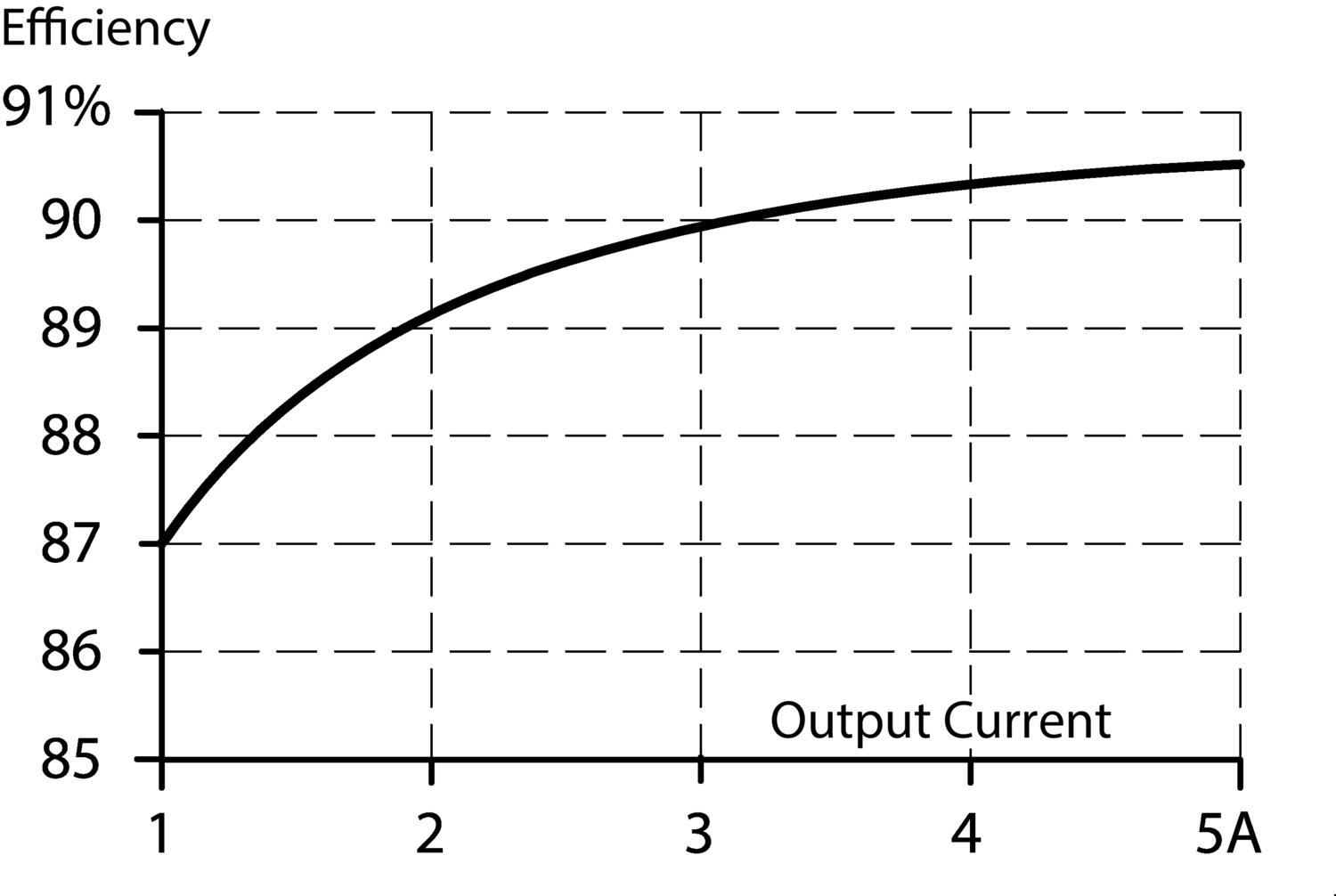

Efficiency at 230 V ac, full load, typical 90,5 %
Efficiency at 230 V ac, typical 89,5 %
Lifetime at 230 V ac, full load and +40 ° C 47000 h

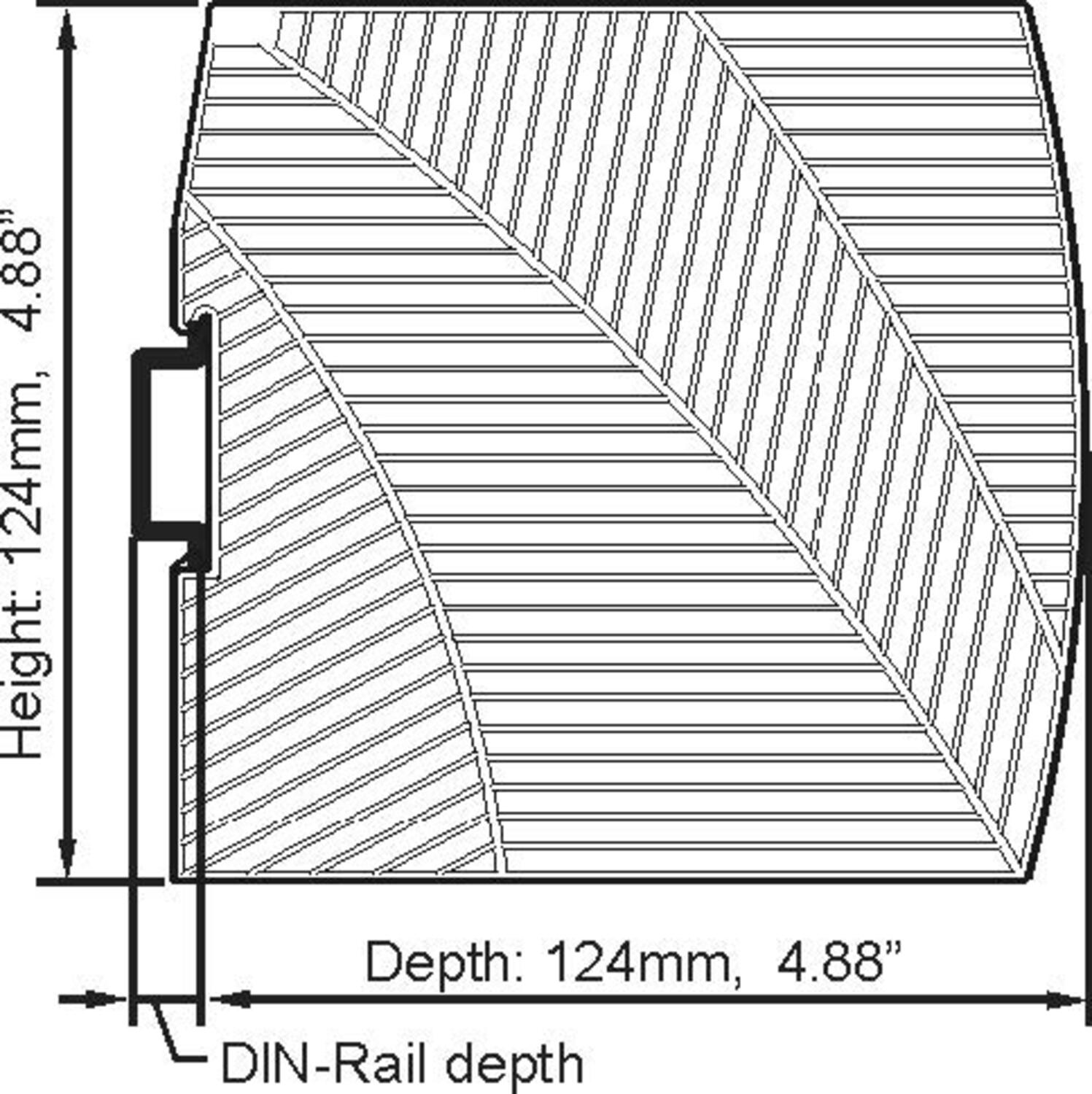

Dimensions

Weight 0,35 kg
Depth 124 mm

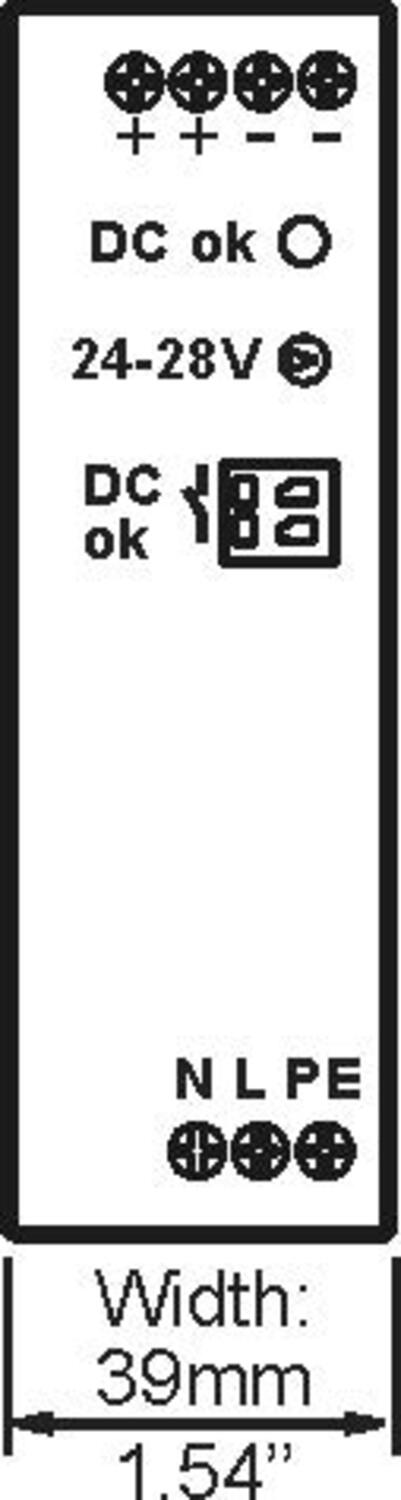

Width 39 mm
Height 124 mm

Other

Series connection for increased voltage Yes
IP class IP20
Cable connection Screw max 6 mm² solid, 4 mm² stranded
Ripple max 100 mV pp

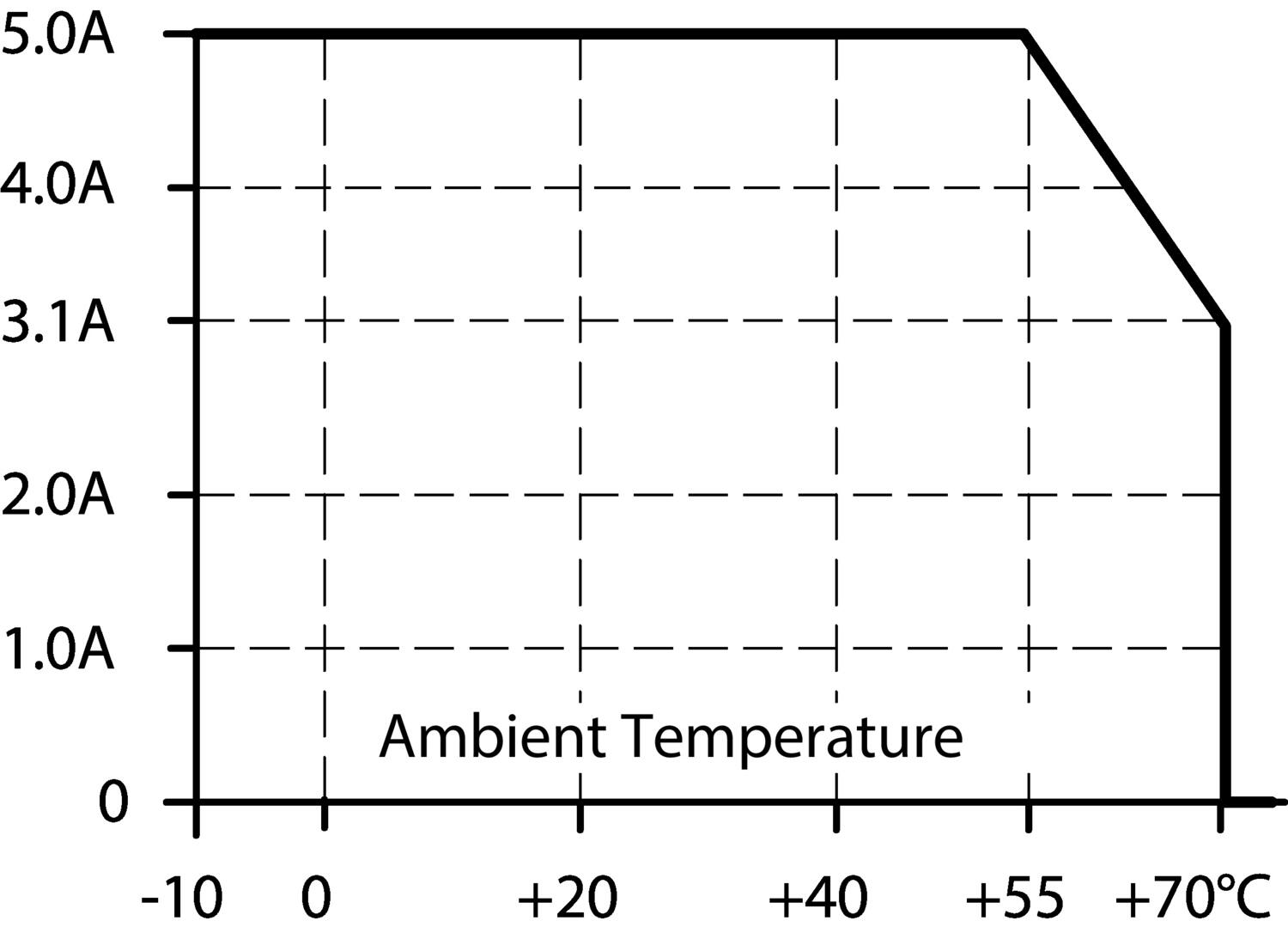

Power drop from +60 °C to + 70 °C 3 W/°C
PFA (EN61000-3-2) Fulfilled (Class A)
Transient VDE 0160 (750 V, 1,3 ms)
Parallel connection for increased current Not allowed
Clamp type Screw
Temperature min without derating -10 °C
Load regulation <150 mV (0-5 A)
Series Piano
Hold time at 230 V ac, typical full load 33 ms
Power consumption 230 V ac 1,06 A
Supply frequency 50-60 ±6 %
Primary fuse Min 10A B type or 6A C type
Approvals CB, CE, cRUus, cULus, GL
Temperature max without derating 55 °C
Material protection Polycarbonate
Type Power Supply AC-DC
DC relay output Yes

Product description

Pulse Piano Series is very compact unit that meets the essential industrial demands of today's applications. With the excellent relationship between price and performance gives Piano Series new opportunities without compromising on quality or reliability.

Life expectancy is remarkably high compared to similar products on the market. The long lifetime is achieved through the efficient and sophisticated thermal design, but also through the sole use of detailed quality components. The unit has a MTBF values ​​over 1.7 million hours and a service life of 47,000 hours at 40 ° C.

The powerful house of molded polycarbonate with a clever circuit design and low weight gives great advantages in shock- and vibration-rich environments. In addition, the units very little space in the cabinet and gives a stylish impression.

PIC120.241C the DC-OK relay outputs for status indication of 24 V DC.

Many industrial applications require no more clamping alternative, the reduction of the input voltage is only 230 V AC circuits simplifies and gives significant cost advantages.

A global version of the 115/230 V AC is available, PIC120.241D, for applications where multi voltage required.
