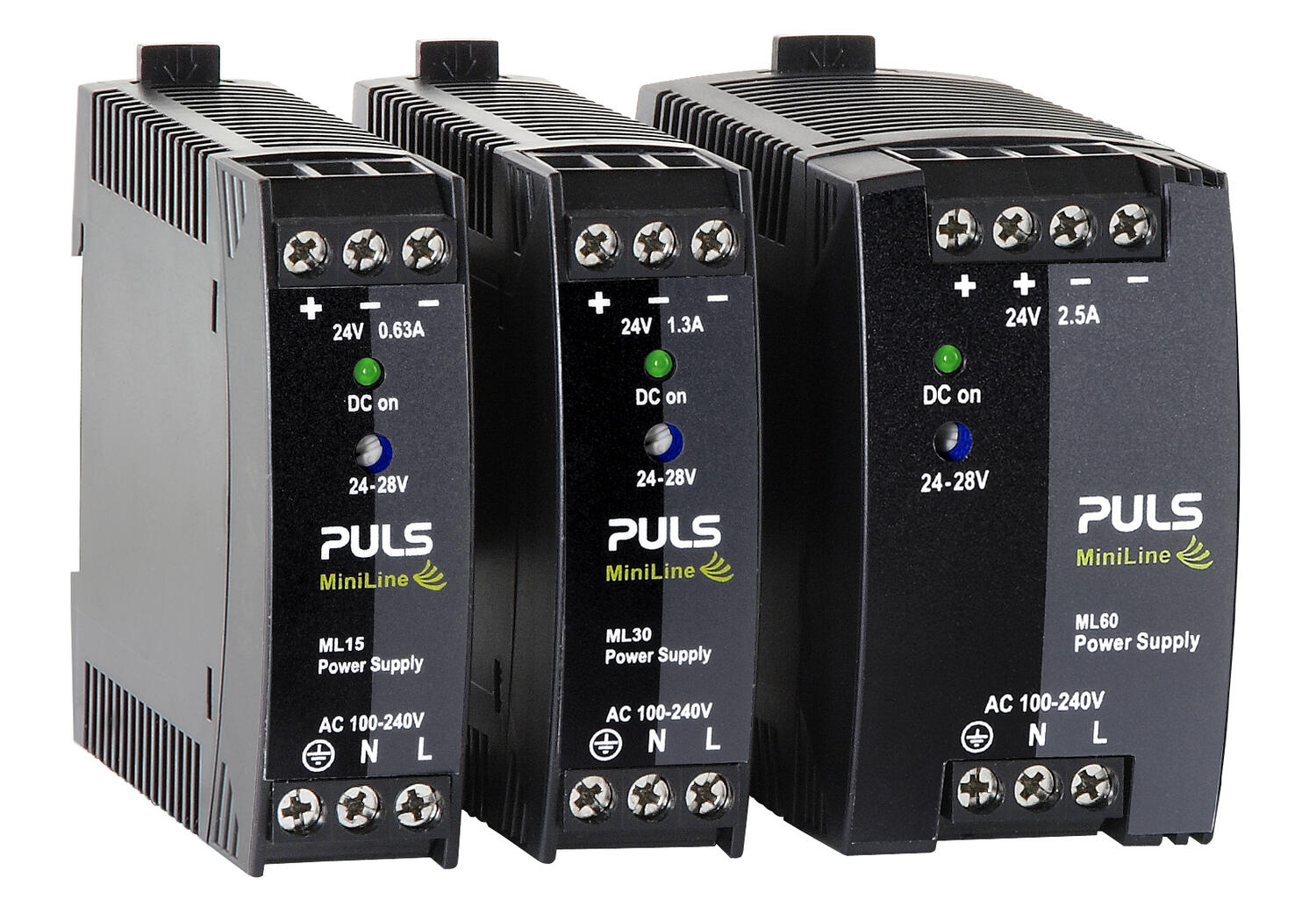

Power supply 1-phase, Miniline Series 2

3 A model included in Pulse series Mini Line 2 is the latest development series of small power supplies with very compact dimensions and low weight. The units have high efficiency, low EMC interference and good protection against mains transients. This makes them useful in almost all electrical environments and are a great addition to the earlier Mini Line series.

Very low quiescent current and high efficiency even at loads down to 60% makes the aggregates at a good energy and environmental choices.

5 A model is included in the earlier series Miniline having a very proven design and spring terminals for the best connection.



For good cooling free space of 40 mm above and 20 mm under the power supply is recommended. The sides 0 mm unless neighbouring products are a heat source, for example, a power supply unit. Leave then a 15 mm air gap



Output characteristics

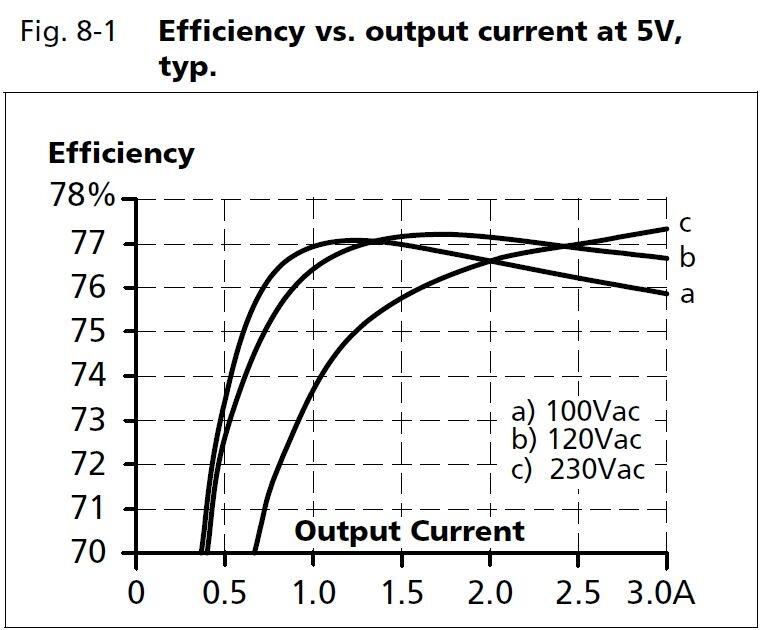

ML15.051 (3 A)

ML30.101 (5A)

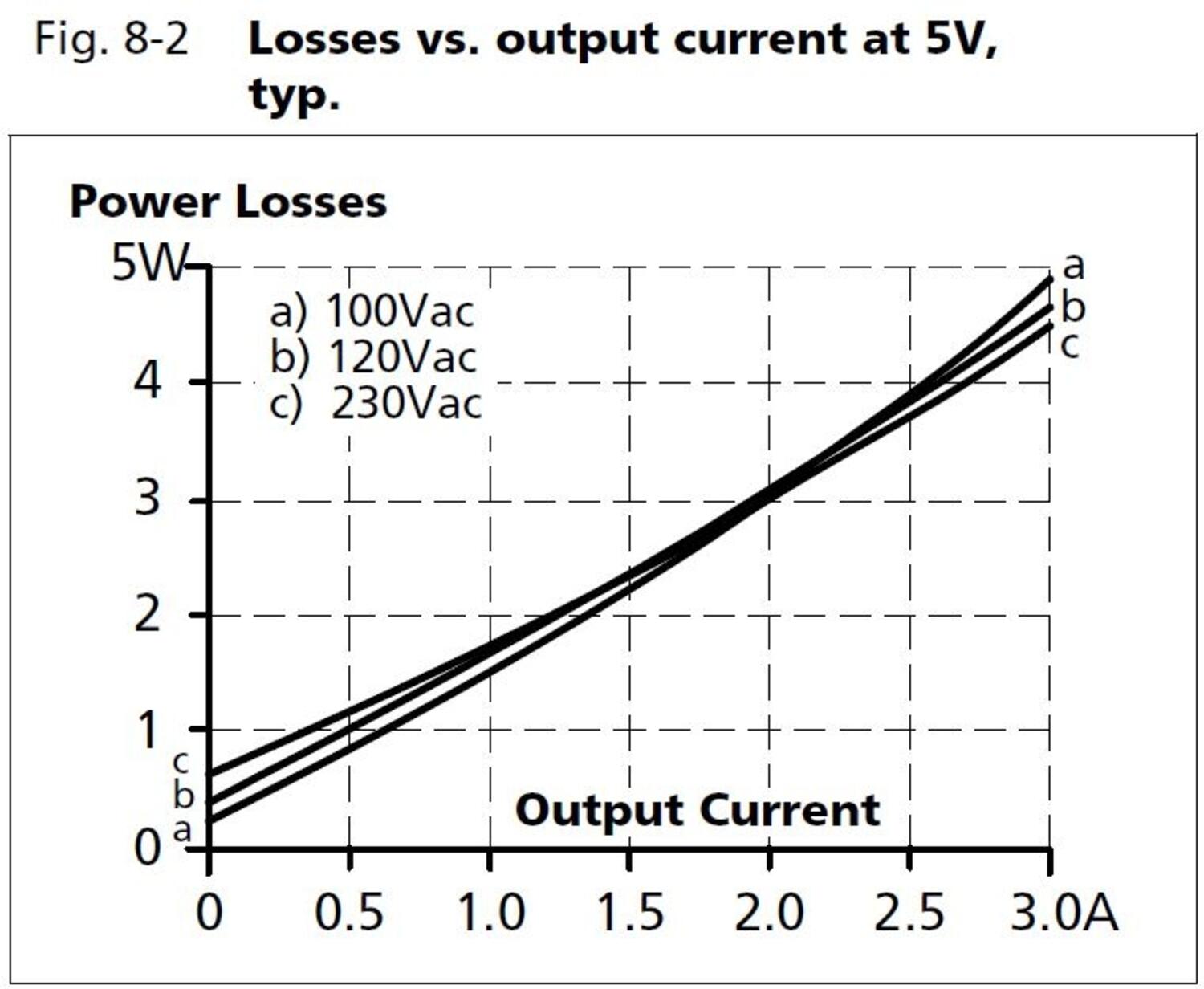

Output characteristics

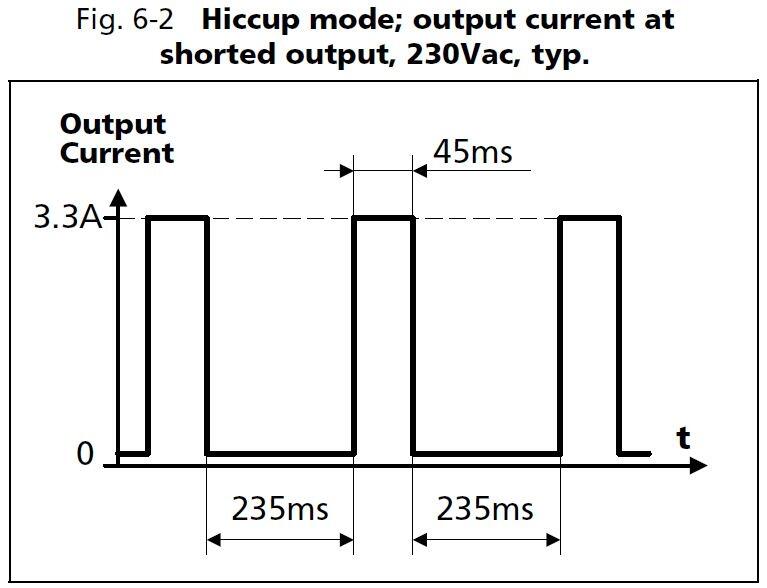

Output characteristics



Read more
  • Output current 0.63 A to 4.5 A
  • Up to 90.4% efficiency
  • AC and DC input voltage
  • Width from 22.5mm
  • 5 V, 12 V and 24 V DC options

Selected variant

Available in several variants
PULS_2016.eps

Save page as PDF

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Technical data

Input data
Input voltage range Wide-range
Input voltage ac 100-240 V
Input voltage ac min 85 V AC
Input voltage dc max 375 V DC
Input voltage dc 110-300 V
Input voltage ac max 264 V AC
Number of phases 1
Inrush current at 230 V ac typical 26 A
Inrush current at 120 V ac typical 13 A
Power factor at 120 V ac, full load. Typical 0,51
Power factor at 230 V ac, full load. Typical 0,44
Input voltage dc min 88 V DC

Output data
Output voltage min 5 V DC
Output voltage 5 V DC
Output voltage max 5,5 V DC
Power 15 W
Output current 3 A

Efficiency / Lifetime / MTBF
Lifetime at 120 V ac, full load and +40 ° C 70000 h
MTBF (IEC 61709) 230 V ac, max load, 40 ° C 2686000 h
Efficiency at 230 V ac, full load, typical 77,2 %
Lifetime at 230 V ac, full load and +40 ° C 93000 h
Efficiency at 120 V ac, full load, typical 76,8 %

Dimensions
Weight 0,13 kg

*Invisible Heading*
Depth 91 mm
Width 22,5 mm
Height 75 mm

Other
Series connection for increased voltage Yes. See manufacturers datasheet or contact OEM Automatic for more details.
IP class IP20
Power consumption 120 V ac 0,28 A
Ripple max 50 mV pp

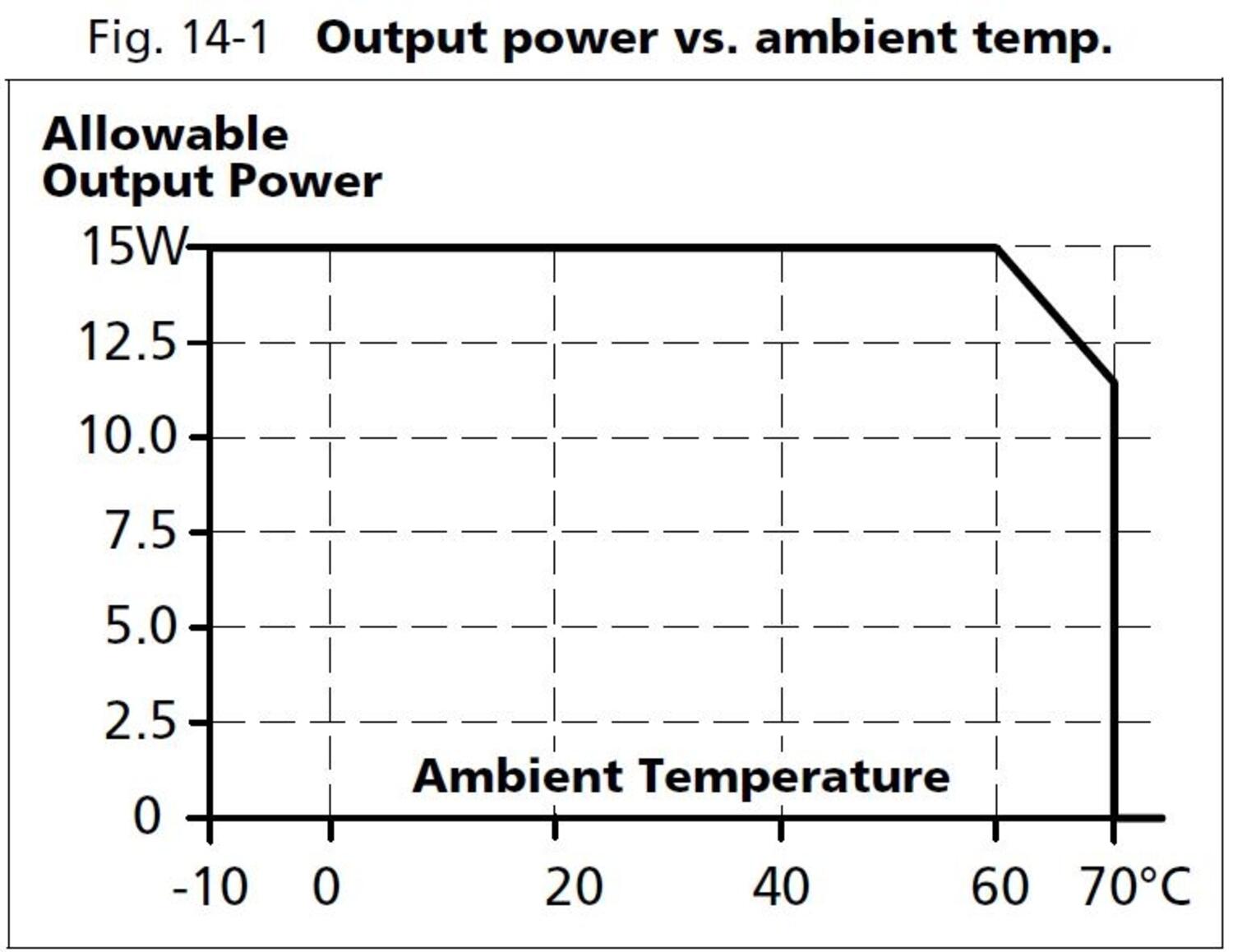

Power drop from +60 °C to + 70 °C 0,4 W/°C
Parallel connection for increased current Yes. See manufacturers datasheet or contact OEM Automatic for more details.
Clamp type Screw on
Temperature min without derating -10 °C
Hold time at 120 V ac, typical full load 45 ms
Load regulation <100 mV (0-3 A)
Series Miniline
Hold time at 230 V ac, typical full load 186 ms
Power consumption 230 V ac 0,17 A
Supply frequency 50-60 ±6 %
Approvals ABS, CB, CE, CSA, GL, NEC Class 2, UL
Temperature max without derating 60 °C
Material protection ABS plastic
Type Power Supply AC-DC

Downloads

Measurements and connections

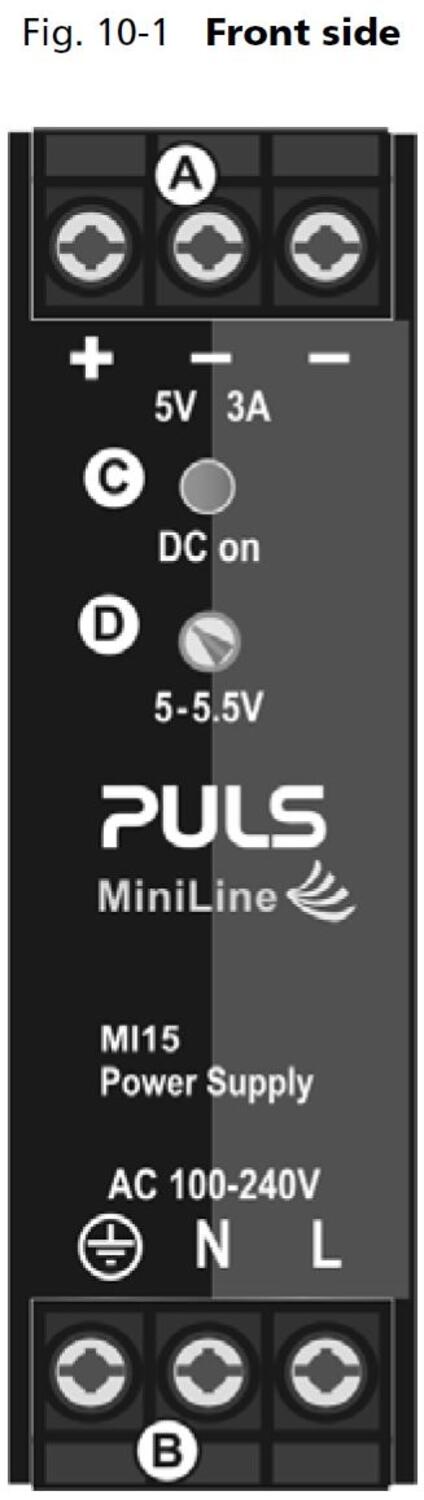

ml15e051_Front side.JPG

ml15e051_Front view.JPG

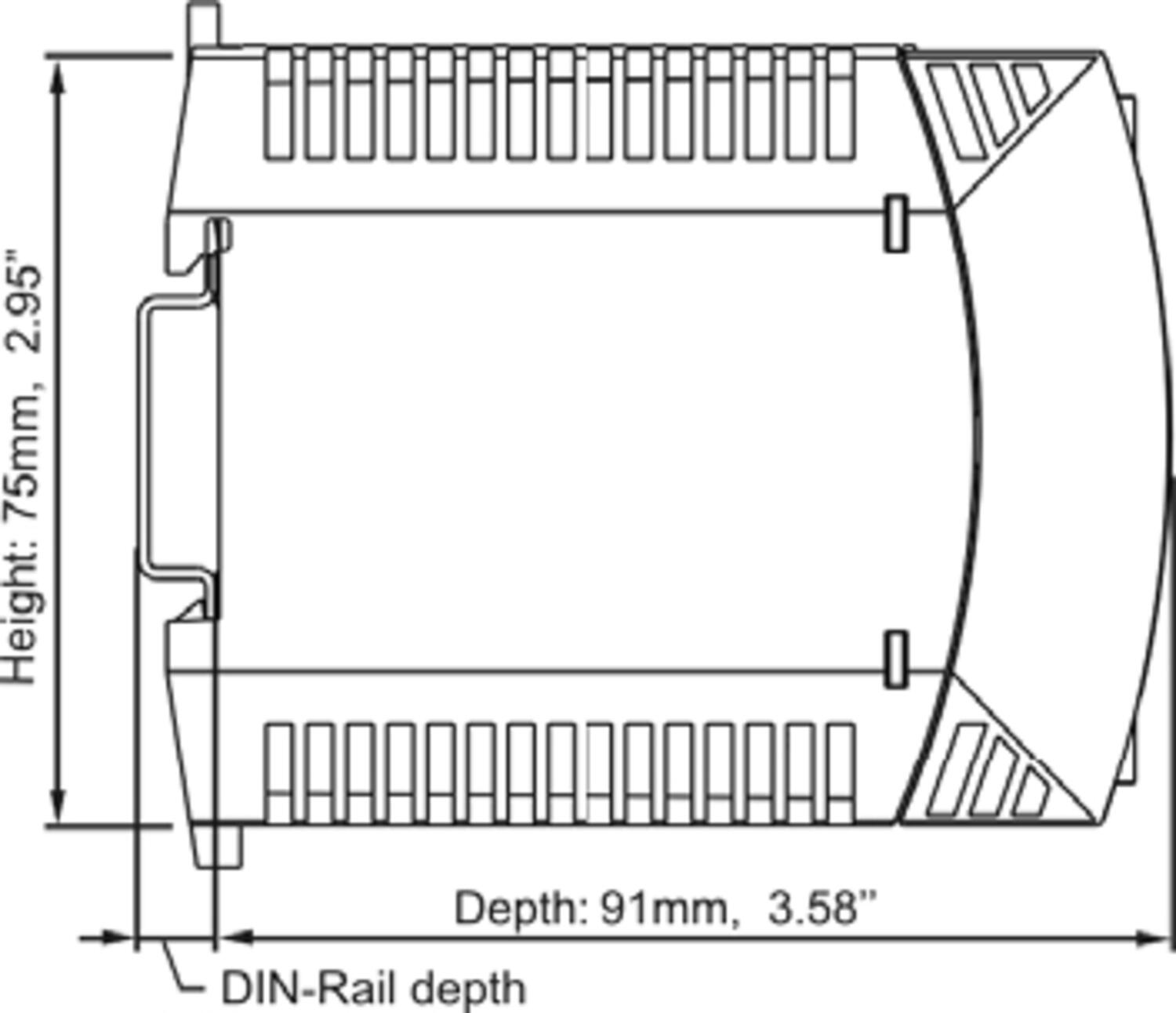

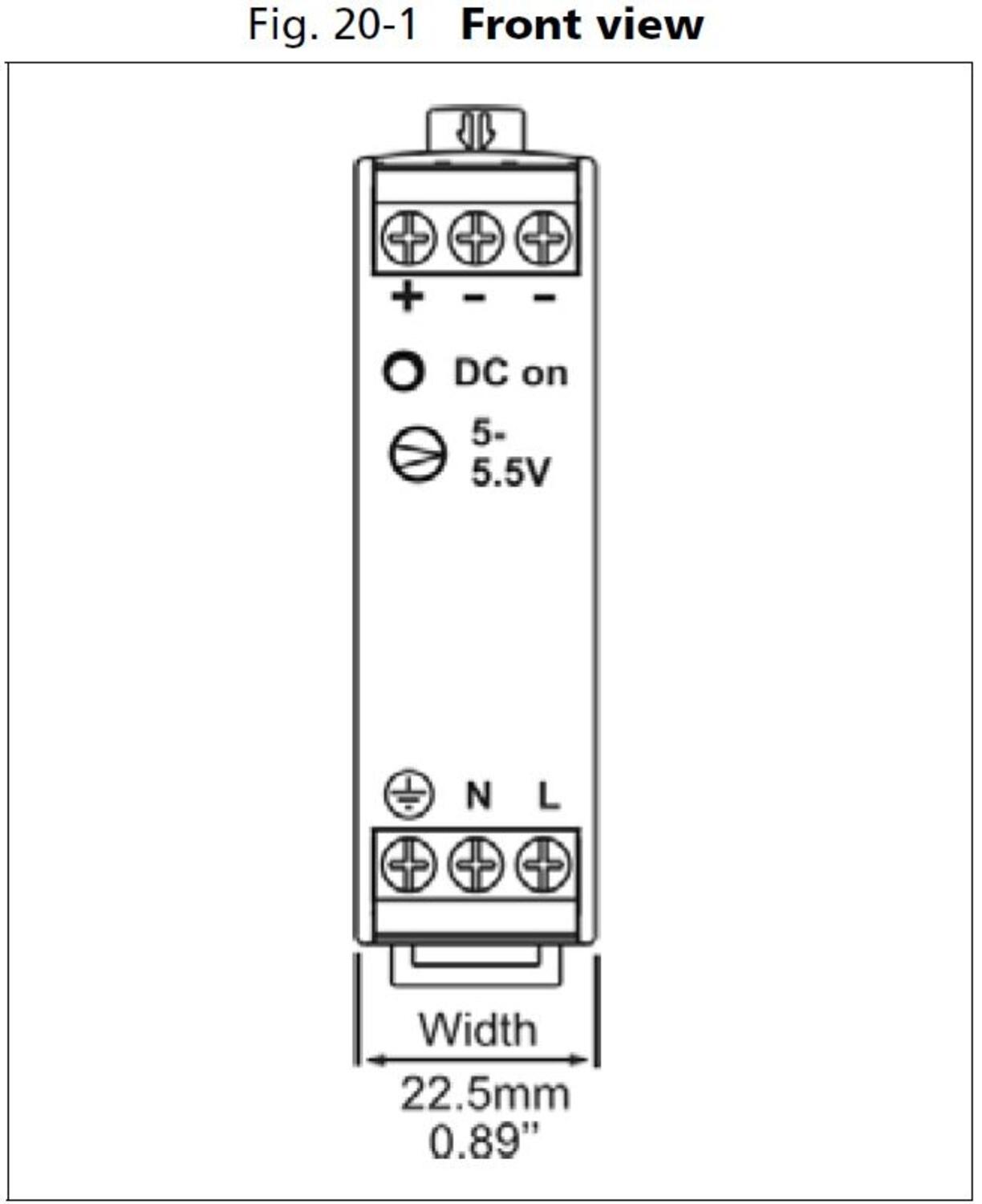

Dimensions

For good cooling free space of 40 mm above and 20 mm under the power supply is recommended. The sides 0 mm unless neighbouring products are a heat source, for example, a power supply unit. Leave then a 15 mm air gap.

Technical illustrations

Product description

3 A model included in Pulse series Mini Line 2 is the latest development series of small power supplies with very compact dimensions and low weight. The units have high efficiency, low EMC interference and good protection against mains transients. This makes them useful in almost all electrical environments and are a great addition to the earlier Mini Line series.

Very low quiescent current and high efficiency even at loads down to 60% makes the aggregates at a good energy and environmental choices.

5 A model is included in the earlier series Miniline having a very proven design and spring terminals for the best connection.



For good cooling free space of 40 mm above and 20 mm under the power supply is recommended. The sides 0 mm unless neighbouring products are a heat source, for example, a power supply unit. Leave then a 15 mm air gap

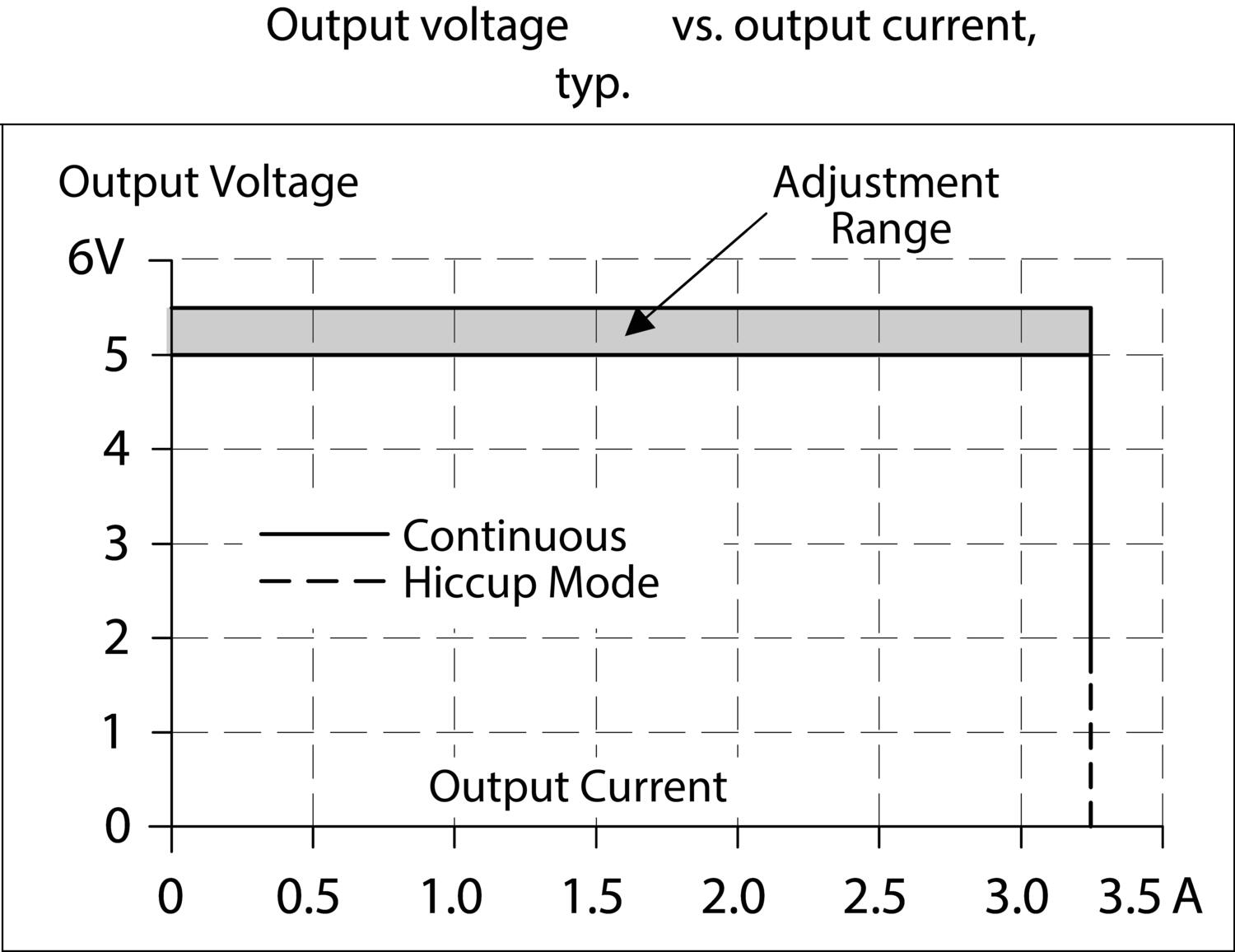

Output characteristics

ML15.051 (3 A)

ML30.101 (5A)

Output characteristics

Output characteristics



Accessories

Related products

Related

Kubler slip rings encoders
Blog Product news

Optimise your production line with sensors

Optimise your production line with encoders, inclinometers, displays and slip rings

contaclip kds sr90
Product news

Every angle covered with 90 degree cable entry system

Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.

crouzet millenium slim on limited time discount
Product news

The smallest logic controller ever on limited time discount

The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.

11 questions to get the right signalling device with Auer Signal & OEM Automatic
Blog

11 questions to get the right signalling device – a whitepaper

Do you require signalling devices and beacons in your production process? Download our latest whitepaper!

bespoke solutions electricity meter control boxes
Case studies

Control Box Assembly for Industrial Electricity Metering - A case study

Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.

DC circuit protection PISA M and circuit breakers
Blog

Safeguard systems with DC circuit protection

This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.

Parts Inrush current at 230 V ac typical Inrush current at 120 V ac typical Power factor at 120 V ac, full load. Typical Power factor at 230 V ac, full load. Typical Output voltage min Output voltage Output voltage max Power Output current Lifetime at 120 V ac, full load and +40 ° C MTBF (IEC 61709) 230 V ac, max load, 40 ° C Efficiency at 230 V ac, full load, typical Lifetime at 230 V ac, full load and +40 ° C Efficiency at 120 V ac, full load, typical Weight Width Series connection for increased voltage Power consumption 120 V ac Ripple max Power drop from +60 °C to + 70 °C Parallel connection for increased current Clamp type Temperature min without derating Hold time at 120 V ac, typical full load Load regulation Hold time at 230 V ac, typical full load Power consumption 230 V ac Type Power Supply Active Transient Price
PSU 100-240V ac I/P 5V dc 3A 15W O/P
Art:
ML15.051 Copied
26 A
13 A
0,51
0,44
5 V DC
5 V DC
5,5 V DC
15 W
3 A
70000 h
2686000 h
77,2 %
93000 h
76,8 %
0,13 kg
22,5 mm
Yes. See manufacturers datasheet or contact OEM Automatic for more details.
0,28 A
50 mV pp
0,4 W/°C
Yes. See manufacturers datasheet or contact OEM Automatic for more details.
Screw on
-10 °C
45 ms
<100 mV (0-3 A)
186 ms
0,17 A
AC-DC

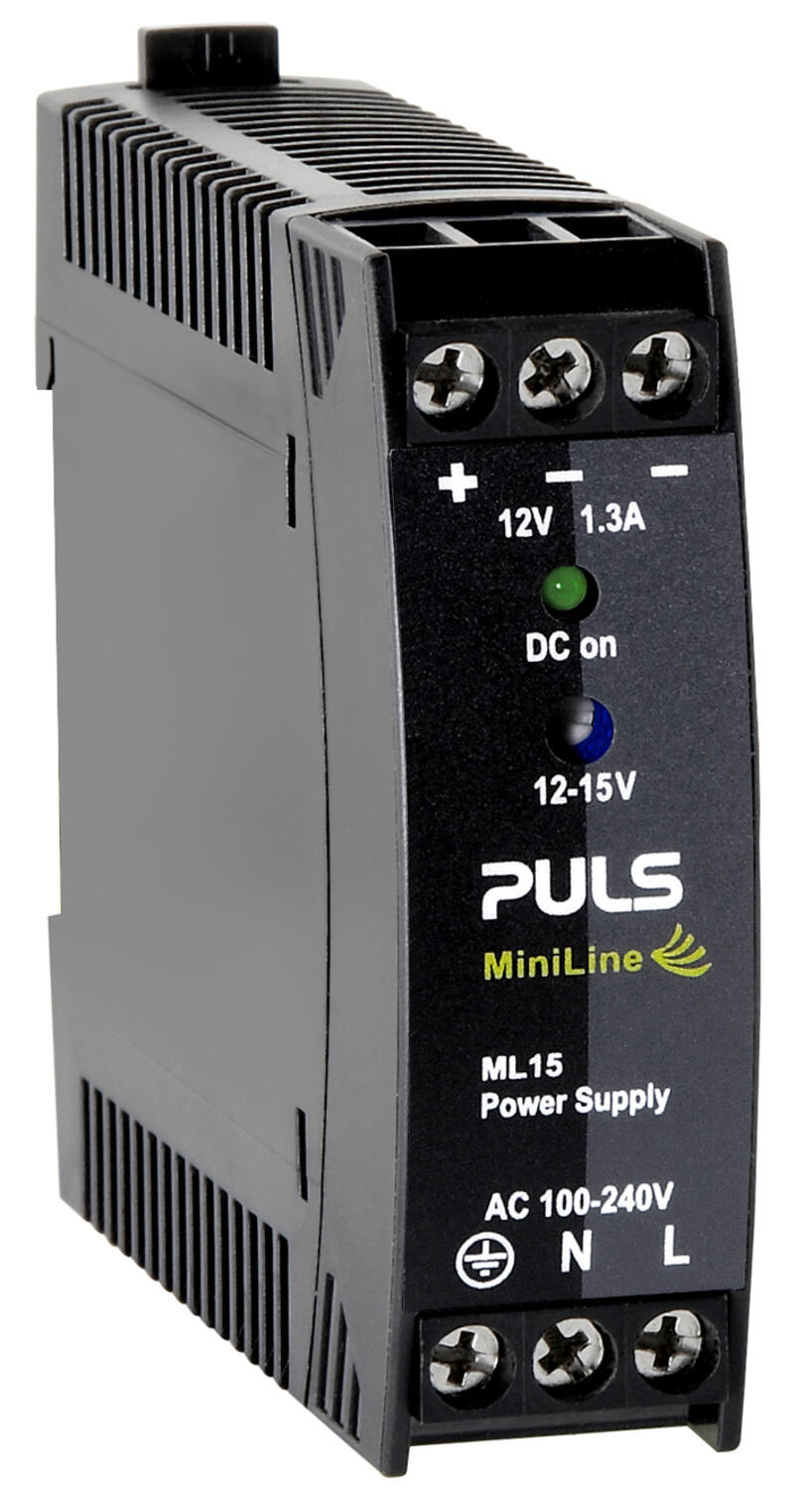

PSU 100-240V ac I/P 12V dc 1.3A 15W O/P
Art:
ML15.121 Copied
26 A
13 A
0,51
0,44
12 V DC
12 V DC
15 V DC
15 W
1,3 A
126000 h
3811000 h
82,5 %
125000 h
83 %
0,13 kg
22,5 mm
0,28 A
75 mV pp
0,4 W/°C
Screw
-10 °C
46 ms
191 ms
0,17 A
Yes

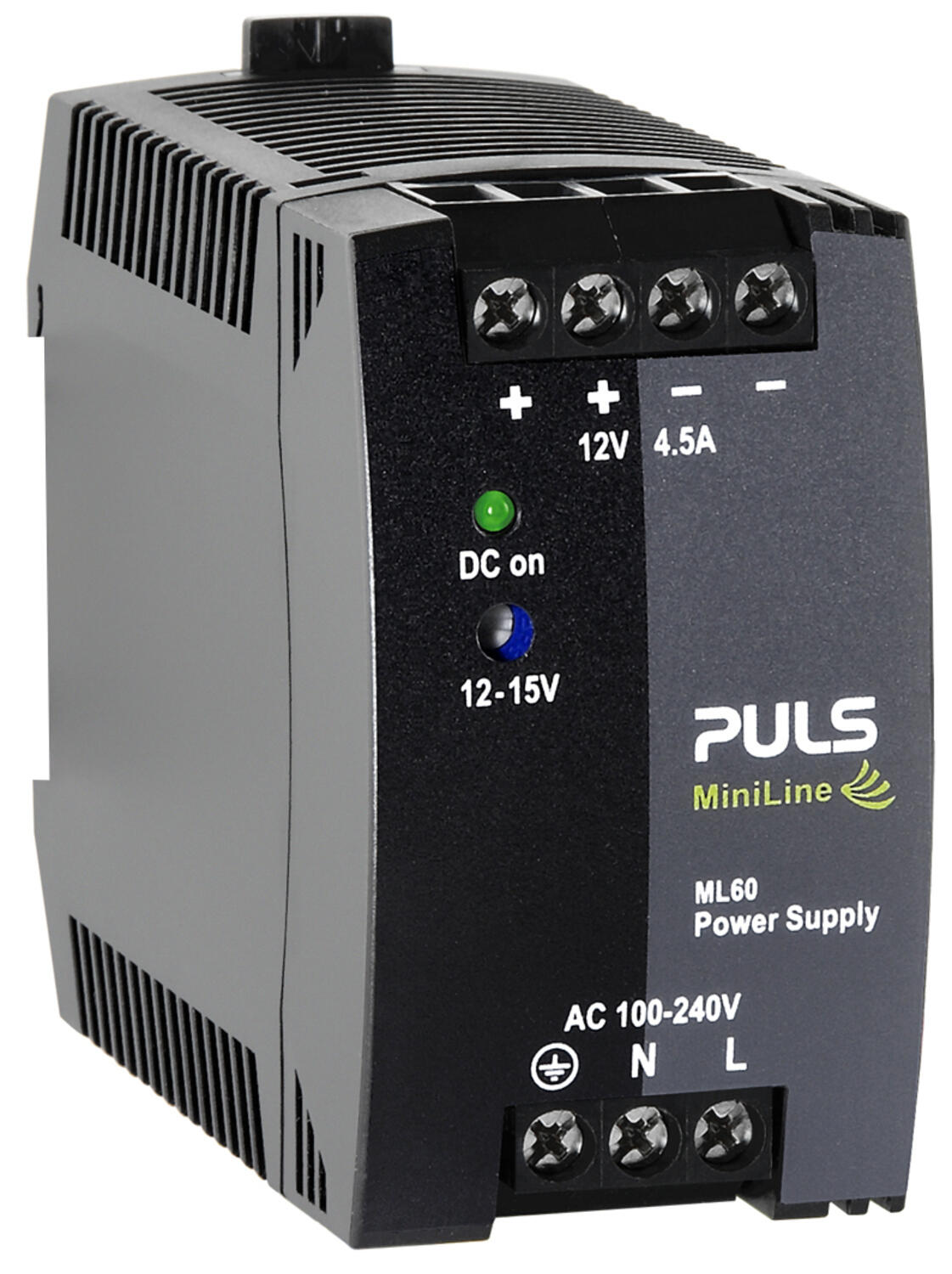

PSU 100-240V ac I/P 12V dc 4.5A 54W O/P
Art:
ML60.121 Copied
32 A
16 A
0,58
0,5
12 V DC
12 V DC
15 V DC
60 W
4,5 A
41000 h
1690000 h
87,2 %
56000 h
85,3 %
0,25 kg
45 mm
0,91 A
50 mV pp
1,4 W/°C
Screw
-10 °C
25 ms
113 ms
0,54 A
Yes
PSU 100-240V ac I/P 12V dc 4.5A 54W O/P -40°C
Art:
ML60.122 Copied
6 A
6 A
0,54
0,44
12 V DC
12 V DC
15 V DC
60 W
4,5 A
41000 h
1571000 h
87,6 %
56000 h
85,8 %
0,25 kg
45 mm
0,97 A
50 mV pp
1,4 W/°C
Screw on
-40 °C
25 ms
113 ms
0,61 A
AC-DC
Yes

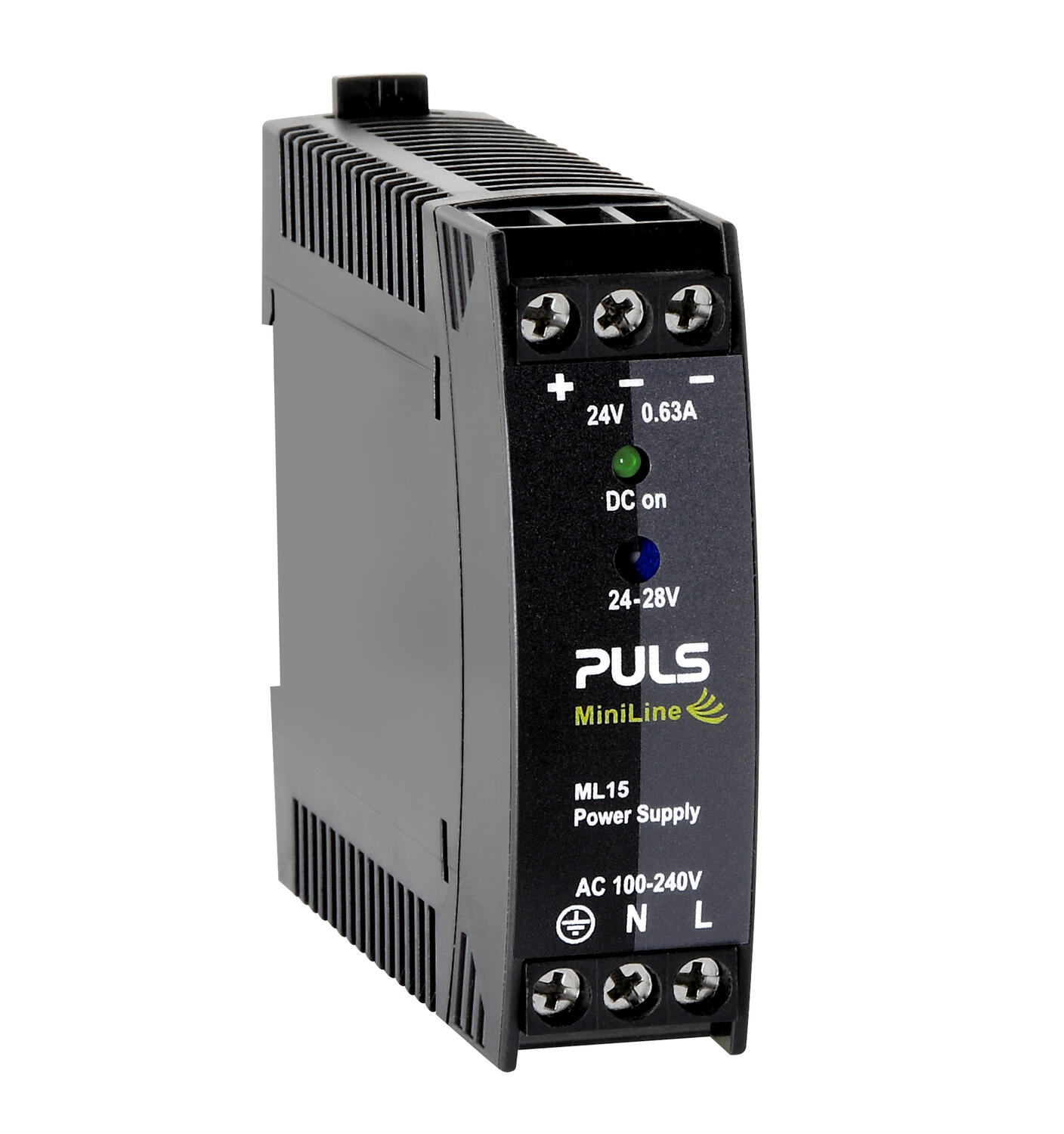

PSU 100-240V ac I/P 24V dc 0.63A 15W O/P
Art:
ML15.241 Copied
26 A
13 A
0,51
0,44
24 V DC
24 V DC
28 V DC
15 W
0,63 A
200000 h
4369000 h
85,1 %
196000 h
86,1 %
0,13 kg
22,5 mm
0,28 A
50 mV pp
0,4 W/°C
Screw on
-10 °C
47 ms
196 ms
0,17 A
AC-DC
Yes
PSU 100-240V ac I/P 24V dc 1.3A 30W O/P
Art:
ML30.241 Copied
35 A
18 A
0,52
0,49
24 V DC
24 V DC
28 V DC
30 W
1,3 A
171000 h
2405000 h
89,4 %
174000 h
88 %
0,14 kg
22,5 mm
0,54 A
50 mV pp
0,8 W/°C
Screw on
-10 °C
31 ms
141 ms
0,3 A
AC-DC
Yes

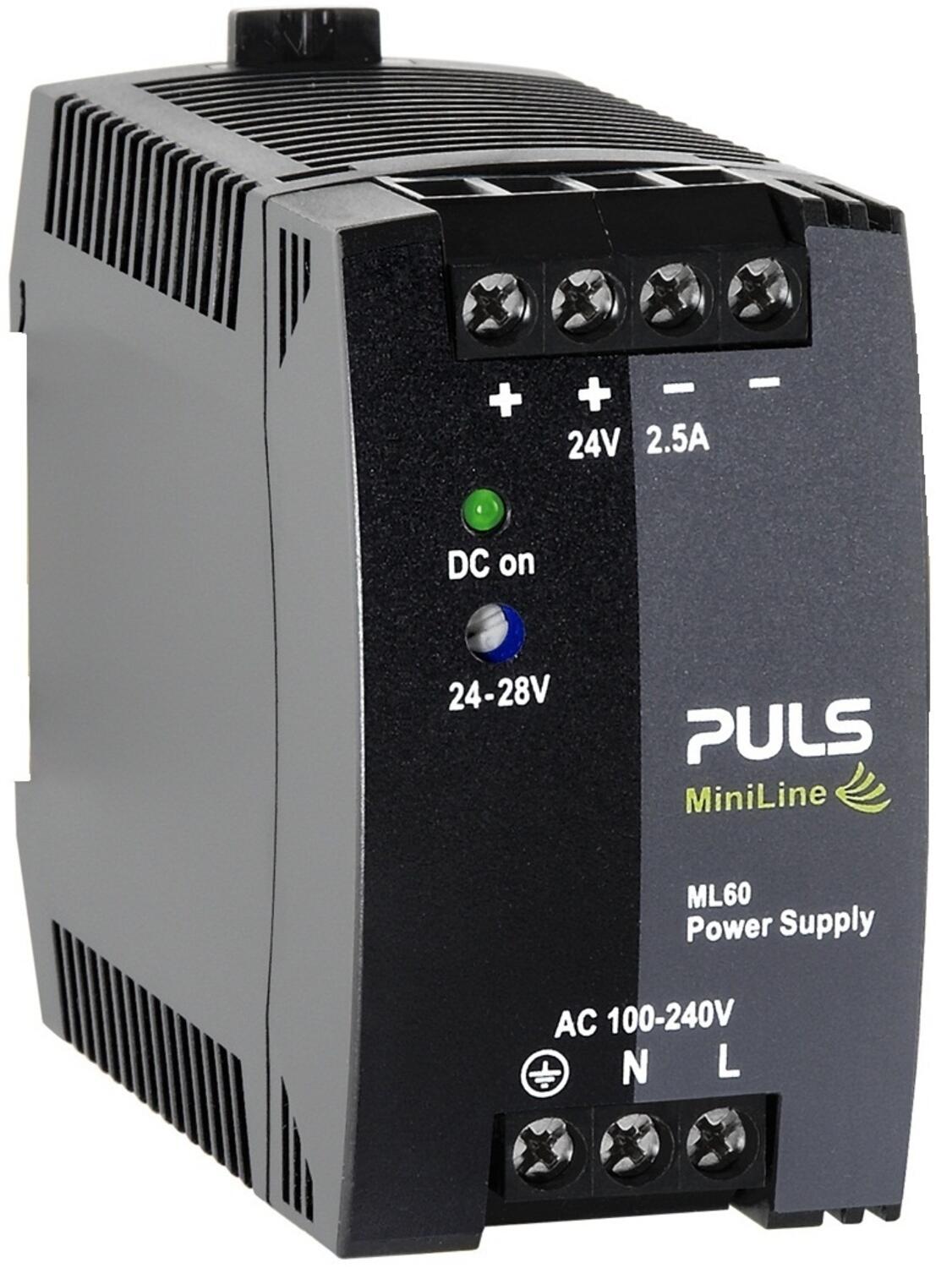

PSU 100-240V ac I/P 24V dc 2.5A 60W O/P
Art:
ML60.241 Copied
32 A
16 A
0,58
0,5
24 V DC
24 V DC
28 V DC
60 W
2,5 A
93000 h
1916000 h
89,7 %
128000 h
87,8 %
0,25 kg
45 mm
0,98 A
50 mV pp
1,5 W/°C
Screw on
-10 °C
24 ms
107 ms
0,58 A
AC-DC
Yes
PSU 100-240V ac I/P 24V dc 2.5A 60W O/P -40°C
Art:
ML60.242 Copied
6 A
6 A
0,54
0,44
24 V DC
24 V DC
28 V DC
60 W
2,5 A
66000 h
1866000 h
90,4 %
90000 h
88,5 %
0,25 kg
45 mm
1,05 A
50 mV pp
1,5 W/°C
Screw on
-40 °C
24 ms
107 ms
0,66 A
AC-DC
