DC-DC converter 24/12 V dc & 24/24 V dc

The Puls Dimension DC-DC converter features high efficiency, very compact dimensions and mounting on DIN rail. The input voltage can come from, for example, a power supply unit, batteries or solar panels. The output is galvanically isolated from the input. Examples of fields application are installation at the end of a long cable to stabilize voltage, conversion of one voltage to another or for isolation of specific loads. The DC-DC converters are equipped with a soft-start function, entailing that the current gradually rises to the nominal value. In this way, high starting currents are avoided that can cause voltage drops on the primary side and produce start-up problems. A 20 % power boost provides additional power resources during temporary current peaks. Article CD5.241-S1 is equipped with status outputs for controlling both the output voltage and the input voltage.



We recommend free space of 40 mm above the unit, 20 mm under and 5 mm at the sides.



Read more
  • 32 mm wide
  • Isolated output voltage
  • Wide input voltage range
  • 20 % power boost

Selected variant

Available in several variants

Selected variant

Technical data

Input data

Input voltage dc 24 V
Input voltage dc min 18 V DC
Input voltage dc max 32,4 V DC
Input capacitance 3000 µF
Inrush current Typ. 1,2 A @ 24 V DC
Max entrance tripple 5 V pp

Output data

Output voltage 12 V DC
Output voltage min 12 V DC

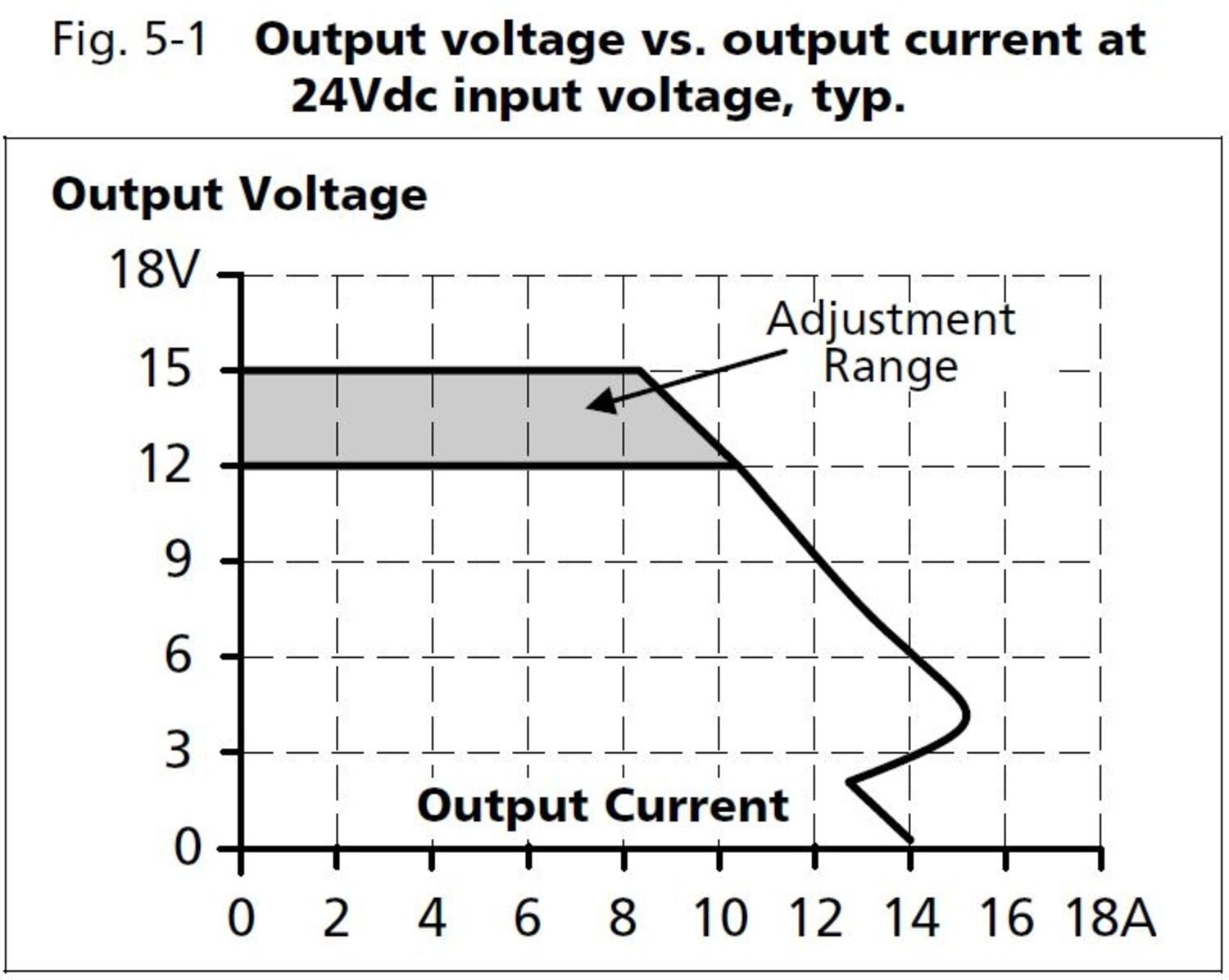

Output voltage max 15 V DC
Output current 8 A
Power 96 W

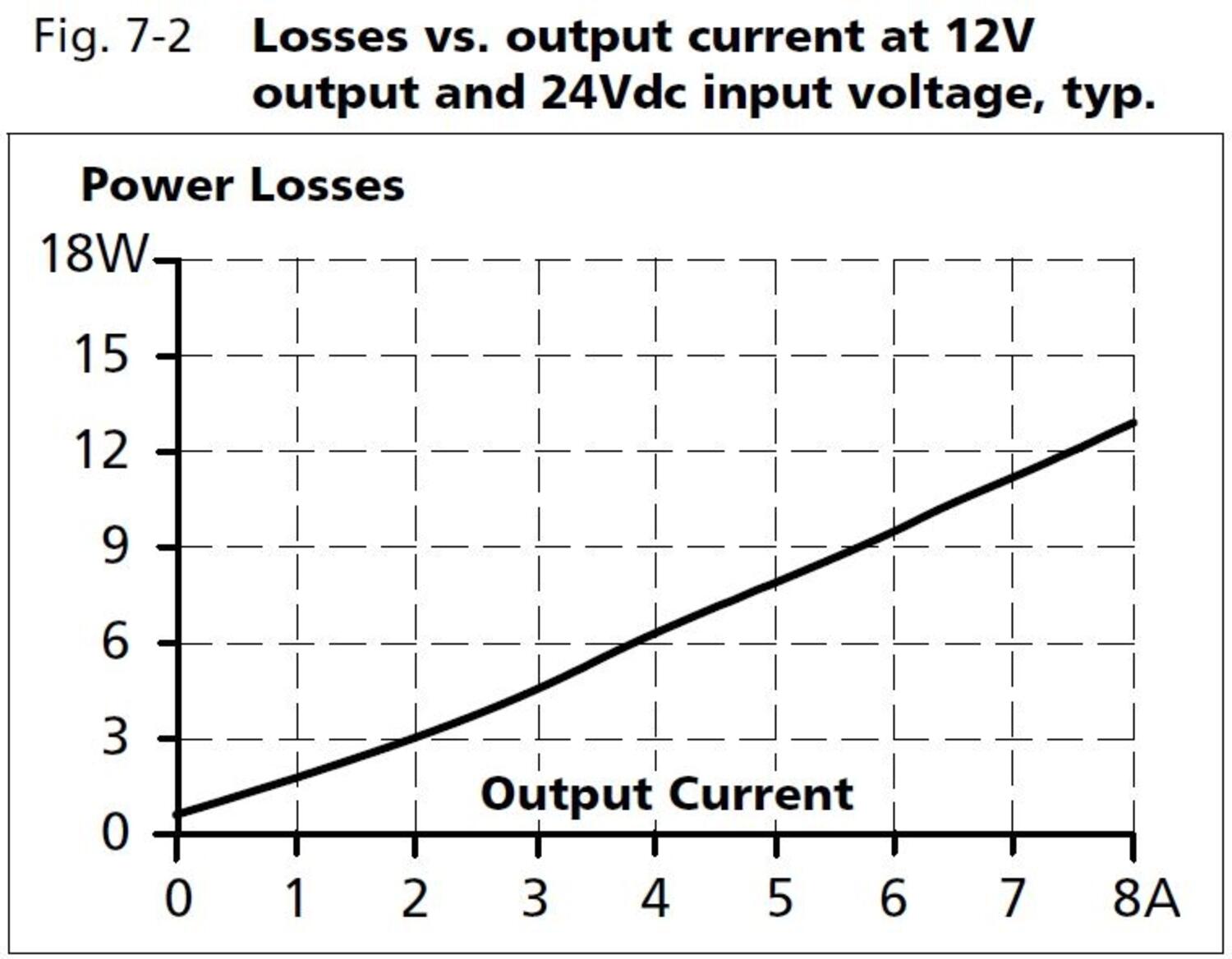

Efficiency / Lifetime / MTBF

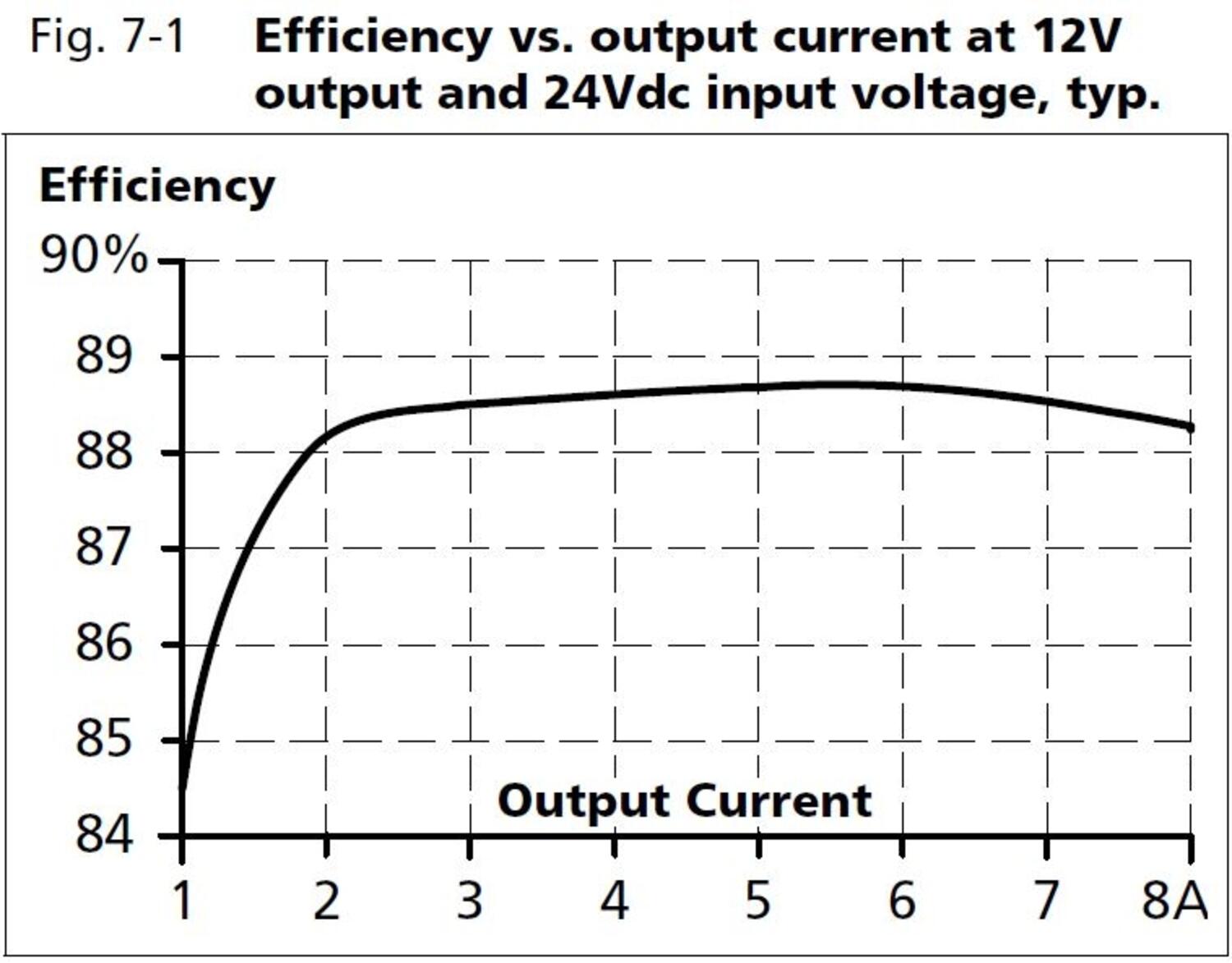

Efficiency 88,2 %
Life span 63000 h @ 12 V DC, 8 A, 40 °C
MTBF (IEC 61709) 1161000 @ 12 V DC, 8 A, 40 °C

Dimensions

Width 32 mm
Height 124 mm

*Invisible Heading*

Depth 102 mm
Weight 0,425 kg

Other

Approvals ABS, ATEX, CB, CE, CSA, GL, IECEx, UL
Keep time Typ. 7 ms @ 24 V DC
IP class IP20
Clamp type Screw on
Material protection Aluminium
Ripple max 75 mV pp
Series Dimension C

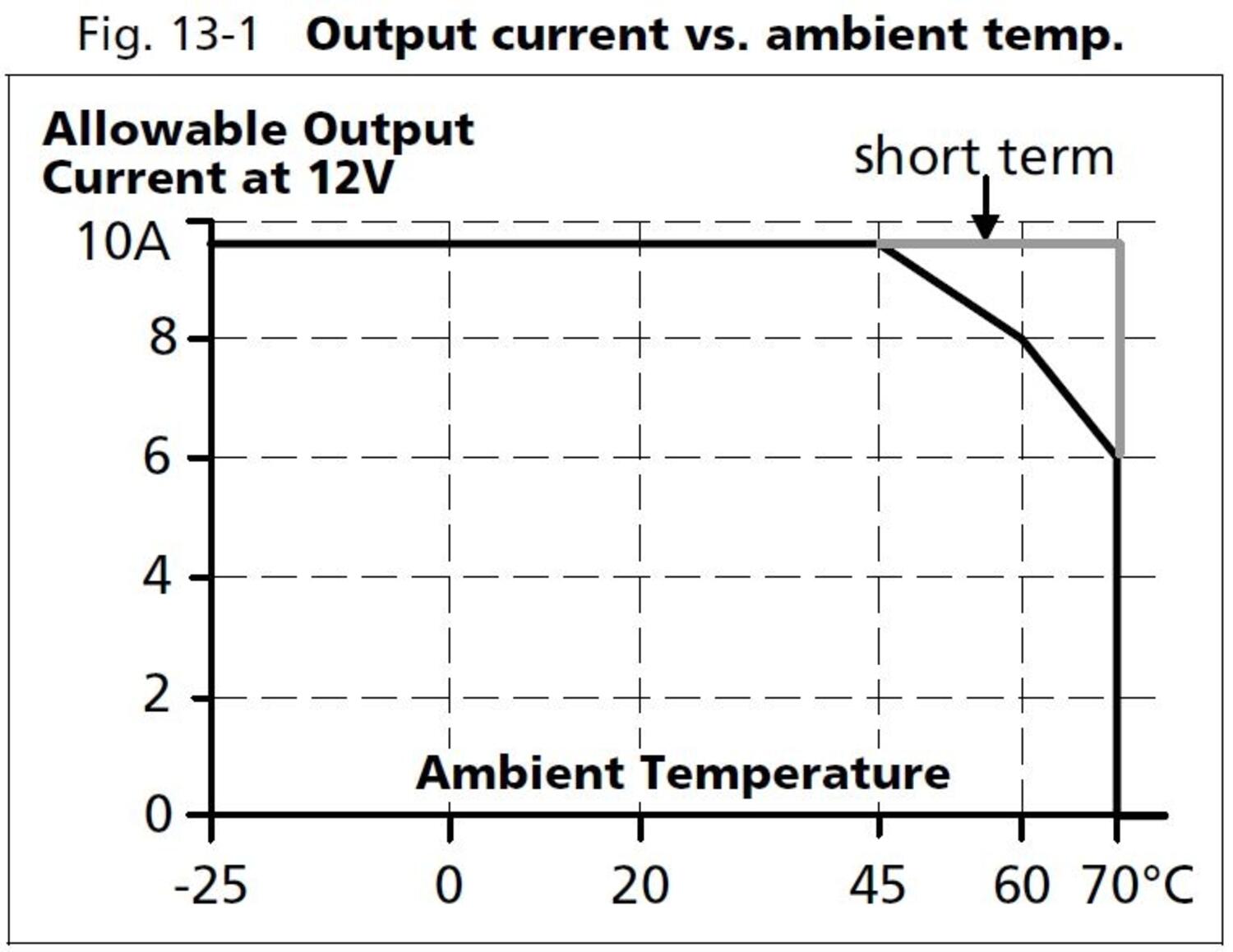

Power drop from +60 °C to + 70 °C 2,5 W/°C
Temperature min without derating -25 °C
Temperature max without derating 60 °C
Startup delay 420 ms
Type Power Supply DC-DC

Measurements and connections

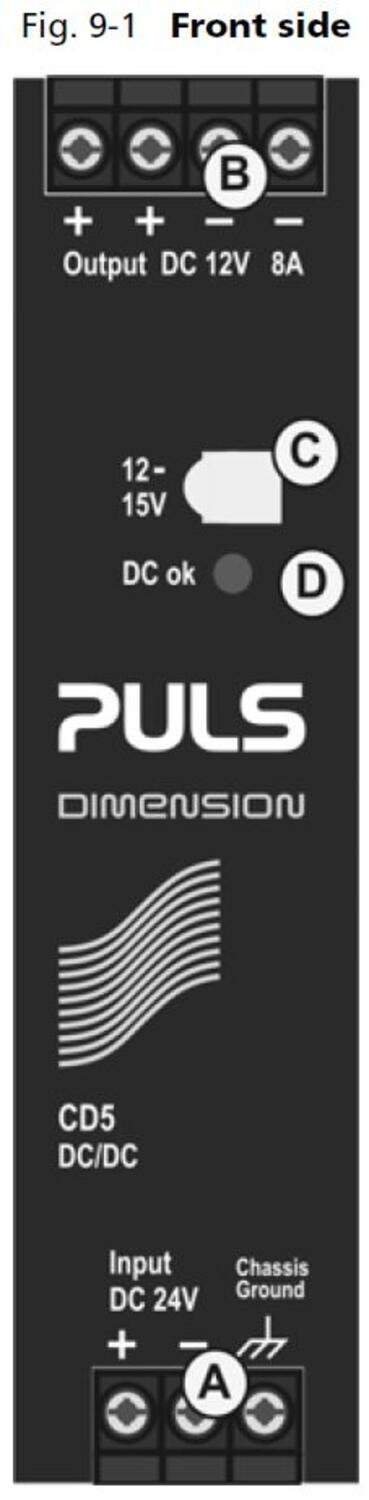

cd5e121_front side.JPG

CD5 Front View

Without signal contacts
We recommend free space of 40 mm above the unit, 20 mm under and 5 mm at the sides.

cd5e241_Front view.JPG

Technical illustrations

Product description

The Puls Dimension DC-DC converter features high efficiency, very compact dimensions and mounting on DIN rail. The input voltage can come from, for example, a power supply unit, batteries or solar panels. The output is galvanically isolated from the input. Examples of fields application are installation at the end of a long cable to stabilize voltage, conversion of one voltage to another or for isolation of specific loads. The DC-DC converters are equipped with a soft-start function, entailing that the current gradually rises to the nominal value. In this way, high starting currents are avoided that can cause voltage drops on the primary side and produce start-up problems. A 20 % power boost provides additional power resources during temporary current peaks. Article CD5.241-S1 is equipped with status outputs for controlling both the output voltage and the input voltage.



We recommend free space of 40 mm above the unit, 20 mm under and 5 mm at the sides.



Accessories

Related products

Related

Kubler slip rings encoders
Blog Product news

Optimise your production line with sensors

Optimise your production line with encoders, inclinometers, displays and slip rings

contaclip kds sr90
Product news

Every angle covered with 90 degree cable entry system

Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.

crouzet millenium slim on limited time discount
Product news

The smallest logic controller ever on limited time discount

The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.

11 questions to get the right signalling device with Auer Signal & OEM Automatic
Blog

11 questions to get the right signalling device – a whitepaper

Do you require signalling devices and beacons in your production process? Download our latest whitepaper!

bespoke solutions electricity meter control boxes
Case studies

Control Box Assembly for Industrial Electricity Metering - A case study

Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.

DC circuit protection PISA M and circuit breakers
Blog

Safeguard systems with DC circuit protection

This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.

Parts Input voltage dc min Output voltage Output voltage min Output voltage max Output current Power Efficiency Life span MTBF (IEC 61709) Weight Approvals Keep time Clamp type Ripple max Status output Power drop from +60 °C to + 70 °C Temperature max without derating Startup delay DC relay output Price
18 V DC
12 V DC
12 V DC
15 V DC
8 A
96 W
88,2 %
63000 h @ 12 V DC, 8 A, 40 °C
1161000 @ 12 V DC, 8 A, 40 °C
0,425 kg
ABS, ATEX, CB, CE, CSA, GL, IECEx, UL
Typ. 7 ms @ 24 V DC
Screw on
75 mV pp
2,5 W/°C
60 °C
420 ms
18 V DC
24 V DC
24 V DC
28 V DC
5 A
120 W
90,3 %
65000 h @ 24 V DC, 5 A, 40 °C
1178000 @ 24 V DC, 5 A, 40 °C
0,425 kg
ABS, ATEX, CB, CE, CSA, GL, IECEx, UL
Typ. 6 ms @ 24 V DC
Screw on
50 mV pp
3 W/°C
60 °C
650 ms
14,4 V DC
24 V DC
24 V DC
24,1 V DC
3,8 A
92 W
90,5 %
134000 h @ 24 V DC, 3,8 A, 40 °C
1487000 h @ 24 V DC, 3,8 A, 40 °C
0,425 kg
ABS, ATEX, CB, CE, CSA, GL, IECEx, NEC Class 2, UL
Typ. 7 ms @ 24 V DC
Spring-clamp
50 mV pp
0 W/°C
70 °C
290 ms
18 V DC
24 V DC
24 V DC
28 V DC
5 A
120 W
90,2 %
60000 h @ 24 V DC, 5 A, 40 °C
1048000 @ 24 V DC, 5 A, 40 °C
0,45 kg
ABS, ATEX, CB, CE, CSA, GL, IECEx, UL
Typ. 6 ms @ 24 V DC
Spring-clamp
50 mV pp
DC-OK and Input-Low
3 W/°C
60 °C
650 ms
Yes
