Input data |
|
|---|---|
| Input voltage from the unit | 24 V DC |
| Input voltage from the battery | 24 V DC |
| Input voltage for battery connection | 22,2 V DC |
| Input current during charging | 7 A |
Output data |
|
| Output current at 24 V dc | 40 A |
| Output voltage for battery operation | 22,2 |
| Output voltage normal operation | 24 V DC |
| Output current for battery operation max | 40 A (50 A @ 5 s) |
| Output current during operation max | 50 A |
Efficiency / Lifetime / MTBF |
|
| Efficiency | 99,3 % |
| Life span | 322 000 h @ 40 A, 40 °C |
| MTBF (IEC 61709) | N/A |

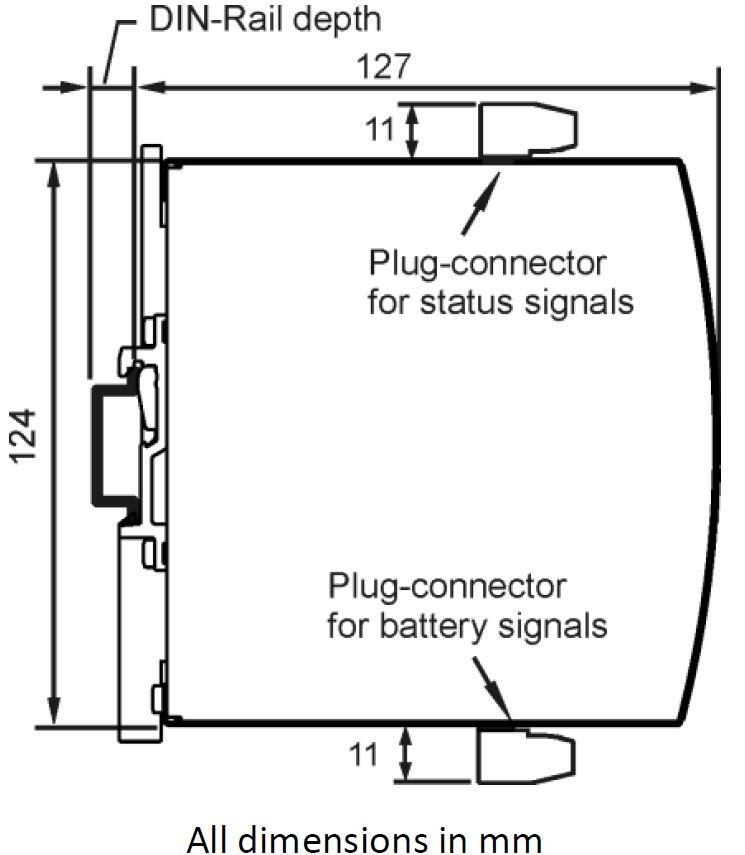

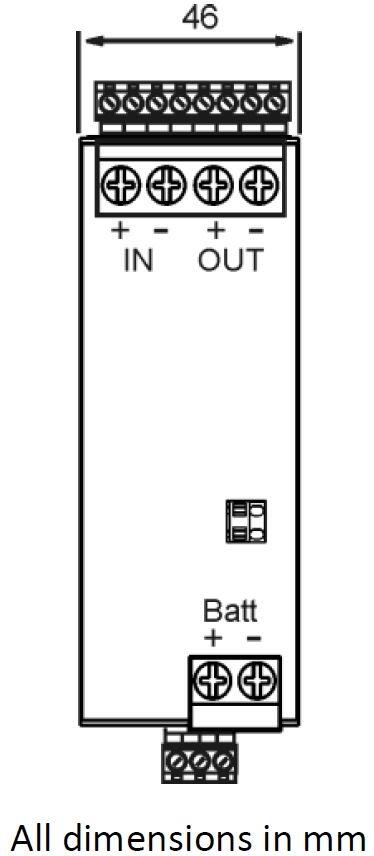

Dimensions |
|
| Width | 46 mm |
| Height | 124 mm |
*Invisible Heading* |
|
|---|---|
| Depth | 127 mm |
| Weight | 0,53 kg |
Other |
|
| Approvals | CE |
| IP class | IP20 |
| Charging the battery type | 3 A |
| Material protection | Aluminium |
| Voltage level for battery connection | 24 V DC |

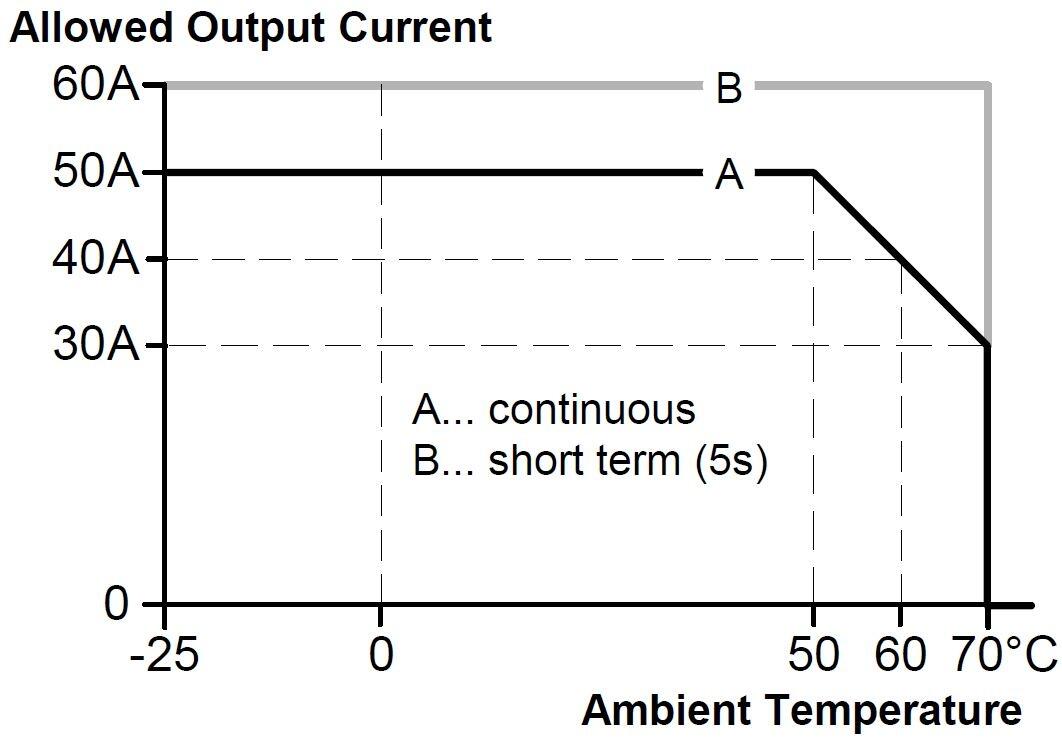

| Power drop from +60 °C to + 70 °C | 24 W/°C |
| Temperature min without derating | -25 °C |
| Temperature max without derating | 60 °C |

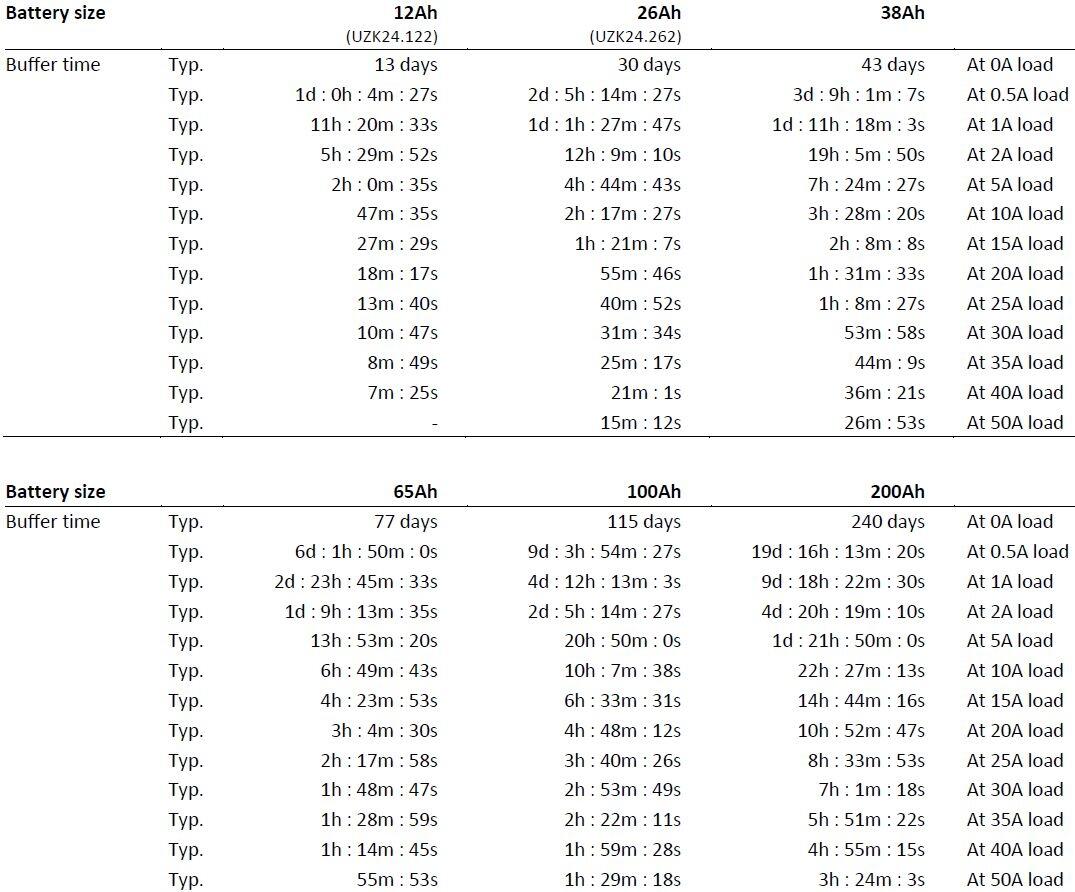

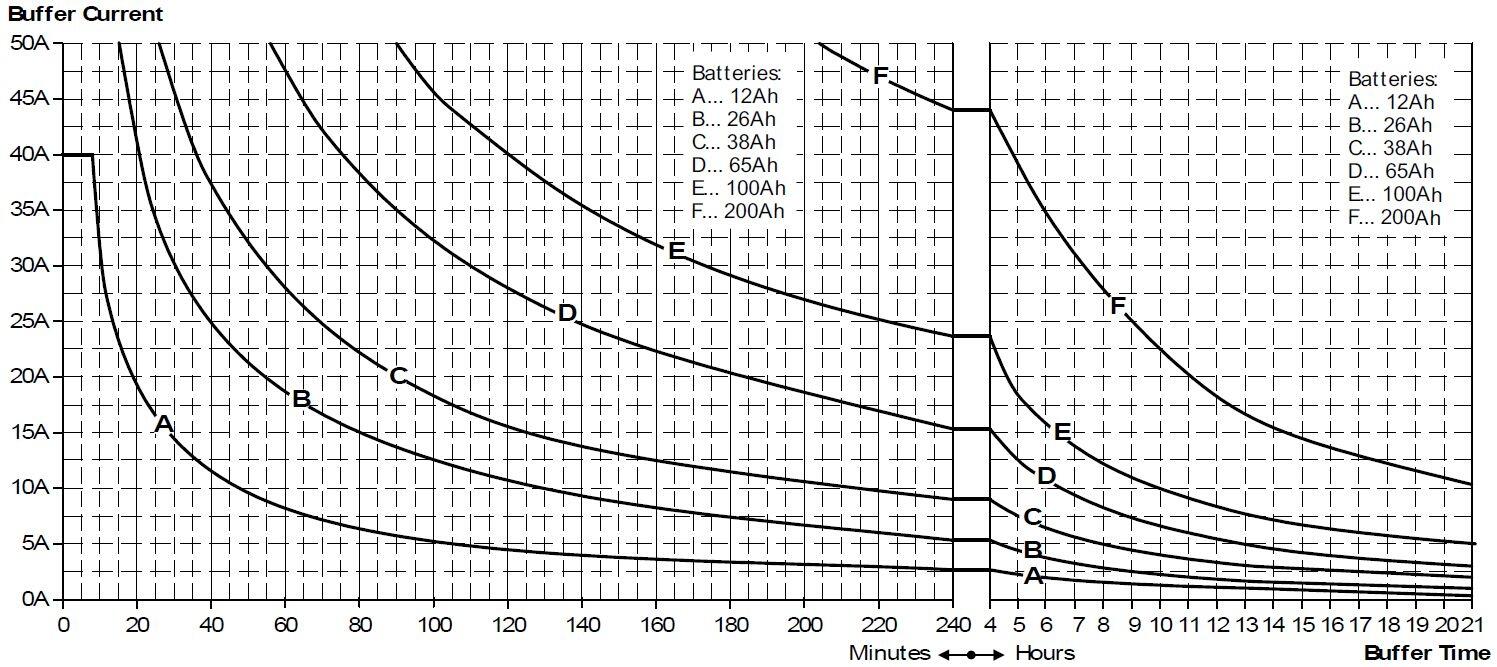

| Permitted battery sizes | 12-200 Ah |

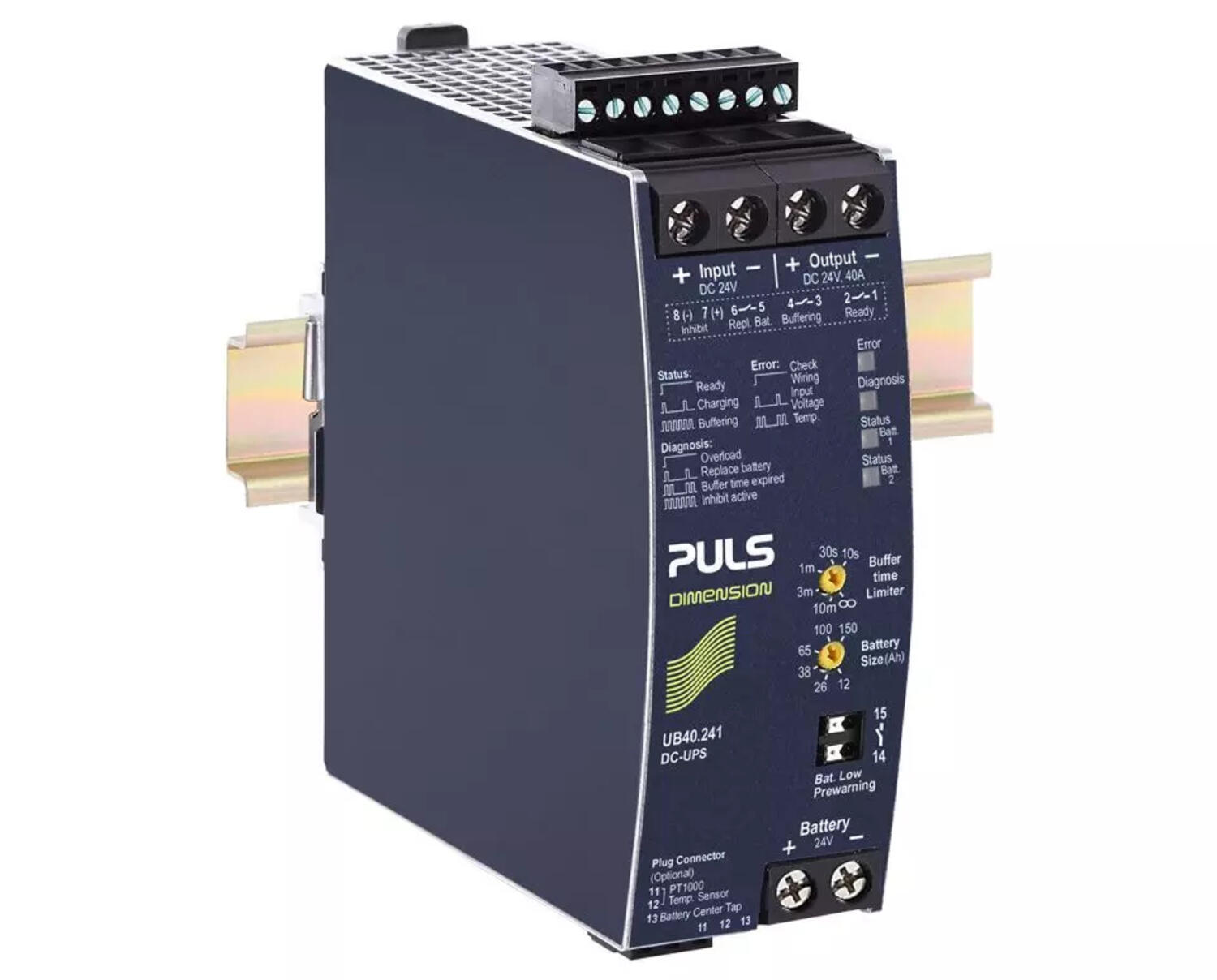

| Type Power Supply | DC-UPS |
