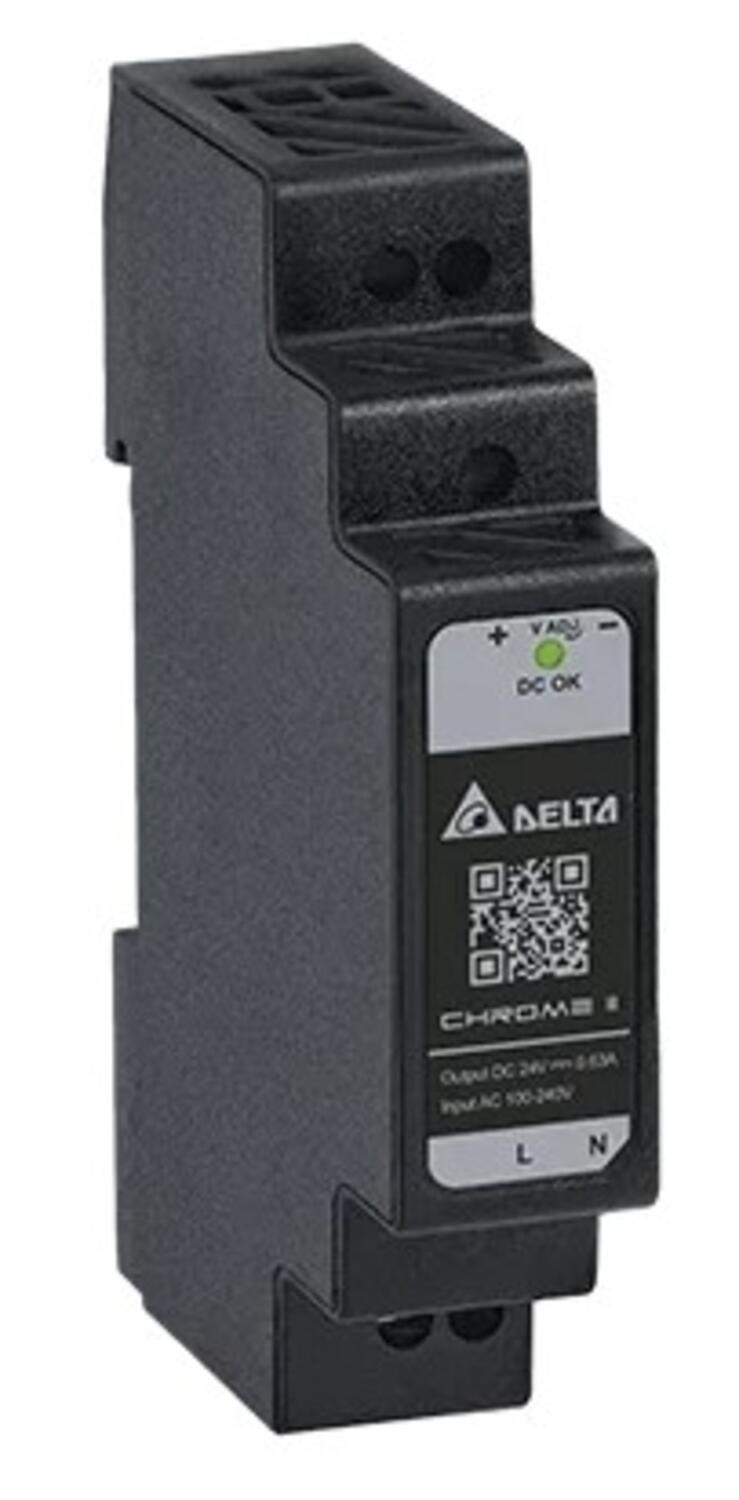

DELTA ELECTRONICS
Input data |
|
|---|---|
| Input voltage ac | 100-240 V |
| Input voltage ac min | 85 V AC |
| Input voltage ac max | 264 V AC |
| Input voltage dc | 125-375 V |
| Input voltage dc min | 125 V DC |
| Input voltage dc max | 375 V DC |
| Inrush current at 230 V ac typical | 40 A |
Output data |
|
| Output voltage | 24 V DC |
| Output voltage min | 21,6 V DC |
| Output voltage max | 26,4 V DC |
| Output current | 0,63 A |
| Power | 15 W |
Efficiency / Lifetime / MTBF |
|
| Efficiency | 87,5 % |

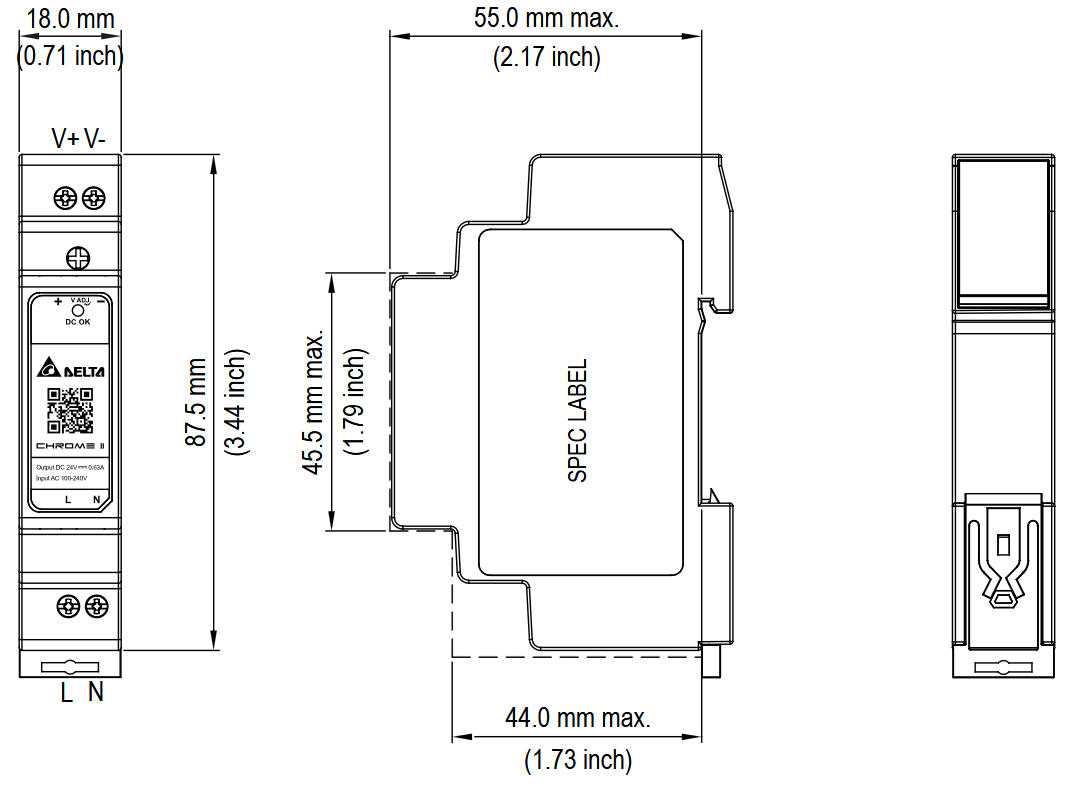

Dimensions |
|
| Width | 18 mm |
| Height | 87,5 mm |
*Invisible Heading* |
|
|---|---|
| Depth | 55 mm |
| Weight | 0,06 kg |
Other |
|
| Approvals | BSMI, CB, CCC, CE, NEC Class 2, REACH, RoHS, TÜV, UL |
| Hold time at 120 V ac, typical full load | 18 ms |
| Hold time at 230 V ac, typical full load | 79 ms |
| IP class | IP20 |
| Clamp type | Screw |
| Material protection | Plastic |
| Supply frequency | 50-60 Hz |
| Power consumption 120 V ac | 0,5 A |
| Power consumption 230 V ac | 0,3 A |
| Temperature min without derating | -40 °C |
| Temperature max without derating | 70 °C |
Optimise your production line with encoders, inclinometers, displays and slip rings
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.
Do you require signalling devices and beacons in your production process? Download our latest whitepaper!
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Input voltage dc | Input voltage dc min | Input voltage dc max | Inrush current at 230 V ac typical | Output current | Power | Efficiency | Width | Weight | Approvals | Hold time at 120 V ac, typical full load | Hold time at 230 V ac, typical full load | Power consumption 120 V ac | Power consumption 230 V ac | Temperature min without derating | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Art:
DRC-24V015W1RZ
Copied
|
125-375 V
|
125 V DC
|
375 V DC
|
40 A
|
0,63 A
|
15 W
|
87,5 %
|
18 mm
|
0,06 kg
|
BSMI, CB, CCC, CE, NEC Class 2, REACH, RoHS, TÜV, UL
|
18 ms
|
79 ms
|
0,5 A
|
0,3 A
|
-40 °C
|
| ||
Art:
DRC-24V030W1RZ
Copied
|
|
|
|
40 A
|
1,5 A
|
36 W
|
87,6 %
|
35 mm
|
0,13 kg
|
BSMI, CB, CCC, CE, UKCA, NEC Class 2, REACH, RoHS, TÜV, UL
|
14 ms
|
70 ms
|
0,9 A
|
0,5 A
|
-30 °C
|
| ||
Art:
DRC-24V060W1RZ
Copied
|
|
|
|
40 A
|
2,5 A
|
60 W
|
89,5 %
|
52,5 mm
|
0,17 kg
|
BSMI, CB, CCC, CE, UKCA, NEC Class 2, REACH, RoHS, TÜV, UL
|
16 ms
|
80 ms
|
1,3 A
|
0,9 A
|
-30 °C
|
| ||
Art:
DRC-24V100W1RZ
Copied
|
|
|
|
70 A
|
3,83 A
|
91,92 W
|
89 %
|
70 mm
|
0,23 kg
|
BSMI, CB, CCC, CE, UKCA, NEC Class 2, REACH, RoHS, TÜV, UL
|
12 ms
|
60 ms
|
1,8 A
|
1,2 A
|
-30 °C
|
|
Select a variant in the list
