Input data |
|
|---|---|
| Input voltage ac | 100-240 V |
| Input voltage ac min | 90 V AC |
| Input voltage dc max | 375 V DC |
| Input voltage dc | 125-375 V |
| Input voltage ac max | 264 V AC |
| Inrush current at 230 V ac typical | 30 A |
| Inrush current at 120 V ac typical | 15 A |
| Input voltage dc min | 125 V DC |
Output data |
|
| Output voltage min | 12 V DC |
| Output voltage | 12 V DC |
| Output voltage max | 12 V DC |
| Power | 9,96 W |
| Output current | 0,83 A |
Efficiency / Lifetime / MTBF |
|
| Efficiency | 82 % |

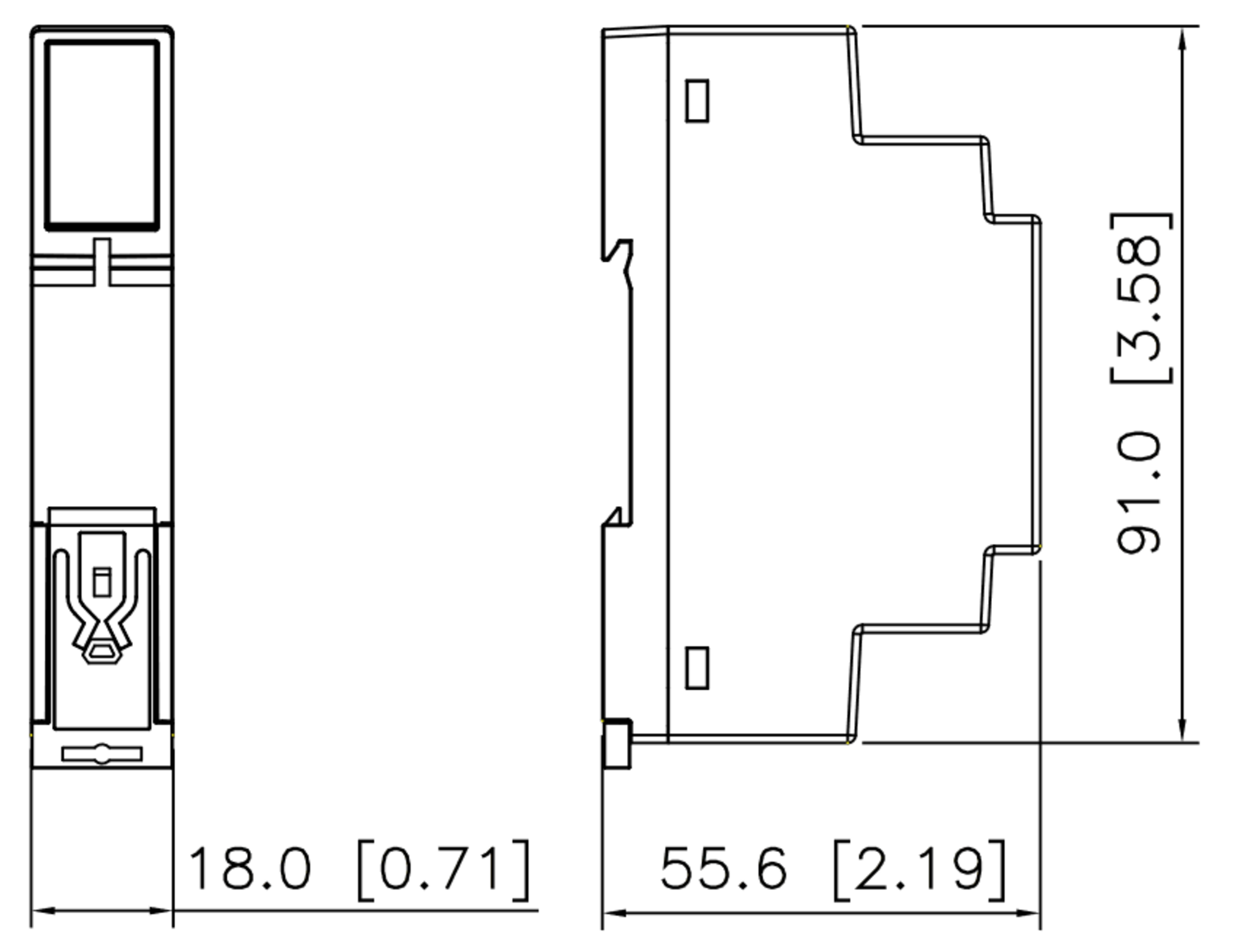

Dimensions |
|
| Weight | 0,06 kg |
*Invisible Heading* |
|
|---|---|
| Depth | 55,6 mm |
| Width | 18 mm |
| Height | 91 mm |
Other |
|
| IP class | IP20 |
| Power consumption 120 V ac | 0,3 A |
| Clamp type | Screw |
| Temperature min without derating | -25 °C |
| Hold time at 120 V ac, typical full load | 10 ms |
| Hold time at 230 V ac, typical full load | 60 ms |
| Power consumption 230 V ac | 0,2 A |
| Supply frequency | 50-60 Hz |
| Approvals | CB, CE, NEC Class 2, TÜV, UL |
| Temperature max without derating | 55 °C |
| Material protection | Plastic |
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.
Do you require signalling devices and beacons in your production process? Download our latest whitepaper!
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.
Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Inrush current at 230 V ac typical | Inrush current at 120 V ac typical | Output voltage min | Output voltage max | Power | Output current | Efficiency | Weight | Width | Power consumption 120 V ac | Hold time at 120 V ac, typical full load | Hold time at 230 V ac, typical full load | Power consumption 230 V ac | Approvals | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Art:

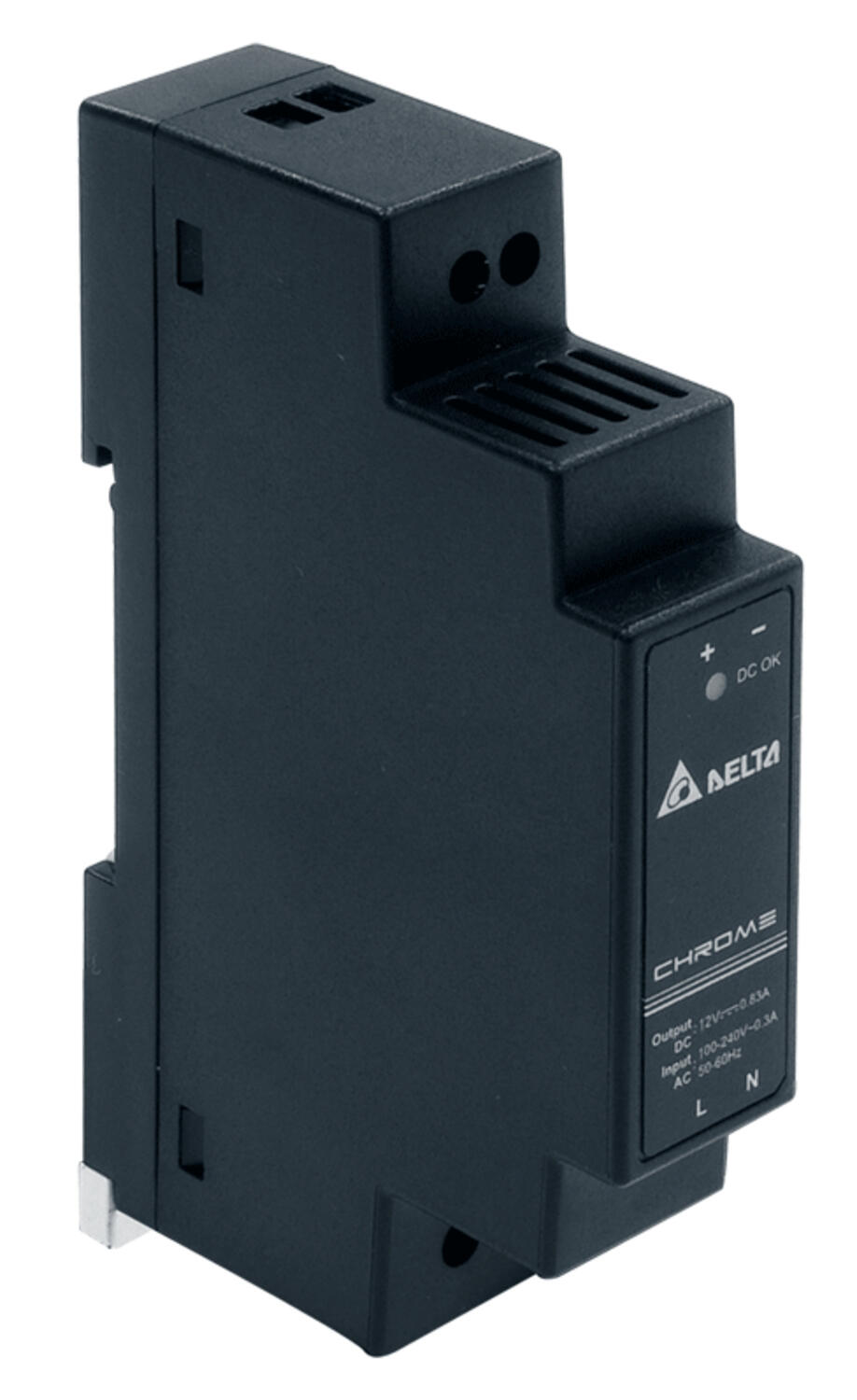

DRC-12V10W1AZ
Copied
|
30 A
|
15 A
|
12 V DC
|
12 V DC
|
9,96 W
|
0,83 A
|
82 %
|
0,06 kg
|
18 mm
|
0,3 A
|
10 ms
|
60 ms
|
0,2 A
|
CB, CE, NEC Class 2, TÜV, UL
|
| ||
Art:

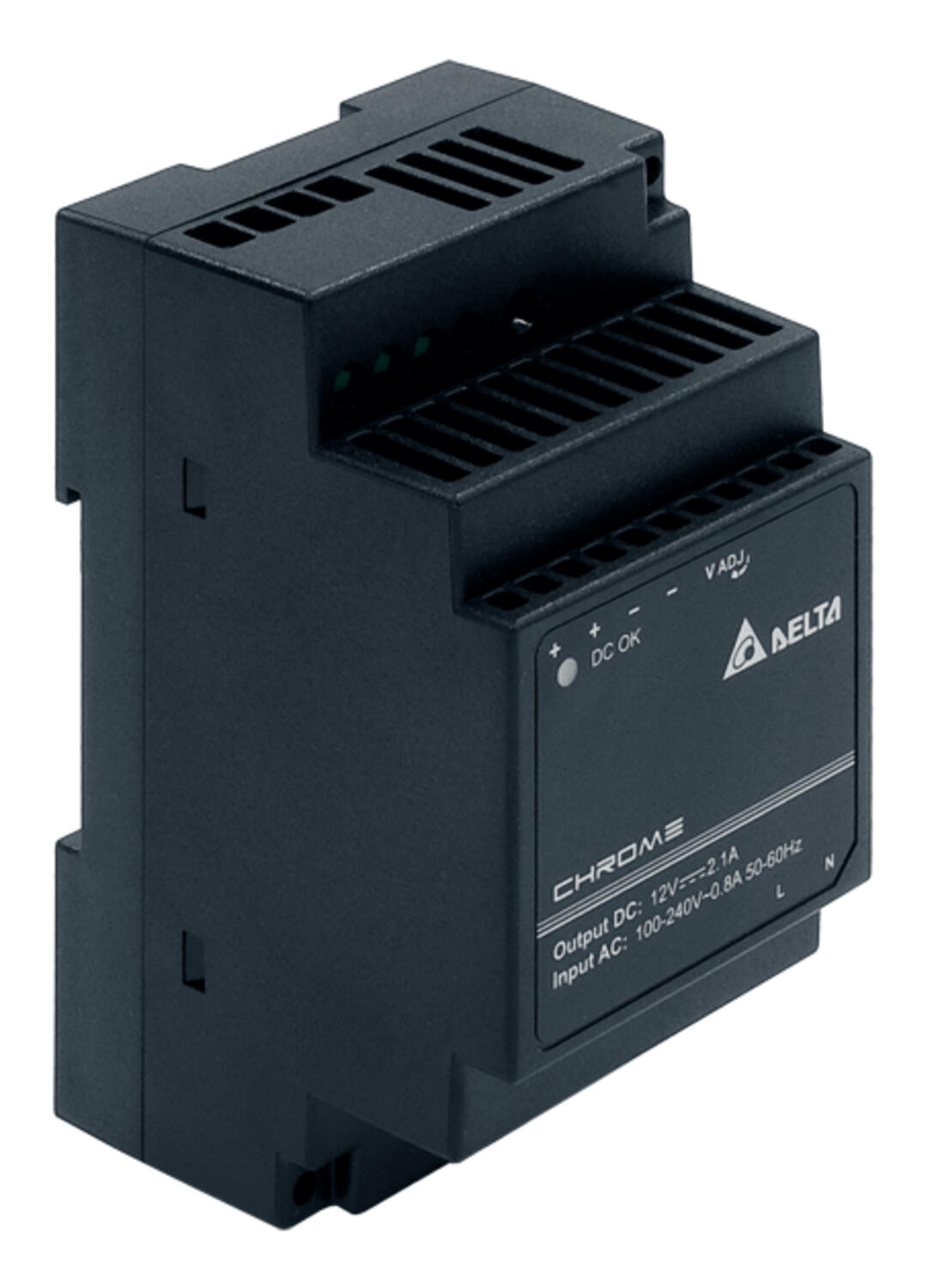

DRC-12V30W1AZ
Copied
|
50 A
|
25 A
|
11,5 V DC
|
14,5 V DC
|
25 W
|
2,1 A
|
85 %
|
0,14 kg
|
53 mm
|
0,8 A
|
25 ms
|
60 ms
|
0,6 A
|
CB, CE, NEC Class 2, TÜV, UL
|
| ||
Art:

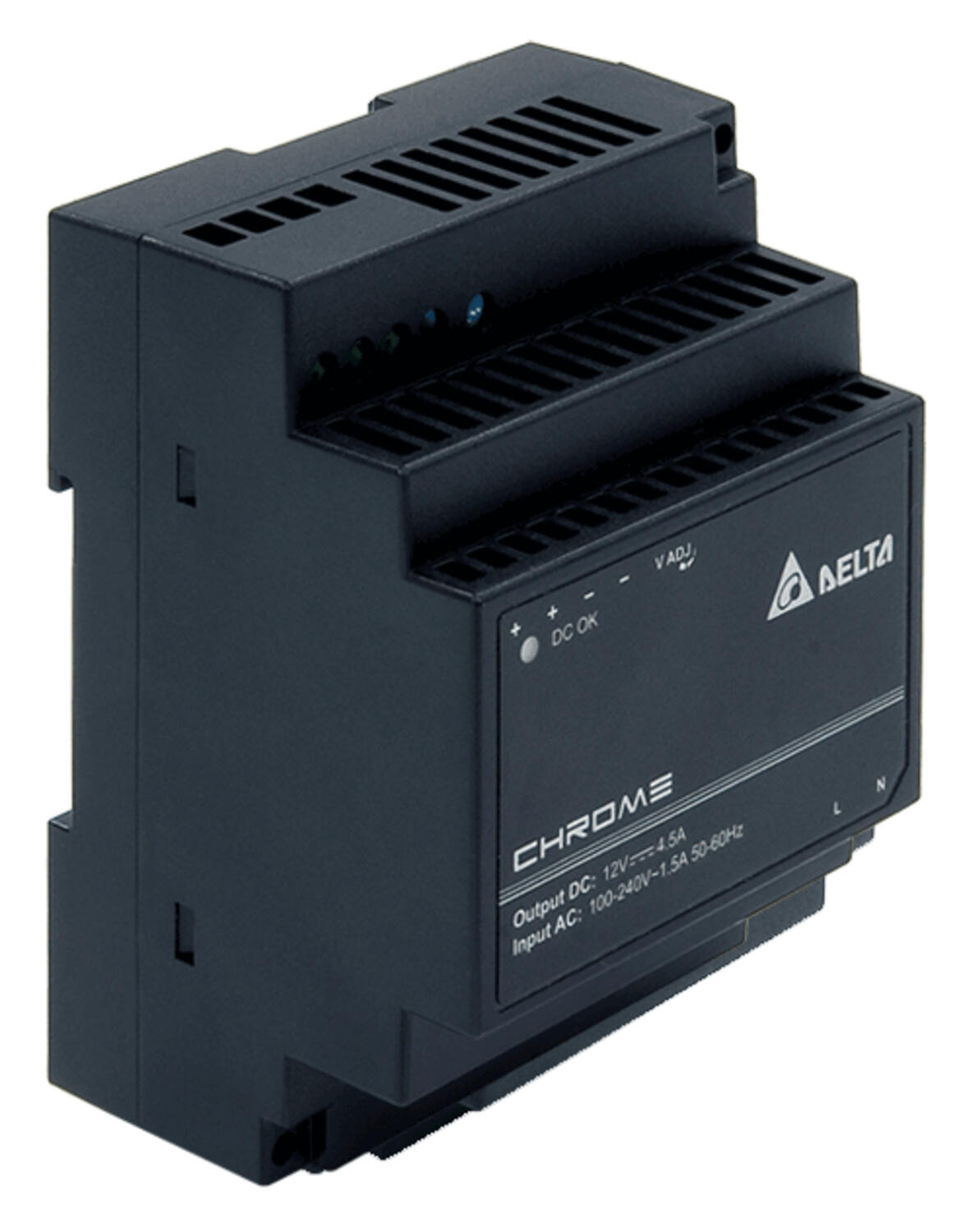

DRC-12V60W1AZ
Copied
|
60 A
|
30 A
|
11,5 V DC
|
14 V DC
|
54 W
|
4,5 A
|
86 %
|
0,22 kg
|
71 mm
|
1,5 A
|
16 ms
|
60 ms
|
1 A
|
CB, CE, NEC Class 2, TÜV, UL
|
| ||
Art:

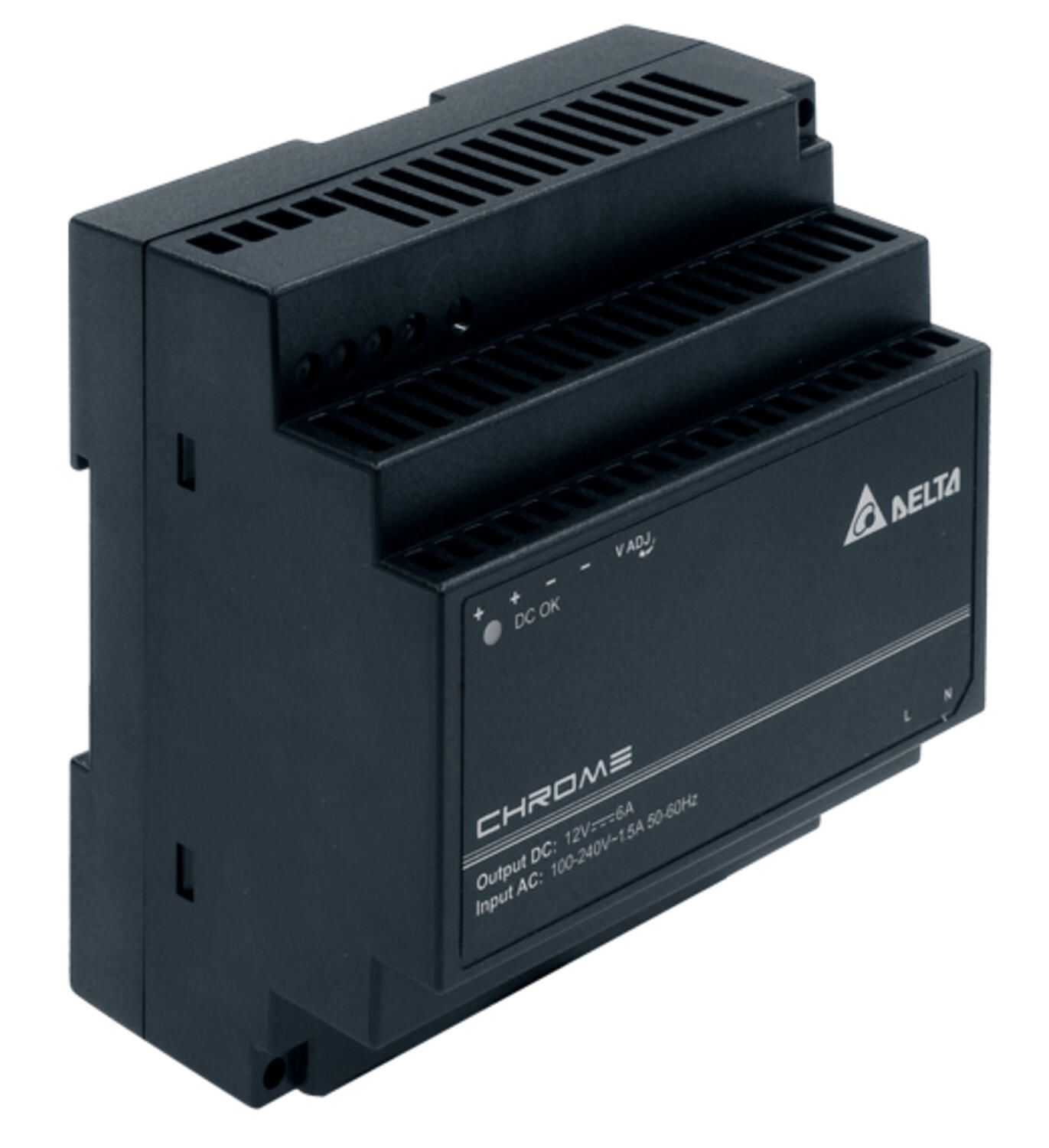

DRC-12V100W1AZ
Copied
|
60 A
|
30 A
|
12 V DC
|
14 V DC
|
72 W
|
6 A
|
86 %
|
0,36 kg
|
89,9 mm
|
1,5 A
|
20 ms
|
100 ms
|
0,9 A
|
CB, CE, TÜV, UL
|
|
Select a variant in the list
