Input data |
|
|---|---|
| Input voltage ac | 100-240 V |
| Input voltage ac min | 90 V AC |
| Input voltage ac max | 264 V AC |
| Input voltage dc | 125-375 V |
| Input voltage dc min | 125 V DC |
| Input voltage dc max | 375 V DC |
| Inrush current at 120 V ac typical | 15 A |
| Inrush current at 230 V ac typical | 30 A |
Output data |
|
| Output voltage | 5 V DC |
| Output voltage min | 4,75 V DC |
| Output voltage max | 5,25 V DC |
| Output current | 1,5 A |
| Power | 7,5 W |
Efficiency / Lifetime / MTBF |
|
| Efficiency | 78 % |

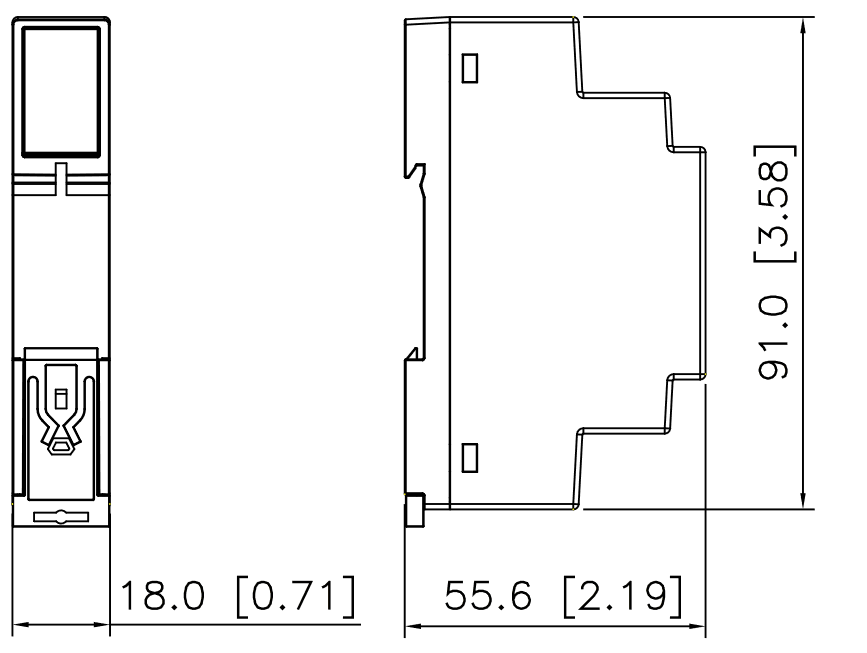

Dimensions |
|
| Width | 18 mm |
*Invisible Heading* |
|
|---|---|
| Height | 91 mm |
| Depth | 55,6 mm |
| Weight | 0,06 kg |
Other |
|
| Approvals | CB, CE, NEC Class 2, TÜV, UL |
| Hold time at 120 V ac, typical full load | 10 ms |
| Hold time at 230 V ac, typical full load | 60 ms |
| IP class | IP20 |
| Clamp type | Screw |
| Material protection | Plastic |
| Supply frequency | 50-60 Hz |
| Power consumption 120 V ac | 0,3 A |
| Power consumption 230 V ac | 0,2 A |
| Temperature min without derating | -25 °C |
| Temperature max without derating | 55 °C |
