Input data |
|
|---|---|
| Input voltage dc | 48-56 V |
| Input voltage dc min | 48 V DC |
| Input voltage dc max | 56 V DC |
Output data |
|
| Output current per channel | 0,63 A |
Efficiency / Lifetime / MTBF |
|
| Efficiency | 96,1 % |
Dimensions |
|

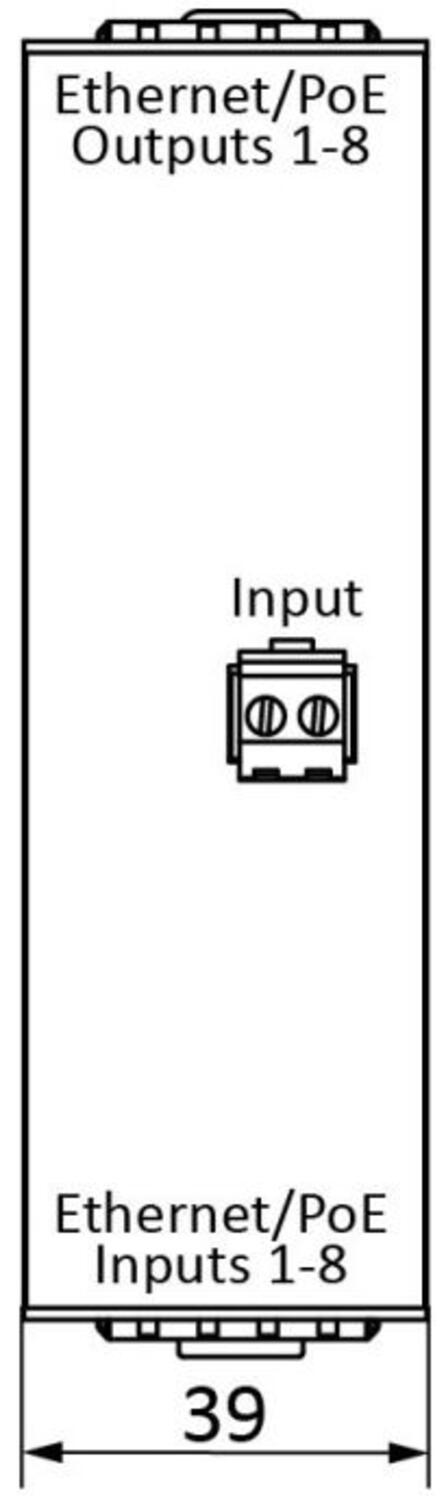

| Width | 39 mm |

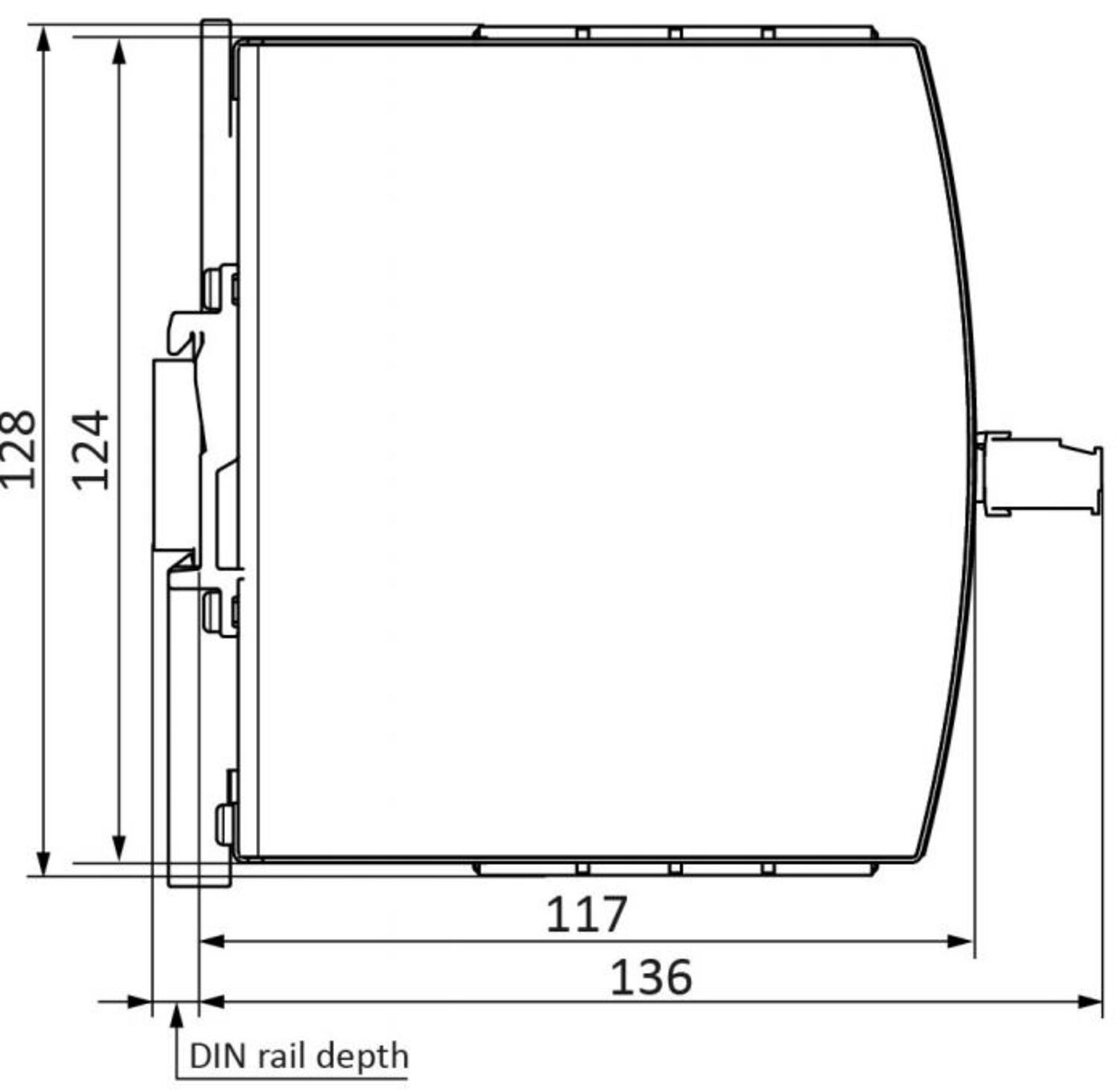

| Height | 128 mm |
| Depth | 117 mm |
*Invisible Heading* |
|
|---|---|
| Weight | 0,36 kg |
Other |
|
| Approvals | CE, EAC |
| IP class | IP20 |
| Cable size stranded max | 1,5 mm² |
| Material protection | Aluminium |

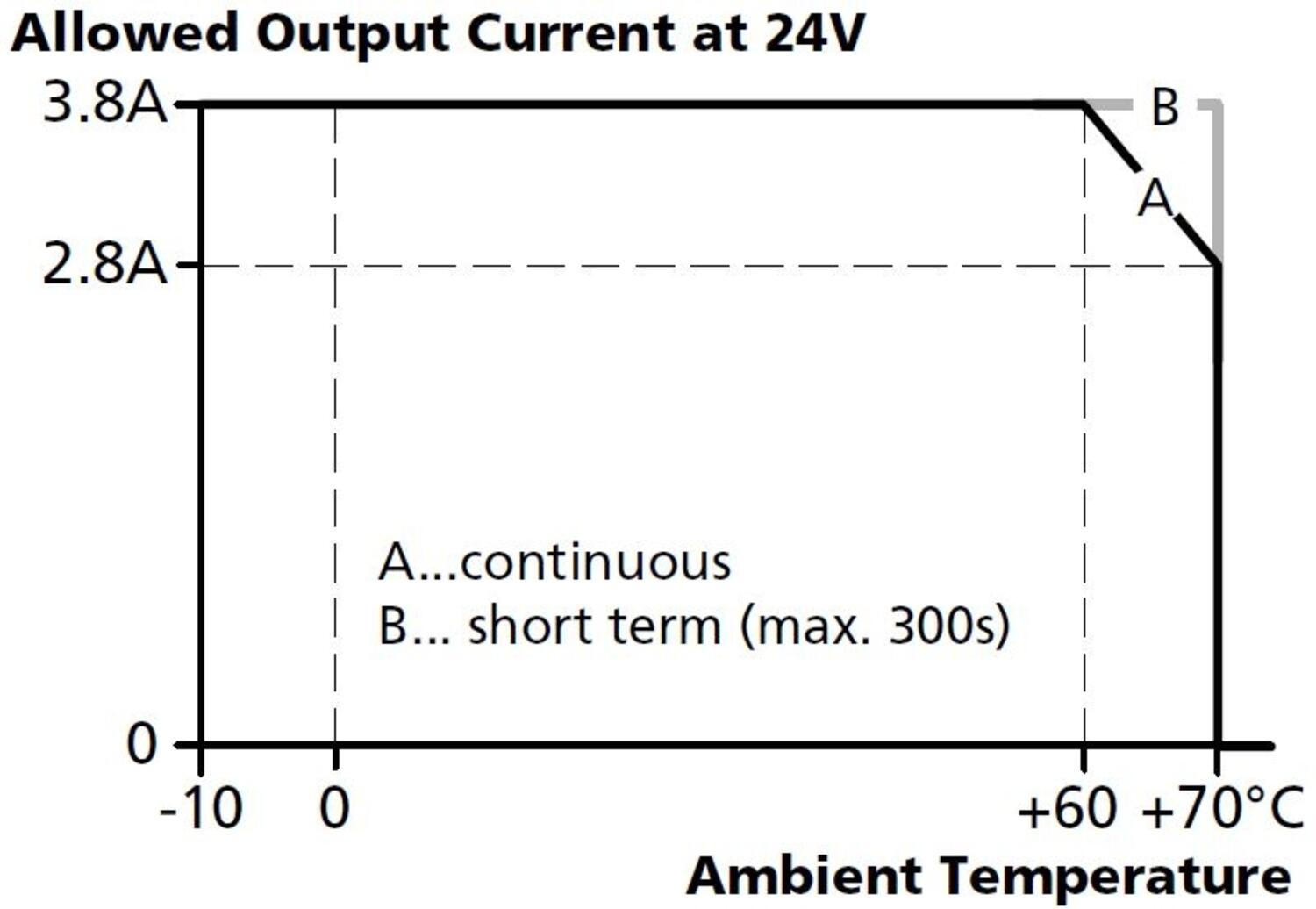

| Temperature min without derating | -45 °C |
| Temperature max without derating | 60 °C |
