PULS

Redundant module 40 A Dimension Series, 12-28 VDC

The YR40.245 is a redundancy module, which can be used to build redundant systems. The module has one

input and one output and can carry nominal currents up to 40A. The output is equipped with a plug-connector, which allows replacing the power supply or the redundancy module while the system is running (hotswapping).



The novelty of this redundancy module is the utilization of mosfets instead of diodes for the decoupling of the output. This reduces the heat generation and the voltage drop between input and output. The redundancy module does not require an additional auxiliary voltage.



Due to the low power losses, the unit is very slender and only requires 46mm width on the DIN-rail. Large

connection terminals allow for a safe and fast installation. The large international approval package makes this unit suitable for nearly every application.

Read more

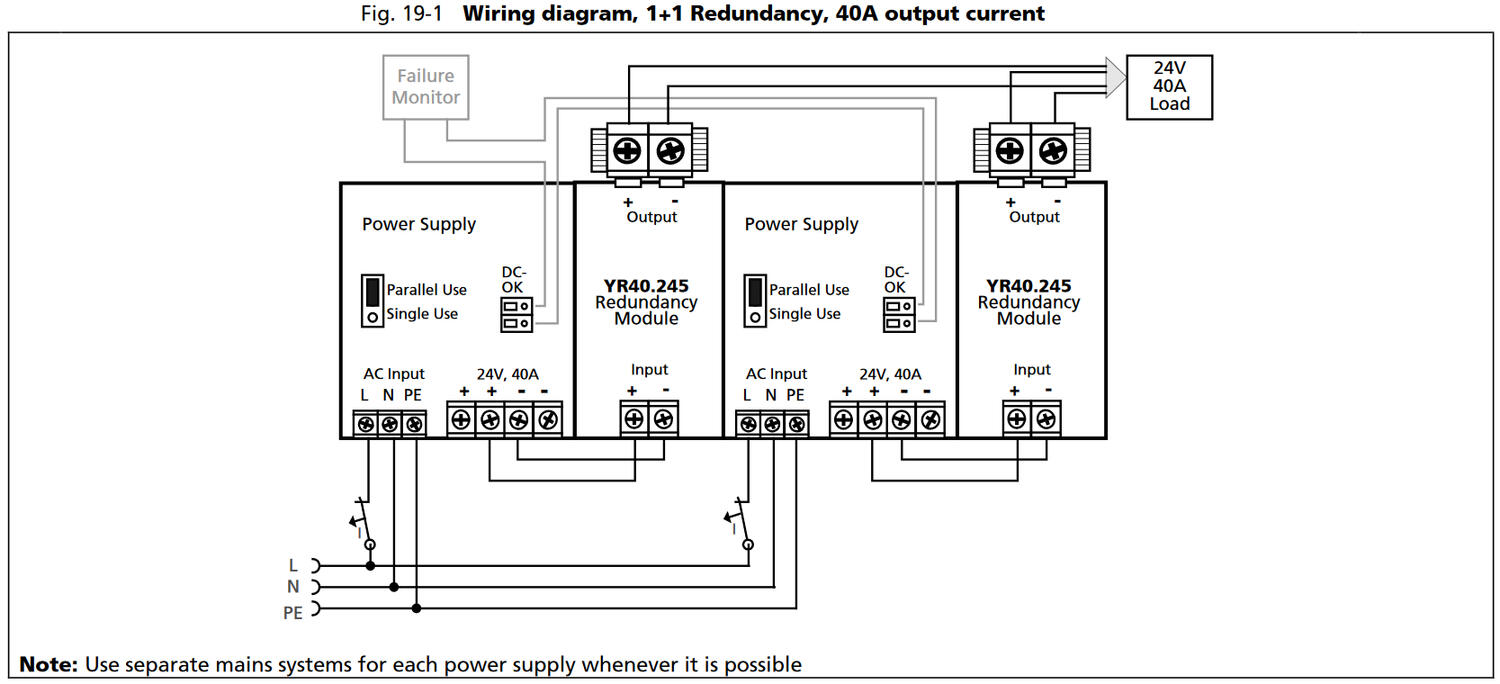

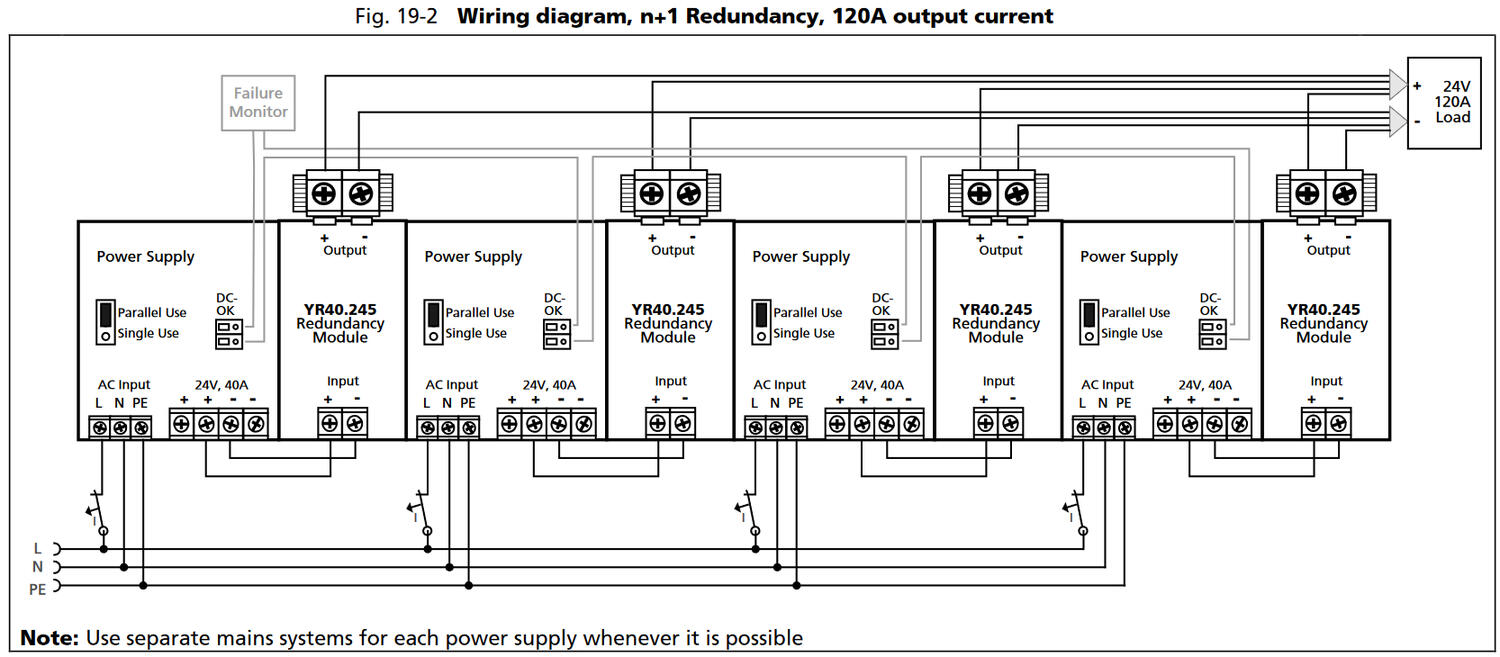

  • N+1 ja 1+1 varmennukseen
  • MOSFET transistors
  • Minimum power loss
  • Hot-Swap connectors

Selected variant

Puls Redundant module 40 A Dimension Series

Redundancy Module 12-28V dc 40A I/P 12-28V dc 40A O/P

Art:

Selected variant

Technical data

Input data

Input voltage dc 12-28 V
Input voltage dc min 8,4 V DC
Input voltage dc max 36,4 V DC
Input current per channel max 40 A
Input current at continuous overload or short circuit max 65 A

Output data

Output voltage 24 V DC
Output current 40 A
Output current max 65 A

Efficiency / Lifetime / MTBF

Life span 134000 h @ 1x 40 A, 24 V DC, 40 °C
MTBF (IEC 61709) 6357000 h @ 1x 40 A, 24 V DC, 40 °C

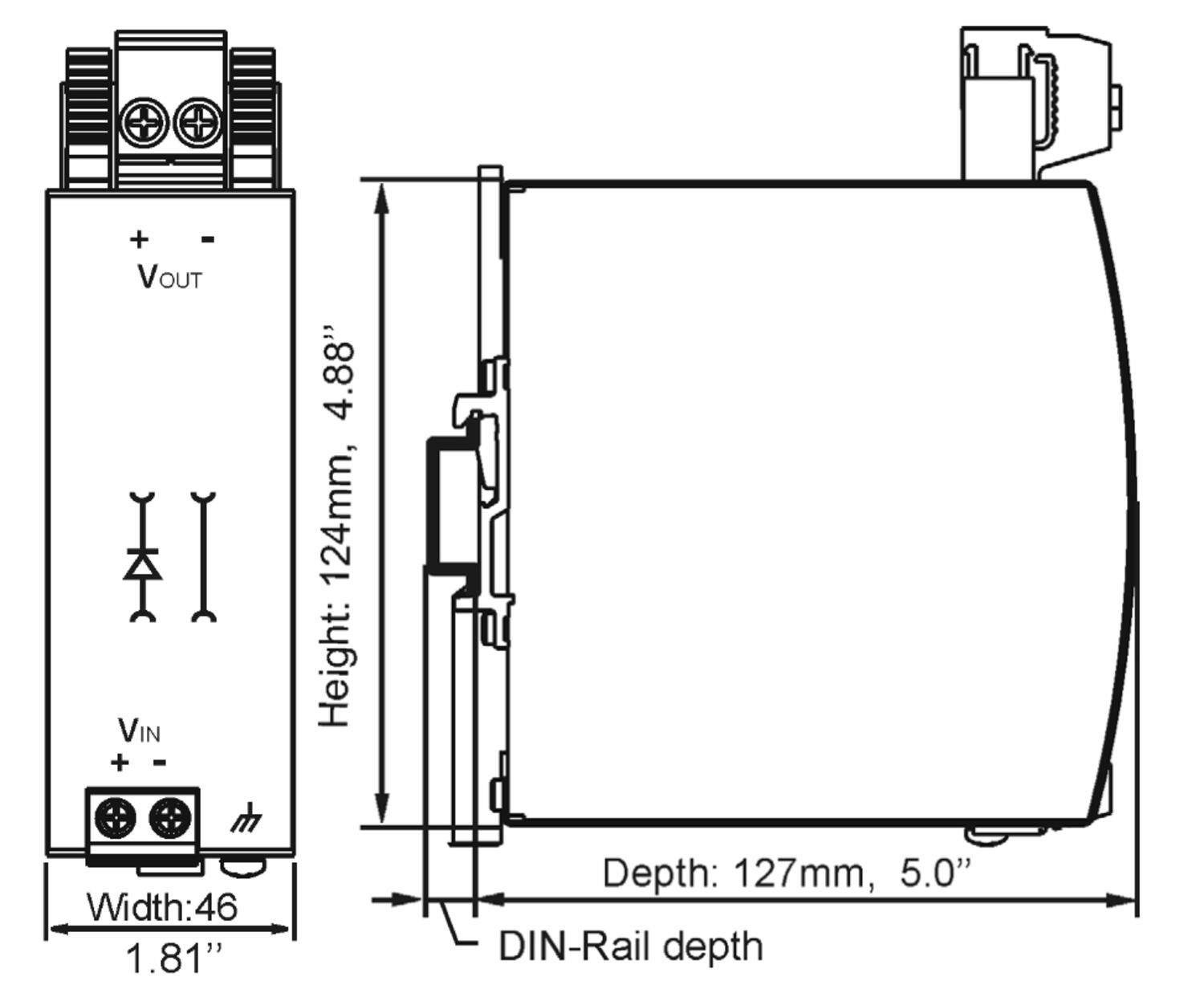

Dimensions

Width 46 mm
Height 124 mm

*Invisible Heading*

Depth 127 mm
Weight 0,34 kg

Other

Input / Output Separation Mosfet
Approvals ABS, ATEX, CB, CE, CSA, CSA US, GL, IECEx, UL
IP class IP20
Material protection Aluminium
Series Dimension Y
Voltage drop over semiconductor 150 mV

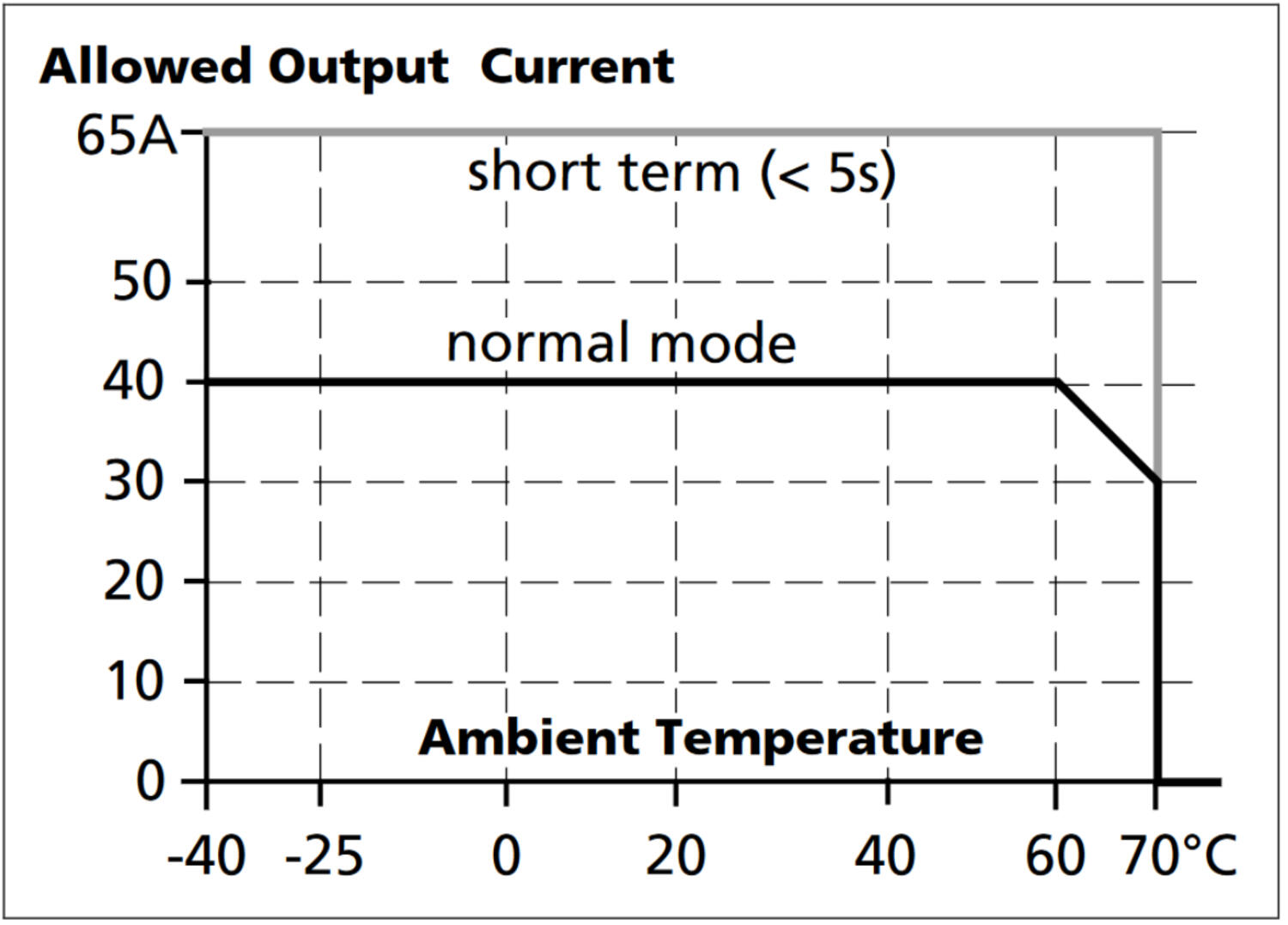

Temperature min without derating -40 °C
Temperature max without derating 70 °C
Type Power Supply Redundancy modules

Product description

The YR40.245 is a redundancy module, which can be used to build redundant systems. The module has one

input and one output and can carry nominal currents up to 40A. The output is equipped with a plug-connector, which allows replacing the power supply or the redundancy module while the system is running (hotswapping).



The novelty of this redundancy module is the utilization of mosfets instead of diodes for the decoupling of the output. This reduces the heat generation and the voltage drop between input and output. The redundancy module does not require an additional auxiliary voltage.



Due to the low power losses, the unit is very slender and only requires 46mm width on the DIN-rail. Large

connection terminals allow for a safe and fast installation. The large international approval package makes this unit suitable for nearly every application.
