Technical data / Documents

Product description

Accessories & Related products

Selected variant

Technical data

Approvals	UL 508, CSA 22.2, BV, CB, CE
Climatic resistance - constant humid heat	IEC 60068-2-3
Climatic resistance - cyclic damp heat	IEC 60068-2-30
Climatic resistance - sea air	IEC 60068-2-52
Colour	Red
Connection solid wire max	2,5 mm²
Connection stranded wire with ferrule max	1.5 mm²
Connection stranded wire with ferrule min	0.5 mm²
Connection type	Push In
Current consumption	25 mA ±20%
Frequency	50/60 Hz
LED supply voltage	12-24V AC/DC

LED voltage tolerance	± 20%
Lifetime at rated supply voltage (25°C)	100000 h
Protection rating rear of panel	IP20
Rated impulse withstand voltage Uimp (Overvoltage cat III - Pollution 3)	4 kV
Rated insulation voltage Ui	300 V
Storage temperature max	70 °C
Storage temperature min	-40 °C
Temperature operational max	70 °C
Temperature operational min	-25 °C
Weight	19 g

Downloads

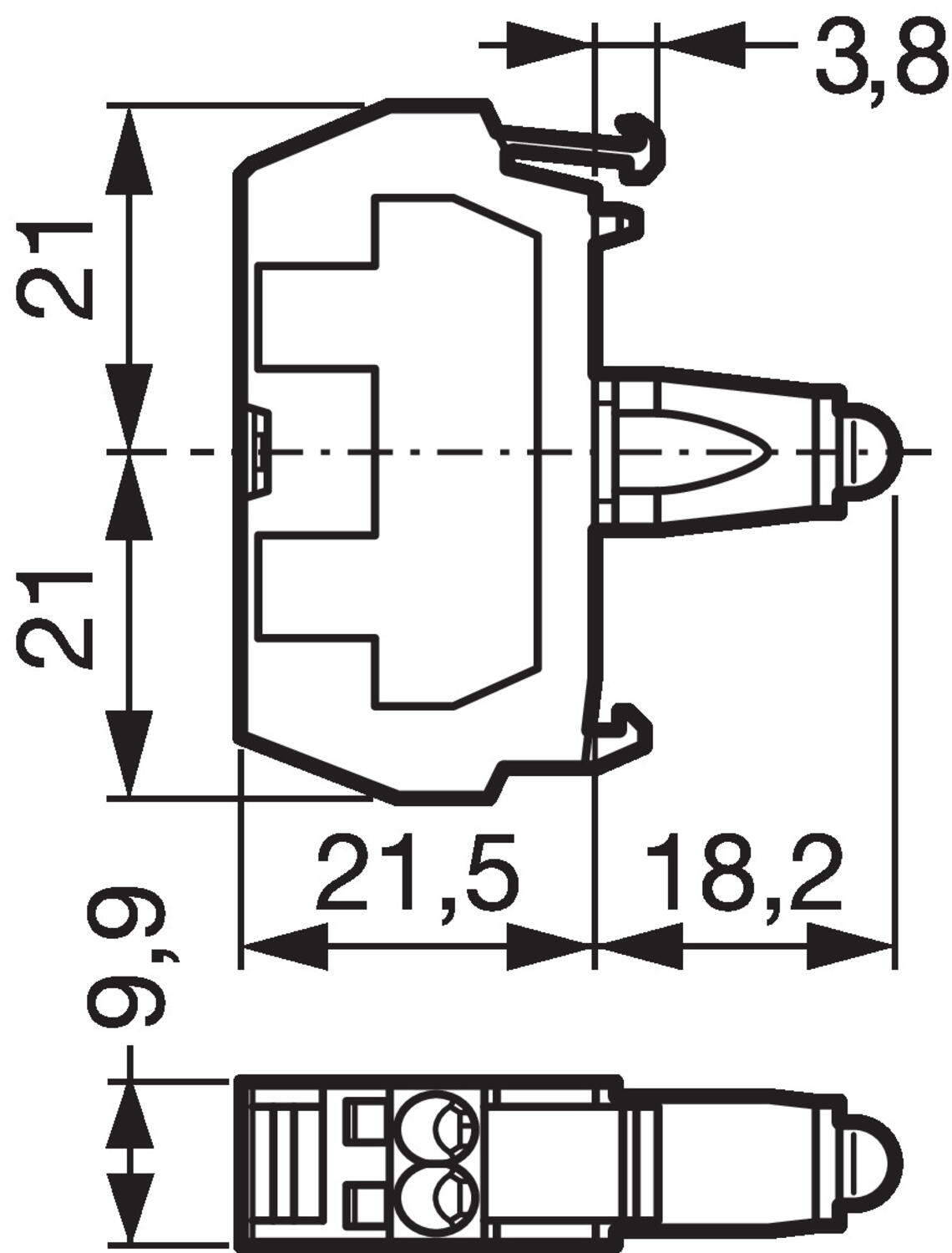

Measurements and connections

Product description

LED blocks with push in screwless terminals offer a fast and secure connection method.

Snap directly in the centre position of 1, 3 or 5 position clips.

Suitable for all illuminated pushbutton, selector switch, mushroom or pilot light heads.

Available in colour options, red, green, yellow, white & blue.

Available in voltage options 12-24Vac/dc, 130Vac & 230Vac.

Long lifetime of up to 100,000 hours.

Accessories

Related products

Related

contaclip kds sr90

Every angle covered with 90 degree cable entry system

Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.

crouzet millenium slim on limited time discount

The smallest logic controller ever on limited time discount

The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.

11 questions to get the right signalling device with Auer Signal & OEM Automatic

11 questions to get the right signalling device – a whitepaper

Do you require signalling devices and beacons in your production process? Download our latest whitepaper!

bespoke solutions electricity meter control boxes

Control Box Assembly for Industrial Electricity Metering - A case study

Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.

DC circuit protection PISA M and circuit breakers

Safeguard systems with DC circuit protection

This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.

IATECH, the industrial automation technology exhibition OEM automatic

Recap of IATECH

Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.

	Parts	Colour	Current consumption	LED supply voltage	LED voltage tolerance	Lifetime at rated supply voltage (25°C)	Price
	LED Block Push 24V ac/dc Red Art: 33RARL Copied	Red	25 mA ±20%	12-24V AC/DC	± 20%	100000 h
	LED Block Push 24V ac/dc Green Art: 33RAGL Copied	Green	25 mA ±20%	12-24V AC/DC	± 20%	50000 h
	LED Block Push 24V ac/dc Yellow Art: 33RAYL Copied	Yellow	25 mA ±20%	12-24V AC/DC	± 20%	100000 h
	LED Block Push 24V ac/dc White Art: 33RAWL Copied	White	25 mA ±20%	12-24V AC/DC	± 20%	50000 h
	LED Block Push 24V ac/dc Blue Art: 33RABL Copied	Blue	25 mA ±20%	12-24V AC/DC	± 20%	50000 h
	LED Block Push 130V ac Red Art: 33RARM Copied	Red	20 mA ±10%	130V AC	± 10%	100000 h
	LED Block Push 130V ac Green Art: 33RAGM Copied	Green	20 mA ±10%	130V AC	± 10%	50000 h
	LED Block Push 130V ac Yellow Art: 33RAYM Copied	Yellow	20 mA ±10%	130V AC	± 10%	100000 h
	LED Block Push 130V ac White Art: 33RAWM Copied	White	20 mA ±10%	130V AC	± 10%	50000 h
	LED Block Push 130V ac Blue Art: 33RABM Copied	Blue	20 mA ±10%	130V AC	± 10%	50000 h
	LED Block Push 230V ac Red Art: 33RARH Copied	Red	16 mA ±30%	230V AC	± 30%	100000 h
	LED Block Push 230V ac Green Art: 33RAGH Copied	Green	16 mA ±30%	230V AC	± 30%	50000 h
	LED Block Push 230V ac Yellow Art: 33RAYH Copied	Yellow	16 mA ±30%	230V AC	± 30%	100000 h
	LED Block Push 230V ac White Art: 33RAWH Copied	White	16 mA ±30%	230V AC	± 30%	50000 h
	LED Block Push 230V ac Blue Art: 33RABH Copied	Blue	16 mA ±30%	230V AC	± 30%	50000 h
