BACO
LED blocks with screw terminal connection that snap directly in the centre position of 1, 3 or 5 position clips.
Suitable for all illuminated pushbutton, selector switch, mushroom or pilot light heads.
Available in colour options, red, green, yellow, white & blue.
Available in voltage options 12-24Vac/dc, 48Vac/dc, 110Vdc, 130Vac & 230Vac.
Long lifetime of up to 100,000 hours.
| Approvals | UL 508, CSA 22.2, BV, CB, CE |
|---|---|
| Climatic resistance - constant humid heat | IEC 60068-2-3 |
| Climatic resistance - cyclic damp heat | IEC 60068-2-30 |
| Climatic resistance - sea air | IEC 60068-2-52 |
| Colour | Red |
| Connection solid wire max | 2,5 mm² |
| Connection stranded wire with ferrule max | 1.5 mm² |
| Connection stranded wire with ferrule min | 0.5 mm² |
| Connection type | Screw |
| Current consumption | 25 mA ±20% |
| Frequency | 50/60 Hz |
| LED supply voltage | 12-24V AC/DC |
| LED voltage tolerance | ± 20% |
|---|---|
| Lifetime at rated supply voltage (25°C) | 100000 h |
| Protection rating rear of panel | IP20 |
| Rated impulse withstand voltage Uimp (Overvoltage cat III - Pollution 3) | 4 kV |
| Rated insulation voltage Ui | 300 V |
| Storage temperature max | 70 °C |
| Storage temperature min | -40 °C |
| Temperature operational max | 70 °C |
| Temperature operational min | -25 °C |
| Tightening torque max | 1,2 Nm |
| Weight | 17 g |
LED blocks with screw terminal connection that snap directly in the centre position of 1, 3 or 5 position clips.
Suitable for all illuminated pushbutton, selector switch, mushroom or pilot light heads.
Available in colour options, red, green, yellow, white & blue.
Available in voltage options 12-24Vac/dc, 48Vac/dc, 110Vdc, 130Vac & 230Vac.
Long lifetime of up to 100,000 hours.
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.
Do you require signalling devices and beacons in your production process? Download our latest whitepaper!
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.
Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Colour | Current consumption | Frequency | LED supply voltage | LED voltage tolerance | Lifetime at rated supply voltage (25°C) | Price | ||
|---|---|---|---|---|---|---|---|---|---|
LED Block Screw 24V ac/dc Red
Art:
33EARL
Copied
|
Red
|
25 mA ±20%
|
50/60 Hz
|
12-24V AC/DC
|
± 20%
|
100000 h
|
| ||
|
LED Block Screw 24V ac/dc Green
Art:
33EAGL
Copied
|
Green
|
25 mA ±20%
|
50/60 Hz
|
12-24V AC/DC
|
± 20%
|
50000 h
|
| ||
|
LED Block Screw 24V ac/dc Yellow
Art:
33EAYL
Copied
|
Yellow
|
25 mA ±20%
|
50/60 Hz
|
12-24V AC/DC
|
± 20%
|
100000 h
|
| ||
|
LED Block Screw 24V ac/dc White
Art:
33EAWL
Copied
|
White
|
25 mA ±20%
|
50/60 Hz
|
12-24V AC/DC
|
± 20%
|
50000 h
|
| ||
|
LED Block Screw 24V ac/dc Blue
Art:
33EABL
Copied
|
Blue
|
25 mA ±20%
|
50/60 Hz
|
12-24V AC/DC
|
± 20%
|
50000 h
|
| ||
|
LED Block Screw 48V ac/dc Red
Art:
33EARL4
Copied
|
Red
|
15 mA ±5%
|
50/60 Hz
|
48V AC/DC
|
± 5%
|
100000 h
|
| ||
|
LED Block Screw 48V ac/dc Green
Art:
33EAGL4
Copied
|
Green
|
15 mA ±5%
|
50/60 Hz
|
48V AC/DC
|
± 5%
|
50000 h
|
| ||
|
LED Block Screw 48V ac/dc Yellow
Art:
33EAYL4
Copied
|
Yellow
|
15 mA ±5%
|
50/60 Hz
|
48V AC/DC
|
± 5%
|
100000 h
|
| ||
|
LED Block Screw 48V ac/dc White
Art:
33EAWL4
Copied
|
White
|
15 mA ±5%
|
50/60 Hz
|
48V AC/DC
|
± 5%
|
50000 h
|
| ||
|
LED Block Screw 48V ac/dc Blue
Art:
33EABL4
Copied
|
Blue
|
15 mA ±5%
|
50/60 Hz
|
48V AC/DC
|
± 5%
|
50000 h
|
| ||

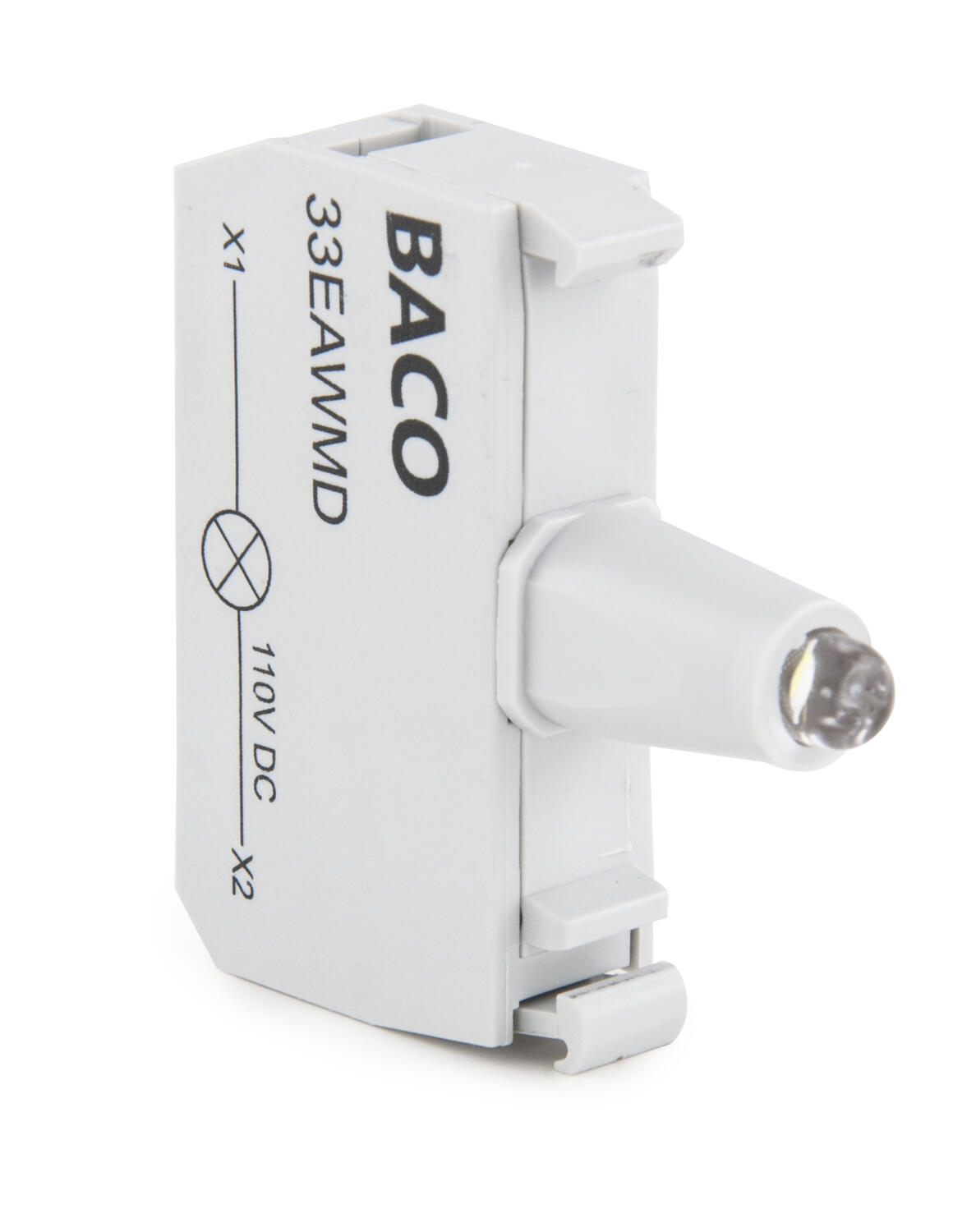

Art:
33EAWMD
Copied
|
White
|
20 mA ±10%
|
|
110V DC
|
± 10%
|
50000 h
|
| ||
|
LED Block Screw 130V ac Red
Art:
33EARM
Copied
|
Red
|
20 mA ±10%
|
50/60 Hz
|
130V AC
|
± 10%
|
100000 h
|
| ||
|
LED Block Screw 130V ac Green
Art:
33EAGM
Copied
|
Green
|
20 mA ±10%
|
50/60 Hz
|
130V AC
|
± 10%
|
50000 h
|
| ||
|
LED Block Screw 130V ac Yellow
Art:
33EAYM
Copied
|
Yellow
|
20 mA ±10%
|
50/60 Hz
|
130V AC
|
± 10%
|
100000 h
|
| ||
|
LED Block Screw 130V ac White
Art:
33EAWM
Copied
|
White
|
20 mA ±10%
|
50/60 Hz
|
130V AC
|
± 10%
|
50000 h
|
| ||
|
LED Block Screw 130V ac Blue
Art:
33EABM
Copied
|
Blue
|
20 mA ±10%
|
50/60 Hz
|
130V AC
|
± 10%
|
50000 h
|
| ||
|
LED Block Screw 230V ac Red
Art:
33EARH
Copied
|
Red
|
16 mA ±30%
|
50/60 Hz
|
230V AC
|
± 30%
|
100000 h
|
| ||
|
LED Block Screw 230V ac Green
Art:
33EAGH
Copied
|
Green
|
16 mA ±30%
|
50/60 Hz
|
230V AC
|
± 30%
|
50000 h
|
| ||
|
LED Block Screw 230V ac Yellow
Art:
33EAYH
Copied
|
Yellow
|
16 mA ±30%
|
50/60 Hz
|
230V AC
|
± 30%
|
100000 h
|
| ||
|
LED Block Screw 230V ac White
Art:
33EAWH
Copied
|
White
|
16 mA ±30%
|
50/60 Hz
|
230V AC
|
± 30%
|
50000 h
|
| ||
|
LED Block Screw 230V ac Blue
Art:
33EABH
Copied
|
Blue
|
16 mA ±30%
|
50/60 Hz
|
230V AC
|
± 30%
|
50000 h
|
|
Select a variant in the list
