Technical data / Documents

Product description

Accessories & Related products

Selected variant

Technical data

Angle	45°
Approvals	UL 508, CSA 22.2, BV, CB, CE
Climatic resistance - constant humid heat	IEC 60068-2-3
Climatic resistance - cyclic damp heat	IEC 60068-2-30
Climatic resistance - sea air	IEC 60068-2-52
Colour	Black
Function	Stable
Illuminated	No
Impact resistance	IK05
IP class	IP66, IP69, IP69K
Key removable	0

Mechanical life expectancy	300 000 cycles
Positions	2
Protection class	II (double insulated)
Recommended tightening torque	3 Nm
Storage temperature max	70 °C
Storage temperature min	-40 °C
Temperature operational max	70 °C
Temperature operational min	-25 °C
Type	Key
Weight	31,2 g

Downloads

BACO_Switching_and_controls_catalogue.pdf

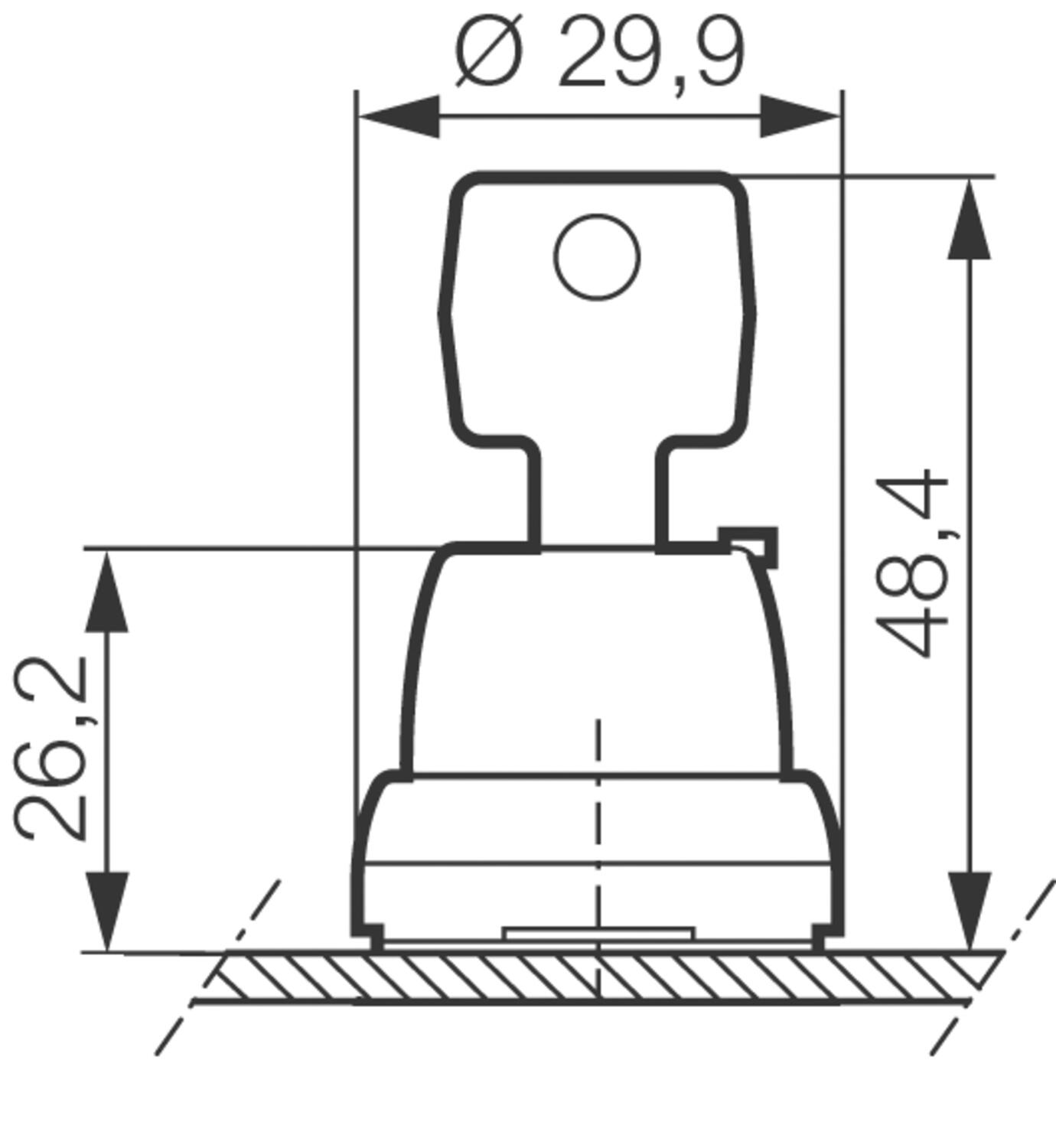

Measurements and connections

Technical illustrations

Product description

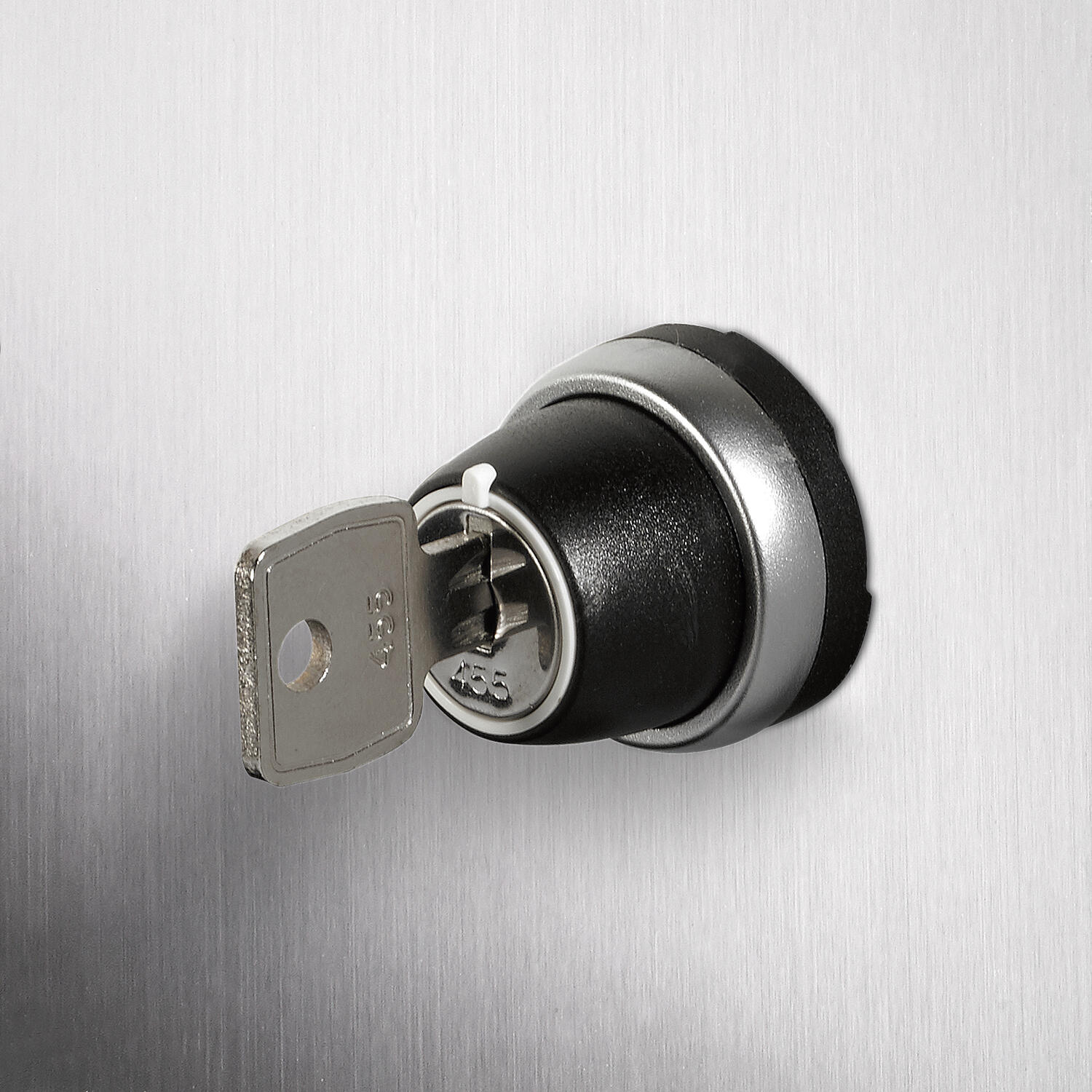

Non illuminated selector switch head that is key operated and mounts in a 22.5mm hole with protection rating IP66 / IP69K

Combine with separate clip and contact blocks to make complete switch assembly.

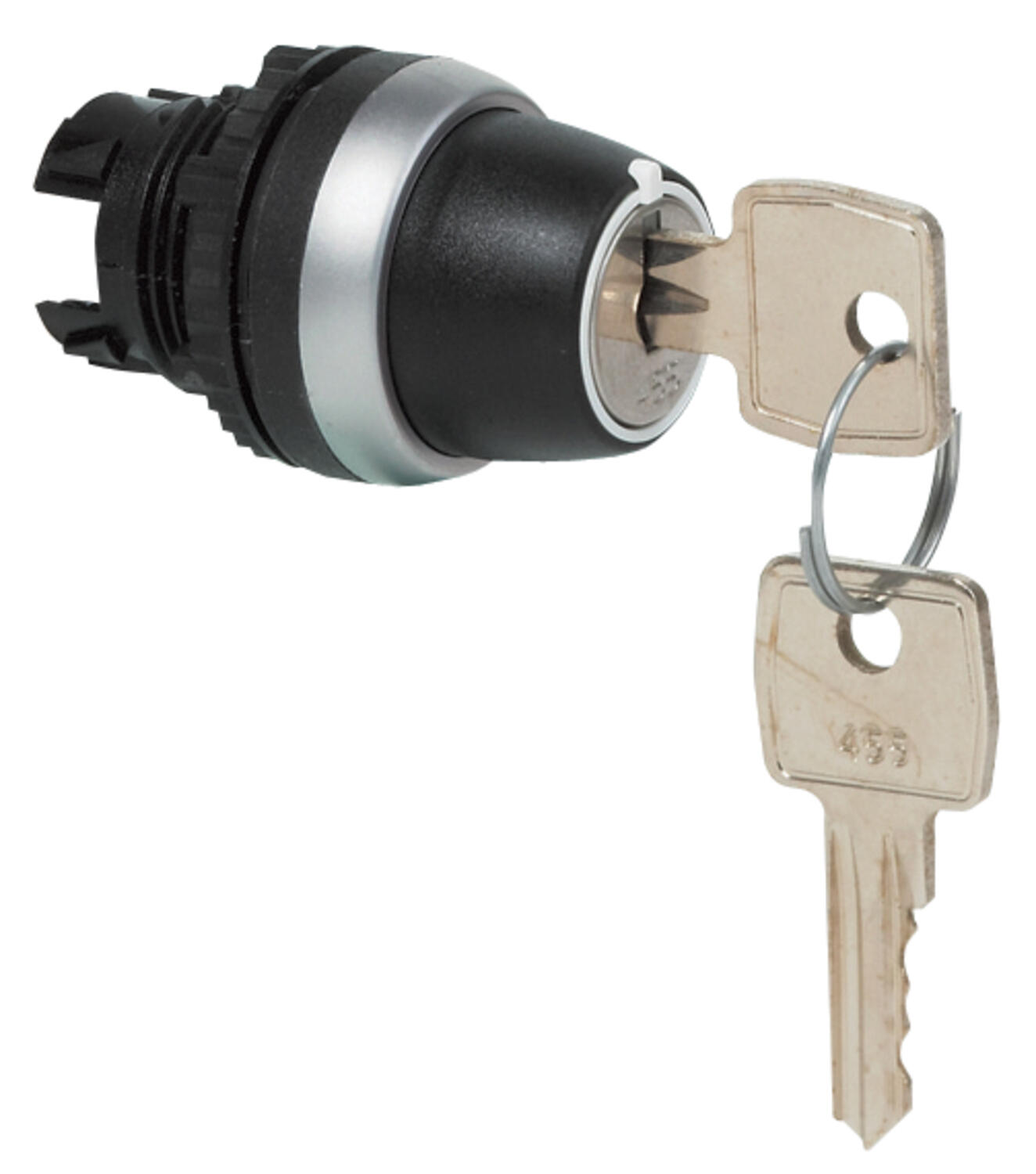

Each head supplied with 2 x keys.

Key profile 455 is standard.

Key profile 1424A available at no extra cost.

Other key profiles available at additional cost please enquire for details.

Available in 2 or 3 position, latching or spring return in various switching angles and key free options.

Supplied with a matt chrome bezel as standard.

For black plastic bezel change the part number from L21xxxx to L22xxxx.

Accessories

Related products

Related

contaclip kds sr90

Every angle covered with 90 degree cable entry system

Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.

crouzet millenium slim on limited time discount

The smallest logic controller ever on limited time discount

The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.

11 questions to get the right signalling device with Auer Signal & OEM Automatic

11 questions to get the right signalling device – a whitepaper

Do you require signalling devices and beacons in your production process? Download our latest whitepaper!

bespoke solutions electricity meter control boxes

Control Box Assembly for Industrial Electricity Metering - A case study

Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.

DC circuit protection PISA M and circuit breakers

Safeguard systems with DC circuit protection

This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.

IATECH, the industrial automation technology exhibition OEM automatic

Recap of IATECH

Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.

	Parts	Angle	Approvals	Climatic resistance - constant humid heat	Climatic resistance - cyclic damp heat	Climatic resistance - sea air	Colour	Function	Illuminated	Impact resistance	IP class	Key removable	Mechanical life expectancy	Positions	Protection class	Recommended tightening torque	Storage temperature max	Storage temperature min	Temperature operational max	Temperature operational min	Type	Weight	Price
	Selector Key 2 Position Stable 45° Black 455 Art: L21LA00 Copied	45°	UL 508, CSA 22.2, BV, CB, CE	IEC 60068-2-3	IEC 60068-2-30	IEC 60068-2-52	Black	Stable	No	IK05	IP66, IP69, IP69K	0	300 000 cycles	2	II (double insulated)	3 Nm	70 °C	-40 °C	70 °C	-25 °C	Key	31,2 g
	Selector Key 2 Position Spring Return 45° Black 455 Art: L21LB00 Copied	45°	UL 508, CSA 22.2, BV, CB, CE	IEC 60068-2-3	IEC 60068-2-30	IEC 60068-2-52	Black	Spring return	No	IK05	IP66, IP69, IP69K	0	300 000 cycles	2	II (double insulated)	3 Nm	70 °C	-40 °C	70 °C	-25 °C	Key	31,2 g
	Selector Key 2 Position Stable 45° Black 455 Art: L21LC00 Copied	45°	UL 508, CSA 22.2, BV, CB, CE	IEC 60068-2-3	IEC 60068-2-30	IEC 60068-2-52	Black	Stable	No	IK05	IP66, IP69, IP69K	0	300 000 cycles	2	II (double insulated)	3 Nm	70 °C	-40 °C	70 °C	-25 °C	Key	31,2 g
	Selector Key 2 Position Spring Return 45° Black 455 Art: L21LD00 Copied	45°	UL 508, CSA 22.2, BV, CB, CE	IEC 60068-2-3	IEC 60068-2-30	IEC 60068-2-52	Black	Spring return	No	IK05	IP66, IP69, IP69K	0	300 000 cycles	2	II (double insulated)	3 Nm	70 °C	-40 °C	70 °C	-25 °C	Key	31,2 g
	Selector Key 2 Position Stable 90° Black 455 Art: L21LF00 Copied	90°	UL 508, CSA 22.2, BV, CB, CE	IEC 60068-2-3	IEC 60068-2-30	IEC 60068-2-52	Black	Stable	No	IK05	IP66, IP69, IP69K	0	300 000 cycles	2	II (double insulated)	3 Nm	70 °C	-40 °C	70 °C	-25 °C	Key	31,2 g
	Selector Key 2 Position Stable 90° Black 455 Art: L21LG00 Copied	90°	UL 508, CSA 22.2, BV, CB, CE	IEC 60068-2-3	IEC 60068-2-30	IEC 60068-2-52	Black	Stable	No	IK05	IP66, IP69, IP69K	0 - 1	300 000 cycles	2	II (double insulated)	3 Nm	70 °C	-40 °C	70 °C	-25 °C	Key	31,2 g
	Selector Key 2 Position Stable 90° Black 1424A Art: L21LG00A Copied
	Selector Key 2 Position Stable 90° Black 455 Art: L21LH00 Copied	90°	UL 508, CSA 22.2, BV, CB, CE	IEC 60068-2-3	IEC 60068-2-30	IEC 60068-2-52	Black	Stable	No	IK05	IP66, IP69, IP69K	0 - 1	300 000 cycles	2	II (double insulated)	3 Nm	70 °C	-40 °C	70 °C	-25 °C	Key	31,2 g
	Selector Key 2 Position Stable 90° Black 455 Art: L21LK00 Copied	90°	UL 508, CSA 22.2, BV, CB, CE	IEC 60068-2-3	IEC 60068-2-30	IEC 60068-2-52	Black	Stable	No	IK05	IP66, IP69, IP69K	1	300 000 cycles	2	II (double insulated)	3 Nm	70 °C	-40 °C	70 °C	-25 °C	Key	31,2 g
	Selector Key 3 Position Stable 45° Black 455 Art: L21NA00 Copied	45°	UL 508, CSA 22.2, BV, CB, CE	IEC 60068-2-3	IEC 60068-2-30	IEC 60068-2-52	Black	Stable	No	IK05	IP66, IP69, IP69K	0	300 000 cycles	3	II (double insulated)	3 Nm	70 °C	-40 °C	70 °C	-25 °C	Key	31,2 g
	Selector Key 3 Position Spring Return 45° Black 455 Art: L21NB00 Copied	45°	UL 508, CSA 22.2, BV, CB, CE	IEC 60068-2-3	IEC 60068-2-30	IEC 60068-2-52	Black	Spring return	No	IK05	IP66, IP69, IP69K	0	300 000 cycles	3	II (double insulated)	3 Nm	70 °C	-40 °C	70 °C	-25 °C	Key	31,2 g
	Selector Key 3 Position Spring Return 45° Black 455 Art: L21NC00 Copied	45°	UL 508, CSA 22.2, BV, CB, CE	IEC 60068-2-3	IEC 60068-2-30	IEC 60068-2-52	Black	Spring return	No	IK05	IP66, IP69, IP69K	0	300 000 cycles	3	II (double insulated)	3 Nm	70 °C	-40 °C	70 °C	-25 °C	Key	31,2 g
	Selector Key 3 Position Spring Return 45° Black 455 Art: L21ND00 Copied	45°	UL 508, CSA 22.2, BV, CB, CE	IEC 60068-2-3	IEC 60068-2-30	IEC 60068-2-52	Black	Spring return	No	IK05	IP66, IP69, IP69K	0	300 000 cycles	3	II (double insulated)	3 Nm	70 °C	-40 °C	70 °C	-25 °C	Key	31,2 g
	Selector Key 3 Position Spring Return 45° Black 455 Art: L21NJ00 Copied	45°	UL 508, CSA 22.2, BV, CB, CE	IEC 60068-2-3	IEC 60068-2-30	IEC 60068-2-52	Black	Spring return	No	IK05	IP66, IP69, IP69K	1	300 000 cycles	3	II (double insulated)	3 Nm	70 °C	-40 °C	70 °C	-25 °C	Key	31,2 g
	Selector Key 3 Position Stable 90° Black 455 Art: L21NK00 Copied	90°	UL 508, CSA 22.2, BV, CB, CE	IEC 60068-2-3	IEC 60068-2-30	IEC 60068-2-52	Black	Stable	No	IK05	IP66, IP69, IP69K	1 - 0 - 2	300 000 cycles	3	II (double insulated)	3 Nm	70 °C	-40 °C	70 °C	-25 °C	Key	31,2 g
	Selector Key 3 Position Stable 90° Black 455 Art: L21NL00 Copied	90°	UL 508, CSA 22.2, BV, CB, CE	IEC 60068-2-3	IEC 60068-2-30	IEC 60068-2-52	Black	Stable	No	IK05	IP66, IP69, IP69K	0	300 000 cycles	3	II (double insulated)	3 Nm	70 °C	-40 °C	70 °C	-25 °C	Key	31,2 g
