BACO

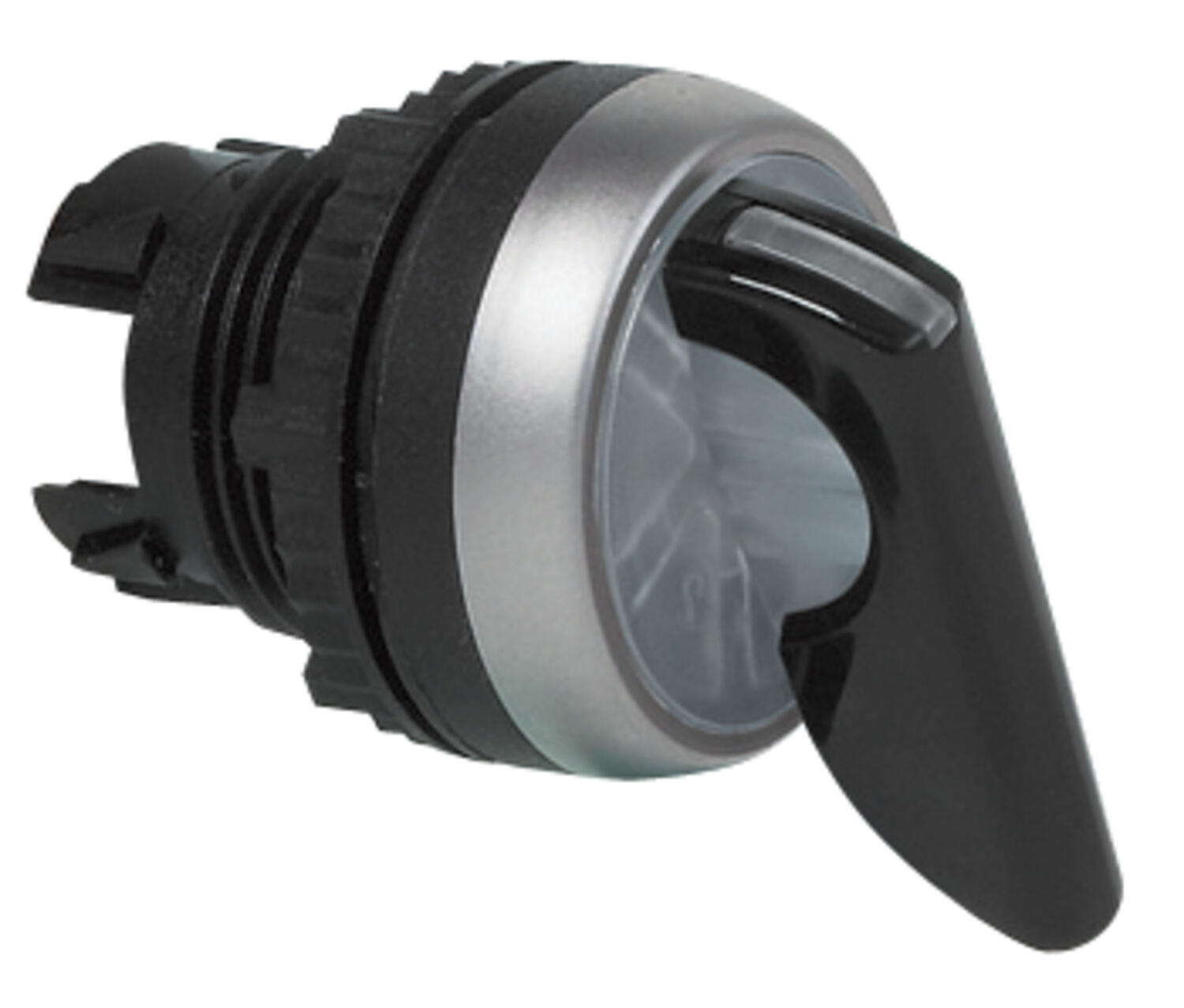

Illuminated selector switch head with a long lever handle that mount in a 22.5mm hole with protection rating IP66 / IP69K
Combine with clip, contact blocks and LED module (must be in centre position) to make complete illuminated selector switch assembly.
Â
The central part of the switch head, side and tip of the lever are translucent and illuminate according to the colour of LED block used.
The lever of the switch is solid in colour and available only in black.
Â
Available in 2 or 3 position, latching or spring return in various switching angles.
Â
Supplied with a matt chrome bezel as standard.
For black plastic bezel change the part number from L21xxxx to L22xxxx.
Â
| Angle | 45° |
|---|---|
| Approvals | UL 508, CSA 22.2, BV, CB, CE |
| Climatic resistance - constant humid heat | IEC 60068-2-3 |
| Climatic resistance - cyclic damp heat | IEC 60068-2-30 |
| Climatic resistance - sea air | IEC 60068-2-52 |
| Colour | Black |
| Function | Stable |
| Illuminated | Yes |
| Impact resistance | IK05 |
| IP class | IP66, IP69, IP69K |
| Mechanical life expectancy | 300 000 cycles |
| Positions | 2 |
|---|---|
| Protection class | II (double insulated) |
| Recommended tightening torque | 3 Nm |
| Storage temperature max | 70 °C |
| Storage temperature min | -40 °C |
| Temperature operational max | 70 °C |
| Temperature operational min | -25 °C |
| Type | Long lever |
| Weight | 17,8 g |
Illuminated selector switch head with a long lever handle that mount in a 22.5mm hole with protection rating IP66 / IP69K
Combine with clip, contact blocks and LED module (must be in centre position) to make complete illuminated selector switch assembly.
Â
The central part of the switch head, side and tip of the lever are translucent and illuminate according to the colour of LED block used.
The lever of the switch is solid in colour and available only in black.
Â
Available in 2 or 3 position, latching or spring return in various switching angles.
Â
Supplied with a matt chrome bezel as standard.
For black plastic bezel change the part number from L21xxxx to L22xxxx.
Â
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.
Do you require signalling devices and beacons in your production process? Download our latest whitepaper!
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.
Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Function | Positions | Price | ||
|---|---|---|---|---|---|
Selector Long Handle Illuminated 2 Pos Stable 45° Black
Art:
L21KV30
Copied
|
Stable
|
2
|
| ||
|
Selector Long Handle Illuminated 2 Pos Stable 45° Black
Art:
L21KX30
Copied
|
Stable
|
2
|
| ||
|
Selector Long Handle Illuminated 2 Pos Spring Ret 45° Black
Art:
L21KY30
Copied
|
Spring return
|
2
|
| ||
|
Selector Long Handle Illuminated 3 Pos Stable 45° Black
Art:
L21ML30
Copied
|
Stable
|
3
|
| ||
|
Selector Long Handle Illuminated 3 Pos Spring Ret 45° Black
Art:
L21MM30
Copied
|
Spring return
|
3
|
| ||
|
Selector Long Handle Illuminated 3 Pos Spring Ret 45° Black
Art:
L21MN30
Copied
|
Spring return
|
3
|
| ||
|
Selector Long Handle Illuminated 3 Pos Spring Ret 45° Black
Art:
L21MP30
Copied
|
Spring return
|
3
|
|
