Input Data |
|
---|---|
Coil voltage | 12 AC/DC |
Working Un | 0,8…1,25 |
Output Data |
|
Inrush max | 15 A |
Recommended min load | 100 mA / 12 V |
Switching power AC15 / 230 V | 300 VA |
Recommended max load | 6 A, 250 V AC-1 / 6 A, 30 V DC-1 |
Breaking capacity current | 6 A |
Number of contacts | 1 |
Switching power AC1 / 230 V | 1500 VA |
*Invisible Heading* |
|
---|---|

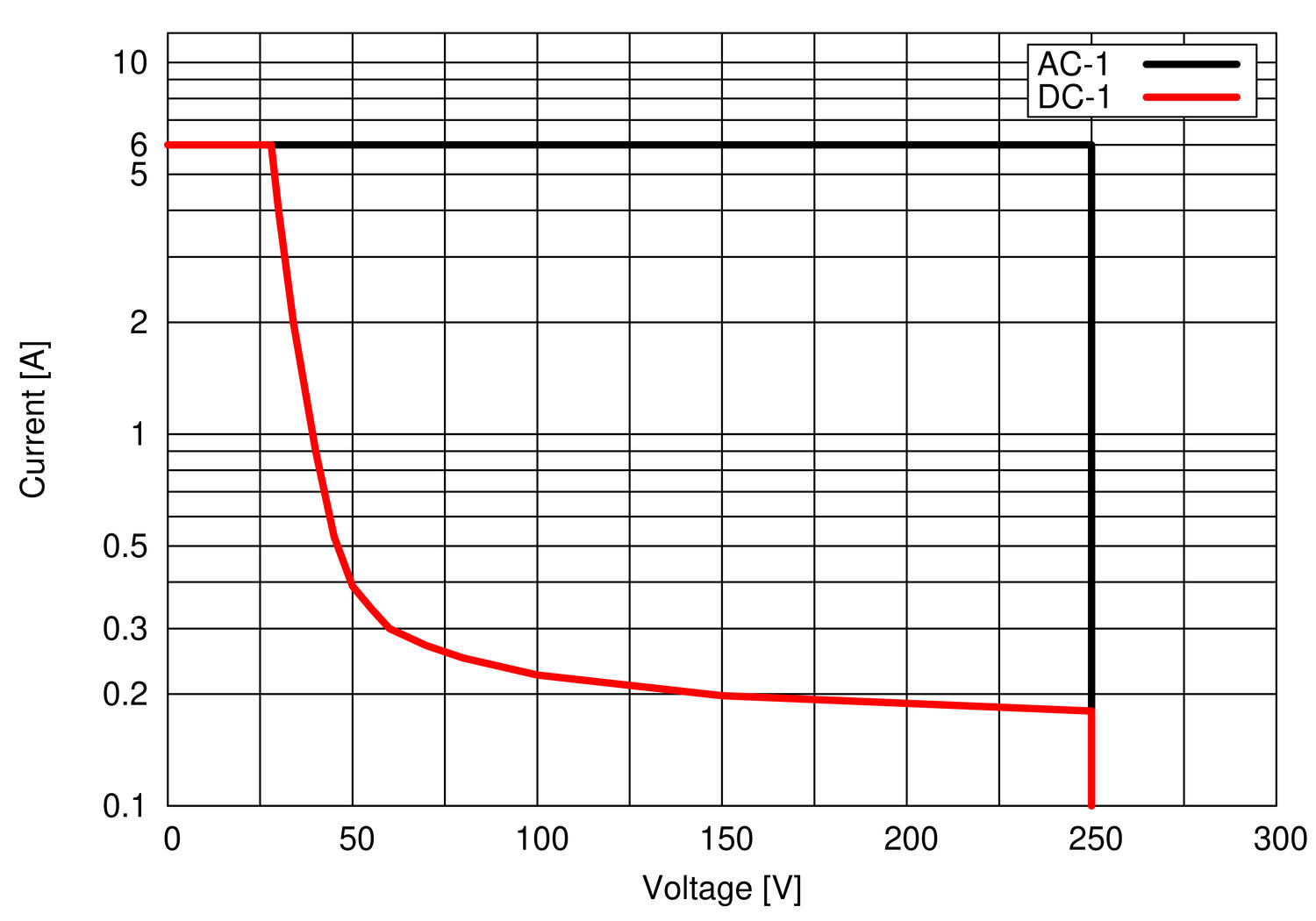

Breaking capacity DC1 / 30 V | 180 W |
Contact material | AgSnO2 |
General Data |
|
IP class | IP20 |
Storage temperature min | -40 °C |
Temperature operational max | 70 °C |
Storage temperature max | 85 °C |
Temperature operational min | -40 °C |
Dimensions & Materials |
|
Material | PA6 |
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.
Do you require signalling devices and beacons in your production process? Download our latest whitepaper!
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.
Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Parts | Coil voltage | Inrush max | Recommended min load | Switching power AC15 / 230 V | Recommended max load | Breaking capacity current | Switching power AC1 / 230 V | Breaking capacity DC1 / 30 V | Contact material | Temperature operational min | Approvals | Price | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]()
Interface Module 1 x C/O Screw 12V ac/dc
Art:
CRINT-C111/UC12V
Copied
|
12 AC/DC
|
15 A
|
100 mA / 12 V
|
300 VA
|
6 A, 250 V AC-1 / 6 A, 30 V DC-1
|
6 A
|
1500 VA
|
180 W
|
AgSnO2
|
-40 °C
|
|
| ||
![]()
Interface Relay 6,2mm/6A/24V
Art:
CRINT-C111/UC24V
Copied
|
24 AC/DC
|
15 A
|
100 mA / 12 V
|
300 VA
|
6 A, 250 V AC-1 / 6 A, 30 V DC-1
|
6 A
|
1500 VA
|
180 W
|
AgSnO2
|
-40 °C
|
|
| ||
![]()
Interface Module 1 x C/O Screw 48V ac/dc
Art:
CRINT-C111/UC48V
Copied
|
48 AC/DC
|
15 A
|
100 mA / 12 V
|
300 VA
|
6 A, 250 V AC-1 / 6 A, 30 V DC-1
|
6 A
|
1500 VA
|
180 W
|
AgSnO2
|
-40 °C
|
|
| ||
![]()
Interface Module 1 x C/O Screw 60V ac/dc
Art:
CRINT-C111/UC60V
Copied
|
60 AC/DC
|
15 A
|
100 mA / 12 V
|
300 VA
|
6 A, 250 V AC-1 / 6 A, 30 V DC-1
|
6 A
|
1500 VA
|
180 W
|
AgSnO2
|
-40 °C
|
|
| ||
![]()
Interface Module 1 x C/O Screw 110-125V ac/dc
Art:
CRINT-C111/UC110-125V
Copied
|
110-125 AC/DC
|
15 A
|
100 mA / 12 V
|
300 VA
|
6 A, 250 V AC-1 / 6 A, 30 V DC-1
|
6 A
|
1500 VA
|
180 W
|
AgSnO2
|
-40 °C
|
|
| ||
![]()
Interface Module 1 x C/O Screw 220-240V ac/dc
Art:
CRINT-C111/UC220-240V
Copied
|
220-240 AC/DC
|
15 A
|
100 mA / 12 V
|
300 VA
|
6 A, 250 V AC-1 / 6 A, 30 V DC-1
|
6 A
|
1500 VA
|
180 W
|
AgSnO2
|
-40 °C
|
|
| ||
![]()
Interface Module 1 x C/O 3µ Au Screw 12V ac/dc
Art:
CRINT-C112/UC12V
Copied
|
12 AC/DC
|
15 A
|
10 mA / 6 V
|
300 VA
|
6 A, 250 V AC-1 / 6 A, 30 V DC-1
|
6 A
|
1500 VA
|
180 W
|
AgSno2 + 3 µ Au
|
-40 °C
|
|
| ||
![]()
SOCKET SCREW/RELAY AgSnO2+AU
Art:
CRINT-C112/UC24V
Copied
|
24 AC/DC
|
15 A
|
10 mA / 6 V
|
300 VA
|
6 A, 250 V AC-1 / 6 A, 30 V DC-1
|
6 A
|
1500 VA
|
180 W
|
AgSno2 + 3 µ Au
|
-40 °C
|
|
| ||
![]()
Interface Module 1 x C/O 3µ Au Screw 48V ac/dc
Art:
CRINT-C112/UC48V
Copied
|
48 AC/DC
|
15 A
|
10 mA / 6 V
|
300 VA
|
6 A, 250 V AC-1 / 6 A, 30 V DC-1
|
6 A
|
1500 VA
|
180 W
|
AgSno2 + 3 µ Au
|
-40 °C
|
|
| ||
![]()
Interface Module 1 x C/O 3µ Au Screw 60V ac/dc
Art:
CRINT-C112/UC60V
Copied
|
60 AC/DC
|
15 A
|
10 mA / 6 V
|
300 VA
|
6 A, 250 V AC-1 / 6 A, 30 V DC-1
|
6 A
|
1500 VA
|
180 W
|
AgSno2 + 3 µ Au
|
-40 °C
|
|
| ||
![]()
Interface Module 1 x C/O 3µ Au Screw 110-125V ac/dc
Art:
CRINT-C112/UC100-125V
Copied
|
110-125 AC/DC
|
15 A
|
10 mA / 6 V
|
300 VA
|
6 A, 250 V AC-1 / 6 A, 30 V DC-1
|
6 A
|
1500 VA
|
180 W
|
AgSno2 + 3 µ Au
|
-40 °C
|
RoHS, CE
|
| ||
![]()
Interface Module SSR DC N/O Screw 12V dc
Art:
CRINT-C115/DC12V
Copied
|
12 AC/DC
|
48 A
|
20 mA / 5 V
|
|
2 A, 24 V DC-1
|
2 A
|
|
|
|
-30 °C
|
|
| ||
![]()
Interface Module SSR DC N/O Screw 24V dc
Art:
CRINT-C115/DC24V
Copied
|
24 AC/DC
|
48 A
|
20 mA / 5 V
|
|
2 A, 24 V DC-1
|
2 A
|
|
|
|
-30 °C
|
|
| ||
![]()
Interface Module SSR DC N/O Screw 48V dc
Art:
CRINT-C115/DC48V
Copied
|
48 AC/DC
|
48 A
|
20 mA / 5 V
|
|
2 A, 24 V DC-1
|
2 A
|
|
|
|
-30 °C
|
|
| ||
![]()
Interface Module SSR DC N/O Screw 60V dc
Art:
CRINT-C115/DC60V
Copied
|
60 AC/DC
|
48 A
|
20 mA / 5 V
|
|
2 A, 24 V DC-1
|
2 A
|
|
|
|
-30 °C
|
|
| ||
![]()
Interface Module SSR DC N/O Screw 110-125V dc
Art:
CRINT-C115/DC110-125V
Copied
|
110-125 AC/DC
|
48 A
|
20 mA / 5 V
|
|
2 A, 24 V DC-1
|
2 A
|
|
|
|
-30 °C
|
|
| ||
![]()
Interface Module SSR DC N/O Screw 220-240V dc
Art:
CRINT-C115/DC220-240V
Copied
|
220-240 AC/DC
|
48 A
|
20 mA / 5 V
|
|
2 A, 24 V DC-1
|
2 A
|
|
|
|
-30 °C
|
|
| ||
![]()
Interface Module SSR AC N/O Screw 12V dc
Art:
CRINT-C118/DC12V
Copied
|
12 AC/DC
|
80 A
|
22 mA / 12 V
|
|
1 A, 240 V AC-1
|
1 A
|
|
|
|
-30 °C
|
|
| ||
![]()
Interface Module SSR AC N/O Screw 24V dc
Art:
CRINT-C118/DC24V
Copied
|
24 AC/DC
|
80 A
|
22 mA / 12 V
|
|
1 A, 240 V AC-1
|
1 A
|
|
|
|
-30 °C
|
|
| ||
![]()
Interface Module SSR AC N/O Screw 48V dc
Art:
CRINT-C118/DC48V
Copied
|
48 AC/DC
|
80 A
|
22 mA / 12 V
|
|
1 A, 240 V AC-1
|
1 A
|
|
|
|
-30 °C
|
|
| ||
![]()
Interface Module SSR AC N/O Screw 60V dc
Art:
CRINT-C118/DC60V
Copied
|
60 AC/DC
|
80 A
|
22 mA / 12 V
|
|
1 A, 240 V AC-1
|
1 A
|
|
|
|
-30 °C
|
|
| ||
![]()
Interface Module SSR AC N/O Screw 110-125V dc
Art:
CRINT-C118/DC100-125V
Copied
|
110-125 AC/DC
|
80 A
|
22 mA / 12 V
|
|
1 A, 240 V AC-1
|
1 A
|
|
|
|
-30 °C
|
|
| ||
![]()
Interface Module SSR AC N/O Screw 220-240V dc
Art:
CRINT-C118/DC220-240V
Copied
|
220-240 AC/DC
|
80 A
|
22 mA / 12 V
|
|
1 A, 240 V AC-1
|
1 A
|
|
|
|
-30 °C
|
|
|
Select a variant in the list
