Input Data |
|
|---|---|
| Holding voltage | 0,6 Un ac/dc |
| Release voltage | 0,1 Un |
| Input power rating | 0,2 |
| Power ac/dc | 12 V |
| Overvoltage category | III |
| Contamination degree | 3 |
| LED status | Yes |
| Control contact terminals | A1-B1 |
| Control pulse length min | 50 ms |
| Nominal frequency min | 50 Hz |
| Number of functions | 4 |
| Rated frequency max | 60 Hz |
Output Data |
|
| Contact material | AgNi |
| Switching voltage max | 400 V ac |
| Rated contact voltage | 250V ac |
| Switching capacity max | 1500 VA |
| Contact load min | 500 mW |
| Continuous current max / Inrush current max | 6 / 10 A |
Connection Data |
|
| Cross section single wire from | 0,2 mm² |
| Cross section single wire to | 2,5 mm² |
| Stripping length | 10 mm |
| Torque | 0,5 |
*Invisible Heading* |
|
|---|---|
| Connection type | Screw |
| Recovery time | <50 ms |
| Relay contact | 1 CO |
| Repeatability accuracy | ± 1% |
General Data |
|
| Approvals | CE |
| Time range | 0,1 s - 6 h |
| Tolerance | (0,8 - 1,1) Un |
| Setting accuracy | ± 5% |
| IP class | IP20 |
| Operating temperature from | -40 °C |
| Operating temperature to | 50 °C |

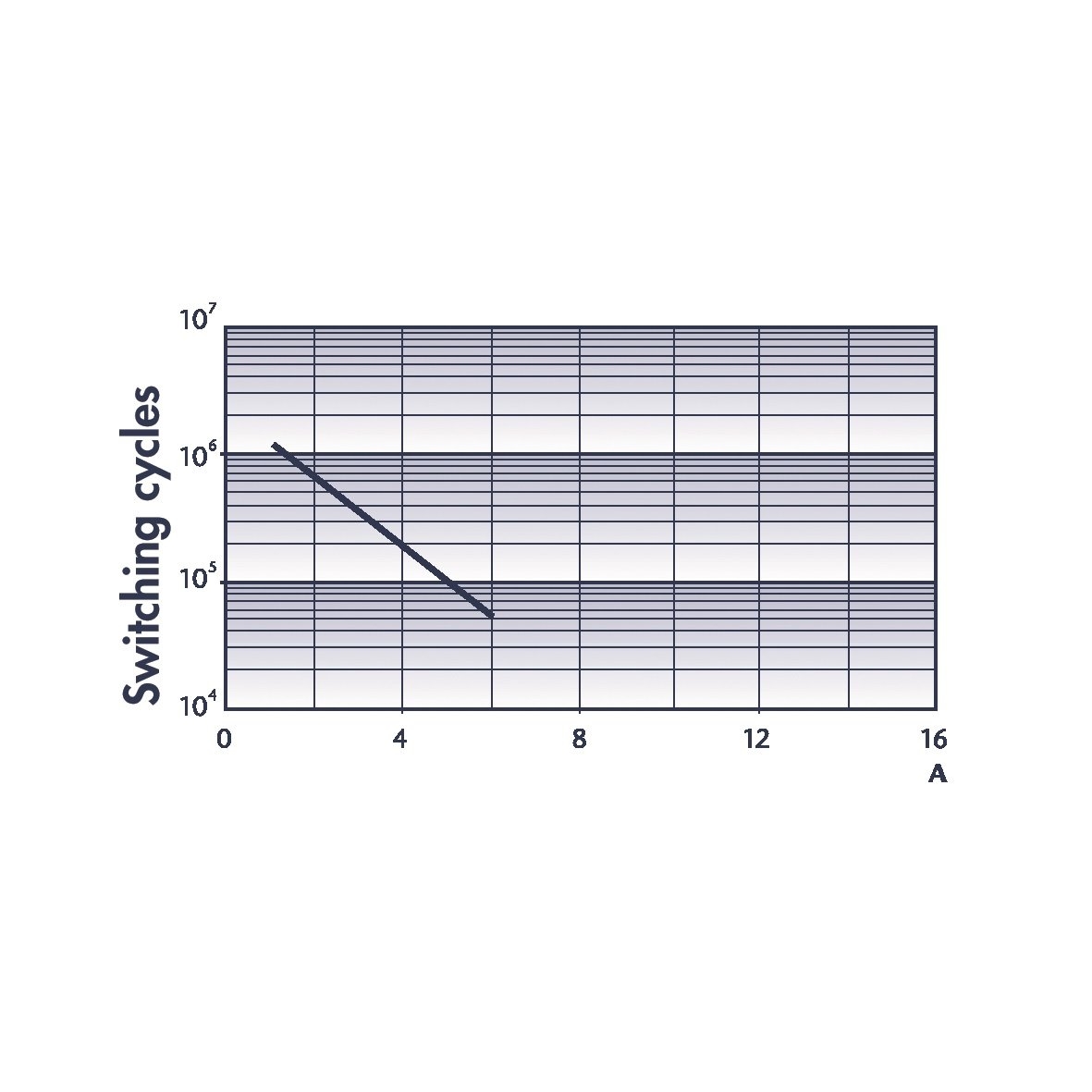

| Electrical life in hours (AC1) | 60x10³ |
| Mechanical life hours | 10x10⁶ |
Dimensions & Materials |
|
| Width | 6,2 mm |
| Length | 94,3 mm |
| Height TS 35 / 7.5 with base | 95,4 mm |
Additional Data |
|
| Tariff code | 85364900 |
| Country of origin | EEC |
| Weight | 43 g |
| Pack size | 10 |
Optimise your production line with encoders, inclinometers, displays and slip rings
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.
Do you require signalling devices and beacons in your production process? Download our latest whitepaper!
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Holding voltage | Release voltage | Input power rating | Power ac/dc | Nominal frequency min | Rated frequency max | Contact material | Switching voltage max | Rated contact voltage | Switching capacity max | Contact load min | Continuous current max / Inrush current max | Stripping length | Torque | Connection type | Recovery time | Repeatability accuracy | Tolerance | Setting accuracy | Electrical life in hours (AC1) | Mechanical life hours | Tariff code | Weight | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MFR IRCPU 1/12V AC/DC, Timer relay and fused base
Art:
16255.2
Copied
|
0,6 Un ac/dc
|
0,1 Un
|
0,2
|
12 V
|
50 Hz
|
60 Hz
|
AgNi
|
400 V ac
|
250V ac
|
1500 VA
|
500 mW
|
6 / 10 A
|
10 mm
|
0,5
|
Screw
|
<50 ms
|
± 1%
|
(0,8 - 1,1) Un
|
± 5%
|
60x10³
|
10x10⁶
|
85364900
|
43 g
|
| ||
|
MFR IRCPU 1/24V AC/DC, Timer relay and fused base
Art:
16256.2
Copied
|
0,6 Un ac/dc
|
0,1 Un
|
0,3
|
24 V
|
50 Hz
|
60 Hz
|
AgNi
|
400 V ac
|
250V ac
|
1500 VA
|
500 mW
|
6 / 10 A
|
10 mm
|
0,5
|
Screw
|
<50 ms
|
± 1%
|
(0,8 - 1,1) Un
|
± 5%
|
60x10³
|
10x10⁶
|
85364900
|
43 g
|
| ||
MFR FIRCPU 1/12V AC/DC, Timer relay and fused base, Push-in
Art:
16285.2
Copied
|
0,6 Un ac/dc
|
0,1 Un
|
0,2
|
12 V
|
50 Hz
|
60 Hz
|
AgNi
|
400 V ac
|
250V ac
|
1500 VA
|
500 mW
|
6 / 10 A
|
8 mm
|
|
Push-in
|
<50 ms
|
± 1%
|
(0,8 - 1,1) Un
|
± 5%
|
60x10³
|
10x10⁶
|
85364900
|
37,9 g
|
| ||
|
MFR FIRCPU1/24V AC/DC, Timer relay and fused base, Push-in
Art:
16286.2
Copied
|
0,6 Un ac/dc
|
0,1 Un
|
0,3
|
24 V
|
50 Hz
|
60 Hz
|
AgNi
|
400 V ac
|
250V ac
|
1500 VA
|
500 mW
|
6 / 10 A
|
8 mm
|
|
Push-in
|
<50 ms
|
|
(0,8 - 1,1) Un
|
|
60x10³
|
10x10⁶
|
85364900
|
21,5 g
|
| ||
MFR IRCP 12...24V AC/DC, Timer relay base
Art:
16207.2
Copied
|
|
|
|
12 - 24 V
|
|
|
|
|
|
|
|
|
10 mm
|
0,5
|
Screw
|
|
± 1%
|
|
± 5%
|
|
|
85369010
|
38 g
|
| ||
MFR FIRCP 12...24V AC/DC, Timer relay base, Push-in
Art:
16227.2
Copied
|
|
|
|
12 - 24 V
|
|
|
|
|
|
|
|
|
8 mm
|
|
Push-in
|
|
± 1%
|
|
± 5%
|
|
|
85369010
|
33 g
|
|
Select a variant in the list
