COMATRELECO

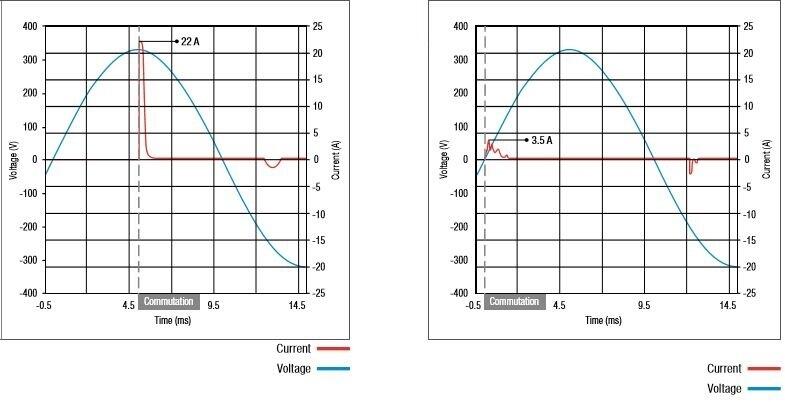

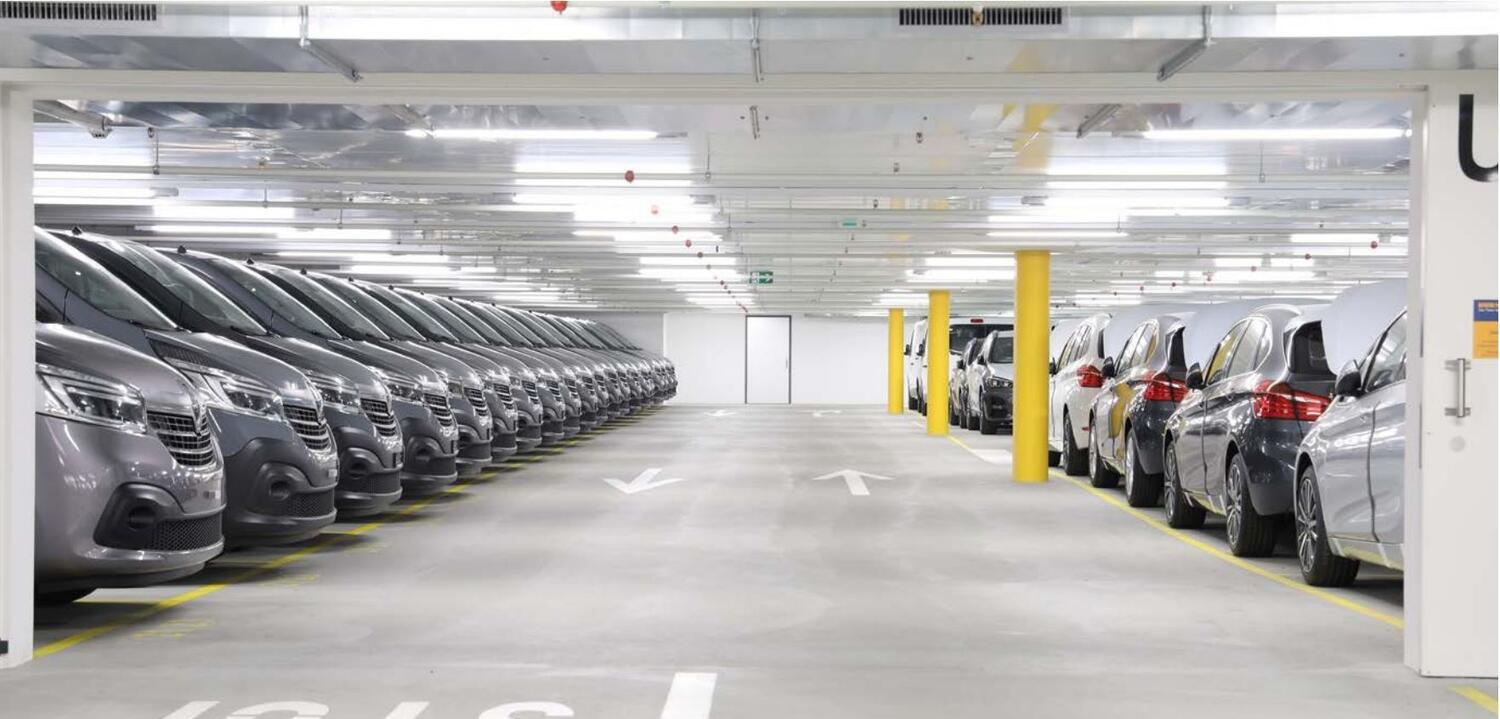

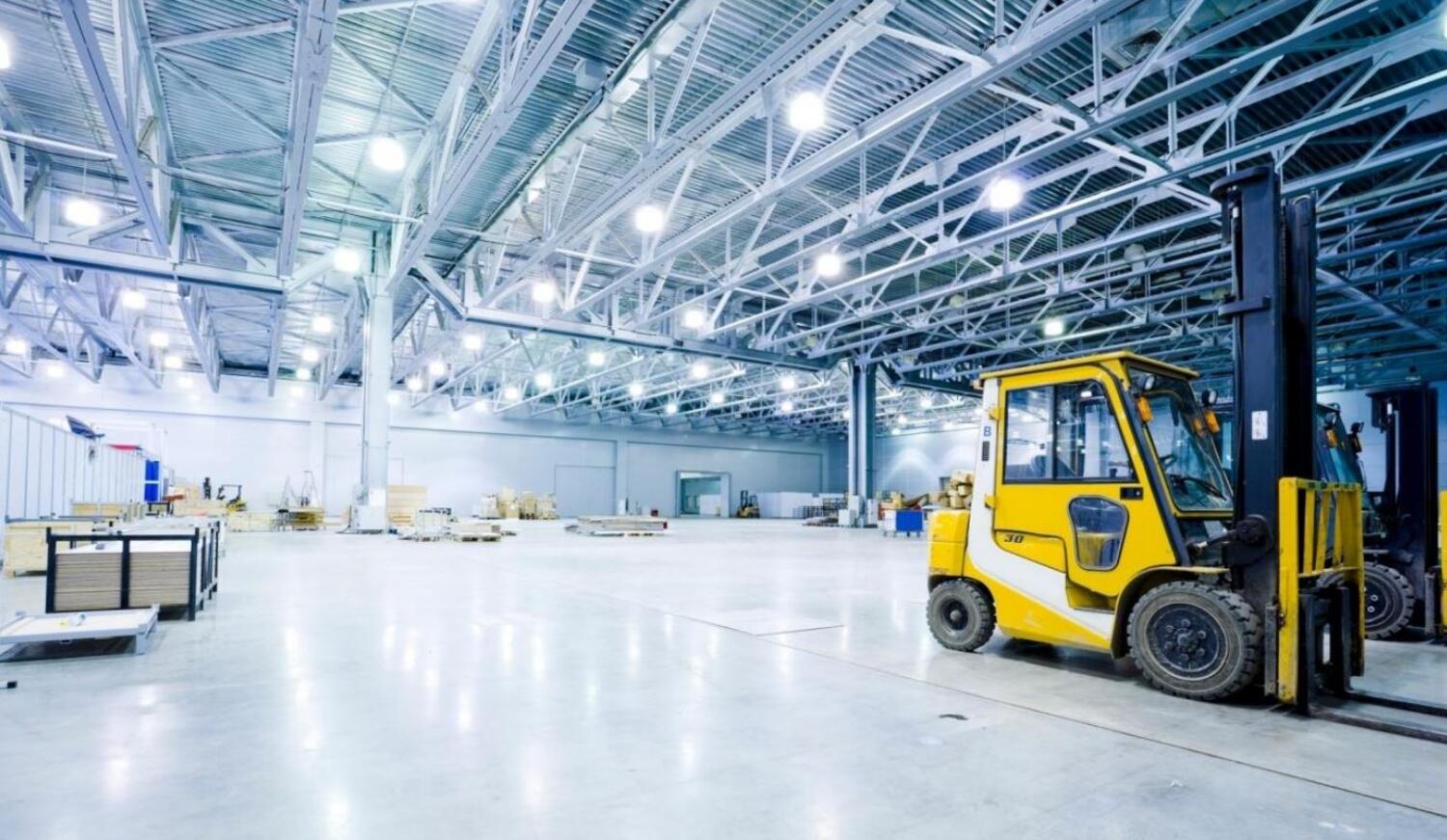

The CHI is a power relay for all applications effecting high inrush currents up to 800 A such as electronic control gears of energy saving lamps, power supplies of the latest LED lights and switching supplies of industrial components. These loads show an inrush current up to 250 times of their nominal current.

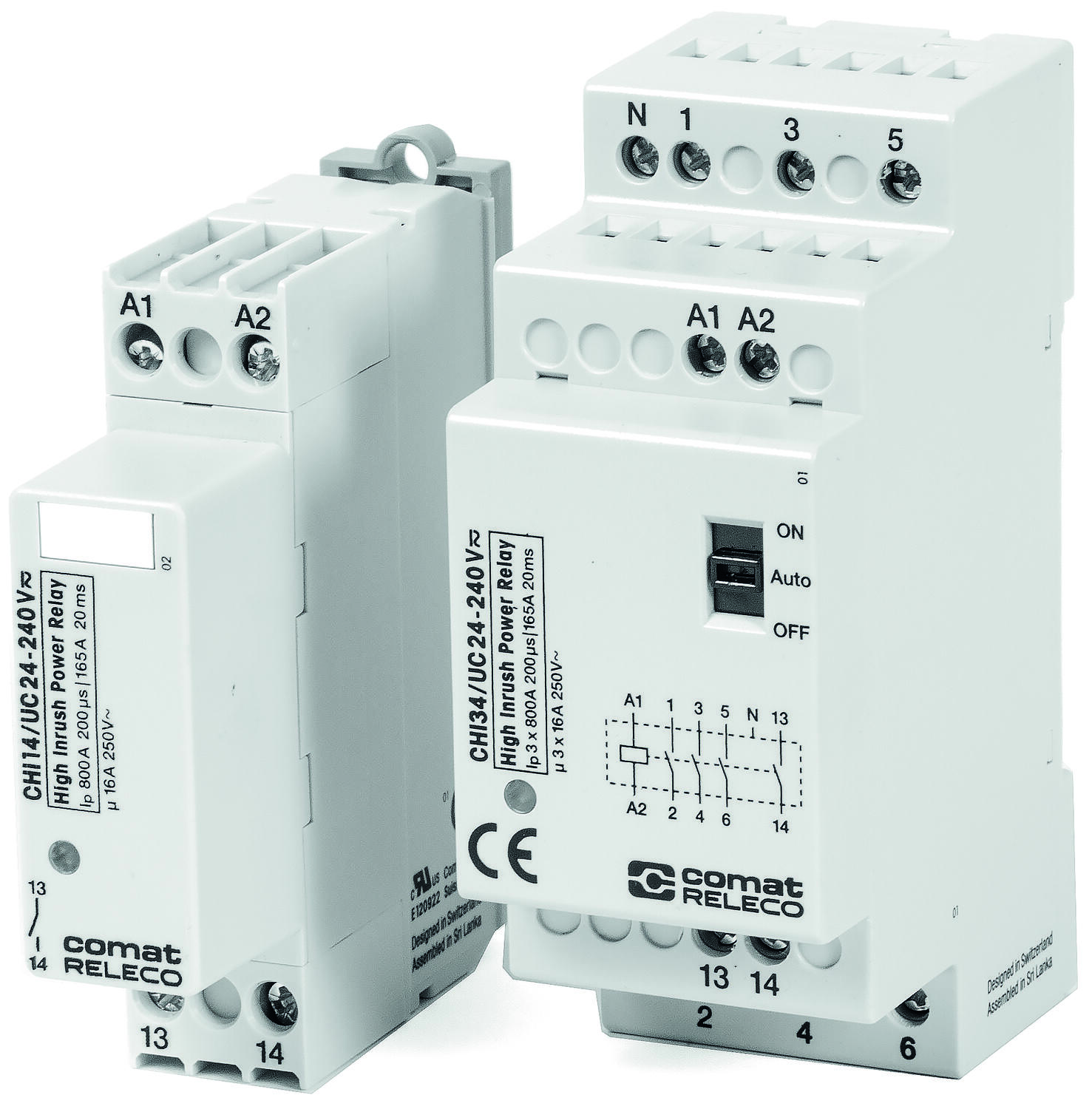

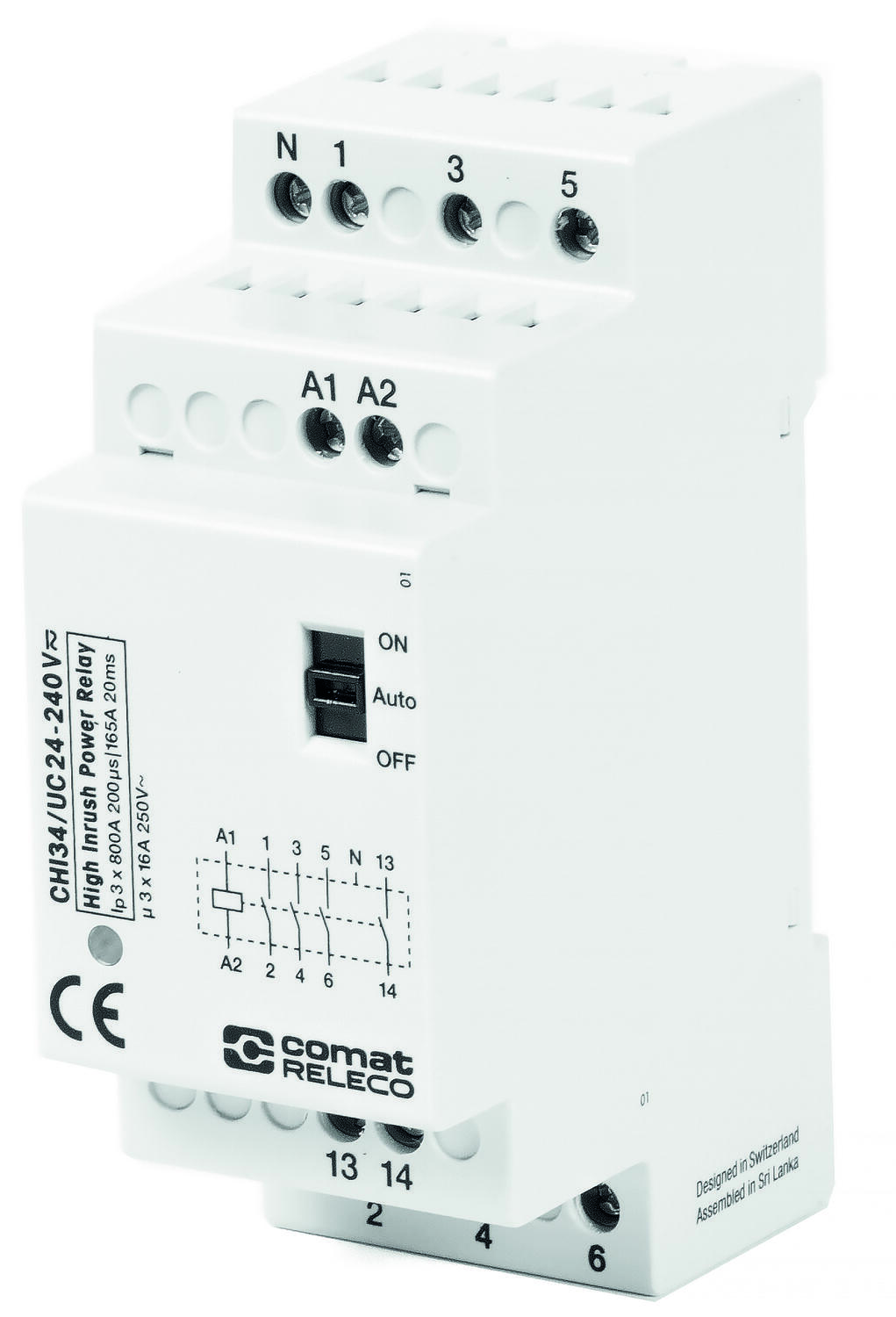

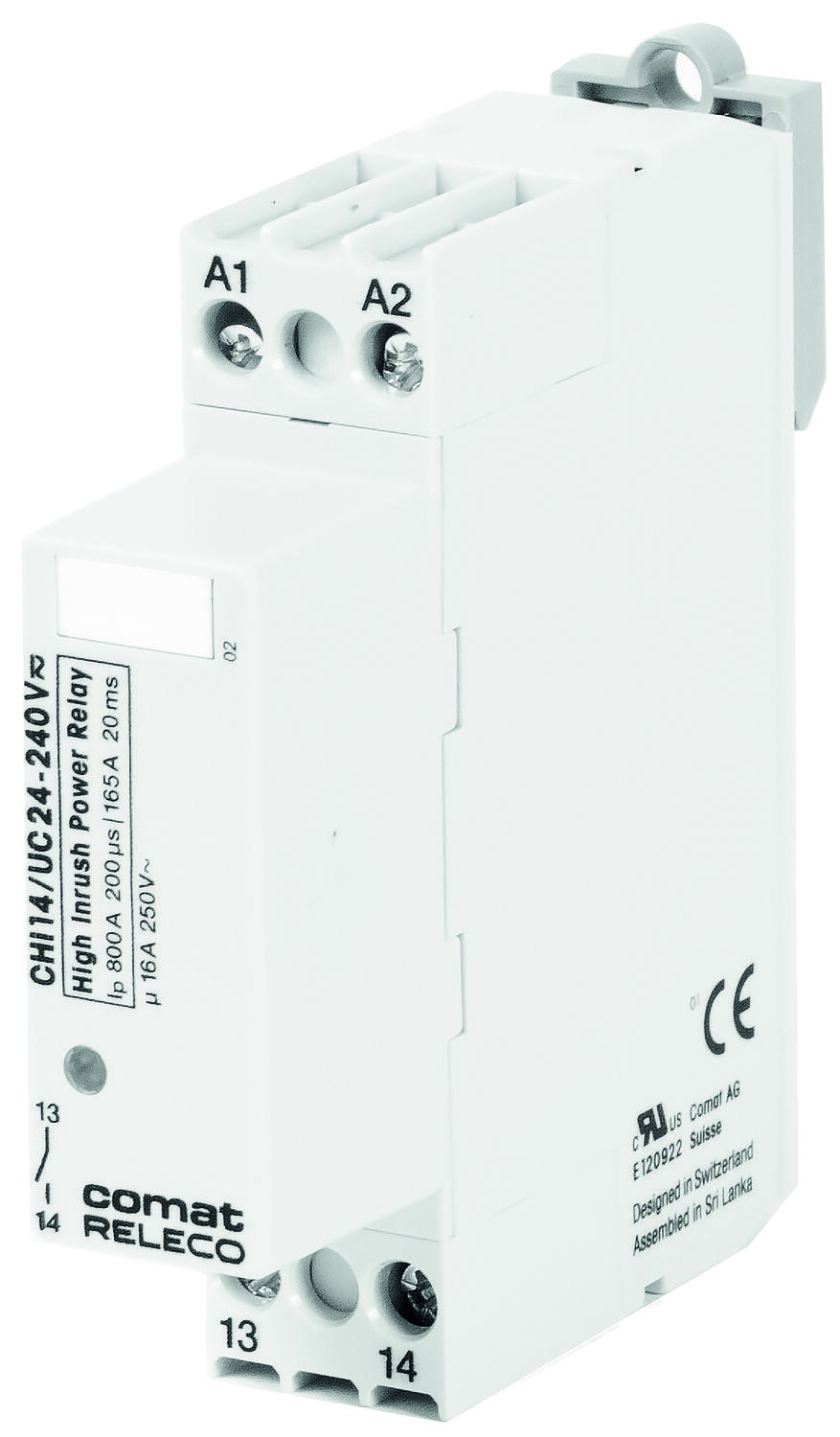

The CHI14 is equiped with a single low noise operating NO contact with nominal current up to 16 A with installation width of 17.5mm. CHI34 has 3 NO and an auxiliary contact and a manual on-auto-off actuator.
Input Data |
|
|---|---|
| Power consumption | 1.2 VA / 0.43 W |
| Voltage range | 24-240 V AC/DC |
| Working Un | 16,8...250 V |
Output Data |
|
| Surge current (20 ms) | 165 A |
| Recommended min load | 100 mA /12 V |
| Breaking capacity DC1 | 384 W |
| Peak current | 800 / 200μs A |

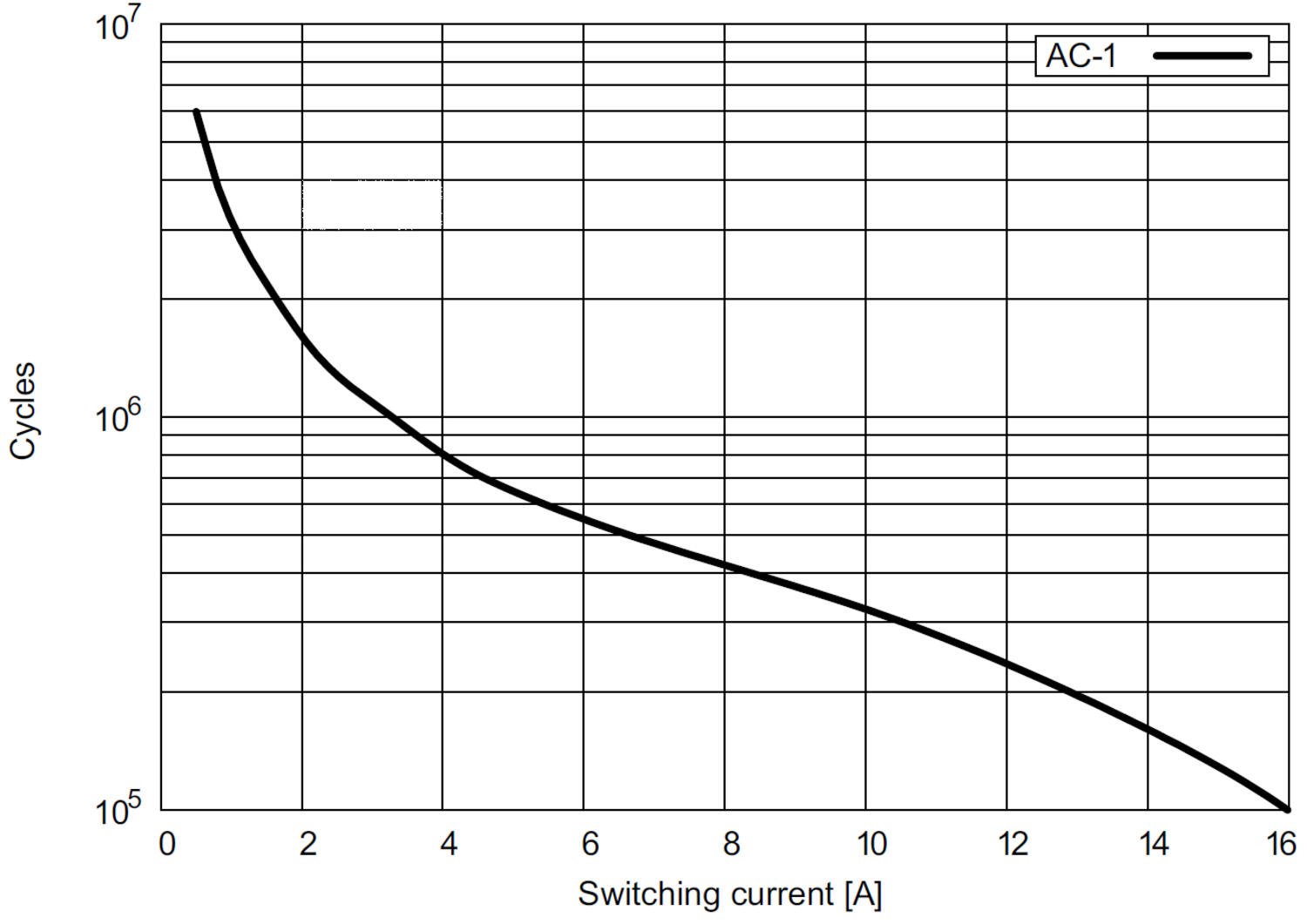

| Switching capacity AC1 | 4000 VA |
| Nominal current | 16 A |
| Breaking Voltage | 250 V |
| Number of contacts | 1 |
General Data |
|
|---|---|
| IP class | IP20 |
| Torque connection | 0,4 Nm |
| Connection area multiple conductors | 2,5mm2/2x1,5mm2 |
| Storage temperature min | -40 °C |
| Material | Lexan |
| Temperature operational max | 60 °C |
| Weight | 70 g |

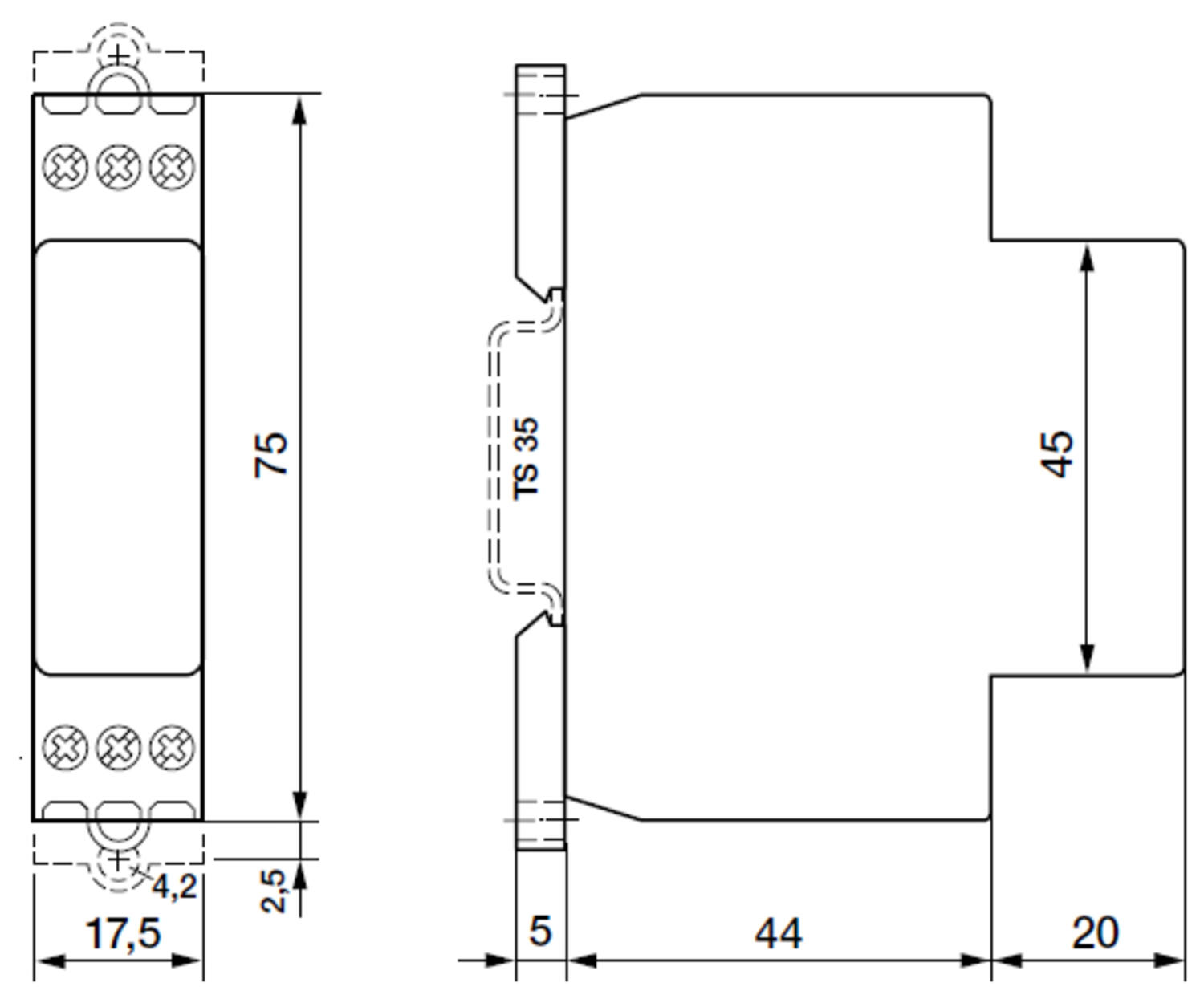

| Width | 17,5 mm |
| Storage temperature max | 85 °C |
| Temperature operational min | -40 °C |
| Approvals | CE, RoHS, UL |
The CHI is a power relay for all applications effecting high inrush currents up to 800 A such as electronic control gears of energy saving lamps, power supplies of the latest LED lights and switching supplies of industrial components. These loads show an inrush current up to 250 times of their nominal current.
The CHI14 is equiped with a single low noise operating NO contact with nominal current up to 16 A with installation width of 17.5mm. CHI34 has 3 NO and an auxiliary contact and a manual on-auto-off actuator.
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.
Do you require signalling devices and beacons in your production process? Download our latest whitepaper!
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.
Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Power consumption | Number of contacts | Torque connection | Weight | Width | Price | ||
|---|---|---|---|---|---|---|---|---|
Power Relay 16A High Inrush 800A 24-240V ac/dc 1-Pole
Art:
CHI14/UC24-240V
Copied
|
1.2 VA / 0.43 W
|
1
|
0,4 Nm
|
70 g
|
17,5 mm
|
| ||
Power Relay 16A High Inrush 800A 24-240V ac/dc 3-Pole
Art:
CHI34/UC24-240V
Copied
|
30 VA / 30 mW
|
3
|
0,6 Nm
|
125 g
|
36 mm
|
|
Select a variant in the list
