COMATRELECO

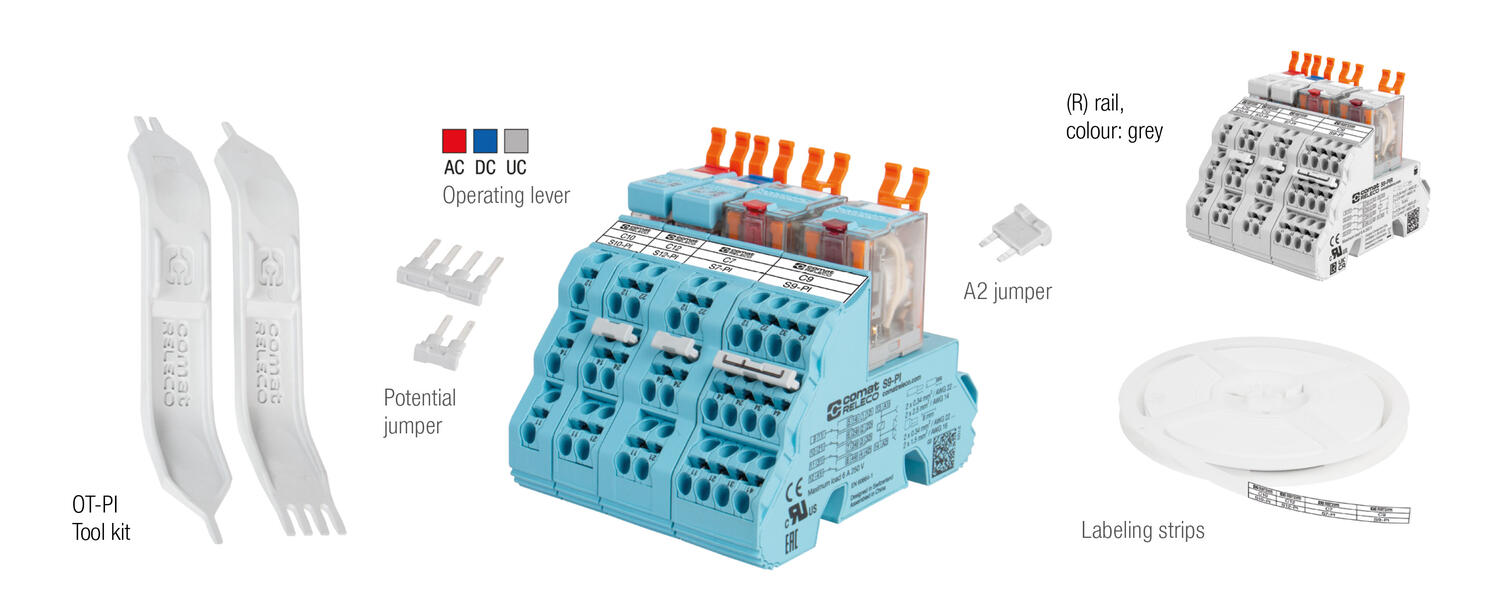

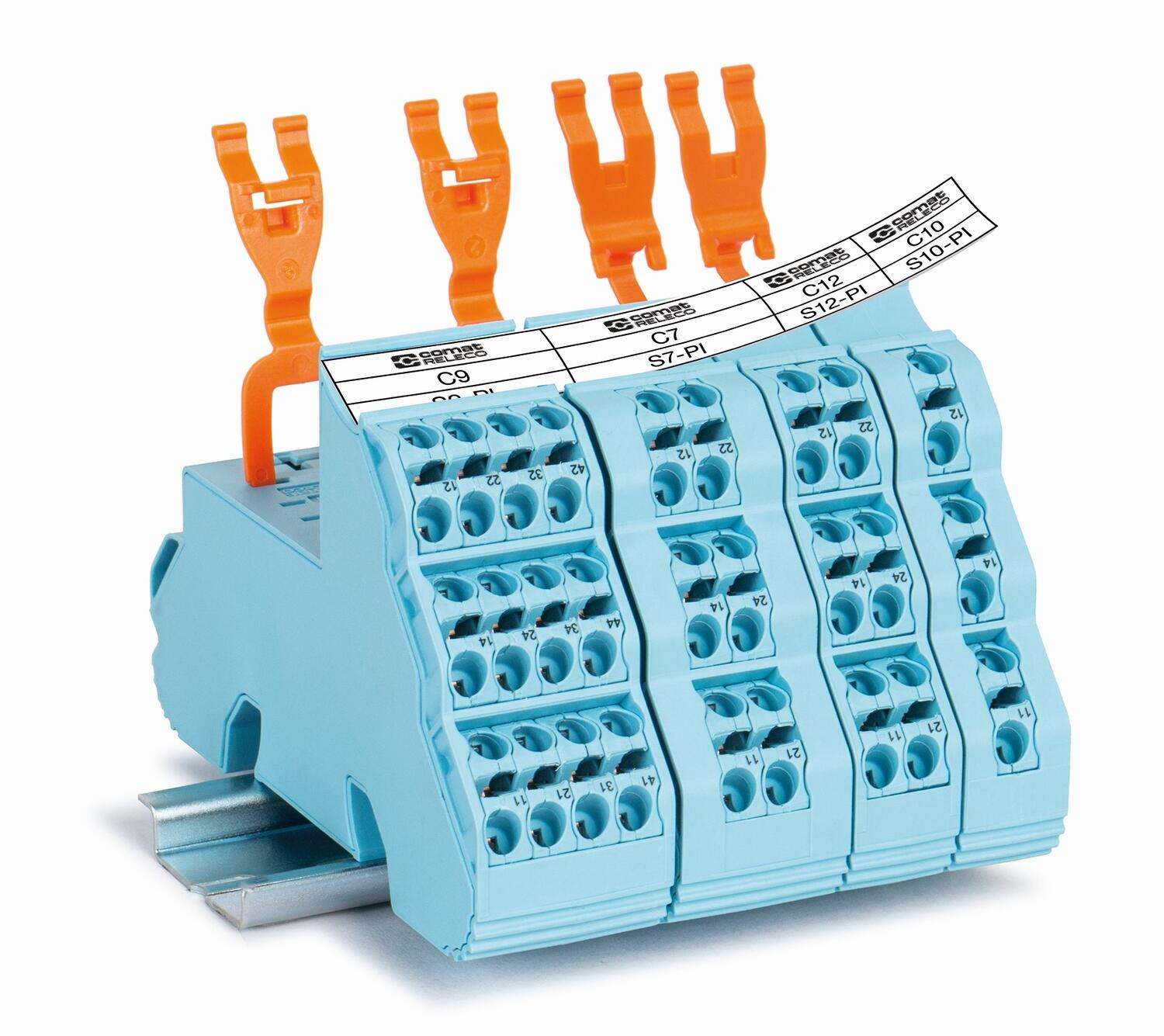

The most common relays bought by the majority of customers are now available as a relay and socket set, simplifying procurement with only 1 part number for the set. Relays available in 24V DC and 230V AC. The sets save time during assembly and wiring and use the latest push-in sockets from ComatReleco saving 25% more space in your panel.
| Approvals | CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL |
|---|---|
| Bounce time | 3 |
| Breaking capacity current | 10 A |
| Breaking Voltage | 250 V |
| Coil voltage dc | 24 V DC |
| Contact material | AgNi |
| Frequency | 50 Hz |
| Insulation class EN60947 | 250 V Pollution 3, Group C |
| IP class | IP40 |
| Isolation contact/coil | 2500 V |
| Isolation contact/contact | 2500 V |
| Mechanical life expectancy | AC: 10 Mill./DC: 20 Mill |
| Nominal power dc | 1 W |
| Number of contacts | 2 |
| Optional coil | DX (diode + LED) |
| Recommended max load | 10 A/250 V AC-1; 0,5 A/110 V DC-1 |
| Recommended min load | 10 mA/10 V |
|---|---|
| Release time | 8 ms |
| Release time + contact debounce | 9 ms |
| Resistive load 110 V dc max | 55 W |
| Resistive load 24 V dc max | 240 W |
| Response time | 16 ms |
| Storage temperature max | 80 °C |
| Storage temperature min | -40 °C |
| Surge current (20 ms) | 30 A |
| Temperature operational max | 60 °C |
| Temperature operational min | -40 °C |
| Tripping voltage max UN | 0,2 |
| Weight | 43 g |
| Working Un | 0,8-1,10 |
The most common relays bought by the majority of customers are now available as a relay and socket set, simplifying procurement with only 1 part number for the set. Relays available in 24V DC and 230V AC. The sets save time during assembly and wiring and use the latest push-in sockets from ComatReleco saving 25% more space in your panel.
Optimise your production line with encoders, inclinometers, displays and slip rings
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.
Do you require signalling devices and beacons in your production process? Download our latest whitepaper!
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Approvals | Bounce time | Breaking capacity current | Coil voltage ac | Coil voltage dc | Contact material | Insulation class EN60947 | Isolation contact/coil | Isolation contact/contact | Mechanical life expectancy | Nominal power ac | Nominal power dc | Number of contacts | Optional coil | Overvoltage UNX max | Recommended max load | Recommended min load | Release time | Release time + contact debounce | Resistive load 110 V dc max | Resistive load 24 V dc max | Response time | Storage temperature max | Storage temperature min | Surge current (20 ms) | Temperature operational max | Temperature operational min | Tripping voltage max UN | Type of relay | Weight | Voltage min | Working Un | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Art:

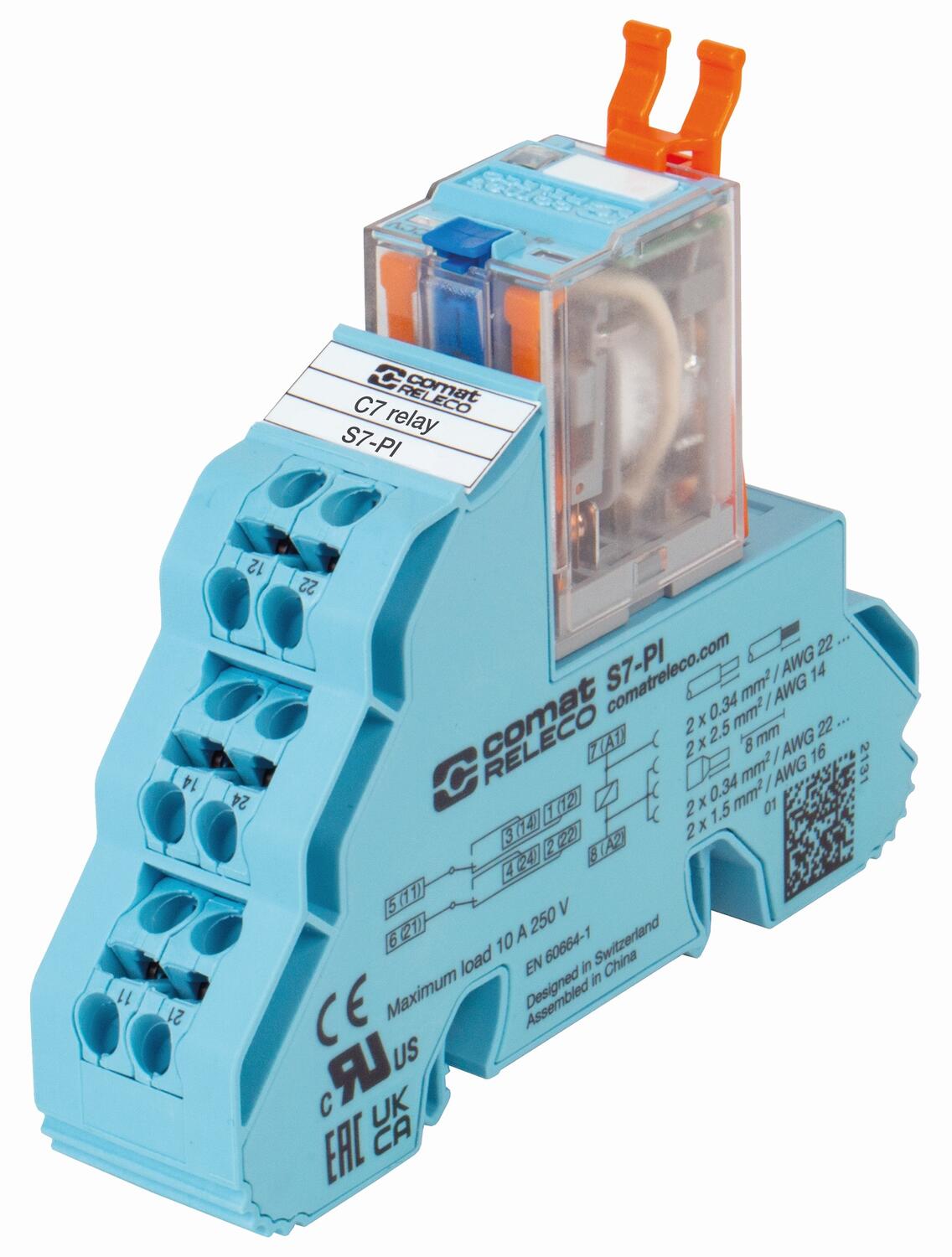

C7A20DX24D+S7-PI
Copied
|
CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
|
3
|
10 A
|
|
24 V DC
|
AgNi
|
250 V Pollution 3, Group C
|
2500 V
|
2500 V
|
AC: 10 Mill./DC: 20 Mill
|
|
1 W
|
2
|
DX (diode + LED)
|
|
10 A/250 V AC-1; 0,5 A/110 V DC-1
|
10 mA/10 V
|
8 ms
|
9 ms
|
55 W
|
240 W
|
16 ms
|
80 °C
|
-40 °C
|
30 A
|
60 °C
|
-40 °C
|
0,2
|
|
43 g
|
|
0,8-1,10
|
| ||
|
Art:
C7A20X230A+S7-PI
Copied
|
CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
|
3
|
10 A
|
230 V AC
|
|
AgNi
|
250 V Pollution 3, Group C
|
2500 V
|
2500 V
|
AC: 10 Mill./DC: 20 Mill
|
1,2 VA
|
|
2
|
X (LED)
|
|
10 A/250 V AC-1; 0,5 A/110 V DC-1
|
10 mA/10 V
|
8 ms
|
9 ms
|
55 W
|
240 W
|
16 ms
|
80 °C
|
-40 °C
|
30 A
|
60 °C
|
-40 °C
|
0,25
|
|
43 g
|
|
0,8-1,10
|
| ||
Art:

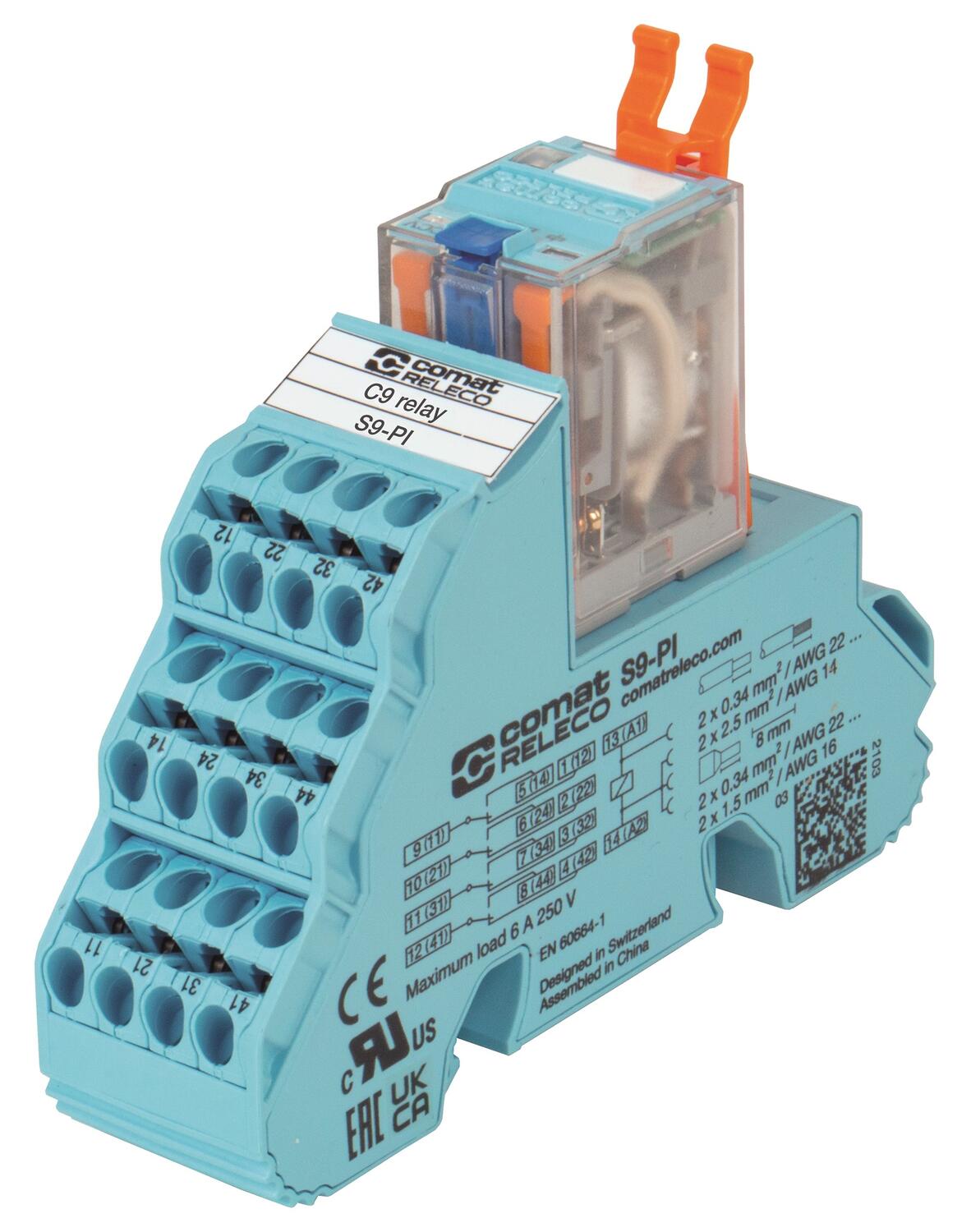

C9A41DX24D+S9-PI
Copied
|
CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
|
|
5 A
|
|
24 V DC
|
AgNi + 0,2 µ Au
|
|
2000 V
|
2500 V
|
AC: 10 Mill./DC: 20 Mill
|
|
1 W
|
4
|
DX (diode + LED)
|
|
5 A/250V AC-1; 5 A/30 V DC-1
|
10 mA/10 V
|
6 ms
|
7 ms
|
50 W
|
100 W
|
|
80 °C
|
-40 °C
|
15 A
|
60 °C
|
-40 °C
|
0,25
|
|
43 g
|
|
0,8-1,1
|
| ||
|
Art:
C9A41X230A+S9-PI
Copied
|
CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
|
|
5 A
|
230 V AC
|
|
AgNi + 0,2 µ Au
|
|
2000 V
|
2500 V
|
AC: 10 Mill./DC: 20 Mill
|
1,2 VA
|
|
4
|
X (LED)
|
|
5 A/250V AC-1; 5 A/30 V DC-1
|
10 mA/10 V
|
6 ms
|
7 ms
|
50 W
|
100 W
|
|
80 °C
|
-40 °C
|
15 A
|
60 °C
|
-40 °C
|
0,25
|
|
43 g
|
|
0,8-1,1
|
| ||
Art:

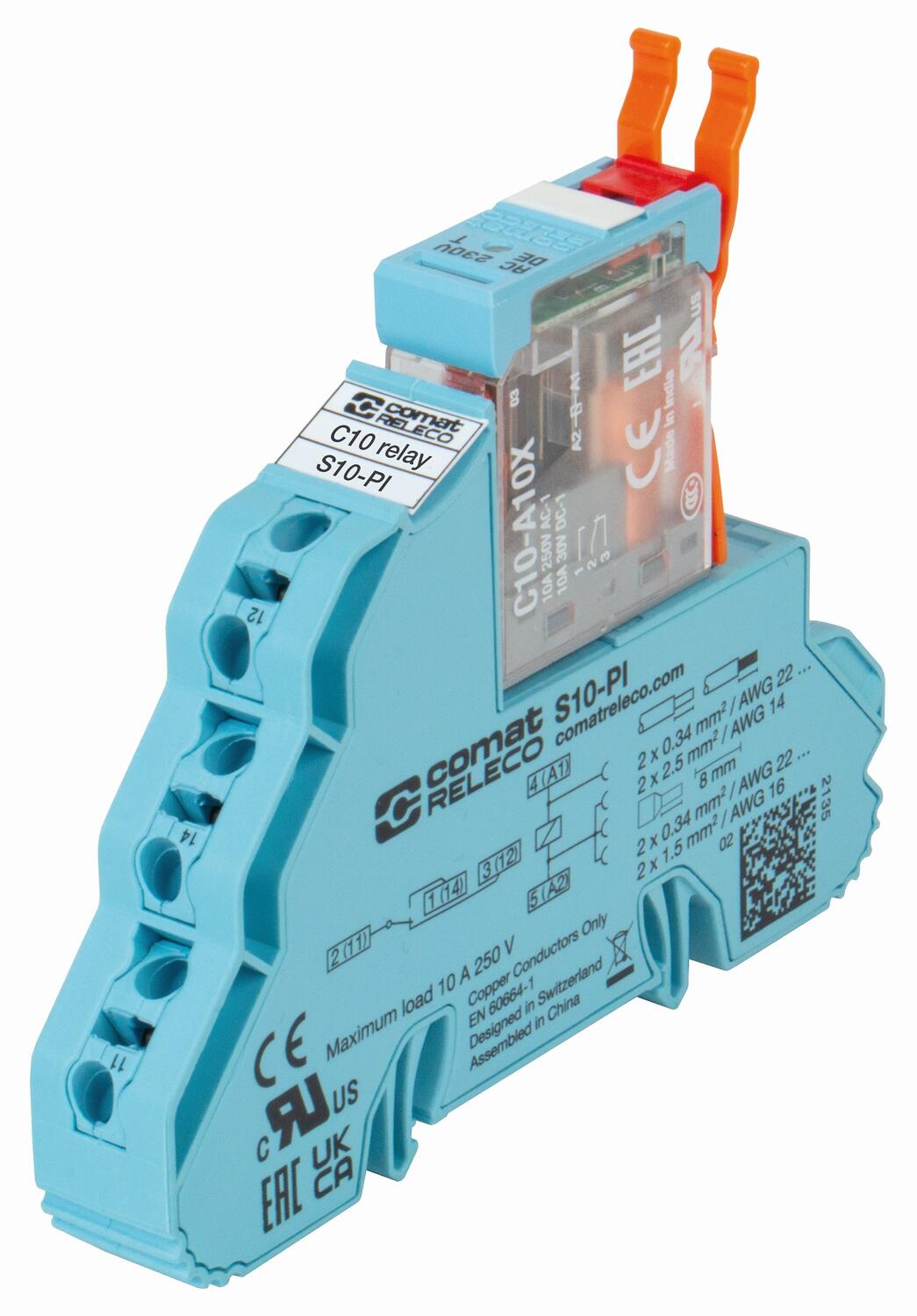

C10A10X230A+S10-PI
Copied
|
CCC, CE, CSA, Gost R, RoHS, UL
|
|
10 A
|
230 V AC
|
|
AgNi
|
250 V (pollution 3, Group C)
|
|
|
AC:10 Mill./DC:20 Mill
|
1,1 VA
|
|
1
|
X (LED)
|
1,1
|
|
10 mA / 10 V
|
5 ms
|
8 ms
|
|
|
|
80 °C
|
-40 °C
|
30 A
|
70 °C
|
-40 °C
|
0,1
|
Industrial relay
|
|
|
|
| ||
|
Art:
C10A10X24D+S10-PI
Copied
|
CCC, CE, CSA, Gost R, RoHS, UL
|
|
10 A
|
|
24 V DC
|
AgNi
|
250 V (pollution 3, Group C)
|
|
|
AC:10 Mill./DC:20 Mill
|
|
0,7 W
|
1
|
X (LED)
|
1,1
|
|
10 mA / 10 V
|
5 ms
|
8 ms
|
|
|
|
80 °C
|
-40 °C
|
30 A
|
70 °C
|
-40 °C
|
0,1
|
Industrial relay
|
|
|
|
| ||
Art:

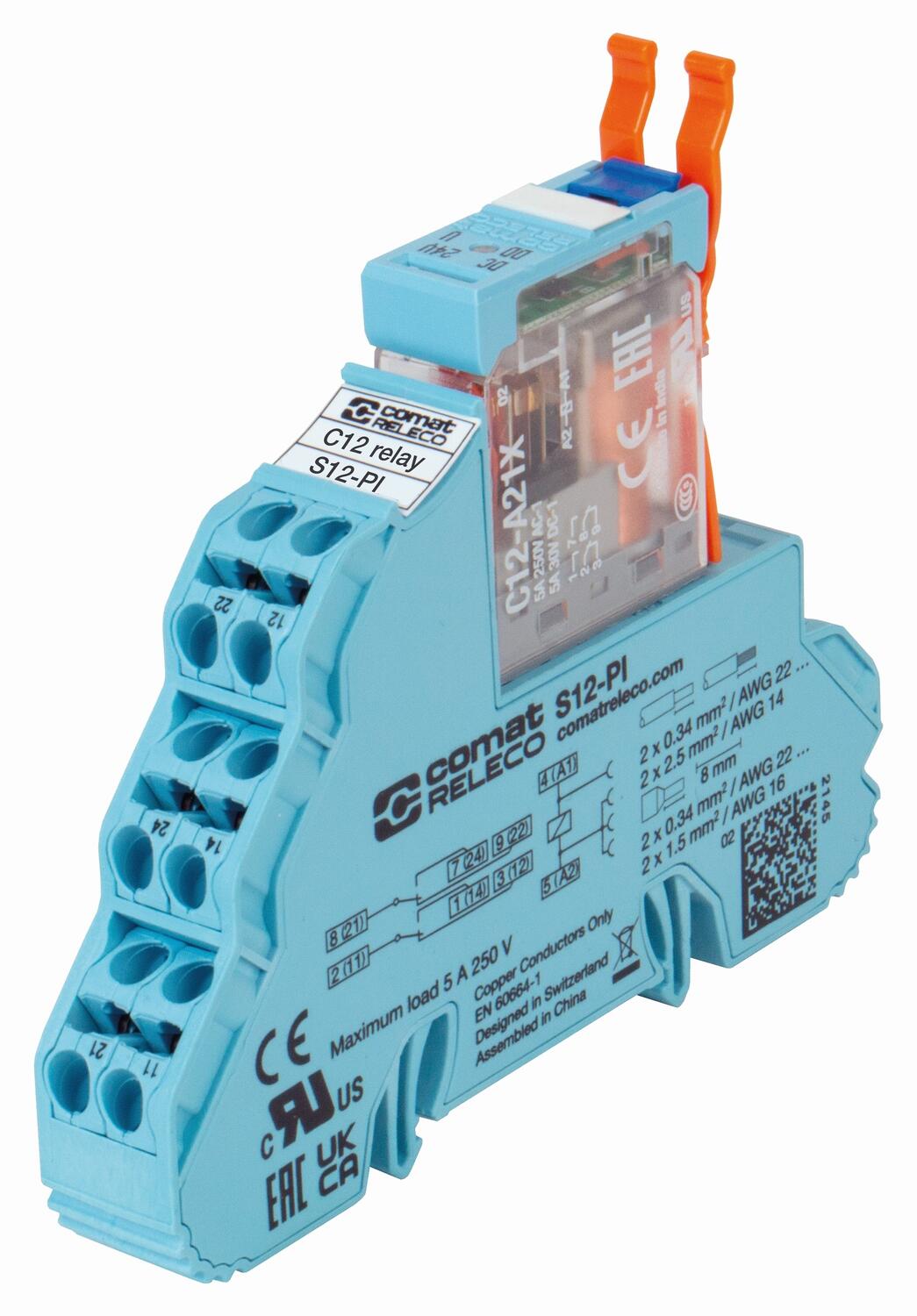

C12A21X230A+S12-PI
Copied
|
|
1
|
5 A
|
230 V AC
|
|
AgNi + 0,2 µ Au
|
|
5000 V
|
3000 V
|
AC: 10Mill/. DC: 20 Mill
|
1,1 VA
|
|
2
|
X (LED)
|
1,1
|
5 A/250 V AC 1; 0,5A/110 V DC-1
|
10 mA/10 V
|
5 ms
|
8 ms
|
|
|
10 ms
|
|
|
15 A
|
|
|
|
|
21 g
|
0,6 V
|
0,8-1,10
|
| ||
|
Art:
C12A21X24D+S12-PI
Copied
|
|
1
|
5 A
|
|
24 V DC
|
AgNi + 0,2 µ Au
|
|
5000 V
|
3000 V
|
AC: 10Mill/. DC: 20 Mill
|
|
0,7 W
|
2
|
X (LED)
|
1,1
|
5 A/250 V AC 1; 0,5A/110 V DC-1
|
10 mA/10 V
|
5 ms
|
8 ms
|
|
|
10 ms
|
|
|
15 A
|
|
|
|
|
21 g
|
0,35 V
|
0,8-1,10
|
|
Select a variant in the list
