SIGNAL TOWER Ø 50MM CT5 CT5 CT5-Q02 | OEM Automatic Ltd

<p><strong>Important notice -</strong> Our website is under going construction, therefore you may notice some issues. Please bare with us and contact or customer support team if you need any product information - 0116 284 9900</p>

Important notice - Our website is under going construction, therefore you may notice some issues. Please bare with us and contact or customer support team if you need any product information - 0116 284 9900

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Technical data

Data
Nominal voltage	24 V DC
Lens colour	Green, Red
Light source	LED
Light type	Solid

Downloads

Modul Compete 50mm datablad.pdf

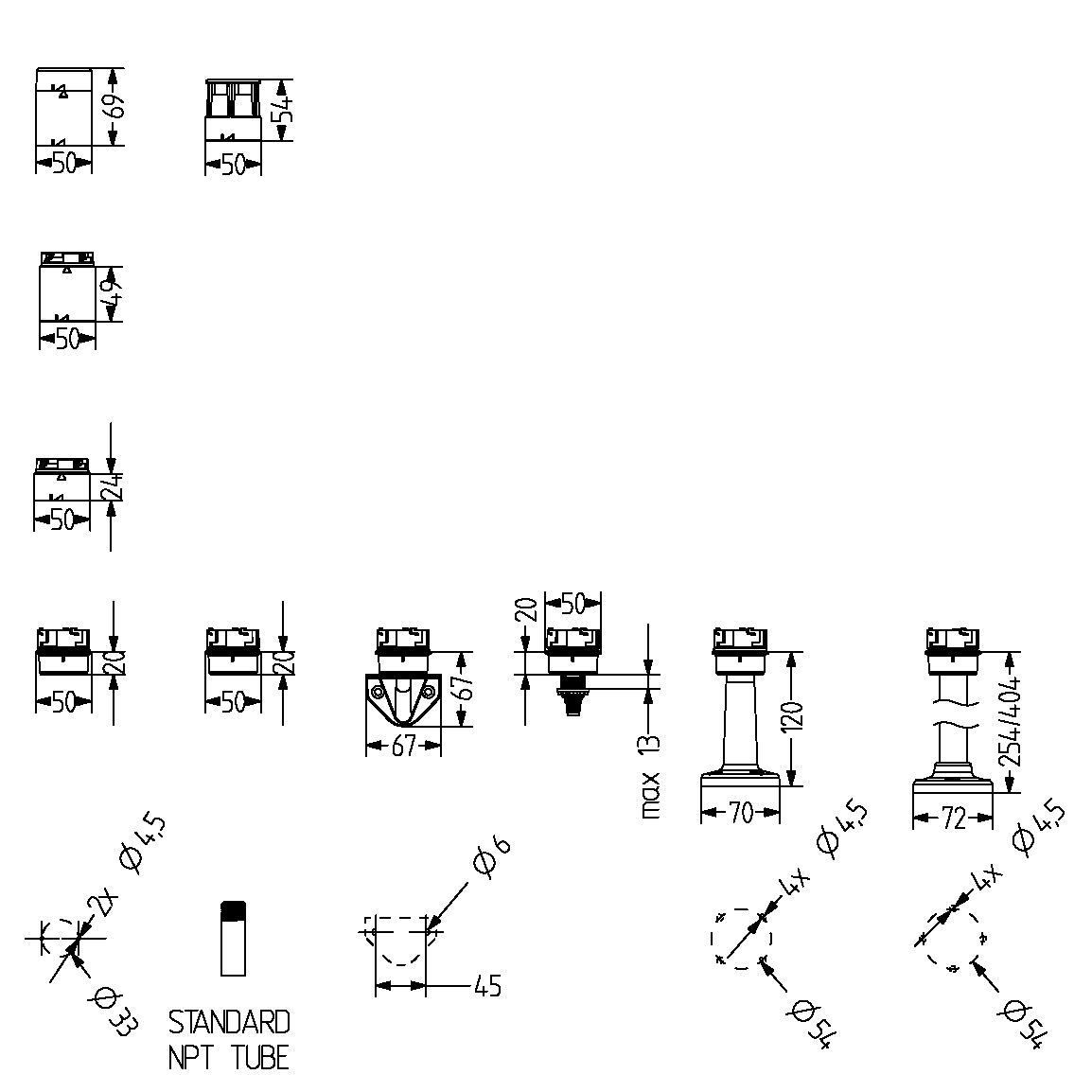

Measurements and connections

Product description

One of the most cost-effective signal towers on the market, the new robust CT5 50mm signal tower has been developed for classic 24V DC applications and allows up 5 different modules to be stacked.

Cost-optimised modular 50 mm Ø signal tower
24V DC applications
Up to 5 positions possible
Polycarbonate housing
IP65 rated
LED multifunction and LED continuous light modules in 6 colours
Efficient sound module selectable up to 95 dB – 8 tones
Optimised ‘resilient’ bayonet system enables high stability, even without sealing rings
Five-pole M12 base with automatic contacting push-in system
Various mounting types

Accessories

Related

contaclip kds sr90

Every angle covered with 90 degree cable entry system

Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.

crouzet millenium slim on limited time discount

The smallest logic controller ever on limited time discount

The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.

11 questions to get the right signalling device with Auer Signal & OEM Automatic

11 questions to get the right signalling device – a whitepaper

Do you require signalling devices and beacons in your production process? Download our latest whitepaper!

bespoke solutions electricity meter control boxes

Control Box Assembly for Industrial Electricity Metering - A case study

Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.

DC circuit protection PISA M and circuit breakers

Safeguard systems with DC circuit protection

This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.

IATECH, the industrial automation technology exhibition OEM automatic

Recap of IATECH

Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.

	Parts	IP class	Temperature operational max	Weight	Temperature operational min	Nominal current max	Lens colour	Sound level max	Light source	Light type	Housing Colour	Sounder	Price

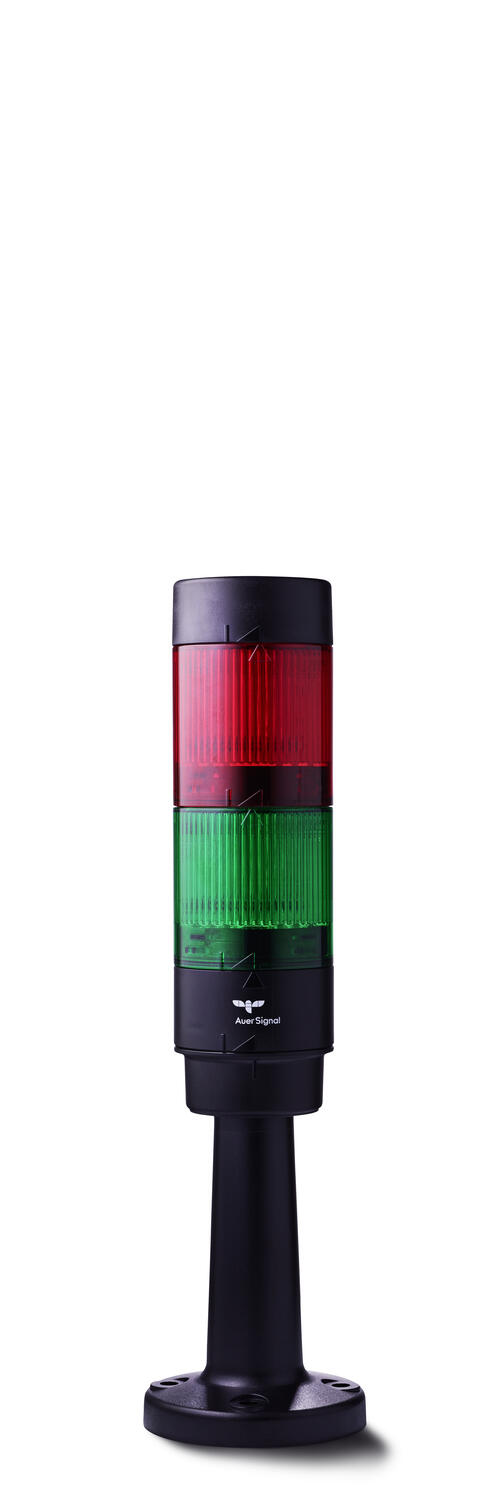

	Pre-assembled Signal tower Ø 50mm red/green 24VDC 100mm tube Art: CT5-Q02 Copied						Green, Red		LED	Solid

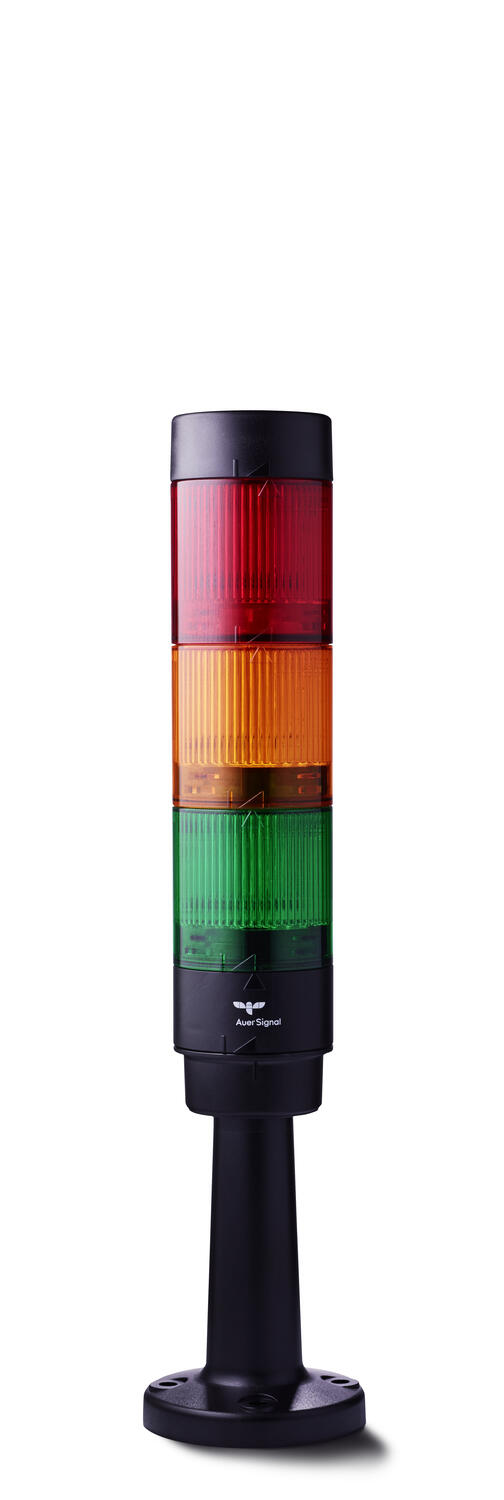

	Pre-assembled tower Ø50mm red/amber/green 24VDC 100mm tube Art: CT5-Q01 Copied						Green, Orange, Red		LED	Solid
	Pre-assembled Ø50mm red/amber/green/blue 24VDC 100mm tube Art: CT5-Q05 Copied						Blue, Green, Orange, Red		LED	Solid

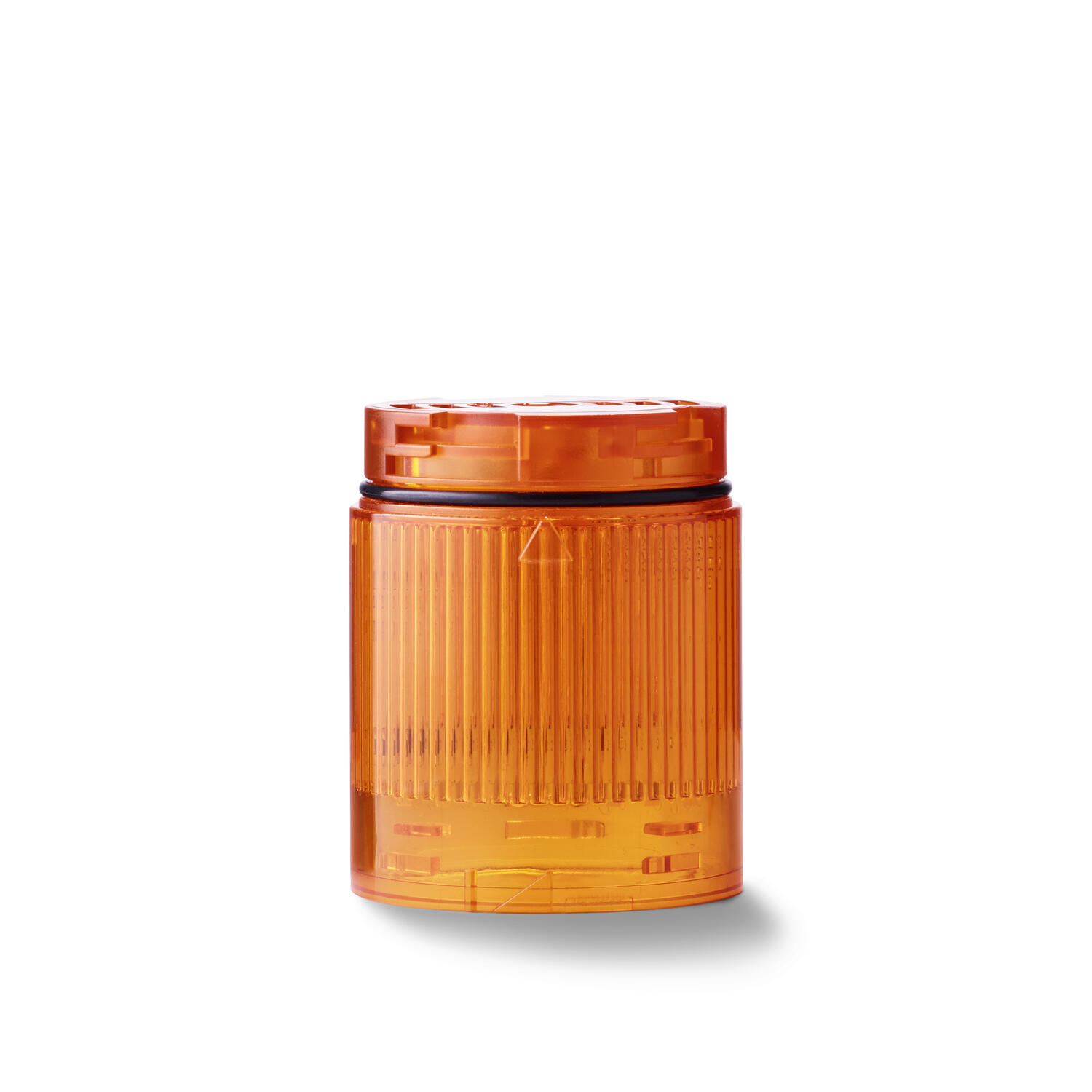

	CT5DC LED amber steady light module 24V DC Art: 915011005 Copied	IP65	60 °C	34 g	-30 °C	0,035 A	Amber		LED	Solid

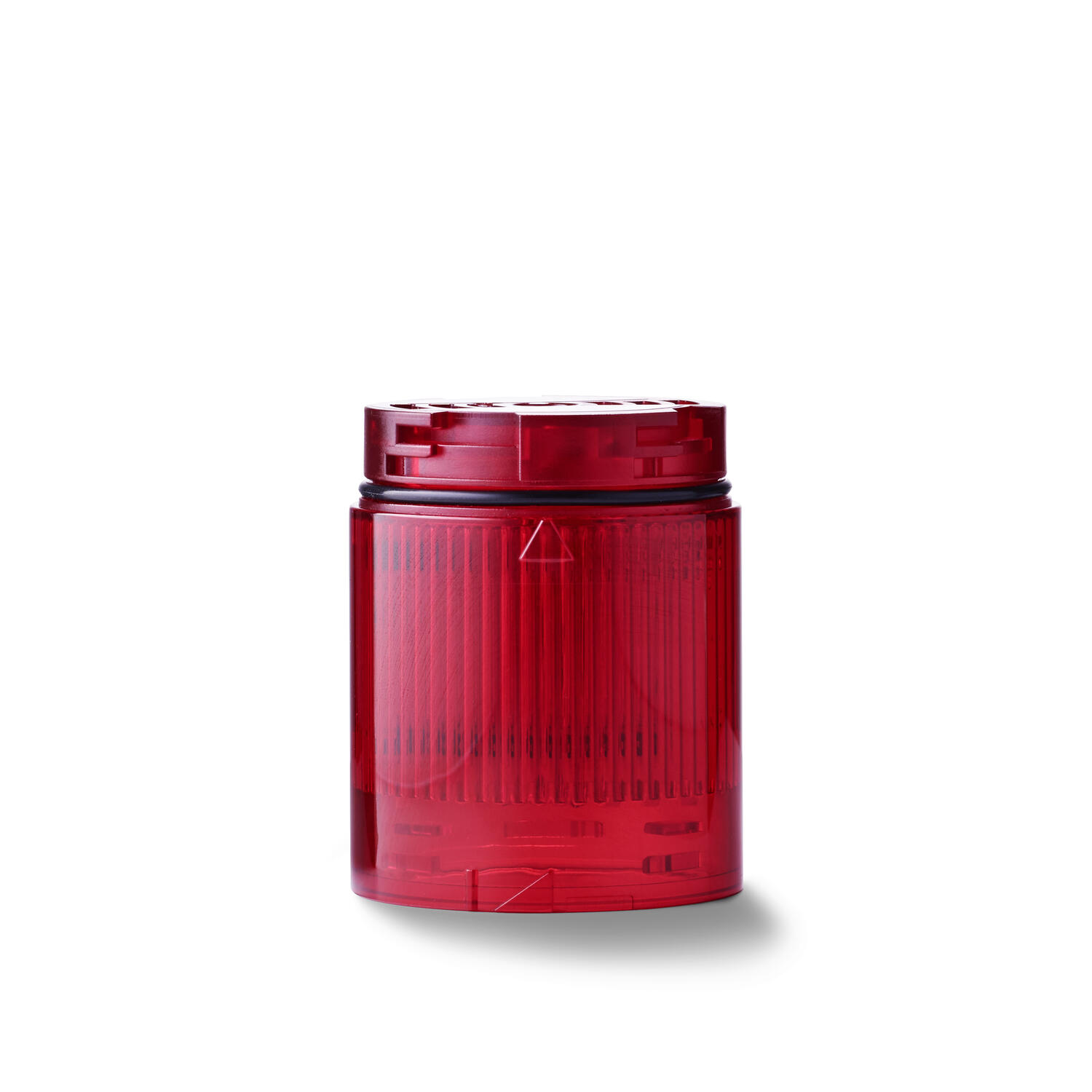

	CT5DC LED red steady light module 24V DC Art: 915012005 Copied	IP65	60 °C	34 g	-30 °C	0,045 A	Red		LED	Solid

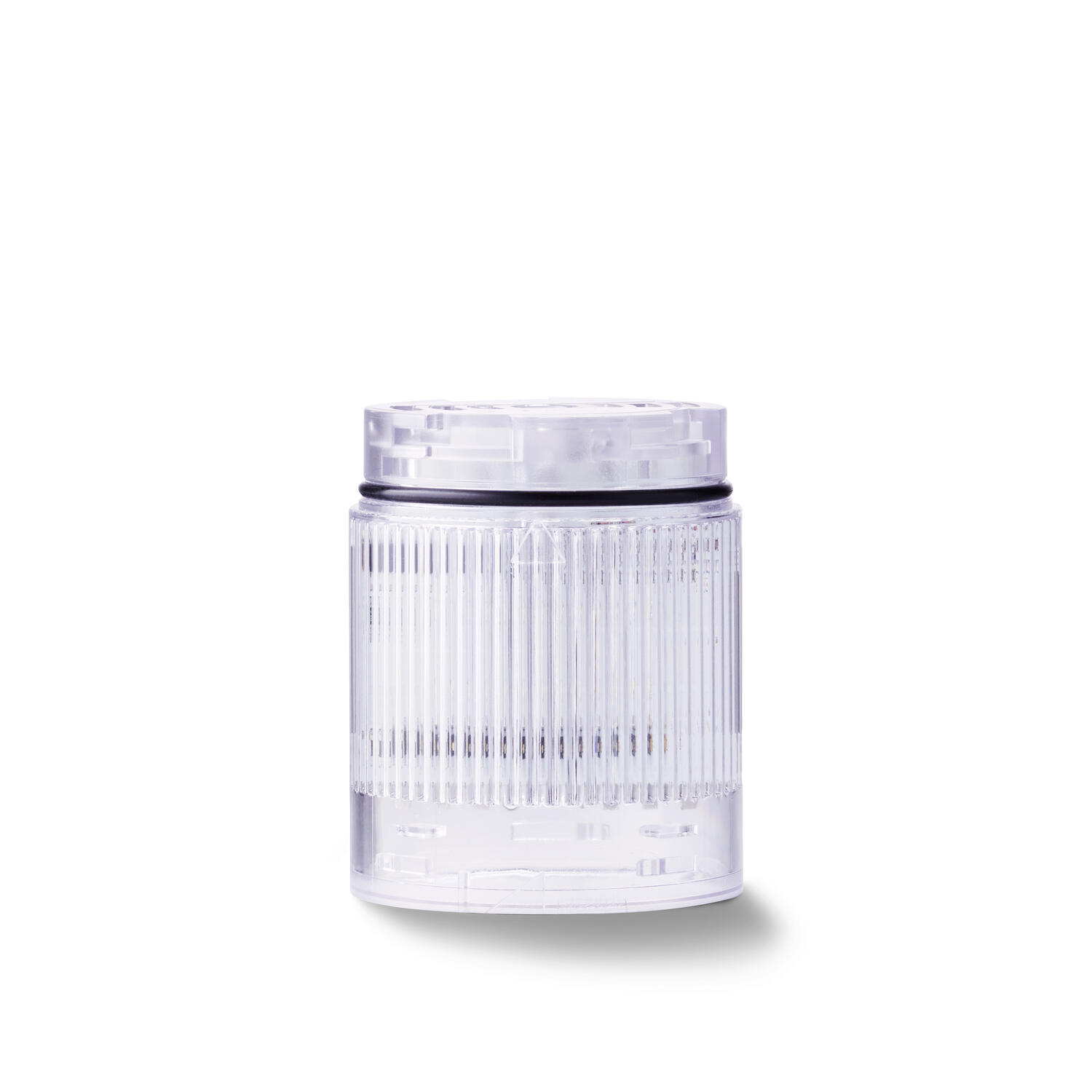

	CT5DC LED white steady light module 24V DC Art: 915014005 Copied	IP65	60 °C	34 g	-30 °C	0,035 A	White		LED	Solid
	CT5DC LED blue steady light module 24V DC Art: 915015005 Copied	IP65	60 °C	34 g	-30 °C	0,035 A	Blue		LED	Solid

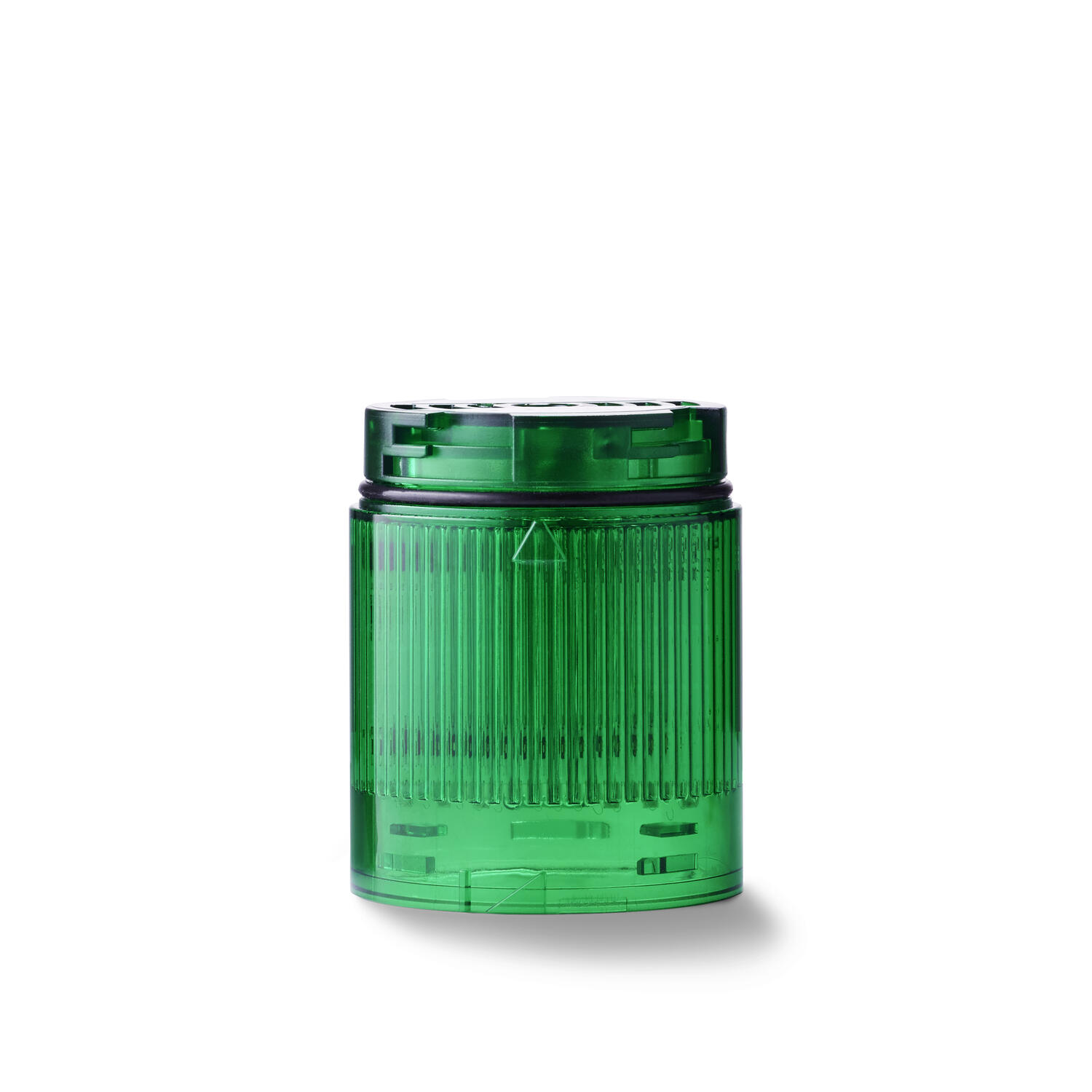

	CT5DC LED green steady light module 24V DC Art: 915016005 Copied	IP65	60 °C	34 g	-30 °C	0,035 A	Green		LED	Solid
	CT5DC LED yellow steady light module 24V DC Art: 915017005 Copied	IP65	60 °C	34 g	-30 °C	0,035 A	Yellow		LED	Solid
	CT5DF LED amber multifunctional module 24V DC Art: 915021005 Copied	IP65	60 °C	34 g	-30 °C	0,055 A	Orange		LED	Multi
	CT5DF LED red multifunctional module 24V DC Art: 915022005 Copied	IP65	60 °C	34 g	-30 °C	0,065 A	Red		LED	Multi
	CT5DF LED white multifunctional module 24V DC Art: 915024005 Copied	IP65	60 °C	34 g	-30 °C	0,055 A	White		LED	Multi
	CT5DF LED blue multifunctional module 24V DC Art: 915025005 Copied	IP65	60 °C	34 g	-30 °C	0,055 A	Blue		LED	Multi
	CT5DF LED green multifunctional module 24V DC Art: 915026005 Copied	IP65	60 °C	34 g	-30 °C	0,055 A	Green		LED	Multi
	CT5DF LED yellow multifunctional module 24V DC Art: 915027005 Copied	IP65	60 °C	34 g	-30 °C	0,055 A	Yellow		LED	Multi
	CT5ZM Piezo buzzer module 24V DC Art: 915510005 Copied	IP65	60 °C	27 g	-30 °C	0,035 A		95 dB			Black	Yes
