LUMEL
The P30H measuring transducer has been developed for d.c network applications found in such industries as photovoltaic, railway and telecoms,
P30H measures and records d.c current, voltage, power energy and other d.c parameters.
The unit is available in 3 versions
This unit can be easily interfaced into existing systems to provide a complete solution to your d.c measurement requirements.

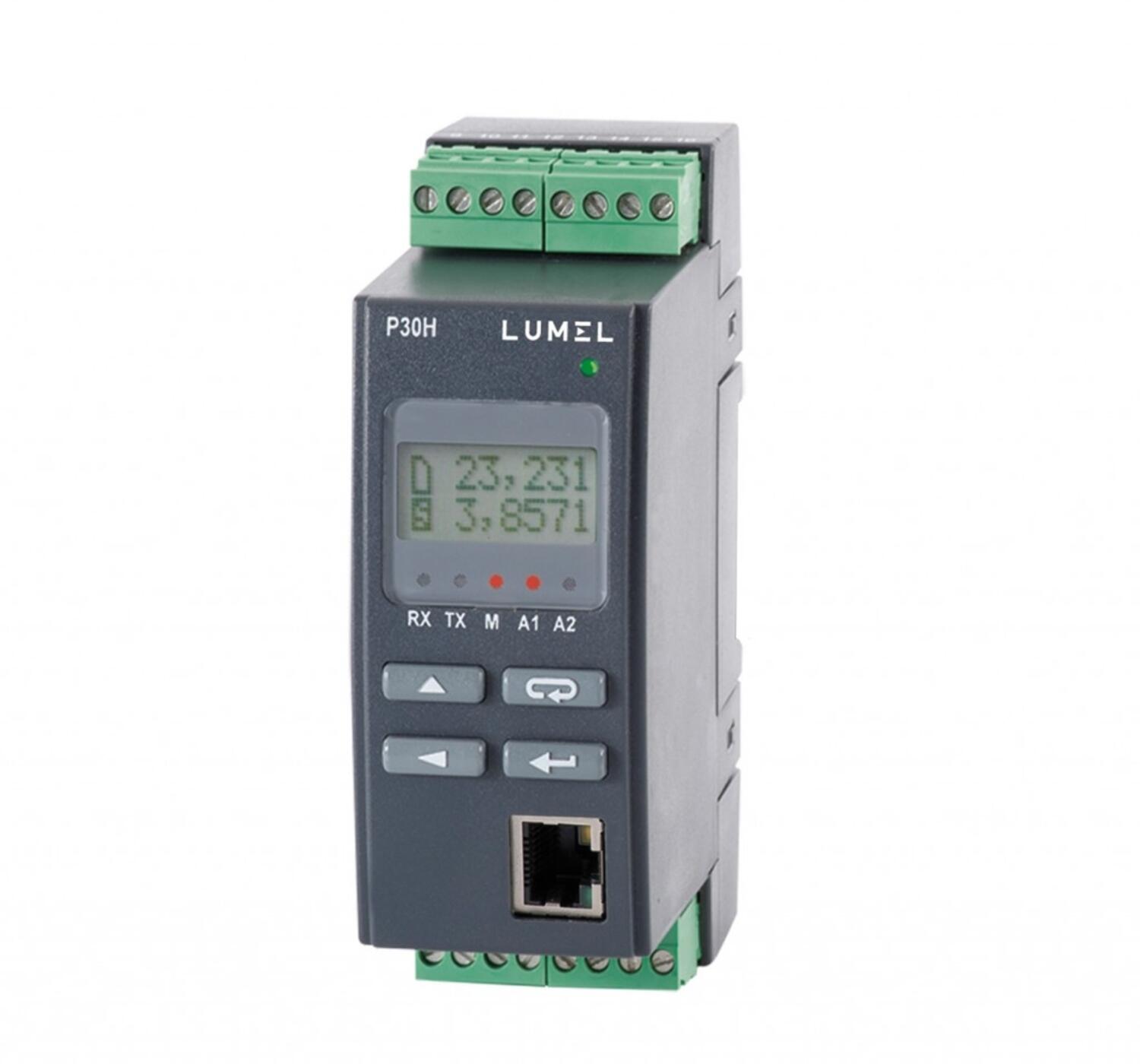

The clear LCD display shows the measured values and the status of the alarm outputs. The unit can be programmed from the front panel buttons or via a PC using the free e-Con software.
See how it works
(Log in: User name – user; Password – pass)
The P30H measuring transducer has been developed for d.c network applications found in such industries as photovoltaic, railway and telecoms,
P30H measures and records d.c current, voltage, power energy and other d.c parameters.
The unit is available in 3 versions
This unit can be easily interfaced into existing systems to provide a complete solution to your d.c measurement requirements.
The clear LCD display shows the measured values and the status of the alarm outputs. The unit can be programmed from the front panel buttons or via a PC using the free e-Con software.
See how it works
(Log in: User name – user; Password – pass)

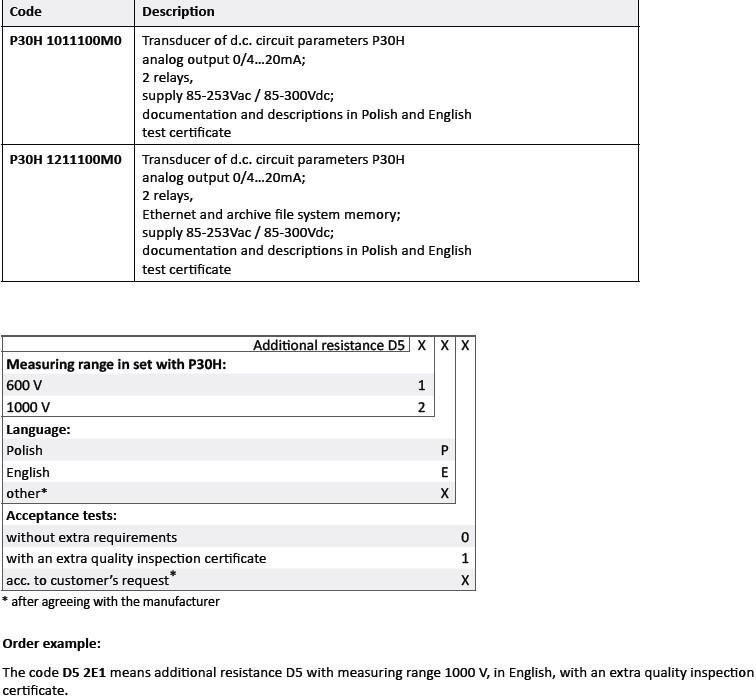

Please refer to the data sheet for ordering keys and contact us for more information.
**Part numbers have changed from ending with E0 to M0, please be advised any part numbers below that end in E0 will say M0 in the datasheet. The product is the same.**
Optimise your production line with encoders, inclinometers, displays and slip rings
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.
Do you require signalling devices and beacons in your production process? Download our latest whitepaper!
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Price | ||
|---|---|---|---|
P30H TRANSDUCER, 2R, 1 x 0..20mA, 230V
Art:
P30H1011100E0
Copied
|
| ||
|
P30H TRANSDUCER, 2R, 1 x 0..20mA, 230V ETHERNET
Art:
P30H1211100M0
Copied
|
|
Select a variant in the list
