Technical data / Documents

Product description

Accessories & Related products

Selected variant

Technical data

Accuracy	0.1 % FSR
Approvals	CSA, DNV, UL
Connection type	Screw
Cross section max	2,5 mm²
Cross section min	0,25 mm²
Depth	73 mm
Galvanic isolation	3-way
Height	93 mm
Input	0-10 V
Input impedance, typ	330 kΩ
Input/Output protection	Overvoltage, current input PTC fuse, short circuit-proof output
Insulation	2.5 kV
Insulation voltage in/out	2500 V
IP class	IP20
Linearity	0,05 % FSR
Mounting	DIN-Rail

Output	0-10 V
Reaction time	17 ms
Rise time (10 - 90%)	6 ms
Status indication	Green LED
Storage temperature max	80 °C
Storage temperature min	-40 °C
Supply voltage	24 V AC/DC
Switching frequency max	30 Hz @ 3 dB
Temperature coefficient	<150 ppm/° K FSR
Temperature operational max	60 °C
Temperature operational min	-25 °C
Type of converter	Analogue - analogue
Weight	29 g
Width	6,2 mm

Downloads

Measurements and connections

Product description

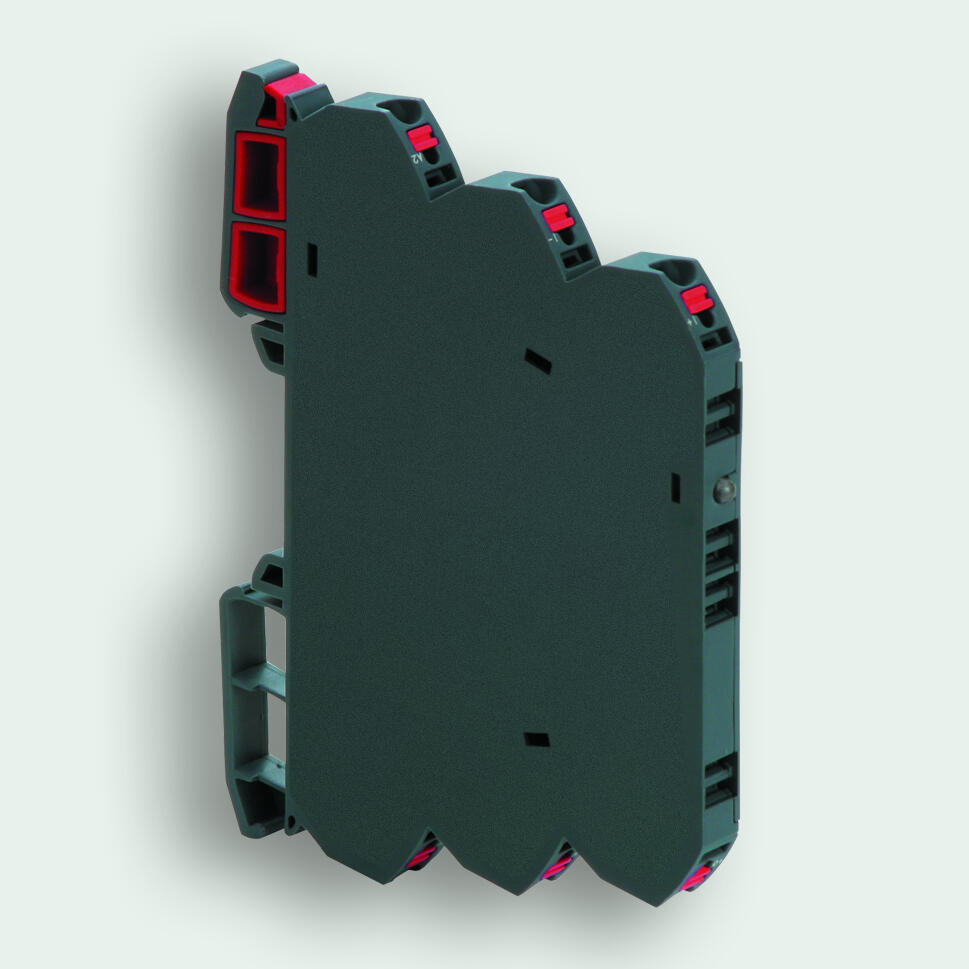

The converter features 3-way galvanic isolation, each terminal can be connected by jumper comb. Extremely compact design, width of 6,2mm only. Can be installed in any position. Both push-in and screw terminal versions available.

Accessories

Related

Kubler slip rings encoders

Blog Product news

Optimise your production line with sensors

Optimise your production line with encoders, inclinometers, displays and slip rings

contaclip kds sr90

Every angle covered with 90 degree cable entry system

Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.

crouzet millenium slim on limited time discount

The smallest logic controller ever on limited time discount

The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.

11 questions to get the right signalling device with Auer Signal & OEM Automatic

11 questions to get the right signalling device – a whitepaper

Do you require signalling devices and beacons in your production process? Download our latest whitepaper!

bespoke solutions electricity meter control boxes

Control Box Assembly for Industrial Electricity Metering - A case study

Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.

DC circuit protection PISA M and circuit breakers

Safeguard systems with DC circuit protection

This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.

	Parts	Connection type	Input	Input impedance current mA	Input impedance, typ	Load impedance	Output	Price
	LCIS-WAA Converter, 0-10V dc/0-10V dc, 24V ac/dc, screw Art: 750530.0000 Copied	Screw	0-10 V		330 kΩ		0-10 V
	LCIS-WAA Converter, 0-10V dc/0-10V dc, 24V ac/dc, push in Art: 751530.0000 Copied	Push-In	0-10 V		330 kΩ		0-10 V
	LCIS-WAA Converter, 0-10V dc/0-20mA, 24V ac/dc, screw Art: 750531.0000 Copied	Screw	0-10 V		330 kΩ	500 Ω	0-20 mA
	LCIS-WAA Converter, 0-10V dc/0-20mA, 24V ac/dc, push in Art: 751531.0000 Copied	Push-In	0-10 V		330 kΩ	500 Ω	0-20 mA
	LCIS-WAA Converter, 0-10V dc/4-20mA, 24V ac/dc, screw Art: 750532.0000 Copied	Screw	0-10 V		330 kΩ	500 Ω	4-20 mA
	LCIS-WAA Converter, 0-10V dc/4-20mA, 24V ac/dc, push in Art: 751532.0000 Copied	Push-In	0-10 V		330 kΩ	500 Ω	4-20 mA
	LCIS-WAA Converter, 0-20mA/0-10V dc, 24V ac/dc, screw Art: 750533.0000 Copied	Screw	0-20 mA	100 Ω			0-10 V
	LCIS-WAA Converter, 0-20mA/0-10V dc, 24V ac/dc, push in Art: 751533.0000 Copied	Push-In	0-20 mA	100 Ω			0-10 V
	LCIS-WAA Converter, 0-20mA/0-20mA, 24V ac/dc, screw Art: 750534.0000 Copied	Screw	0-20 mA	100 Ω		500 Ω	0-20 mA
	LCIS-WAA Converter, 0-20mA/0-20mA, 24V ac/dc, push in Art: 751534.0000 Copied	Push-In	0-20 mA	100 Ω		500 Ω	0-20 mA
	LCIS-WAA Converter, 0-20mA/4-20mA, 24V ac/dc, screw Art: 750535.0000 Copied	Screw	0-20 mA	100 Ω		500 Ω	4-20 mA
	LCIS-WAA Converter, 0-20mA/4-20mA, 24V ac/dc, push in Art: 751535.0000 Copied	Push-In	0-20 mA	100 Ω		500 Ω	4-20 mA
	LCIS-WAA Converter, 4-20mA/0-10V dc, 24V ac/dc, screw Art: 750536.0000 Copied	Screw	4-20 mA	100 Ω			0-10 V
	LCIS-WAA Converter, 4-20mA/0-10V dc, 24V ac/dc, push in Art: 751536.0000 Copied	Push-In	4-20 mA	100 Ω			0-10 V
	LCIS-WAA Converter, 4-20mA/0-20mA, 24V ac/dc Art: 750537.0000 Copied		4-20 mA	100 Ω		500 Ω	0-20 mA
	LCIS-WAA Converter, 4-20mA/0-20mA, 24V ac/dc, push in Art: 751537.0000 Copied	Push-In	4-20 mA	100 Ω		500 Ω	0-20 mA
	LCIS-WAA Converter, 4-20mA/4-20mA, 24V ac/dc, screw Art: 750538.0000 Copied	Screw	4-20 mA	100 Ω		500 Ω	4-20 mA
	LCIS-WAA Converter, 4-20mA/4-20mA, 24V ac/dc, push in Art: 751538.0000 Copied	Push-In	4-20 mA	100 Ω		500 Ω	4-20 mA
