CONTA-CLIP

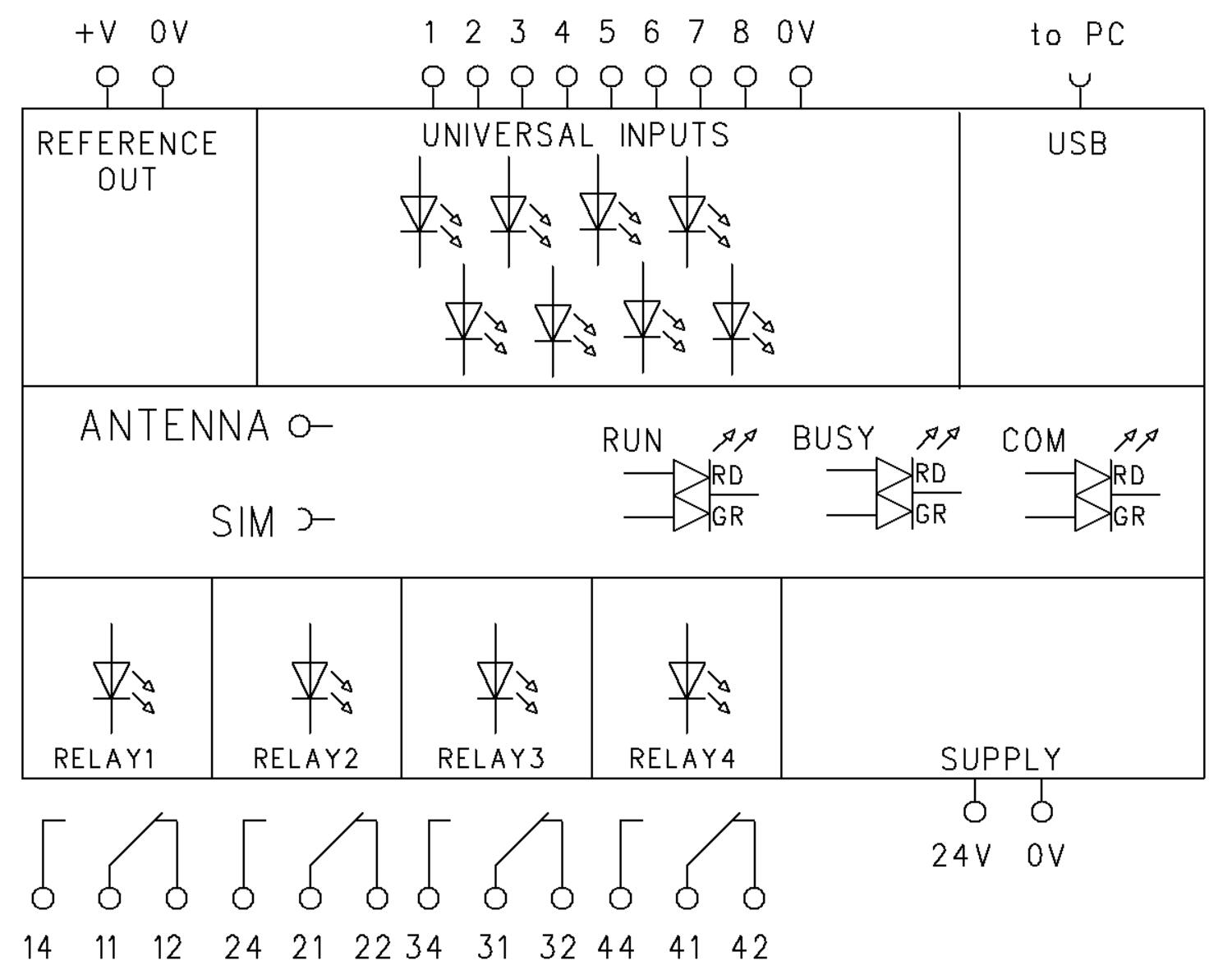

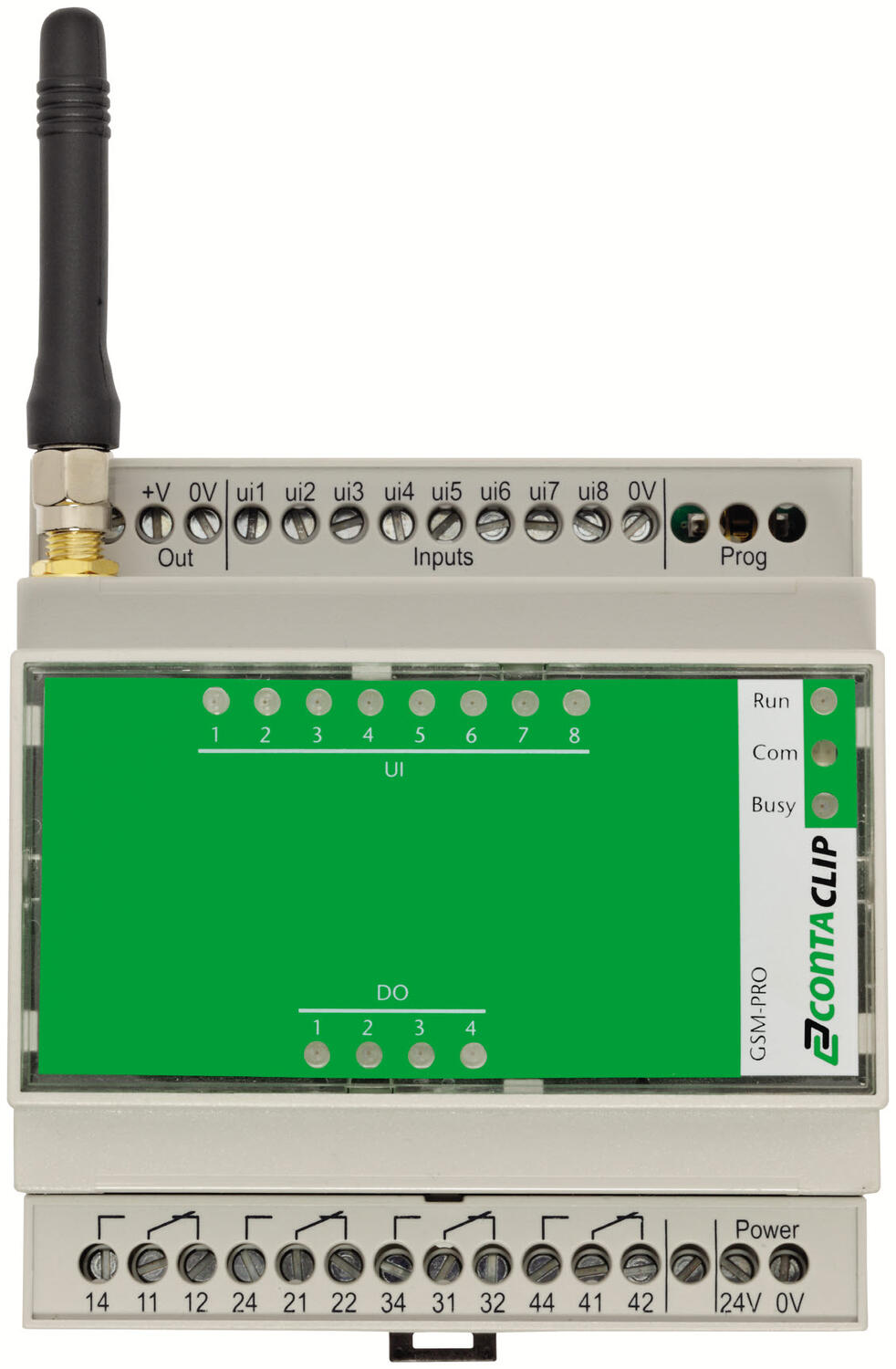

CONTA-CLIP’s GSM-PRO offers a remote control and maintenance solution which allows you to create a decentralised system or monitor and control devices. Changes to the eight digital (24 V DC) / analogue (0 to 10 V) inputs can be notified via SMS text message, e-mail or both. The digital outputs can be controlled via SMS text message.
GSMPRO has now been replaced with GSM-PRO2, that has even more features.
General Data |
|
|---|---|
| GPS | No |
| Number of outputs | 4 |
| Operating temperature from | -20 °C |
| Current consumption | 275 mA @ 24V dc |
| Number of inputs | 8 |
| Mounting | TS 35 and direct mount |
| Operating temperature to | 60 °C |
| Electromagnetic compatibility | EN55011, EN61326-1 |
| Supply voltage | 10-30V dc |
Dimensions |
|
| Weight | 221 g |
| Length | 88 mm |
| Width | 95 mm |
| Height | 67 mm |
Inputs |
|
| Input resistance U / I | 46K / - |
| Resolution U (0-10 V dc) | 20mV / ±(20mV+0,3%) |
| Threshold digital inputs | Low <3, High >6V |
| Input signal U / I max | 30 V/- |
| Minimum pulse duration | 500 ms |
Outputs |
|
| Electrical life in hours (AC1) | 1,5x10⁵ |
| Relay contact | 1 CO |
| Rated V ac / switching V ac max | 250 / 250 V ac |
*Invisible Heading* |
|
|---|---|
| Mechanical life hours | 15x10⁶ |
| Continuous current max / Inrush current max | 5 / 5 A |
| Contact material | AgNi 90/10 |
| Switching capacity max | 1200 VA |
Connections |
|
| Cross section single wire from | 0,2 mm² |
| Connection type | Screw |
| Stripping length | 6 mm |
| Cross section single wire to | 4 mm² |
| Torque | 0,4 Nm |
GSM/GPS Data |
|
| 2G | Quad-band GSM bands: 850, 900, 1800 and 1900 MHz |
| Antenna GSM | 50 Ohm, SMA-plug |
| SIM card | Standard SIM |
| Relative humidity max | 80 % |
| Tariff code | 85176990 |
| Pack size | 1 |
| Country of origin | NL |
| DIN-VDE Spec | LVD 2014/35/EC, EN 50178. EMC 2014/30/EC, EN 61326-1 |
| Frequency spectrum | ETSI EN 301-511 V9.0.2 |
| IP class | IP20 |
CONTA-CLIP’s GSM-PRO offers a remote control and maintenance solution which allows you to create a decentralised system or monitor and control devices. Changes to the eight digital (24 V DC) / analogue (0 to 10 V) inputs can be notified via SMS text message, e-mail or both. The digital outputs can be controlled via SMS text message.
GSMPRO has now been replaced with GSM-PRO2, that has even more features.
Optimise your production line with encoders, inclinometers, displays and slip rings
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.
Do you require signalling devices and beacons in your production process? Download our latest whitepaper!
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Number of outputs | Operating temperature from | Current consumption | Number of inputs | Mounting | Operating temperature to | Electromagnetic compatibility | Supply voltage | Weight | Length | Width | Height | Input resistance U / I | Resolution U (0-10 V dc) | Threshold digital inputs | Input signal U / I max | Minimum pulse duration | Electrical life in hours (AC1) | Relay contact | Rated V ac / switching V ac max | Mechanical life hours | Continuous current max / Inrush current max | Contact material | Switching capacity max | Cross section single wire from | Connection type | Stripping length | Cross section single wire to | Torque | 2G | Antenna GSM | SIM card | Relative humidity max | Tariff code | Country of origin | DIN-VDE Spec | Frequency spectrum | IP class | Cable length | Connector type | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
GSM-PRO GSM-PRO MODULE NO ANT
Art:
16099.2
Copied
|
4
|
-20 °C
|
275 mA @ 24V dc
|
8
|
TS 35 and direct mount
|
60 °C
|
EN55011, EN61326-1
|
10-30V dc
|
221 g
|
88 mm
|
95 mm
|
67 mm
|
46K / -
|
20mV / ±(20mV+0,3%)
|
Low <3, High >6V
|
30 V/-
|
500 ms
|
1,5x10⁵
|
1 CO
|
250 / 250 V ac
|
15x10⁶
|
5 / 5 A
|
AgNi 90/10
|
1200 VA
|
0,2 mm²
|
Screw
|
6 mm
|
4 mm²
|
0,4 Nm
|
Quad-band GSM bands: 850, 900, 1800 and 1900 MHz
|
50 Ohm, SMA-plug
|
Standard SIM
|
80 %
|
85176990
|
NL
|
LVD 2014/35/EC, EN 50178. EMC 2014/30/EC, EN 61326-1
|
ETSI EN 301-511 V9.0.2
|
IP20
|
|
|
| ||
GSM-USB GSM-PRO ANGLED USB CABLE
Art:
16103.2
Copied
|
|
|
|
|
|
|
|
|
52 g
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
85444290
|
CN
|
|
|
|
1,8 m
|
Mini USB 90°
|
|
