GSM-PRO2: the perfect communicator
CONTA-CLIP's GSM-PRO2 is an easy-to-use SMS reporting for remote monitoring of equipment that can signal changes of inputs and outputs through text messaging and email.
4G as standard to give full global coverage including the EU, USA & Australia.
The GSM-PRO2 module informs you when your process has achieved a user-defined status or limit value. Digital and analogue inputs values can also be sent via e-mail or SMS (text message). The digital relay outputs can be switched using an SMS sent from selected users allowing the system to be monitored and controlled remotely. Android and iPhone apps are available to make the monitoring and control functions of the GSM-PRO2 modules even easier to operate.
To further add to the flexibility, a new Web Portal CONTA-SUPERVISION is available and can work across all platforms.
The user-friendly browser-based programming software can be used to configure the module´s inputs and outputs and their required functions.
Input and output
The GSM-PRO2 modules are equipped with two multi-function inputs, one relay output and a pulse counter input which can process a maximum of 1000 pulses per second, so that for example a photovoltaic system or a kWh meter can be connected. The compact unit can alos be configured as a Modbus Slave device.

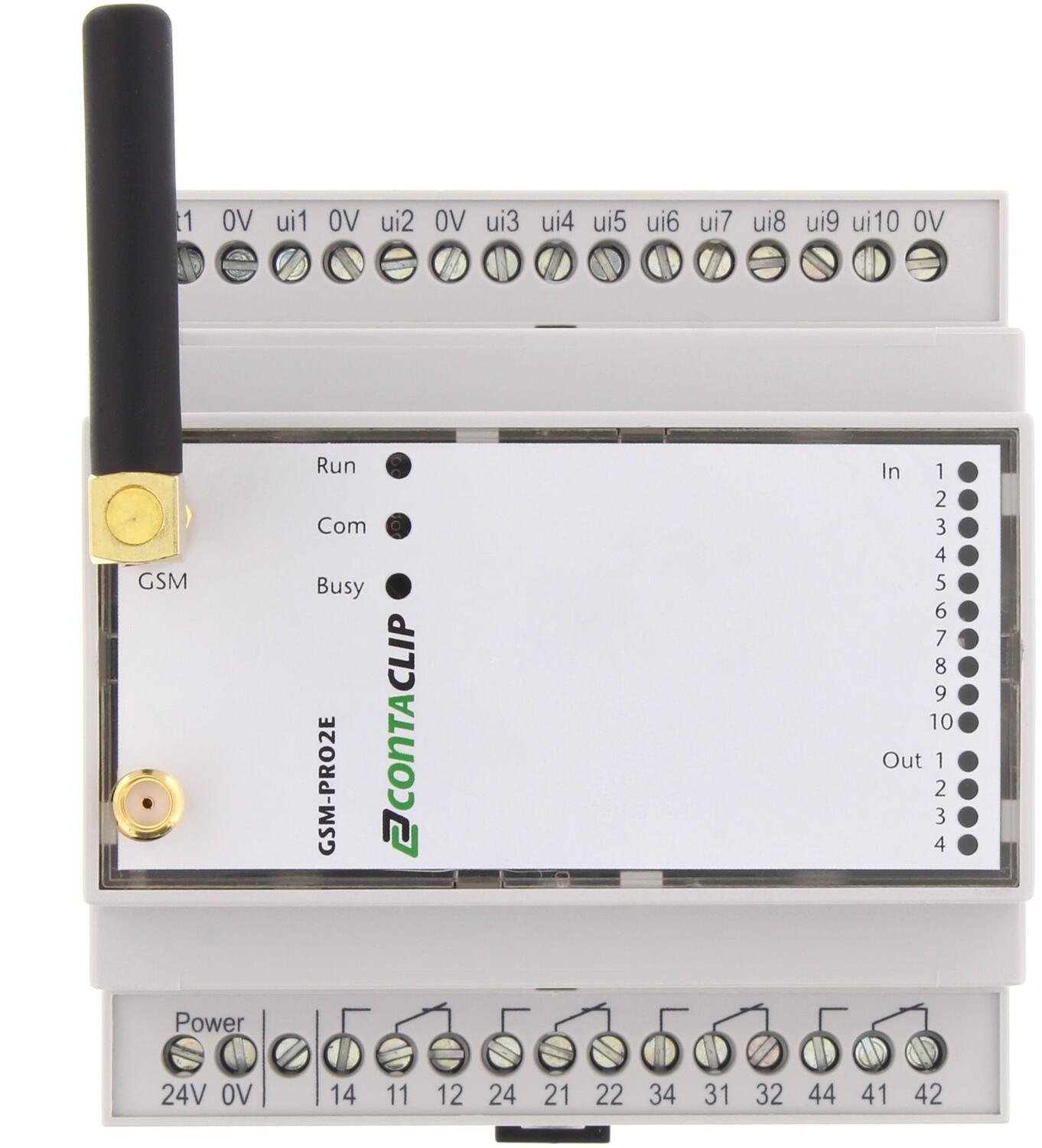

The GSMPRO2E has ten multifunction inputs, 4 relay outputs and a pulse counter input
Both modules have built in hours run timers that can be assign to both inputs and outputs.

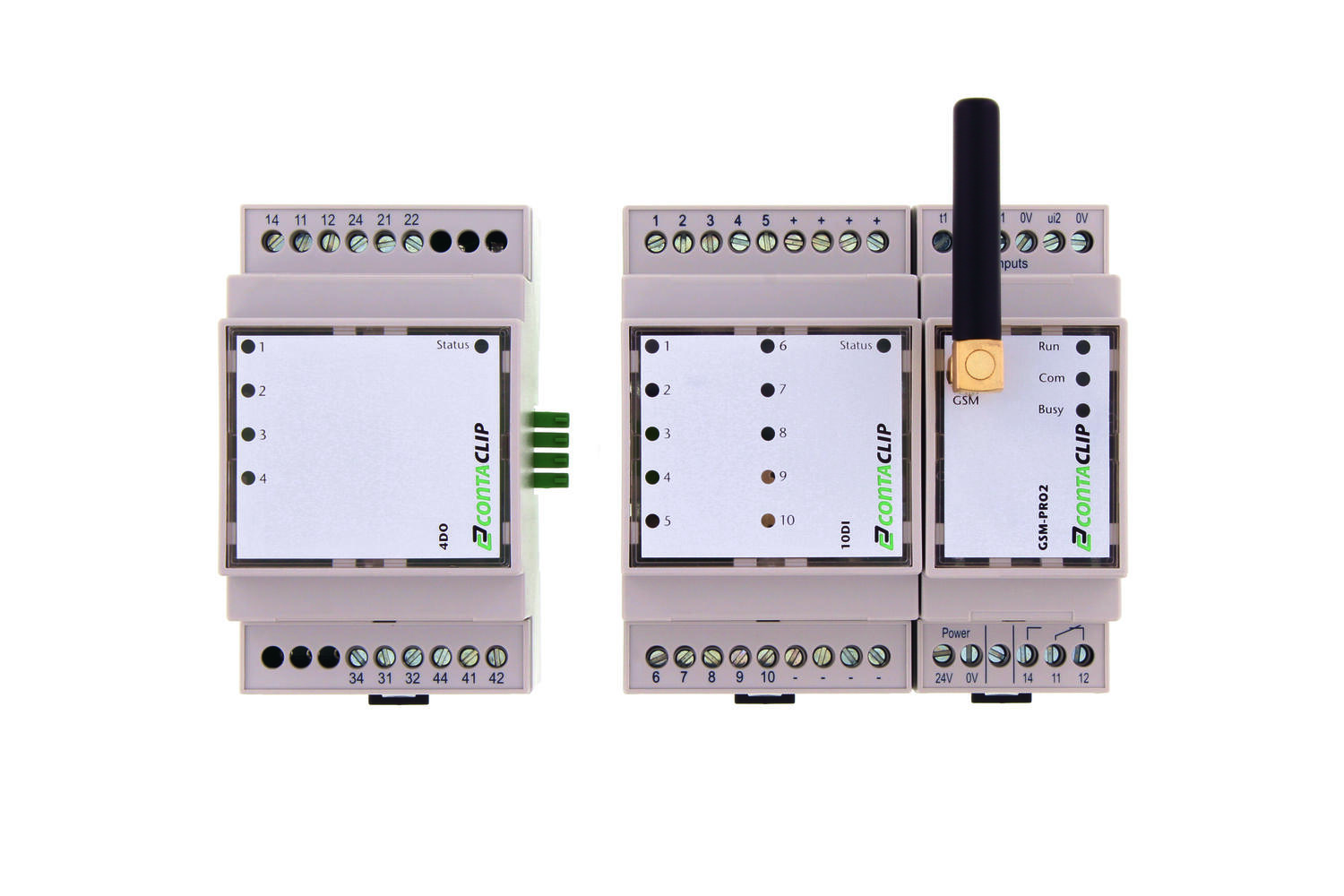

Expansion modules
All the GSM-PRO2 modules also provide the option for expanding the number of available inputs and outputs. Up to 15 I/O expansion modules, in 4 different versions, can be controlled for each module. The built-in plug connector supplies power and control functionality for the modules. The expansion modules can also be configured with the user-friendly browser-based application.
OTA (over-the-air) capabilities
In many systems or machines, some parameters or user entries may need to be changed after the installation is completed.
Whether you are adding a new phone number or email address of a new user, a new I/O setting,
a change in the module name or any other change: the settings on all GSM-PRO2 modules can easily be changed from remote locations around the world.
OTA firmware updates
The GSM-PRO2 can also update its firmware using OTA.
So modules with different versions can always be kept up to date.
Logging functionality
Is your process running optimally? What happened last week?
How many hours has the machine been running this week?
The extensive logging functionality of the GSM-PRO2 module
allows you to log events that have taken place at a facility or a machine over a defined period of time. The log files can be transferred to the PC using a USB cable. Or you can have the log files automatically sent to your e-mail address or displayed via a web-based portal.
Logs
● Event - logs all communication of the module
● Analogue - logs the process values of the analogue inputs at selected time intervals
● Counter - Logs the time that an input or output is activated
Smartphone app
CONTA-CLIP's iPhone and Android smartphone apps for the GSM-PRO2 modules provide a simple and fast solution so that you can get an overview of each system and application. This app can show you the status of all inputs and outputs from one or more GSM-PRO2 modules. They also allow you a degree of control over the process. Module outputs can be controlled easily and directly using this app. The app´s buttons provide an intuitive control interface (for controlling a heater, motor, water pump, etc.).

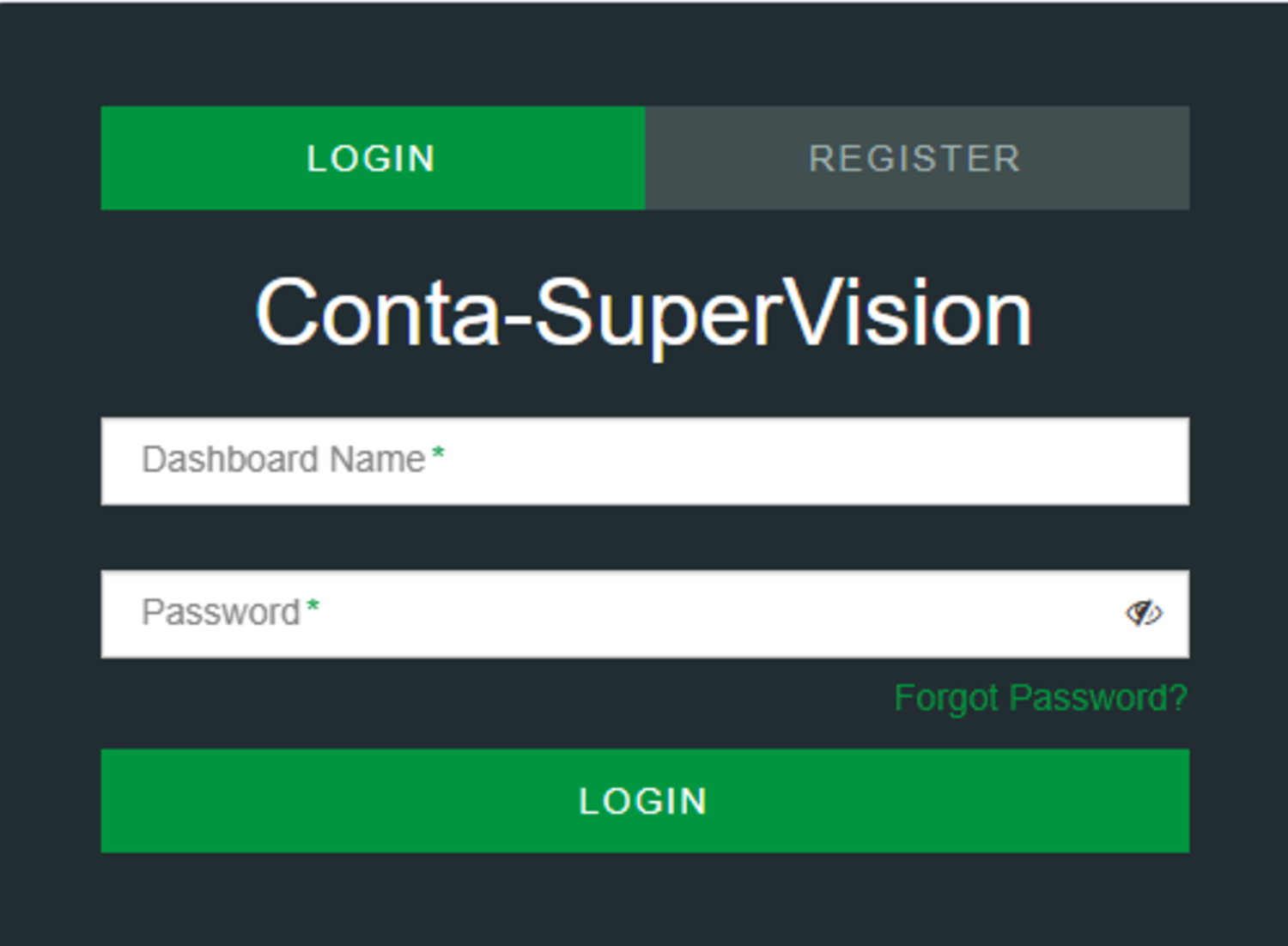

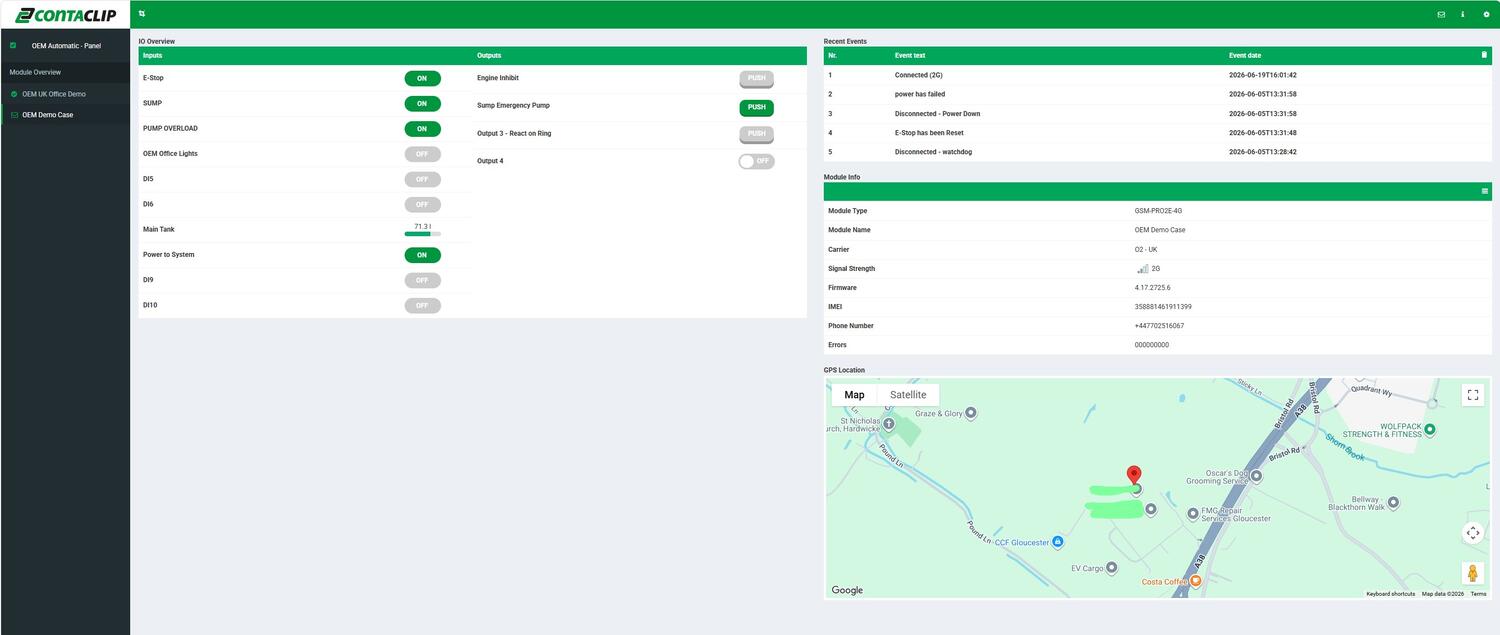

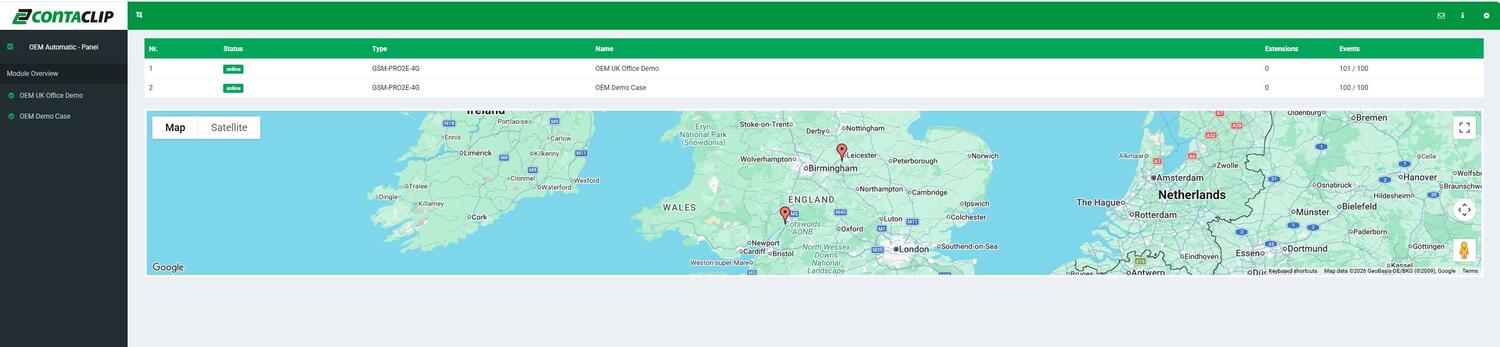

Web IoT portal software CONTA-SUPERVISION
The GSM-PRO2, like most SMS modules, is often used as stand-alone units in the field. These modules are put to use at various remote locations even though they normally have configurations which are very similar. It is often quite helpful to have one overall view of the status of all modules used in the field. The new GSM-PRO2 web-based portal software from CONTA-CLIP offers you precisely this possibility. All modules in the field can now be easily monitored and run from a single local site or control panel.
The CONTA-SUPERVISION IoT portal can be opened in a web browser but is also available as an APP in the Google Play or Apple App store. Try the unlimited possibilities of the CONTA-SUPERVISION IoT portal for FREE . There will be a minimal annual cost in the future (around €99/year per Account), but two GSM-PRO2 modules can still use the CONTA-SUPERVISON IoT portal for FREE . An annual fee will be charged for more than two GSM-PRO2 modules.
General Data |
|
|---|---|
| GPS | No |
| Number of outputs | 1 |
| Operating temperature from | -20 °C |
| Current consumption | 275 mA @ 24V dc |
| Number of inputs | 2 |
| Mounting | TS 35 and direct mount |
| Operating temperature to | 60 °C |
| Electromagnetic compatibility | EN55011, EN61326-1 |
| Supply voltage | 10-30V dc |
Dimensions |
|
| Weight | 149 g |
| Length | 88 mm |
| Width | 36 mm |
| Height | 77 mm |
Inputs |
|
| Input resistance U / I | 80K / 500Ω |
| Resolution I (0-20 mA) | 40 µA / ± (40 µ + 0,3%) |
| Resolution U (0-10 V dc) | 20mV / ±(20mV+0,3%) |
| Counter input (pull-down) | 1000 pulses/s max. Pulldown res. 24 kOhm |
| Threshold digital inputs | Low <3, High >6V |
| Input signal U / I max | 30 V / - |
| Minimum pulse duration | 500 ms |
Outputs |
|
| Electrical life in hours (AC1) | 1,5x10⁵ |
| Relay contact | 1 CO |
| Rated V ac / switching V ac max | 250 / 250 V ac |
*Invisible Heading* |
|
|---|---|
| Mechanical life hours | 15x10⁶ |
| Continuous current max / Inrush current max | 5 / 5 A |
| Contact material | AgNi 90/10 |
| Switching capacity max | 1200 VA |
Connections |
|
| Cross section single wire from | 0,2 mm² |
| Connection type | Screw |
| Number of ext. modules max | 15 |
| Stripping length | 6 mm |
| Cross section single wire to | 4 mm² |
| Torque | 0,4 Nm |
GSM/GPS Data |
|
| 2G | Quad-band GSM bands: 850, 900, 1800 and 1900 MHz |
| Antenna GSM | 50 Ohm, SMA-plug |
| 3G | Five-band UMTS (WCDMA/FDD) bands: 800, 850, 900, 1800, 1900 and 2100 MHz |
| 4G | LTE CAT1: Penta band 700 (Bd28)/ 800 (Bd20)/900 (Bd8)/1800 (Bd3)/2100 MHz (Bd1) |
| SIM card | Nano-SIM |
| Relative humidity max | 80 % |
| Tariff code | 85176990 |
| Pack size | 1 |
| Country of origin | NL |
| DIN-VDE Spec | LVD 2014/35/EC, EN 50178. EMC 2014/30/EC, EN 61326-1 |
| Frequency spectrum | ETSI EN 301-511 V9.0.2 |
| IP class | IP20 |
GSM-PRO2: the perfect communicator
CONTA-CLIP's GSM-PRO2 is an easy-to-use SMS reporting for remote monitoring of equipment that can signal changes of inputs and outputs through text messaging and email.
4G as standard to give full global coverage including the EU, USA & Australia.
The GSM-PRO2 module informs you when your process has achieved a user-defined status or limit value. Digital and analogue inputs values can also be sent via e-mail or SMS (text message). The digital relay outputs can be switched using an SMS sent from selected users allowing the system to be monitored and controlled remotely. Android and iPhone apps are available to make the monitoring and control functions of the GSM-PRO2 modules even easier to operate.
To further add to the flexibility, a new Web Portal CONTA-SUPERVISION is available and can work across all platforms.
The user-friendly browser-based programming software can be used to configure the module´s inputs and outputs and their required functions.
Input and output
The GSM-PRO2 modules are equipped with two multi-function inputs, one relay output and a pulse counter input which can process a maximum of 1000 pulses per second, so that for example a photovoltaic system or a kWh meter can be connected. The compact unit can alos be configured as a Modbus Slave device.
The GSMPRO2E has ten multifunction inputs, 4 relay outputs and a pulse counter input
Both modules have built in hours run timers that can be assign to both inputs and outputs.
Expansion modules
All the GSM-PRO2 modules also provide the option for expanding the number of available inputs and outputs. Up to 15 I/O expansion modules, in 4 different versions, can be controlled for each module. The built-in plug connector supplies power and control functionality for the modules. The expansion modules can also be configured with the user-friendly browser-based application.
OTA (over-the-air) capabilities
In many systems or machines, some parameters or user entries may need to be changed after the installation is completed.
Whether you are adding a new phone number or email address of a new user, a new I/O setting,
a change in the module name or any other change: the settings on all GSM-PRO2 modules can easily be changed from remote locations around the world.
OTA firmware updates
The GSM-PRO2 can also update its firmware using OTA.
So modules with different versions can always be kept up to date.
Logging functionality
Is your process running optimally? What happened last week?
How many hours has the machine been running this week?
The extensive logging functionality of the GSM-PRO2 module
allows you to log events that have taken place at a facility or a machine over a defined period of time. The log files can be transferred to the PC using a USB cable. Or you can have the log files automatically sent to your e-mail address or displayed via a web-based portal.
Logs
● Event - logs all communication of the module
● Analogue - logs the process values of the analogue inputs at selected time intervals
● Counter - Logs the time that an input or output is activated
Smartphone app
CONTA-CLIP's iPhone and Android smartphone apps for the GSM-PRO2 modules provide a simple and fast solution so that you can get an overview of each system and application. This app can show you the status of all inputs and outputs from one or more GSM-PRO2 modules. They also allow you a degree of control over the process. Module outputs can be controlled easily and directly using this app. The app´s buttons provide an intuitive control interface (for controlling a heater, motor, water pump, etc.).
Web IoT portal software CONTA-SUPERVISION
The GSM-PRO2, like most SMS modules, is often used as stand-alone units in the field. These modules are put to use at various remote locations even though they normally have configurations which are very similar. It is often quite helpful to have one overall view of the status of all modules used in the field. The new GSM-PRO2 web-based portal software from CONTA-CLIP offers you precisely this possibility. All modules in the field can now be easily monitored and run from a single local site or control panel.
The CONTA-SUPERVISION IoT portal can be opened in a web browser but is also available as an APP in the Google Play or Apple App store. Try the unlimited possibilities of the CONTA-SUPERVISION IoT portal for FREE . There will be a minimal annual cost in the future (around €99/year per Account), but two GSM-PRO2 modules can still use the CONTA-SUPERVISON IoT portal for FREE . An annual fee will be charged for more than two GSM-PRO2 modules.
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.
Do you require signalling devices and beacons in your production process? Download our latest whitepaper!
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.
Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | GPS | LED status | Number of outputs | Operating temperature from | Current consumption | Number of inputs | Operating temperature to | Electromagnetic compatibility | Approvals | Supply voltage | Extension module | Weight | Length | Width | Height | Input resistance U / I | Load resistance U | Control pulse length min | Temperature coefficient | Resolution I (0-20 mA) | Input | Input frequency max | Input resistance RTD | Resolution U (0-10 V dc) | Logic "0" | Counter input (pull-down) | Threshold digital inputs | Resolution RTD | Input signal U / I max | Minimum pulse duration | Switching current max | Electrical life in hours (AC1) | Contact configuration | Relay contact | Rated V ac / switching V ac max | Mechanical life hours | Continuous current max / Inrush current max | Module current (all relays) max | Contact material | Output | Switching capacity max | Connection type | Number of ext. modules max | 2G | Antenna GSM | Voltage active antenna | Antenna GPS | 3G | Time to first fix (@ -140dBm) | 4G | Frequency GPS | SIM card | Relative humidity max | DIN-VDE Spec | Frequency spectrum | IP class | Storage temperature min | Storage temperature max | Cross section stranded wire from | Cross section stranded wire to | Cross section stranded with ferrule from | Cross section stranded with ferrule to | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
GSM-PRO2-4G-EU, 4G GSM Module for Europe , 2 input, 1 output, expandable, without antenna
Art:
16454.2
Copied
|
No
|
|
1
|
-20 °C
|
275 mA @ 24V dc
|
2
|
60 °C
|
EN55011, EN61326-1
|
|
10-30V dc
|
|
149 g
|
88 mm
|
36 mm
|
77 mm
|
80K / 500Ω
|
|
|
|
40 µA / ± (40 µ + 0,3%)
|
|
|
|
20mV / ±(20mV+0,3%)
|
|
1000 pulses/s max. Pulldown res. 24 kOhm
|
Low <3, High >6V
|
|
30 V / -
|
500 ms
|
|
1,5x10⁵
|
|
1 CO
|
250 / 250 V ac
|
15x10⁶
|
5 / 5 A
|
|
AgNi 90/10
|
|
1200 VA
|
Screw
|
15
|
Quad-band GSM bands: 850, 900, 1800 and 1900 MHz
|
50 Ohm, SMA-plug
|
|
|
Five-band UMTS (WCDMA/FDD) bands: 800, 850, 900, 1800, 1900 and 2100 MHz
|
|
LTE CAT1: Penta band 700 (Bd28)/ 800 (Bd20)/900 (Bd8)/1800 (Bd3)/2100 MHz (Bd1)
|
|
Nano-SIM
|
80 %
|
LVD 2014/35/EC, EN 50178. EMC 2014/30/EC, EN 61326-1
|
ETSI EN 301-511 V9.0.2
|
IP20
|
|
|
|
|
|
|
| ||
GSM-PRO2E-4G-EU, 4G GSM Module for Europe, 10 input, 4 output, expandable, without antenna
Art:
16455.2
Copied
|
No
|
|
4
|
-20 °C
|
275 mA @ 24V dc
|
10
|
60 °C
|
EN55011, EN61326-1
|
|
10-30V dc
|
|
262 g
|
88 mm
|
95 mm
|
77 mm
|
80K / 500Ω
|
|
|
|
40 µA / ± (40 µ + 0,3%)
|
|
|
|
20mV / ±(20mV+0,3%)
|
|
1000 pulses/s max. Pulldown res. 24 kOhm
|
Low <3, High >6V
|
|
30 V / -
|
500 ms
|
|
1,5x10⁵
|
|
1 CO
|
250 / 250 V ac
|
15x10⁶
|
5 / 5 A
|
|
AgNi 90/10
|
|
1200 VA
|
Screw
|
15
|
Quad-band GSM bands: 850, 900, 1800 and 1900 MHz
|
50 Ohm, SMA-plug
|
|
|
Five-band UMTS (WCDMA/FDD) bands: 800, 850, 900, 1800, 1900 and 2100 MHz
|
|
LTE CAT1: Penta band 700 (Bd28)/ 800 (Bd20)/900 (Bd8)/1800 (Bd3)/2100 MHz (Bd1)
|
|
Nano-SIM
|
80 %
|
LVD 2014/35/EC, EN 50178. EMC 2014/30/EC, EN 61326-1
|
ETSI EN 301-511 V9.0.2
|
IP20
|
|
|
|
|
|
|
| ||
|
GSM-PRO2-4G-US, 4G GSM Module for USA ONLY , 2 input, 1 output, expandable, without antenna
Art:
16456.2
Copied
|
No
|
|
1
|
-20 °C
|
275 mA @ 24V dc
|
2
|
60 °C
|
EN55011, EN61326-1
|
|
10-30V dc
|
|
149 g
|
88 mm
|
36 mm
|
77 mm
|
80K / 500Ω
|
|
|
|
40 µA / ± (40 µ + 0,3%)
|
|
|
|
20mV / ±(20mV+0,3%)
|
|
1000 pulses/s max. Pulldown res. 24 kOhm
|
Low <3, High >6V
|
|
30 V / -
|
500 ms
|
|
1,5x10⁵
|
|
1 CO
|
250 / 250 V ac
|
15x10⁶
|
5 / 5 A
|
|
AgNi 90/10
|
|
1200 VA
|
Screw
|
15
|
Quad-band GSM bands: 850, 900, 1800 and 1900 MHz
|
50 Ohm, SMA-plug
|
|
|
Five-band UMTS (WCDMA/FDD) bands: 800, 850, 900, 1800, 1900 and 2100 MHz
|
|
LTE CAT1: Quad band, 700 (Bd12)/ 850 (Bd5)/AWS (Bd4)/1900 MHz (Bd2)
|
|
Nano-SIM
|
80 %
|
LVD 2014/35/EC, EN 50178. EMC 2014/30/EC, EN 61326-1
|
ETSI EN 301-511 V9.0.2
|
IP20
|
|
|
|
|
|
|
| ||
|
GSM-PRO2E-4G-US, 4G GSM Module for USA ONLY , 10 input, 4 output, expandable, without antenna
Art:
16457.2
Copied
|
No
|
|
4
|
-20 °C
|
275 mA @ 24V dc
|
10
|
60 °C
|
EN55011, EN61326-1
|
|
10-30V dc
|
|
262 g
|
88 mm
|
95 mm
|
77 mm
|
80K / 500Ω
|
|
|
|
40 µA / ± (40 µ + 0,3%)
|
|
|
|
20mV / ±(20mV+0,3%)
|
|
1000 pulses/s max. Pulldown res. 24 kOhm
|
Low <3, High >6V
|
|
30 V / -
|
500 ms
|
|
1,5x10⁵
|
|
1 CO
|
250 / 250 V ac
|
15x10⁶
|
5 / 5 A
|
|
AgNi 90/10
|
|
1200 VA
|
Screw
|
15
|
Quad-band GSM bands: 850, 900, 1800 and 1900 MHz
|
50 Ohm, SMA-plug
|
|
|
Five-band UMTS (WCDMA/FDD) bands: 800, 850, 900, 1800, 1900 and 2100 MHz
|
|
LTE CAT1: Quad band, 700 (Bd12)/ 850 (Bd5)/AWS (Bd4)/1900 MHz (Bd2)
|
|
Nano-SIM
|
80 %
|
LVD 2014/35/EC, EN 50178. EMC 2014/30/EC, EN 61326-1
|
ETSI EN 301-511 V9.0.2
|
IP20
|
|
|
|
|
|
|
| ||
GSM-PRO-10DI, Digital input expansion module for GSM-PRO2 range, 10 input, 24VDC
Art:
16375.2
Copied
|
No
|
Yes
|
|
-20 °C
|
30 mA
|
10
|
60 °C
|
|
CE
|
20-28V dc
|
Yes
|
154 g
|
53 mm
|
95 mm
|
60 mm
|
58K
|
|
15 ms
|
|
|
Digital
|
20 Hz
|
|
|
<3 V
|
|
|
|
30V dc / -
|
|
|
|
|
|
|
|
|
|
|
|
|
Screw
|
|
|
|
|
|
|
|
|
|
|
90 %
|
LVD 2014/35/EC, EN 50178. EMC 2014/30/EC, EN 61326-1
|
|
IP20
|
|
|
|
|
|
|
| ||

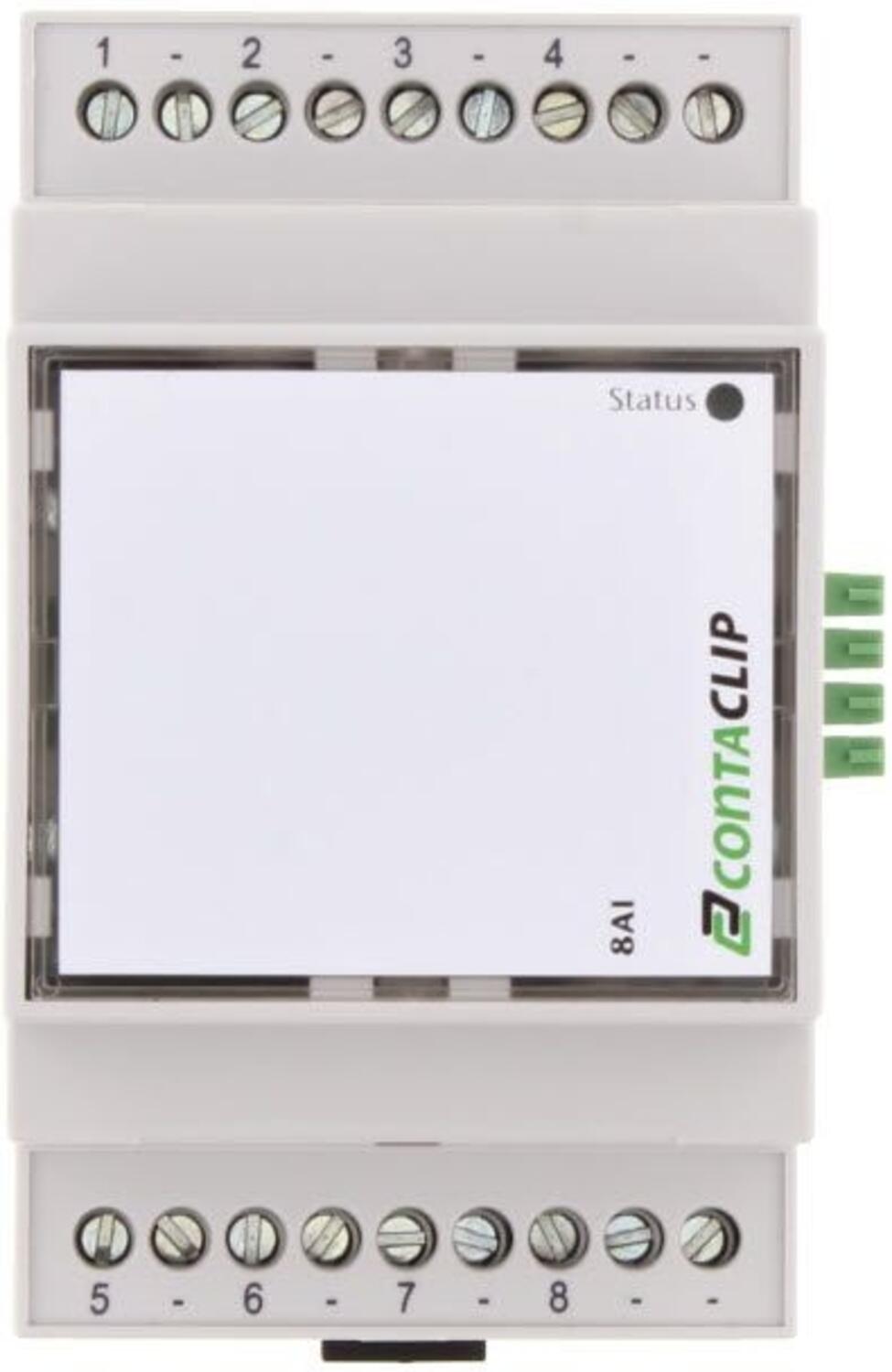

GSM-PRO-8AI, Analogue input extension module for GSMPRO2 range, 8 input, 24VDC
Art:
16377.2
Copied
|
No
|
|
|
-20 °C
|
50 mA
|
8
|
60 °C
|
|
CE
|
20-28V dc
|
Yes
|
128 g
|
53 mm
|
95 mm
|
60 mm
|
200K / 250Ω
|
|
|
<0,02% / K
|
10 bit / ± (20 µA + 0,4% of measured value)
|
Analog
|
|
Plug-in, default 5k11 for Ni/PT1000 RTD sensors
|
10bit / ± (10mV + 0,3% of measured value)
|
|
|
|
14 bit / ± (0,4 °C + 0,5% of measured value)
|
10V dc / 20 mA
|
|
|
|
|
|
|
|
|
|
|
|
|
Screw
|
|
|
|
|
|
|
|
|
|
|
90 %
|
LVD 2014/35/EC, EN 50178. EMC 2014/30/EC, EN 61326-1
|
|
IP20
|
|
|
|
|
|
|
| ||

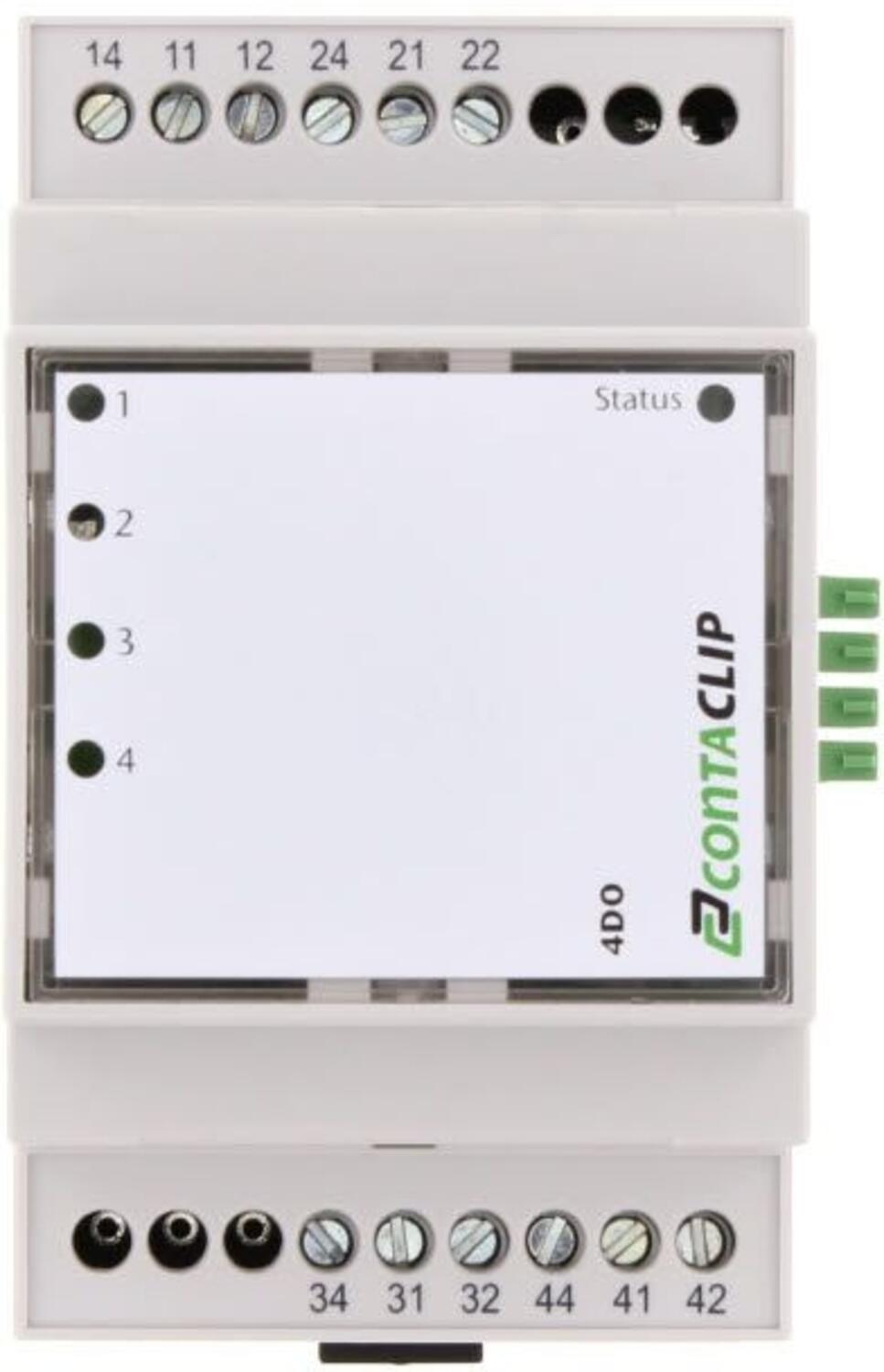

GSM-PRO-4DO,Relay output extension module for GSM-PRO2 range, 4 change over outputs, 24VDC
Art:
16378.2
Copied
|
No
|
Yes
|
4
|
-20 °C
|
100 mA
|
|
60 °C
|
|
CE
|
20-28V dc
|
Yes
|
172 g
|
53 mm
|
95 mm
|
60 mm
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
16 / 80 (20 ms)
|
1x10⁵
|
1 CO
|
|
250 / 250 V ac
|
30x10⁵
|
|
32 A
|
AgSnO2
|
Digital
|
4000 VA
|
Screw
|
|
|
|
|
|
|
|
|
|
|
90 %
|
LVD 2014/35/EC, EN 50178. EMC 2014/30/EC, EN 61326-1
|
|
IP20
|
|
|
|
|
|
|
| ||
|
GSM-PRO-4DO,Relay output extension module for GSM-PRO2 range, 4 change over outputs, 12VDC
Art:
16444.2
Copied
|
No
|
Yes
|
4
|
-20 °C
|
100 mA
|
|
60 °C
|
|
CE
|
12 V dc
|
Yes
|
172 g
|
53 mm
|
95 mm
|
60 mm
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
16 / 80 (20 ms)
|
1x10⁵
|
1 CO
|
|
250 / 250 V ac
|
30x10⁵
|
|
32 A
|
AgSnO2
|
Digital
|
4000 VA
|
Screw
|
|
|
|
|
|
|
|
|
|
|
90 %
|
LVD 2014/35/EC, EN 50178. EMC 2014/30/EC, EN 61326-1
|
|
IP20
|
|
|
|
|
|
|
| ||

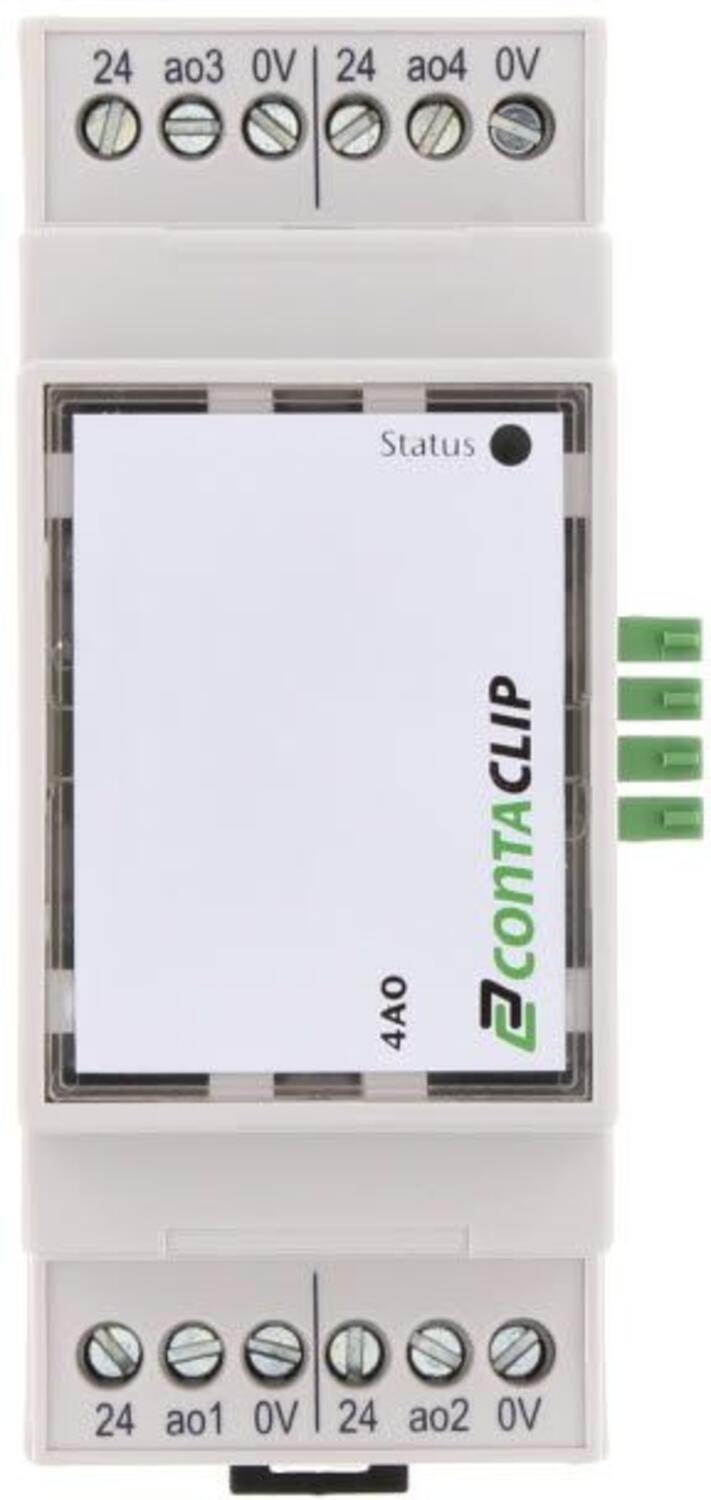

GSM-PRO-4AO, Analogue output extension module for GSM-PRO2 range, 4 output, 24VDC
Art:
16376.2
Copied
|
No
|
No
|
4
|
-20 °C
|
57 mA
|
|
60 °C
|
|
CE
|
20-28V dc
|
Yes
|
66 g
|
36 mm
|
95 mm
|
60 mm
|
|
>1000 Ω
|
|
<0,02% / K
|
|
|
|
|
10bit / ± (30mV + 0,5% of measured value)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Analog
|
|
Screw
|
|
|
|
|
|
|
|
|
|
|
90 %
|
LVD 2014/35/EC, EN 50178. EMC 2014/30/EC, EN 61326-1
|
|
IP20
|
|
|
|
|
|
|
| ||
GSM-PRO-CON Modbus Connection Module
Art:
16458.2
Copied
|
|
|
|
|
|
|
|
|
|
20-28 V dc
|
Yes
|
105 g
|
36 mm
|
95 mm
|
60 mm
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
90 %
|
|
|
|
-20 °C
|
70 °C
|
0,2 mm²
|
4 mm²
|
0,2 mm²
|
2,5 mm²
|
| ||
|
GSM-PRO2, 3G GSM Module - ** Replaced by 16454.2 - 4G EU version **
Art:
16368.2
Copied
|
No
|
|
1
|
-20 °C
|
275 mA @ 24V dc
|
2
|
60 °C
|
EN55011, EN61326-1
|
|
10-30V dc
|
|
135 g
|
88 mm
|
36 mm
|
77 mm
|
80K / 500Ω
|
|
|
|
40 µA / ± (40 µ + 0,3%)
|
|
|
|
20mV / ±(20mV+0,3%)
|
|
1000 pulses/s max. Pulldown res. 24 kOhm
|
Low <3, High >6V
|
|
30 V / -
|
500 ms
|
|
1,5x10⁵
|
|
1 CO
|
250 / 250 V ac
|
15x10⁶
|
5 / 5 A
|
|
AgNi 90/10
|
|
1200 VA
|
Screw
|
15
|
Quad-band GSM bands: 850, 900, 1800 and 1900 MHz
|
50 Ohm, SMA-plug
|
|
|
Five-band UMTS (WCDMA/FDD) bands: 800, 850, 900, 1800, 1900 and 2100 MHz
|
|
|
|
Nano-SIM
|
80 %
|
LVD 2014/35/EC, EN 50178. EMC 2014/30/EC, EN 61326-1
|
ETSI EN 301-511 V9.0.2
|
IP20
|
|
|
|
|
|
|
| ||
|
GSM-PRO2E 3G GSM Module - ** Replaced by 16455.2 - 4G EU version **
Art:
16407.2
Copied
|
No
|
|
4
|
-20 °C
|
275 mA @ 24V dc
|
10
|
60 °C
|
EN55011, EN61326-1
|
|
10-30V dc
|
|
230 g
|
88 mm
|
95 mm
|
77 mm
|
80K / 500Ω
|
|
|
|
40 µA / ± (40 µ + 0,3%)
|
|
|
|
20mV / ±(20mV+0,3%)
|
|
1000 pulses/s max. Pulldown res. 24 kOhm
|
Low <3, High >6V
|
|
30 V / -
|
500 ms
|
|
1,5x10⁵
|
|
1 CO
|
250 / 250 V ac
|
15x10⁶
|
5 / 5 A
|
|
AgNi 90/10
|
|
1200 VA
|
Screw
|
15
|
Quad-band GSM bands: 850, 900, 1800 and 1900 MHz
|
50 Ohm, SMA-plug
|
|
|
Five-band UMTS (WCDMA/FDD) bands: 800, 850, 900, 1800, 1900 and 2100 MHz
|
|
|
|
Nano-SIM
|
80 %
|
LVD 2014/35/EC, EN 50178. EMC 2014/30/EC, EN 61326-1
|
ETSI EN 301-511 V9.0.2
|
IP20
|
|
|
|
|
|
|
| ||

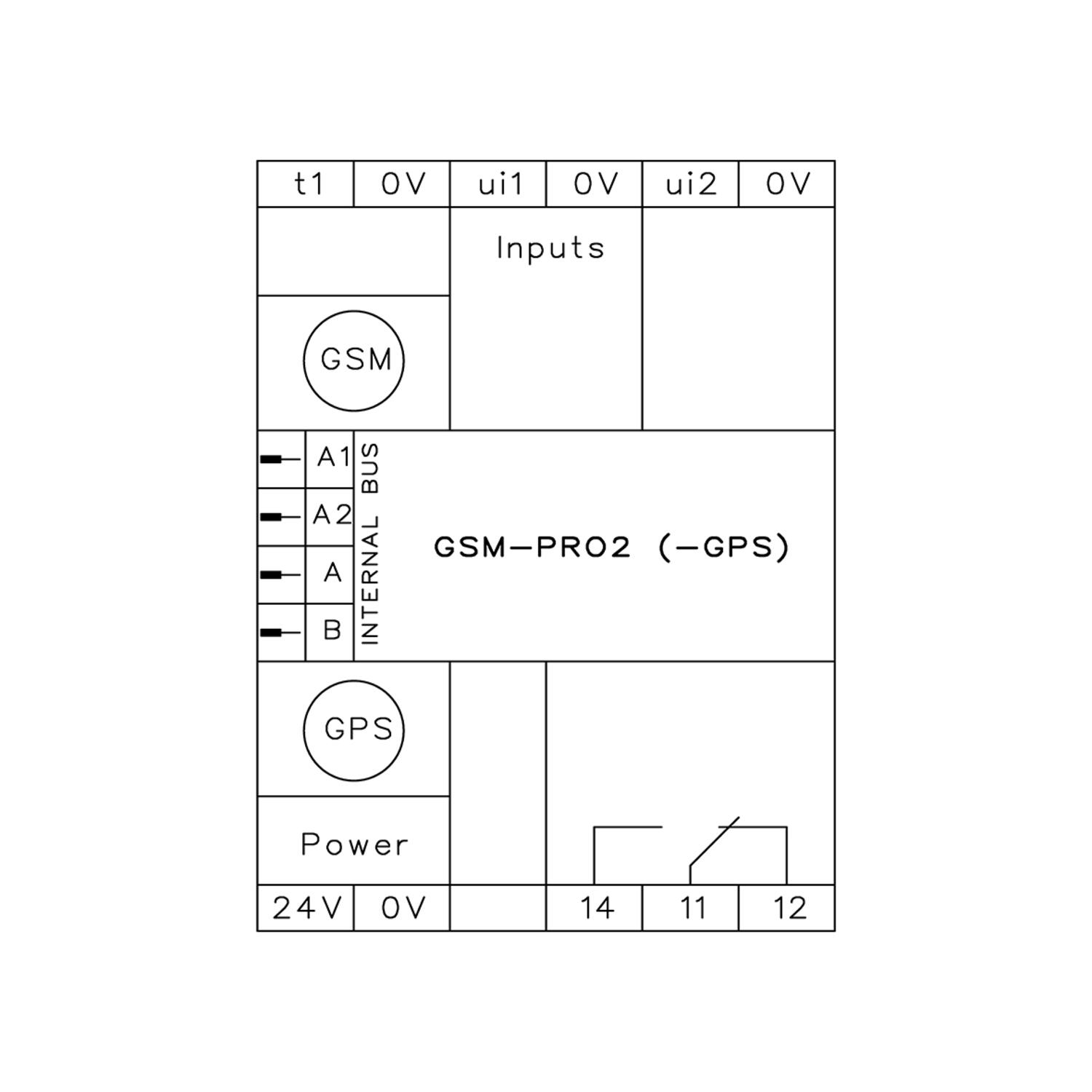

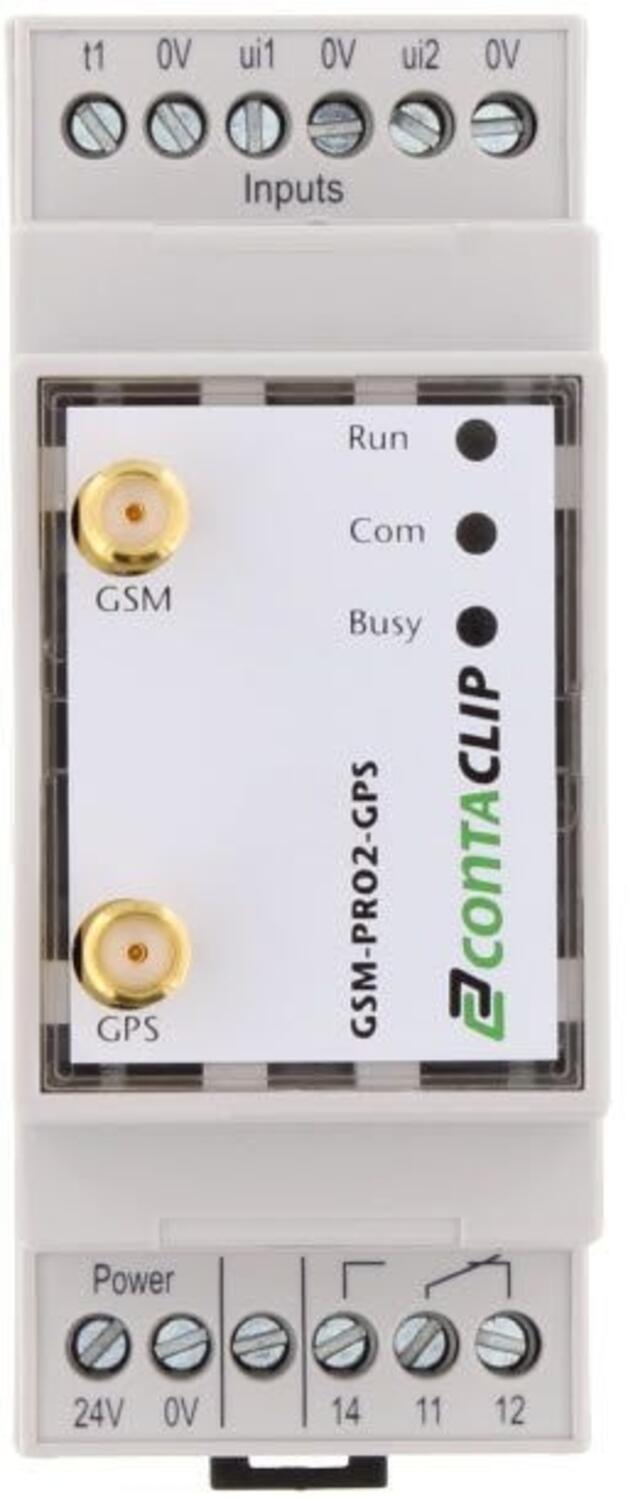

GSM-PRO2-GPS, 3G GSM Module with GPS - ** OBSOLETE **
Art:
16369.2
Copied
|
Yes
|
|
1
|
-20 °C
|
275 mA @ 24V dc
|
2
|
60 °C
|
EN55011, EN61326-1
|
|
10-30V dc
|
|
137 g
|
88 mm
|
36 mm
|
77 mm
|
80K / 500Ω
|
|
|
|
40 µA / ± (40 µ + 0,3%)
|
|
|
|
20mV / ±(20mV+0,3%)
|
|
1000 pulses/s max. Pulldown res. 24 kOhm
|
Low <3, High >6V
|
|
30 V / -
|
500 ms
|
|
1,5x10⁵
|
|
1 CO
|
250 / 250 V ac
|
15x10⁶
|
5 / 5 A
|
|
AgNi 90/10
|
|
1200 VA
|
Screw
|
15
|
Quad-band GSM bands: 850, 900, 1800 and 1900 MHz
|
50 Ohm, SMA-plug
|
3 V @ RF plug
|
50 Ohm, SMA-plug
|
Five-band UMTS (WCDMA/FDD) bands: 800, 850, 900, 1800, 1900 and 2100 MHz
|
Hot<2s, warm<35s, cold<46s
|
|
1575-1587 Mhz
|
Nano-SIM
|
80 %
|
LVD 2014/35/EC, EN 50178. EMC 2014/30/EC, EN 61326-1
|
ETSI EN 301-511 V9.0.2
|
IP20
|
|
|
|
|
|
|
| ||
GSM-PRO2E-GPS, 3G GSM Module with GPS, - ** OBSOLETE **
Art:
16408.2
Copied
|
Yes
|
|
4
|
-20 °C
|
275 mA @ 24V dc
|
10
|
60 °C
|
EN55011, EN61326-1
|
|
10-30V dc
|
|
232 g
|
88 mm
|
95 mm
|
77 mm
|
80K / 500Ω
|
|
|
|
40 µA / ± (40 µ + 0,3%)
|
|
|
|
20mV / ±(20mV+0,3%)
|
|
1000 pulses/s max. Pulldown res. 24 kOhm
|
Low <3, High >6V
|
|
30 V / -
|
500 ms
|
|
1,5x10⁵
|
|
1 CO
|
250 / 250 V ac
|
15x10⁶
|
5 / 5 A
|
|
AgNi 90/10
|
|
1200 VA
|
Screw
|
15
|
Quad-band GSM bands: 850, 900, 1800 and 1900 MHz
|
50 Ohm, SMA-plug
|
3 V @ RF plug
|
50 Ohm, SMA-plug
|
Five-band UMTS (WCDMA/FDD) bands: 800, 850, 900, 1800, 1900 and 2100 MHz
|
Hot<2s, warm<35s, cold<46s
|
|
1575-1587 Mhz
|
Nano-SIM
|
80 %
|
LVD 2014/35/EC, EN 50178. EMC 2014/30/EC, EN 61326-1
|
ETSI EN 301-511 V9.0.2
|
IP20
|
|
|
|
|
|
|
|
Select a variant in the list
